  1. Backup and Disaster Recovery with SHADOWSAFEIT-010 Instructor Larry Bates Instructor larry.bates@vitalesafe.com Telephone Number (205) 523-3432

  2. SHADOWSAFE SHADOWSAFE is a managed backup and disaster recovery solution that provides everything you need for total backup AND disaster recovery (BDR) coverage for all your servers and critical workstations. Backup and Disaster Recovery with SHADOWSAFE IT-010

  3. Backup and Disaster Recovery are Different • Backups are required for different points-in-time • Backups allow you to recover individual files/folders (normally not great for an entire system or volume) • Backups are primarily used for data files because applications are difficult to restore from backups • Disaster recovery solutions should allow you to recover entire systems or volumes quickly • Disaster Recovery absolutely requires secure offsite storage (or you will NOT survive a true disaster) • A complete Backup and Disaster Recovery system is one that provides you with point-in-time backups AND disaster recovery as a single application Backup and Disaster Recovery with SHADOWSAFE IT-010

  4. Enter Slide Title Here • It is no longer necessary to cobble together a Backup solution and a Disaster Recovery solution from three/four different vendors (one for backup, one for disaster recovery, one for virtual machines, and one for offsite storage) • SHADOWSAFE provides backup and disaster recovery as a bundled service: • Point-in-time incremental backups are done (one or more times per day) and a local and remote copy is maintained • These incremental images are securely uploaded to your VITALESAFE account (in the background and unattended) • One solution to all your BDR needs means less training for your IT staff and reduces the chance of errors and increases confidence in your solution Backup and Disaster Recovery with SHADOWSAFE IT-010

  5. SHADOWSAFE – Benefits • Replace your old backup systems (tape, D2D) • Provides completely unattended operation • All backups are stored locally and in VITALESAFE • Volume level backups (full/changed blocks only) • Servers, Workstations, Laptops (Windows only) • Hot backups of MS SQL/Exchange/SharePoint, Oracle, Pervasive, NTFS file systems (no shutdown required) • Bare metal/hardware independent disaster recovery (so easy its like magic!) • Remote restore administration via VNC server • Installation and configuration in as little as 20 minutes Backup and Disaster Recovery with SHADOWSAFE IT-010

  6. SHADOWSAFE – How it works Backup and Disaster Recovery with SHADOWSAFE IT-010

  7. SHADOWSAFE – How it works Volumes are backed up as images (collections of blocks) not on a file-by-file basis Never worry about excluding or missing files/folders by accident Backup images can be mounted as virtual drives allowing individual files/folders to be recovered quickly (with copy/paste) Entire volumes/systems can be restored in minutes (from local copy) Backup and Disaster Recovery with SHADOWSAFE IT-010 7

  8. SHADOWSAFE – How it works The SHADOWSAFE service includes every-thing you need (software, hardware and our online service) in your startup kit. Initial full backup is returned (via external drive) to VITALESAFE for loading Incrementals are uploaded to VITALESAFE via the Internet Full backups are refreshed periodically In the event of a disaster VITALESAFE will ship all full + incrementals to user on a external drive Normal recovery is done via local storage Backup and Disaster Recovery with SHADOWSAFE IT-010 8

  9. SHADOWSAFE – If Your Time Matters Fact: there are a number of solutions that can make an offsite backup copy of your data (unbelievably some “solutions” could take weeks to complete your initial backup and weeks to do a full restore!). What makes SHADOWSAFE “different” is how fast you can get systems “up and running/restored” (VirtualBoot, Hardware Independent Restore, rapidRestore) SHADOWSAFE minimizes the time/effort required to get a server/workstation back up and running Recovery VirtualBoot rapidRestore Backup and Disaster Recovery with SHADOWSAFE IT-010 9

  10. SHADOWSAFE – If Your Time Matters We have seen “competitive” solutions require you to have a working Windows Server installation (complete with all your applications re-installed) before you can restore your data! Question: How long would it take (and how much would that cost) to meet that requirement? Question: In the event of a catastrophic failure (fire, flood, theft, etc.) how many customers are going to be able to locate their “applications” CD-ROMS so that they can be reloaded? How much downtime will that require? continued Recovery VirtualBoot rapidRestore Backup and Disaster Recovery with SHADOWSAFE IT-010 10

  11. SHADOWSAFE – VirtualBoot demo Obtain hard drive that contains the most recent backup (from VITALESAFE if required) Connect a machine that has Sun VirtualBox (free) installed Browse to a backup (normally the last one) on the external hard drive Right click and choose VirtualBoot Answer a few questions for VirtualBox Backup image will boot as a virtual machine and you are up and running in less than 5 minutes (now go fix server) VirtualBoot Backup and Disaster Recovery with SHADOWSAFE IT-010 11

  12. SHADOWSAFE – Restore file demo Launch ShadowProtect application Click Explore Backup Locate the backup you want to explore Mount the backup as a drive This drive now represents the way the selected volume looked at that point-in-time Repeat as necessary choosing older/newer backups until you locate the version that you want Backup and Disaster Recovery with SHADOWSAFE IT-010 12

  13. SHADOWSAFE – Restore machine Obtain hard drive that contains the most recent backup (from VITALESAFE if required) Restoring to same or new hardware? If new hardware, copy new driver files to a folder on external hard drive Boot system with ShadowProtect Recovery Environment CD-ROM Create and restore volumes choosing hardware independent restore (HIR) on boot volume (C:\) Boot machine and activate Operating System Backup and Disaster Recovery with SHADOWSAFE IT-010 13

  14. SHADOWSAFE – Virtual Converter SHADOWSAFE works with physical or virtual machines (or a mixture) With SHADOWSAFE you can convert a point-in-time backup image to .VHD (Microsoft Hyper-V) or .VMDK (VMware) file Move machines from physical to virtual (P2V) and virtual to physical (V2P) directly from the most recent backup of the machine and in minutes HeadStart Restore (optional) – point-in-time backups are automatically recovered as a virtual machine .VMDK “on the fly”. Backup and Disaster Recovery with SHADOWSAFE IT-010 14

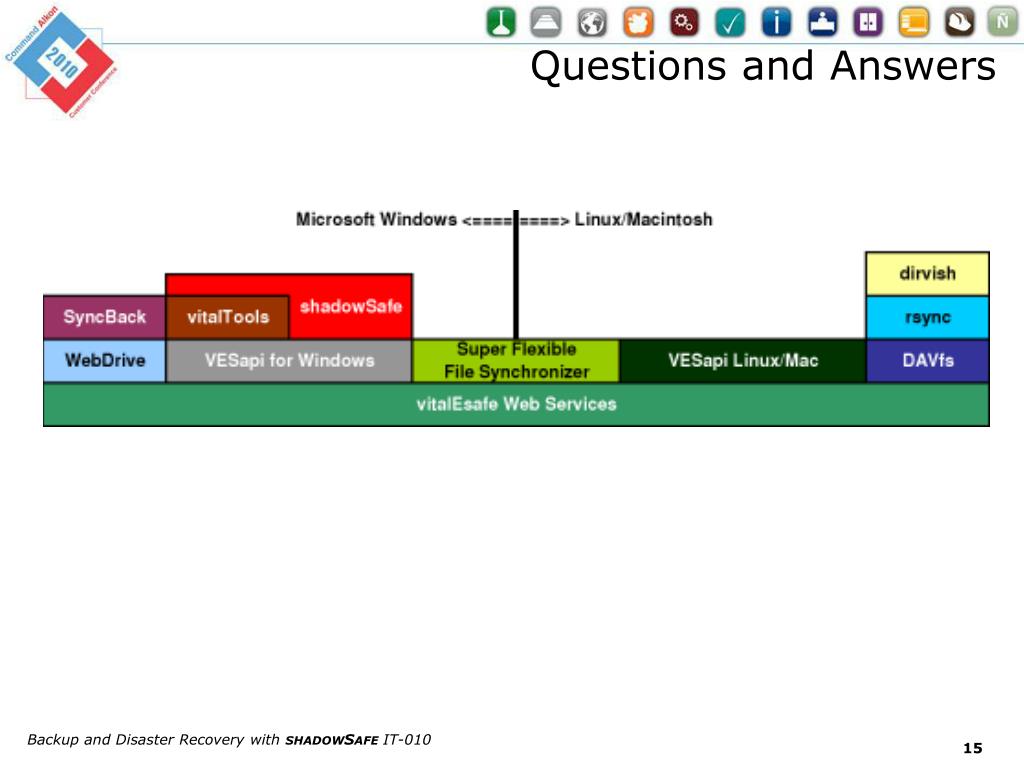

  15. Questions and Answers Backup and Disaster Recovery with SHADOWSAFE IT-010

  16. Please Complete Your Evaluation • All breakout session materials can be accessed at: • www.commandalkon.com/cc2010/update/index.htm • Be sure to circle the session you are evaluating on the back of your card • IT (Track Name) • IT-010 (session code) • Backup and Disaster Recovery with SHADOWSAFE (session title) • Thank You! Backup and Disaster Recovery with SHADOWSAFE IT-010
