  1. 1926 Subpart L Scaffolds

  2. History • Subpart L originally issued in December 1971 • Amendments during the first two years: • Planking grade • Overhead protection • Plank spans • Guardrails • Complete review of Subpart L initiated in 1977

  3. History • Scaffold injuries and fatalities continue despite Subpart L provisions • Almost 10,000 scaffold related injuries annually. • Over 75 scaffold-related fatalities annually • Advisory Committee on Construction Safety and Health (ACCSH) consulted on draft revisions

  4. Need for Additional Regulation • BLS statistics: • 72% of workers injured on scaffolds attributed accident to planking giving way, slips, or falling objects • 70% of workers learn safety requirements on-the-job • 25% received no training • Only 1/3 of scaffolds equipped with guardrails

  5. Need for Additional Regulation • Scaffold related fatalities accounted for approximately 10% of construction fatalities • OSHA determines revision of scaffold standard is necessary • Estimates changes can save 50 lives and prevent 4500 injuries annually

  6. A long process • OSHA issued the notice of proposed rule making for the updated standard on November 25, 1986 • It took 10 years to finalize • Effective: November 29, 1996

  7. Purpose of new standard • More performance based, allows flexibility • Simplifies language, eliminates redundancies • Increased options for use of fall protection

  8. Major issues resolved • Trigger height for fall protection 10 feet • 38 inch guardrail height when primary FP • 36 inch when guardrails required and fall arrest used (e.g.: suspended scaffolds) • CP determines FP feasibility for erectors and dismantlers • Crossbracing for guardrail per .451 (g)(4)(xv)

  9. 1926.450 Scope, application and definitions applicable to this subpart 1926.451 General requirements 1926.452 Additional requirements applicable to specific types of scaffolds 1926.453 Aerial lifts 1926.454 Training Appendix A - Scaffold Specifications Organization of Standard • Appendix B - (Reserved) Criteria for Determining the Feasibility of Providing Safety Access and Fall Protection for Scaffold Erectors and Dismantles • Appendix C - List of National Consensus Standards • Appendix D - List of Training Topics for Scaffold Erectors and Dismantlers • Appendix E - Drawings and Illustrations

  10. §1926.450 Scope, Application & Definitions • Covers all scaffolds used in workplaces. • Does not apply to crane or derrick suspended personnel platforms, which are covered by §1926.550 (g). • Aerial lifts are covered §1926.453.

  11. Scaffold Competent Person • Preamble - page 46059 • Knowledge of structural integrity • Maintenance of scaffolds • Effects of potential hazards • Knowledge of standard

  12. §1926.451 General Requirements (a) Capacity (b) Scaffold Platform Construction (c) Criteria for Supported Scaffolds (d) Criteria for Suspension Scaffolds (e) Access (f) Use (g) Fall Protection (h) Falling Object Protection

  13. 4 X 1926.451 (a)Capacity • Support without failure four times intended load (personnel, equipment and supplies)

  14. 1926.451 (a)Capacity • Connections to roof and floors four times the tipping moment • Suspension ropes & hardware 6 times intended load

  15. 1926.451 (b)Scaffold Platform Construction • Planked as fully as possible • Gaps to 1 inch or less • Max 9 1/2 inches around uprights when extending platform width with side brackets • Does not apply to walkways, erection and dismantling

  16. 1926.451 (b)Scaffold Platform Construction • Platforms at least 18 inches wide, • Where not feasible install guardrails or PFAS • Ladder jack, pump jack, and roof bracket scaffold at least 12 inches wide

  17. 6" 1926.451 (b)Scaffold Platform Construction • Front of scaffold no more than 14 inches from face of work • For outrigger scaffolds 3 inches • For plastering 18 inches • Unless secured platforms extend minimum of six inches over support

  18. 1926.451 (b)Scaffold Platform Construction • Platforms less than 10 feet, Max. extension over support 12 inches • Platforms over 10 feet, Max. extension over support 18 inches • Overlap platforms only over support, minimum overlap 12 inches unless nailed • Planks laid at angles other than 90º laid first under planks laid over supports at 90 º

  19. 1926.451 (b)Scaffold Platform Construction • No painting of scaffold planks or mud sills • No mixing components from different scaffolds unless they match

  20. 1926.451 (c)Supported Scaffolds • Guys, ties or braces required at the 4:1height ratio • Repeated every 20 feet for scaffolds three feet wide or less • Every 26 feet wider than three feet • Installed at each end of the scaffold • Horizontal spacing not to exceed 30 feet

  21. 1926.451 (c)Supported Scaffolds • Bracing required to prevent tipping for all eccentric applied loads • Scaffolds must bear on base plates and mud sills or other firm foundation • Footings rigid with no settling or displacement

  22. 1926.451 (c)Supported Scaffolds • Unstable objects shall not be used to support scaffolds or platform units. • Unstable objects shall not be used as working platforms.

  23. 1926.451 (c)Supported Scaffolds • Poles, legs, posts, frames, and uprights plumb and braced

  24. 1926.451 (d)Suspended Scaffolds • All suspended scaffold devices must rest on surfaces capable of supporting four times the the rated load of the hoist

  25. 1926.451 (d)Suspended Scaffolds • Outrigger beams made of structural metal or equivalent and restrained to prevent movement.

  26. 1926.451 (d)Suspended Scaffolds • Inboard ends of outrigger beams bolted to floor or roof or counterweighs, or tiebacks used • Tiebacks equivalent in strength to suspension ropes • All direct connections evaluated by competent person

  27. 1926.451 (d)Suspended Scaffolds • Counterweights non-flowable material • Only specifically designed counterweights allowed • Counterweights secured to outrigger beams by mechanical means • Counterweights not removed until scaffold is disassembled

  28. 1926.451 (d)Suspended Scaffolds • Tiebacks secured to structural anchorage • Not standpipes, vents, or conduit • Support devices (cornice hooks, parapet clamps) made of steel or equivalent and supported by bearing blocks • Tiebacks set perpendicular to building face

  29. 1926.451 (d)Suspended Scaffolds • Four wraps minimum on winding drum hoists • Use of repaired wire rope prohibited • Wire rope inspected by CP prior to each shift • Damaged rope must be replaced 4 wraps at lowest point of hoist travel

  30. 1926.451 (d)Suspended Scaffolds • Gas powered equipment not allowed • Power gears and brakes enclosed • Manual hoists require positive crank to descend • Secondary breaking device required or overspeed descent

  31. 1926.451 (e)Access • Scaffold more than two feet above or below a point of access ladders, stairs, ramps or other similar access provided • No cross braces for access! • Hook on ladders positioned so as not to tip the scaffold • Bottom rung within 24 inches of supporting level • Over 35 feet, rest levels every 35 feet

  32. 1926.451 (e)Access • Hook-on ladders compatible with scaffold used • Minimum rung width of 11 1/2 inches • Rungs uniformly spaced • 16 3/4 inches maximum rung spacing • Slip resistant treads on stairs and landings

  33. 1926.451 (e)Access • Stairrails provided on scaffold stair towers • Handrails smooth with no hazardous projections • 28 to 37 inches high • 18 inches wide 28" to 37 " 40º to 60º Riser height uniform, within 1/4 inch

  34. 1926.451 (e)Access • Ramps and walkways above 6 feet require guardrails • Maximum pitch: rise of one for run of three (20º) • Rise higher than one in eight require cleats 14" 1 8

  35. 1926.451 (e)Access • Prefabricated scaffold access: • specifically designed and constructed for use as ladder rungs; • Have a rung length of at least 8 inches • Uniformly spaced • Max. spacing 16 3/4 inches

  36. 1926.451 (e)Access • Erectors and dismantlers provided with: • Safe means of access; CP determines if feasible • Based on conditions and scaffold type • Attachable ladders installed ASAP • Horizontal members used for access not more than 22 inches apart • No cross braces for access

  37. 1926.451 (f)Use • No loading in excess of intended or rated load • Lean-to scaffolds prohibited • CP to inspect for defects each shift • Damaged scaffold repaired, replaced or braced

  38. 1926.451 (f)Use • No moving of scaffolds with employees on them unless designed by PE for such • For movement of mobile scaffolds see .452 (w) • Safe distance from electric lines: • Insulated lines: • Less than 300 volts = 3 feet • 300 volts to 50 kilovolts = 10 feet • Over 50 kilovolts = 10 feet plus .4 inches for each additional kV; or twice the length of the line insulator but never less than 10 feet

  39. 1926.451 (f)Use • Scaffolds erected, moved, dismantled, or altered only under the supervision and direction of a competent person qualified in scaffolds • Access scaffolds with snow/ice only to remove • Swinging loads near scaffolds must use tag lines

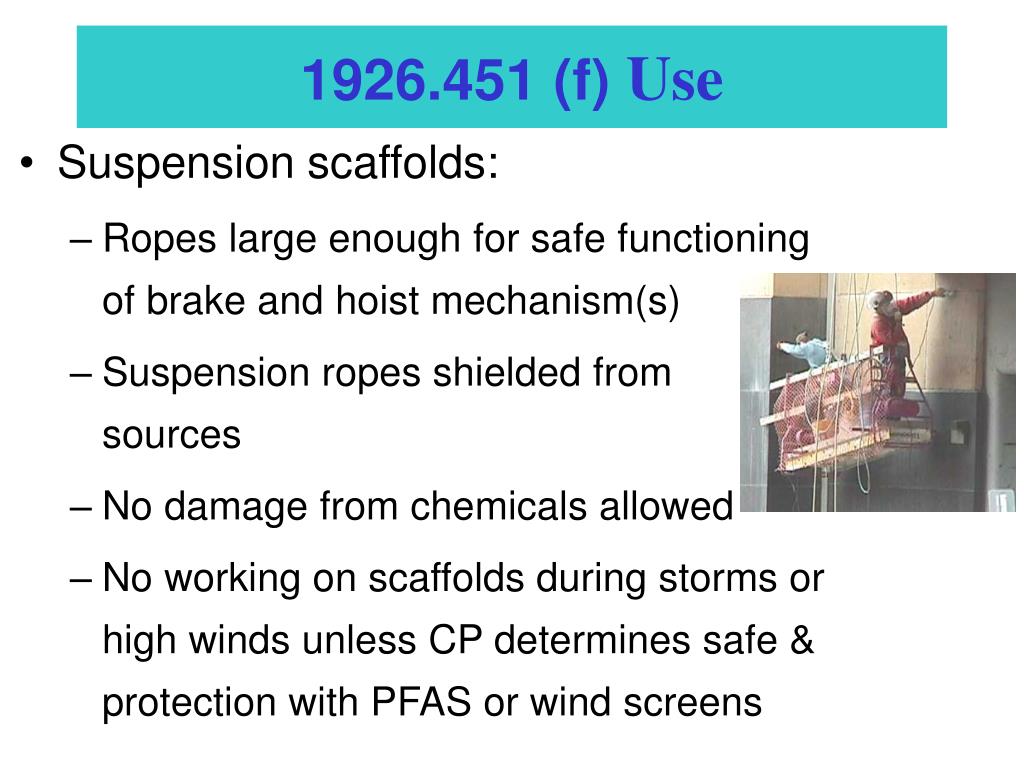

  40. 1926.451 (f)Use • Suspension scaffolds: • Ropes large enough for safe functioning of brake and hoist mechanism(s) • Suspension ropes shielded from heat sources • No damage from chemicals allowed • No working on scaffolds during storms or high winds unless CP determines safe & protection with PFAS or wind screens

  41. Debris shall not be allowed to accumulate on platforms.

  42. 1926.451 (f)Use • No increasing working height with makeshift devices • Ladders only used on scaffolds if: • Platform units secured • Ladder placed against other surfaces, scaffold secured • Legs on same platform or stabilized • Ladder legs secured

  43. 1926.451 (f)Use • Platforms shall not deflect more than 1/60 of the span when loaded.

  44. 1926.451 (f)Use • When welding from suspended scaffolds: • Isolate overhead support or insulated thimble used to attach suspension wire rope to its hanging support • Suspension wire rope covered with insulating material extending at least 4 feet above the hoist • Each hoist shall be covered with insulated protective covers; • Grounding conductor shall be connected from the scaffold to the structure • If scaffold grounding lead becomes disconnected, shut of welder until reconnected

  45. An active welding rod or uninsulated welding lead shall not be allowed to contact the scaffold or its suspension system.

  46. 1926.451 (g)Fall Protection • Fall protection required above 10 feet • Boatswains' chair, catenary scaffold, float scaffold, needle beam scaffold, or ladder jack scaffold shall be protected by a personal fall arrest system; • Single-point or two-point adjustable suspension scaffold shall be protected by both a personal fall arrest system and guardrail system;

  47. 1926.451 (g)Fall Protection • Crawling board (chicken ladder) protected by a personal fall arrest system, a guardrail system or by a three-fourth inch (1.9 cm) diameter grabline or equivalent handhold securely fastened beside each crawling board; • Self-contained adjustable scaffold protected by a guardrail system when platform is supported by the frame structure, by both a personal fall arrest system and a guardrail system when platform is supported by ropes;

  48. 1926.451 (g)Fall Protection • Each employee on a walkway located within a scaffold shall be protected by a guardrail system installed within 9 1/2 inches of and along at least one side of the walkway.

  49. 1926.451 (g)Fall Protection • Overhand bricklaying operations from a supported scaffold protected from falling from all open sides and ends of the scaffold (except at the side next to the wall being laid) a personal fall arrest system or guardrail system • For all scaffolds not otherwise specified, each employee protected by personal fall arrest systems or guardrail systems
