  1. USART 8051 Prof Afonso Ferreira Miguel

  2. Microcontrolador 8051 (MCS-51)Interface Serial • Full duplex UART. • Four modes of operation: • Synchronous serial I/O expansion. • Asynchronous serial I/O with variable baud rate. • Nine bit mode with variable baud rate. • Nine bit mode with fixed baud rate. • 10 or 11 bit frames. • Interrupt driven or polled operation. • Registers: • SCON - Serial port control register. • SBUF - Read received data. • - Write data to be transmitted. • PCON - SMOD bit.

  3. Microcontrolador 8051 (MCS-51)Interface Serial: Modos • TXD and RXD are the serial output and input pins (Port 3, bits 1 and 0). • Mode 0: Shift Register Mode. Serial data is transmitted/received on RXD. TXD outputs shift clock. Baud Rate is 1/12 of clock frequency; • Mode 1: 10-bits transmitted or received. Start (0), 8 data bits (LSB first), and a stop bit (1). Baud Rate Clock is variable using Timer 1 overflow or external count input. Can go up to 104.2KHz (20MHz osc.); • Mode 2: 11-bits transmitted or received. Start (0), 8 data bits (LSB first), programmable 9th bit, and stop bit (1). Baud Rate programmable to either 1/32 or 1/64 oscillator frequency (625KHz for 20MHz osc.); • Mode 3: 11-bit mode. 9 data bits; Baud Rate variable using Timer 1 overflow or external input. 104.2 KHz max. (20 MHz osc.).

  4. Microcontrolador 8051 (MCS-51) SCON

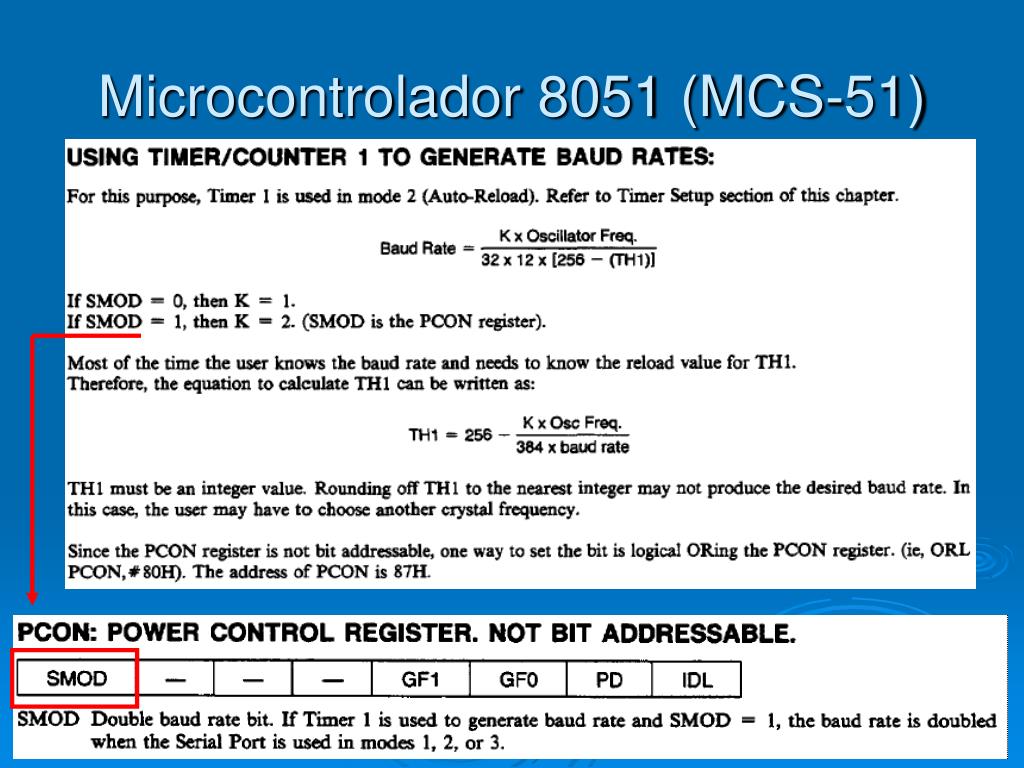

  5. Microcontrolador 8051 (MCS-51)

  6. Microcontrolador 8051 (MCS-51) • Configuração

  7. Microcontrolador 8051 (MCS-51) • Rotinas típicas para TX e RX um byte

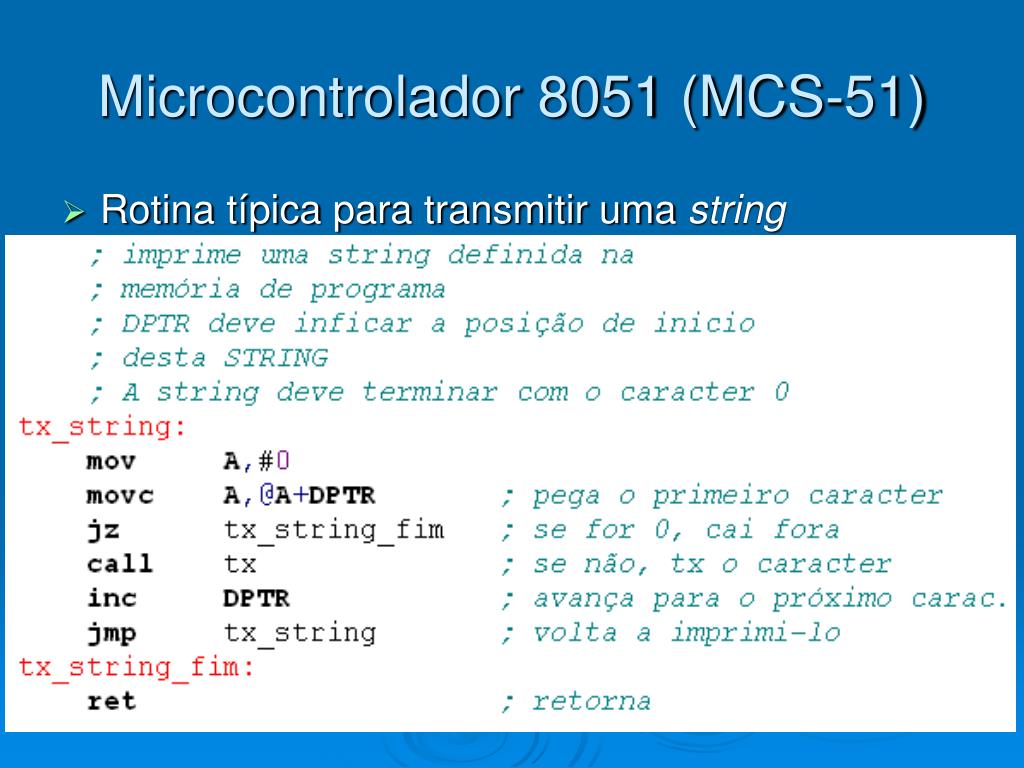

  8. Microcontrolador 8051 (MCS-51) • Rotina típica para transmitir uma string

  9. Microcontrolador 8051 (MCS-51) • Utilizando a rotina anterior: • Definindo a string em memória
