  1. Analog – ISDN Converter Connected to Avaya Integral Enterprise PBX

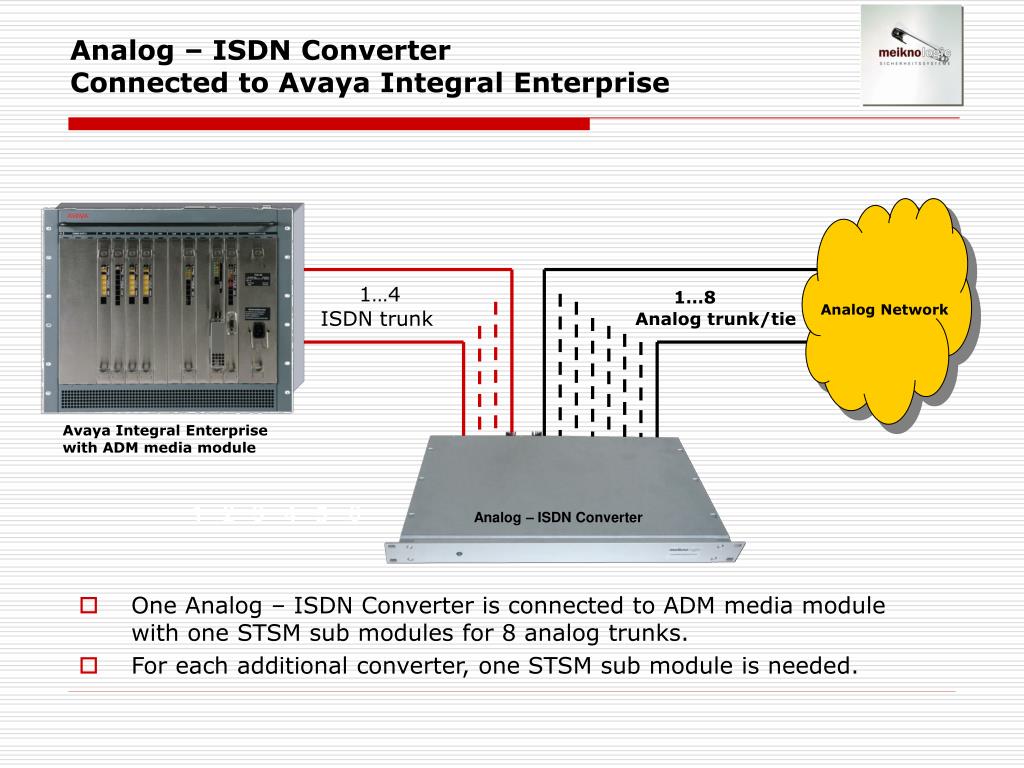

  2. Analog – ISDN Converter Connected to Avaya Integral Enterprise • One Analog – ISDN Converter is connected to ADM media module with one STSM sub modules for 8 analog trunks. • For each additional converter, one STSM sub module is needed. 1…4ISDN trunk 1…8Analog trunk/tie Analog Network Avaya Integral Enterprisewith ADM media module 1 2 3 6 4 5 Analog – ISDN Converter

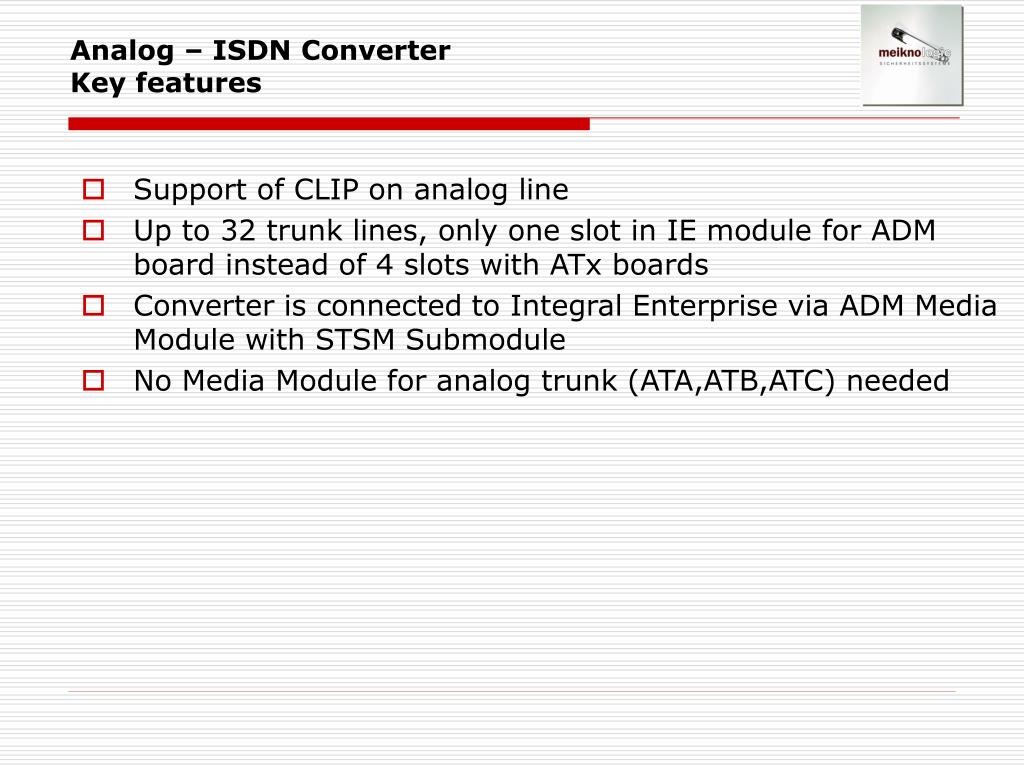

  3. Analog – ISDN Converter Key features • Support of CLIP on analog line • Up to 32 trunk lines, only one slot in IE module for ADM board instead of 4 slots with ATx boards • Converter is connected to Integral Enterprise via ADM Media Module with STSM Submodule • No Media Module for analog trunk (ATA,ATB,ATC) needed

  4. Analog – ISDN Converter Front view Power LED

  5. Analog – ISDN ConverterRear view USB connectors Main switch Fuse IEC socket Line connectors

  6. Analog – ISDN ConverterConnection Options / rear • 8 analog trunk lines • 4 internal T0 port to connect to the BRA port of PBX • 4 internal T0 port for synchronization with an ISDN exchange line in hybrid mode • Line and PBX connections with terminal strips • 4 USB ports for individual converter programming • IEC socket • Fuse 200mA • Power switch

  7. Analog – ISDN ConverterFeatures • 8 analog trunk line ports • 4 internal T0 port for connection with BRA port of ISDN PBX • Caller ID (CLIP and CNIP) including date and time • Call forwarding (busy / no reply / unconditional) • Call brokerage (HOLD) • Conference calls (3PTY) • Automatic call back (CCBS) • Configuration software for Windows (2000/XP)

  8. Analog – ISDN ConverterTrunk line features * • Tone (DTMF) and Pulse dialling • Recognition of dial and busy tone • Number and name presentation (CLIP/CNIP) with date and time • Remedial suppression of the own number (CLIR) • Recognition of charge pulses (12 kHz / 16 kHz) • Flash at trunk line, duration adjustable • Call forwarding on busy, if nobody answers the call, permanent (CFB, CFNR, CFU) • Brokering (HOLD); flash time adjustable • Three-party conference call (3PTY) • Automatic callback to busy subscriber (CCBS) • Operating key sequences adjustable *If supported and activated by network provider

  9. Analog – ISDN ConverterISDN features * • Point to Multipoint (PTMP) and Point to Point (PTP) connection • Number and name presentation (CLIP/CNIP) with date and time • Remedial suppression of the own number (CLIR) • Charge information during the call (AOCD) • Call forwarding on busy, if nobody answers the call, permanent (CFB, CFNR, CFU) • Call Brokerage (HOLD) • Three-party conference call (3PTY) • Automatic callback to busy subscriber (CCBS) *Depending on the functions which are available at the trunk line

  10. Analog – ISDN ConverterTechnical data • Operating voltage: 230V AC; +/-10 %; 50 Hz, Internal power supply, fuse 200mA • Power consumption 12 W min., 24 W max. • Exchange line connection: 8 analog ports, DTMF, CLIP/CNIP support • Internal S0: 4 BRA, Point-to-Multipoint Connection (PTMP), Euro ISDN (DSS-1) • S0-synchronisation port: Point-to-Multipoint (PTMP) or Point-to- Point (PTP) Connection • PC/data connection: USB (V1.1, compatible to V2.0) • Case: Metal, 1 HU, 19“ chassis with Alloy front panel • Dimensions: (w x h x d) 483 mm x 44,4 mm x 300 mm • Weight: approx. 3,2 kg • Safety: CE

  11. Analog – ISDN ConverterSupplier Meiknologic GmbH Hölderlinweg 19a 64285 Darmstadt Germany Phone: +49-6151-6698653 Fax: +49-6151-912223E-Mail: info@meiknologic.de
