  1. System Engineering Experiences Harold Sasnowitz, IEEE Life Senior Member

  2. Agenda • Angle Rate Bombing System • Space Shuttle • Harpoon Missile • Airborne Mine Countermeasures

  3. US Navy Angel Rate Bombing System (ARBS) • Purpose: precision bombing using horizontal flight path • Circa 1975 • Computer Interface: discretes, Direct memory access, interrupts, serial and parallel channels • Processor: SP-1, two page processor • Radar image projected onto HUD; Pilot places crosshairs on target and computer determines release point • Problem posed as three DMA channels, always in particular order • Initial testing resulted in system failure: HUD blanks when system engaged • Finding: DMA channel order different than discussed

  4. Space Shuttle • System description • Requirement: survive two like failures • Five general purpose computers, all executing identical software • All sensors and flight effectors fault tolerant and multiple copies • All 5 computers receive all data input • All 5 computers receive output data from the other 4 computers and “fail votes”

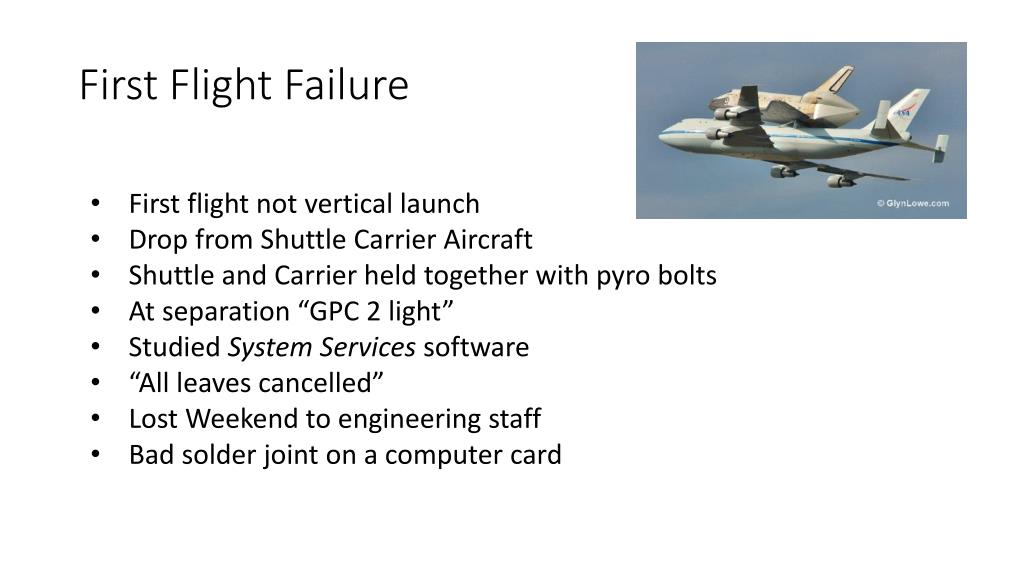

  5. First Flight Failure • First flight not vertical launch • Drop from Shuttle Carrier Aircraft • Shuttle and Carrier held together with pyro bolts • At separation “GPC 2 light” • Studied System Services software • “All leaves cancelled” • Lost Weekend to engineering staff • Bad solder joint on a computer card

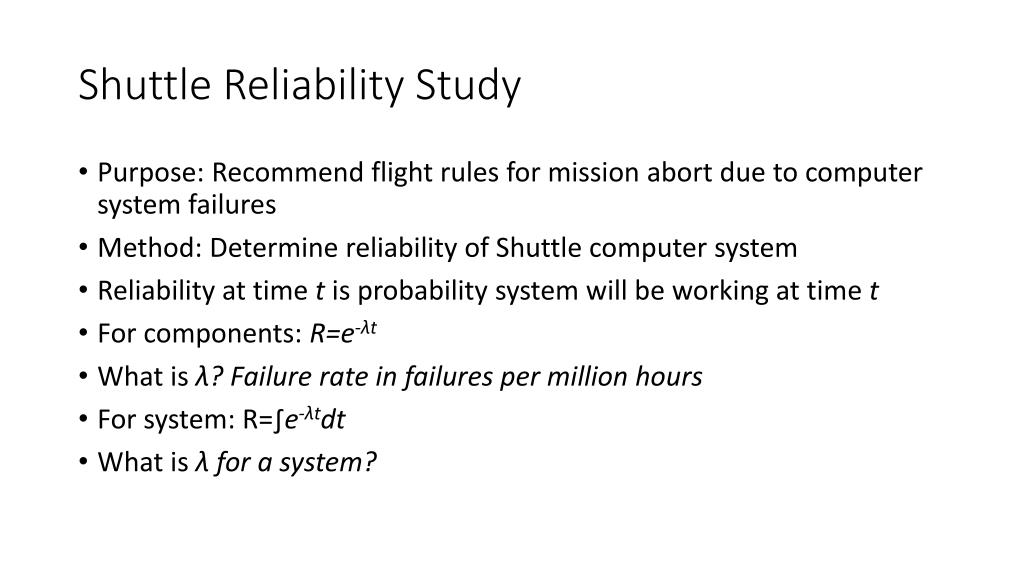

  6. Shuttle Reliability Study • Purpose: Recommend flight rules for mission abort due to computer system failures • Method: Determine reliability of Shuttle computer system • Reliability at time t is probability system will be working at time t • For components: R=e-λt • What is λ? Failure rate in failures per million hours • For system: R=∫e-λtdt • What is λ for a system?

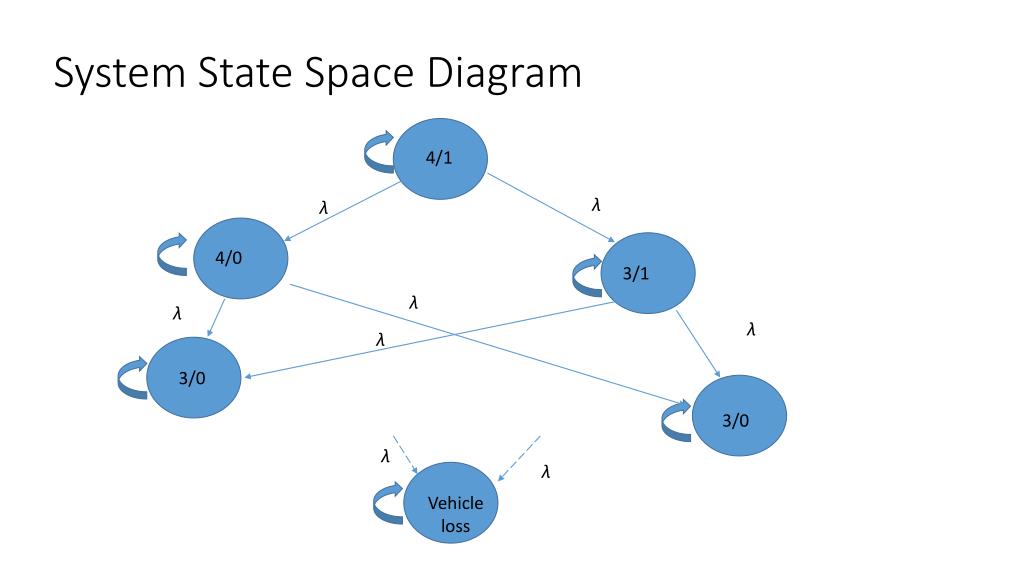

  7. System State Space Diagram 4/1 λ λ 4/0 3/1 λ λ λ λ 3/0 3/0 λ λ Vehicle loss

  8. What is system λ? λ11

  9. For system: R=∫e-λtdt • Solution is alternating infinite sum • Programmed in APL

  10. US Navy Harpoon Anti-ship Missile • Circa 1971 • Mid-course Guidance Unit (MGU) • One card, 250 kops; 8K core memory • For tracking location of self contains Attitude Reference Assembly • Contains 3 gyros and 3 accelerometers • ARA interface to counters in computer • Present position provided by launch computer • Target location determined and provided by on-board radar • 50 msec hardware timer interrupt causes software interrupt • Handler to reads counters • Initial testing showed g slightly high • 50 msec counter off by one

  11. Black System

  12. US Navy Airborne Mine Countermeasures • Initial Deployment Now • Purpose: find and destroy shallow and deepwater mines • Sensors controlled from console on-board MH-60S • Numerous tests required to qualify equipment beyond performing basic function • Temperature, humidity, salt spray, electromagnetic compatibility, others • Coordinating scheduling of production, factory flight testing, Navy operational testing complex

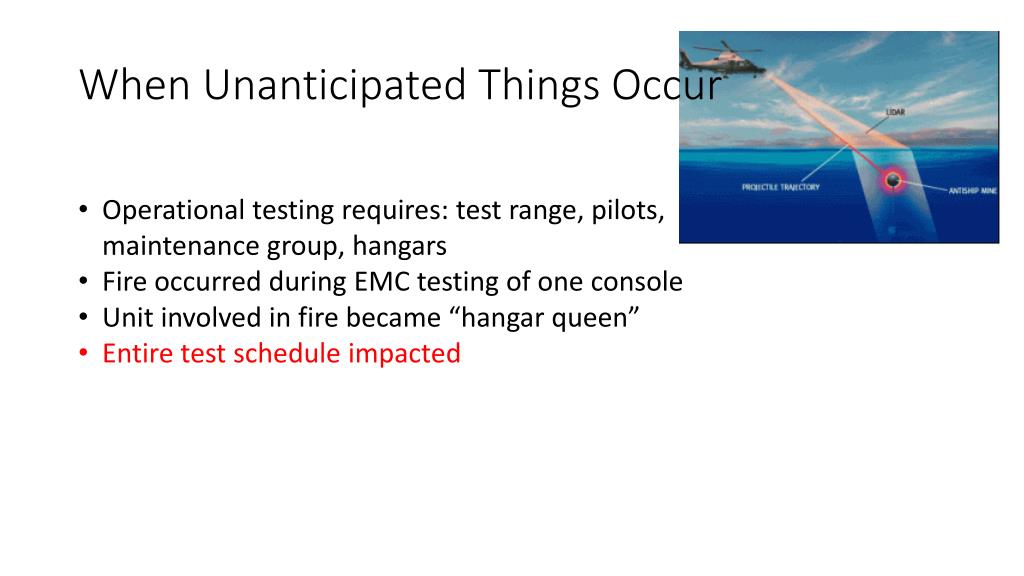

  13. When Unanticipated Things Occur • Operational testing requires: test range, pilots, maintenance group, hangars • Fire occurred during EMC testing of one console • Unit involved in fire became “hangar queen” • Entire test schedule impacted

  14. US Air Force B-2 Stealth Bomber
