  1. The Fractional Fourier Transform and Its Applications Presenter: Pao-Yen Lin Research Advisor: Jian-Jiun Ding , Ph. D. Assistant professor Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  2. Outlines • Introduction • Fractional Fourier Transform (FrFT) • Linear Canonical Transform (LCT) • Relations to other Transformations • Applications Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

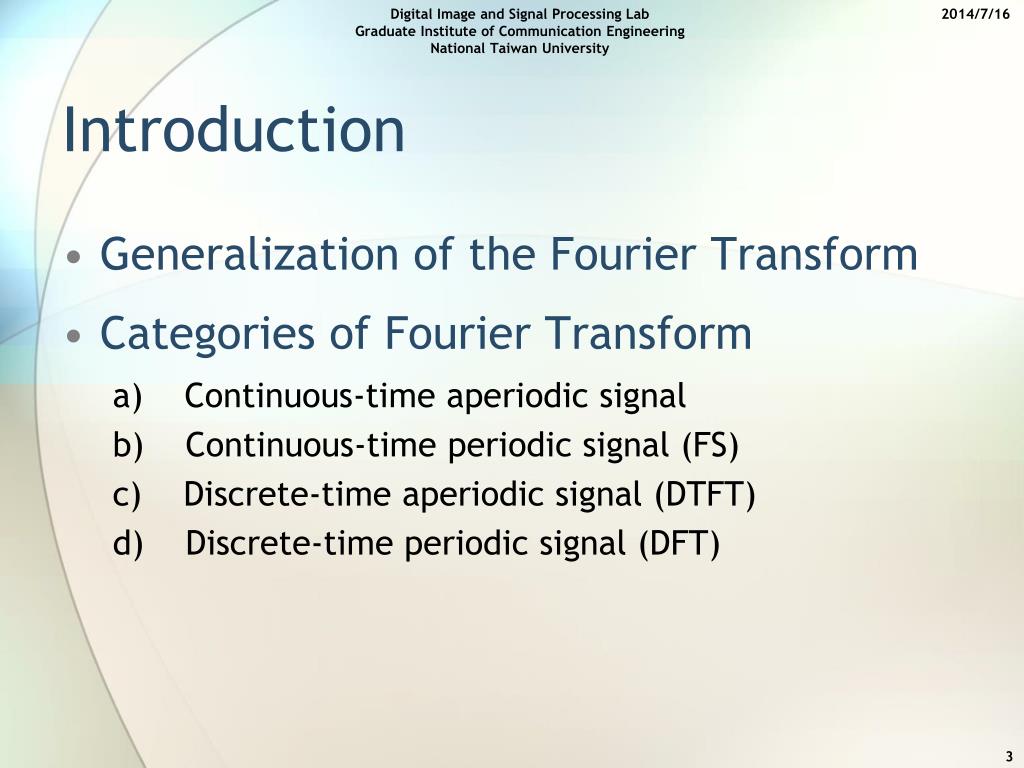

  3. Introduction • Generalization of the Fourier Transform • Categories of Fourier Transform a) Continuous-time aperiodic signal b) Continuous-time periodic signal (FS) c) Discrete-time aperiodic signal (DTFT) d) Discrete-time periodic signal (DFT) Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  4. Fractional Fourier Transform (FrFT) • Notation • is a transform of • is a transform of Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  5. Fractional Fourier Transform (FrFT) (cont.) • Constraints of FrFT • Boundary condition • Additive property Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  6. Definition of FrFT • Eigenvalues and Eigenfunctions of FT • Hermite-Gauss Function Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  7. Definition of FrFT (cont.) • Eigenvalues and Eigenfunctions of FT Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  8. Definition of FrFT (cont.) • Eigenvalues and Eigenfunctions of FrFT Use the same eigenfunction but α order eigenvalues Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  9. Definition of FrFT (cont.) • Kernel of FrFT Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  10. Definition of FrFT (cont.) Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  11. Properties of FrFT • Linear. • The first-order transform corresponds to the conventional Fourier transform and the zeroth-order transform means doing no transform. • Additive. Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  12. Linear Canonical Transform (LCT) • Definition where Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

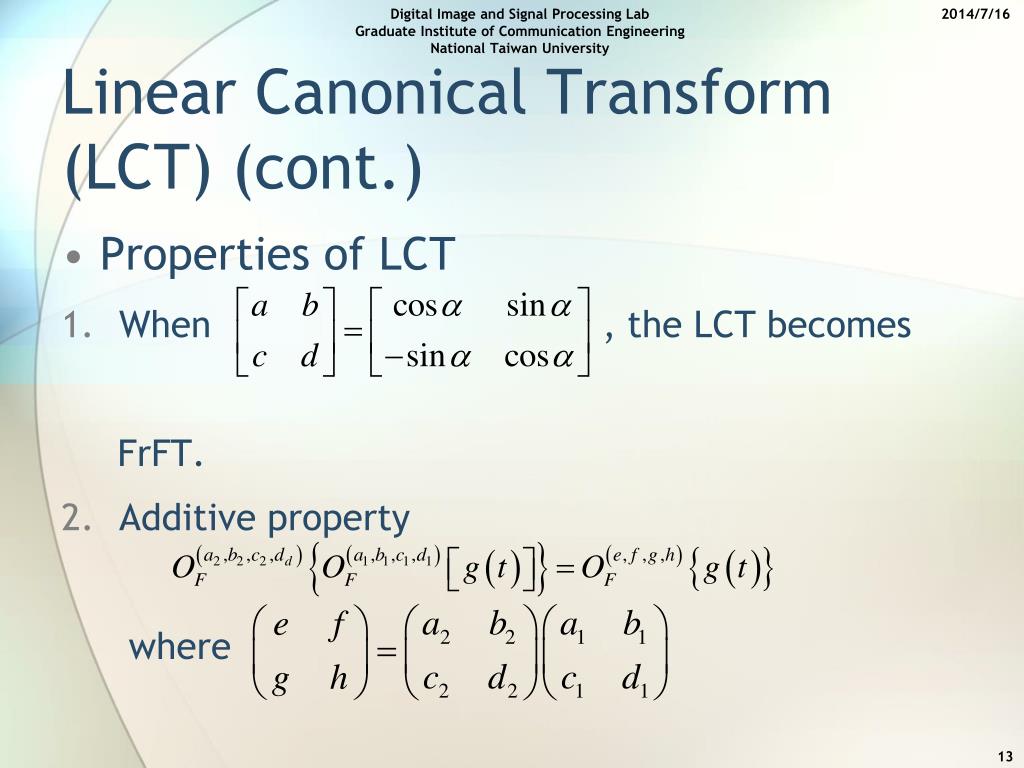

  13. Linear Canonical Transform (LCT) (cont.) • Properties of LCT • When , the LCT becomes FrFT. • Additive property where Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  14. Relation to other Transformations • Wigner Distribution • Chirp Transform • Gabor Transform • Gabor-Wigner Transform • Wavelet Transform • Random Process Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

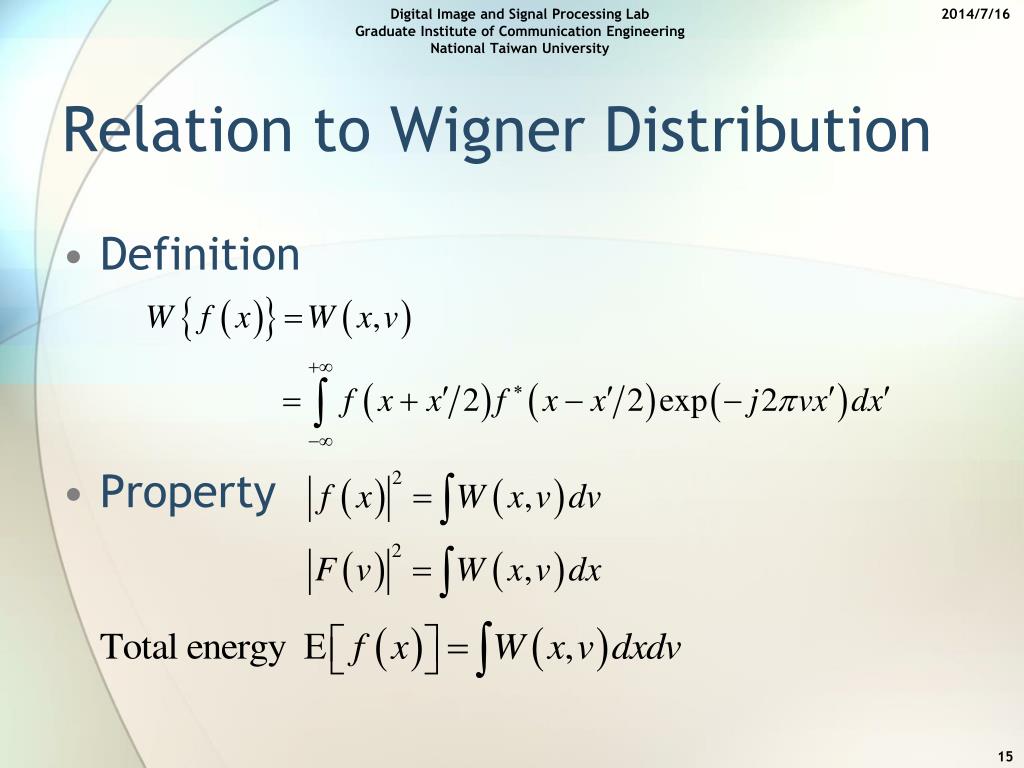

  15. Relation to Wigner Distribution • Definition • Property Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

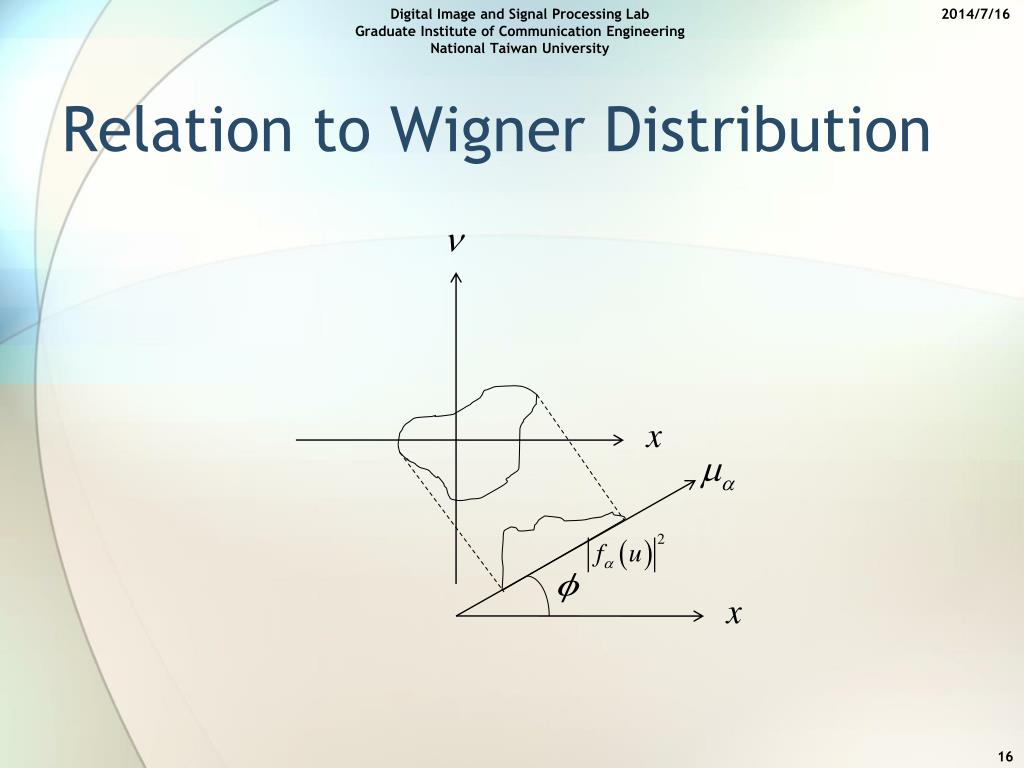

  16. Relation to Wigner Distribution Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

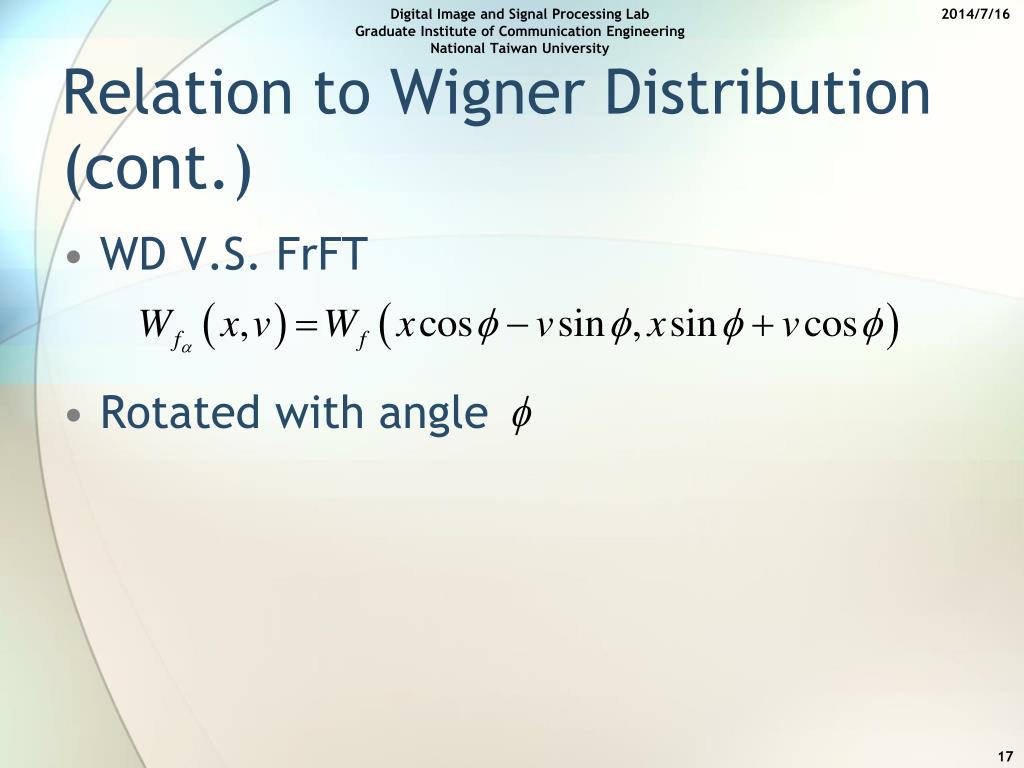

  17. Relation to Wigner Distribution (cont.) • WD V.S. FrFT • Rotated with angle Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  18. slope= Relation to Wigner Distribution (cont.) • Examples Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  19. Relation to Chirp Transform • for Note that is the same as rotated by Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  20. Relation to Chirp Transform (cont.) • Generally, Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

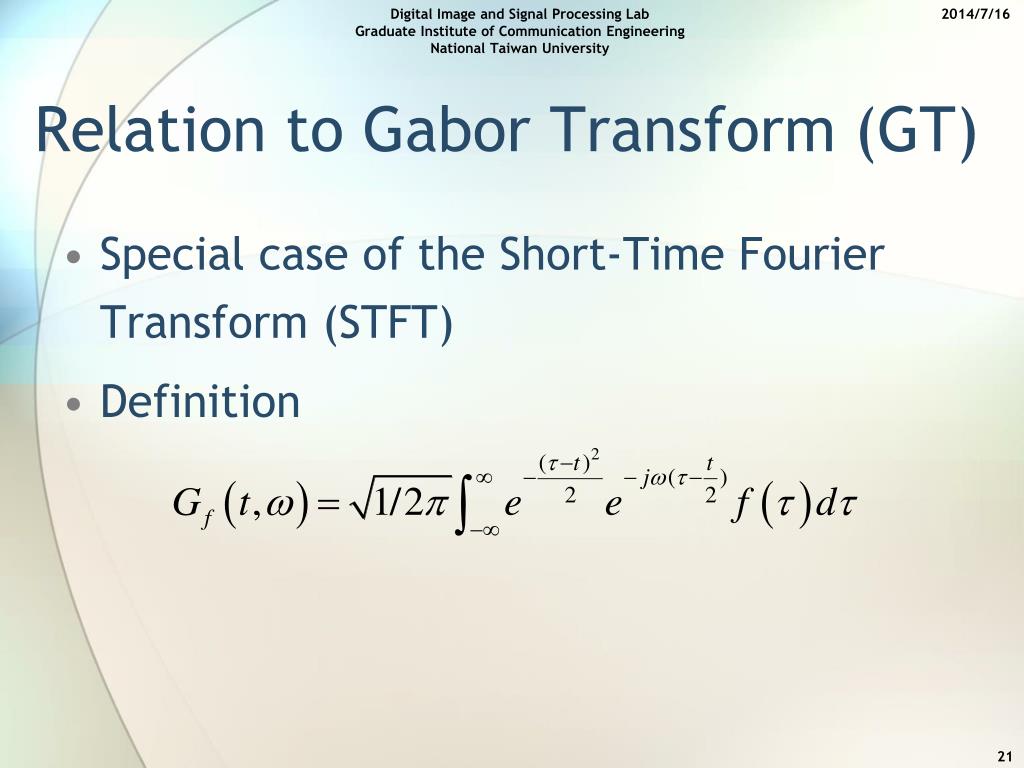

  21. Relation to Gabor Transform (GT) • Special case of the Short-Time Fourier Transform (STFT) • Definition Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

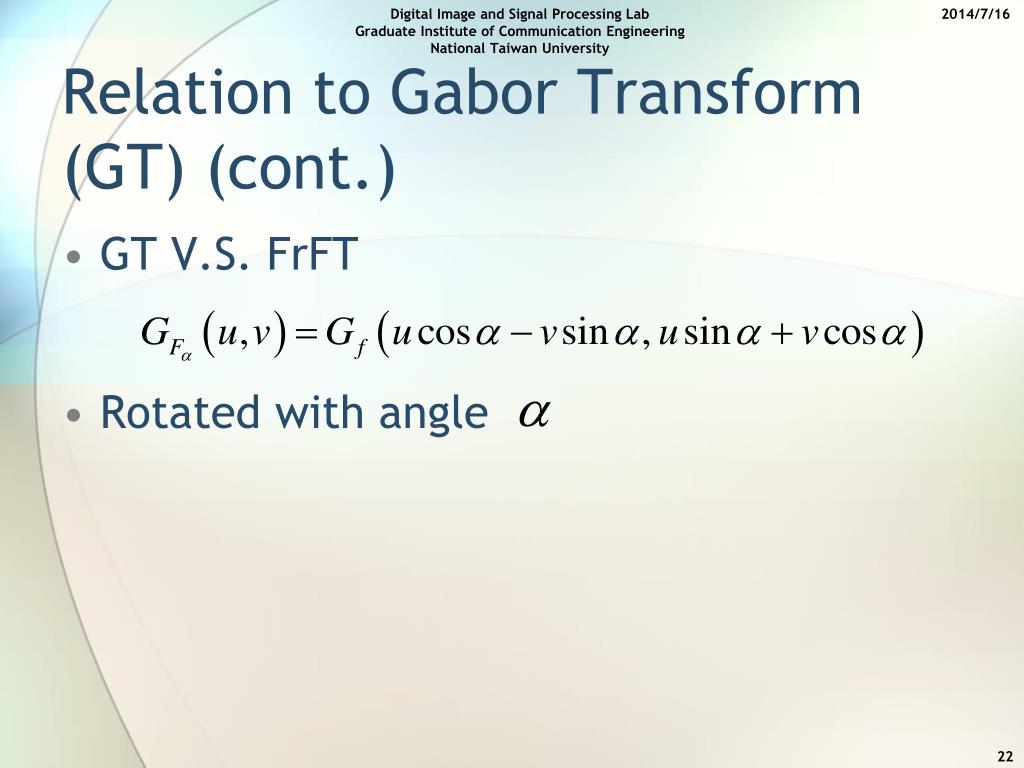

  22. Relation to Gabor Transform (GT) (cont.) • GT V.S. FrFT • Rotated with angle Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

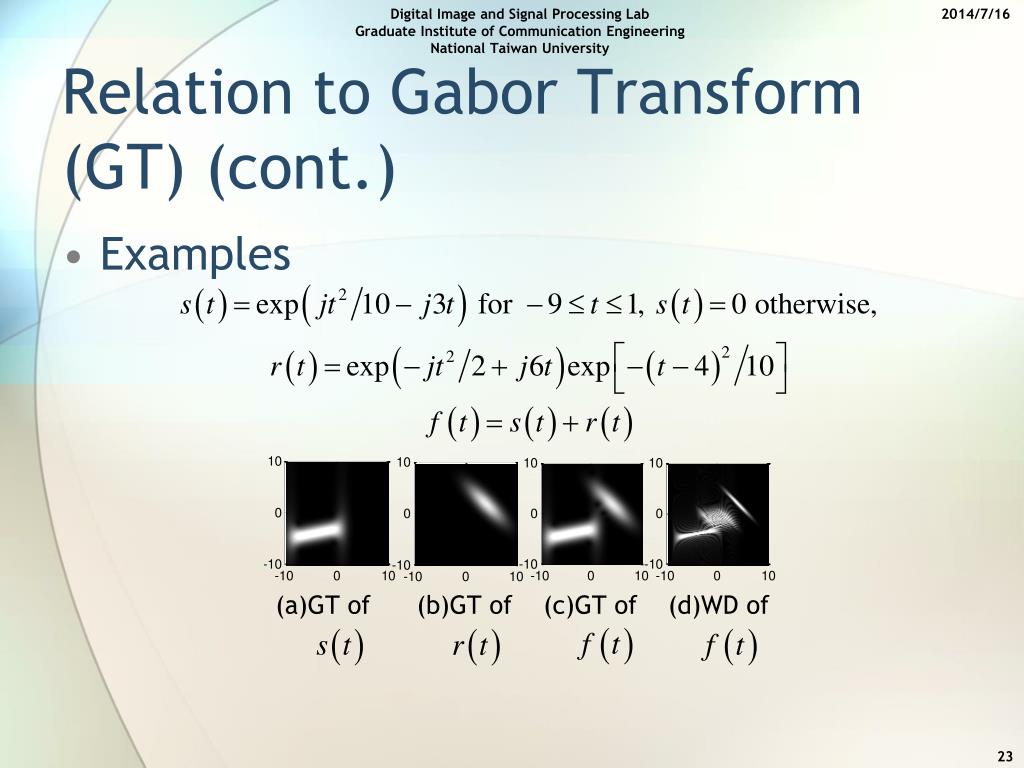

  23. Relation to Gabor Transform (GT) (cont.) • Examples (a)GT of (b)GT of (c)GT of (d)WD of Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  24. GT V.S. WD • GT has no cross term problem • GT has less complexity • WD has better resolution • Solution: Gabor-Wigner Transform Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

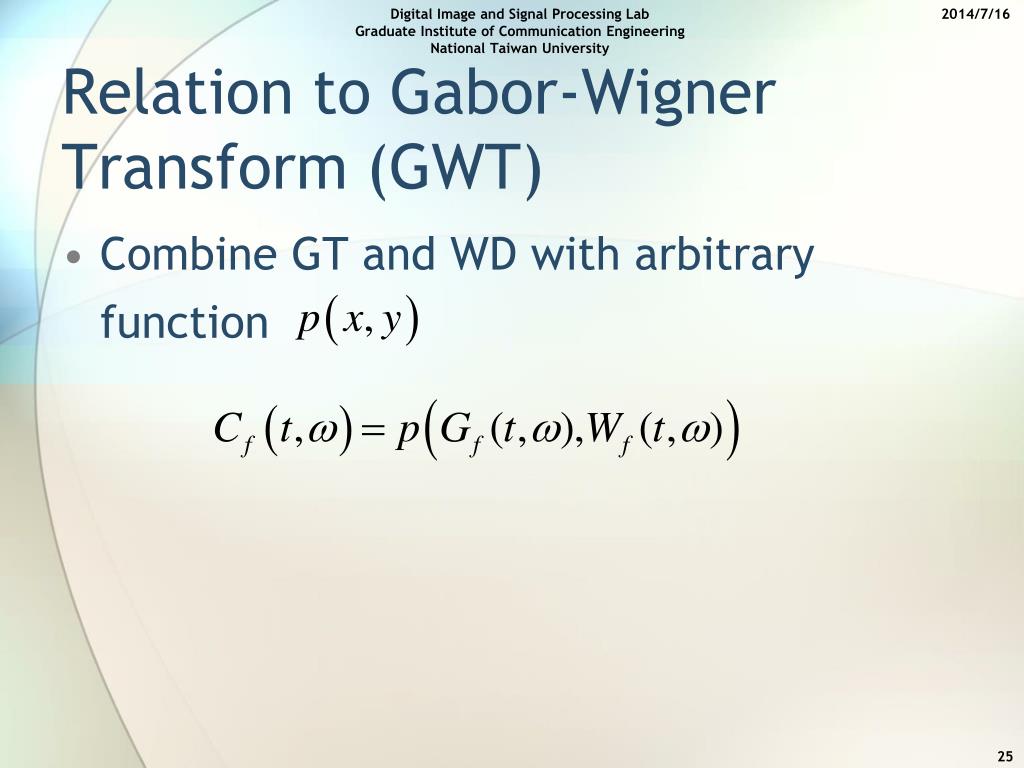

  25. Relation to Gabor-Wigner Transform (GWT) • Combine GT and WD with arbitrary function Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

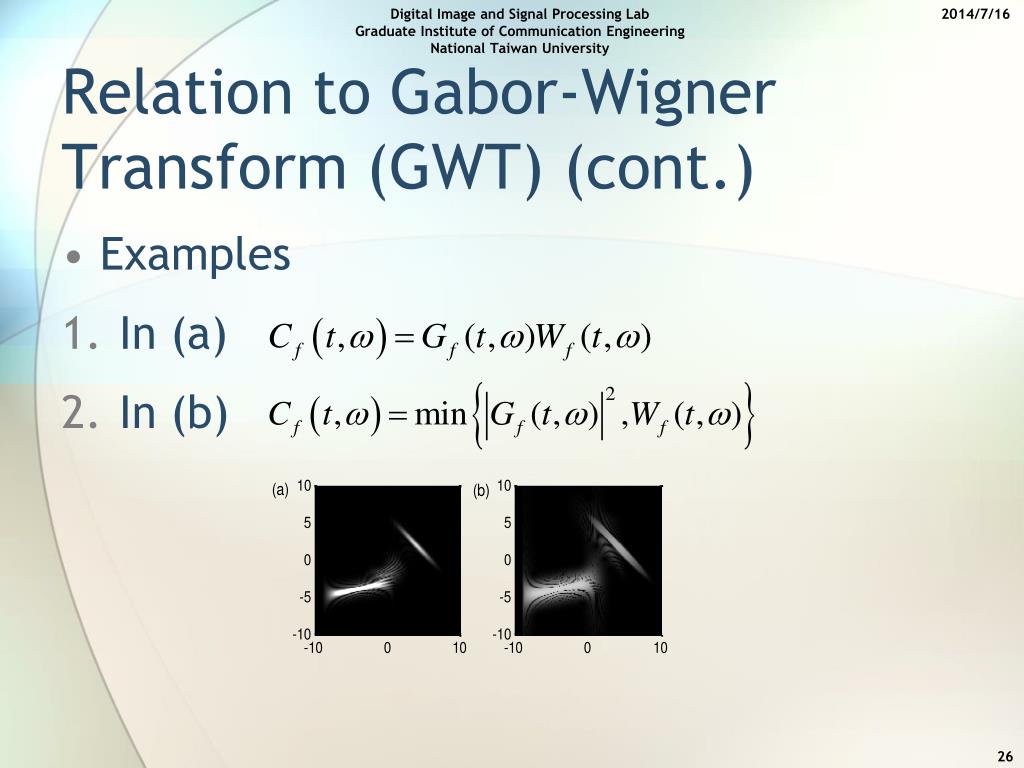

  26. Relation to Gabor-Wigner Transform (GWT) (cont.) • Examples • In (a) • In (b) Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

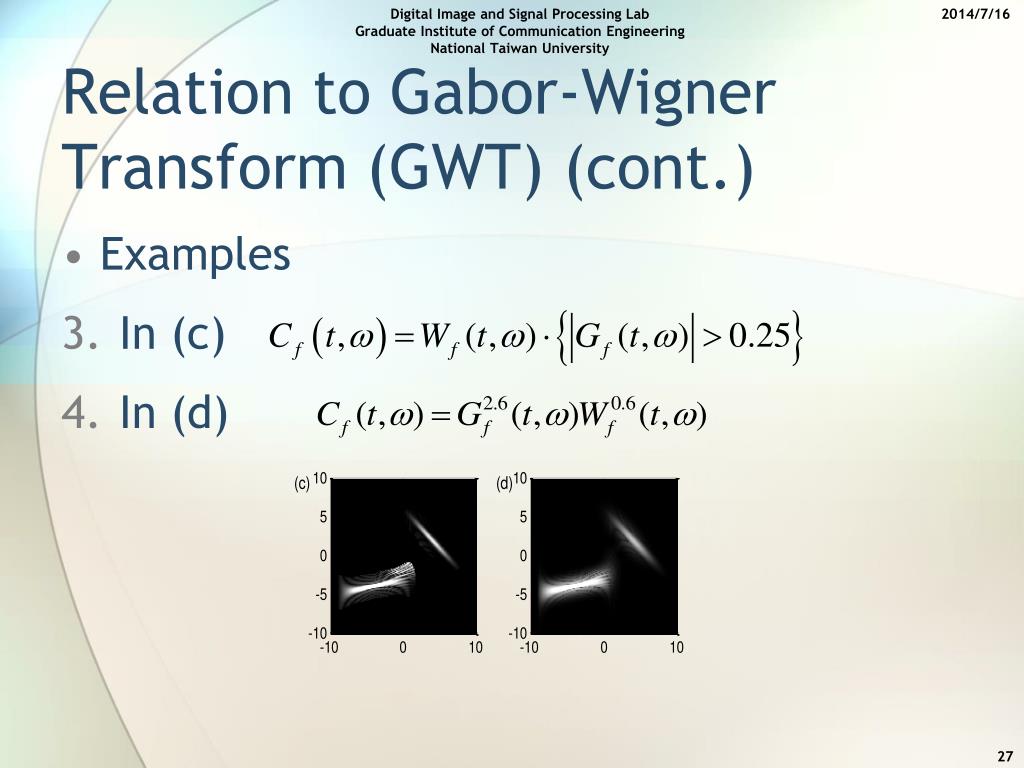

  27. Relation to Gabor-Wigner Transform (GWT) (cont.) • Examples • In (c) • In (d) Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  28. Relation to Wavelet Transform • The kernels of Fractional Fourier Transform corresponding to different values of can be regarded as a wavelet family. Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

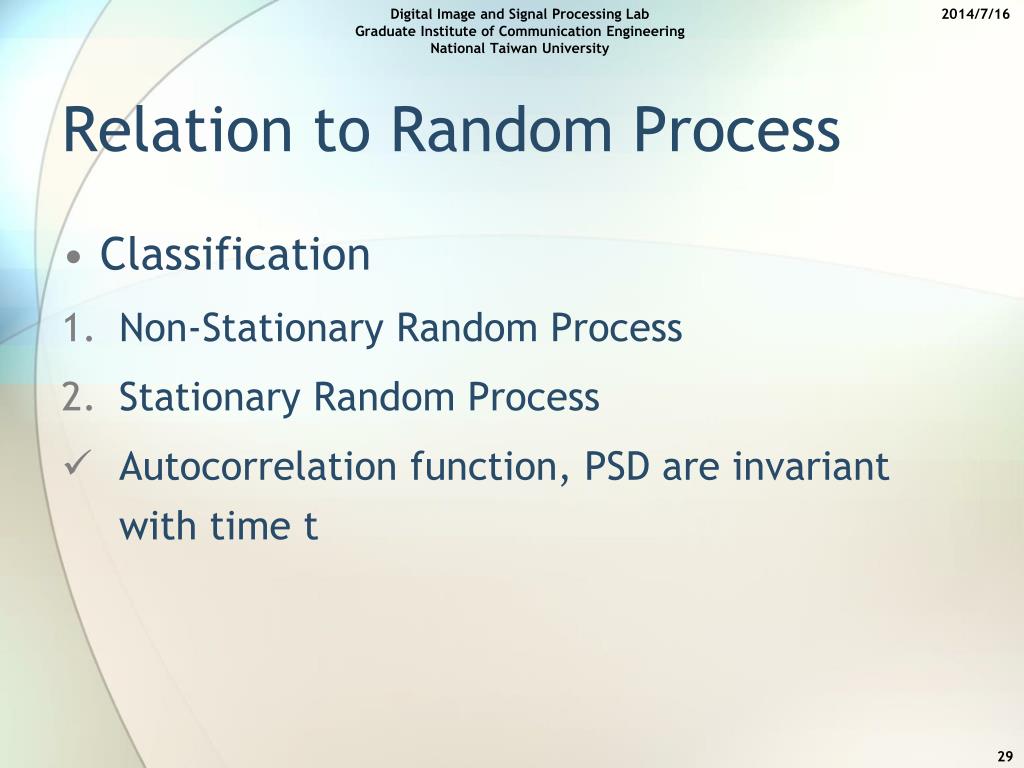

  29. Relation to Random Process • Classification • Non-Stationary Random Process • Stationary Random Process • Autocorrelation function, PSD are invariant with time t Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  30. Relation to Random Process (cont.) • Auto-correlation function • Power Spectral Density (PSD) Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  31. Relation to Random Process (cont.) • FrFT V.S. Stationary random process • Nearly stationary Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

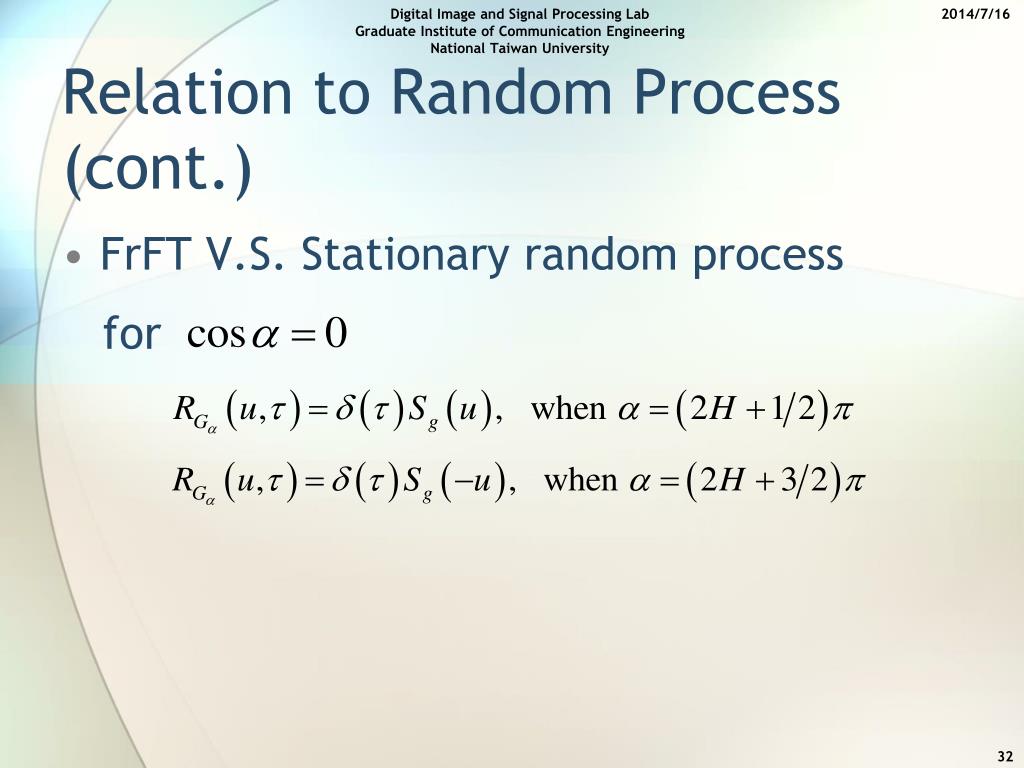

  32. Relation to Random Process (cont.) • FrFT V.S. Stationary random process for Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  33. Relation to Random Process (cont.) • FrFT V.S. Stationary random process PSD: Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

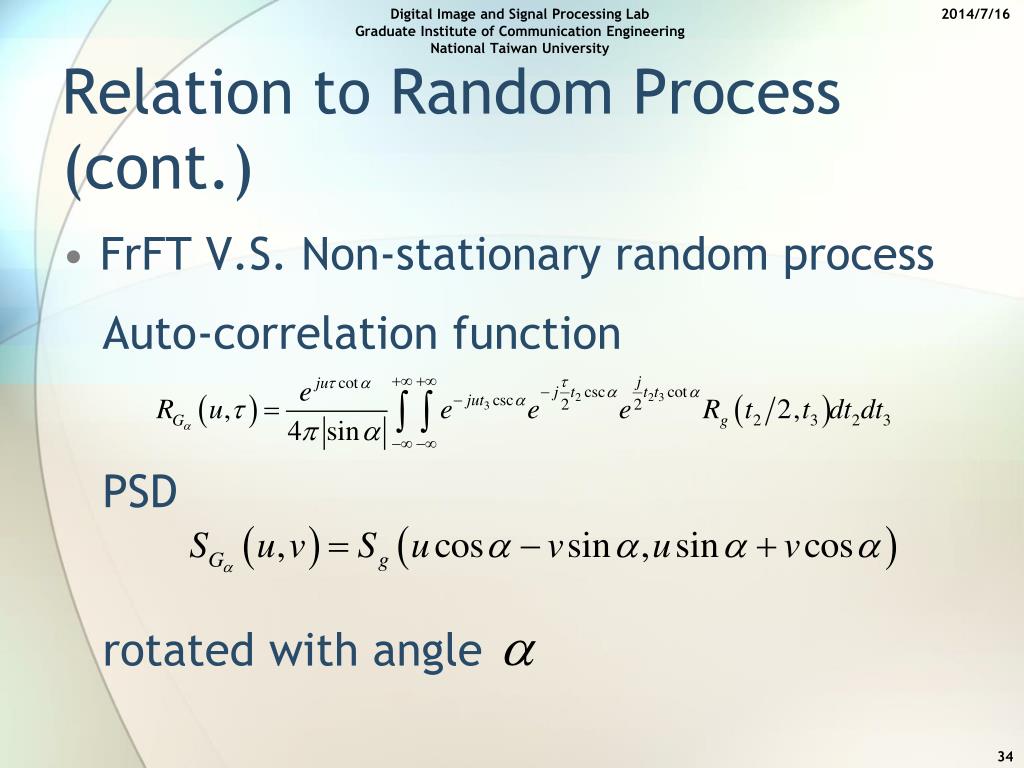

  34. Relation to Random Process (cont.) • FrFT V.S. Non-stationary random process Auto-correlation function PSD rotated with angle Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

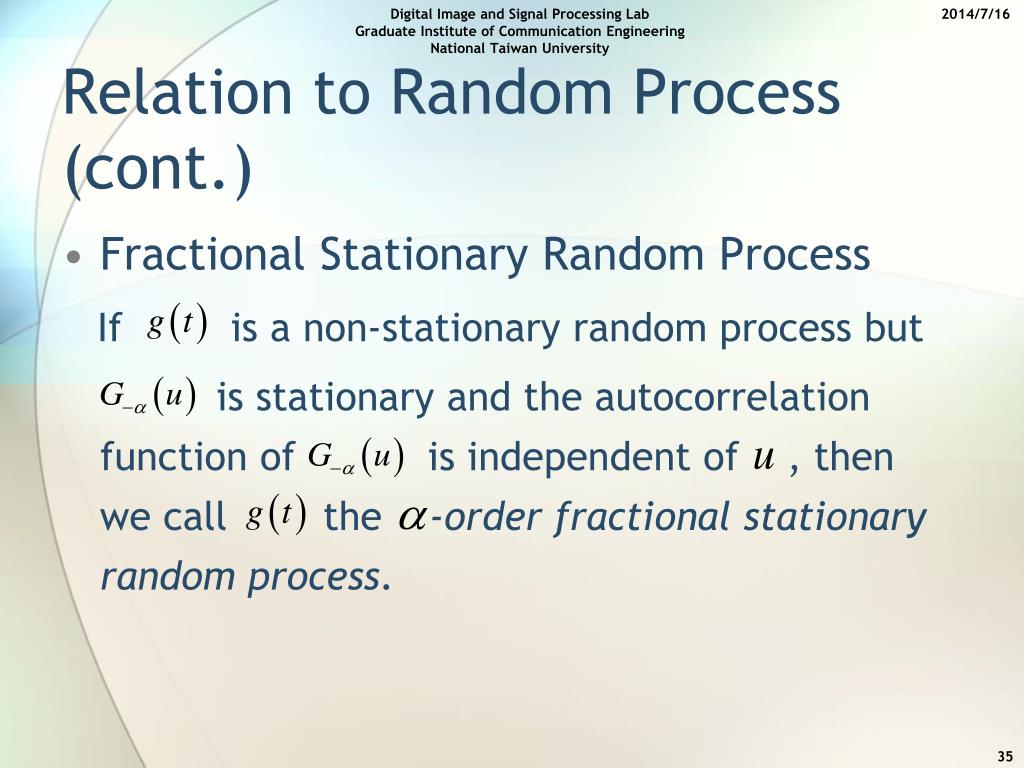

  35. Relation to Random Process (cont.) • Fractional Stationary Random Process If is a non-stationary random process but is stationary and the autocorrelation function of is independent of , then we call the -order fractional stationary random process. Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  36. Relation to Random Process (cont.) • Properties of fractional stationary random process • After performing the fractional filter, a white noise becomes a fractional stationary random process. • Any non-stationary random process can be expressed as a summation of several fractional stationary random process. Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  37. Applications of FrFT • Filter design • Optical systems • Convolution • Multiplexing • Generalization of sampling theorem Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  38. noise noise signal Filter design using FrFT • Filtering a known noise • Filtering in fractional domain Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

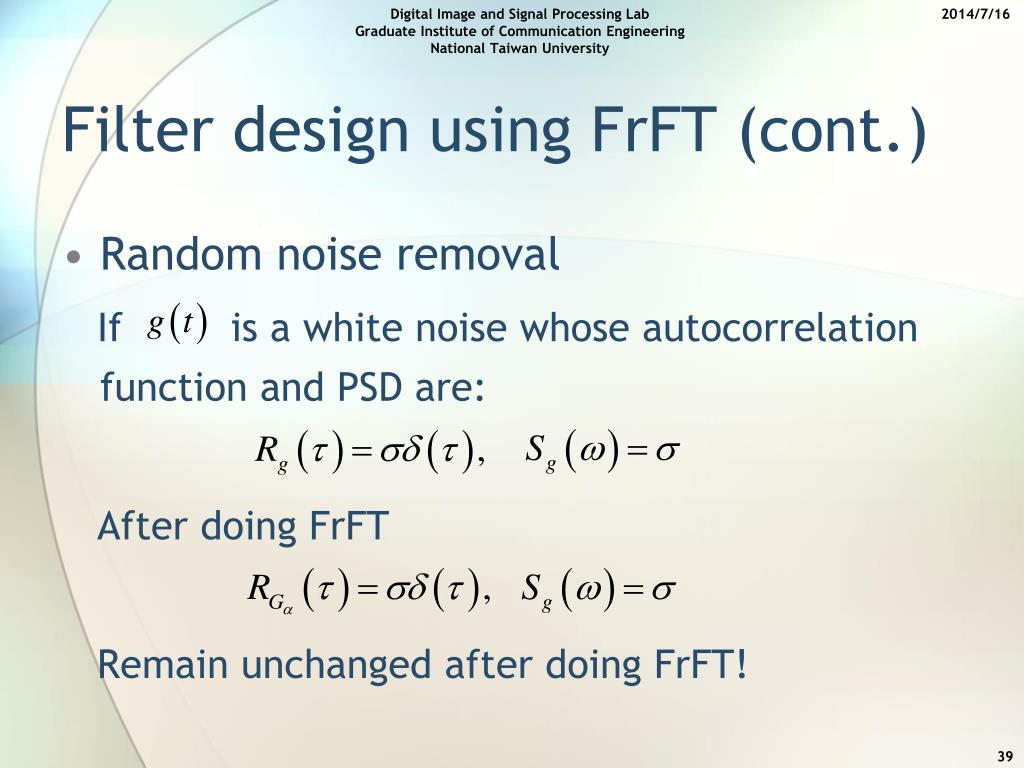

  39. Filter design using FrFT (cont.) • Random noise removal If is a white noise whose autocorrelation function and PSD are: After doing FrFT Remain unchanged after doing FrFT! Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  40. signal signal Filter design using FrFT (cont.) • Random noise removal • Area of WD ≡ Total energy Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  41. Optical systems • Using FrFT/LCT to Represent Optical Components • Using FrFT/LCT to Represent the Optical Systems • Implementing FrFT/LCT by Optical Systems Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  42. Using FrFT/LCT to Represent Optical Components • Propagation through the cylinder lens with focus length • Propagation through the free space (Fresnel Transform) with length Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  43. input output Using FrFT/LCT to Represent the Optical Systems Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  44. Implementing FrFT/LCT by Optical Systems • All the Linear Canonical Transform can be decomposed as the combination of the chirp multiplication and chirp convolution and we can decompose the parameter matrix into the following form Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  45. input output input output Implementing FrFT/LCT by Optical Systems (cont.) The implementation of LCT with 2 cylinder lenses and 1 free space The implementation of LCT with 1 cylinder lens and 2 free spaces Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  46. Convolution • Convolution in domain • Multiplication in domain Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

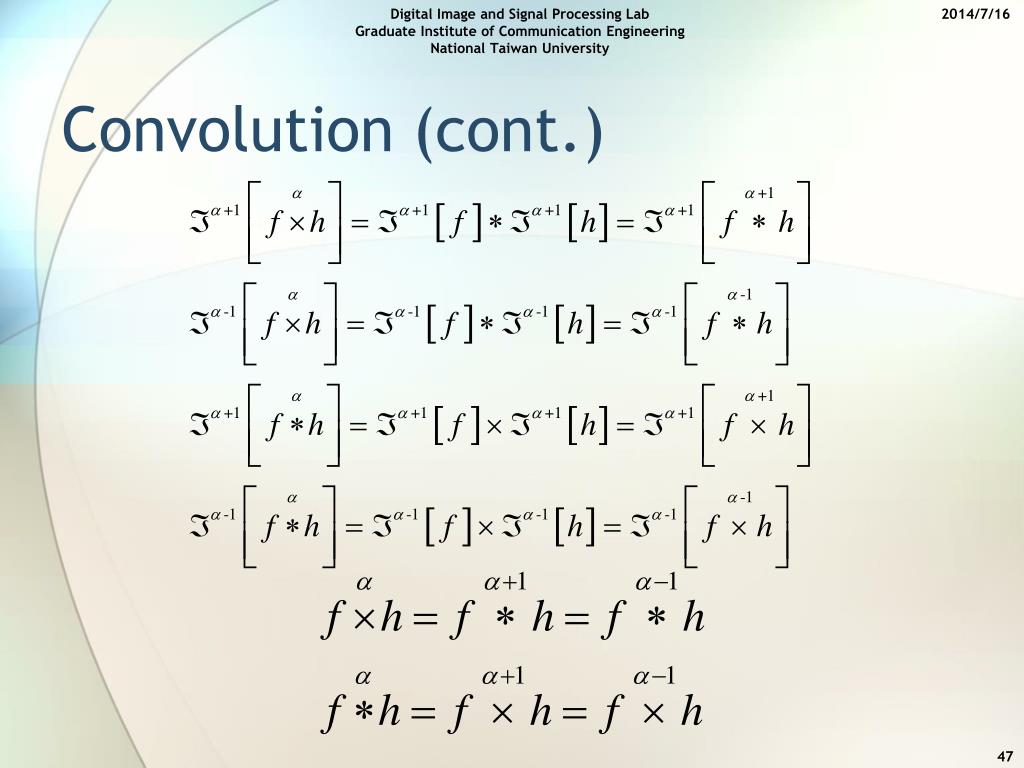

  47. Convolution (cont.) Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  48. Multiplexing using FrFT TDM FDM Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  49. Multiplexing using FrFT Inefficient multiplexing Efficient multiplexing Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University

  50. Generalization of sampling theorem • If is band-limited in some transformed domain of LCT, i.e., then we can sample by the interval as Digital Image and Signal Processing Lab Graduate Institute of Communication Engineering National Taiwan University
