  1. Extrapolation and iteration for the problem of LFOV Dr. Shuangren Zhao Research Associate Radiation Physics Department Princess Margaret Hospital

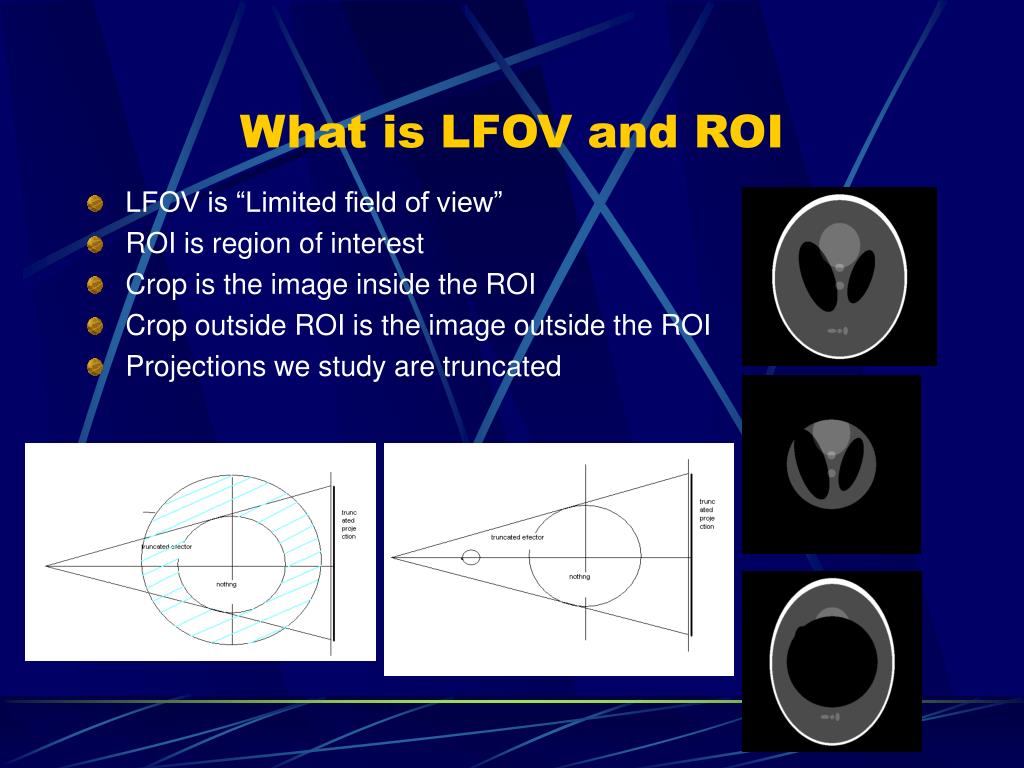

  2. What is LFOV and ROI • LFOV is “Limited field of view” • ROI is region of interest • Crop is the image inside the ROI • Crop outside ROI is the image outside the ROI • Projections we study are truncated

  3. The Influence of truncated projections

  4. Phantoms • 1.Shepp-Logan head phantom • 2. Body phantom • 3. ModifiedShepp-Logan head phantom • 4. Strong Modified Shepp-Logan head phantom • 5. further Modified Shepp-Logan head phantom • 6. crops for the ROI

  5. Truncated projectionsand their direct reconstruction

  6. Extrapolations • Zero extrapolation *0 (a) • Constant extrapolation *c (b) • Linear extrapolation *(bx+c) • Exponential extrapolation *exp(-x/αL) • Exponential extrapolation *exp(-(x/αL)^2) (c) • Cos extrapolation *cos(x) • Quadratic extrapolation *(ax^2+bx+c) (d) • Mixed extrapolation *(ax^2+bx+c)exp(-x/α) (e) • Mixed extrapolation *(ax^2+bx+c)exp(-(x/α)^2) (f) • Original projection without extrapolation (g)

  7. Extrapolations for phantom 3

  8. Extrapolations for phantom 3 and 4

  9. Quadratic extrapolation(ax^2+bx+c) (d) • Projection should positive:

  10. Update from quadratic extrapolation to mixed extrapolation {exp(-x/aL)(ax^2+bx+c)}

  11. Different fits for the boundary values:1. The values of projections 2. The differential values of the projections

  12. Update for fitting boundary values

  13. Update for the mixed extrapolation of (ax2+bx+c)exp(-x/αL)

  14. Update for the mixed extrapolation of (ax2+bx+c)exp(-x/αL)

  15. The distances of reconstructed images to the image of phantomideal distance: reconstruction with non-truncated projections.

  16. Reconstructions with different extrapolationsusing phantom 1

  17. Reconstructions with different extrapolationsusing phantom 2

  18. Reconstructions with different extrapolations using phantom 3

  19. Reconstructions with different extrapolations using phantom 4

  20. Reconstructions with different extrapolations using phantom 5

  21. Iterative reconstruction algorithm:

  22. Projections filter (for phantom 2)

  23. Iterative reconstruction results for the phantom 1with exp(-(x/αL)^2) extrapolation α=0.5

  24. Iterative reconstruction results for the phantom 2 with exp(-(x/αL)^2) extrapolation α =0.5

  25. Iterative reconstruction results for the phantom 3 with exp(-(x/αL)^2) extrapolation α =0.5

  26. Iteration results for phantom 5 with exp(-(x/αL)^2)(ax^2+bx+c) and exp(-(x/αL)^2) extrapolation α=0.5

  27. Further find the optimal parameters for for phantom 5

  28. The stability of the parameters

  29. Further find the optimal parameters for for phantom 4

  30. Further find the optimal parameters for for phantom 5

  31. The stability of the parameters

  32. Find the optimal parameters for for phantom 4

  33. Reconstruction with …menthod Iterative reconstruction without truncation Reconstruction without truncation iterative Reconstruction with truncation Phantom 5 Errors of iterative reconstruction without truncation Errors of iterative reconstruction with truncation Errors reconstruction without truncation Crop of Phantom Distance=0 Distance=0.0348 Distance=0.0221 Distance=0.0253 Number of Projections=180

  34. Reconstruction with …menthod Reconstruction without truncation Iterative reconstruction without truncation iterative Reconstruction with truncation Phantom 5 Crop of Phantom Errors reconstruction without truncation Errors of iterative reconstruction without truncation Errors of iterative reconstruction with truncation Distance=0 Distance=0.0167 Distance=0.0145 Distance=0.0191 Projections:360, 1st=mix 2, 2ed=exp 2, α1=0.65, α2=0.068,k=-1.04

  35. Contradiction • Our shield (extrapolation) is the best shield, it can resist all spears in the world. • Our spear (iteration) is the best spear, it can destroy all shields in the world. • Which one would you like to buy? The extrapolation or the iteration?
