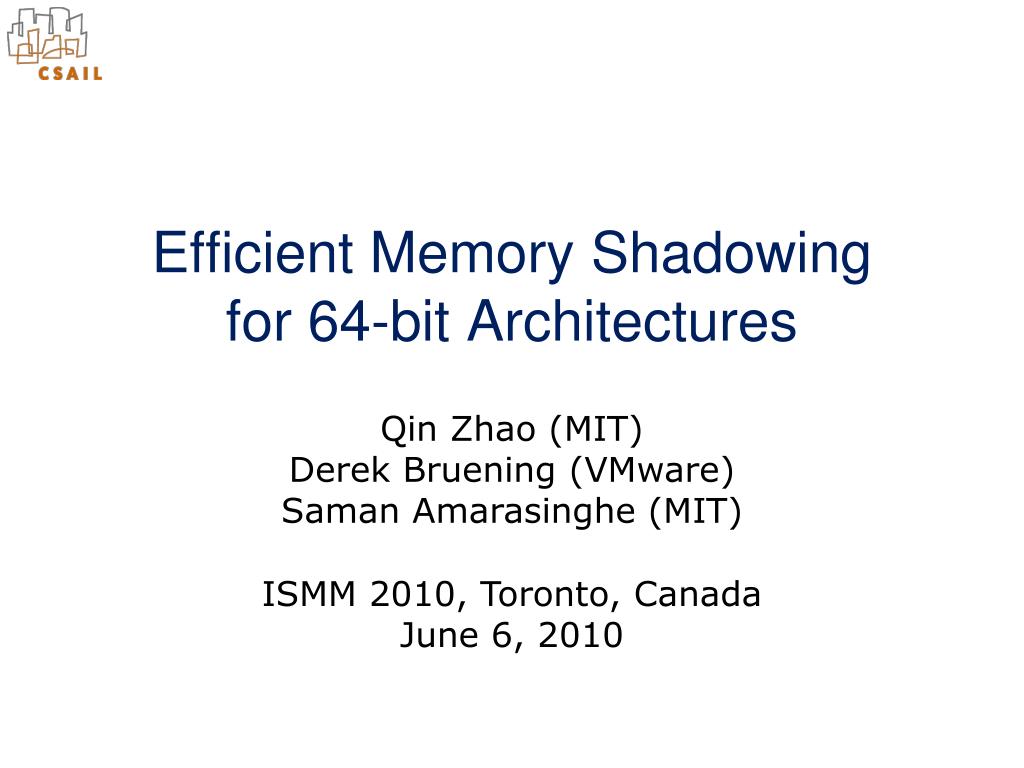

  1. Efficient Memory Shadowing for 64-bit Architectures Qin Zhao (MIT) Derek Bruening (VMware) Saman Amarasinghe (MIT) ISMM 2010, Toronto, Canada June 6, 2010

  2. Dynamic Program Analysis • Understand Program Behavior • Optimization • Debugging • Security • Memory management • Shadow Memory Tools • Maintain meta-data for every memory location • Update meta-data on every memory operation

  3. Examples • Memory Error Detection • MemCheck[VEE’07] • Purify [USENIX’92] • Dr. Memory • Dynamic Information Flow Tracking • LIFT [MICRO’39] • TaintTrace[ISCC’06] • Multi-threaded Program Analysis • Eraser [TCS’97] • Helgrind • Memory Usage Analysis • CETS[ISMM’10] • Staleness

  4. Shadow Memory System • Shadow Memory Manager • Meta-data for application memory • Memory mapping scheme (addrA addrS) • DMS (Direct Mapping) • SMS (Segmented Mapping) • Instrumentor • Every memory operation • Address calculation • Meta-data update • Expensive • MemCheck (~25x) • ~12x for addrA addrS a.out a.out heap heap libc libc stack stack Application Memory Shadow Memory

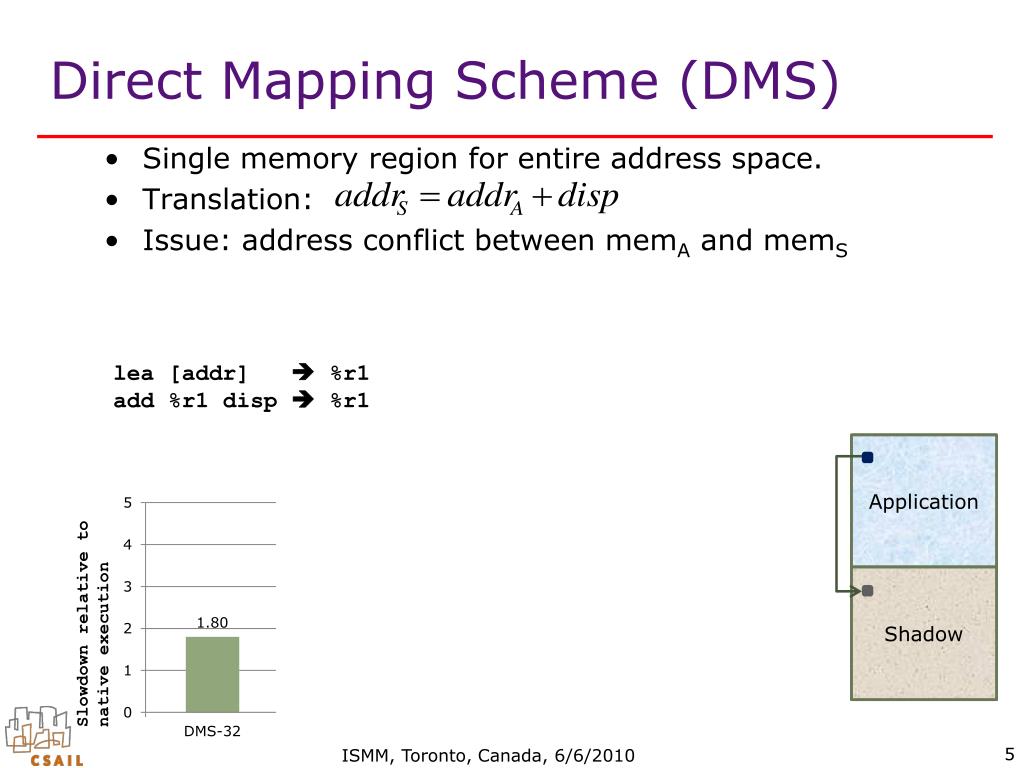

  5. Direct Mapping Scheme (DMS) • Single memory region for entire address space. • Translation: • Issue: address conflict between memAand memS lea [addr]  %r1 add %r1disp  %r1 Application Shadow Slowdown relative to native execution

  6. Segmented Mapping Scheme (SMS) • Shadow segment per application segment • Translation: • Segment lookup (address indexing) • Address translation App 1 lea [addr]  %r1 mov %r1  %r2 shr %r2, 16  %r2 add %r1, disp[%r2]  %r1 addrA Shd 2 Shd 1 Slowdown relative to native execution addrS App 2 Segment table

  7. Shadow Memory Mapping • Scaling to 64-bit Architecture • DMS • Infeasible due to memory layout a.out User space 247 stack Unusable space Kernel space 264 vsyscall

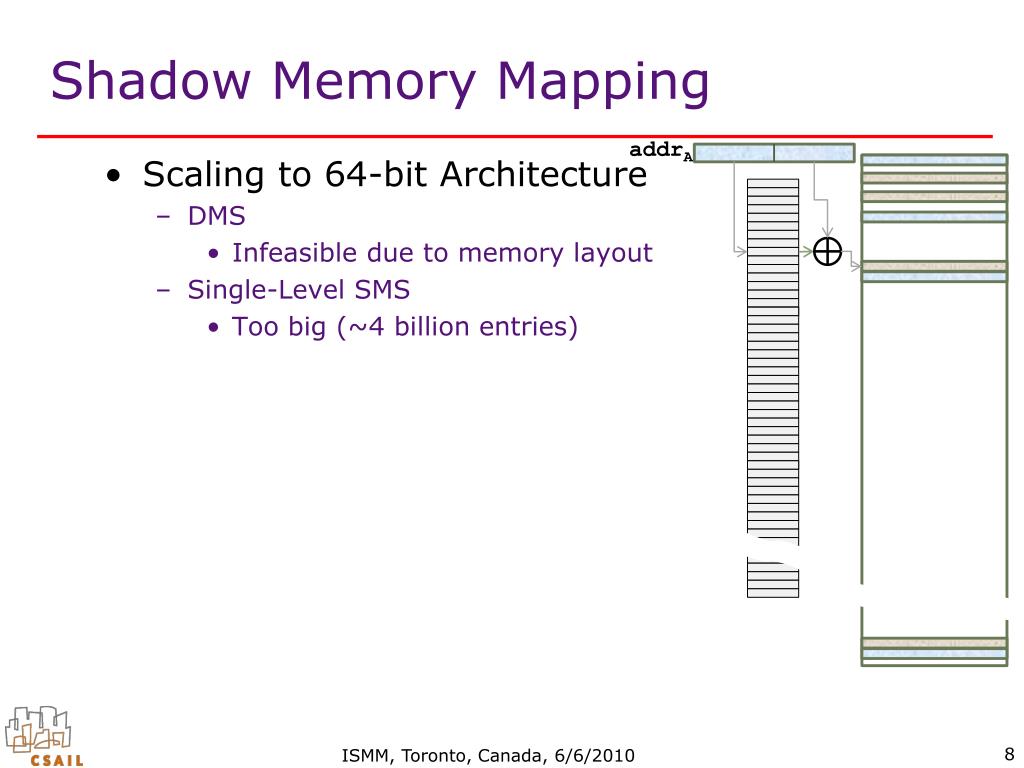

  8. Shadow Memory Mapping addrA • Scaling to 64-bit Architecture • DMS • Infeasible due to memory layout • Single-Level SMS • Too big (~4 billion entries)

  9. Shadow Memory Mapping addrA • Scaling to 64-bit Architecture • DMS • Infeasible due to memory layout • Single-Level SMS • Too big (~4 billion entries) • Multi-Level SMS • Even more expensive Slowdown relative to native execution

  10. Umbra (CGO’10) • Scaling to 64-bit Architecture • Single-Level SMS is too big but sparse • Umbra (CGO’10) • Eliminate empty entries • Compact table • Walk the table to find the entry

  11. Umbra (CGO’10) • Reference Uni-Cache • Software cache per instr per thread • Segment tag & displacement • Check uni-cache before table walk • 99.97% hit ratio tag = addrA & mask; if (cachetag != tag) { … // table walk} addrS = addrA + cachedisp Slowdown relative to native execution

  12. EMS64: Key Idea • Umbra • EMS64 • Speculatively use a disp without check • Smart shadow memory placement • Notified by memory access violation fault for incorrect displacement tag = addrA & mask; if (cachetag != tag) { … // table walk (0.03%)} addrS = addrA + cachedisp

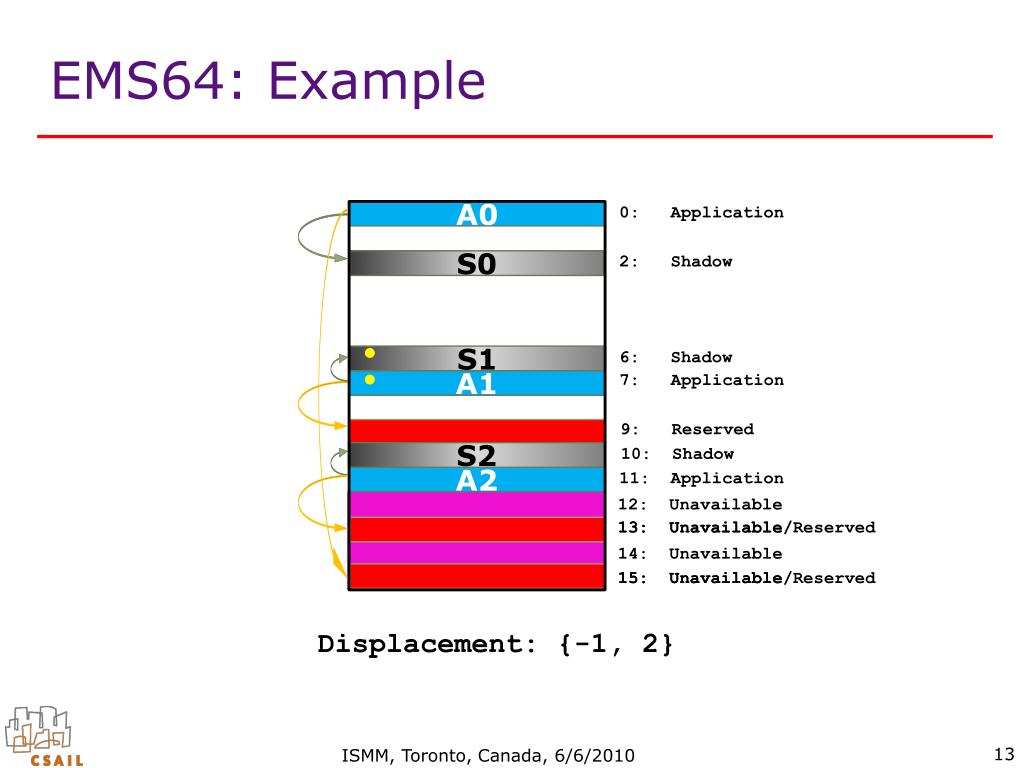

  13. EMS64: Example 0: Application A0 2: Shadow S0 6: Shadow S1 7: Application A1 9: Reserved 10: Shadow S2 11: Application A2 12: Unavailable 13: Unavailable 13: Unavailable/Reserved 14: Unavailable 15: Unavailable 15: Unavailable/Reserved Displacement: {-1, 2}

  14. EMS64: Potential Problem 0: Application A0 2: Shadow S0 6: Shadow S1 7: Application A1 9: Reserved 10: Shadow S2 11: Application A2 12: Unavailable 13: Unavailable/Reserved 14: Unavailable 15: Unavailable/Reserved Displacement: {-1, 2}

  15. EMS64: Final Solution 0: Application A0 1: Reserved 2: Shadow S0 4: Reserved 5: Reserved 6: Shadow S1 7: Application A1 8: Reserved 9: Reserved 10: Shadow S2 11: Application A2 12: Unavailable 12: Unavailable/Reserved 13: Unavailable/Reserved 14: Unavailable 15: Unavailable/Reserved Displacement: {-1, 2}

  16. Slot Finding Problem • Given n slots: • k Application slots • x Empty slots • y Reserved slots • Find k S-slots. • For each slot Ai, there is one associated slot S with displacement di where di = Si - Ai. • For each slot Ai and each existing displacement dj where di≠dj, slot ((Ai + dj) mod n) is an R-slot or an E-slot. • For each slot S and any existing valid displacement di slot, slot ((S + di) mod n) is an R-slot or an E-slot. Application slot Ai Si Shadow slot Ei Empty slot Ri Reserved slot A0 A1 E0 E1 E2 E3 E4 R0 R1 R2 S0 S1

  17. Slot Finding Problem • Given n slots: • k Application slots • x Empty slots • y Reserved slots • Can We Find k S-slots? • Depends on layout! • Guarantee to find it, for 48-bit address space, if • Application memory < 250 GB • Proof • x ≥ 8k2+2k+1 • We can always find an Si for Ai if #E-slot > #conflicts Application slot Ai Si Shadow slot Ei Empty slot Ri Reserved slot

  18. Implementation & Optimization • Implementation • Shadow memory allocation • Add signal handler • Remove reference uni-cache check • Optimization • Restore uni-cache checks for instructions that access multiple segments, e.g., references from memcpy • When number of access violation exceed 2 lea [addr]  %r1 add %r1, unicachedisp  %r1

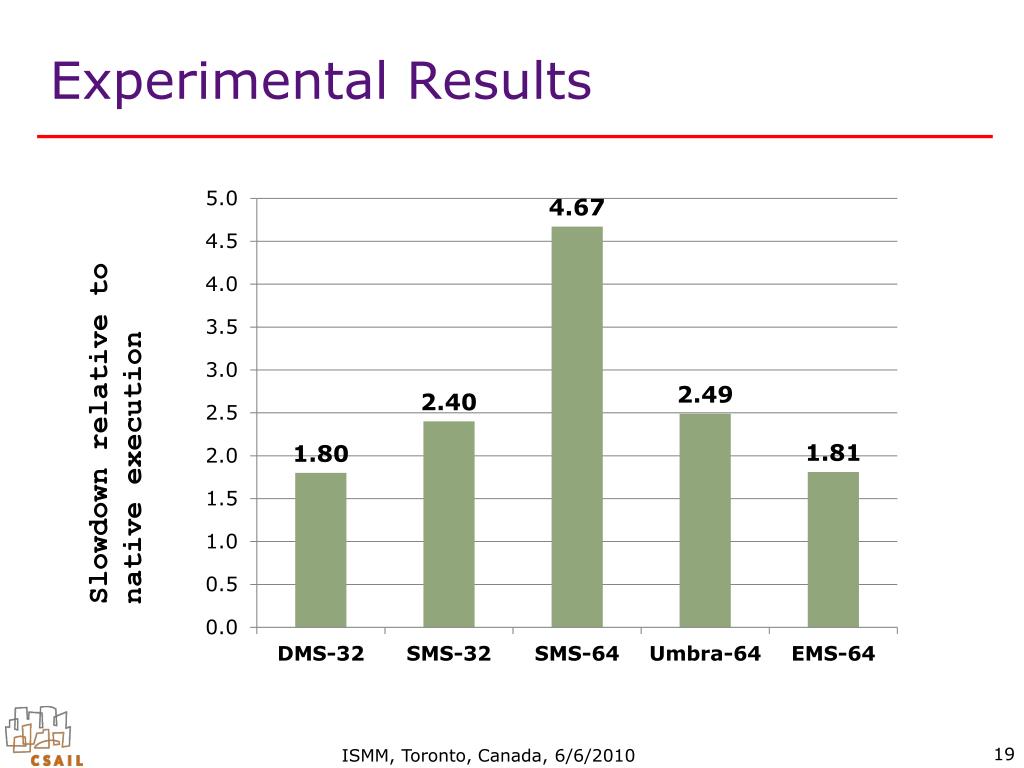

  19. Experimental Results Slowdown relative to native execution

  20. Thank You • Download • http://people.csail.mit.edu/qin_zhao/umbra/ • Q & A
