  1. Custom Network Protocol on Modified Ring Topology Team: Radical Leader: Dallas Edwards Members:Sam Sieg Sani Musayev Changyong Jung

  2. Introduction • Modified ring topology • Linux based chat system • Rewrite/Build Custom OSI-Model • Network Monitoring tools • File transfer system

  3. Motivation • CUSTOM RING TOPOLOGY: -Five machines in a ring topology -Every node can act as a bridge/router or carry out its own functions as a single entity. • OSI Model: -Modulization -Standard implementation model

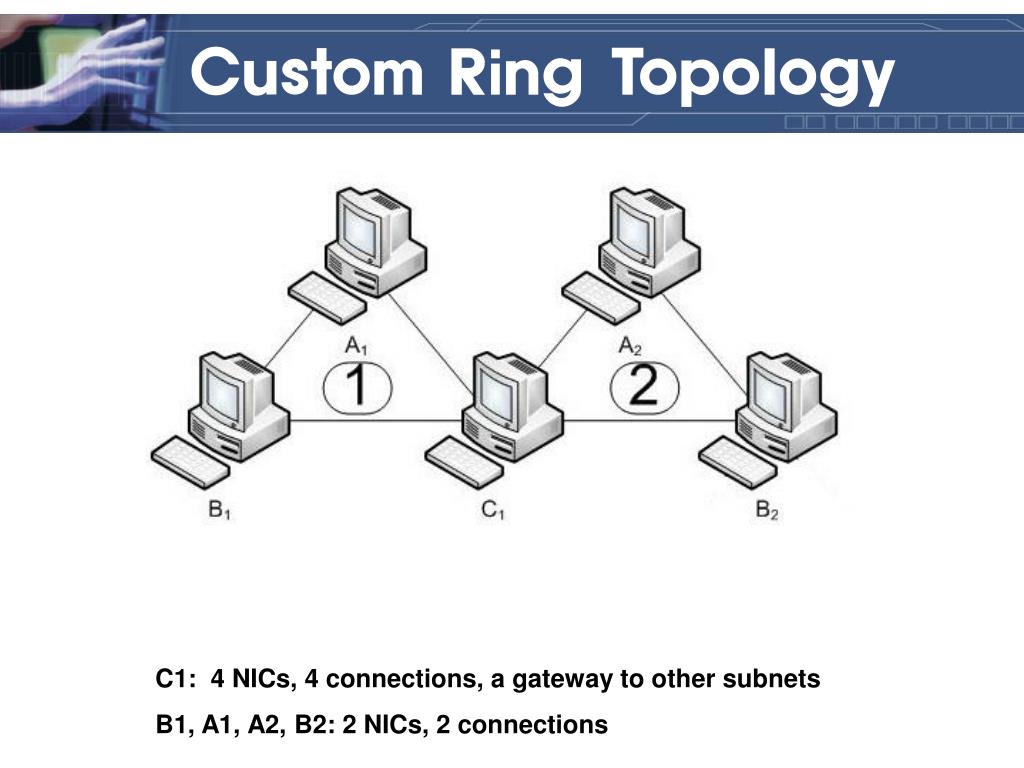

  4. Custom Ring Topology C1: 4 NICs, 4 connections, a gateway to other subnets B1, A1, A2, B2: 2 NICs, 2 connections

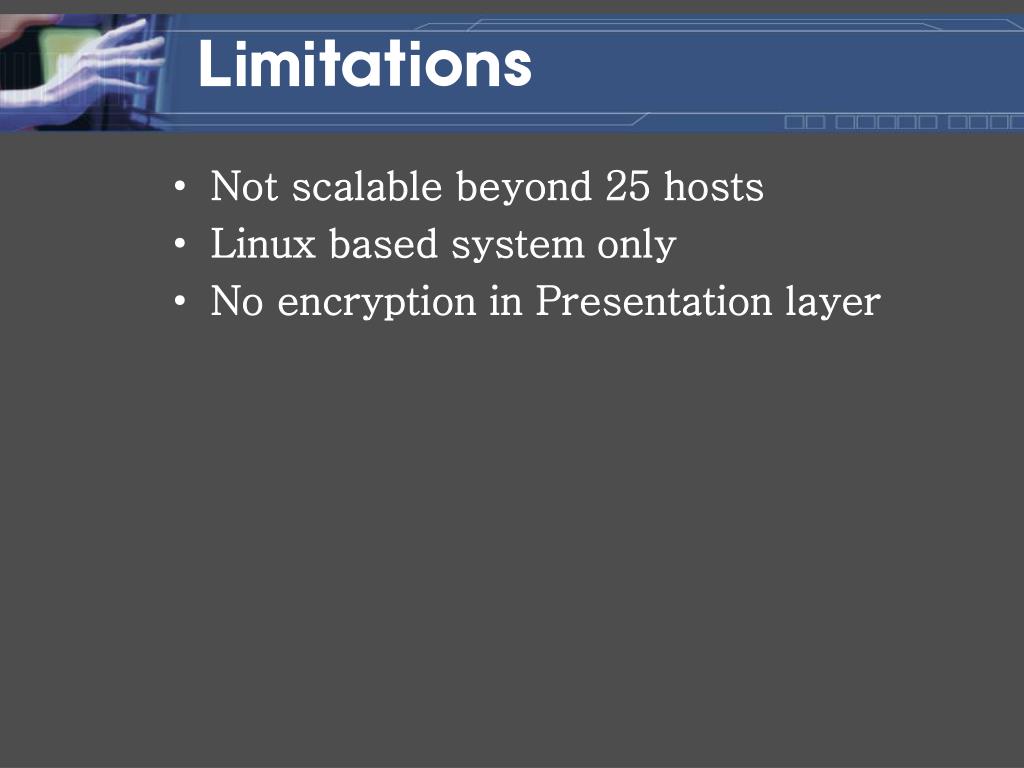

  5. Limitations • Not scalable beyond 25 hosts • Linux based system only • No encryption in Presentation layer

  6. Method • Connection to Physical Medium: - Discovery System (Remote-Hosts) • Network Stack: - Discovery of hardware on a local host • Routing algorithms - Vector distance routing algorithms - Packet forwarding • Flow Control - Throttling - Drop rate analysis • Dataflow multiplexing: - Pipelining dataflow into Programs - Management of multiple Program data flows

  7. Results • Ability to send/receive Ethernet packets • Communication among all layers • Working chat application • File transfer capability • Each layer is autonomous and independent

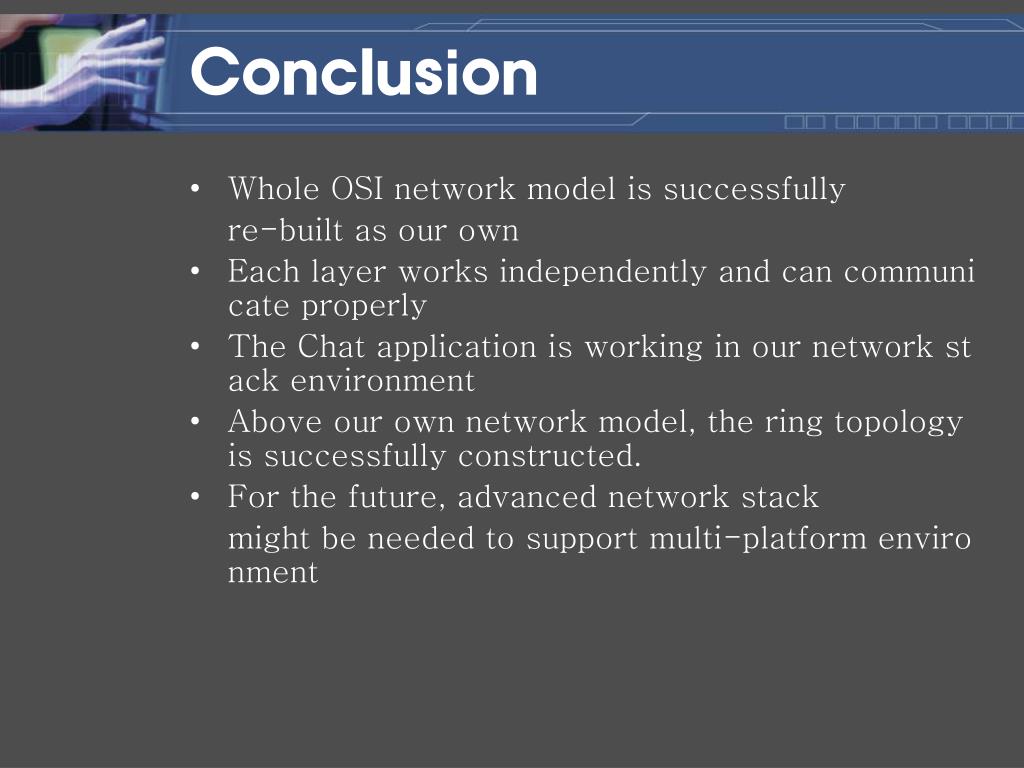

  8. Conclusion • Whole OSI network model is successfully re-built as our own • Each layer works independently and can communicate properly • The Chat application is working in our network stack environment • Above our own network model, the ring topology is successfully constructed. • For the future, advanced network stack might be needed to support multi-platform environment

  9. References [1] Douglas E. Comer, Internetworking with TCP/IP, pp 95 – 173, 2000. Prentice Hall [2] RFC2003: IP Encapsulation within IP, http://portal.acm.org/citation.cfm?id=RFC2003 [3] Richard Stevens, Unix Network Programming, pp 85 – 110, pp 655 – 70, pp 703 – 726, 1998. Prentice Hall [4] Kay A. Robbins & Steven Robbins, Practical UNIX Programming, pp333 – 400, 1996. Prentice Hall. [5] Andreas Schaufler, RAW Ethernet vs. UDP, http://www.landshut.org/bnla01/members/Faustus/fh/linux/udp_vs_raw/index.html [6] Chae Y. Lee & Seok J. Koh, A design of minimum cost ring-chain network with dual-homing survivability: A tabu search approach, Computers & Operations Research, Volume 24, Issue 9, September 1997, pp 883-897 [7] Brian "Beej" Hall, Beej's Guide to Unix Interprocess Communication, http://beej.us/guide/ipc/ [8] Pradeep Padala, NCURSES Programming HOWTO, http://tldp.org/HOWTO/NCURSES-Programming-HOWTO/

  10. Experiments…
