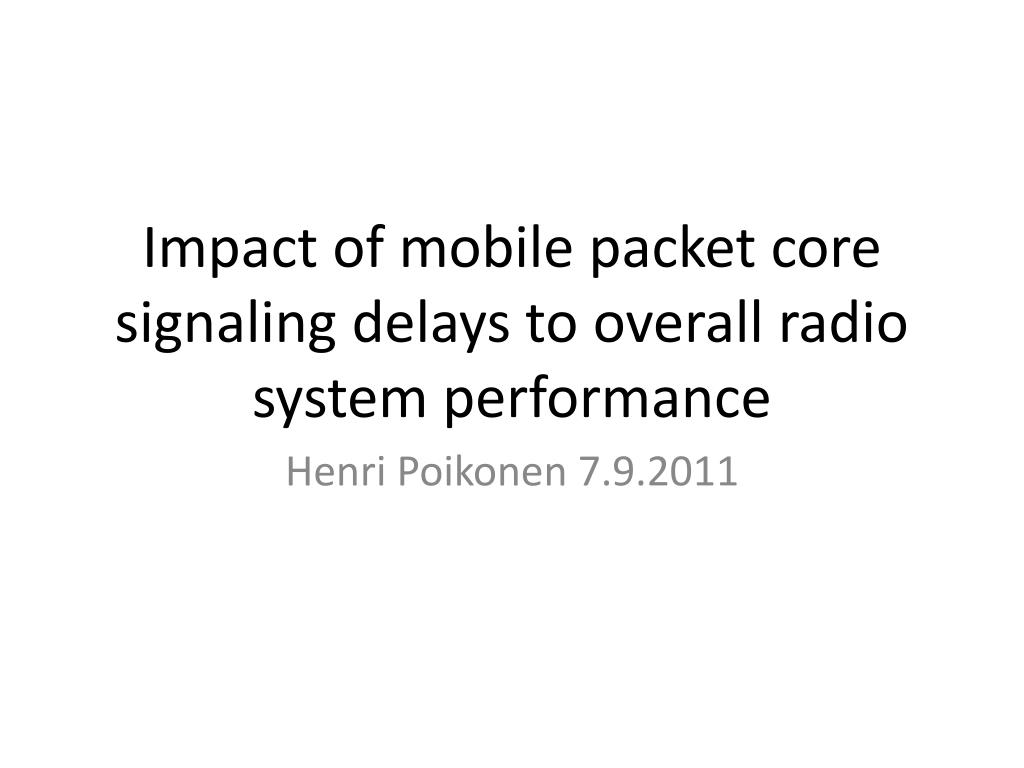

  1. Impact of mobile packet core signaling delays to overall radio system performance Henri Poikonen 7.9.2011

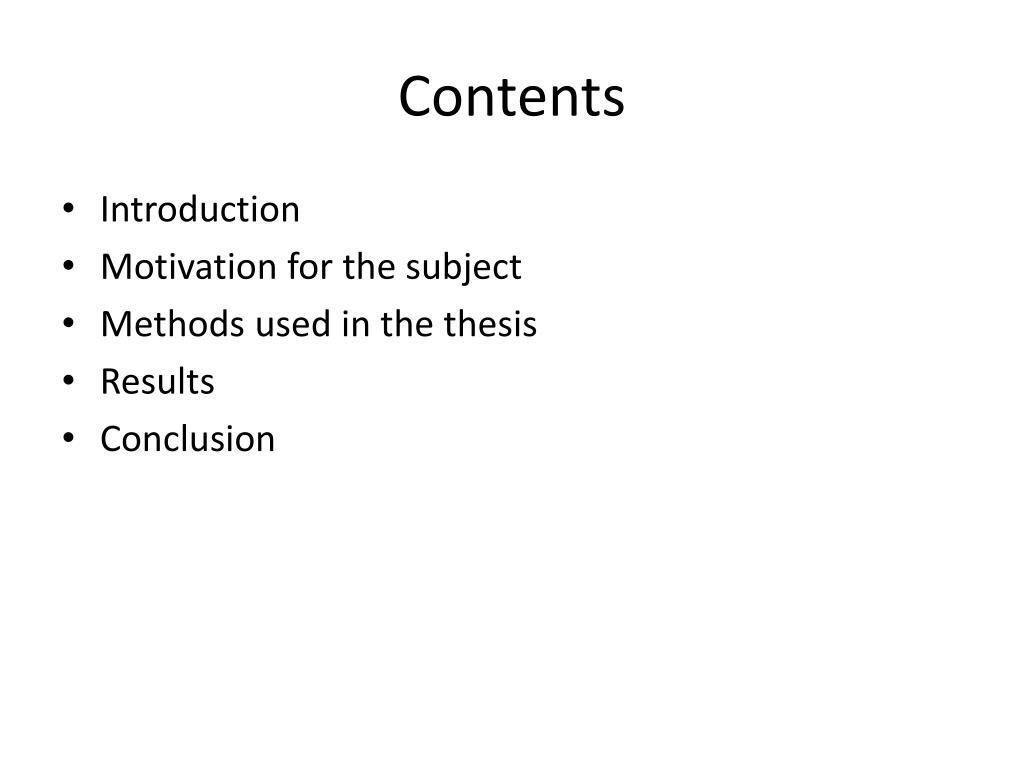

  2. Contents • Introduction • Motivation for the subject • Methods used in the thesis • Results • Conclusion

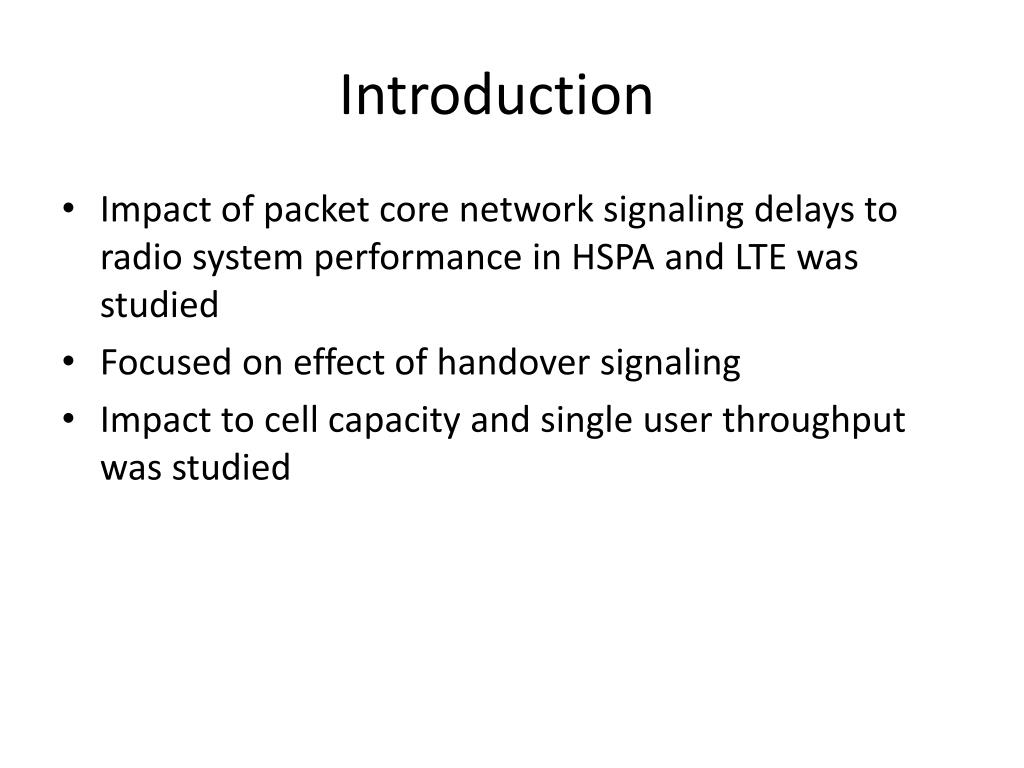

  3. Introduction • Impact of packet core network signaling delays to radio system performance in HSPA and LTE was studied • Focused on effect of handover signaling • Impact to cell capacity and single user throughput was studied

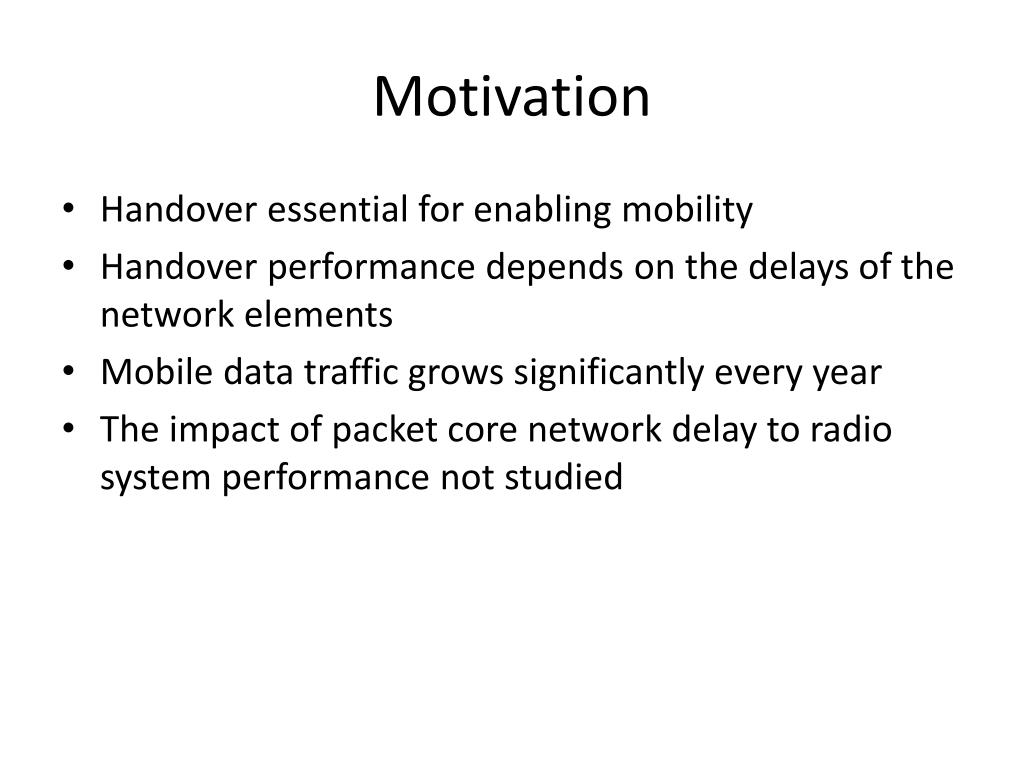

  4. Motivation • Handover essential for enabling mobility • Handover performance depends on the delays of the network elements • Mobile data traffic grows significantly every year • The impact of packet core network delay to radio system performance not studied

  5. Background information • HSPA (High Speed Packet Access) is an extension to WCDMA • Improves performance • Reduced latency and higher peak data rates • I-HSPA is an NSN product where RNC functionalities are located in the base station • LTE (Long Term Evolution) is a successor for the UMTS. • Often referred to as 4G • Peak data rates up to 100 Mbps

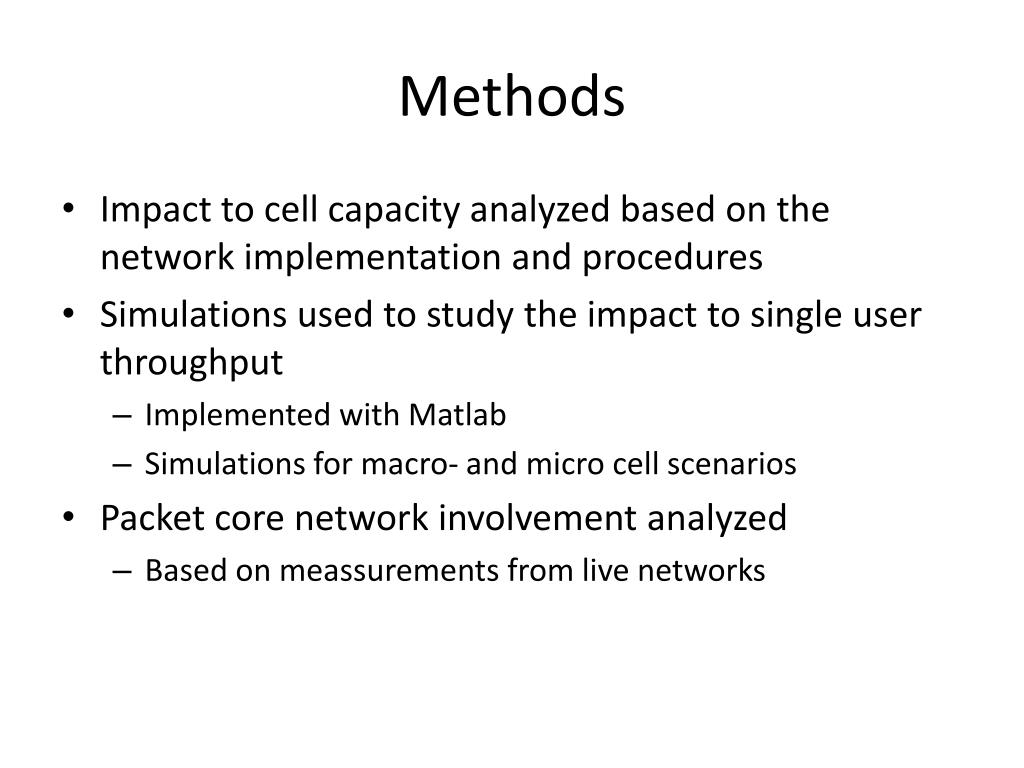

  6. Methods • Impact to cellcapacityanalyzedbased on the networkimplementationand procedures • Simulationsused to study the impact to single userthroughput • Implemented with Matlab • Simulations for macro- and microcellscenarios • Packetcorenetworkinvolvementanalyzed • Based on meassurementsfrom live networks

  7. Packet Core involvement • Packet Core network is involved only in the execution phase • Only part of the handovers involve packet core network • Depends on the network technology • HSDPA: ~10-20% of handovers • I-HSPA: ~60-70% of handovers • Depends also on the antenna configuration • LTE: No data available for LTE • Estimated to be close to zero

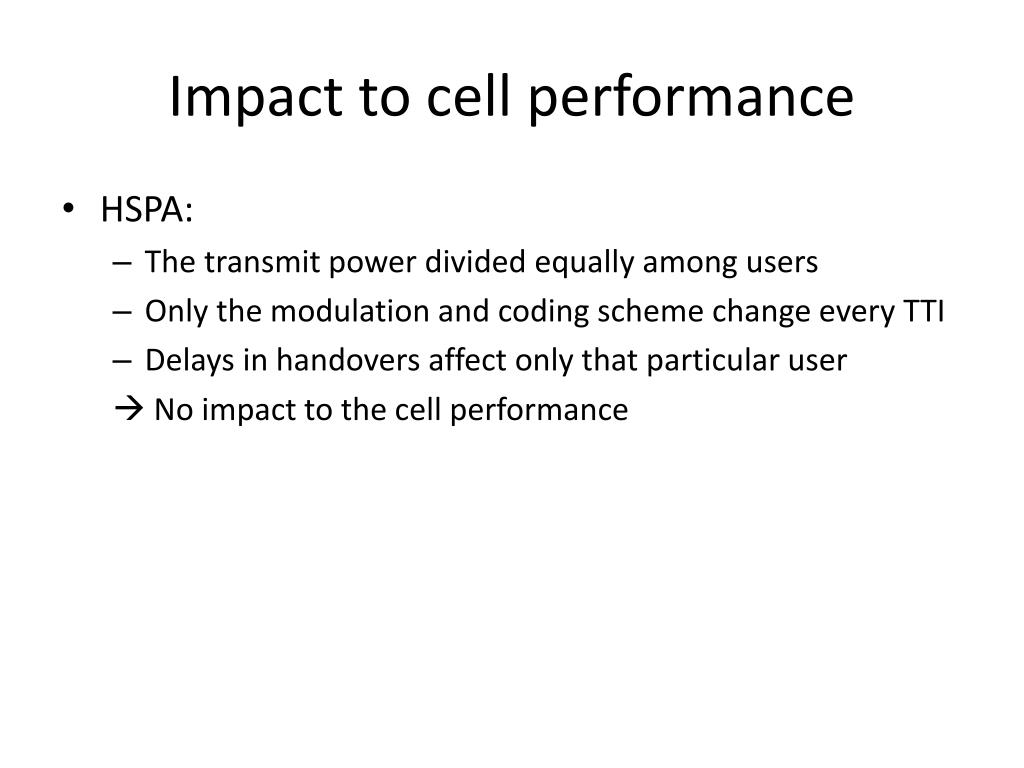

  8. Impact to cell performance • HSPA: • The transmit power divided equally among users • Only the modulation and coding scheme change every TTI • Delays in handovers affect only that particular user  No impact to the cell performance

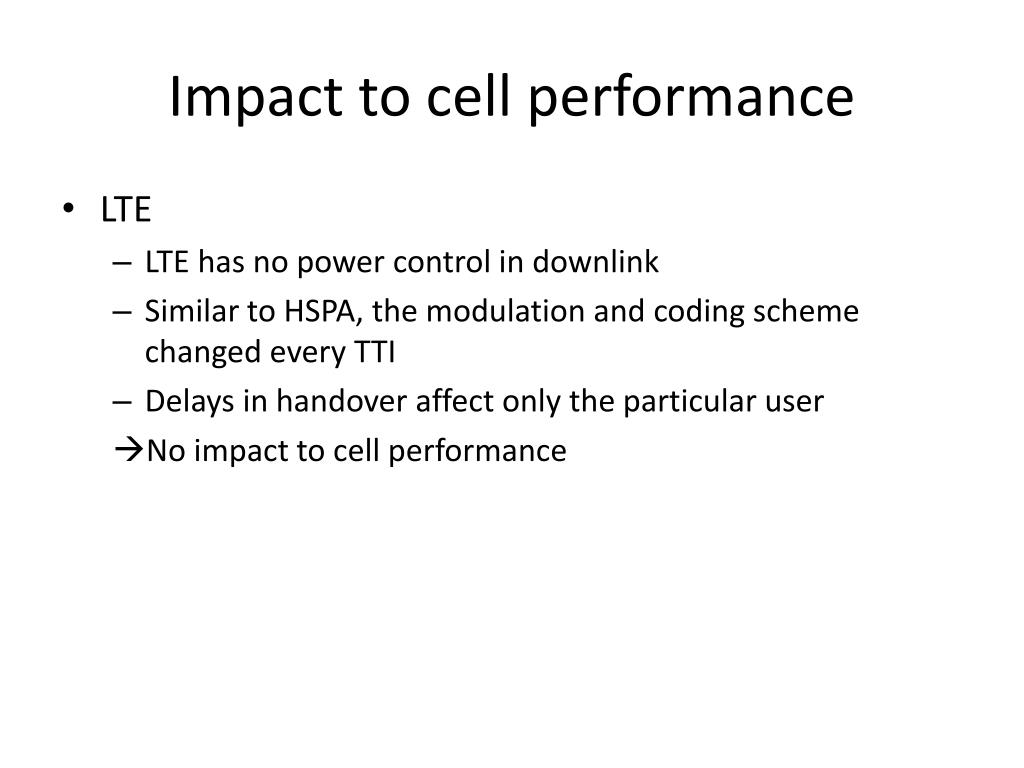

  9. Impact to cell performance • LTE • LTE has no power control in downlink • Similar to HSPA, the modulation and coding scheme changed every TTI • Delays in handover affect only the particular user No impact to cell performance

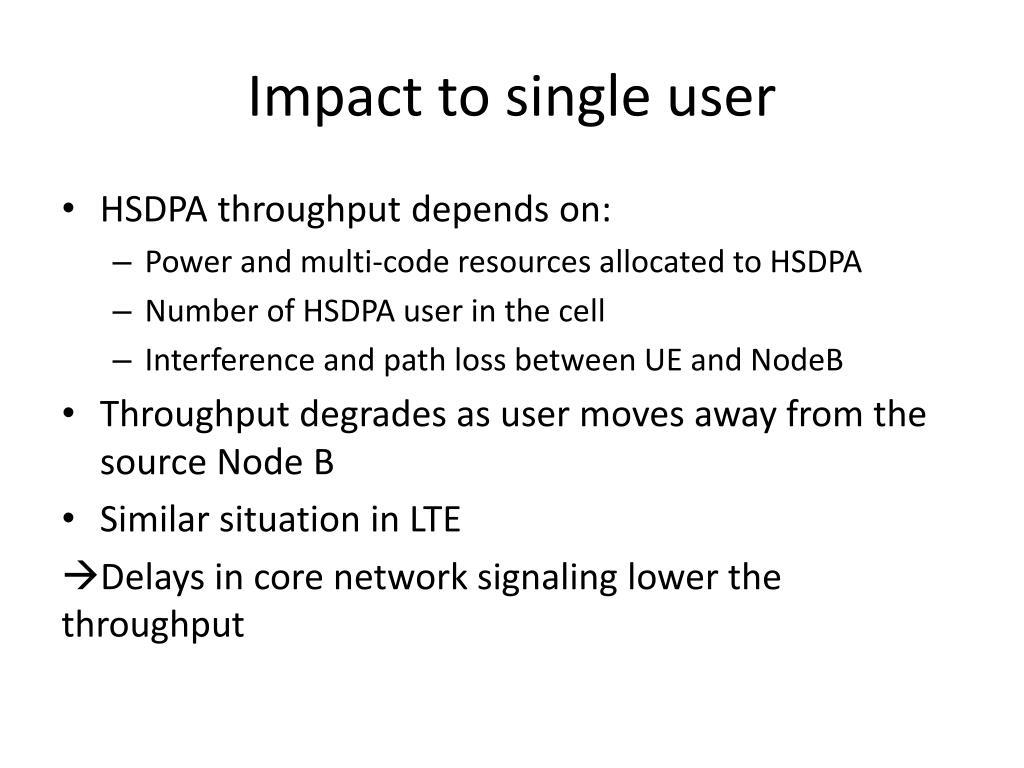

  10. Impact to single user • HSDPA throughputdepends on: • Power and multi-coderesourcesallocated to HSDPA • Number of HSDPA user in the cell • Interference and pathlossbetween UE and NodeB • Throughputdegrades as usermovesawayfrom the sourceNodeB • Similarsituation in LTE Delays in corenetworksignalinglower the throughput

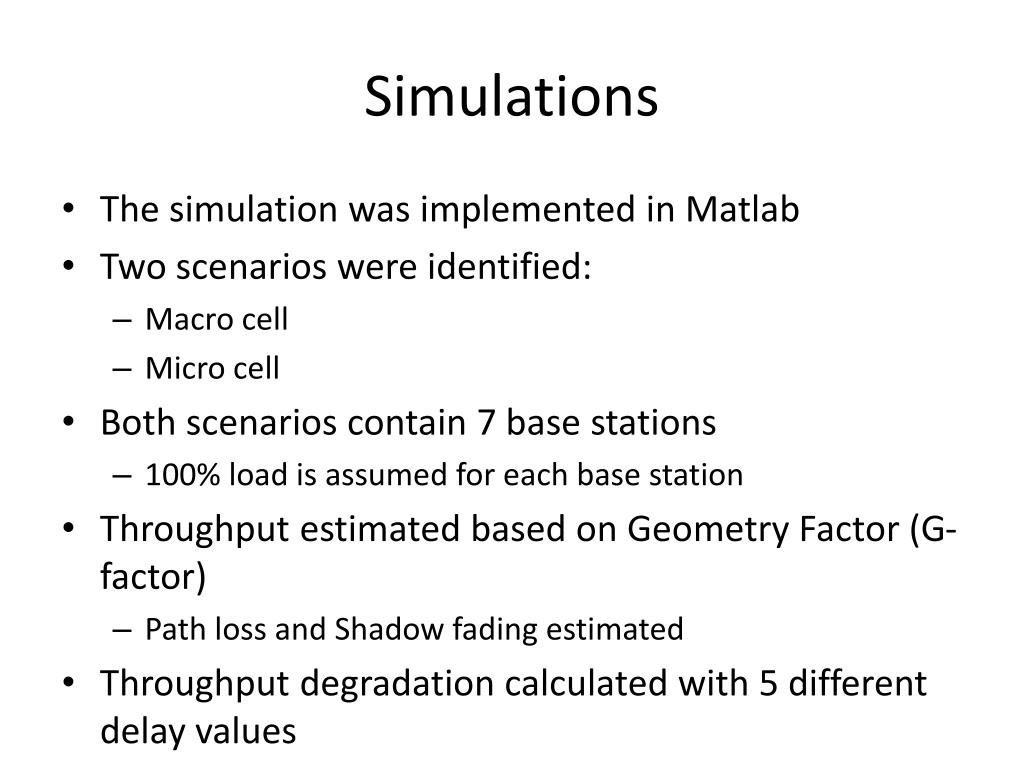

  11. Simulations • The simulation was implemented in Matlab • Two scenarios were identified: • Macro cell • Micro cell • Both scenarios contain 7 base stations • 100% load is assumed for each base station • Throughput estimated based on Geometry Factor (G-factor) • Path loss and Shadow fading estimated • Throughput degradation calculated with 5 different delay values

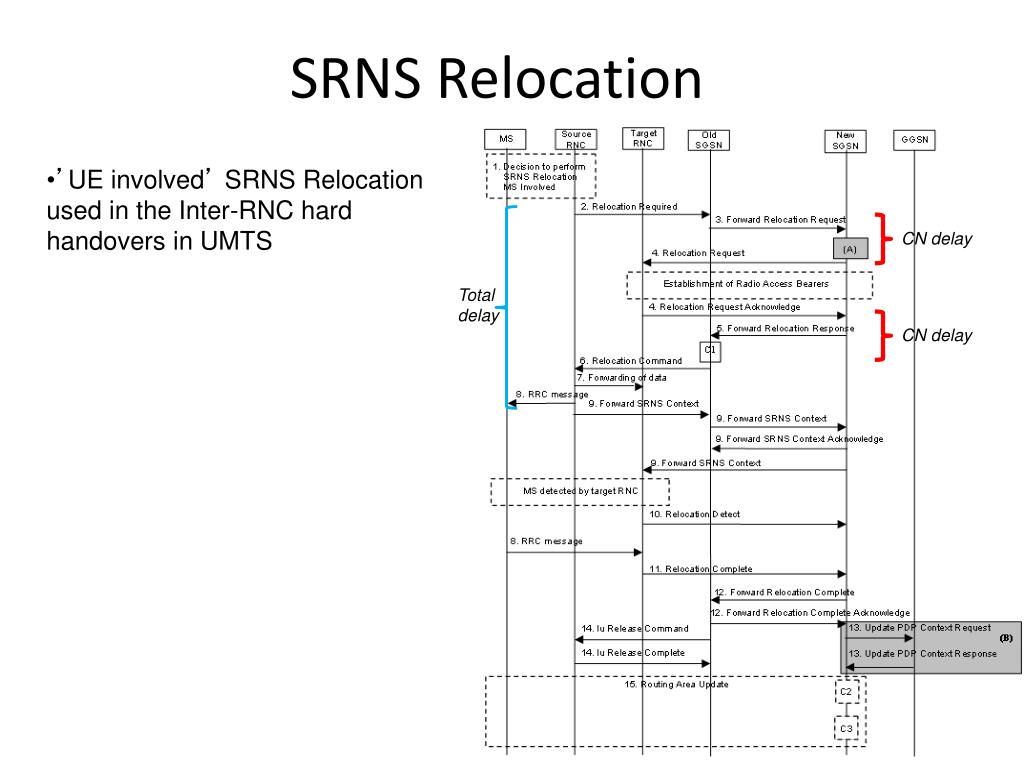

  12. SRNS Relocation • ’UE involved’ SRNS Relocation used in the Inter-RNC hard handovers in UMTS CN delay Total delay CN delay

  13. S1 based Handover • Only handover in LTE that involves packet Core network signaling CN delay Total delay CN delay

  14. Macro cell scenario • UE velocity: 50 km/h • Central cell acting as the serving cell • UE moves away from the serving base station • 360 different directions used (circle with 1 degree separation) • Calculated 100 times for each direction

  15. Micro cell scenario • Manhattan street grid building layout with 7 base stations. • Travelledroute of the UE marked with a redarrow • Degradationcalculated 10000 times • UE velocity: 6 km/h

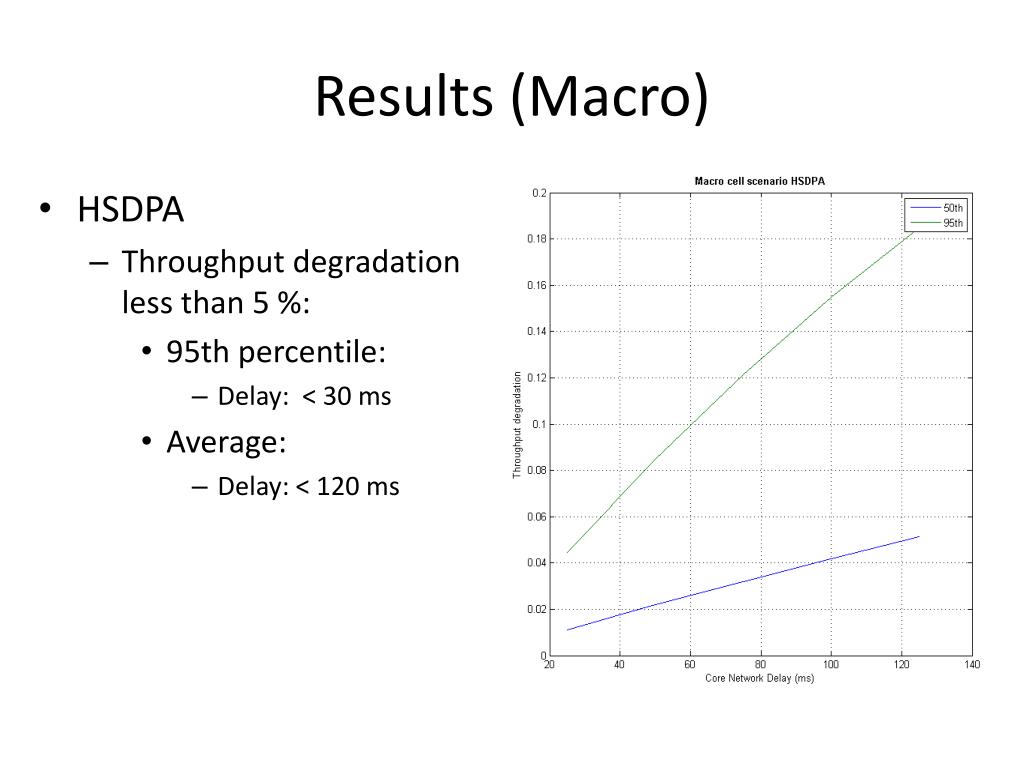

  16. Results (Macro) • HSDPA • Throughput degradation less than 5 %: • 95th percentile: • Delay: < 30 ms • Average: • Delay: < 120 ms

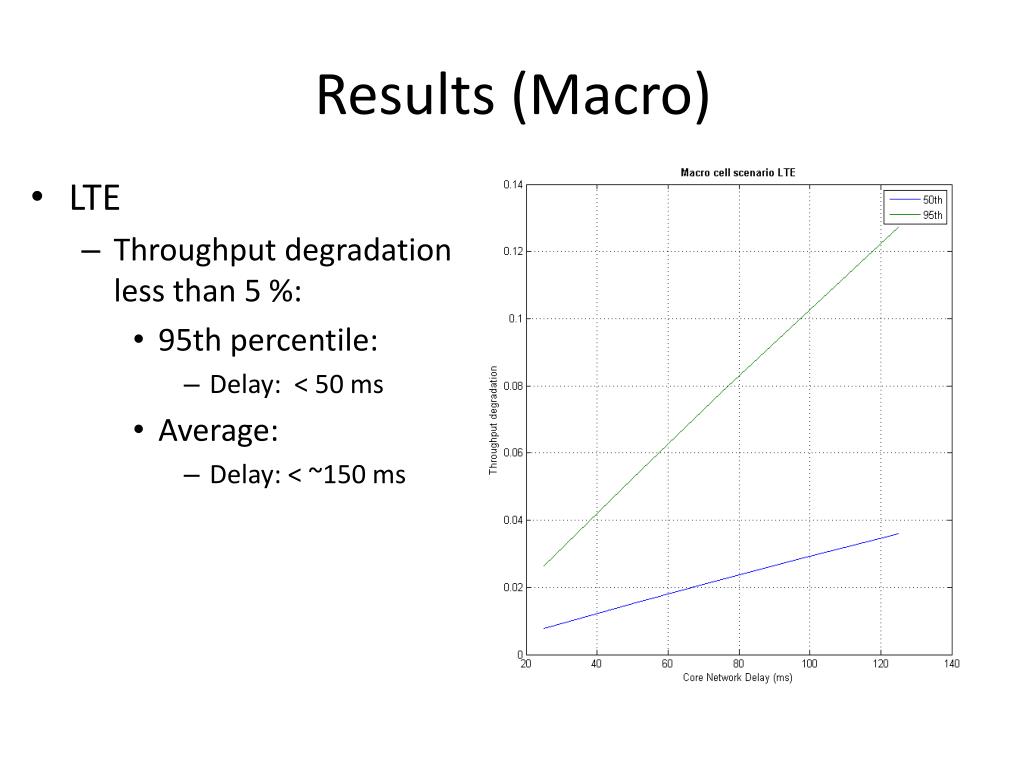

  17. Results (Macro) • LTE • Throughput degradation less than 5 %: • 95th percentile: • Delay: < 50 ms • Average: • Delay: < ~150 ms

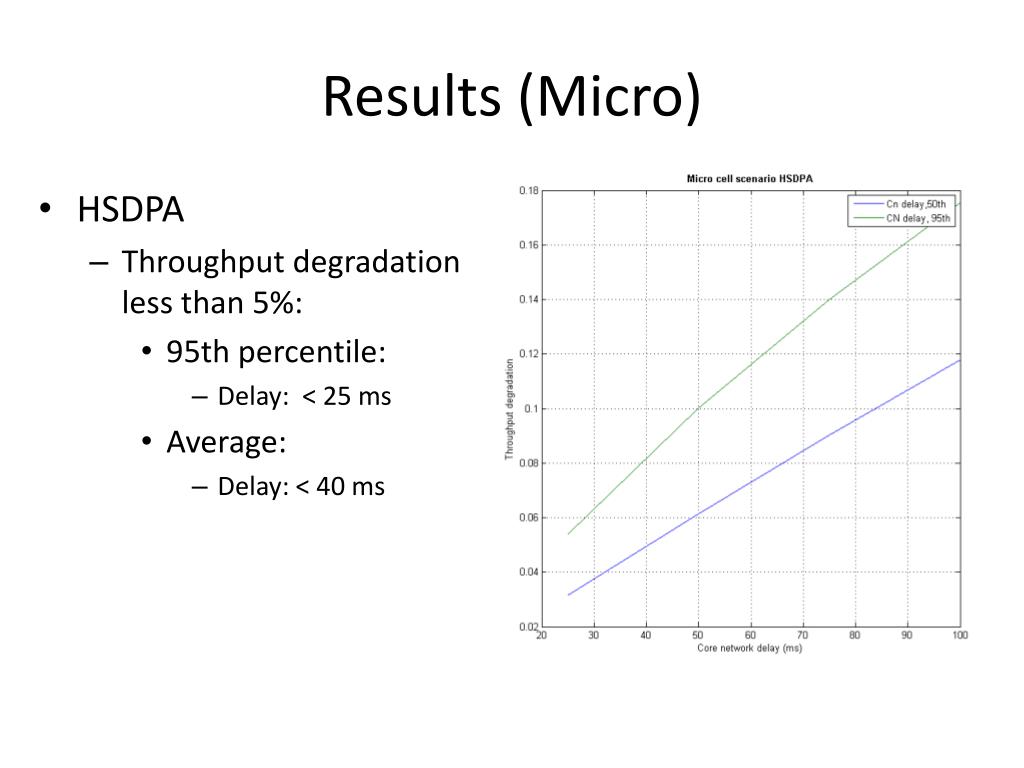

  18. Results (Micro) • HSDPA • Throughput degradation less than 5%: • 95th percentile: • Delay: < 25 ms • Average: • Delay: < 40 ms

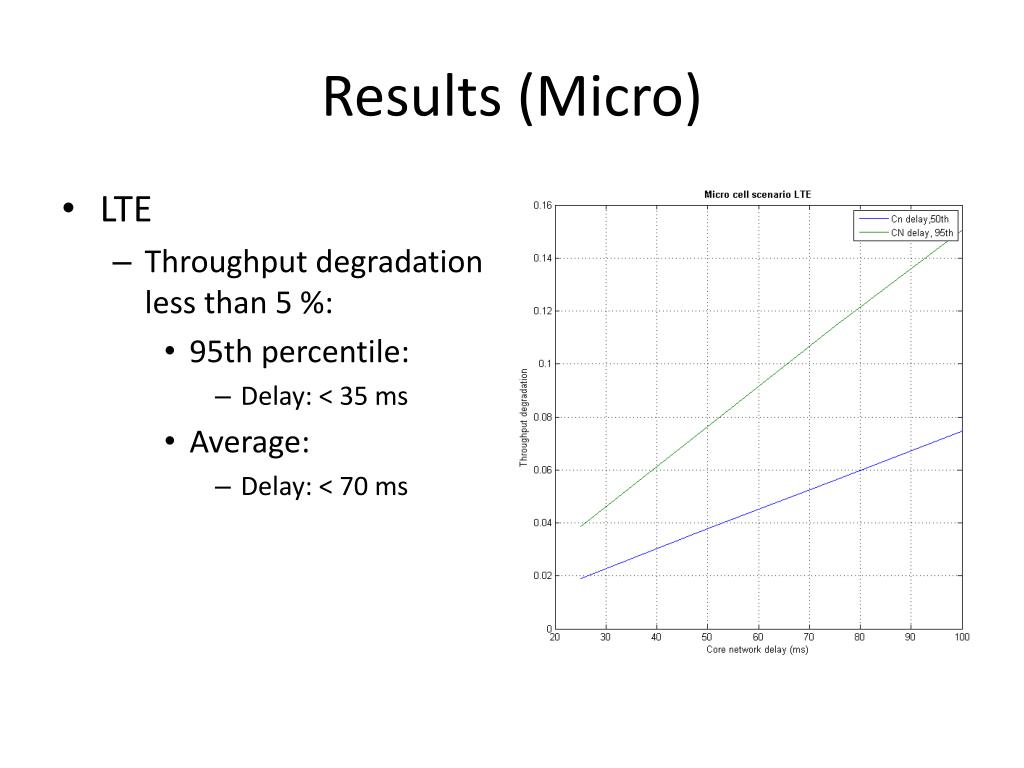

  19. Results (Micro) • LTE • Throughput degradation less than 5 %: • 95th percentile: • Delay: < 35 ms • Average: • Delay: < 70 ms

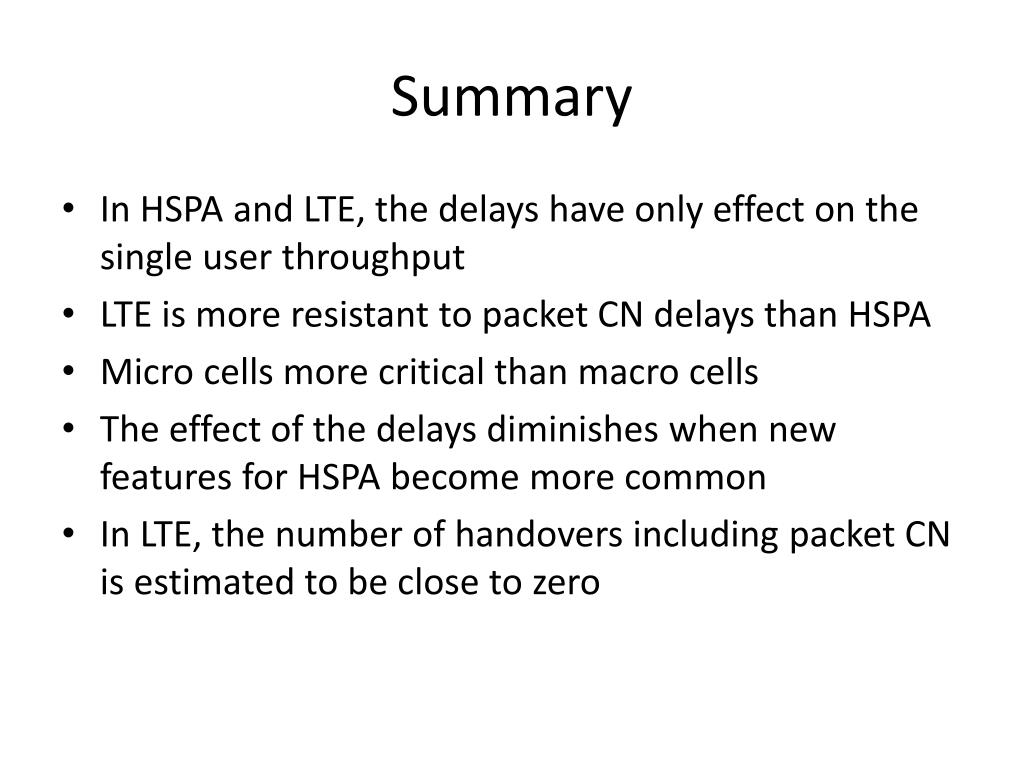

  20. Summary • In HSPA and LTE, the delays have only effect on the single user throughput • LTE is more resistant to packet CN delays than HSPA • Micro cells more critical than macro cells • The effect of the delays diminishes when new features for HSPA become more common • In LTE, the number of handovers including packet CN is estimated to be close to zero
