Lecture #23 Object recognition 4/23/13
MBEX final survey • If you took survey at the beginning of the semester and then complete it now, you will receive 5 pts towards homework • Please take it by April 30th • Thanks for helping biology education research
The end is in sight 4/25 One of main wiki pages done 5/2 Question for exam 5/9 Wiki due last class: Intro page and 3 main pages done 5/16 Final Thursday 1:30-3:30
Wiki references • With text, refer to your references with either (author, year) or [1] • Make sure to write out the reference to include author, year, title, journal • This helps the reader see what they are • Links are great but they are in addition

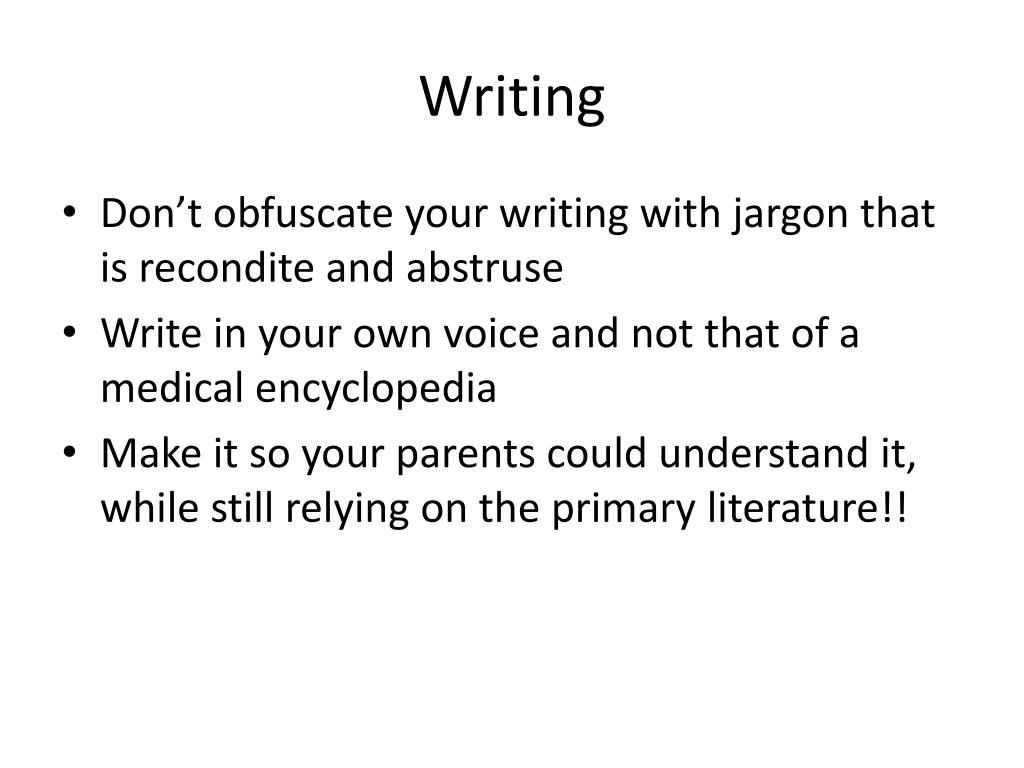

Writing • Don’t obfuscate your writing with jargon that is recondite and abstruse • Write in your own voice and not that of a medical encyclopedia • Make it so your parents could understand it, while still relying on the primary literature!!

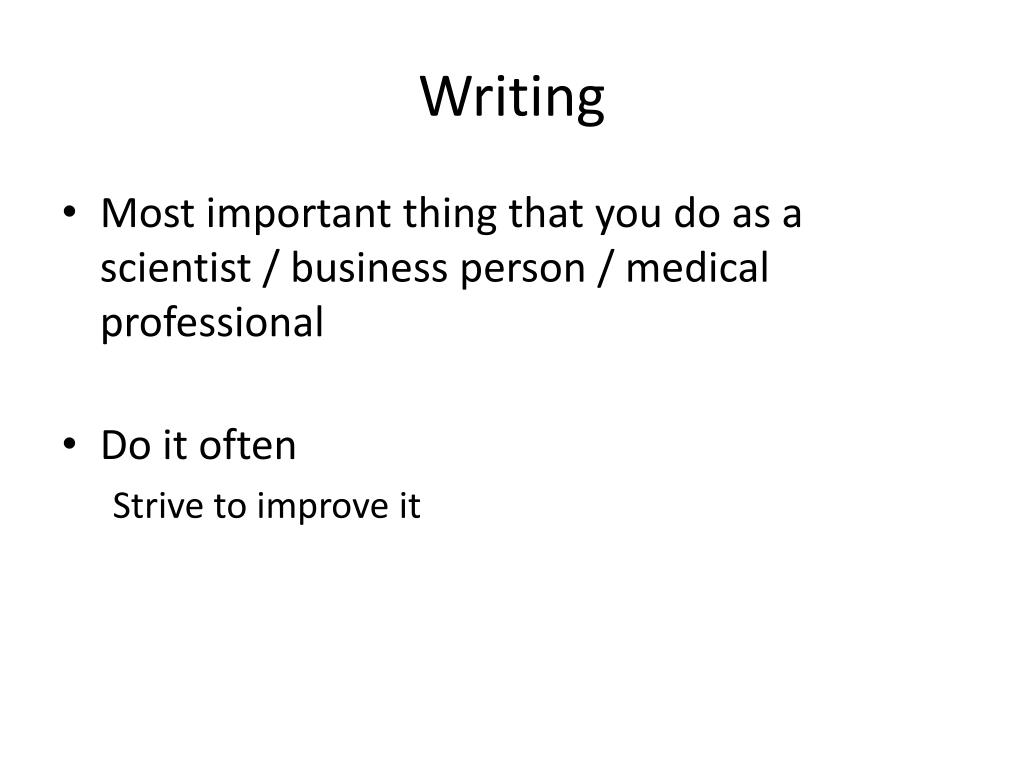

Writing • Most important thing that you do as a scientist / business person / medical professional • Do it often • Strive to improve it
Once you’ve written something • Getting your first version done is just the first step • Read it again • Edit, edit, edit • Simplify, simplify, simplify
What to do when you get stuck • Deal with subunits • Does each paragraph hang together • Topic sentence • Outline paper based on topic sentences • Tests organization • Have many people read it • Different learning styles and perspectives

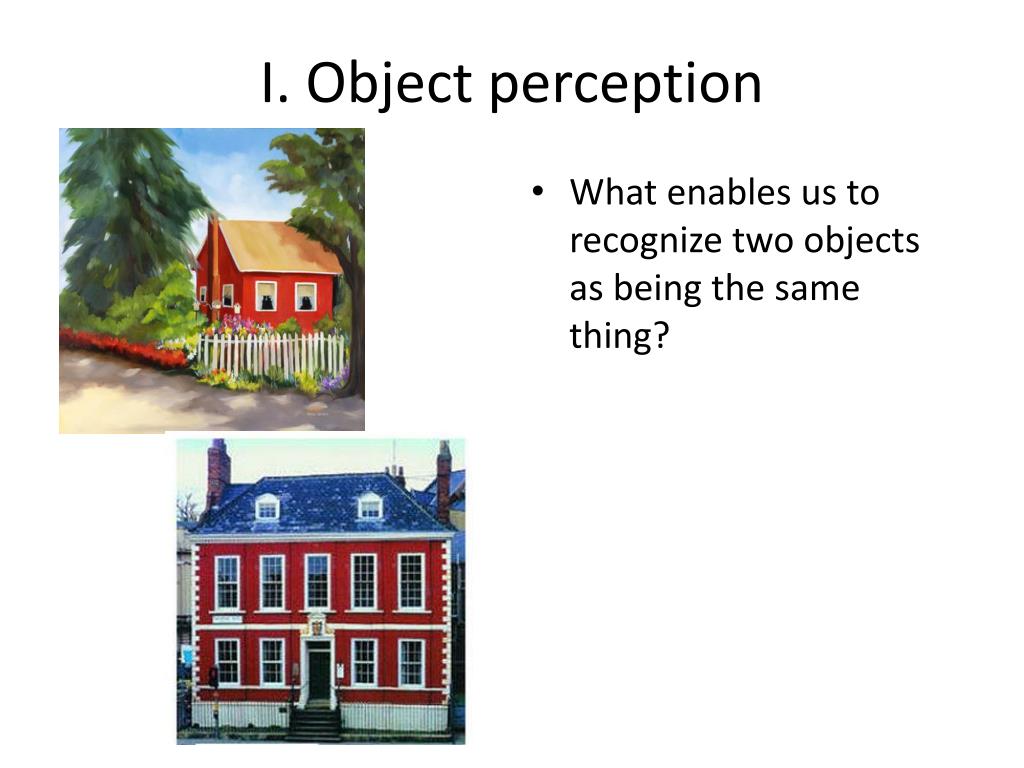

I. Object perception • What enables us to recognize two objects as being the same thing?
Low level vision • Retina detects dots • Center - surround wiring • Visual cortex detects lines, edges and blobs of color

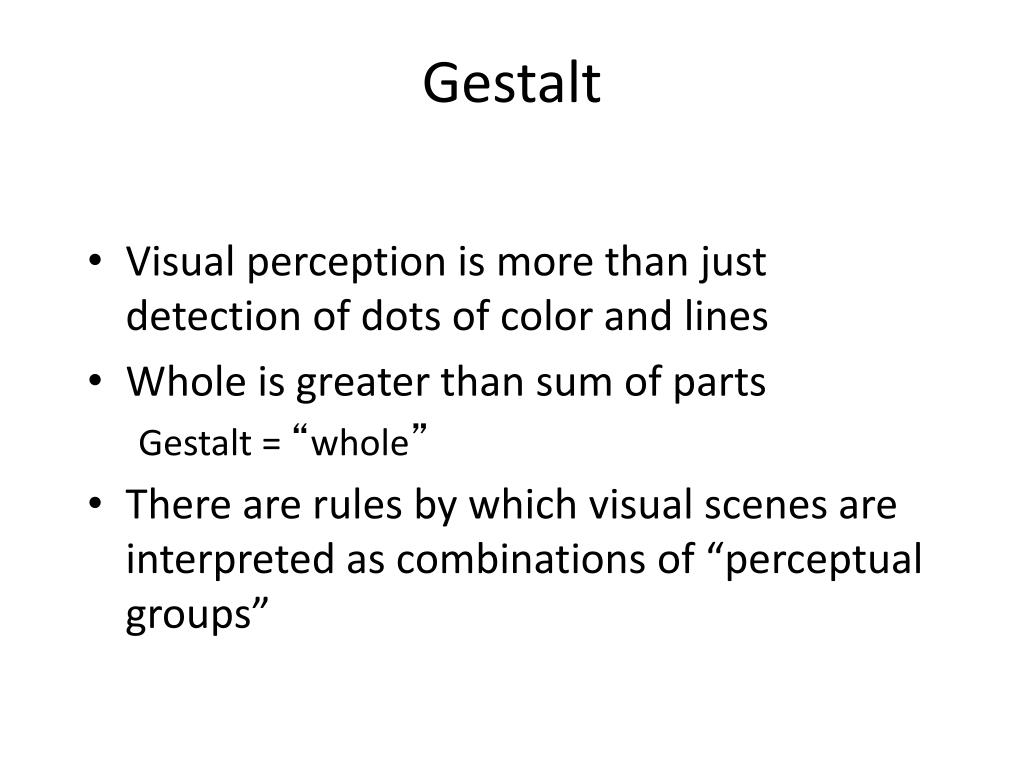

Gestalt • Visual perception is more than just detection of dots of color and lines • Whole is greater than sum of parts • Gestalt = “whole” • There are rules by which visual scenes are interpreted as combinations of “perceptual groups”
Walls + windows + door + columns + roof = White House Middle vision • To build an object you need to: • Find edges • Group similar areas • “White” • Decide what goes together to make a whole • Organize elements into groups by grouping rules
Higher level vision • Determine what an object is • Match middle level views with memory of what object is • Independent of Viewing angle • Whether seen before or not
Grouping rules • How do you think you organize what you see into individual elements or groups?

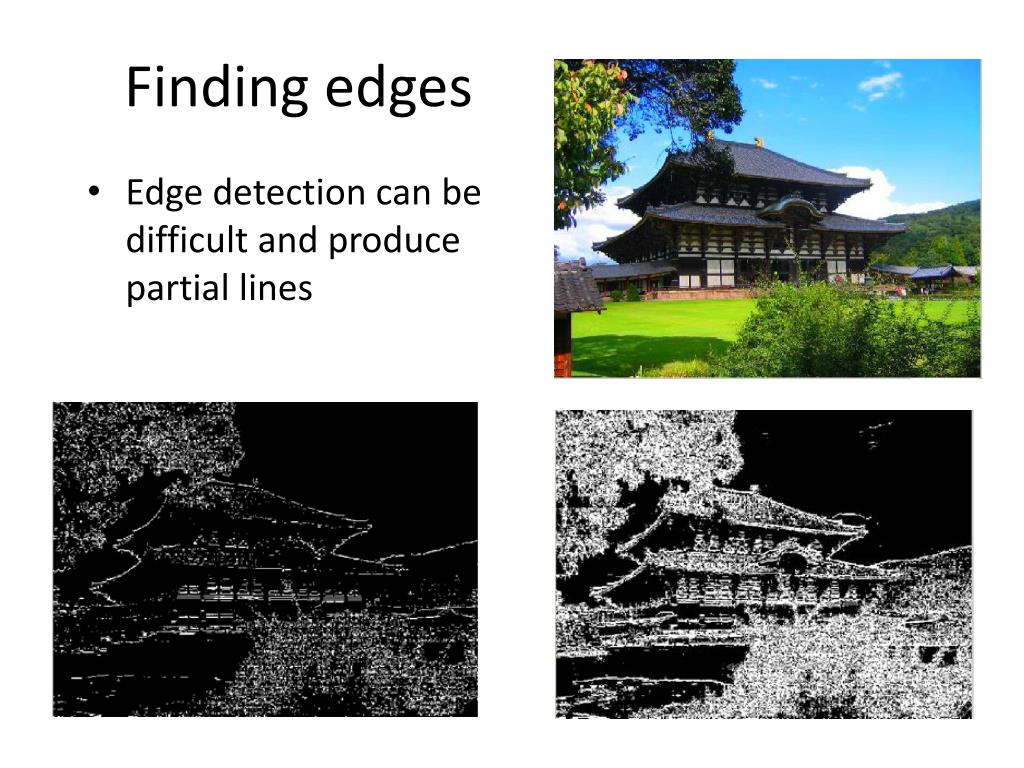

Finding edges • Edge detection can be difficult and produce partial lines
Rule #1 : Good continuation • This figure is most likely the result of these lines and not these
Rule #2 : Occlusion • If an edge stops, it is likely being occluded • So assume it must actually extend
Kanizsa figure • You see the object even though it is only hinted at from objects present
Rule # 3 - Texture segmentation • Group parts of image that have similarly sized texture • This is based on two principles: • Similarity • Proximity
Similarity and proximity • Image bits,that are similar and close to each other, are grouped together • Can be based on • Color • Shape • Size • Orientation
Similarity and proximity • Can fool visual system if overlapped characteristics • Same forms and colors occur in both groups

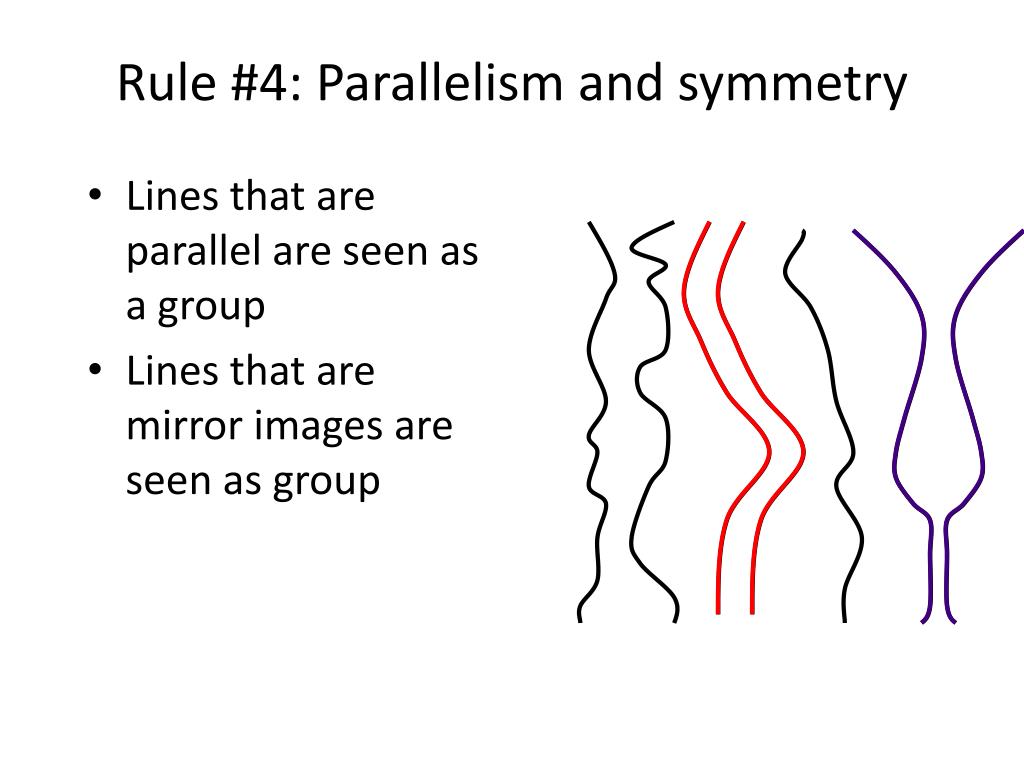

Rule #4: Parallelism and symmetry • Lines that are parallel are seen as a group • Lines that are mirror images are seen as group

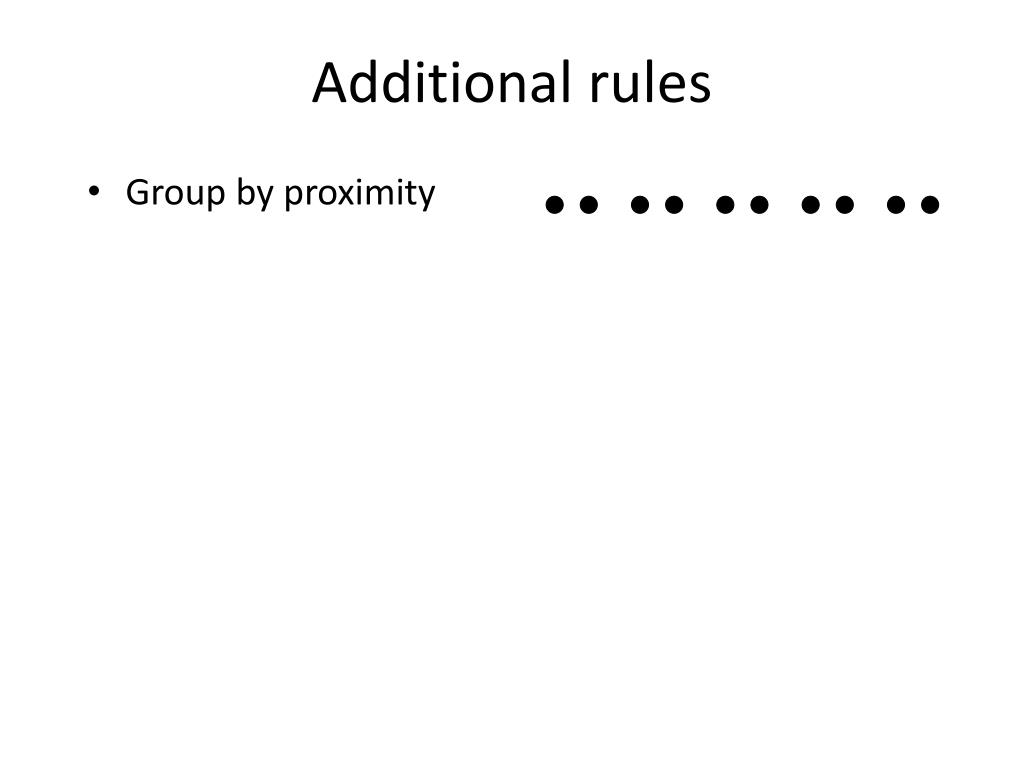

Additional rules • Group by proximity

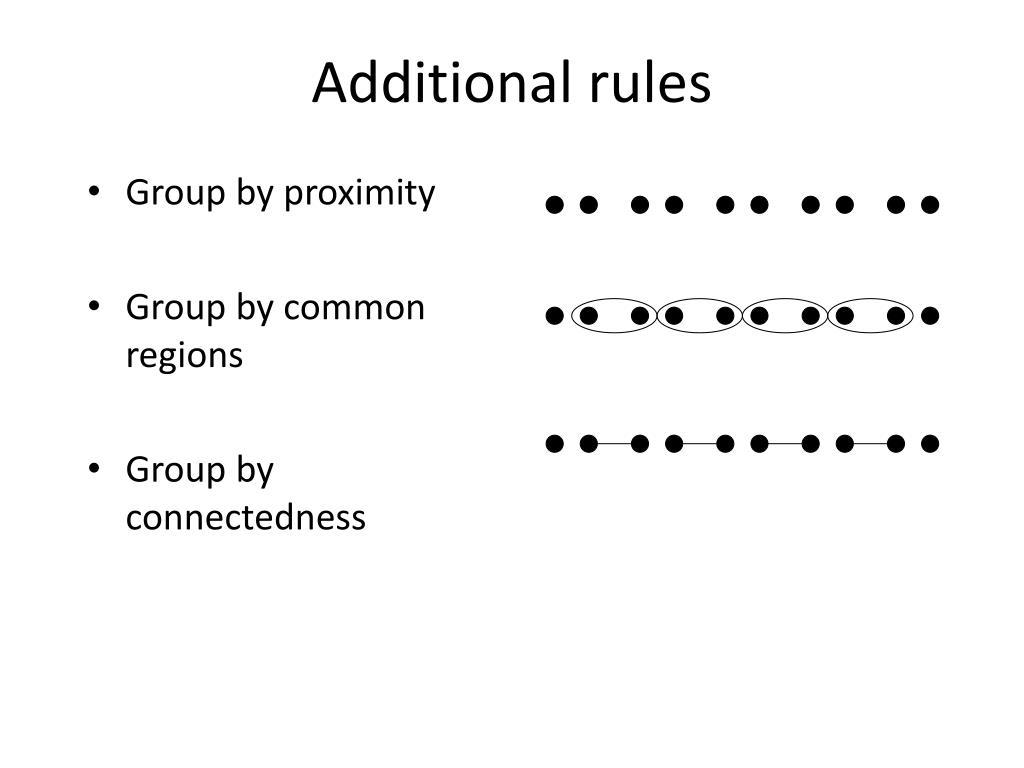

Additional rules • Group by proximity • Group by common regions • Group by connectedness
Camouflage • An attempt to thwart the visual system’s ability to discriminate an object from its background – disrupt similarity/ proximity grouping
Camouflage • Color and texture matching - flounder
Camouflage to the extreme • Flounder can even match a checkerboard!
Stripes make it hard to tell where one zebra stops and the next starts
Insects use shape, texture and color Katydids Walking stick
Perceiving the alphabet • Each letter is composed of shapes - lines and curves
Perceptual committees • Low level vision provides shape and orientation info • Feature demons are specialists which detect certain aspects • Cognitive demons combine information to recognizeeach letter • Decision demon makes decision out of pandemonium Oliver Selfridge 1959
Similarities with brain • Areas of visual cortex that detect features • Feed info to other areas where cognition happens • Detection happens in parallel http://www.sinauer.com/wolfe/chap4/pandemoniumF.htm
Similarities with brain • Probably are neurons which interconnect and make these comparisons • Have to train neurons on the alphabet characters for your language
It is possible to wear out the demons • After images result if you have two demons which oppose each other • If wear one out, the other wins

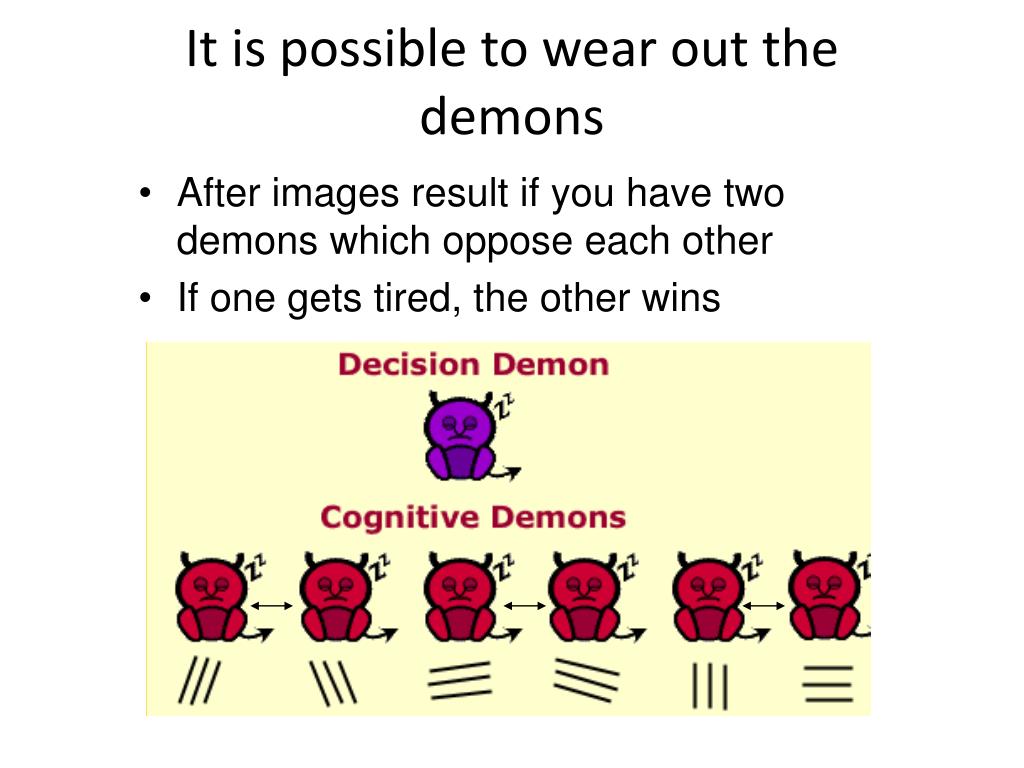

It is possible to wear out the demons • After images result if you have two demons which oppose each other • If one gets tired, the other wins

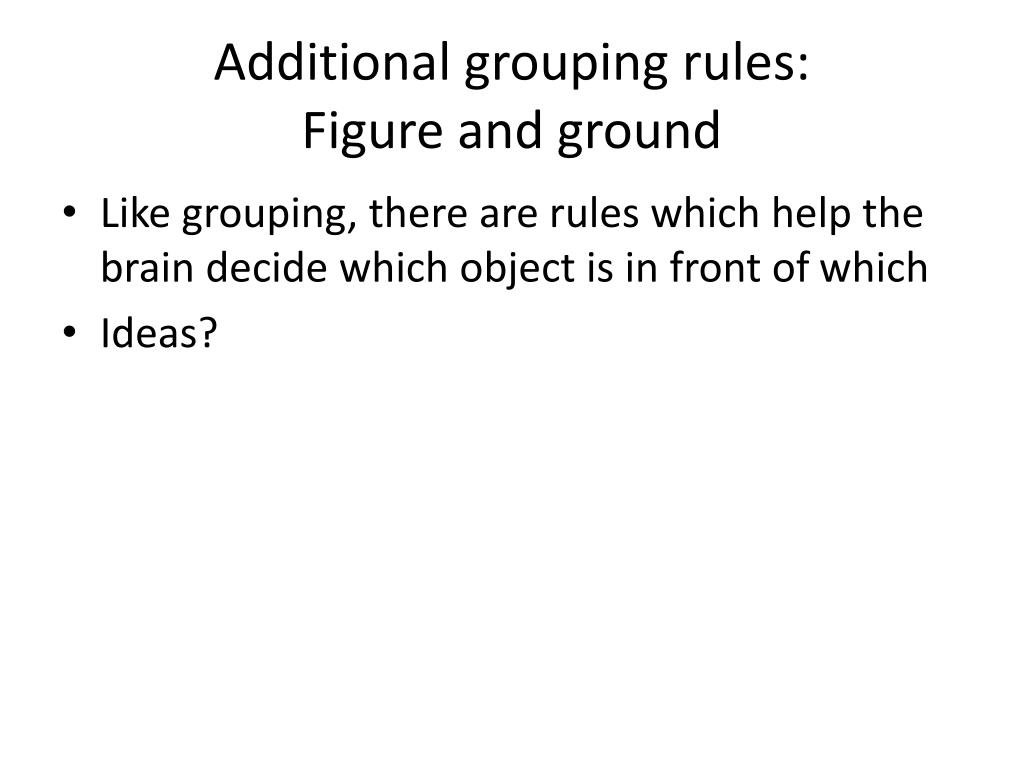

Additional grouping rules:Figure and ground • Like grouping, there are rules which help the brain decide which object is in front of which • Ideas?

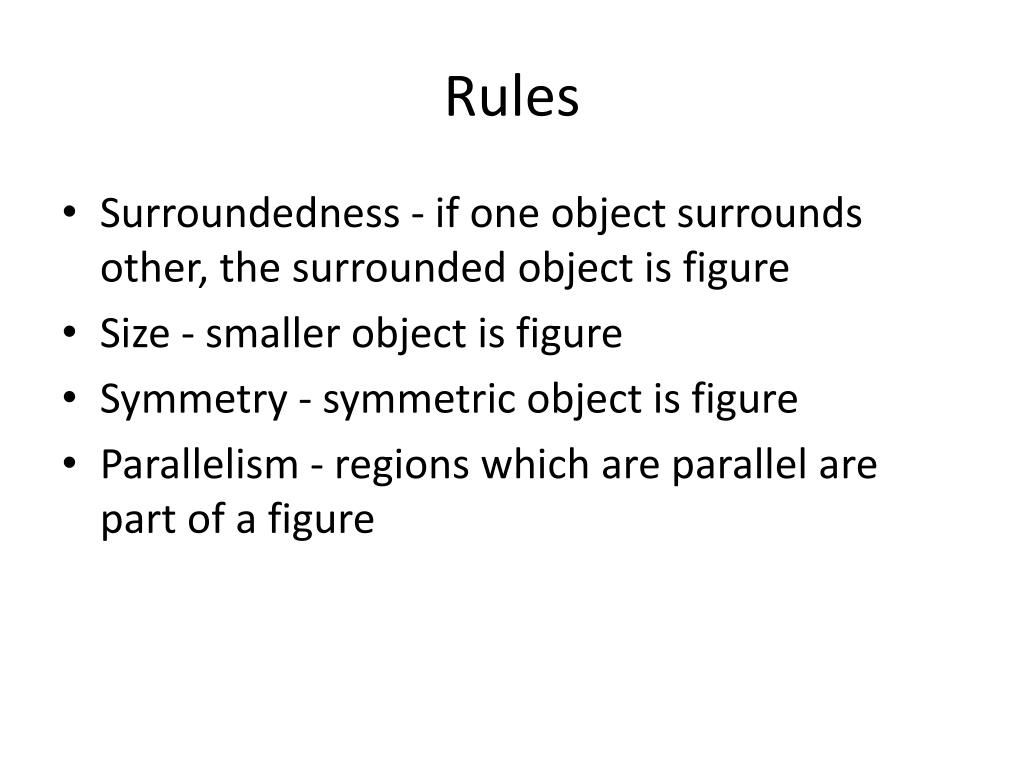

Rules • Surroundedness - if one object surrounds other, the surrounded object is figure • Size - smaller object is figure • Symmetry - symmetric object is figure • Parallelism - regions which are parallel are part of a figure
