Quantified Invariants in Rich DomainsusingModel Checking and Abstract Interpretation Anvesh Komuravelli, CMU Joint work with Ken McMillan

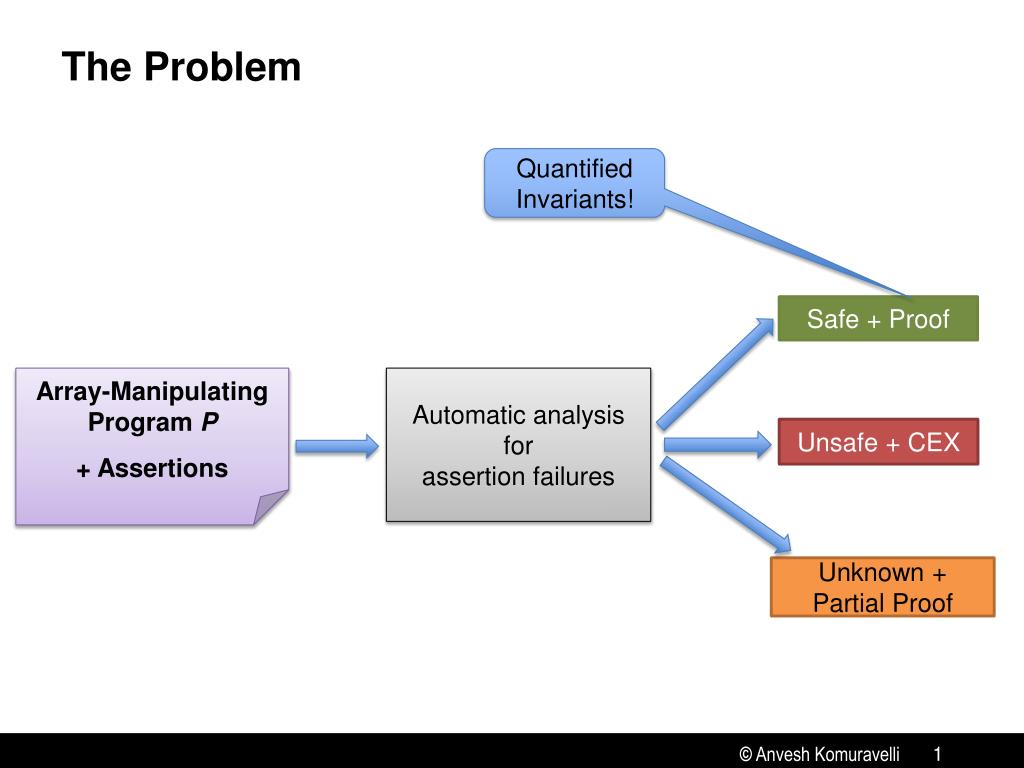

The Problem Quantified Invariants! Safe + Proof Array-Manipulating Program P + Assertions Automatic analysis for assertion failures Unsafe + CEX Unknown + Partial Proof

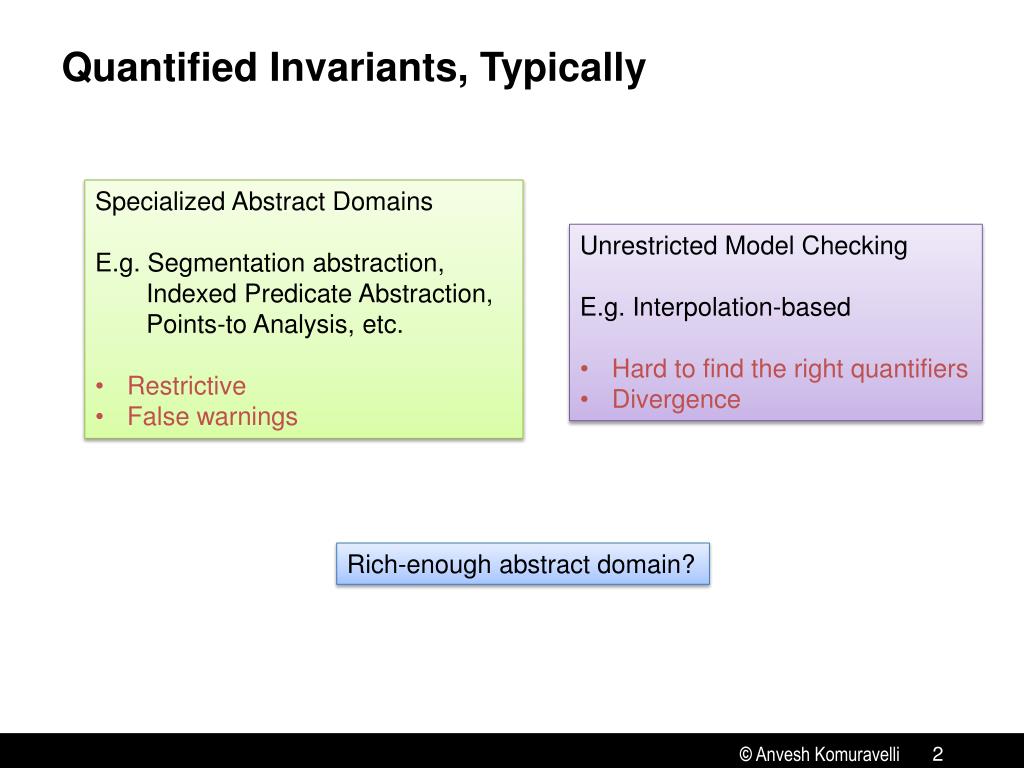

Quantified Invariants, Typically • Specialized Abstract Domains • E.g. Segmentation abstraction, • Indexed Predicate Abstraction, • Points-to Analysis, etc. • Restrictive • False warnings • Unrestricted Model Checking • E.g. Interpolation-based • Hard to find the right quantifiers • Divergence Rich-enough abstract domain?

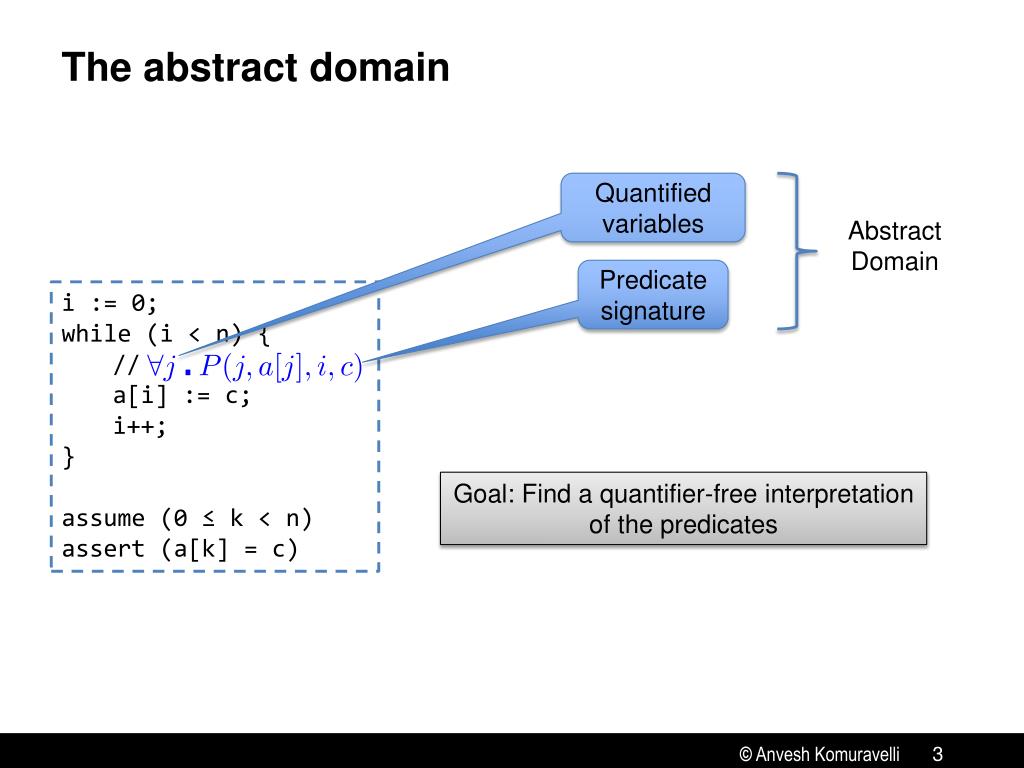

The abstract domain Quantified variables Abstract Domain Predicate signature i := 0; while (i < n) { // a[i] := c; i++; } assume (0 ≤ k < n) assert (a[k] = c) Goal: Find a quantifier-free interpretation of the predicates

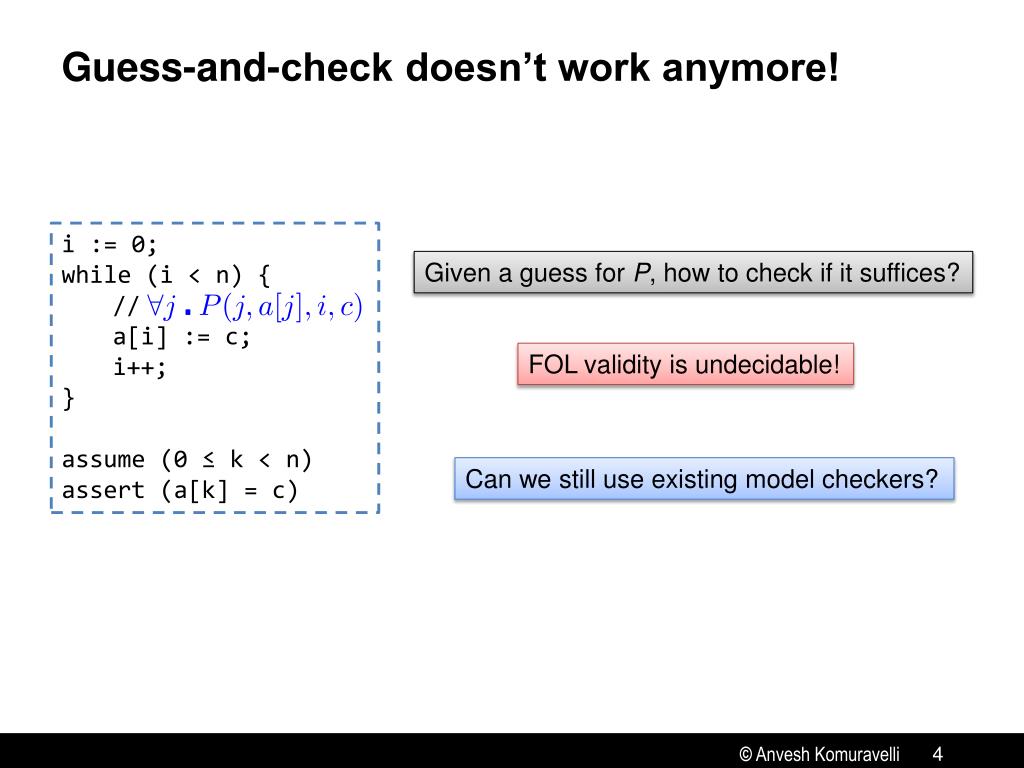

Guess-and-check doesn’t work anymore! i := 0; while (i < n) { // a[i] := c; i++; } assume (0 ≤ k < n) assert (a[k] = c) Given a guess for P, how to check if it suffices? FOL validity is undecidable! Can we still use existing model checkers?

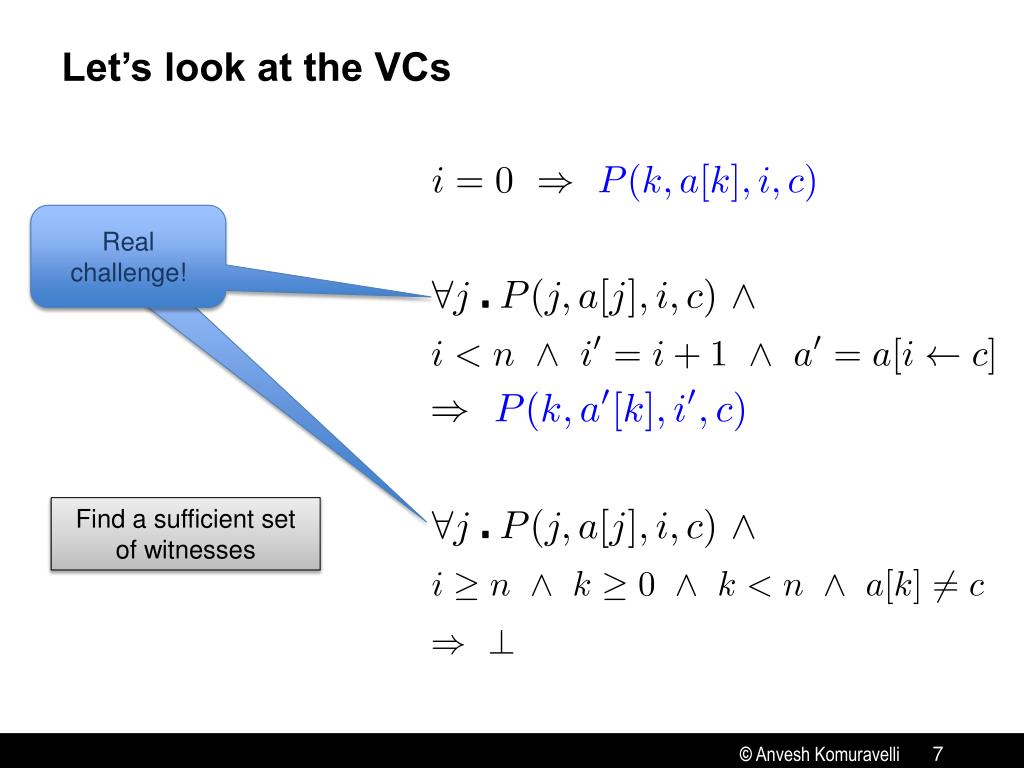

Let’s look at the VCs i := 0; while (i < n) { // a[i] := c; i++; } assume (0 ≤ k < n) assert (a[k] = c)
Let’s look at the VCs Pulled to the outermost scope
Let’s look at the VCs Real challenge! Find a sufficient set of witnesses
Let’s look at the VCs Reduces to quantifier-free invariantgeneration (use an off-the-shelf model checker)
Two Goals Quantified variables Abstract Domain Predicate signature i := 0; while (i < n) { // a[i] := c; i++; } assume (0 ≤ k < n) assert (a[k] = c) Goal 1: Find a sufficient set of witnesses for j Goal 2: Find a quantifier-free interpretation of the predicates
A Strategy Eager Syntactic Pattern Matching [BMR13] Guess some witnesses Y Found Proof Check if they suffice using a model checker N • Unguided instantiation • Worst-case unbounded • Grows exponentially with number of quantified vars • May choke the model checker • No fall-back strategy Give up! [BMR13]: On Solving Universally Quantified Horn Clauses, Bjorner, McMillan, Rybalchenko, SAS’13
Our Strategy Guess some witnesses Y Found Proof Check if they suffice using a model checker N CEX Constraint on the witness Refine the guess Guess-and-check, but of the witnesses and not the invariant itself

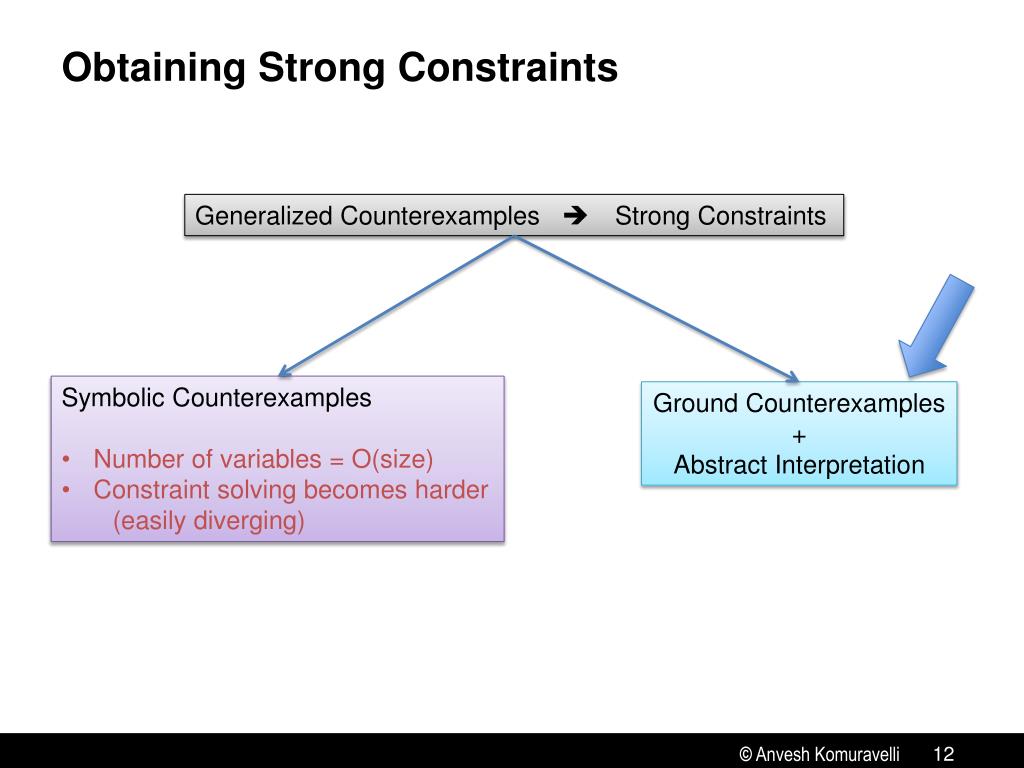

Obtaining Strong Constraints Generalized Counterexamples Strong Constraints • Symbolic Counterexamples • Number of variables = O(size) • Constraint solving becomes harder • (easily diverging) Ground Counterexamples + Abstract Interpretation
Note – one witness suffices! May not be expressible! is equivalent to

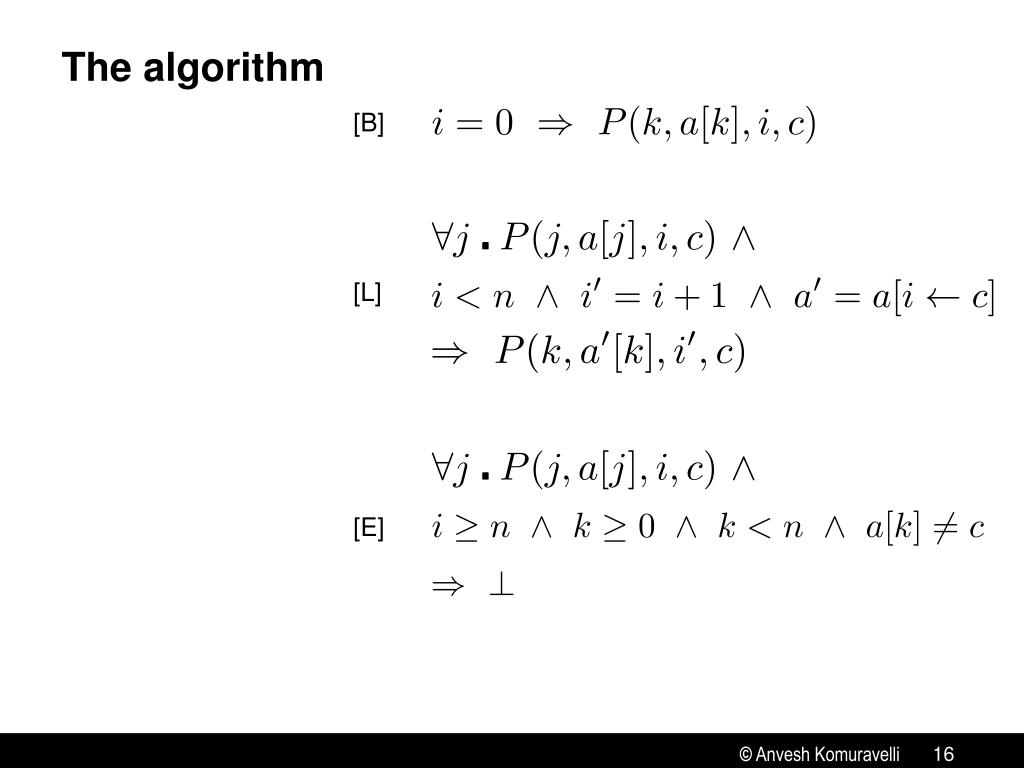

The algorithm [B] [L] [E]
The algorithm [B] B P(k0,v0,i0,c0) L [L] P(k1,v1,i1,c1) L P(k2,v2,i2,c2) E [E] Instantiate Check
The algorithm B L E L P(k2,v2,i2,c2) P(k0,v0,i0,c0) P(k1,v1,i1,c1) Analyze Instantiate Check
The algorithm B L E L P(0,0,1,0) P(0,0,0,0) P(0,0,2,0) ? ? ? ? ✕ ✕ ✕ ✕ Analyze Instantiate Check
The algorithm B L E L P(0,1,0,0) P(0,0,0,0) P(0,2,0,0) ? ? ? ? ✕ ✕ ✕ ✕ Use k for j Analyze Instantiate Check
The algorithm [B] [L] [E] Instantiate
The algorithm [B] [L] [E] … Instantiate
Finding a new witness Given Constraint local vars Check quantified variable Skolem Template f restrict to linear templates Solve for t using sampling-based approach
Quantifier Alternation using Sampling Quantifier Elimination Pick candidate tc Eliminate arrays (thanks to Nikolaj for the discussion), Cheap QE of integers Y ? Return tc N CEX lc Add lc to existing samples S New candidate tc Source of Divergence! Y N ? CEX S
Abstract Post, in practice 1. Cheap QE tricks, case-split on equalities on j, etc. 2. Under-approximate, otherwise. Solve Generalize models • 1. Cheap QE tricks, case-split on array-index arguments, etc. • 2. Under-approximate, otherwise. • Solve an SMT problem • Generalize models
Experiments • Implemented “qe_array” tactic in Z3 • Prototype in Python using Z3Py interface for witness generation • Automatically generated “sufficient witnesses” for small array-manipulating • programs (BMR13) – array init, find, copy, concatenate, reverse, etc. • Used GPDR engine in Z3 to solve for quantifier-free predicates • Up to two universal quantifiers per predicate • Witness was just a local variable in the VC
Moving forward… • Scalability • Handle large programs (with multiple procedures) • How to pick relevant “set” of witnesses? • Can we synthesize guards to combine them into a single witness? • Implementation-wise • Cache previous AI results • Reuse bounded proofs – Proof-based Abstraction • Lazy QE – postponing to later steps? • Alternatives • Use over-approximations of reachable states • Witness may not exist – need to refine the approximation
