Big Data

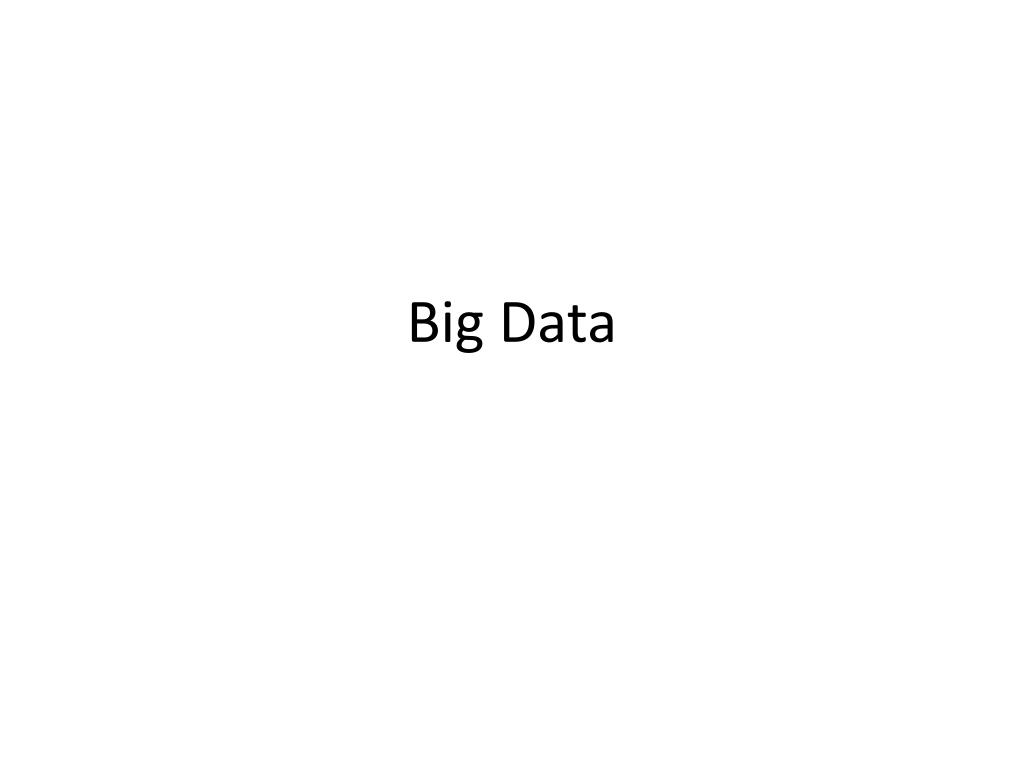

1. Big Data

2. What is it? • Massive volumes of rapidly growing data: • Smartphones broadcasting location (few secs) • Chips in cars diagnostic tests (1000s per sec) • Cameras recording public/private spaces • RFID tags read at as travel through supply-chain

3. Characteristics of Big Data • Grows at a fast pace • Diverse • not formally modeled • Unstructured • Heterogeneous • Data is valuable • Standard DBs and DWs cannot capture diversity and heterogeneity • Cannot achieve satisfactory performance

4. How to deal with such data • NoSQL – do not use a relational structure • MapReduce – from Google • Store data in columns rather than rows – great for aggregates

5. NoSQL DBs

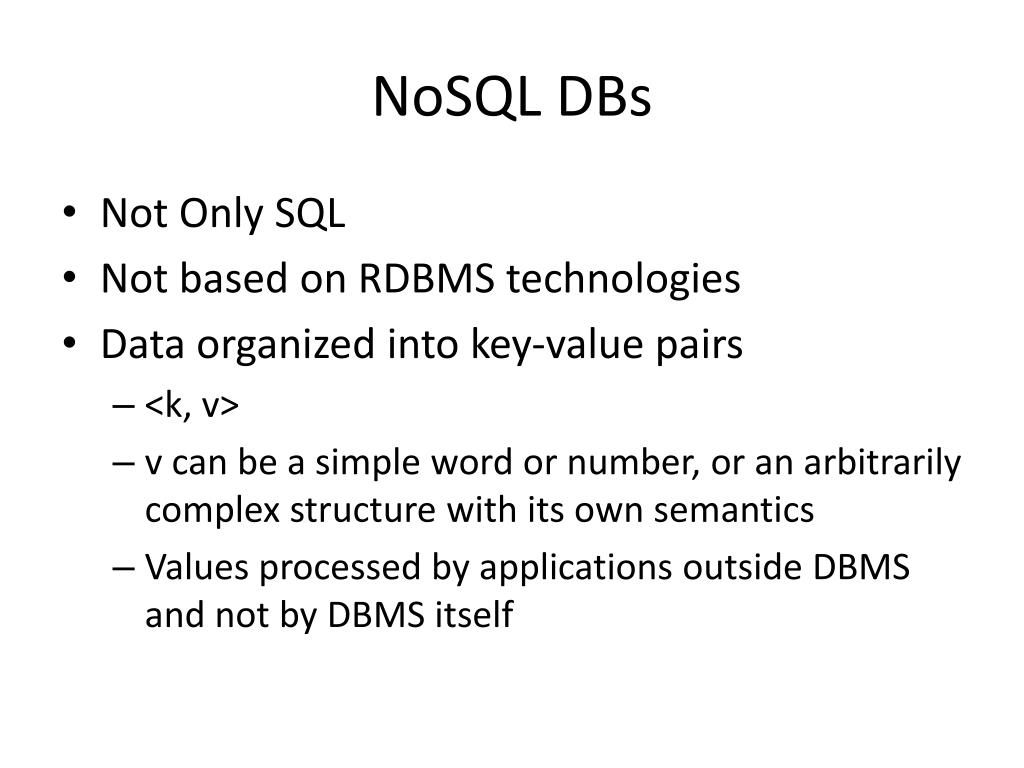

6. NoSQL DBs • Not Only SQL • Not based on RDBMS technologies • Data organized into key-value pairs • <k, v> • v can be a simple word or number, or an arbitrarily complex structure with its own semantics • Values processed by applications outside DBMS and not by DBMS itself

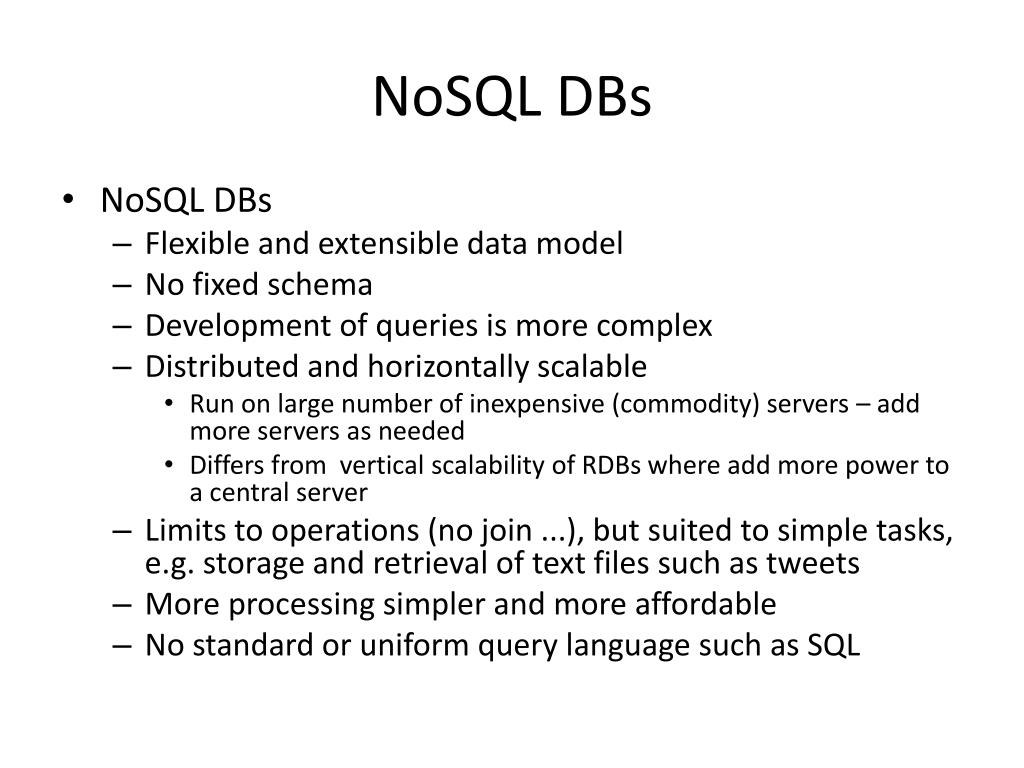

7. NoSQL DBs • NoSQL DBs • Flexible and extensible data model • No fixed schema • Development of queries is more complex • Distributed and horizontally scalable • Run on large number of inexpensive (commodity) servers – add more servers as needed • Differs from vertical scalability of RDBs where add more power to a central server • Limits to operations (no join ...), but suited to simple tasks, e.g. storage and retrieval of text files such as tweets • More processing simpler and more affordable • No standard or uniform query language such as SQL

8. BASE properties instead of ACID • BASE: Basically Available Soft state Eventual Consistency • BASE differs from ACID – trades consistency for availability • ACID pessimistic – forces consistency at end of every operation • BASE optimistic – accepts DB consistency will be in a state of flux • Leads to levels of scalability that cannot be obtains with ACID • Supports partial failures without total system failure • Uses Partitioning!!! • Design partitions so a failure impacts only 20% of users on a host • Decompose data into functional groups, partition busiest groups across multiple DBs

9. BASE properties • Where to relax consistency? • Analyze logical transactions • Temporal inconsistency cannot be hidden, so pick opportunities to relax consistency, e.g. • Running totals of the amount sold and bought • Consistency across functional groups is easier to relax than within groups • Counters for buyer and seller updated, BUT • Running balances do not have to reflect result of transaction immediately • Acceptable in ATM withdrawals and cellphone calls • Decouple updates to seller and buyer in transaction • Can have problems with 2PC

10. BASE properties • Effect of soft state and eventual consistency on application design • Using BASE doesn’t change predictability of systems as a closed loop • E.g. lag between moving asset from one user to another may not be relevant (may take a few seconds) even though relying on a soft state and eventual consistency • For more info about this: BASE paper – Pritchett from ebay

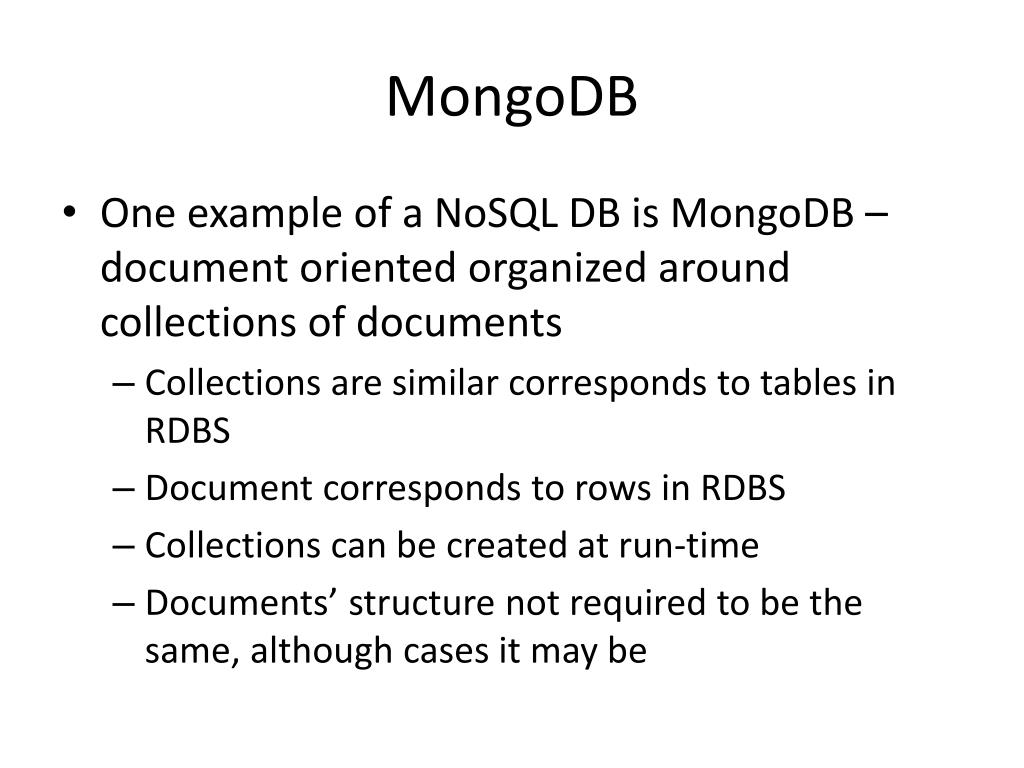

11. MongoDB • One example of a NoSQL DB is MongoDB – document oriented organized around collections of documents • Collections are similar corresponds to tables in RDBS • Document corresponds to rows in RDBS • Collections can be created at run-time • Documents’ structure not required to be the same, although cases it may be

12. MongoDB • Can built incrementally without modifying schema (since no schema) • Example of hotel info: h1 = {name: "Metro Blu", address: "Chicago, IL", rating: 3.5} db.hotels.save(h1) h2 = {name: "Experiential", address: "New York, NY", rating: 4} db.hotels.save(h2) h3 = {name: "Zazu Hotel", address: "San Francisco, CA", rating: 4.5} db.hotels.save(h3)

13. MongoDB • DB contains collection called ‘hotels’ with 3 documents • To list all hotels: db.hotels.find() • Did not have to declare or define the collection • To add a new hotel with unknown rating: h4 = {name: "Solace", address: "Los Angeles, CA"} db.hotels.save(h4)

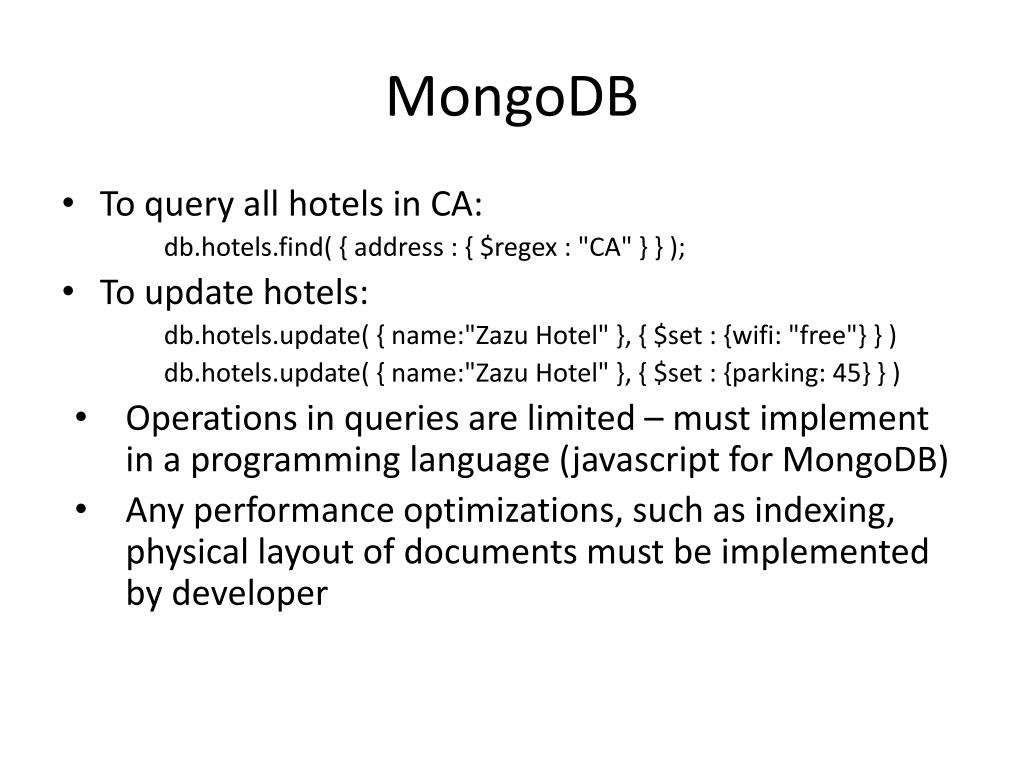

14. MongoDB • To query all hotels in CA: db.hotels.find( { address : { $regex : "CA" } } ); • To update hotels: db.hotels.update( { name:"Zazu Hotel" }, { $set : {wifi: "free"} } ) db.hotels.update( { name:"Zazu Hotel" }, { $set : {parking: 45} } ) • Operations in queries are limited – must implement in a programming language (javascript for MongoDB) • Any performance optimizations, such as indexing, physical layout of documents must be implemented by developer

15. MapReduce Based on J. Lin and C. Dyer book Data-Intensive Text Processing with MapReduce

16. MapReduce • Programming model for distributed computations on massive amounts of data • Execution framework for large-scale data processing on clusters of commodity servers • Developed by Google – built on old, principles of parallel and distributed processing • Hadoop – adoption of open-source implementation by Yahoo (now Apache project)

17. Big Data • Big data – issue to grapple with • Web-scale synonymous with data-intensive processing • Public, private repositories of vast data • Behavior data important - BI

18. 4th paradigm • Manipulate, explore, mine massive data – 4th paradigm of science (theory, experiments, simulations) • In CS, systems must be able to scale • Increases in capacity > improvements in bandwidth

19. MapReduce (MR) • MapReduce • level of abstraction and beneficial division of labor • Programming model – powerful abstraction separates what from how of data intensive processing

20. Big Ideas behind MapReduce • Scale out not up • Purchasing symmetric multi-processing machines (SMP) with large number of processor sockets (100s), large shared memory (GBs) not cost effective • Why? Machine with 2x processors > 2x cost • Barroso & Holzle analysis using TPC benchmarks • SMP – communication order magnitude faster • Cluster of low end approach 4x more cost effective than high end • However, even low end only 10-50% utilization – not energy efficient

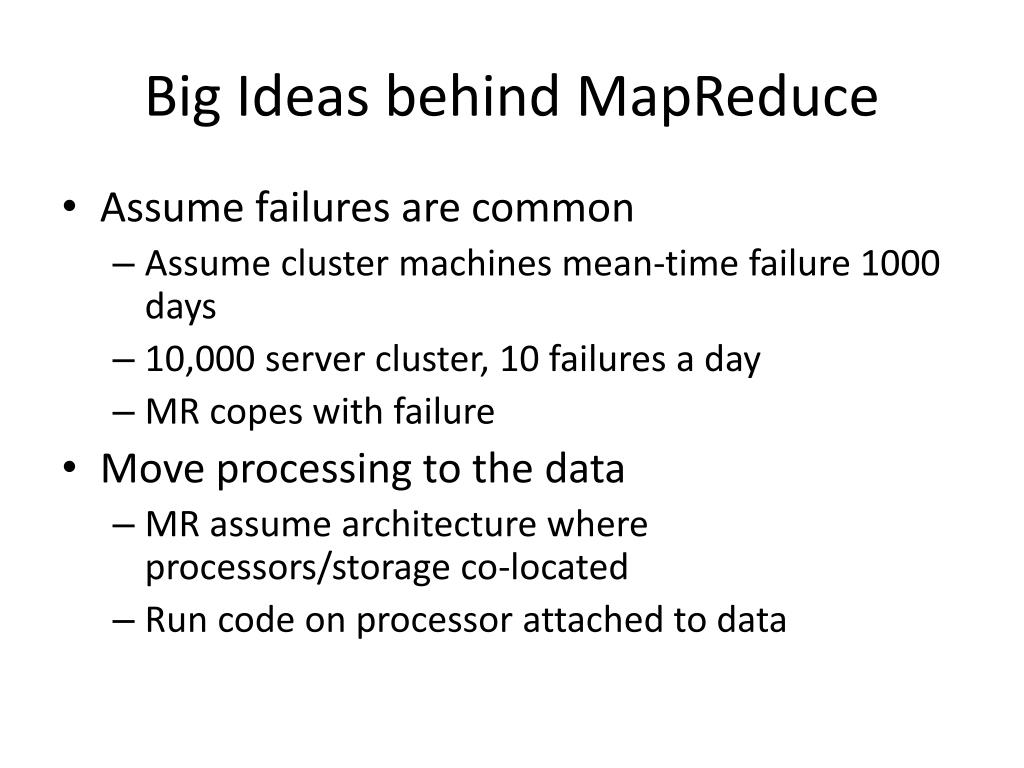

21. Big Ideas behind MapReduce • Assume failures are common • Assume cluster machines mean-time failure 1000 days • 10,000 server cluster, 10 failures a day • MR copes with failure • Move processing to the data • MR assume architecture where processors/storage co-located • Run code on processor attached to data

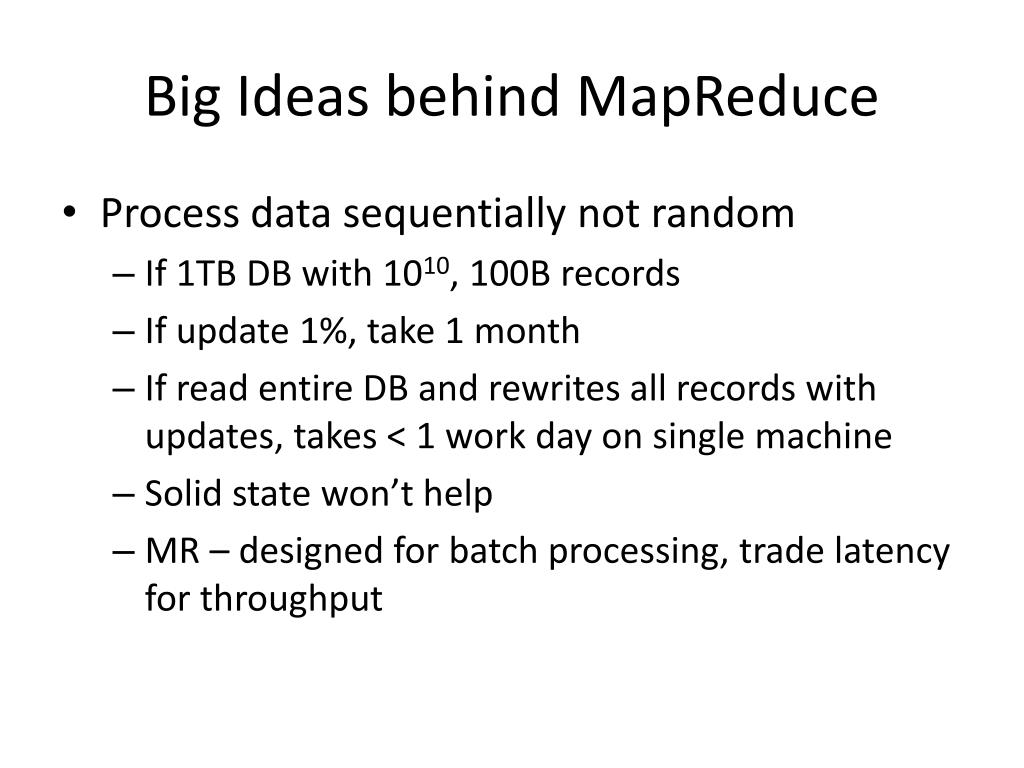

22. Big Ideas behind MapReduce • Process data sequentially not random • If 1TB DB with 1010, 100B records • If update 1%, take 1 month • If read entire DB and rewrites all records with updates, takes < 1 work day on single machine • Solid state won’t help • MR – designed for batch processing, trade latency for throughput

23. Big Ideas behind MapReduce • Hide system-level details from application developer • Writing distributed programs difficult • Details across threads, processes, machines • Code runs concurrently is unpredictable • Deadlocks, race conditions, etc. • MR isolates develop from system-level details • No locking, starvation, etc. • Well-defined interfaces • Separates what (programmer) from how (responsibility of execution framework) • Framework designed once and verified for correctness

24. Big Ideas behind MapReduce • Seamless scalability • Given 2x data, algorithms takes at most 2x to run • Given cluster 2x large, take ½ time to run • The above is unobtainable for algorithms • 9 women can’t have a baby in 1 month • E.g. 2x programs takes longer • Degree of parallelization increases communication • MR small step toward attaining • Algorithm fixed, framework executes algorithm • If use 10 machines 10 hours, 100 machines 1 hour

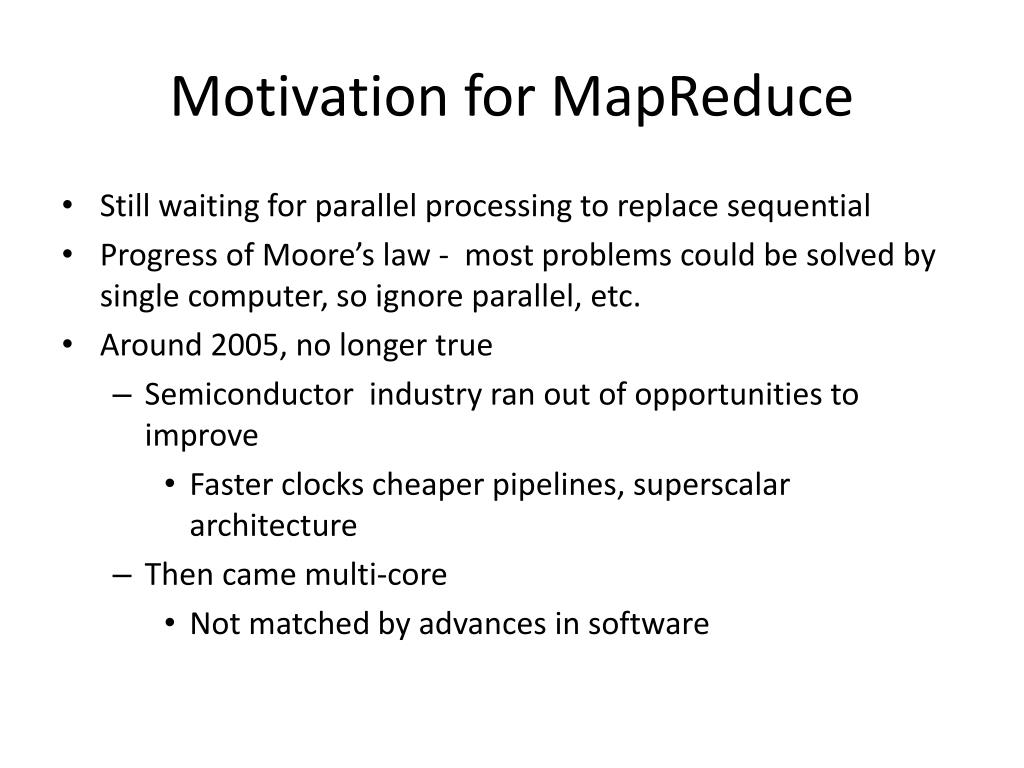

25. Motivation for MapReduce • Still waiting for parallel processing to replace sequential • Progress of Moore’s law - most problems could be solved by single computer, so ignore parallel, etc. • Around 2005, no longer true • Semiconductor industry ran out of opportunities to improve • Faster clocks cheaper pipelines, superscalar architecture • Then came multi-core • Not matched by advances in software

26. Motivation • Parallel processing only way forward • MapReduce to the rescue • Anyone can download open source Hadoop implementation of MapReduce • Rent a cluster from a utility cloud • Process TB within the week • Multiple cores in a chip, multiple machines in a cluster

27. Motivation • MapReduce: effective data analysis tool • First widely-adopted step away from von Neumann model • Can’t treat multi-core processor, cluster as conglomeration of many von Neumann machine image that communicates over network • Wrong abstraction • MR – organize computations not over individual machines, but over clusters • Datacenter is the computer

28. Motivation • Previous models of parallel computation • PRAM • Arbitrary number of processors, share unbounded large memory, operate synchronously on shared input • LogP, BSP • MR most successful abstraction for large-scale resources • Manages complexity, hides details, presents well-defined behavior • Makes certain tasks easier, others harder • MapReduce first in new class of programming models

29. Map Reduce Basics Chapter 2

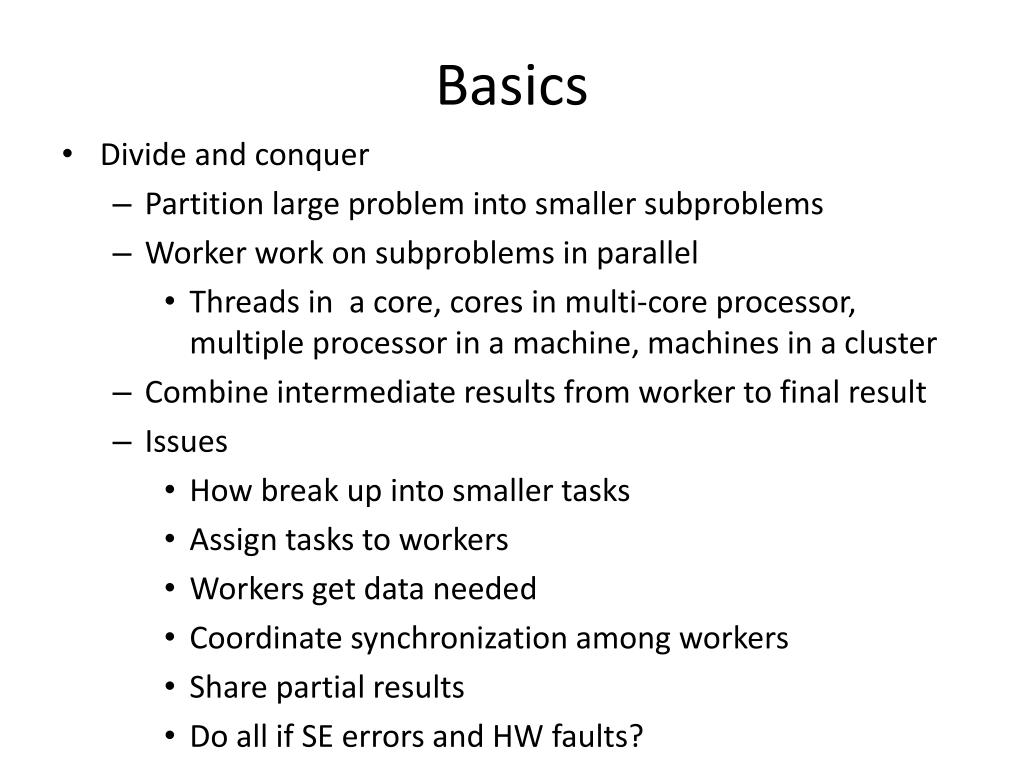

30. Basics • Divide and conquer • Partition large problem into smaller subproblems • Worker work on subproblems in parallel • Threads in a core, cores in multi-core processor, multiple processor in a machine, machines in a cluster • Combine intermediate results from worker to final result • Issues • How break up into smaller tasks • Assign tasks to workers • Workers get data needed • Coordinate synchronization among workers • Share partial results • Do all if SE errors and HW faults?

31. Basics • MR – abstraction that hides system-level details from programmer • Move code to data • Spread data across disks • DFS manages storage

32. Topics • Functional programming • MapReduce • Distributed file system

33. Functional Programming Roots • MapReduce = functional programming plus distributed processing on steroids • Not a new idea… dates back to the 50’s (or even 30’s) • What is functional programming? • Computation as application of functions • Computation is evaluation of mathematical functions • Avoids state and mutable data • Emphasizes application of functions instead of changes in state

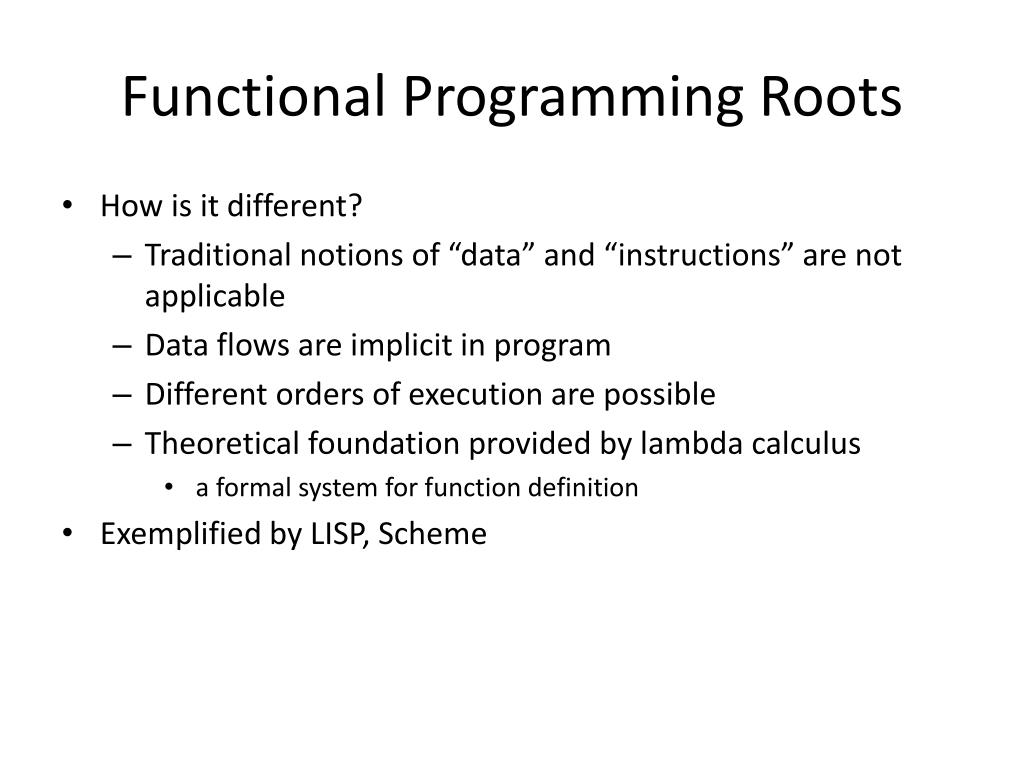

34. Functional Programming Roots • How is it different? • Traditional notions of “data” and “instructions” are not applicable • Data flows are implicit in program • Different orders of execution are possible • Theoretical foundation provided by lambda calculus • a formal system for function definition • Exemplified by LISP, Scheme

35. Overview of Lisp • Functions written in prefix notation (+ 1 2)  3 (* 3 4)  12 (sqrt ( + (* 3 3) (* 4 4)))  5 (define x 3)  x (* x 5)  15

36. Functions • Functions = lambda expressions bound to variablesExample expressed with lambda:(+ 1 2)  3 λxλy.x+y • Above expression is equivalent to: • Once defined, function can be applied: (define foo (lambda (x y) (sqrt (+ (* x x) (* y y))))) (define (foo x y) (sqrt (+ (* x x) (* y y)))) (foo 3 4)  5

37. Functional Programming Roots • Two important concepts in functional programming • Map: do something to everything in a list • Fold: combine results of a list in some way

38. Functional Programming Map • Higher order functions – accept other functions as arguments • Map • Takes a function f and its argument, which is a list • applies to all elements in list • Returns a list as result • Lists are primitive data types • [1 2 3 4 5] • [[a 1] [b 2] [c 3]]

39. Map/Fold in Action • Simple map example: (map (lambda (x) (* x x)) [1 2 3 4 5])  [1 4 9 16 25]

40. Functional Programming Reduce • Fold • Takes function g, which has 2 arguments: an initial value and a list. • The g applied to initial value and 1st item in list • Result stored in intermediate variable • Intermediate variable and next item in list 2nd application of g, etc. • Fold returns final value of intermediate variable

41. Map/Fold in Action • Simple map example: • Fold examples: • Sum of squares: (map (lambda (x) (* x x)) [1 2 3 4 5])  [1 4 9 16 25] (fold + 0 [1 2 3 4 5]) 15 (fold * 1 [1 2 3 4 5]) 120 (define (sum-of-squares v) // where v is a list (fold + 0 (map (lambda (x) (* x x)) v))) (sum-of-squares [1 2 3 4 5]) 55

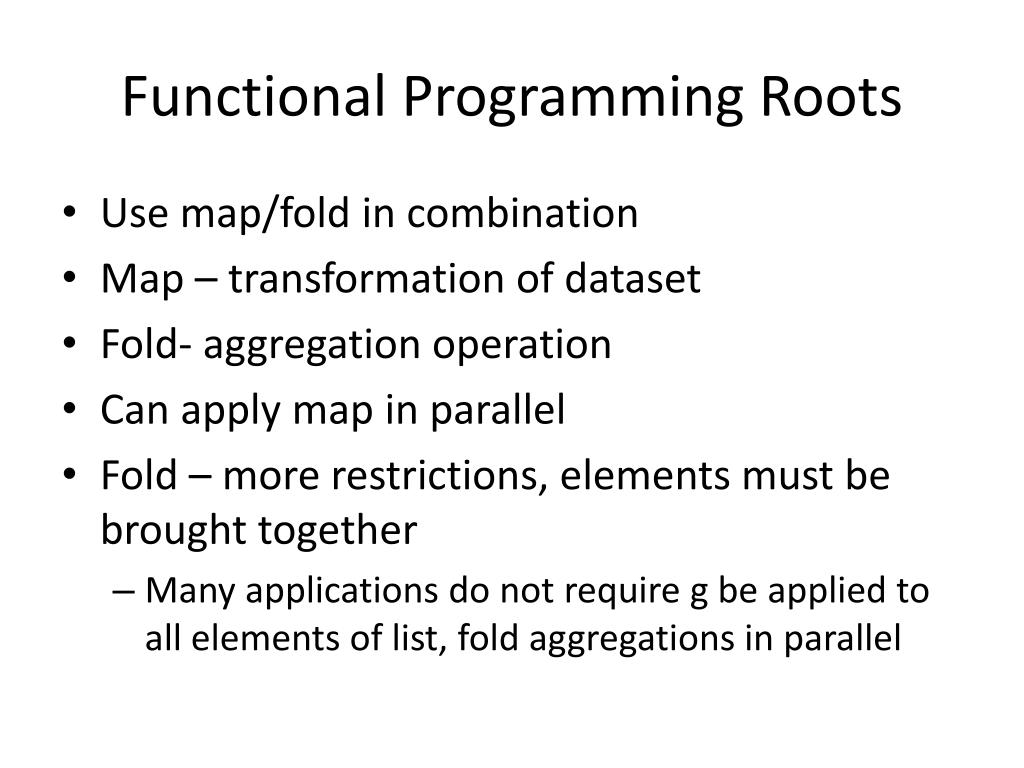

43. Functional Programming Roots • Use map/fold in combination • Map – transformation of dataset • Fold- aggregation operation • Can apply map in parallel • Fold – more restrictions, elements must be brought together • Many applications do not require g be applied to all elements of list, fold aggregations in parallel

44. Functional Programming Roots • Map in MapReduce is same as in functional programming • Reduce corresponds to fold • 2 stages: • User specified computation applied over all input, can occur in parallel, return intermediate output • Output aggregated by another user-specified computation

45. Mappers/Reducers • Key-value pair (k,v) – basic data structure in MR • Keys, values – int, strings, etc., user defined • e.g. keys – URLs, values – HTML content • e.g. keys – node ids, values – adjacency lists of nodes Map: (k1, v1) -> [(k2, v2)] Reduce: (k2, [v2]) -> [(k3, v2)] Where […] denotes a list

46. General Flow Map • Apply mapper to every input key-value pair stored in DFS • Generate arbitrary number of intermediate (k,v) • Distributed group by operation (shuffle) on intermediate keys • Sort intermediate results by key (not across reducers) • Aggregate intermediate results • Generate final output to DFS – one file per reducer Reduce

47. What function is implemented?

49. Example: unigram (word count) • (docid, doc) on DFS, doc is text • Mapper tokenizes (docid, doc), emits (k,v) for every word – (word, 1) • Execution framework all same keys brought together in reducer • Reducer – sums all counts (of 1) for word • Each reduce writes to one file • Words within file sorted, file same # words • Can use output as input to another MR

50. Execution Framework • Data/code co-location • Execute near data • It not possible must stream data • Try to keep within same rack
