  1. Wishing a shared terminologybis WS-Diamond meeting 29-11-2005

  2. To discuss • Architecture (model of execution for WS-Diamond) • Fault classifications • Repair actions • Terms & glossay & questions WP3 meeting - Milan November 29th, 2005

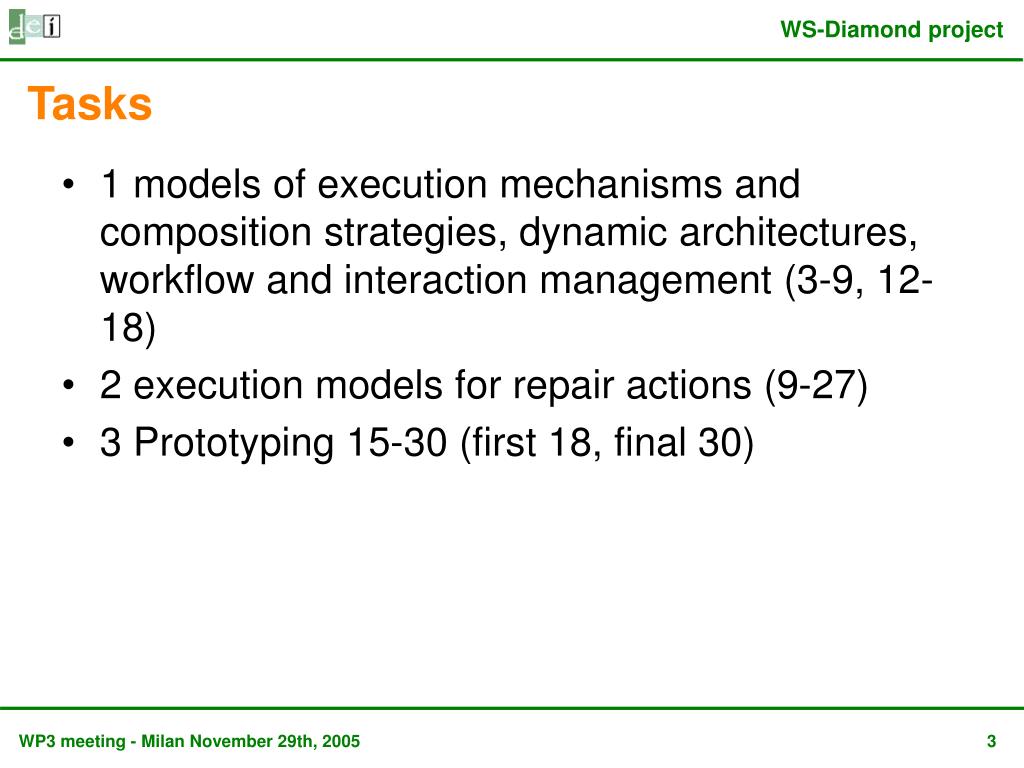

  3. Tasks • 1 models of execution mechanisms and composition strategies, dynamic architectures, workflow and interaction management (3-9, 12-18) • 2 execution models for repair actions (9-27) • 3 Prototyping 15-30 (first 18, final 30) WP3 meeting - Milan November 29th, 2005

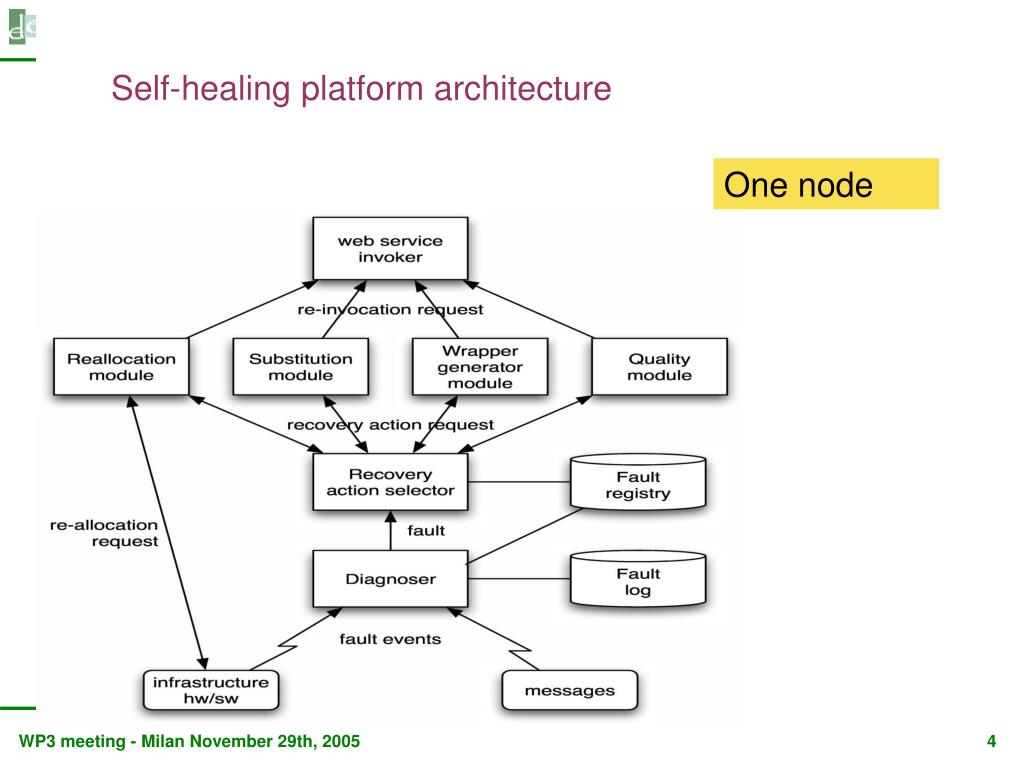

  4. Self-healing platform architecture One node WP3 meeting - Milan November 29th, 2005

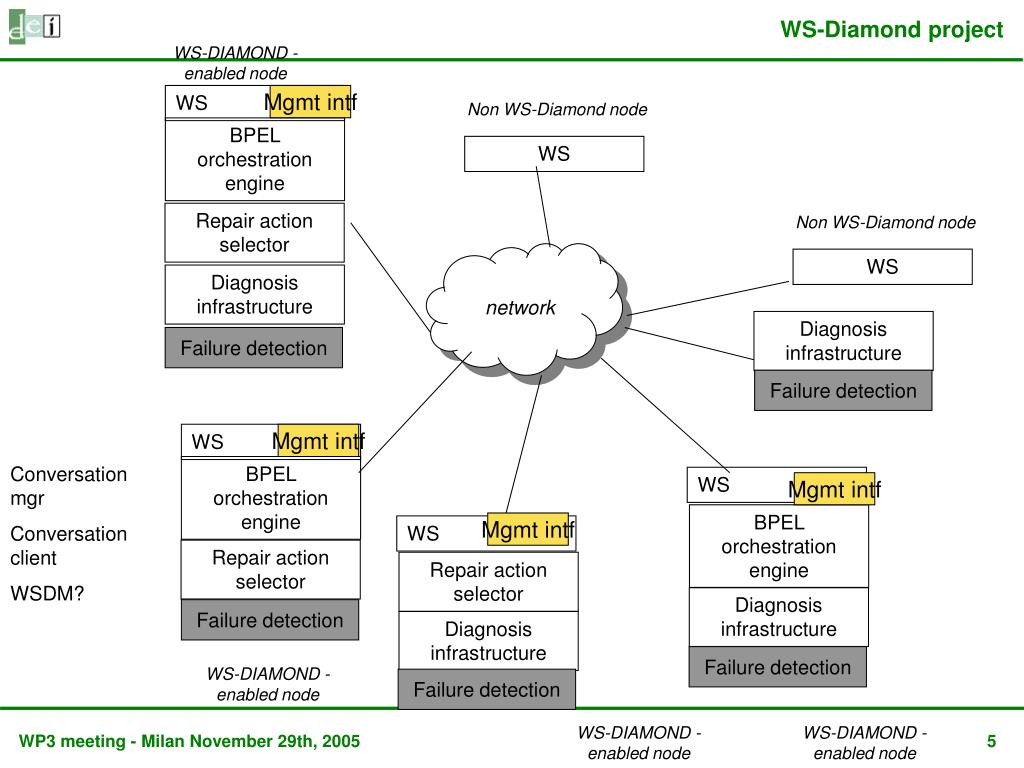

  5. WS-DIAMOND -enabled node WS Mgmt intf Non WS-Diamond node BPEL orchestration engine WS Repair action selector Non WS-Diamond node WS Diagnosis infrastructure network Diagnosis infrastructure Failure detection Failure detection WS Mgmt intf Conversation mgr Conversation client WSDM? BPEL orchestration engine WS Mgmt intf BPEL orchestration engine Mgmt intf WS Repair action selector Repair action selector Diagnosis infrastructure Failure detection Diagnosis infrastructure Failure detection WS-DIAMOND -enabled node Failure detection WS-DIAMOND -enabled node WS-DIAMOND -enabled node WP3 meeting - Milan November 29th, 2005

  6. 4. Fault classification Fault classification WP3 meeting - Milan November 29th, 2005

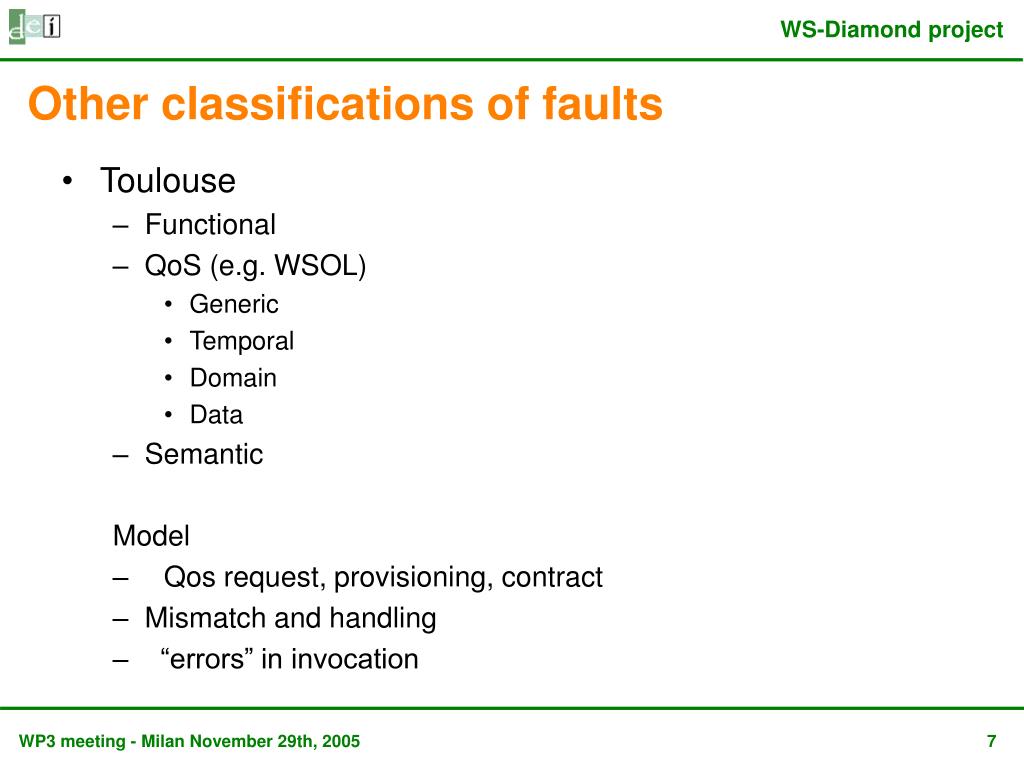

  7. Other classifications of faults • Toulouse • Functional • QoS (e.g. WSOL) • Generic • Temporal • Domain • Data • Semantic Model • Qos request, provisioning, contract • Mismatch and handling • “errors” in invocation WP3 meeting - Milan November 29th, 2005

  8. Failure events (Fault types (Mourao, Antunes 04)) • Data event • Temporal event • Wf events • System/appls events • External (human, …) ? • Noncompliance events WP3 meeting - Milan November 29th, 2005

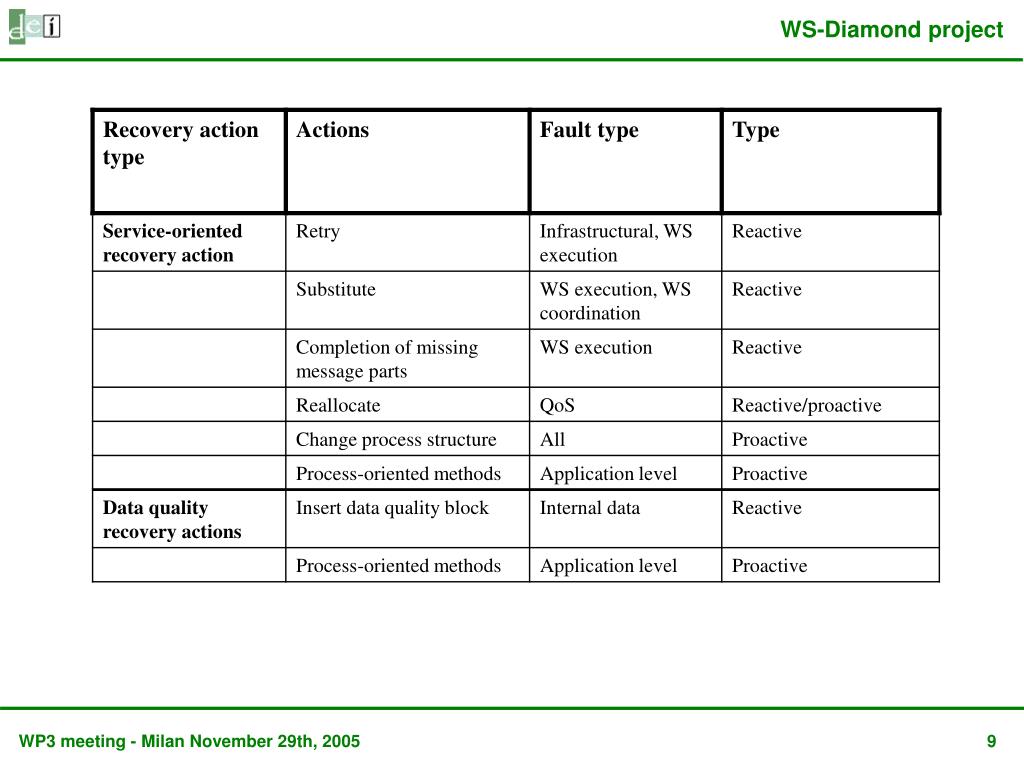

  9. WP3 meeting - Milan November 29th, 2005

  10. WF modification • WF schema modification run time? • Human actions (modification of process) • Other types of external “compensations” (or external compensations)? WP3 meeting - Milan November 29th, 2005

  11. Failure error and faultIEEE TC FTD/IFIP WG10.4 definitions • A system failure occurs when the delivered service deviates from fulfilling the system function, the latter being what the system is aimed at • An error is that part of the system state which is liable to lead to subsequent failure: an error affecting the service is an indication that a failure occurs or has occurred. The adjudged or hypothesised cause of an error is a fault • (Note: errors do not necessarily lead to failures; component failures are not necessarily faults to the surrounding system) WP3 meeting - Milan November 29th, 2005

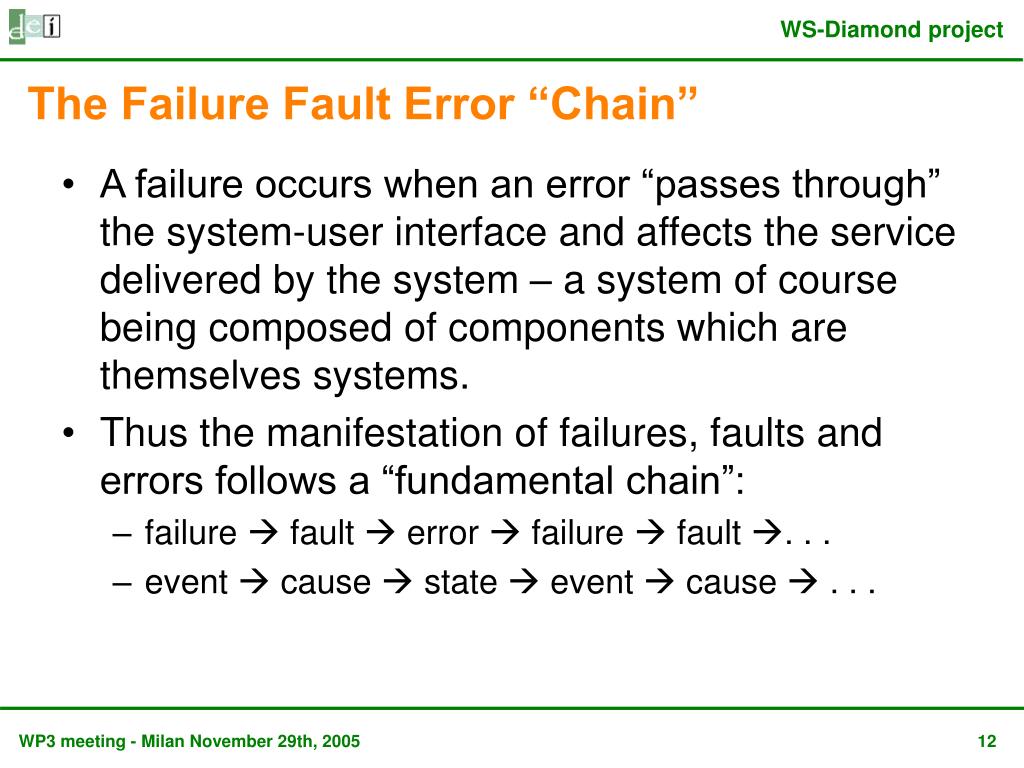

  12. The Failure Fault Error “Chain” • A failure occurs when an error “passes through” the system-user interface and affects the service delivered by the system – a system of course being composed of components which are themselves systems. • Thus the manifestation of failures, faults and errors follows a “fundamental chain”: • failure  fault  error  failure  fault . . . • event  cause  state  event  cause  . . . WP3 meeting - Milan November 29th, 2005

  13. A simple (?) question • What are we doing in WS-Diamond? (please check) • Failure detection (input to diagnosis) • Fault identification (result of diagnosis) • Error recovery and repair WP3 meeting - Milan November 29th, 2005

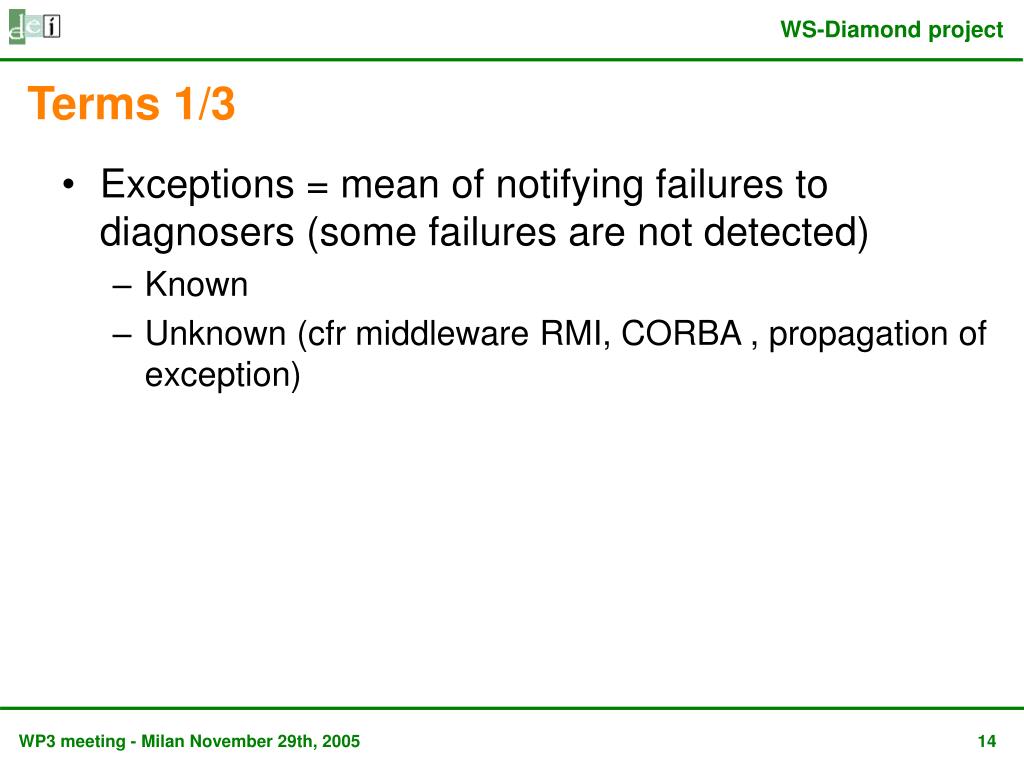

  14. Terms 1/3 • Exceptions = mean of notifying failures to diagnosers (some failures are not detected) • Known • Unknown (cfr middleware RMI, CORBA , propagation of exception) WP3 meeting - Milan November 29th, 2005

  15. Terms • Diagnosis • Fault + context (note: tradeoff with detail of model) • Orchestration (Peltz’s paper IEEE Computer Oct. 2003) • Choreography • Web service (model) • Process model • Exceptions, Handlers, compensations WP3 meeting - Milan November 29th, 2005

  16. List minute addendum • Symptom = exception • On line recovery (reactive) • Off line repair (proactive) • Recovery includes repair WP3 meeting - Milan November 29th, 2005

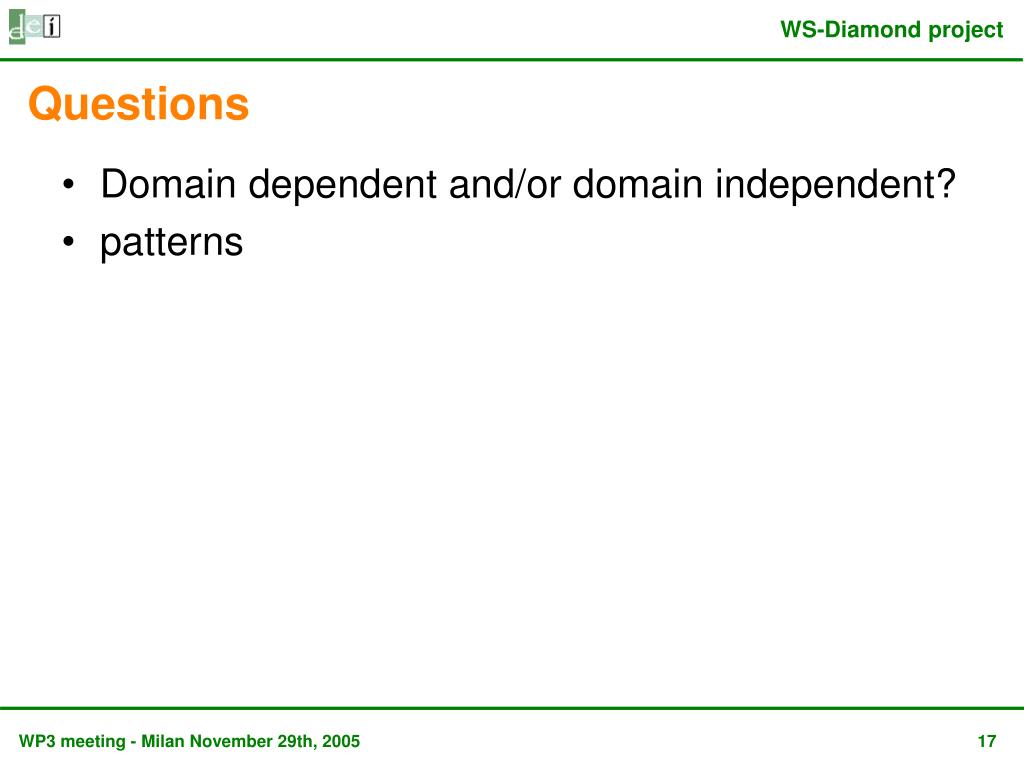

  17. Questions • Domain dependent and/or domain independent? • patterns WP3 meeting - Milan November 29th, 2005

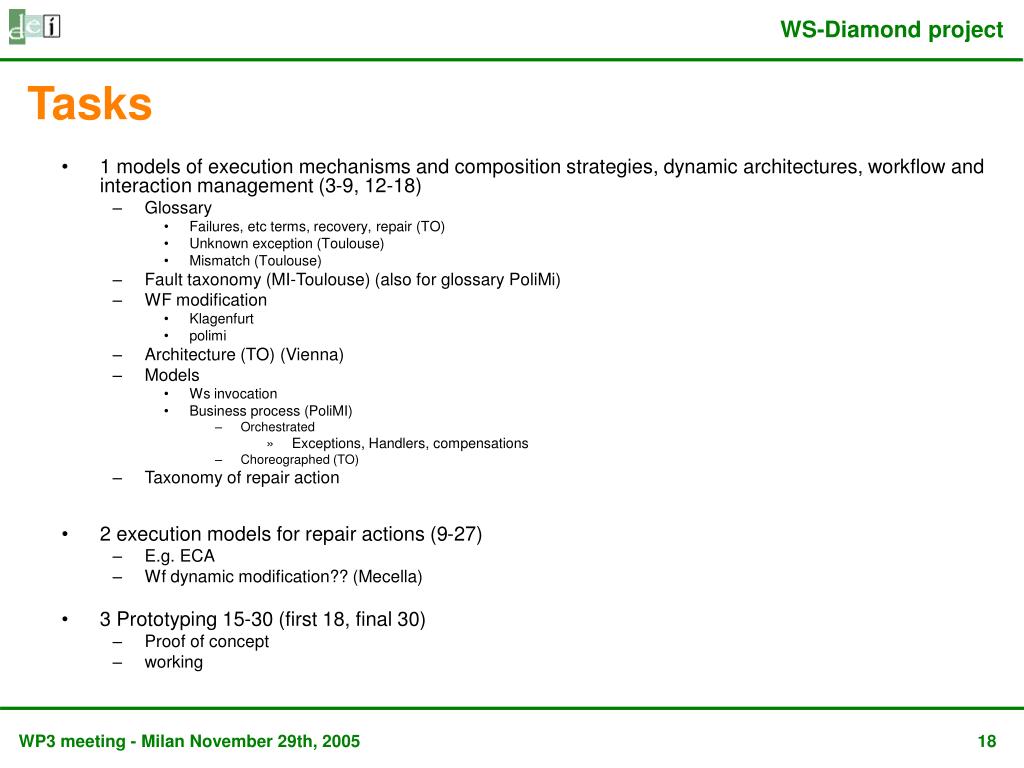

  18. Tasks • 1 models of execution mechanisms and composition strategies, dynamic architectures, workflow and interaction management (3-9, 12-18) • Glossary • Failures, etc terms, recovery, repair (TO) • Unknown exception (Toulouse) • Mismatch (Toulouse) • Fault taxonomy (MI-Toulouse) (also for glossary PoliMi) • WF modification • Klagenfurt • polimi • Architecture (TO) (Vienna) • Models • Ws invocation • Business process (PoliMI) • Orchestrated • Exceptions, Handlers, compensations • Choreographed (TO) • Taxonomy of repair action • 2 execution models for repair actions (9-27) • E.g. ECA • Wf dynamic modification?? (Mecella) • 3 Prototyping 15-30 (first 18, final 30) • Proof of concept • working WP3 meeting - Milan November 29th, 2005
