  1. Arbitrary Parameter Extraction, Stationary Phase Migration, and Tomographic Velocity Analysis Jing Chen University of Utah

  2. Outline • Parameter Extraction • Stationary Phase Migration • Tomographic Velocity Analysis • Conclusions

  3. Parameter Extraction Extract specular-ray related parameters from prestack migration S G R

  4. Why Specular-Ray Parameters Needed ? • Prestack Depth Migration • Traveltime Inversion • Tomographic MVA • AVO • Etc...

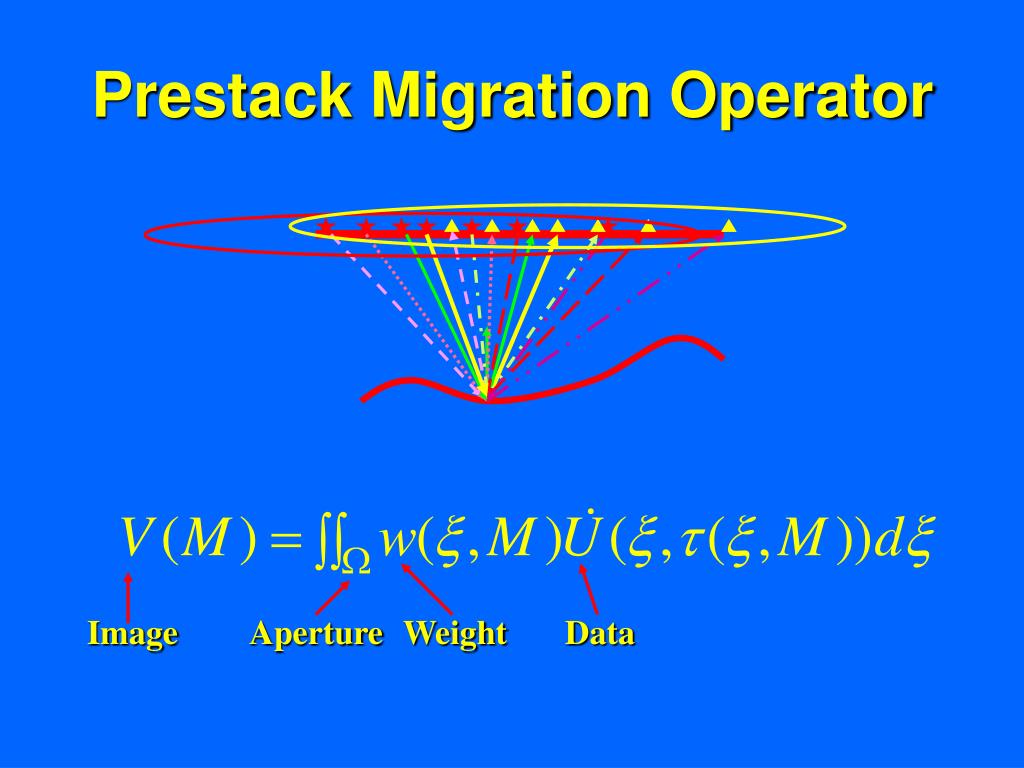

  5. Prestack Migration Operator Image Aperture Weight Data

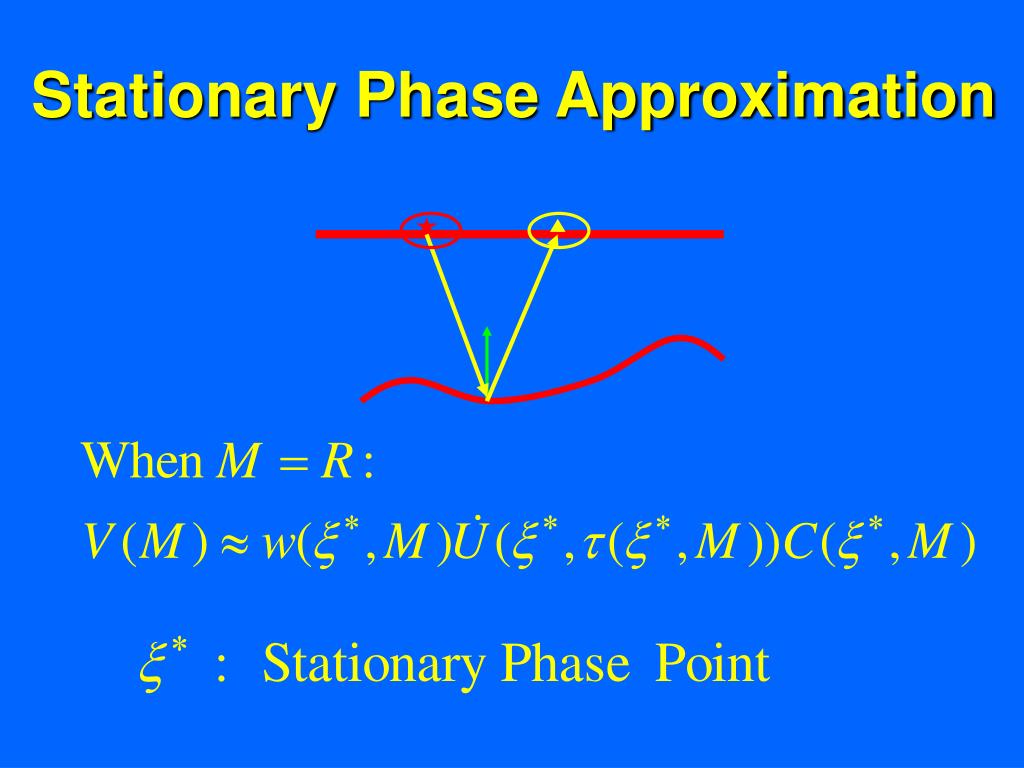

  6. Stationary Phase Approximation

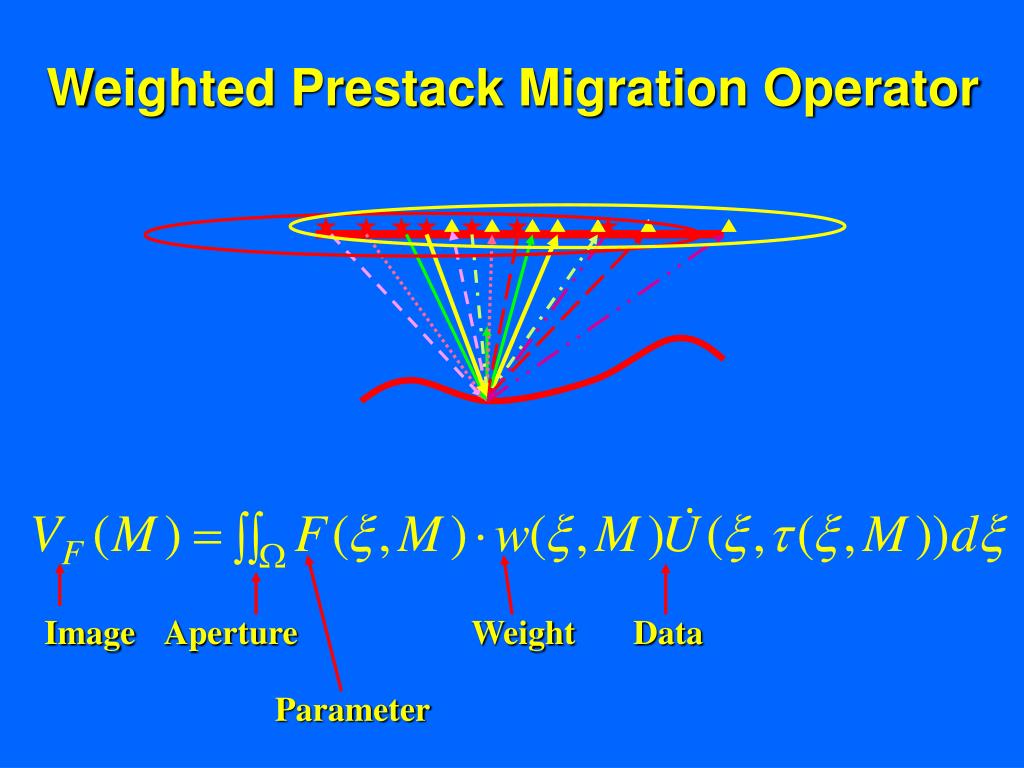

  7. Weighted Prestack Migration Operator Image Aperture Weight Data Parameter

  8. Stationary Phase Approximation

  9. Specular-Ray Related Parameters

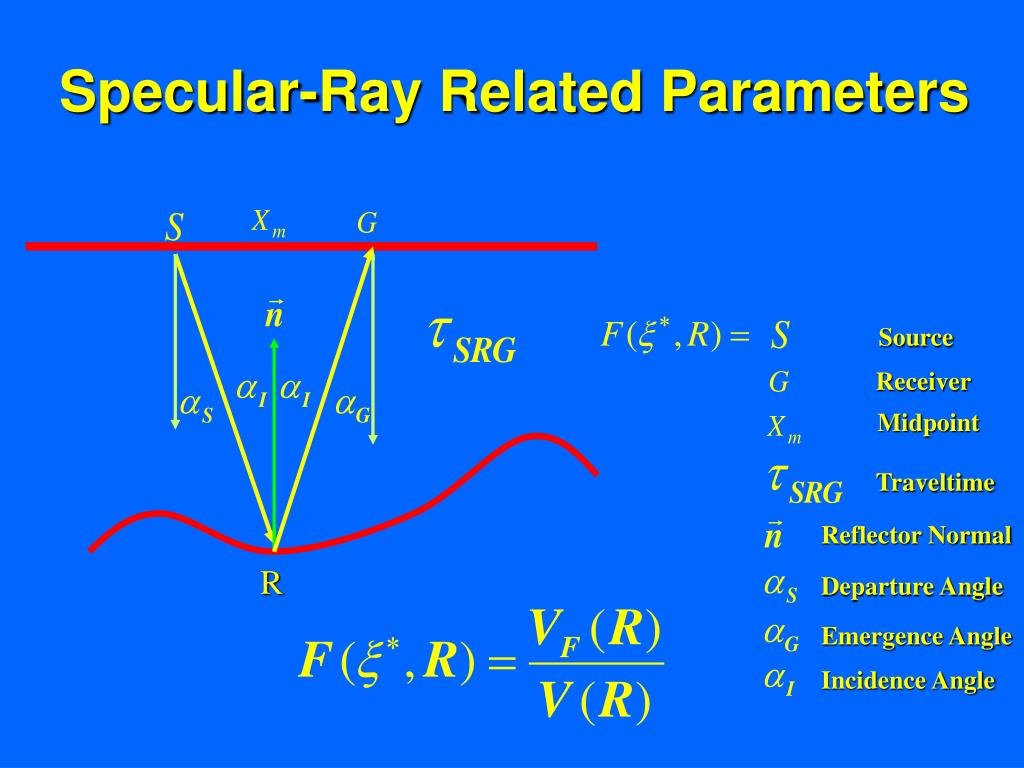

  10. R Specular-Ray Related Parameters Source Receiver Midpoint Traveltime Reflector Normal Departure Angle Emergence Angle Incidence Angle

  11. Parameter Extraction Synthetic Data Examples: Migrate a COG; Extract Midpoint Coordinates, Traveltimes, and Incidence Angles.

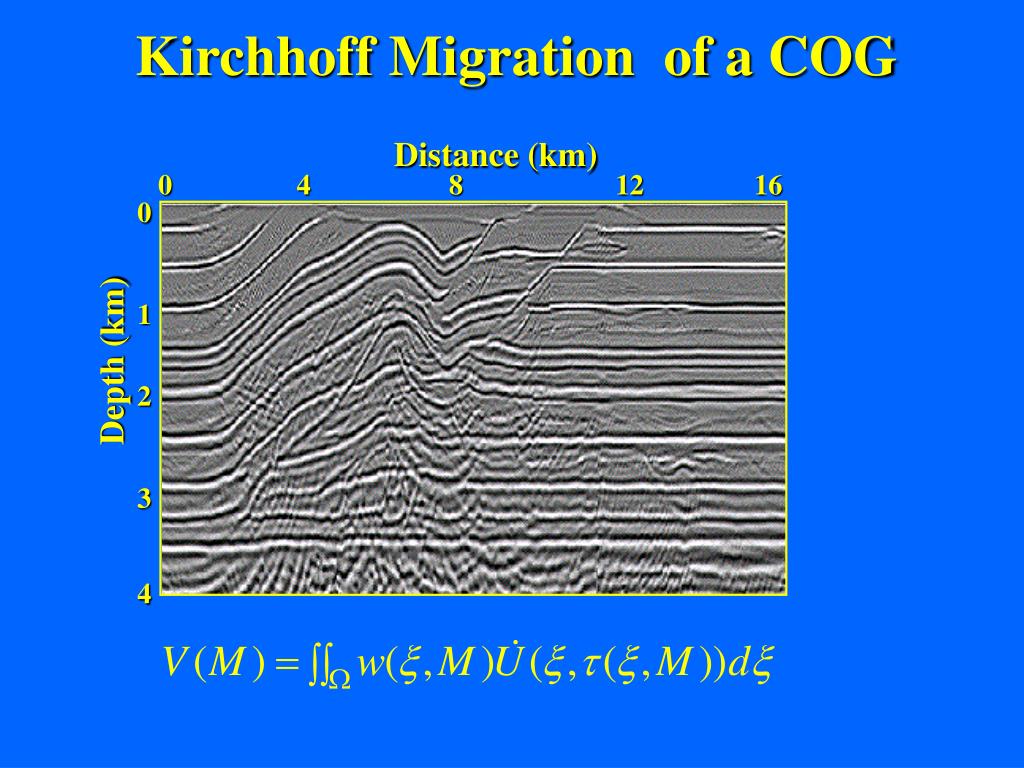

  12. Distance (km) 0 4 8 12 16 0 1 Depth (km) 2 3 4 Kirchhoff Migration of a COG

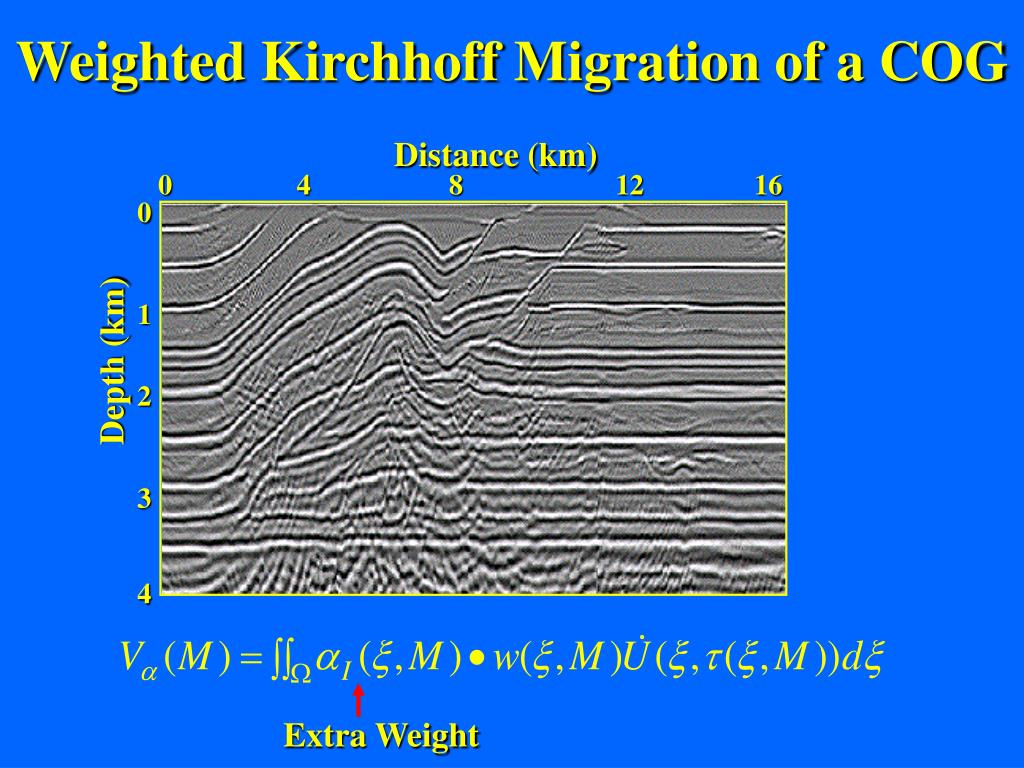

  13. Distance (km) 0 4 8 12 16 0 1 Depth (km) 2 3 4 Weighted Kirchhoff Migration of a COG Extra Weight

  14. Division of Two COG Images =

  15. COG Incidence Angles Distance (km) 0 8 16 0 20 (Degrees) Depth (km) 10 2 4 0

  16. COG Incidence Angles Distance (km) 0 8 16 0 20 (Degrees) Depth (km) 10 2 4 0

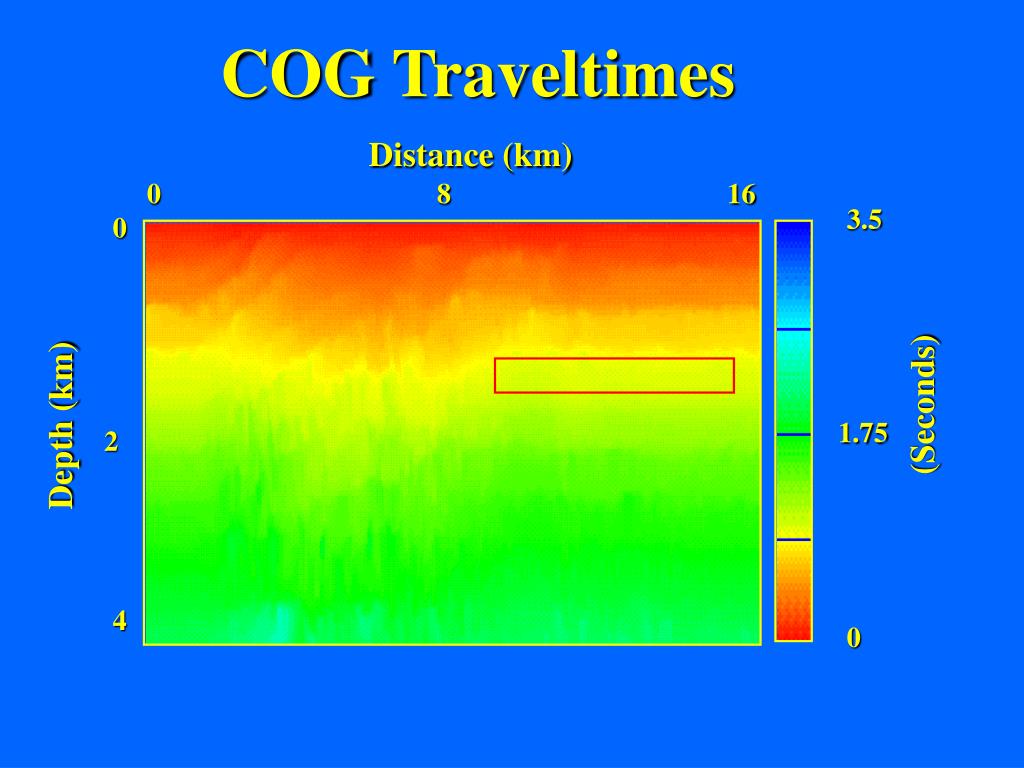

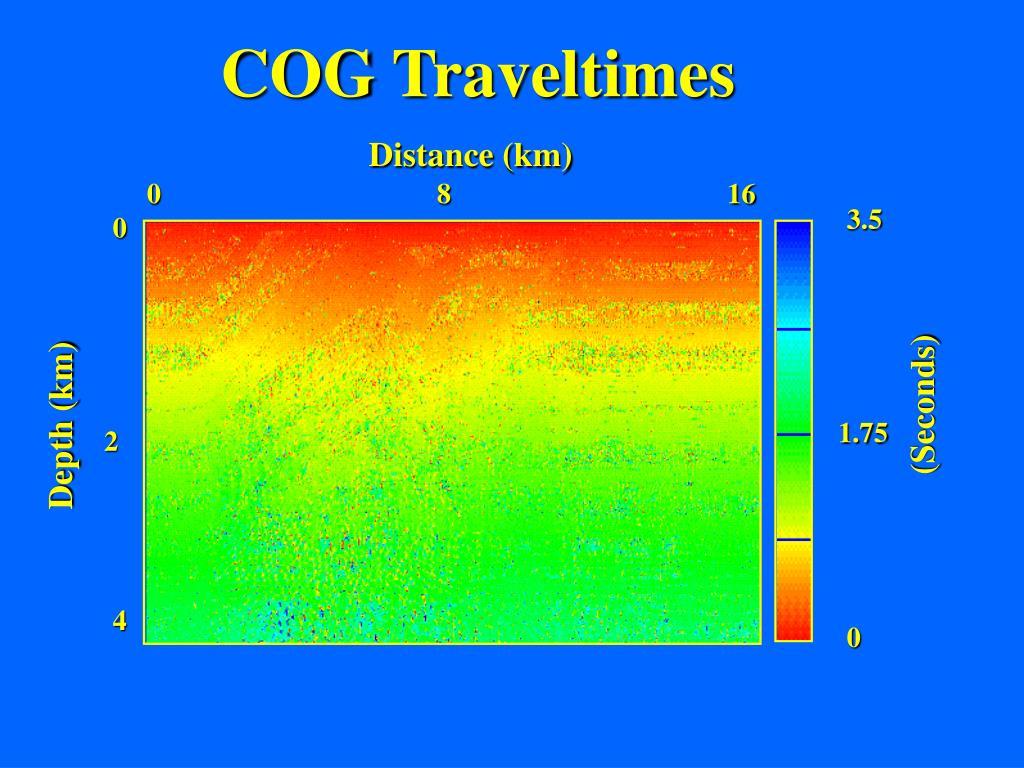

  17. COG Traveltimes Distance (km) 0 8 16 3.5 0 (Seconds) Depth (km) 1.75 2 4 0

  18. COG Traveltimes Distance (km) 0 8 16 3.5 0 (Seconds) Depth (km) 1.75 2 4 0

  19. COG S-R Midpoint Coordinates Distance (km) 0 8 16 20 0 Depth (km) (km) 10 2 4 0

  20. COG S-R Midpoint Coordinates Distance (km) 0 8 16 20 0 Depth (km) (km) 10 2 4 0

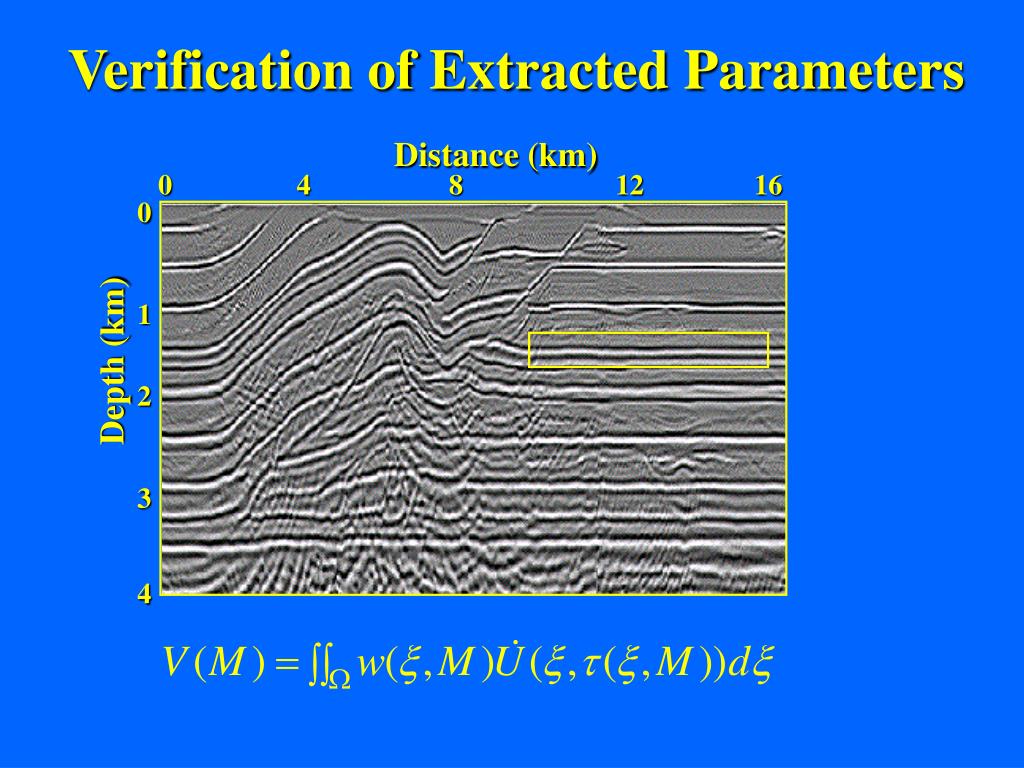

  21. Distance (km) 0 4 8 12 16 0 1 Depth (km) 2 3 4 Verification of Extracted Parameters

  22. COG S-R Midpoint Coordinates Distance (km) 0 8 16 20 0 Depth (km) (km) 10 2 4 0

  23. COG Traveltimes Distance (km) 0 8 16 3.5 0 (Seconds) Depth (km) 1.75 2 4 0

  24. Verification of Extracted Parameters Trace Midpoint Coordinates 11 13 15 1 Time (sec) Trvaeltimes Extracted 2

  25. Applications • Stationary Phase Migration • Tomographic Velocity Analysis

  26. Stationary Phase Migration SPM uses specular-ray parameters to : • Migrate traces within Fresnel zone • Reject traces out of Fresnel zone • Suppress alias artifacts

  27. Stationary Phase Migration • Algorithm • Synthetic Data Example • Field Data Example

  28. Stationary Phase Migration Operator Schleicher et al. (1997) : Fresnel zone width Minimum Aperture Fresnel Zone Stationary phase point

  29. Stationary Phase Migration • Algorithm • Synthetic Data Example • Field Data Example

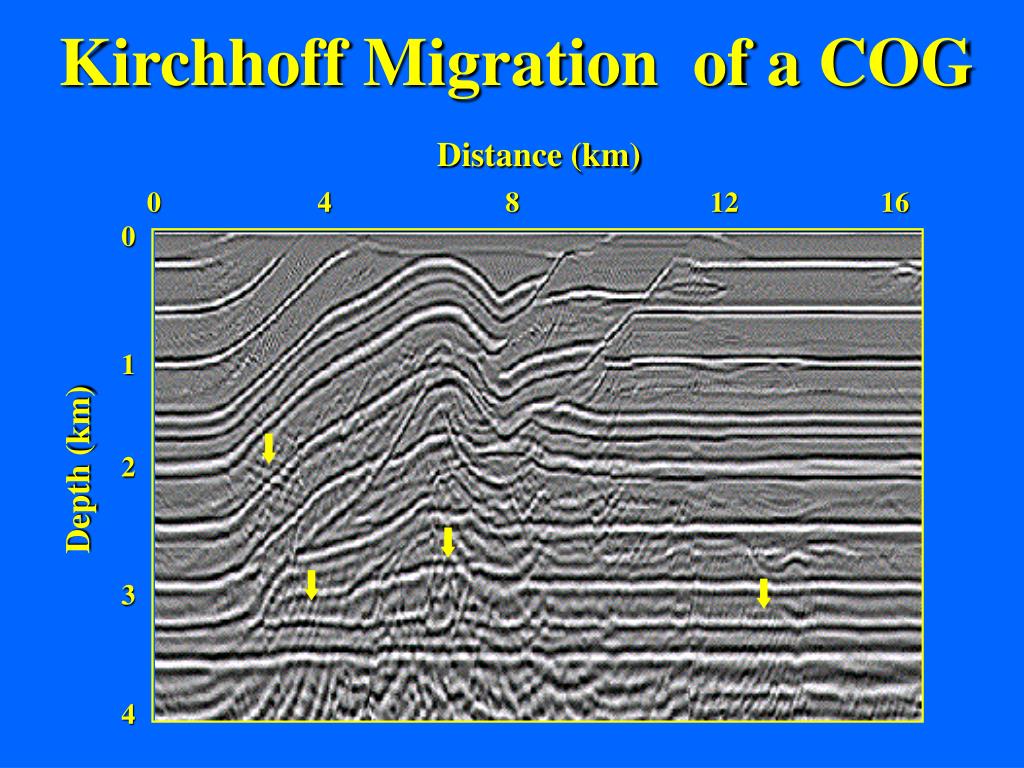

  30. Kirchhoff Migration of a COG Distance (km) 0 4 8 12 16 0 1 2 Depth (km) 3 4

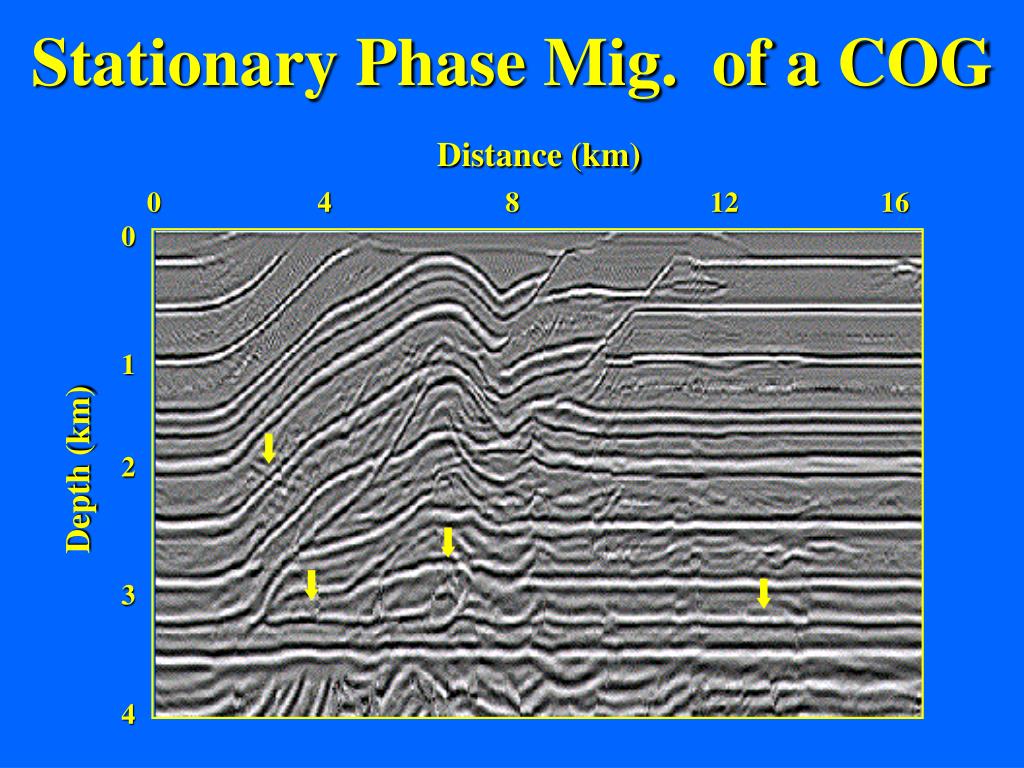

  31. Stationary Phase Mig. of a COG Distance (km) 0 4 8 12 16 0 1 2 Depth (km) 3 4

  32. Migration Operator Trace Contributions

  33. Trace Contributions : KM Trace Number 0 150 300 0 Depth (km) 2 4

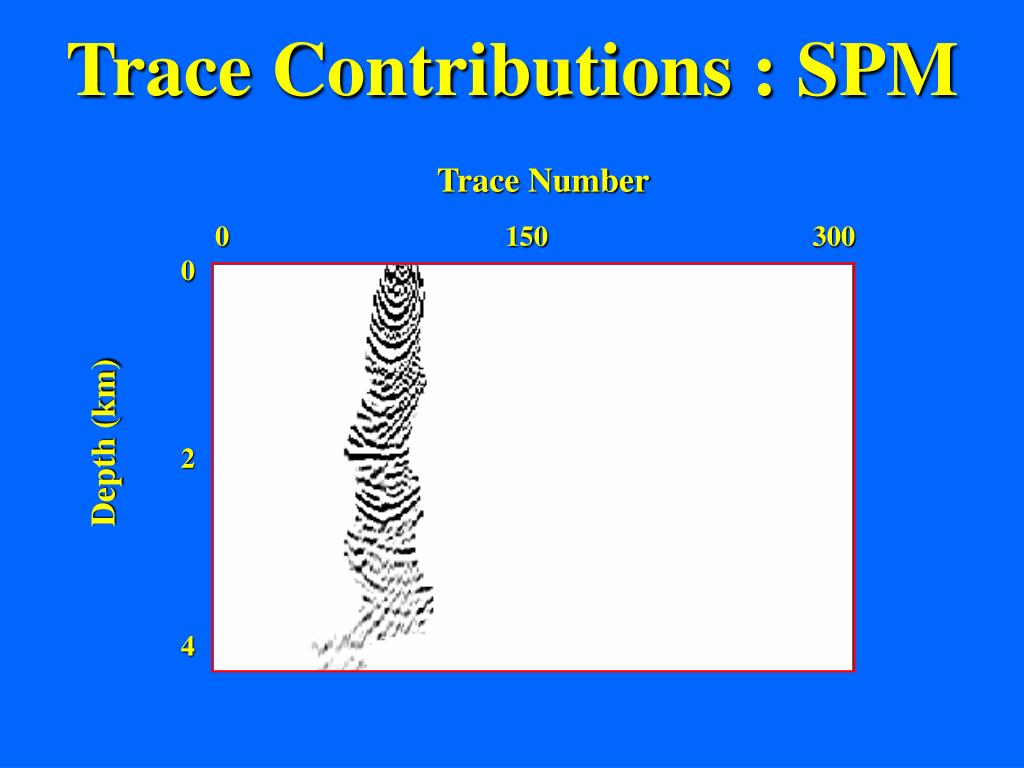

  34. Trace Contributions : SPM Trace Number 0 150 300 0 Depth (km) 2 4

  35. Trace Contributions : KM Trace Number 0 150 300 0 Depth (km) 2 4

  36. Trace Contributions : SPM Trace Number 0 150 300 0 Depth (km) 2 4

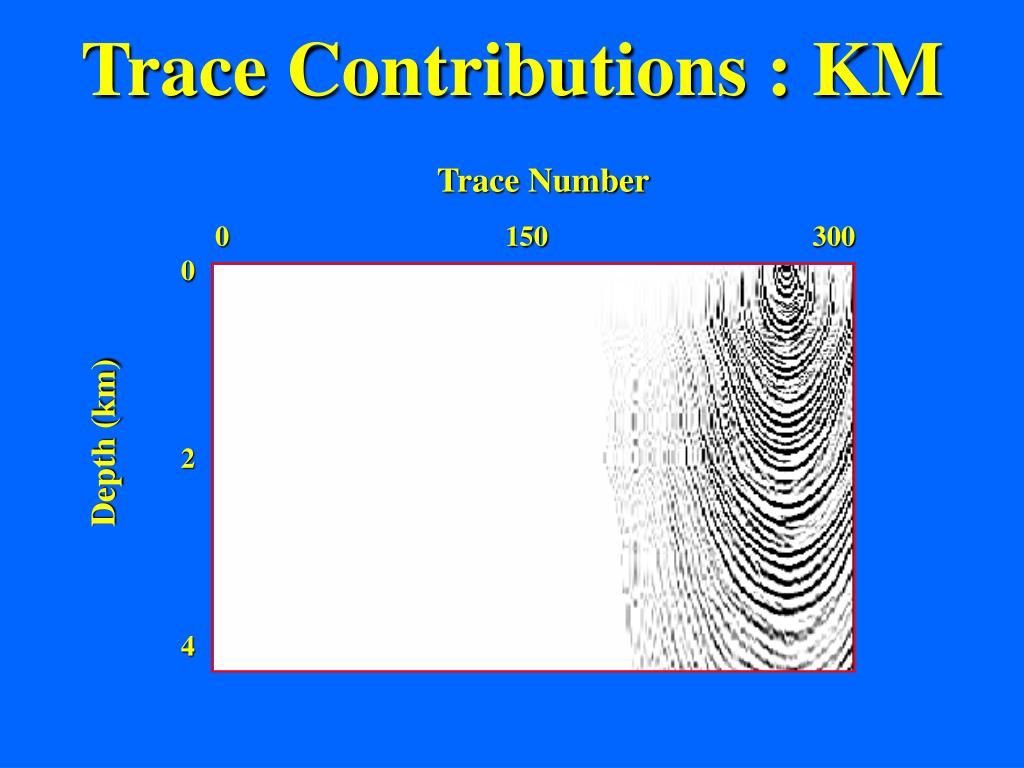

  37. Trace Contributions : KM Trace Number 0 150 300 0 Depth (km) 2 4

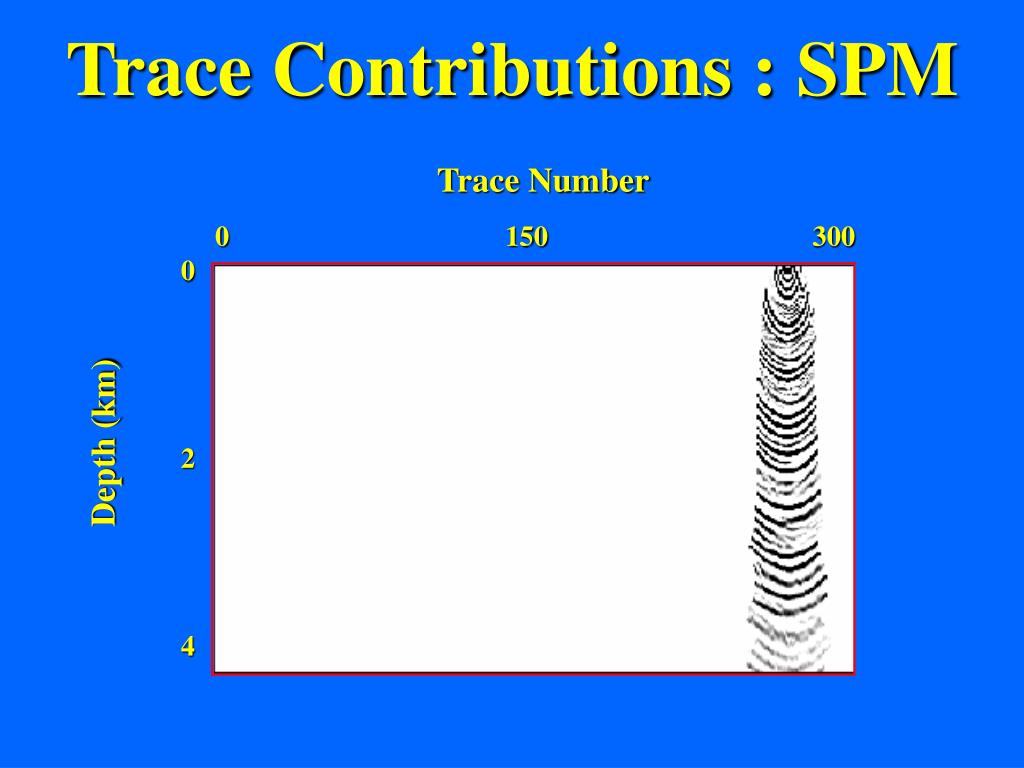

  38. Trace Contributions : SPM Trace Number 0 150 300 0 Depth (km) 2 4

  39. Incidence Angle CIG Offset (km) Offset (km) 0 3 0 3 0 70 0 Depth (km) Depth (km) 35 2 2 4 4 0 (Deg)

  40. Incidence Angle CIG Offset (km) Offset (km) 0 3 0 3 0 70 0 Depth (km) Depth (km) 35 2 2 4 4 0 (Deg)

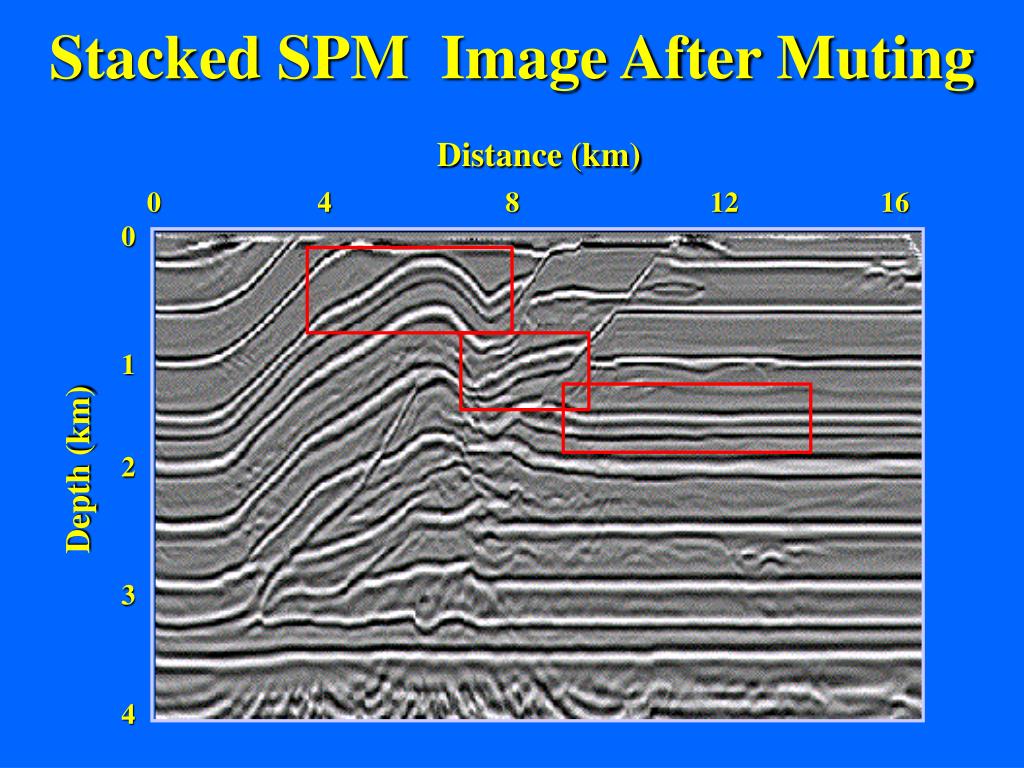

  41. Stacked SPM Image After Muting Distance (km) 0 4 8 12 16 0 1 2 Depth (km) 3 4

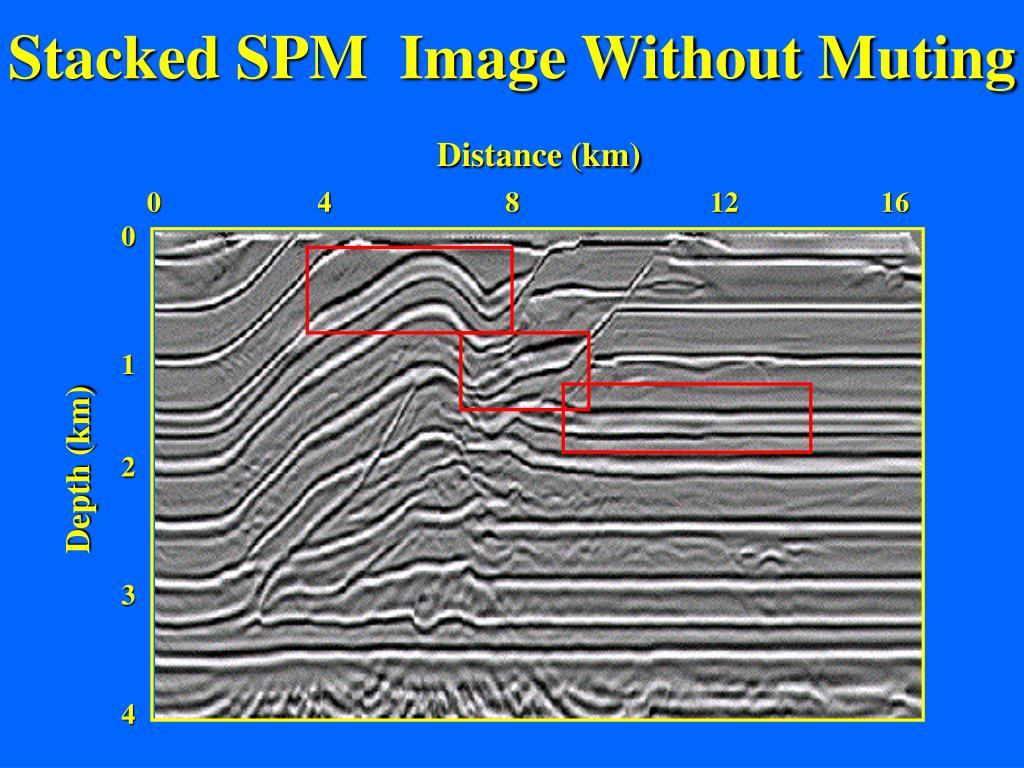

  42. Stacked SPM Image Without Muting Distance (km) 0 4 8 12 16 0 1 2 Depth (km) 3 4

  43. Stationary Phase Migration • Algorithm • Synthetic Data Example • Field Data Example

  44. Kirchhoff Migration of a COG Distance (km) 0 2 4 6 8 10 12 14 0 2 Depth (km) 4 6

  45. Stationary Phase Mig. of a COG Distance (km) 0 2 4 6 8 10 12 14 0 2 Depth (km) 4 6

  46. Stacked KM Image Distance (km) 0 2 4 6 8 10 12 14 0 2 Depth (km) 4 6

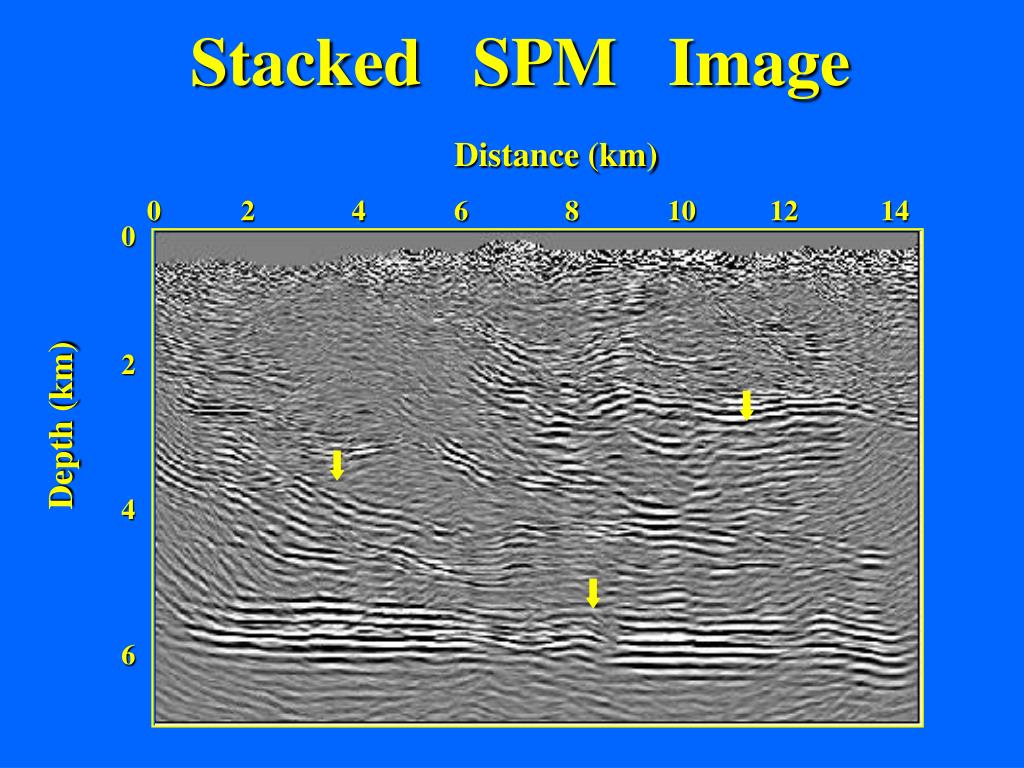

  47. Stacked SPM Image Distance (km) 0 2 4 6 8 10 12 14 0 2 Depth (km) 4 6

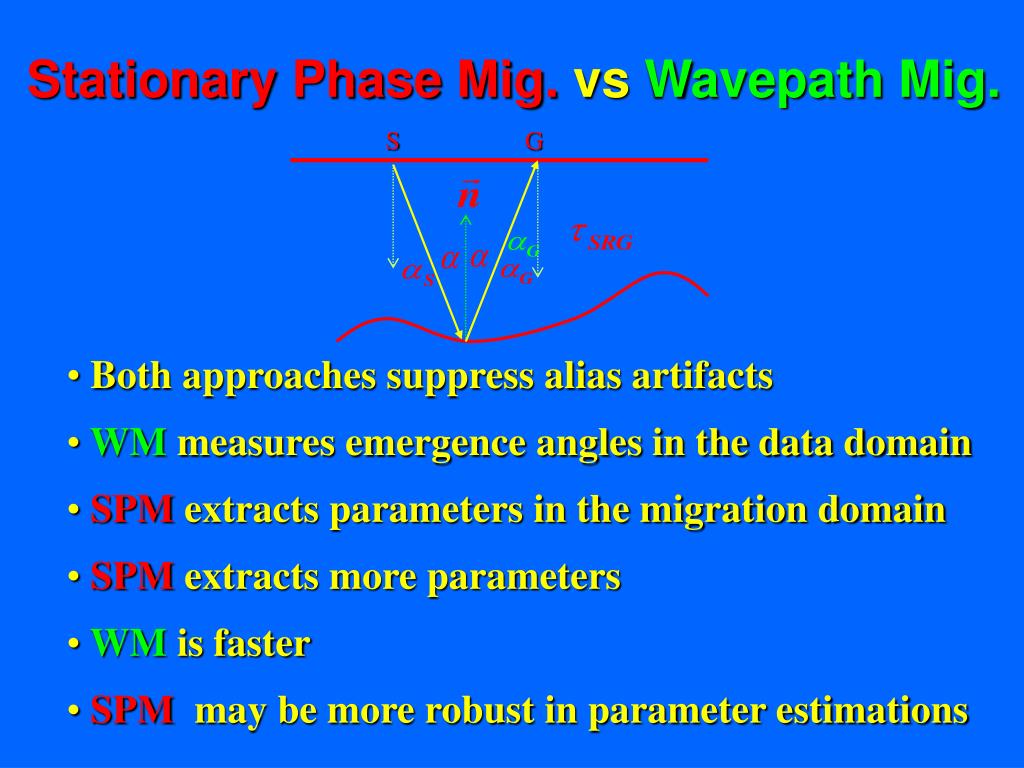

  48. Stationary Phase Mig. vs Wavepath Mig. S G • Both approaches suppress alias artifacts • WM measures emergence angles in the data domain • SPM extracts parameters in the migration domain • SPM extracts more parameters • WM is faster • SPM may be more robust in parameter estimations

  49. Applications • Stationary Phase Migration • Tomographic Velocity Analysis

  50. Steps in Tomographic MVA • Build up Initial Migration Velocity • Migrate Seismic Data • Obtain S & R Coordinates • Find Specular-Ray Paths • Pick Depth Residual Moveouts • Pick Reflector Positions • Update Velocities • Migrate Seismic Data With • Updated Velocities • Repeat Above Steps
