  1. NPort Server 與 Async Server的安裝與監控

  2. Moxa Async Server 安裝設定 Async Server 基本設定 Nport Driver 安裝與設定

  3. Async Server Console的設定Before you start Terminal Emulation Software - DOS Telnet, Telix, Pcomm, Windows 95/98/NT Hyper Terminal • COM port setting - speed, data bit, parity, stop bit (19200, 8,none,1, 硬體流 量控制) • 設定完系統需 Restart 才能啟動新設定 • 確定設定無誤後記得要儲存設定值

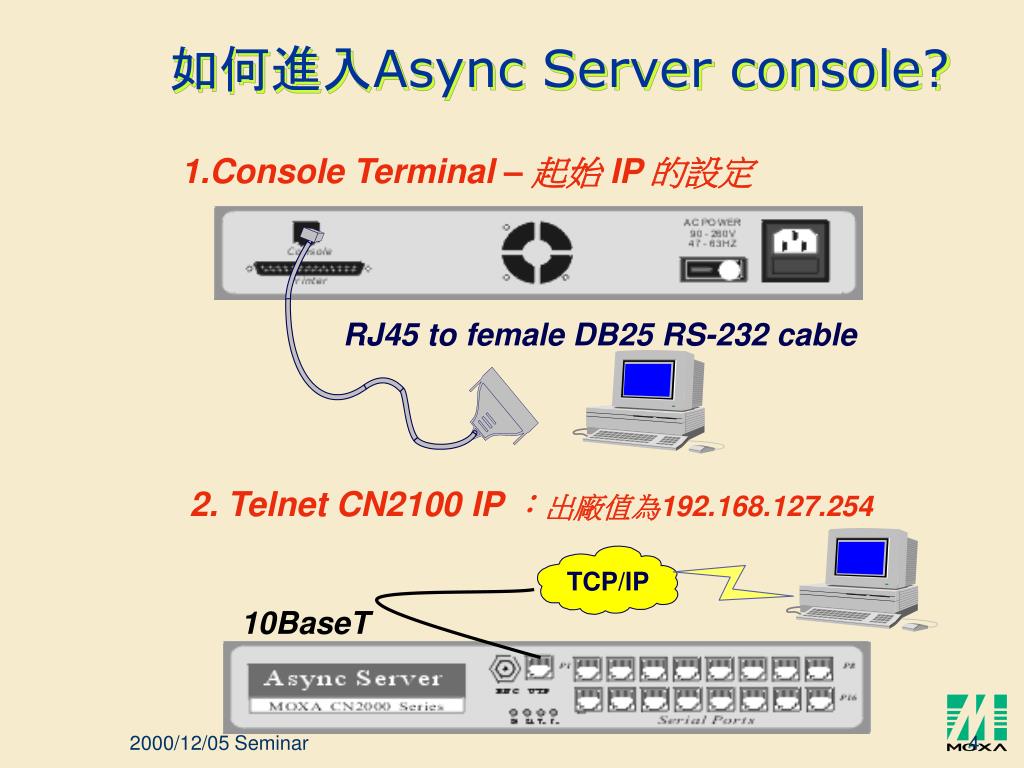

  4. TCP/IP 10BaseT 如何進入Async Server console? 1.Console Terminal – 起始 IP 的設定 RJ45 to female DB25 RS-232 cable 2. Telnet CN2100 IP ：出廠值為192.168.127.254

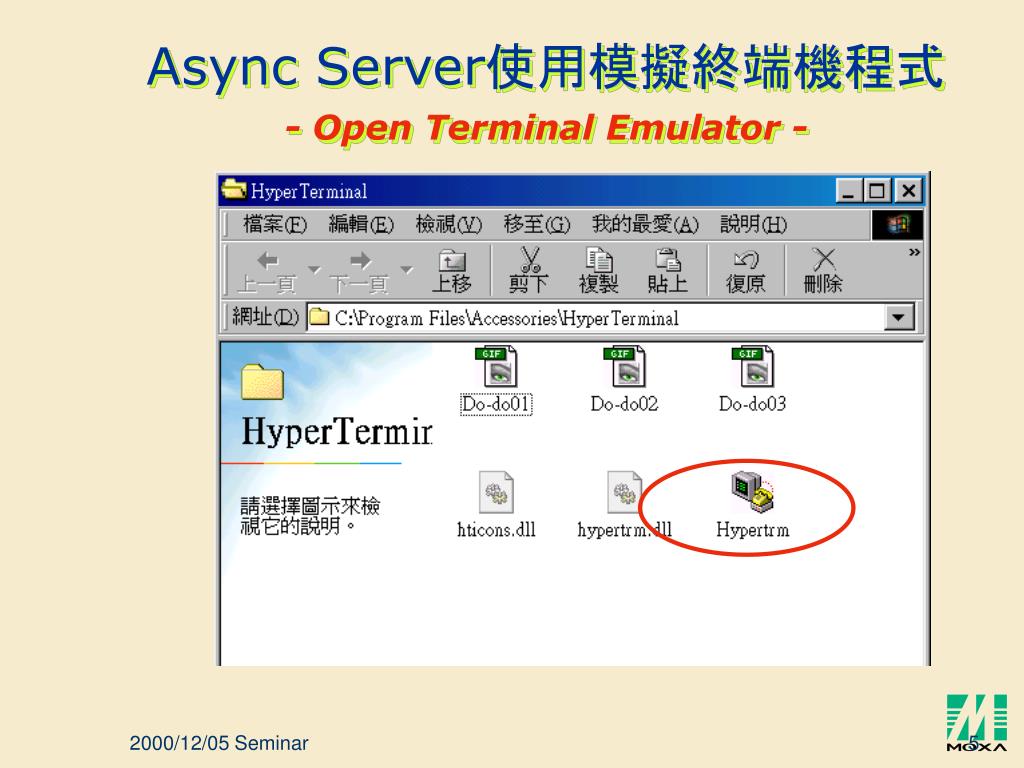

  5. Async Server使用模擬終端機程式- Open Terminal Emulator -

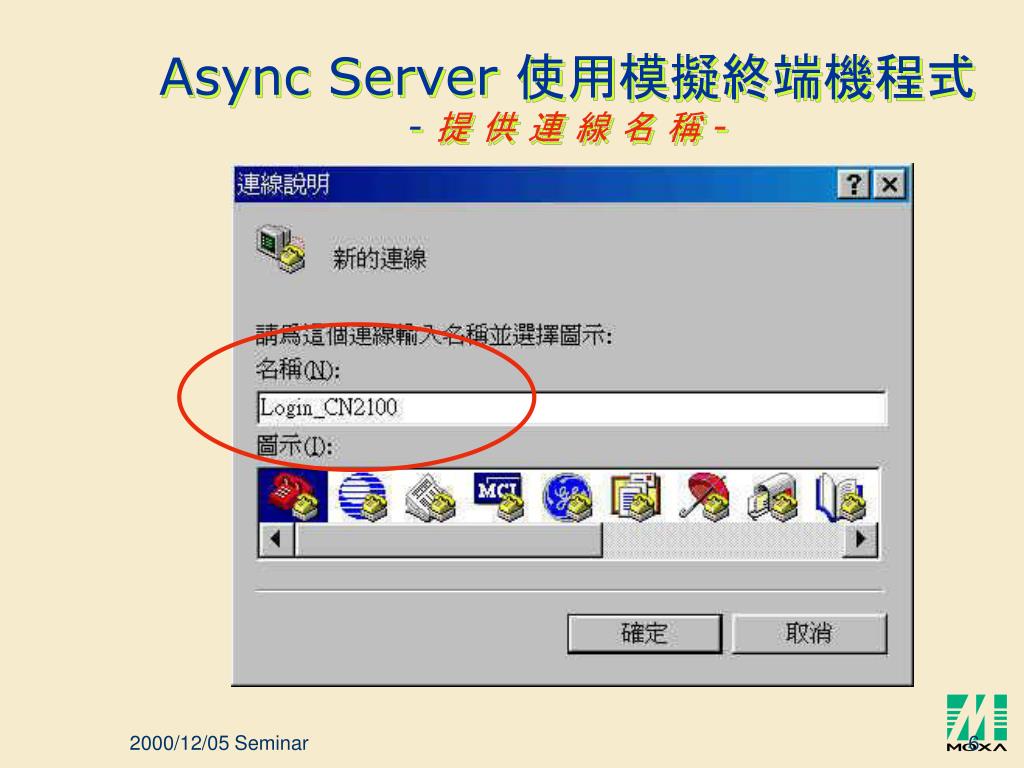

  6. Async Server 使用模擬終端機程式- 提 供 連 線 名 稱 -

  7. Async Server 使用模擬終端機程式- 連接到 PC 的 com port -

  8. Async Server 使用模擬終端機程式- 設定 com port data format 的參數 -

  9. Async Server 使用 TELNET 作設定 - 從 PC 上 Telnet Async Server 的 IP - 選擇終端機模式為 ansi/vt100

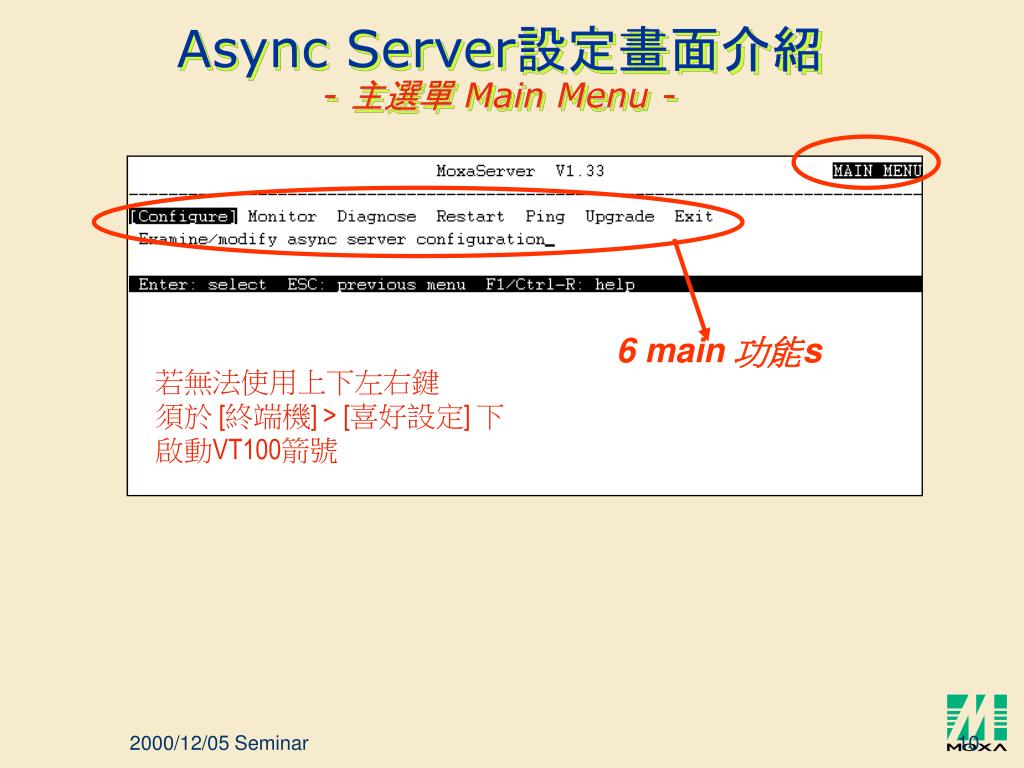

  10. Async Server設定畫面介紹- 主選單 Main Menu - 6 main 功能s 若無法使用上下左右鍵 須於 [終端機] > [喜好設定] 下 啟動VT100箭號

  11. Async Server設定畫面介紹- 設定選單 Configure Menu - Configuration list

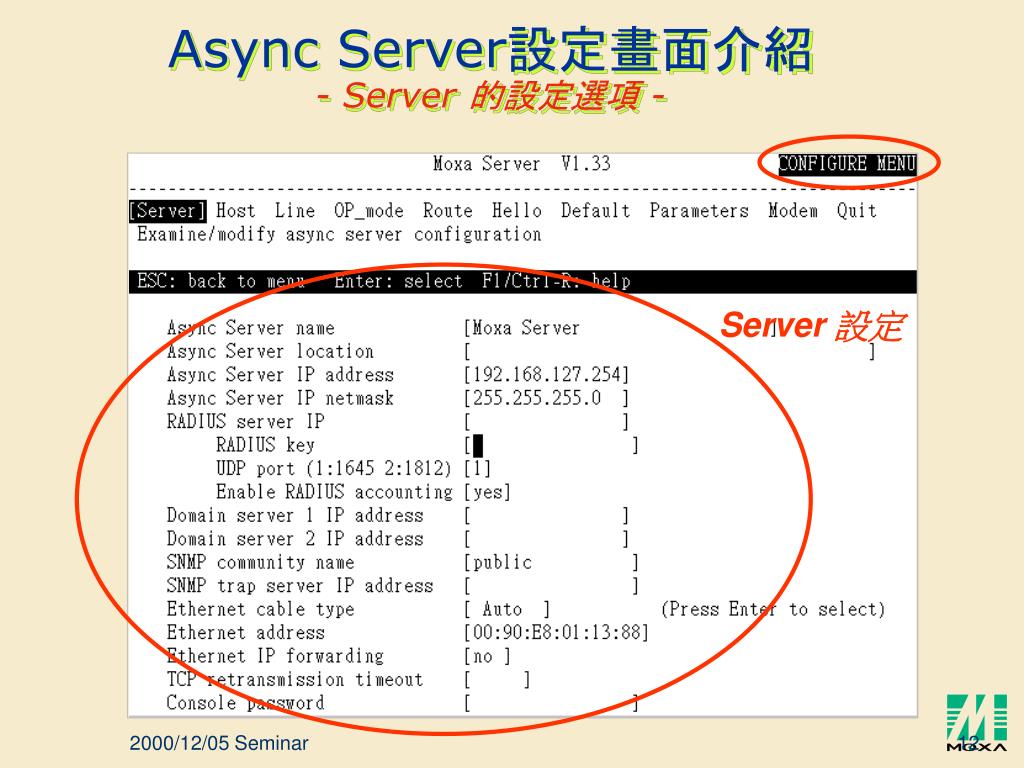

  12. Async Server設定畫面介紹- Server 的設定選項 - Server 設定

  13. Async Server設定畫面介紹- Host 的設定 -

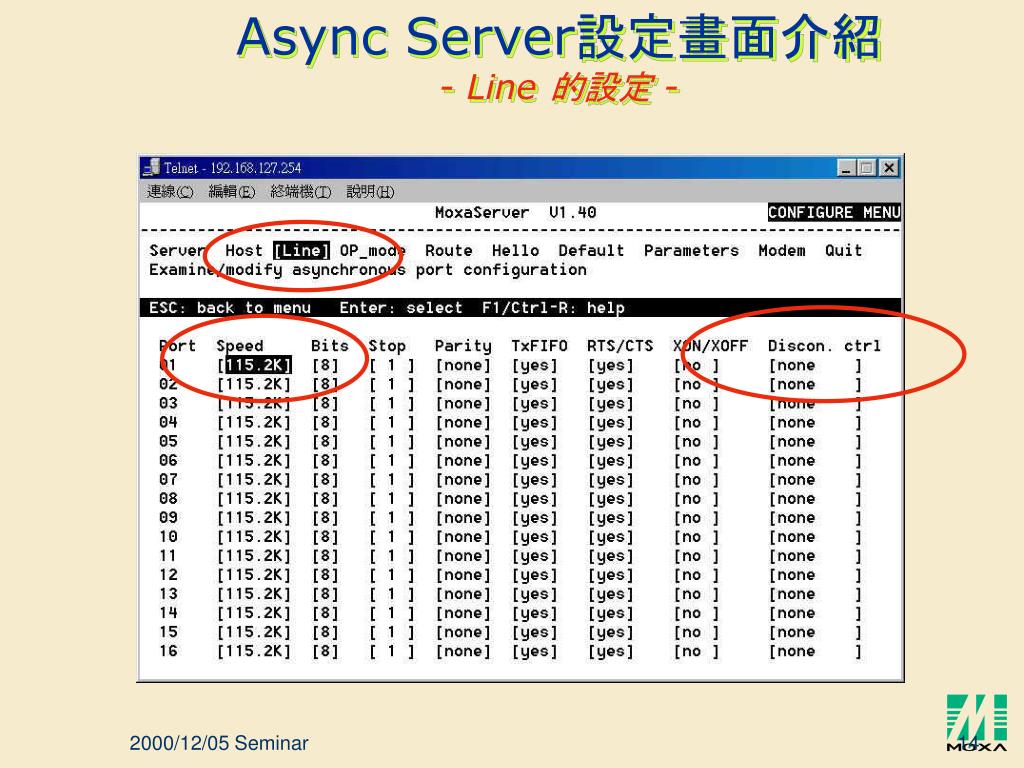

  14. Async Server設定畫面介紹- Line 的設定 -

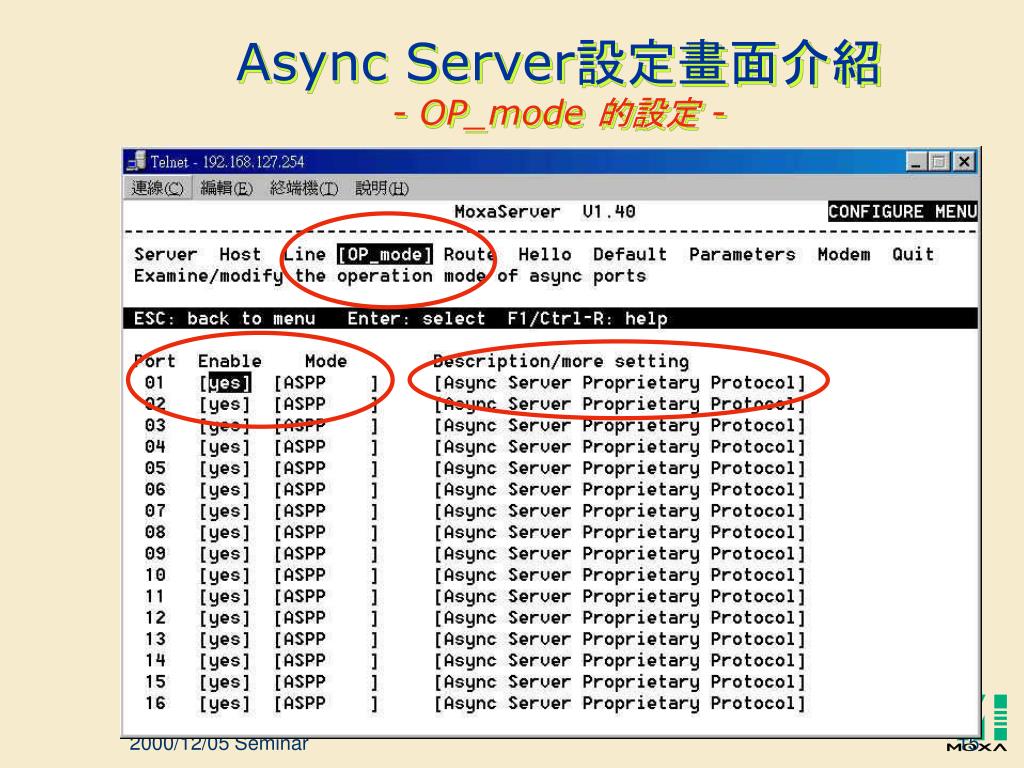

  15. Async Server設定畫面介紹- OP_mode 的設定 -

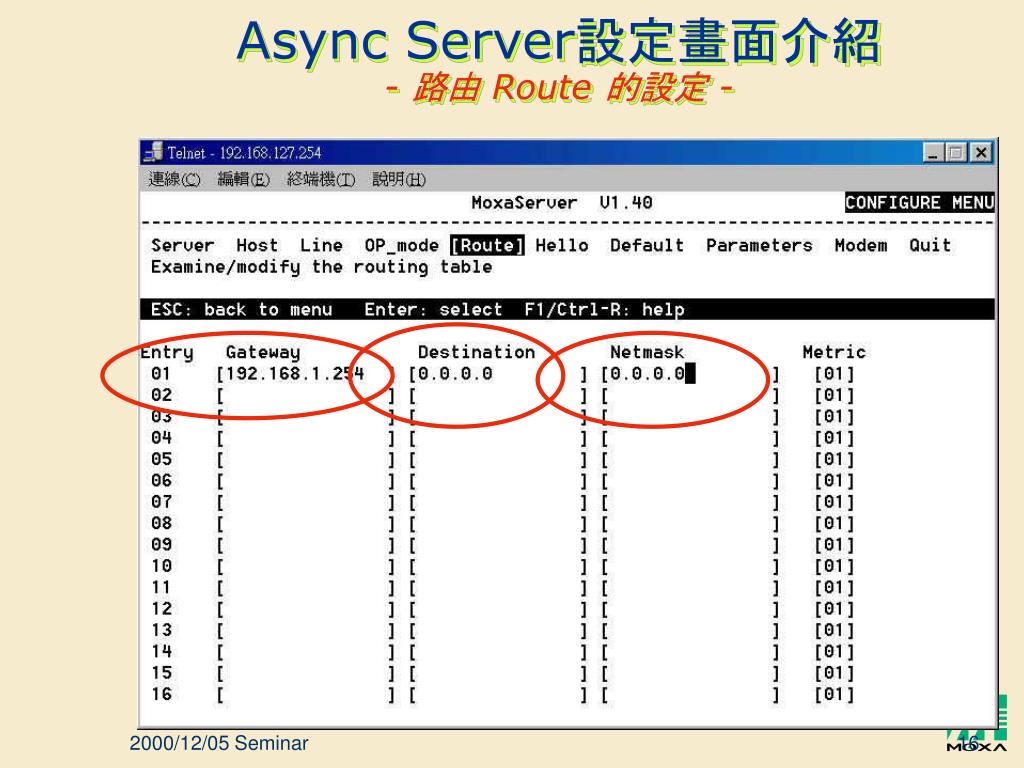

  16. Async Server設定畫面介紹- 路由 Route 的設定 -

  17. Async Server設定畫面介紹- 歡迎畫面 Hello 的設定 -

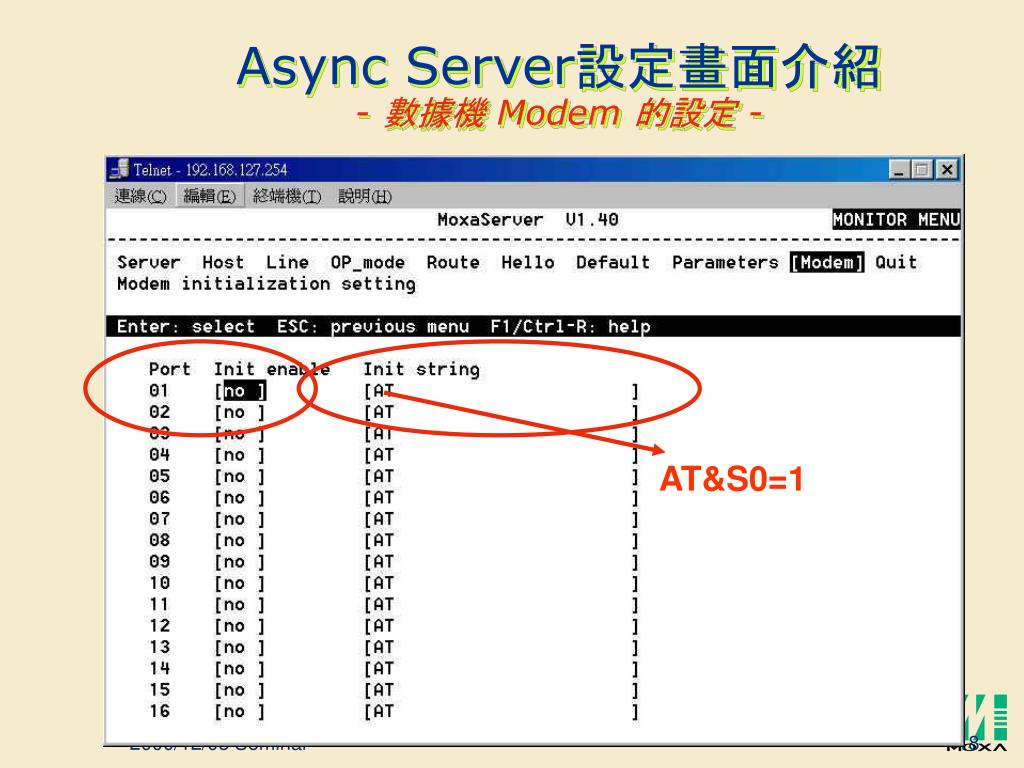

  18. Async Server設定畫面介紹- 數據機 Modem 的設定 - AT&S0=1

  19. Async Server設定畫面介紹- 參數儲存 Parameter 的設定 -

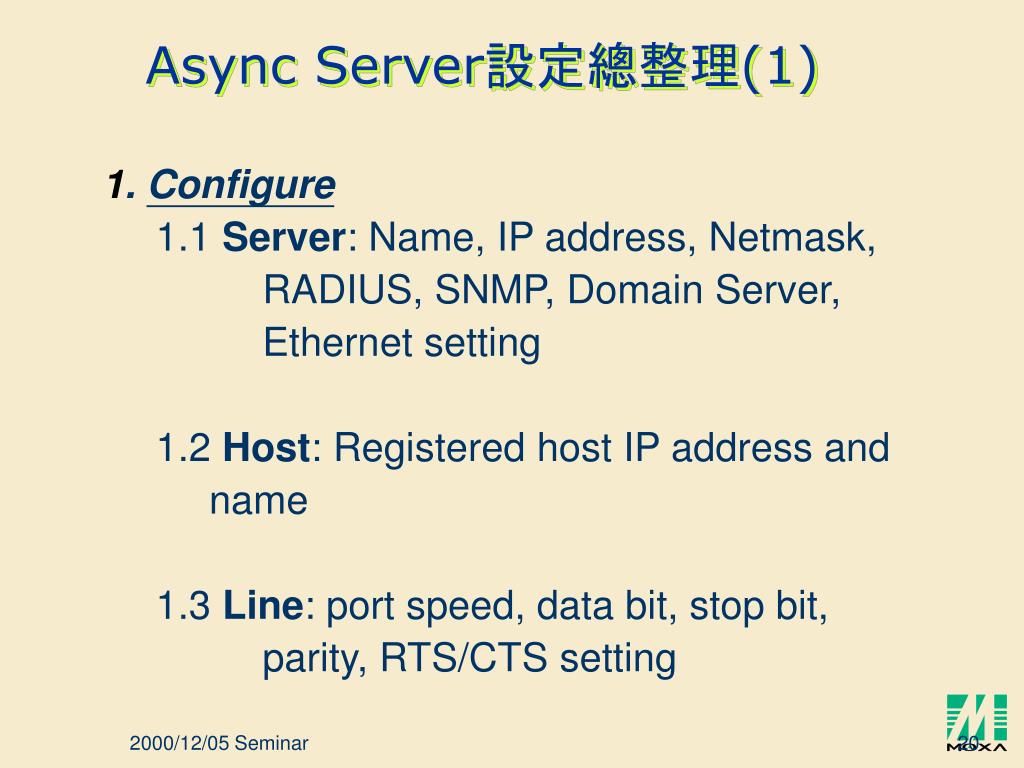

  20. Async Server設定總整理(1) 1. Configure 1.1 Server: Name, IP address, Netmask, RADIUS, SNMP, Domain Server, Ethernet setting 1.2 Host: Registered host IP address and name 1.3 Line: port speed, data bit, stop bit, parity, RTS/CTSsetting

  21. Async Server設定總整理(2) 1.4 OP_mode: Setting connection mode for each serial port 1.5 Routing: Routing Table 1.6 Hello: Edit welcome message 1.7 Default: Restore default value 1.8 Parameter: Save, Import, Export setting 1.9 Modem: Modem initialization

  22. Async Server的附加功能(1) 2. Monitor: 2.1 Line :port type, idle, status 2.2 Network :network receive, sent status 2.3 非同步通訊:TX/RXstatus 2.4 Routing 2.5 PPP-Trace 3. Diagnose:self diagnosis

  23. Async Server的附加功能(2) 4. Restart: activate setting 5. Ping: test connection with other hosts 6. Upgrade:firmware upgrade 7. Exit: Exit console

  24. OP_mode的介紹(1) Serial port 設定

  25. OP_mode的介紹(2) • Terminal Mode - [TERM_ASC]ASCII Terminal: Rtelnet, Rlogin - [TERM_BIN]Binary Terminal:X Modem, Z Modem • Dial-in SLIP & PPP & DYNAMIC - [SLIP], [SLIPD] - [PPP], [PPPD] - [Dynamic], auto-recognition for connection mode. • ASPP- TCP/IP socket programming protocol • PRINTER • RTELNET- reverse telnet for console management • RAW mode

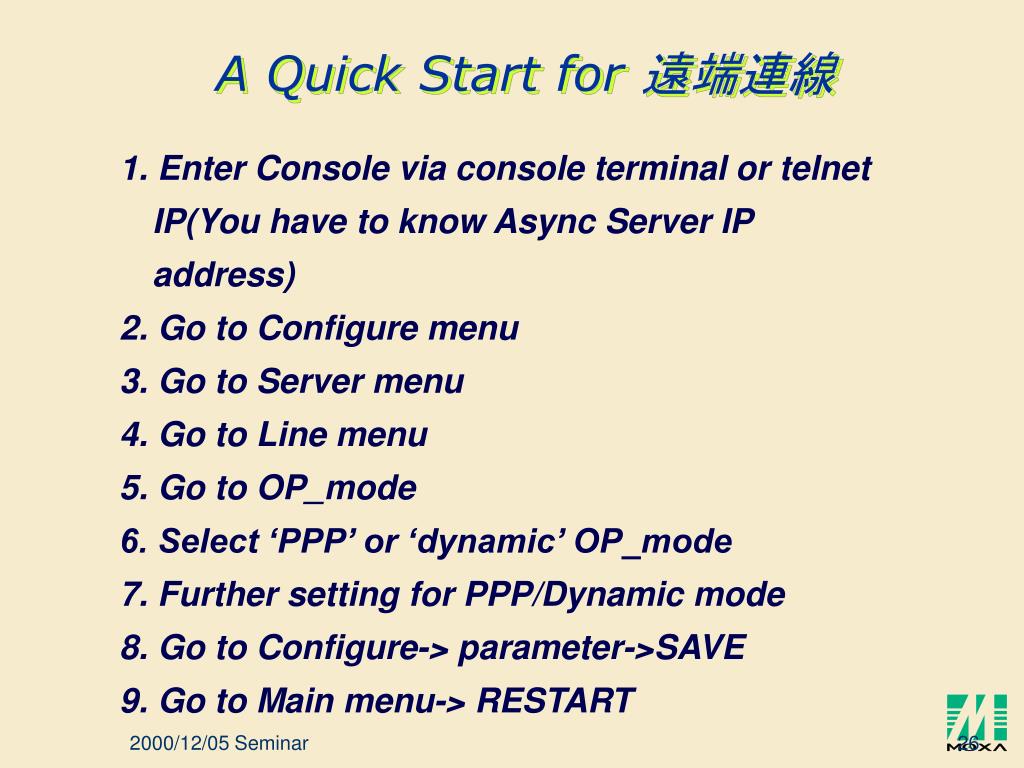

  26. A Quick Start for 遠端連線 1. Enter Console via console terminal or telnet IP(You have to know Async Server IP address) 2. Go to Configure menu 3. Go to Server menu 4. Go to Line menu 5. Go to OP_mode 6. Select ‘PPP’ or ‘dynamic’ OP_mode 7. Further setting for PPP/Dynamic mode 8. Go to Configure-> parameter->SAVE 9. Go to Main menu-> RESTART

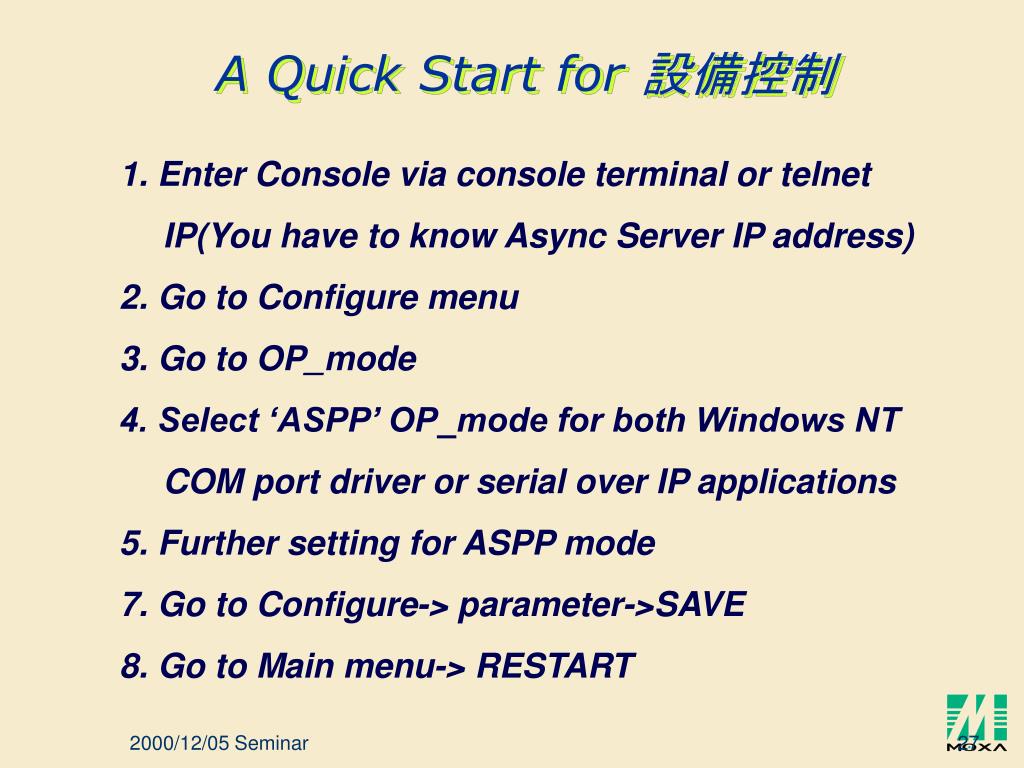

  27. A Quick Start for 設備控制 1. Enter Console via console terminal or telnet IP(You have to know Async Server IP address) 2. Go to Configure menu 3. Go to OP_mode 4. Select ‘ASPP’ OP_mode for both Windows NT COM port driver or serial over IP applications 5. Further setting for ASPP mode 7. Go to Configure-> parameter->SAVE 8. Go to Main menu-> RESTART

  28. Moxa Async Server 安裝設定 Async Server 基本設定 Nport Driver 安裝與設定

  29. Async Server – A Multiport Server- 如何在NT下安裝 NPort Driver -

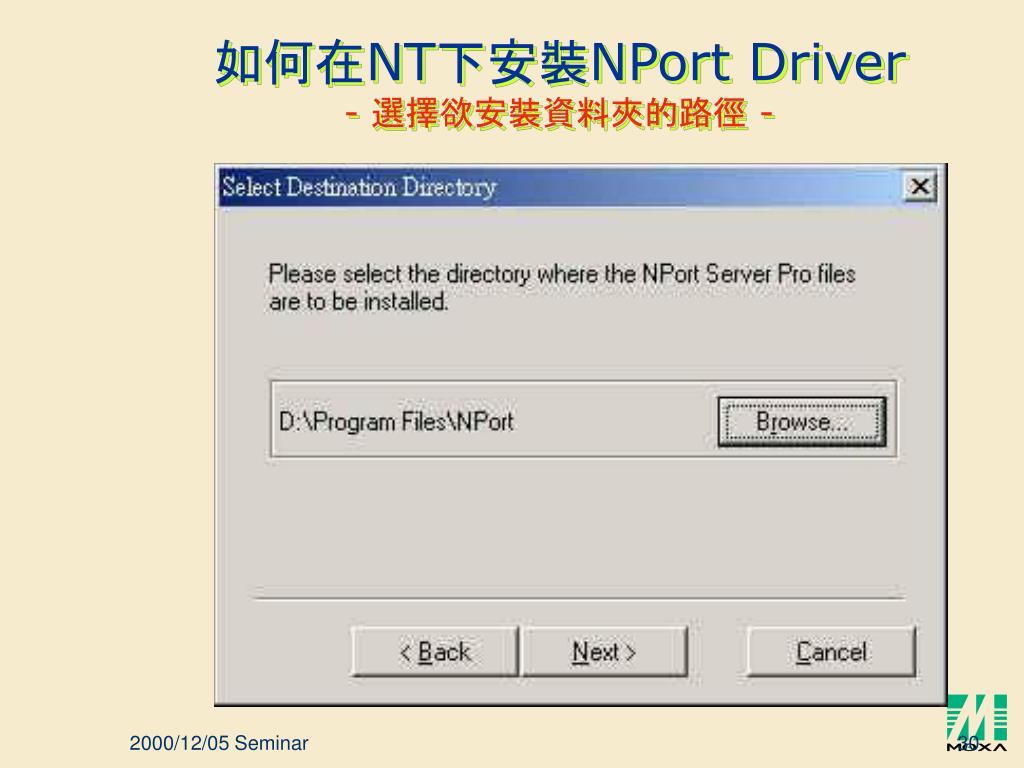

  30. 如何在NT下安裝NPort Driver- 選擇欲安裝資料夾的路徑 -

  31. 如何在NT下安裝NPort Driver- 開始安裝到 NT -

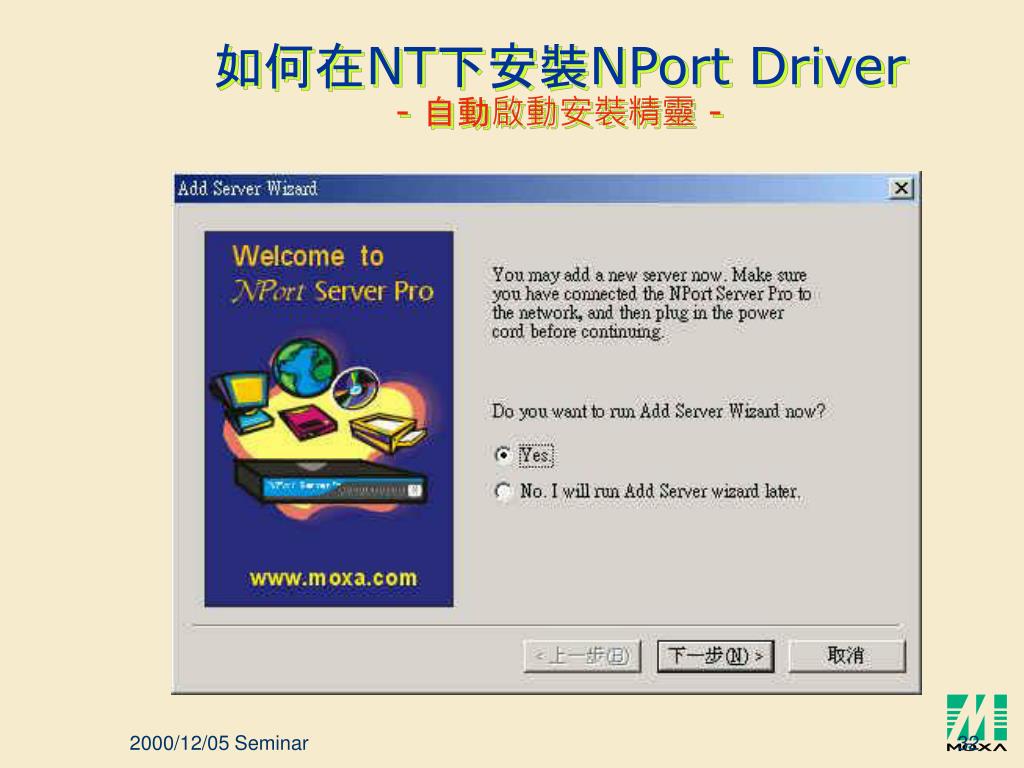

  32. 如何在NT下安裝NPort Driver- 自動啟動安裝精靈 -

  33. 如何在NT下安裝NPort Driver- 選擇欲安裝的Async Server -

  34. 如何在NT下安裝NPort Driver- 確認或修改 Server 的IP -

  35. 如何在NT下安裝NPort Driver- 選擇欲起始的 com port 編號 -

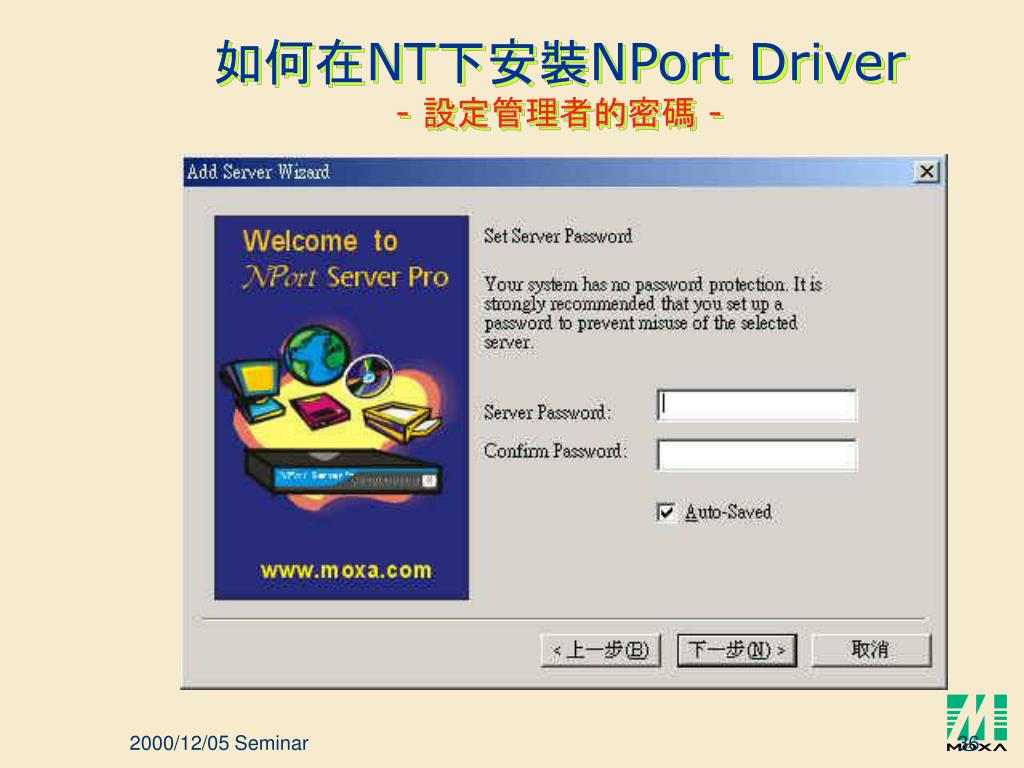

  36. 如何在NT下安裝NPort Driver- 設定管理者的密碼 -

  37. 如何在NT下安裝NPort Driver- 確認設定值即完成設定 -

  38. 如何在NT下安裝NPort Driver- 安裝時找不到 Async Server 的狀況下 -

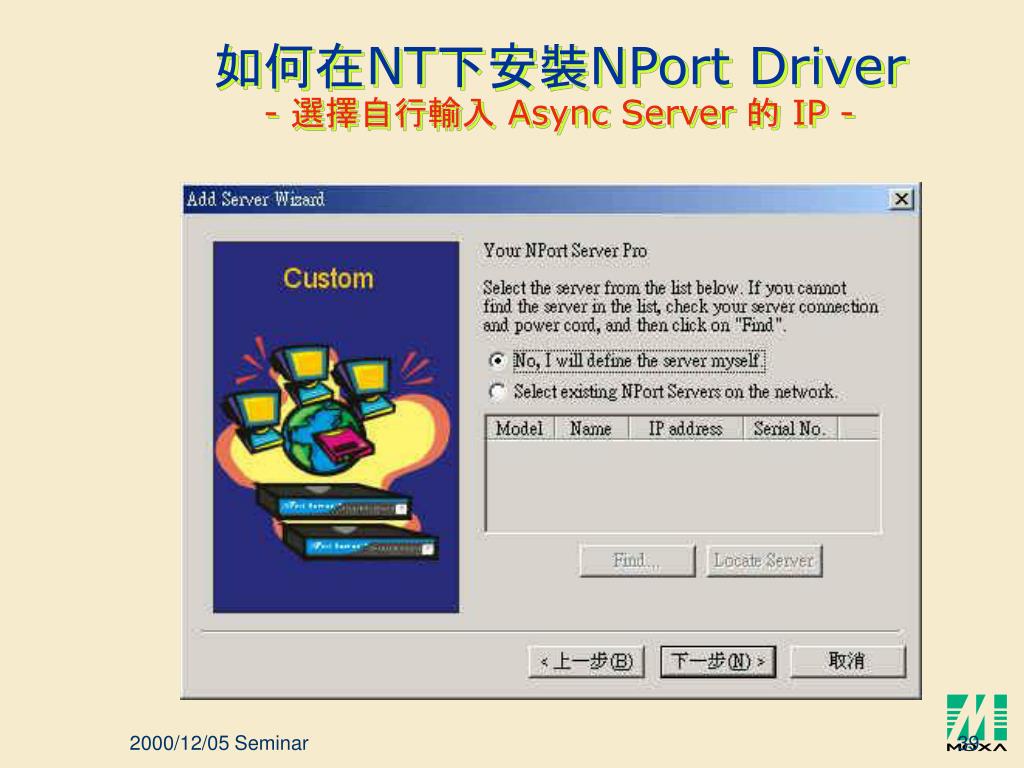

  39. 如何在NT下安裝NPort Driver- 選擇自行輸入 Async Server 的 IP -

  40. 如何在NT下安裝NPort Driver- 輸入遠端的 Server 的 IP -

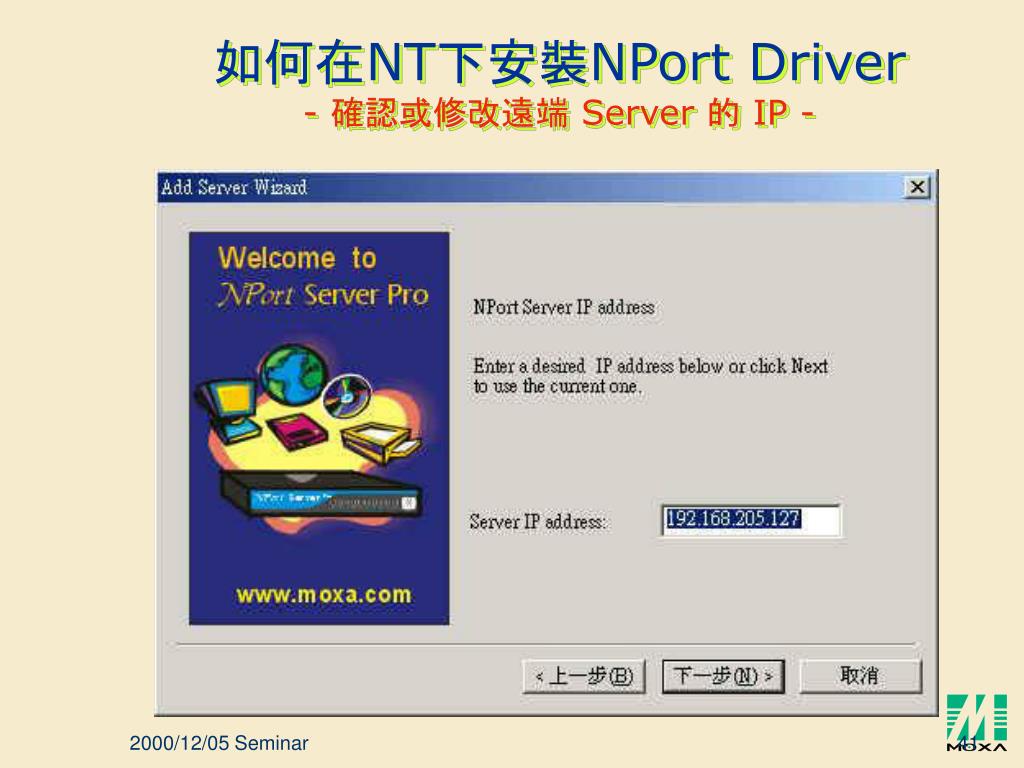

  41. 如何在NT下安裝NPort Driver- 確認或修改遠端 Server 的 IP -

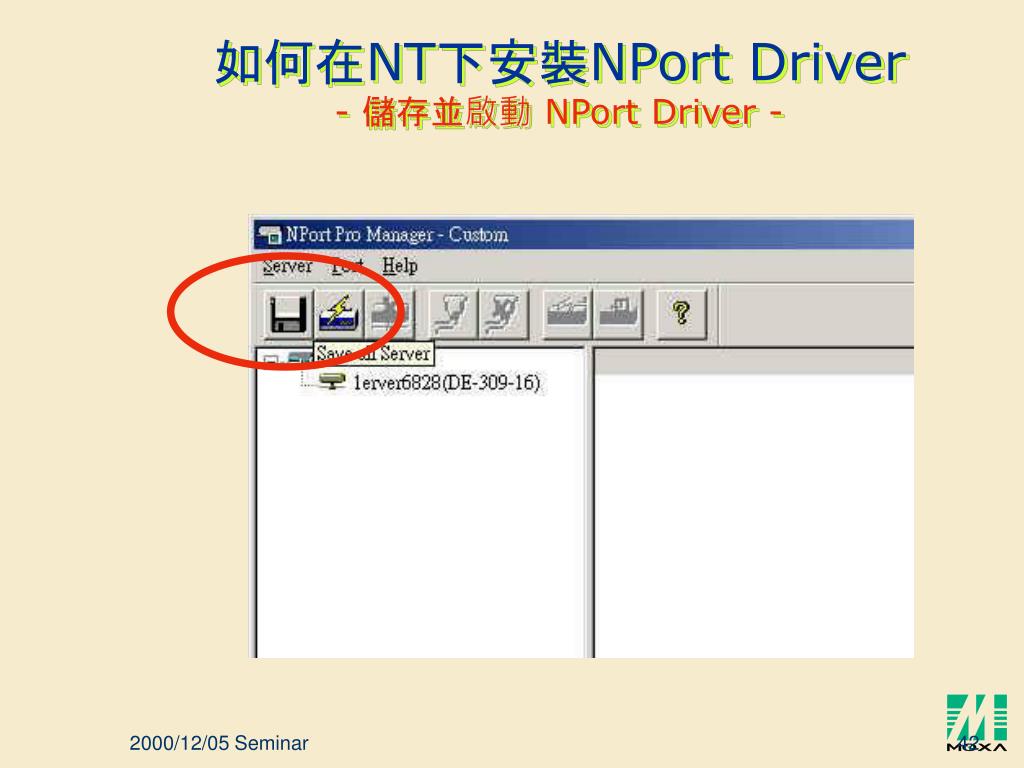

  42. 如何在NT下安裝NPort Driver- 儲存並啟動 NPort Driver -

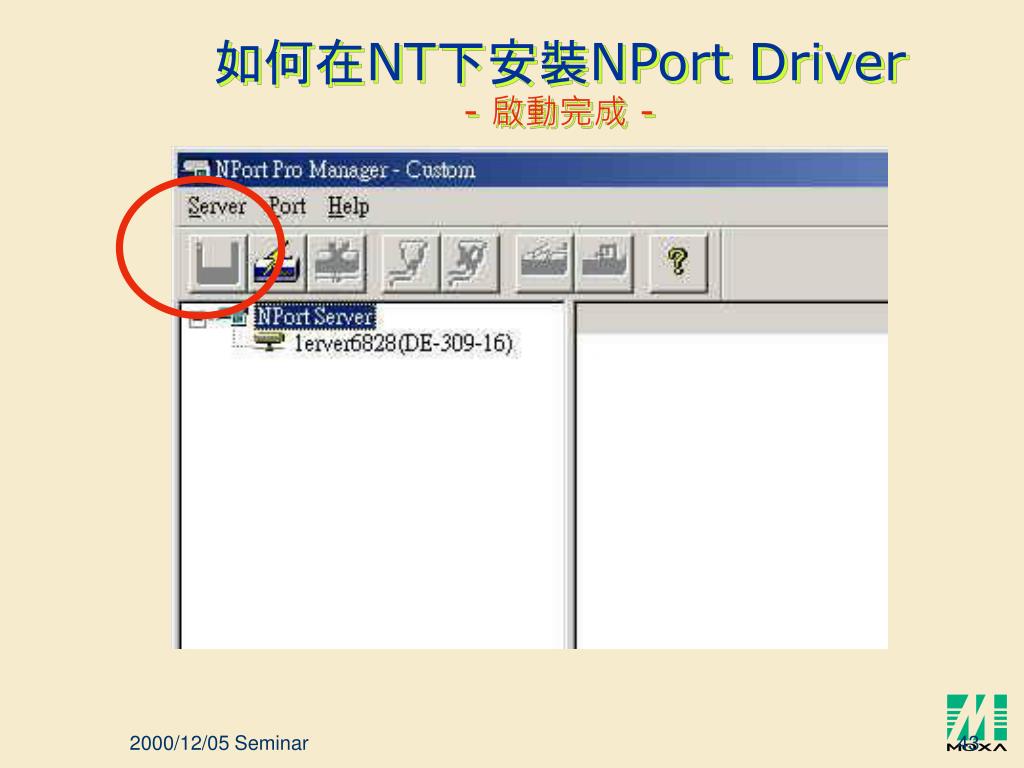

  43. 如何在NT下安裝NPort Driver- 啟動完成 -

  44. NPort Driver Manager 的使用- 總 覽 -

  45. NPort Driver Manager 的使用- 修改基本的 Server Info -

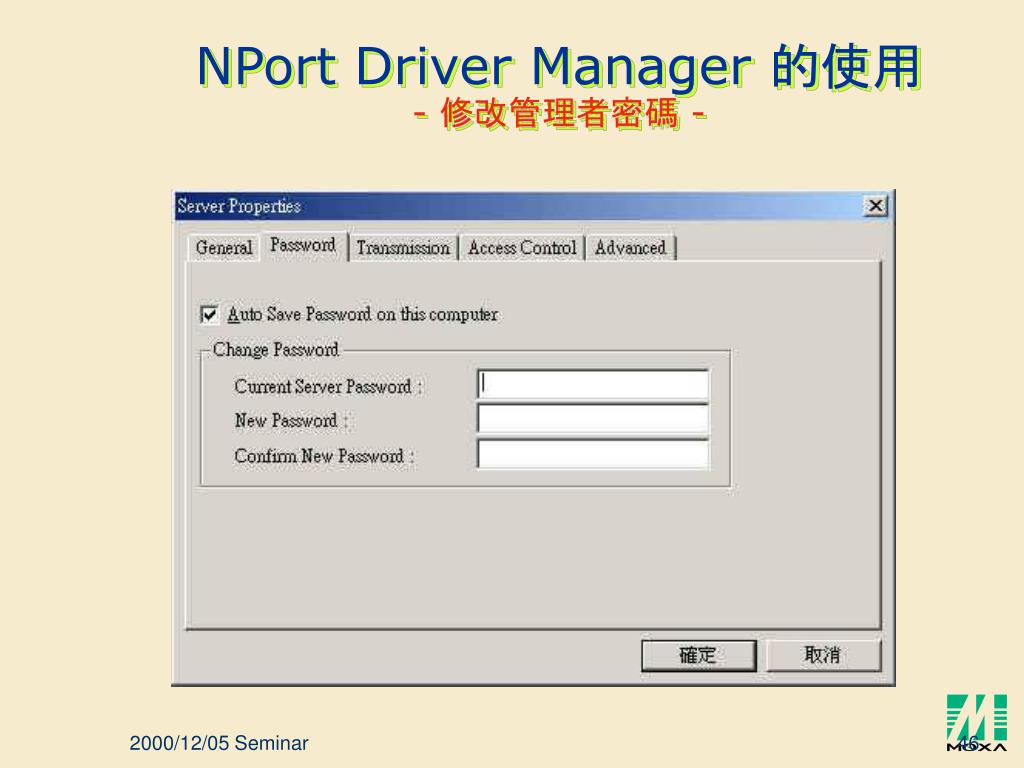

  46. NPort Driver Manager 的使用- 修改管理者密碼 -

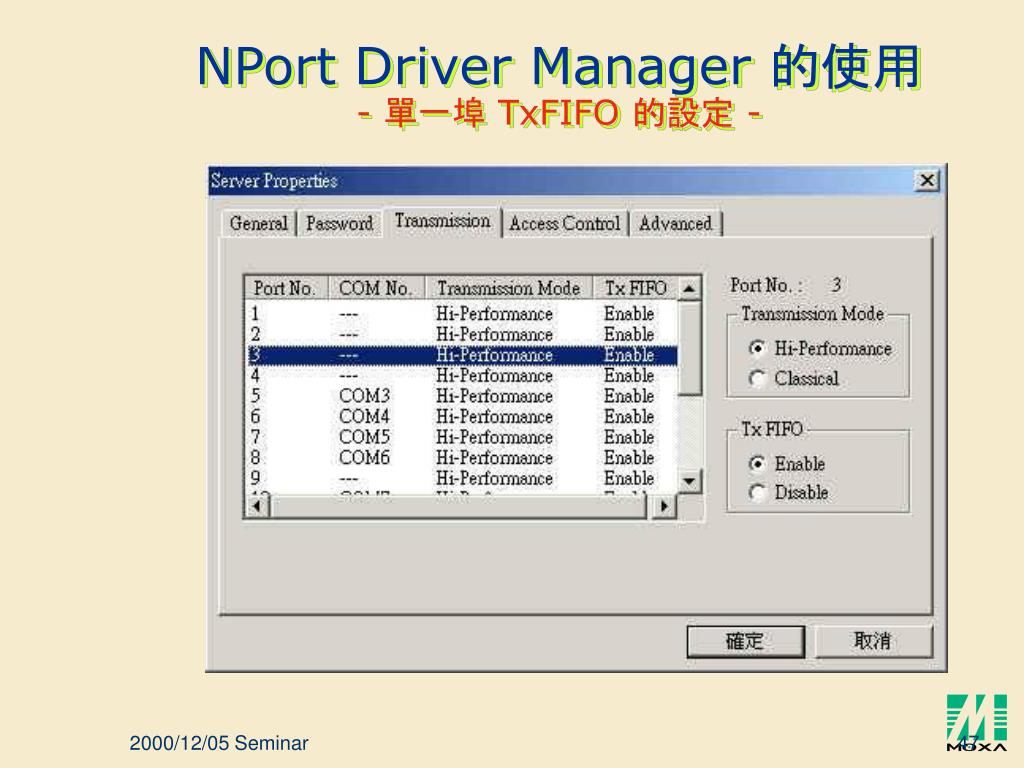

  47. NPort Driver Manager 的使用- 單一埠 TxFIFO 的設定 -

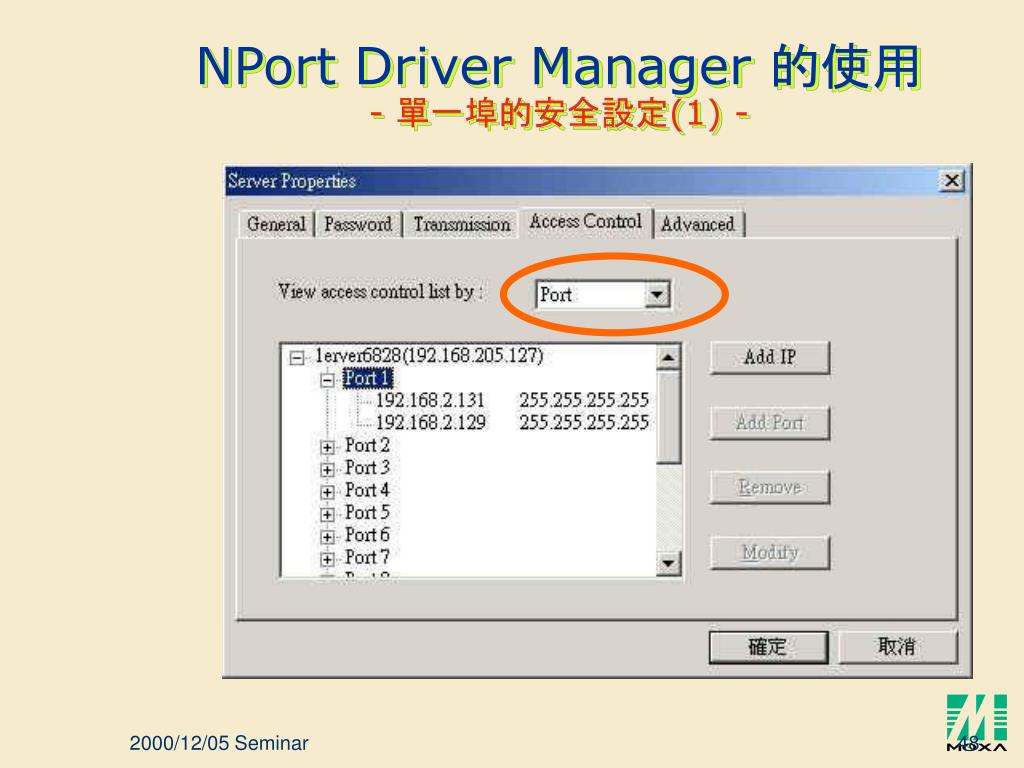

  48. NPort Driver Manager 的使用- 單一埠的安全設定(1) -

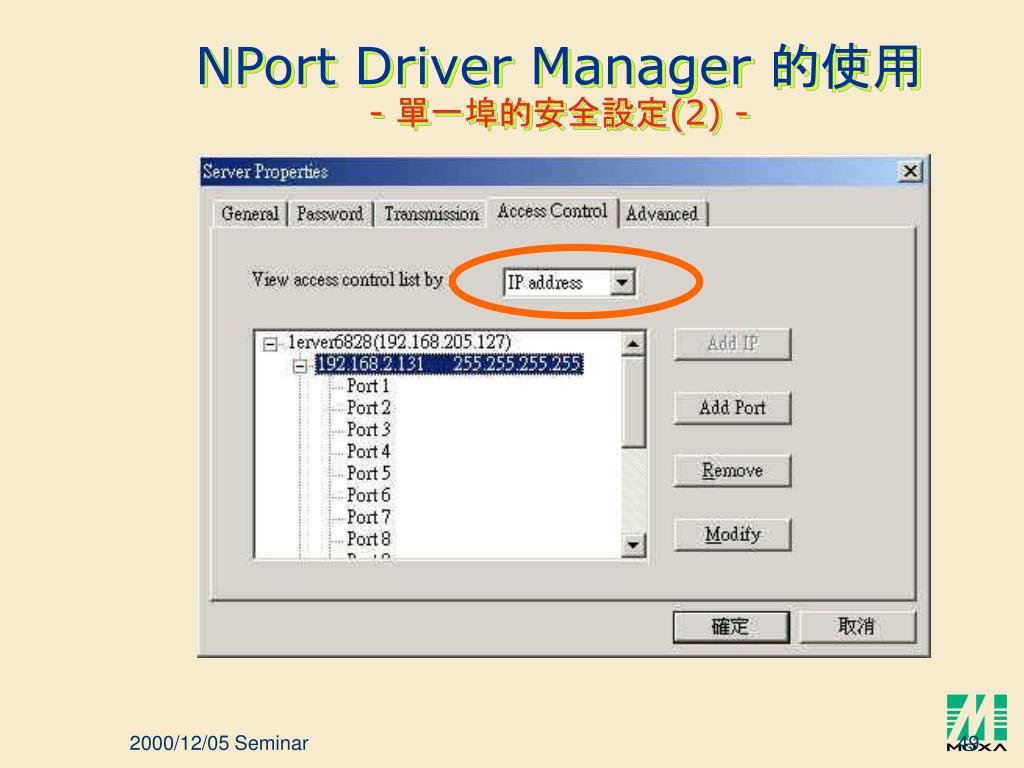

  49. NPort Driver Manager 的使用- 單一埠的安全設定(2) -

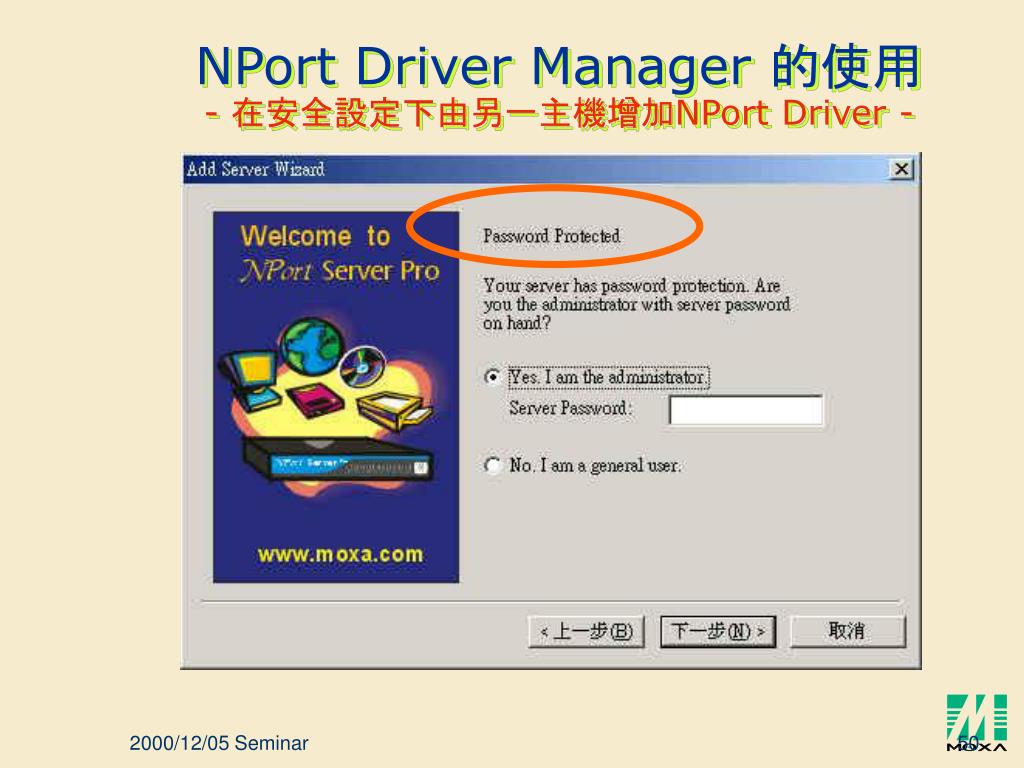

  50. NPort Driver Manager 的使用- 在安全設定下由另一主機增加NPort Driver -
