Enabling Open Government Using the OIDF/ICF Open Trust Framework

1. Enabling Open Government Using the OIDF/ICF Open Trust Framework OASIS Identity Management 2009 September 29, 2009 Don Thibeau, ED, OpenID FoundationDrummond Reed, ED, Information Card Foundation

2. Topics • The Open Identity Solutions for Open Government Initiative • Policy Foundation • Understanding the U.S. Government Approach • Identity Schemes • Trust Frameworks • Open Identity Schemes • OpenID • InfoCards • Introducing the Open Trust Framework • Key Design Principles • Participant Roles • The Basic Workflow • Components of Specific Trust Framework • Next Steps/How to Get Involved

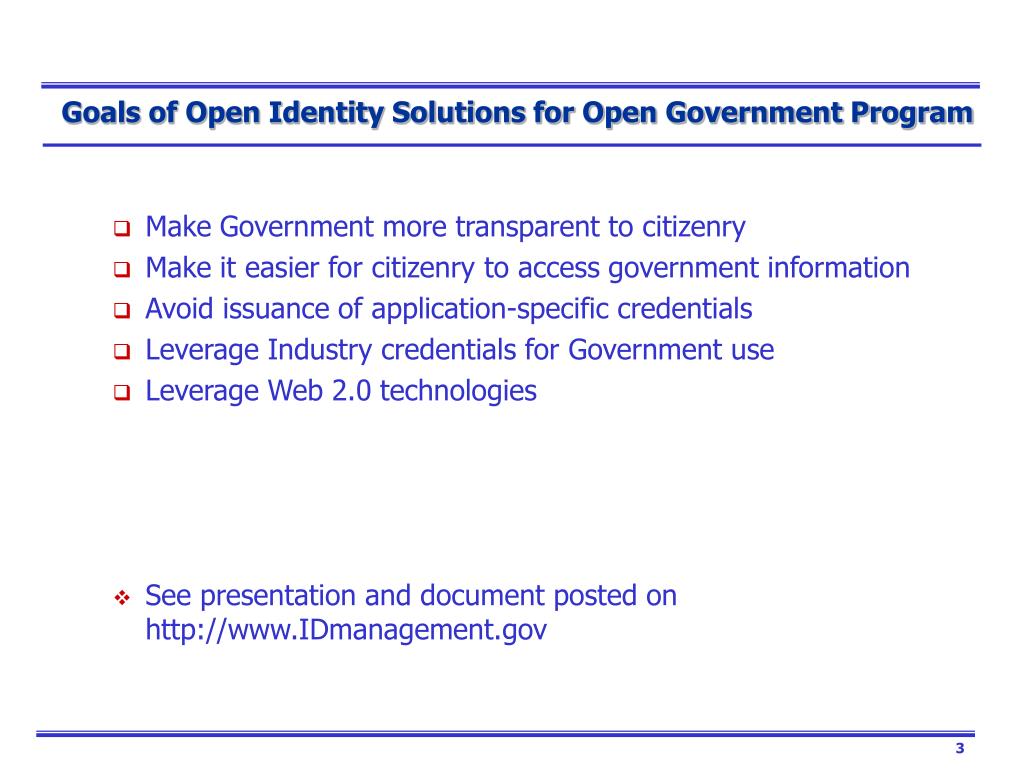

3. Goals of Open Identity Solutions for Open Government Program • Make Government more transparent to citizenry • Make it easier for citizenry to access government information • Avoid issuance of application-specific credentials • Leverage Industry credentials for Government use • Leverage Web 2.0 technologies • See presentation and document posted on http://www.IDmanagement.gov

4. Policy Foundation: OMB M04-04 • Risks

5. Policy Foundation: NIST Special Pub 800-63 • SP 800-63 Technical Guidance Assurance Level

6. US Government Approach • Adopt technologies in use by industry • “Identity Scheme Profiles” • Identity Scheme Adoption Process (ISAP)* • Adopt industry trust models • “Trust Framework Providers” • Trust Framework Provider Adoption Process (TFPAP)* • See documents posted on http://www.IDmanagement.gov

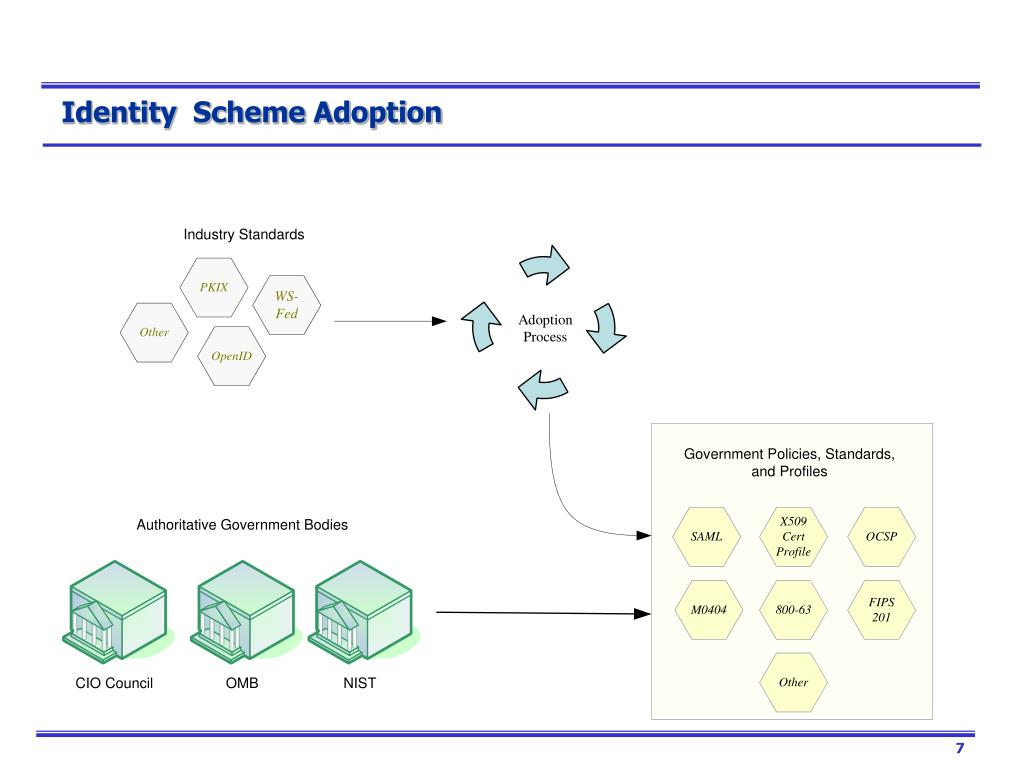

7. Identity Scheme Adoption

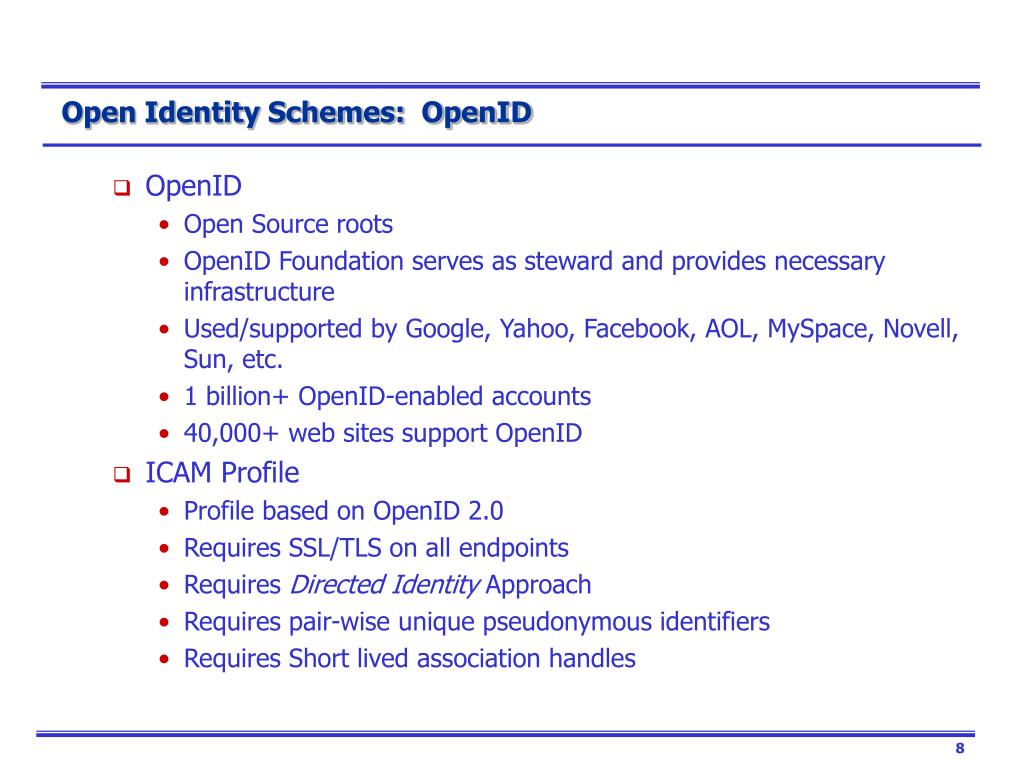

8. Open Identity Schemes: OpenID • OpenID • Open Source roots • OpenID Foundation serves as steward and provides necessary infrastructure • Used/supported by Google, Yahoo, Facebook, AOL, MySpace, Novell, Sun, etc. • 1 billion+ OpenID-enabled accounts • 40,000+ web sites support OpenID • ICAM Profile • Profile based on OpenID 2.0 • Requires SSL/TLS on all endpoints • Requires Directed Identity Approach • Requires pair-wise unique pseudonymous identifiers • Requires Short lived association handles

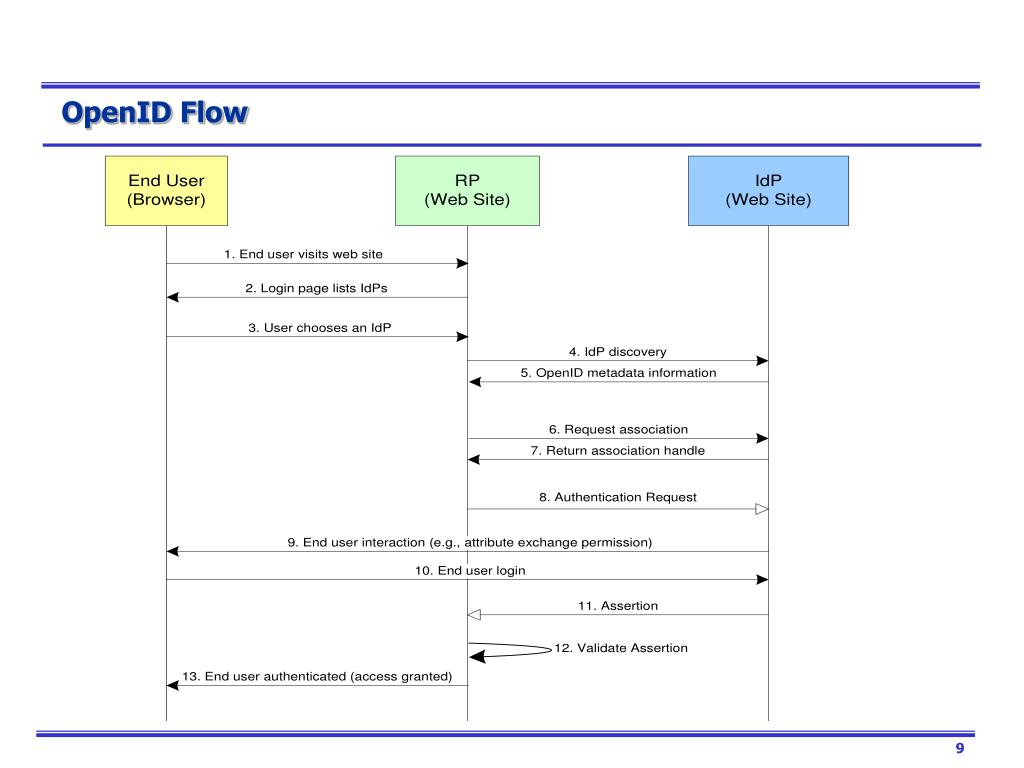

9. OpenID Flow

10. Open Identity Schemes: Information Cards • Information Card • Analogous to the cards you carry in wallet • Open Source & industry standards • Supported by Microsoft, Intel, Oracle, Novell, Equifax, Google, Citi, etc. • Built into MS Vista; option for XP • Lower rate of adoption than OpenID • ALs 1 thru 3; possibly AL 4 • ICAM Profile • Profile of Identity Metasystem Interoperability Document 1.0 (IMI) • Requires encryption of PII • Requires use of optional Private Personal Identifier (PPID) • Currently managed cards only

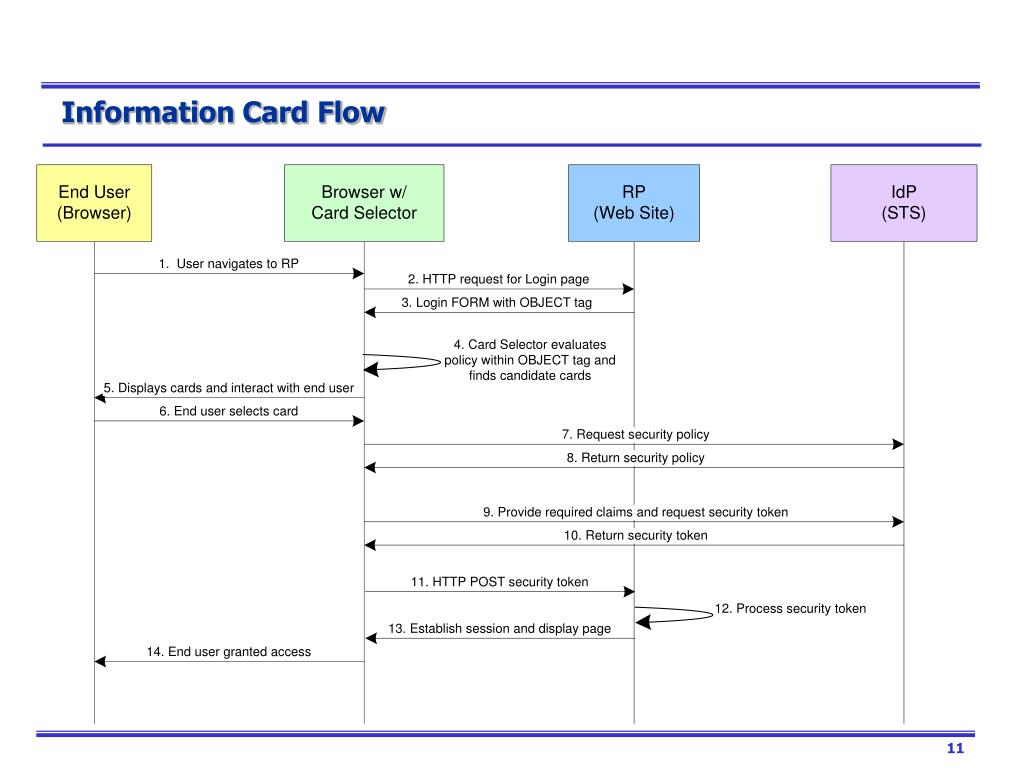

11. Information Card Flow

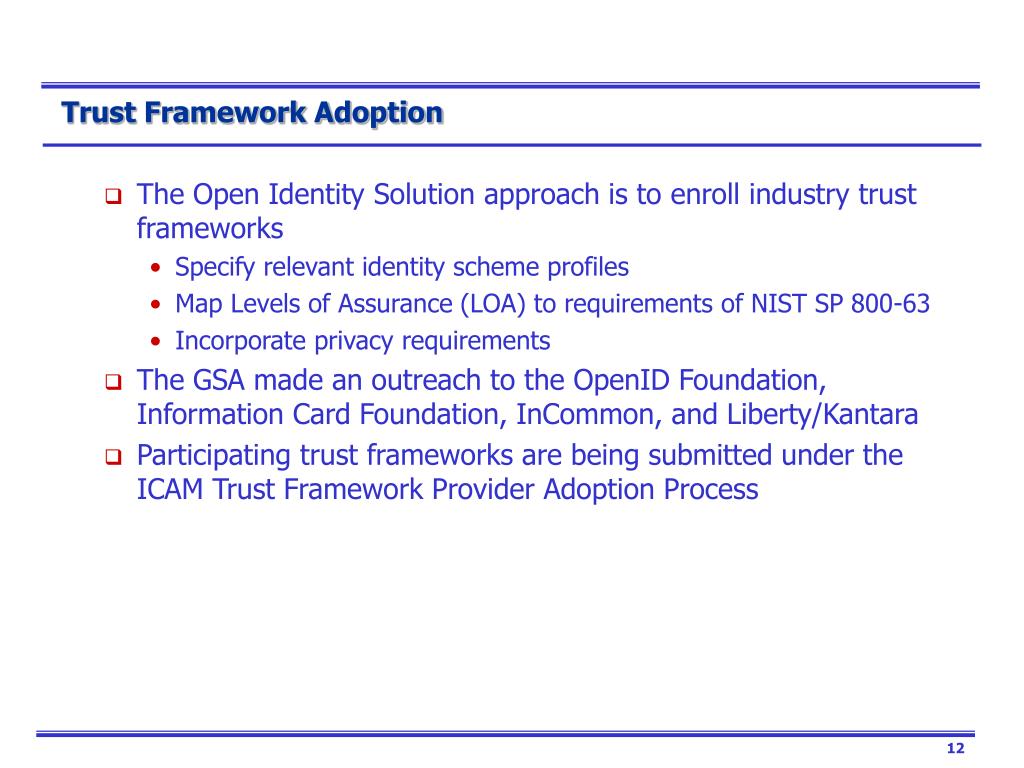

12. Trust Framework Adoption • The Open Identity Solution approach is to enroll industry trust frameworks • Specify relevant identity scheme profiles • Map Levels of Assurance (LOA) to requirements of NIST SP 800-63 • Incorporate privacy requirements • The GSA made an outreach to the OpenID Foundation, Information Card Foundation, InCommon, and Liberty/Kantara • Participating trust frameworks are being submitted under the ICAM Trust Framework Provider Adoption Process

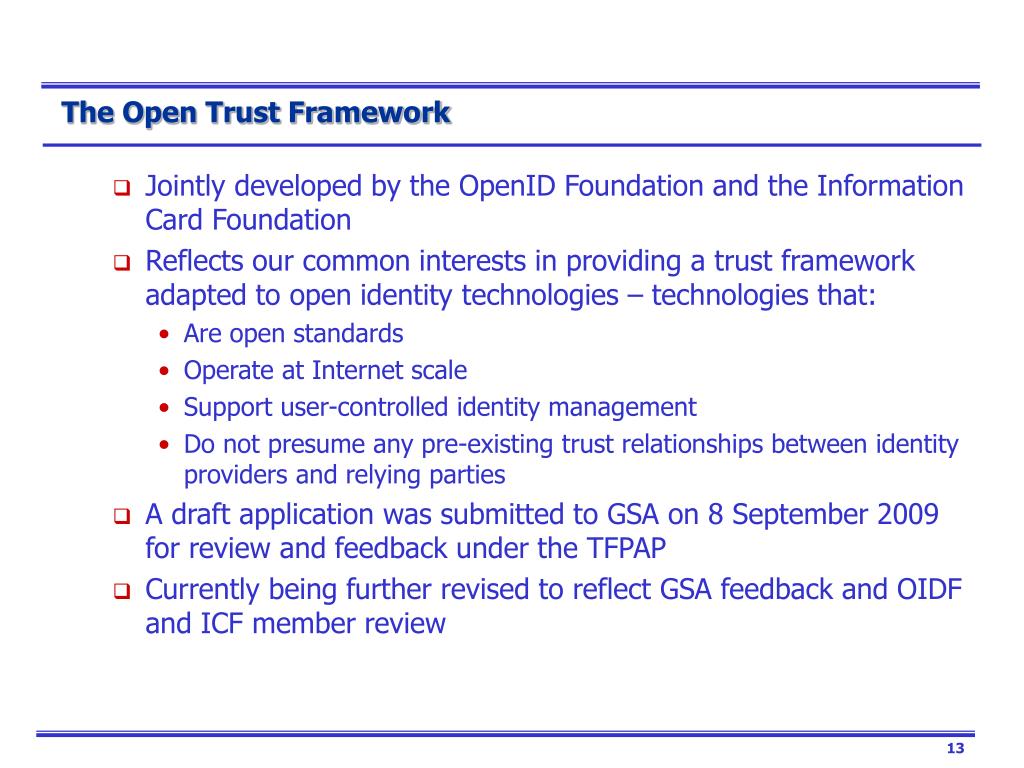

13. The Open Trust Framework • Jointly developed by the OpenID Foundation and the Information Card Foundation • Reflects our common interests in providing a trust framework adapted to open identity technologies – technologies that: • Are open standards • Operate at Internet scale • Support user-controlled identity management • Do not presume any pre-existing trust relationships between identity providers and relying parties • A draft application was submitted to GSA on 8 September 2009 for review and feedback under the TFPAP • Currently being further revised to reflect GSA feedback and OIDF and ICF member review

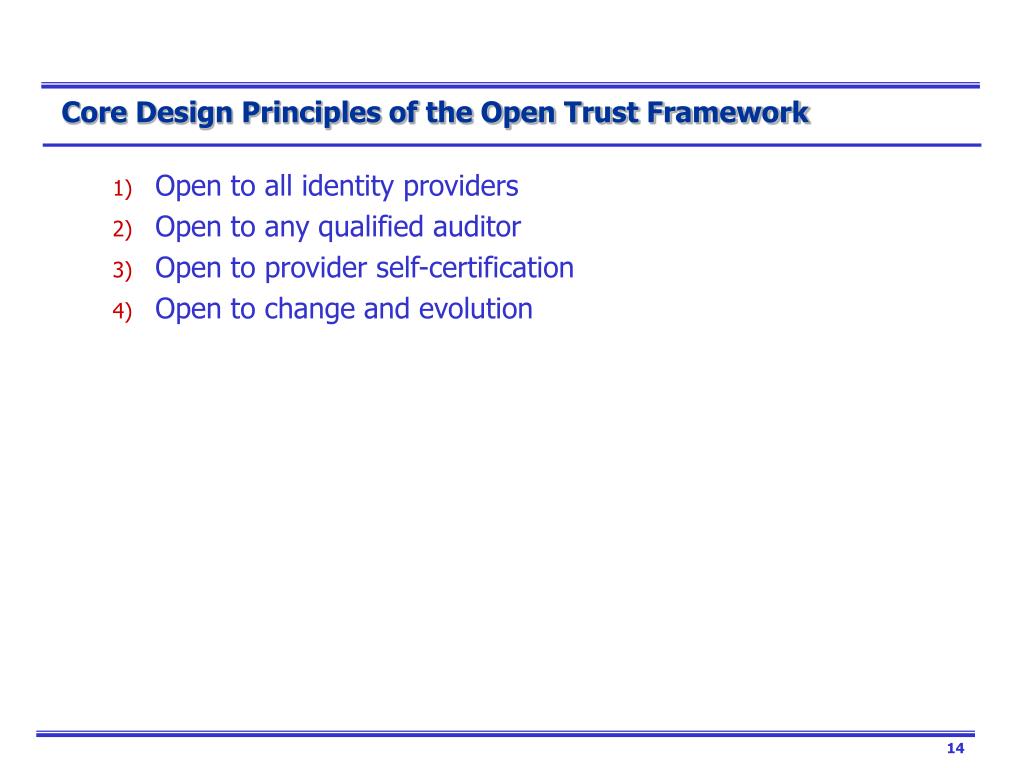

14. Core Design Principles of the Open Trust Framework • Open to all identity providers • Open to any qualified auditor • Open to provider self-certification • Open to change and evolution

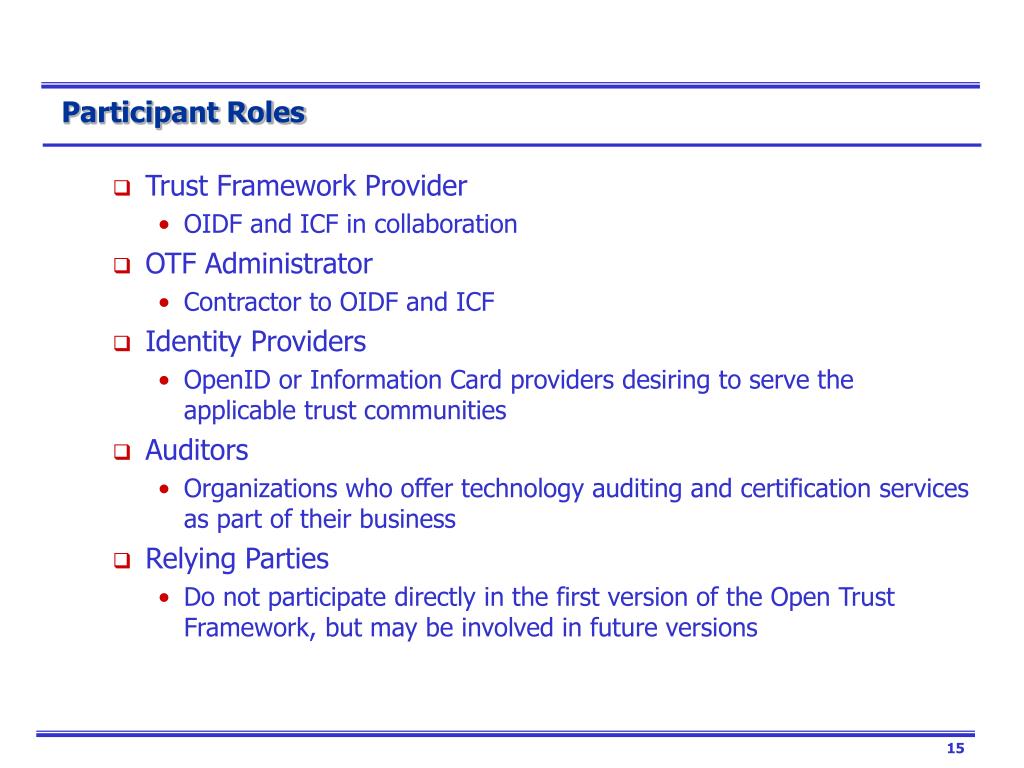

15. Participant Roles • Trust Framework Provider • OIDF and ICF in collaboration • OTF Administrator • Contractor to OIDF and ICF • Identity Providers • OpenID or Information Card providers desiring to serve the applicable trust communities • Auditors • Organizations who offer technology auditing and certification services as part of their business • Relying Parties • Do not participate directly in the first version of the Open Trust Framework, but may be involved in future versions

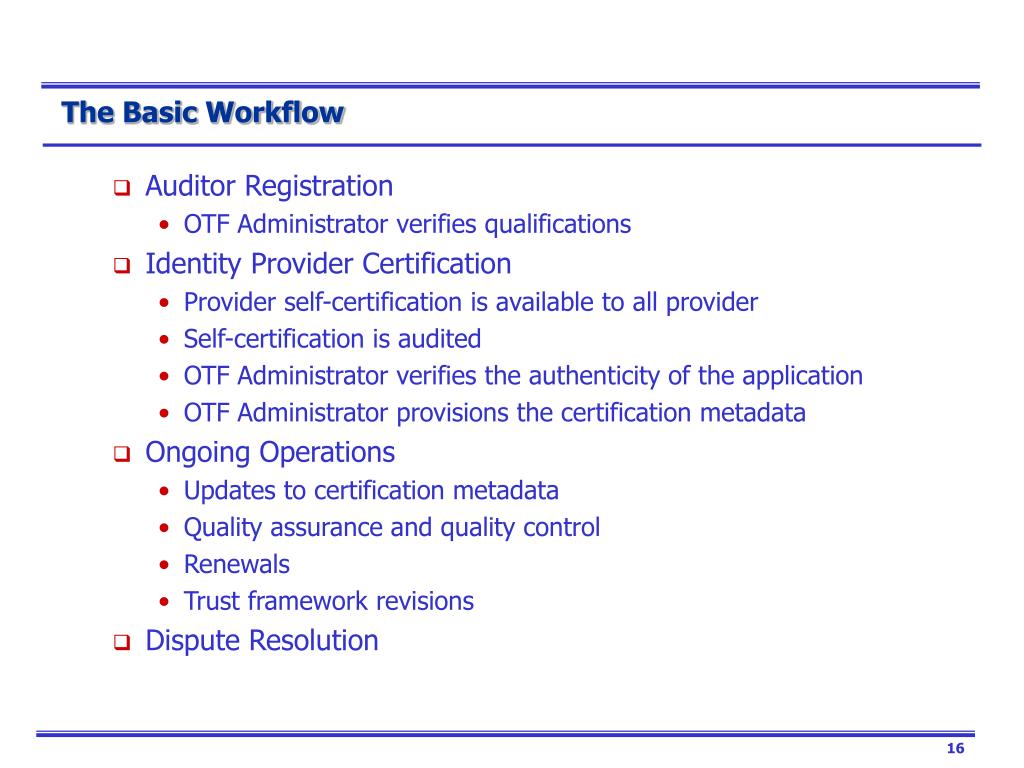

16. The Basic Workflow • Auditor Registration • OTF Administrator verifies qualifications • Identity Provider Certification • Provider self-certification is available to all provider • Self-certification is audited • OTF Administrator verifies the authenticity of the application • OTF Administrator provisions the certification metadata • Ongoing Operations • Updates to certification metadata • Quality assurance and quality control • Renewals • Trust framework revisions • Dispute Resolution

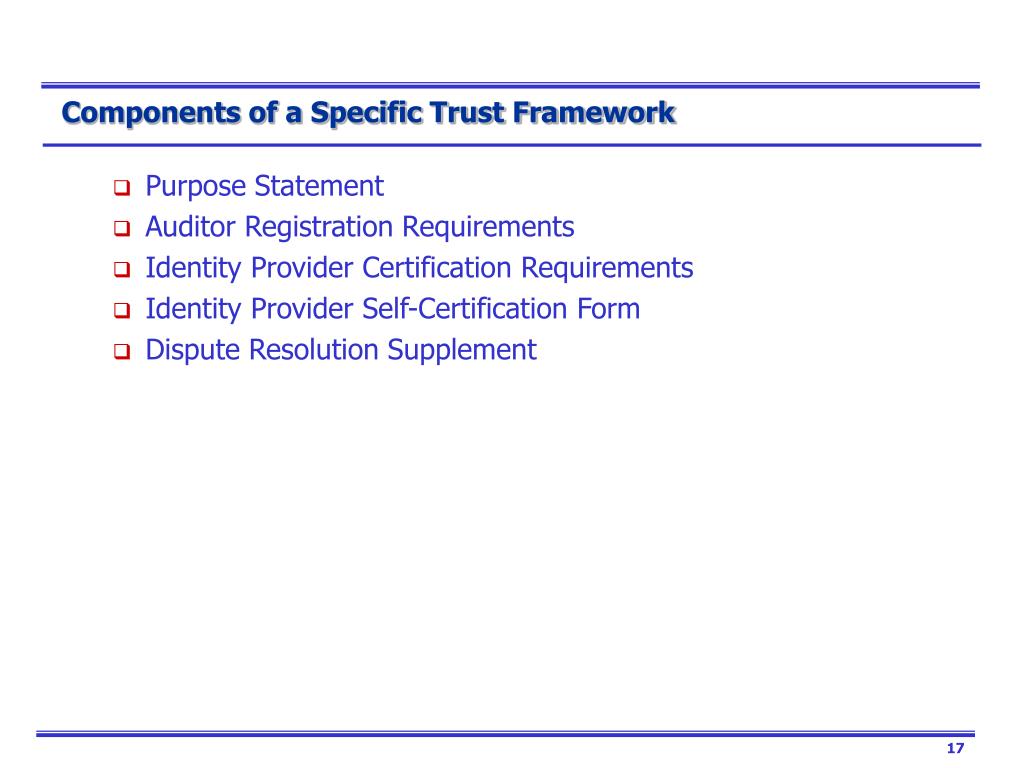

17. Components of a Specific Trust Framework • Purpose Statement • Auditor Registration Requirements • Identity Provider Certification Requirements • Identity Provider Self-Certification Form • Dispute Resolution Supplement

18. Next Steps • A pilot of both the ICAM OpenID and Information Card identity schemes is underway with the National Institute of Health • The two foundations are expanding our circle of collaboration on the Open Trust Framework • Harvard Berkman Center • Center for Democracy and Technology • We invite NIST and industry’s continued participation • Please contact us for more information • www.openid.net • www.informationcard.net
