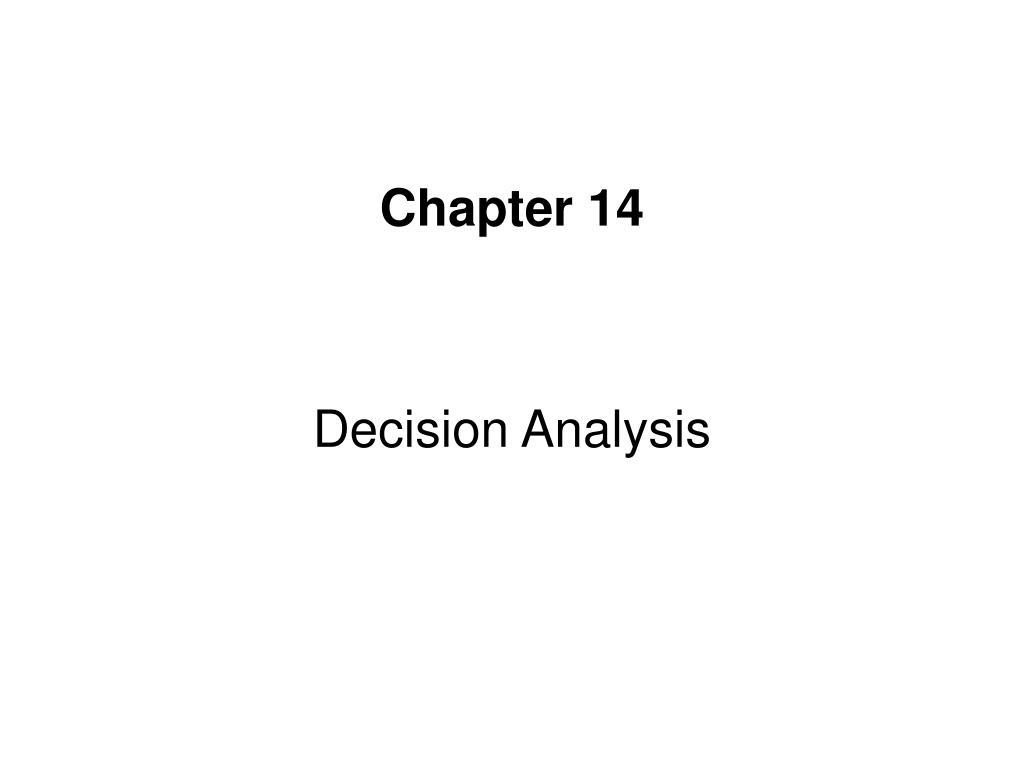

  1. Chapter 14 Decision Analysis

  2. Decision Making • Many decision making occur under condition of uncertainty • Decision situations • Probability cannot be assigned to future occurrence • Probability cannot be assigned to future occurrence

  3. Chapter Topics • Components of Decision Making • Decision themselves • State of nature: actual event that may occur in the future • Payoff: payoffs from different decisions given the various states of nature

  4. Decision making Tools • Decision Making without Probabilities • Decision-Making Criteria: maximax, maximin, minimax, Hurwicz, and equal likelihood • Decision Making with Probabilities • Expected Value • Expected opportunity loss • Expected value of perfect information (EVPI) • Decision Tree • Some Other Decision Analysis Tools

  5. Decision Making without Probabilities • Maximax: Selects the decision that will result in the maximum of maximum payoffs (optimistic criterion) • Example • Maximin: Selects the decision that will reflect the maximum of the minimum payoffs (pessimistic criterion) • Example • Hurwicz criterion: compromise between the maximax and maximin criterion • Multiplies the best payoff by  and the worst payoff by 1-  • , coefficient of optimism, is a measure of the decision maker’s optimism • Example • Equal Likelihood ( or Laplace): Multiplies the decision payoff for each state of nature by an equal weight

  6. Decision Making with Probabilities • Expected value: Computed by multiplying each decision outcome by the probability of its occurrence • Example • Expected opportunity loss: Expected value of the regret for each decision • Example • Expected value of perfect information (EVPI): Maximum amount a decision maker would pay for additional information • EVPI= (Expected value given perfect information) – (Expected value without perfect information) • EVPI=the expected opportunity loss (EOL) for the best alternative • Example

  7. Expected Opportunity loss (EOL) • Select the maximum payoff under each state of nature and then subtract all other payoffs under respective state of nature Good Condition Bad Condition 100,000-50,000=50000 30,000-30,000=0 100,000-100,000=$0 30,000-(-40,000)=70,000 100,000-30,000=70,000 30,000-10,000=20,000 • Represent the regret that the decision maker would experience if a decision were made that resulted in less than the maximum payoff • Assume DM is able to estimate a 0.6 that good will prevail and a 0.4 that poor will prevail • EOL(A)=50,000(.6)+(0)(0.4) =30,000 • EOL(B)=0(.6)+(70000)(0.4) =28000 best • EOL(C)=70,000(.6)+(20000)(0.4) =50,000

  8. Expected Value of Perfect Information • Possible to purchase additional information regarding the future • DM should not pay more than what he/she earns from his investment • Thus there is a maximum value for it • Computed as the expected value of perfect information (EVPI) • If the DM knows for sure that good condition will prevail, he goes after B (100,000) • If the DM knows for sure that poor condition will prevail, he goes after A (30,000)

  9. Expected Value of Perfect Information (EVPI) • Also the probabilities tell us about the likelihood of good or poor condition (0.6 and 0.4) • Means that each state of nature will occur only a certain portion of the time • Thus, each decision outcomes must be weighted; (100,000)(0.6)+(30,000)(0.4)=72,000 • 72,000 is the expected value of the decision, given perfect information, not the EVPI • EVPI is computed by subtracting the expected value (EV) without perfect information (44000) from the expected value given perfect information 72,000 • EVPI=72,000-44,000=28,000 • Maximum amount that DM would pay for additional information, but usually pays less

  10. Decision Making with Probabilities-Cont. • Decision Trees:A diagram consisting of decision nodes (squares), probability nodes (circles), and decision alternatives (branches) • Example • Sequential decision tree: Used to illustrate a situation requiring a series of decisions • Example • Bayesian analysis: uses additional information to change the marginal probability of an event • Uses conditional probability- probability that an event will occur given that another event has already occurred • Uses also posterior probability: altered marginal probability of an event based on additional information • Example

  11. Decision Analysis Example • Determine the best decision using the 5 criteria • Determine best decision with probabilities assuming .70 probability of good conditions, .30 of poor conditions. Use expected value and expected opportunity loss criteria. • Compute expected value of perfect information. • Develop a decision tree with expected value at the nodes • Given following, P(Pg) = .70, P(Ng) = .30, P(Pp) = 20, P(Np) = .80, determine posteria probabilities using Bayes’ rule • Perform a decision tree analysis using the posterior probability obtained in part e
