  1. Communication Plan for the Ecological Station at Jornada Experimental Range Aline Jaimes Gesuri Ramirez Advisor: Craig Tweedie, PhD Systems Ecology Laboratory March, 2009

  2. Site characteristics Eddy Tower Headquarters

  3. Tower architecture plan 8. Created by Aline Jaimes. January 13 2009. Map projection WGS84 Figure 1. 1. Eddy covariance tower (EC), 2. Net radiometer, 3. Soil flux plates, 4. ECH2O probes, 5. Robotic tram line system, 6. Predominant wind, 7. Solar panels, 8. Unmanned aerial vehicle (UAV)

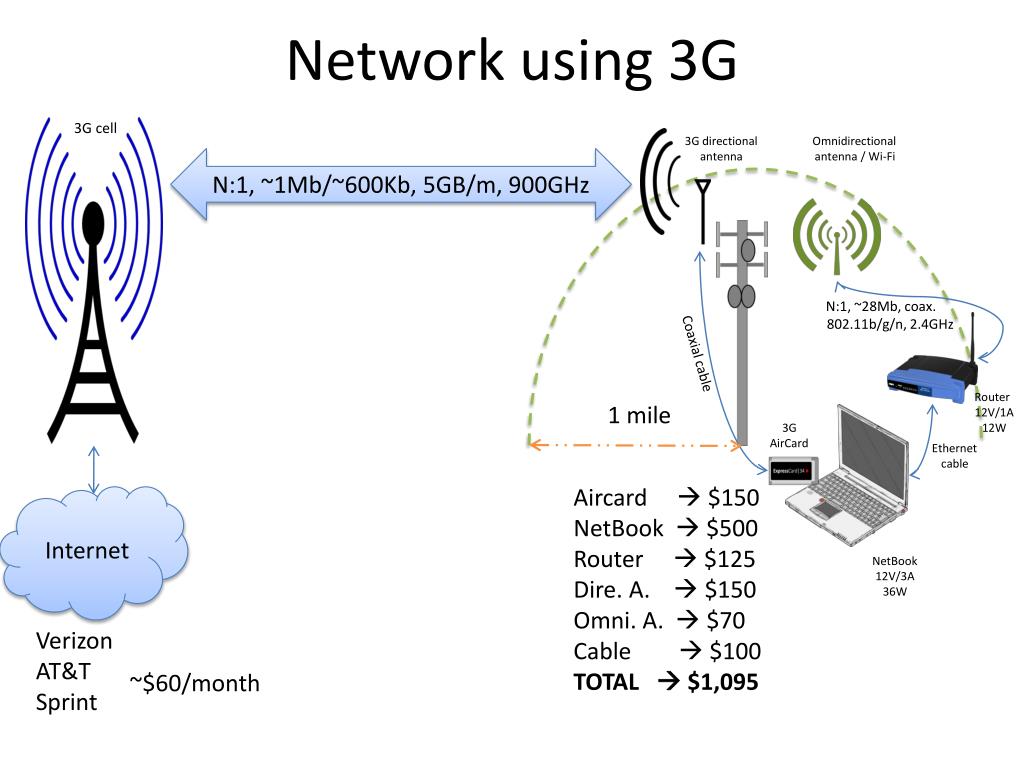

  4. Network using 3G 3G cell 3G directional antenna Omnidirectional antenna / Wi-Fi N:1, ~1Mb/~600Kb, 5GB/m, 900GHz N:1, ~28Mb, coax. 802.11b/g/n, 2.4GHz Coaxial cable Router 12V/1A 12W 1 mile 3G AirCard Ethernet cable Aircard $150 NetBook  $500 Router  $125 Dire. A.  $150 Omni. A.  $70 Cable  $100 TOTAL  $1,095 Internet NetBook 12V/3A 36W Verizon AT&T Sprint ~$60/month

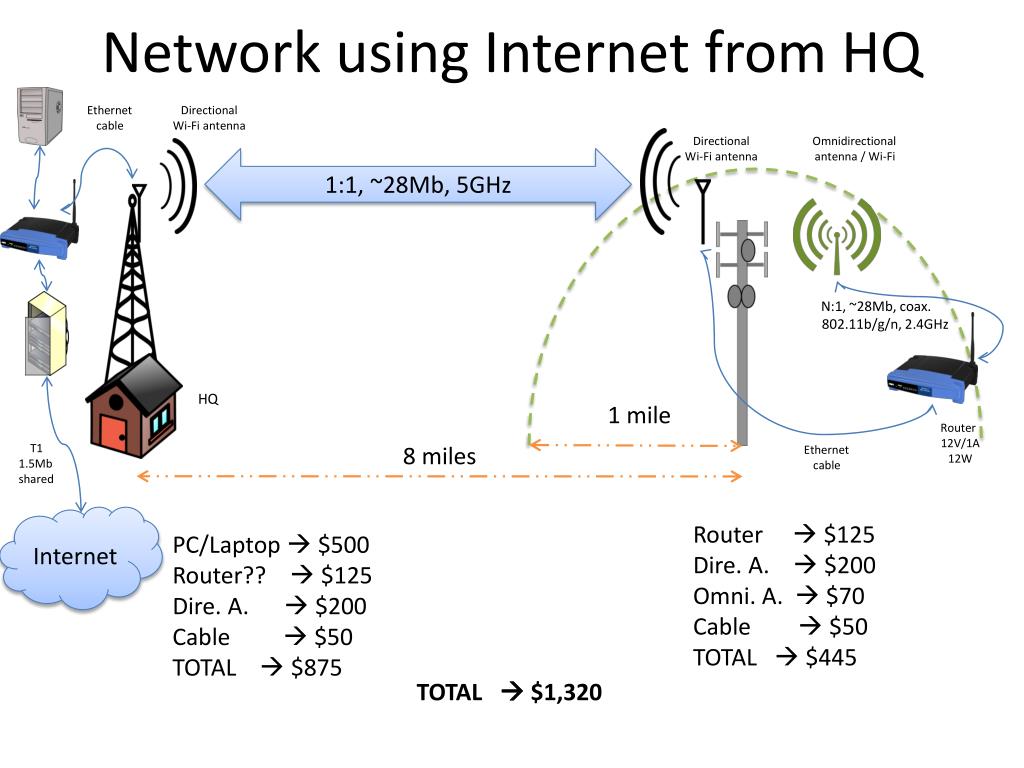

  5. Network using Internet from HQ Ethernet cable Directional Wi-Fi antenna Directional Wi-Fi antenna Omnidirectional antenna / Wi-Fi 1:1, ~28Mb, 5GHz N:1, ~28Mb, coax. 802.11b/g/n, 2.4GHz HQ 1 mile Router 12V/1A 12W 8 miles T1 1.5Mb shared Ethernet cable Internet Router  $125 Dire. A.  $200 Omni. A.  $70 Cable  $50 TOTAL  $445 PC/Laptop  $500 Router??  $125 Dire. A.  $200 Cable  $50 TOTAL  $875 TOTAL  $1,320

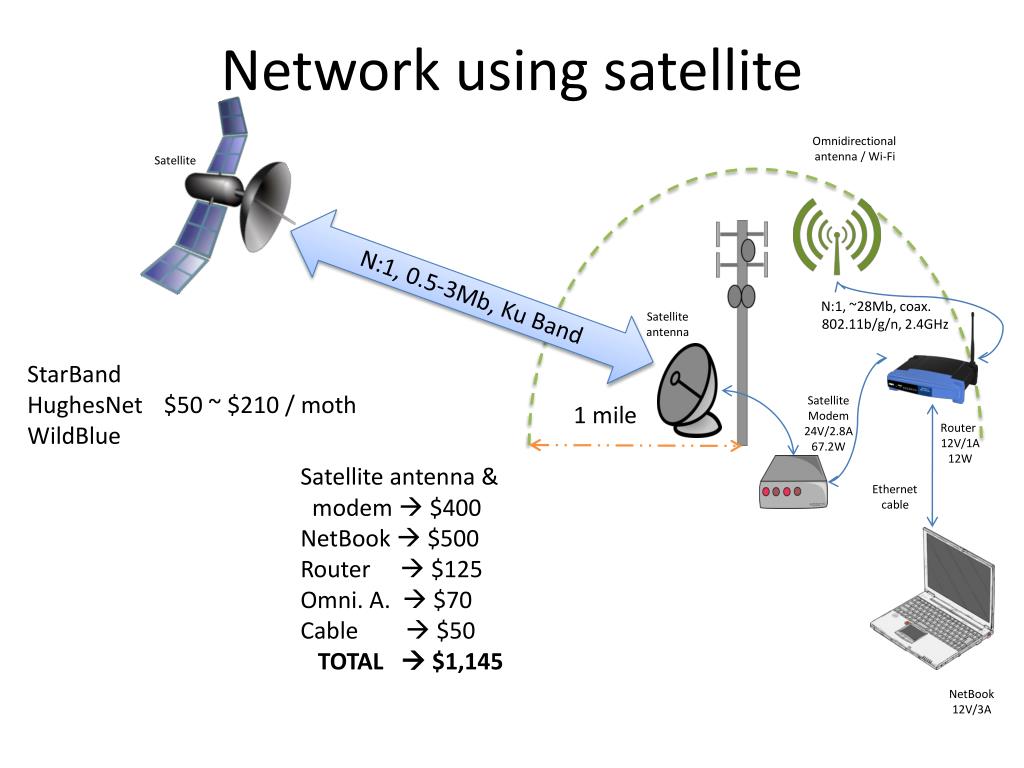

  6. Network using satellite Omnidirectional antenna / Wi-Fi Satellite N:1, 0.5-3Mb, Ku Band N:1, ~28Mb, coax. 802.11b/g/n, 2.4GHz Satellite antenna StarBand HughesNet WildBlue $50 ~ $210 / moth Satellite Modem 24V/2.8A 67.2W 1 mile Router 12V/1A 12W Satellite antenna & modem  $400 NetBook  $500 Router  $125 Omni. A.  $70 Cable  $50 TOTAL  $1,145 Ethernet cable NetBook 12V/3A

  7. Satellite Broadband Provider Feature Comparison Source: http://www.hesyst.com/starbandcompare.htm

  8. PRICING AND USAGE THRESHOLD COMPARISON StarBand Pricing & Features Pricing as of July 2008

  9. PRICING AND USAGE THRESHOLD COMPARISON • Hughes Net Pricing & Features Pricing as of July 2008

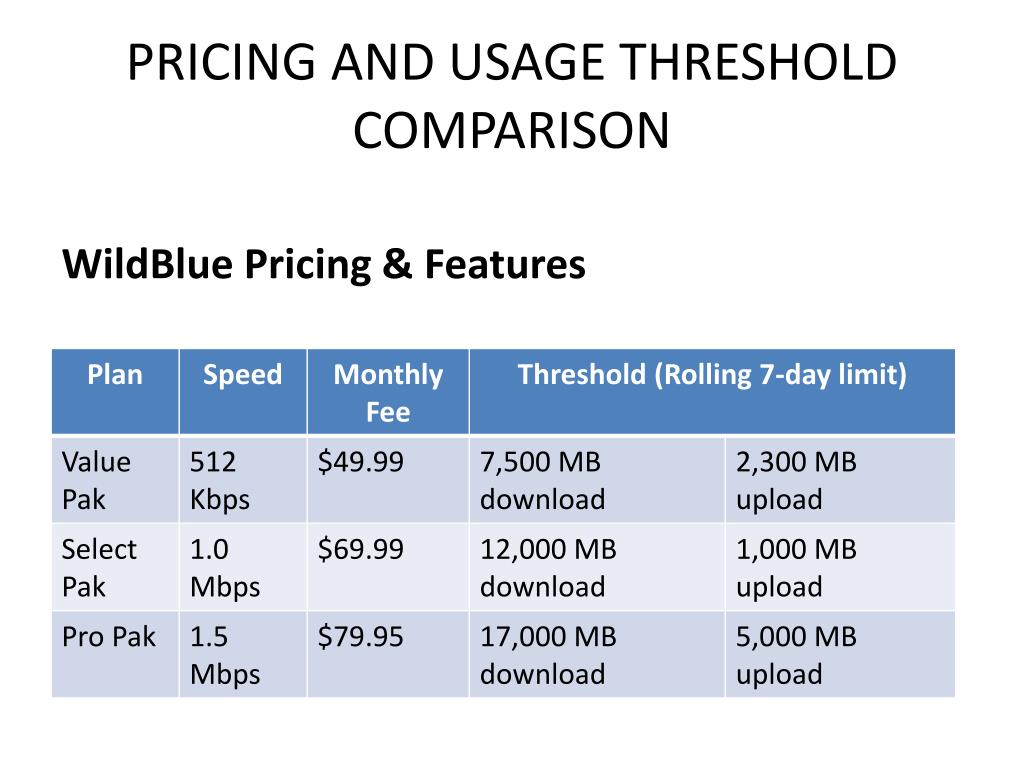

  10. PRICING AND USAGE THRESHOLD COMPARISON WildBlue Pricing & Features Pricing as of July 2008

  11. Power requirements

  12. Links: • *Directional antenna: http://www.wlanparts.com/product/BULLET5-28DBI/BULLET5_WIRELESS_APCPE_OUTDOOR_80211a_with_28dbi_Grid_Antenna.html • *Omnidirectional antenna: http://www.wlanparts.com/product/OD24-9/OD249_9dBi_24GHz_Omni_Antenna.html • *Router: http://www.wlanparts.com/product/ECB-3500/ECB3500_600mW_80211bg_WIRELESS_AP__BRIDGE.html
