  1. ITPWG-TBG14 Security Modeling Geneva, Sept 29 – 30, 2003

  2. Model Evolution(Color Code) ISC Reference Model UN/CEFACT TBG ISC & Multimodal Transport (MIST) ISC & MIST & ACI ISC & MIST &ACI & ISPS ISC & MIST &ACI& ISPS & 24 Hour

  3. International Supply Chain & ISSP Process Areas Businees Processes/ Collaborations

  4. Security Measures Impact Businees Processes/ Collaborations

  5. ISC Business Processes

  6. Business Collaborations(Business Process: Ship)

  7. Business Transaction Activity:Prepare for Export (Part 1)

  8. Business Transaction Activity:Prepare for Export (Part 2)

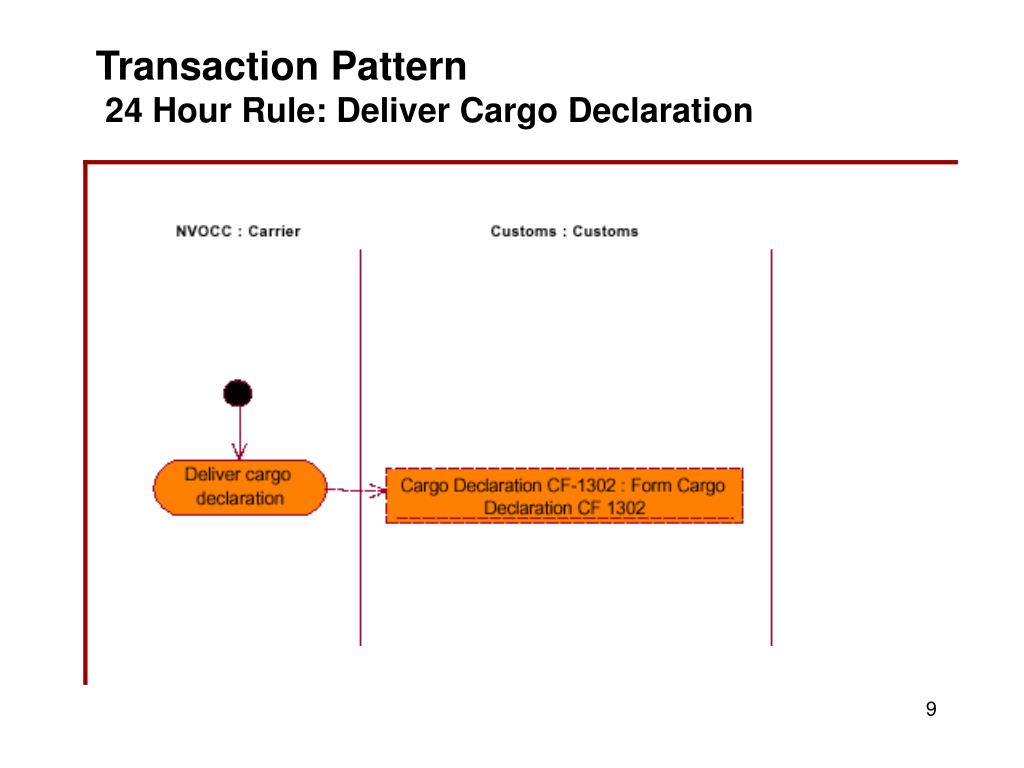

  9. Transaction Pattern 24 Hour Rule: Deliver Cargo Declaration

  10. Business Transaction Activity:Prepare For Import

  11. Business Transaction Activity:Import

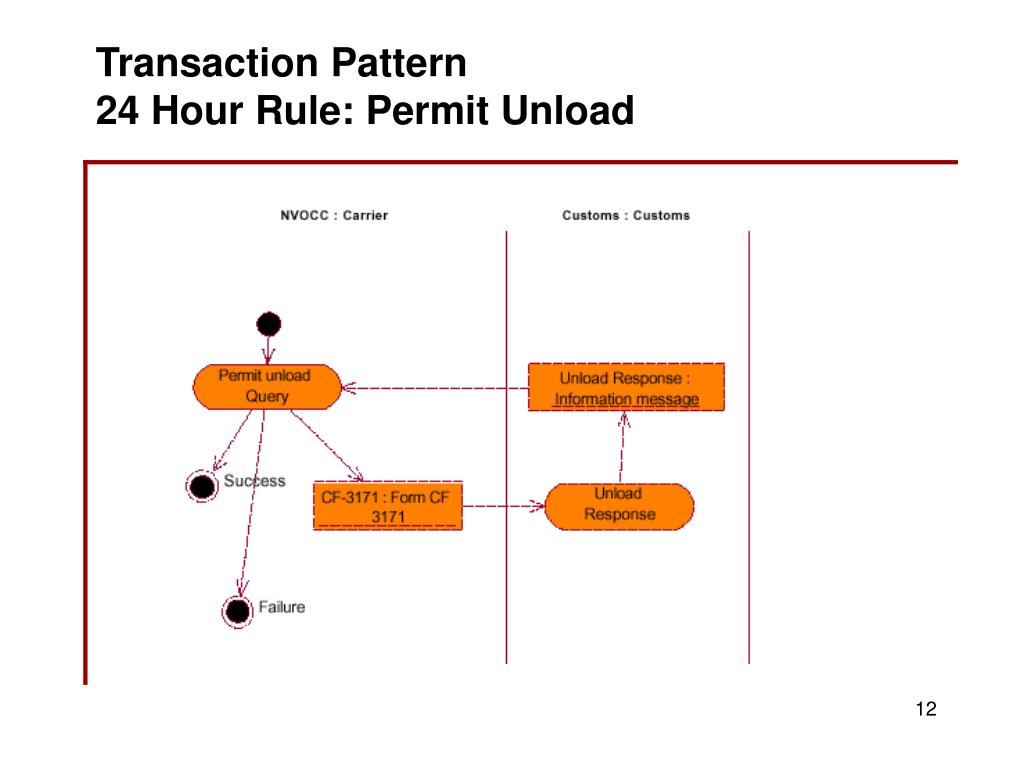

  12. Transaction Pattern24 Hour Rule: Permit Unload

  13. ACI & 24 – Hour Rule Summary • Observations: 24 Hour Rule • Impacts identified exclusively in „prepare for export“ & „import“ transaction activities • Two new documents • CF1302 (cargo declaration) • CF3171 (unload permit) • Observations: ACI • symetrical impact on import and export transaction activities • Provide for communication between COO and COI, • Alleviating, minimizing reporting requirements (data) (UCR)

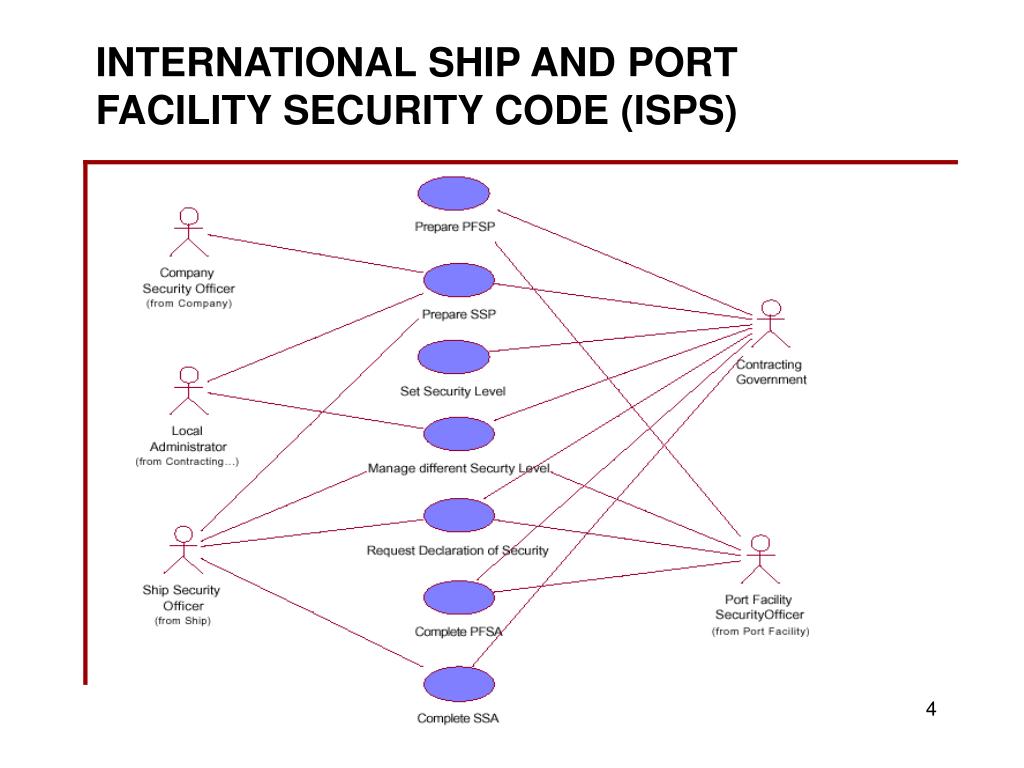

  14. INTERNATIONAL SHIP AND PORT FACILITY SECURITY CODE (ISPS)

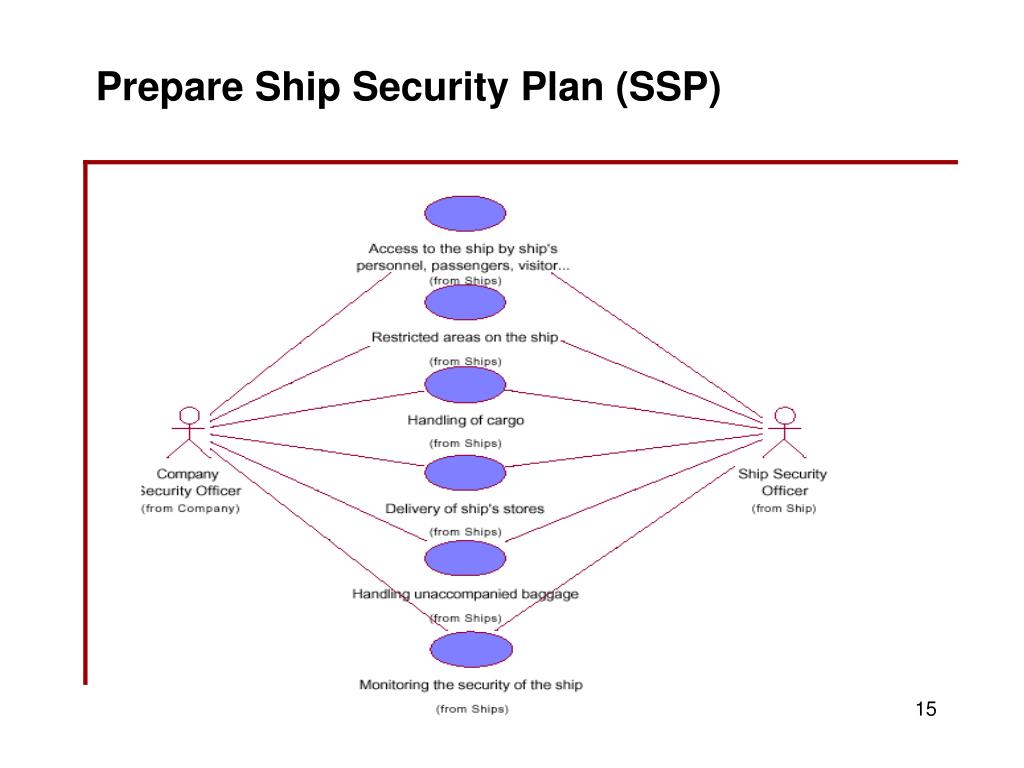

  15. Prepare Ship Security Plan (SSP)

  16. Prepare Port Facility Security Plan (PFSP)

  17. Request Declaration of Security

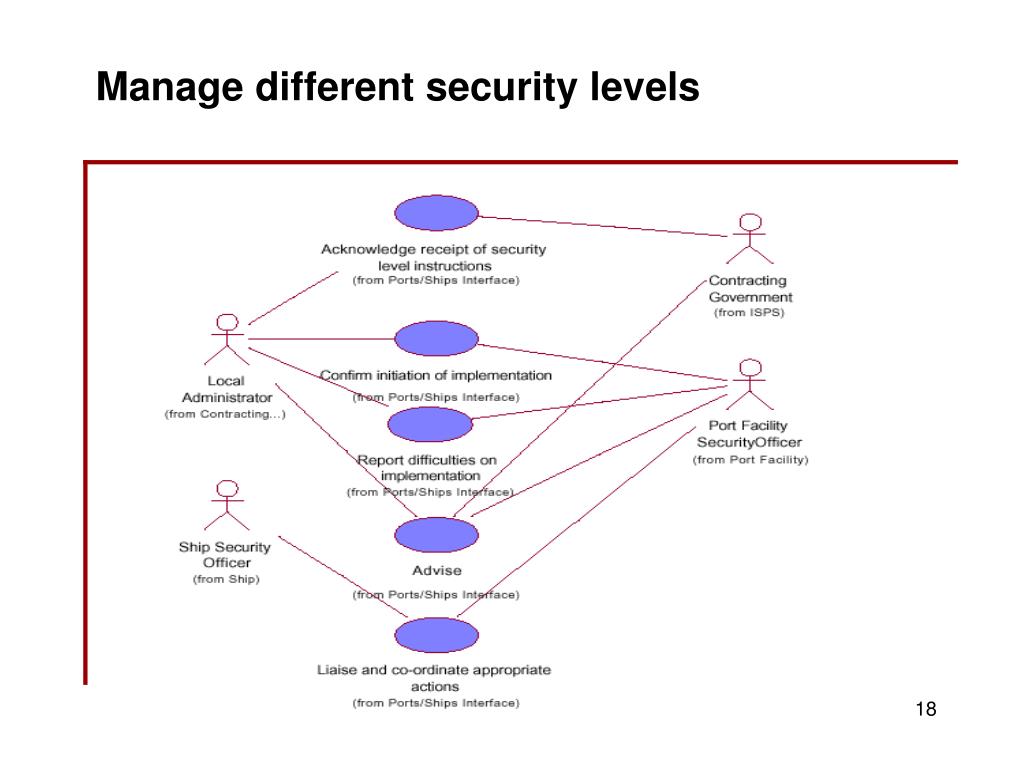

  18. Manage different security levels

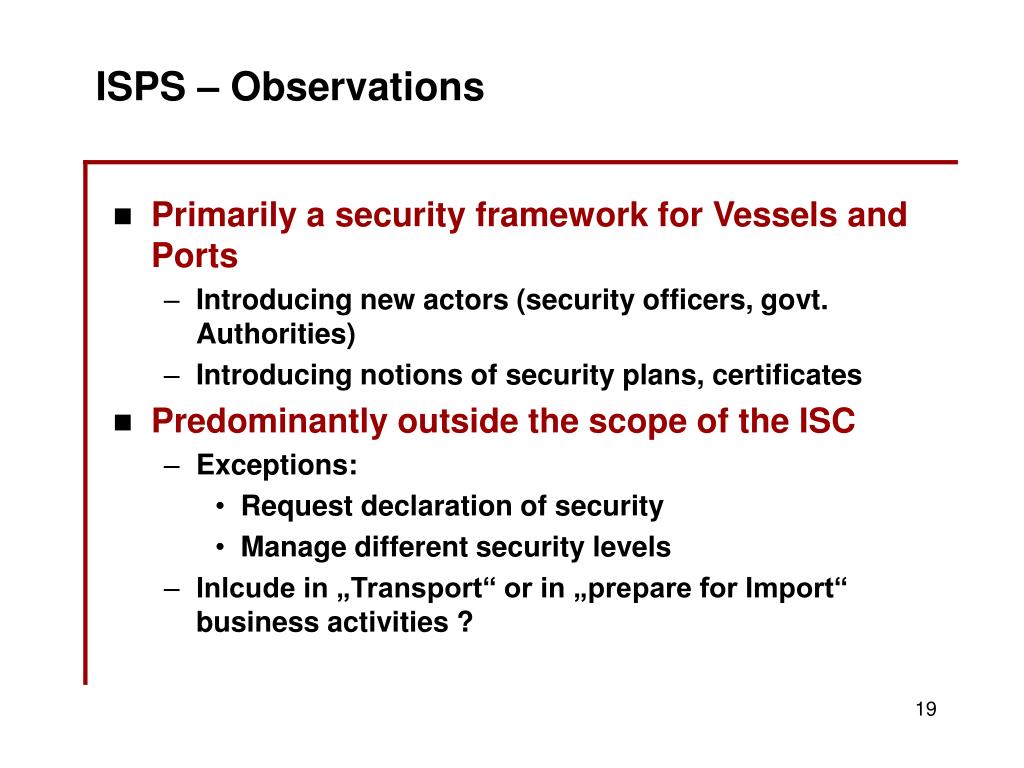

  19. ISPS – Observations • Primarily a security framework for Vessels and Ports • Introducing new actors (security officers, govt. Authorities) • Introducing notions of security plans, certificates • Predominantly outside the scope of the ISC • Exceptions: • Request declaration of security • Manage different security levels • Inlcude in „Transport“ or in „prepare for Import“ business activities ?

  20. ISC & Security Modeling Current and Future Work • Enhance clarity and completeness of the model • Rework Business Transaction Activities (activity diagrams & transaction patterns) • To show which information is required or referred to in which activity • Enhance Document information (class diagrams) • Incorporate TIR • ..... Results of Sept. 29/30 meeting ....
