  1. ATWD WF feature extraction Spencer Klein, Dmitry Chirkin, LBNL IceCube meeting, Uppsala, 2004

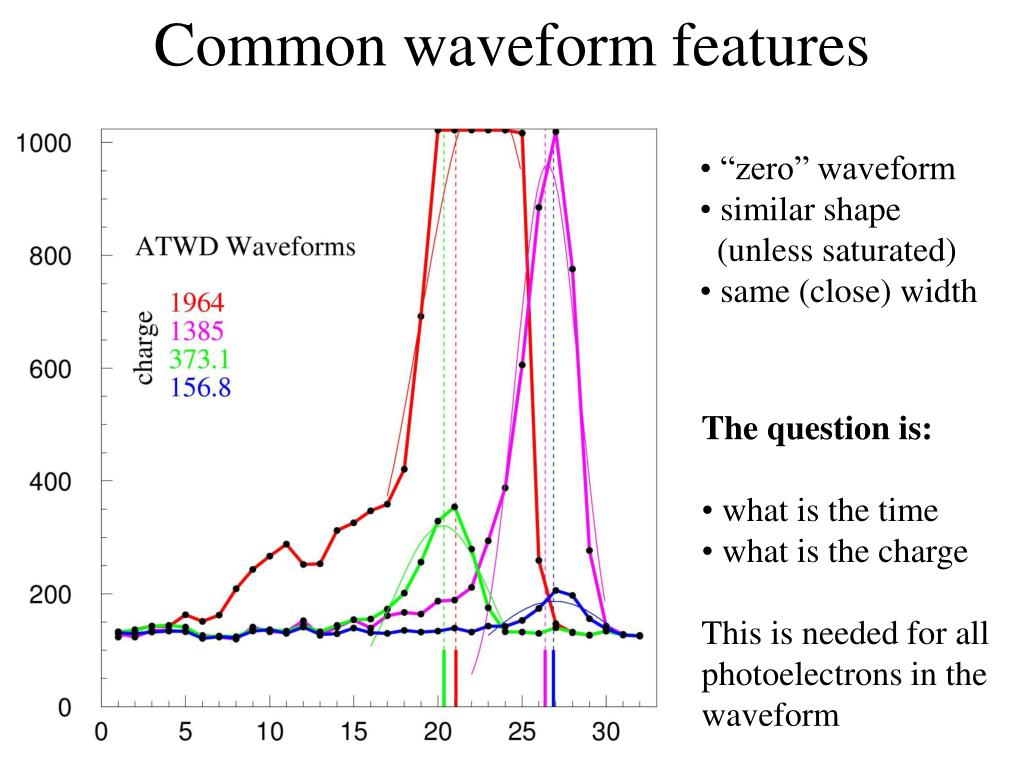

  2. Common waveform features • “zero” waveform • similar shape • (unless saturated) • same (close) width • The question is: • what is the time • what is the charge • This is needed for all photoelectrons in the waveform

  3. Simple algorithm • find the minimum value • find the maximum value • use the 9 bins surrounding the maximum value: • subtract the minimum value • fit the gaussian, or: • using the values of the waveform as probabilities: • find the average • find the RMS • assign the average as timestamp • assign the sum over bin values • (or maximum*RMS) as charge

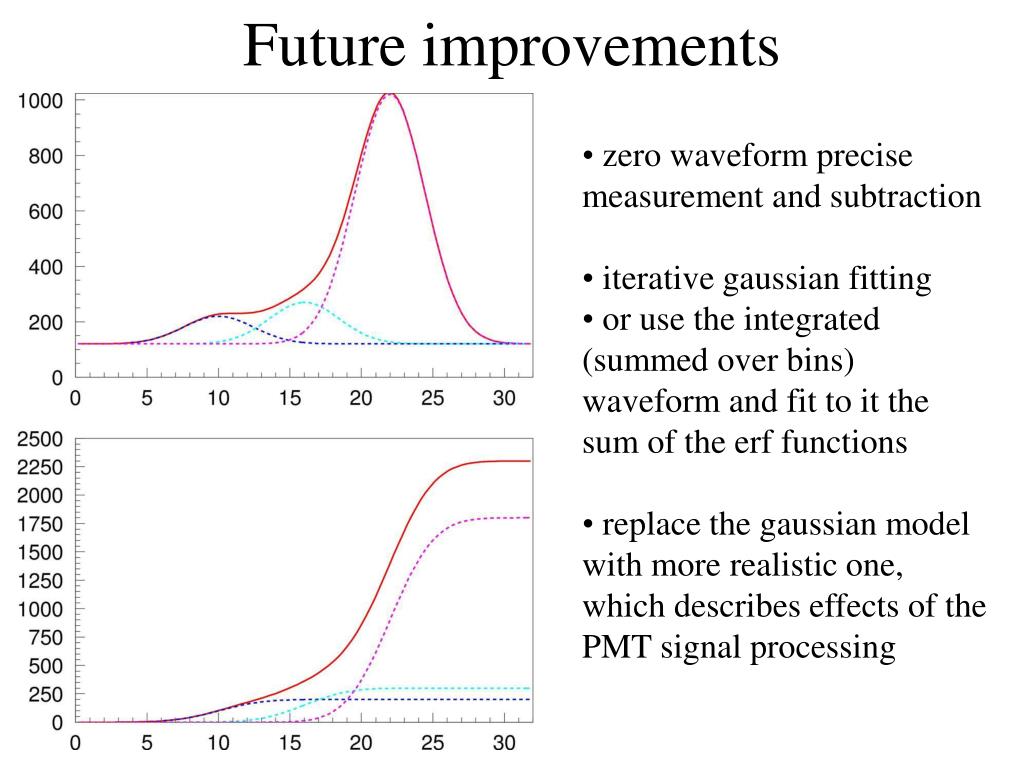

  4. Future improvements • zero waveform precise measurement and subtraction • iterative gaussian fitting • or use the integrated (summed over bins) waveform and fit to it the sum of the erf functions • replace the gaussian model with more realistic one, which describes effects of the PMT signal processing

  5. Conclusions • A simple 1pe gaussian fits were implemented and used in the analysis of the dark freezer lab DOMs • There is room for improvement: • more precise non-gaussian model, taking into account shaping by electronics • precise zero-waveform measurement and subtraction • multiple-hit waveform discovery and feature extraction • The simple algorithm will be implemented into the I3 module in the near future
