  1. Image Search Using Color and Texture

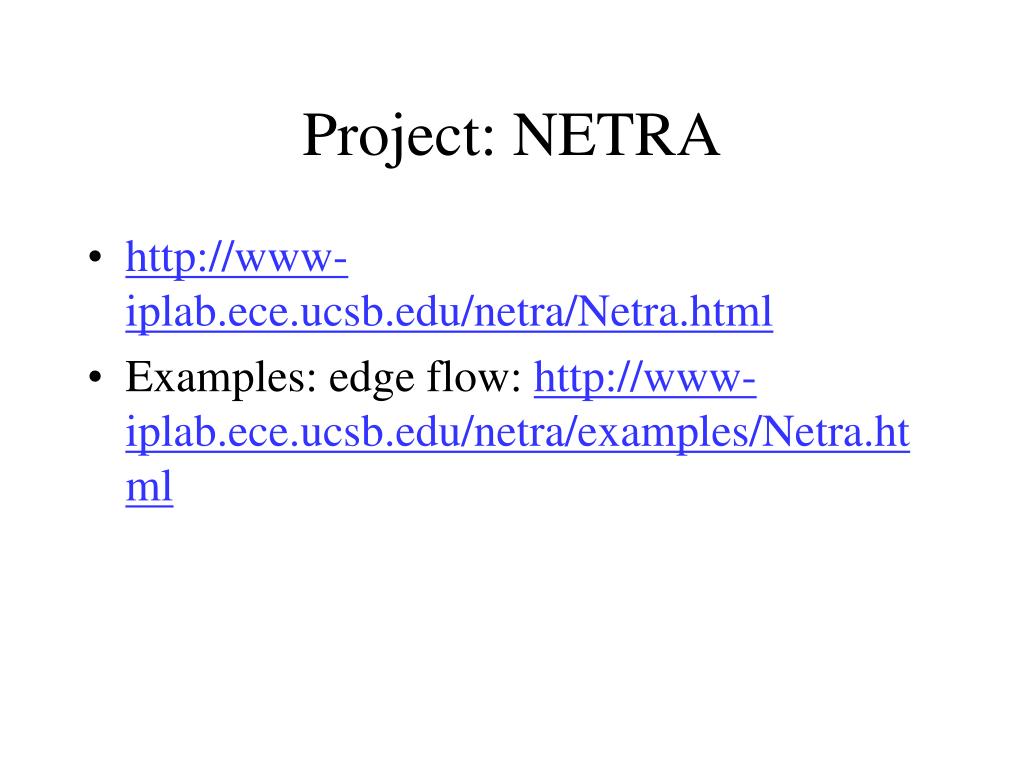

  2. Project: NETRA • http://www-iplab.ece.ucsb.edu/netra/Netra.html • Examples: edge flow: http://www-iplab.ece.ucsb.edu/netra/examples/Netra.html

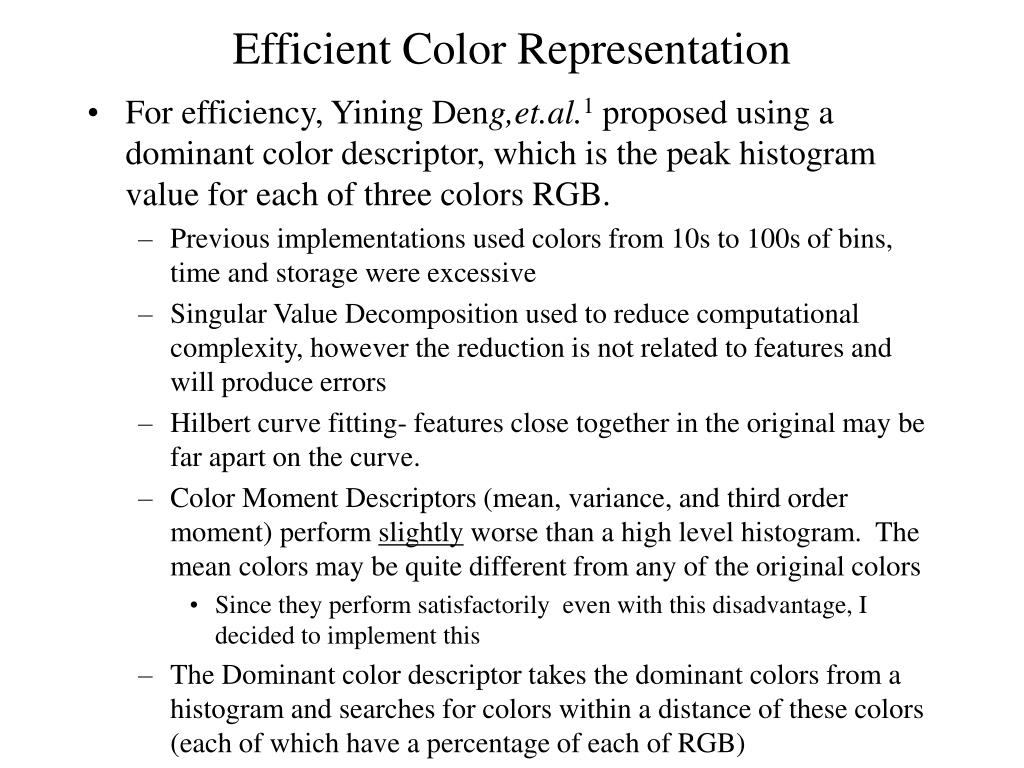

  3. Efficient Color Representation • For efficiency, Yining Deng,et.al.1 proposed using a dominant color descriptor, which is the peak histogram value for each of three colors RGB. • Previous implementations used colors from 10s to 100s of bins, time and storage were excessive • Singular Value Decomposition used to reduce computational complexity, however the reduction is not related to features and will produce errors • Hilbert curve fitting- features close together in the original may be far apart on the curve. • Color Moment Descriptors (mean, variance, and third order moment) perform slightly worse than a high level histogram. The mean colors may be quite different from any of the original colors • Since they perform satisfactorily even with this disadvantage, I decided to implement this • The Dominant color descriptor takes the dominant colors from a histogram and searches for colors within a distance of these colors (each of which have a percentage of each of RGB)

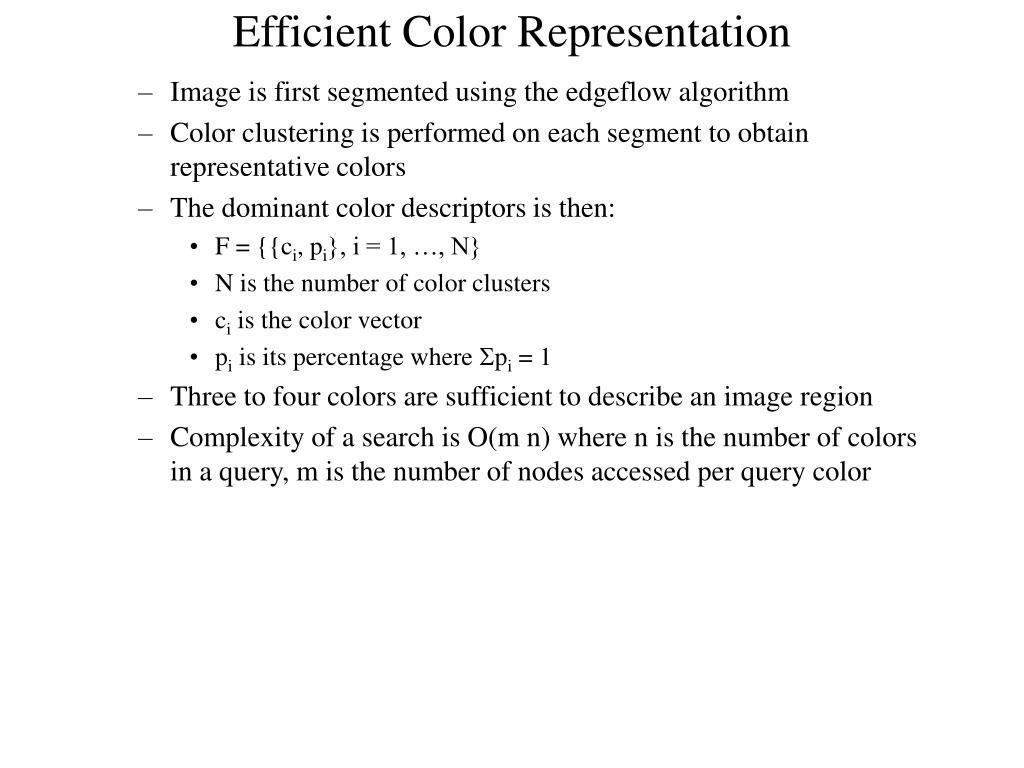

  4. Efficient Color Representation • Image is first segmented using the edgeflow algorithm • Color clustering is performed on each segment to obtain representative colors • The dominant color descriptors is then: • F = {{ci, pi}, i = 1, …, N} • N is the number of color clusters • ci is the color vector • pi is its percentage where pi = 1 • Three to four colors are sufficient to describe an image region • Complexity of a search is O(m n) where n is the number of colors in a query, m is the number of nodes accessed per query color

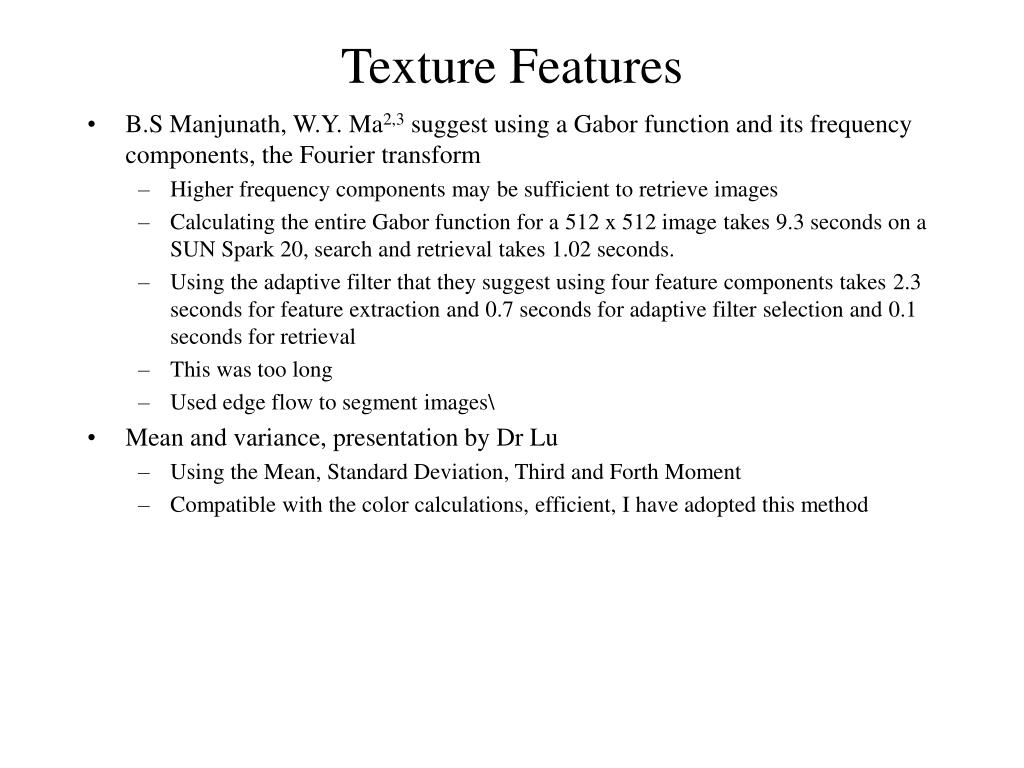

  5. Texture Features • B.S Manjunath, W.Y. Ma2,3 suggest using a Gabor function and its frequency components, the Fourier transform • Higher frequency components may be sufficient to retrieve images • Calculating the entire Gabor function for a 512 x 512 image takes 9.3 seconds on a SUN Spark 20, search and retrieval takes 1.02 seconds. • Using the adaptive filter that they suggest using four feature components takes 2.3 seconds for feature extraction and 0.7 seconds for adaptive filter selection and 0.1 seconds for retrieval • This was too long • Used edge flow to segment images\ • Mean and variance, presentation by Dr Lu • Using the Mean, Standard Deviation, Third and Forth Moment • Compatible with the color calculations, efficient, I have adopted this method

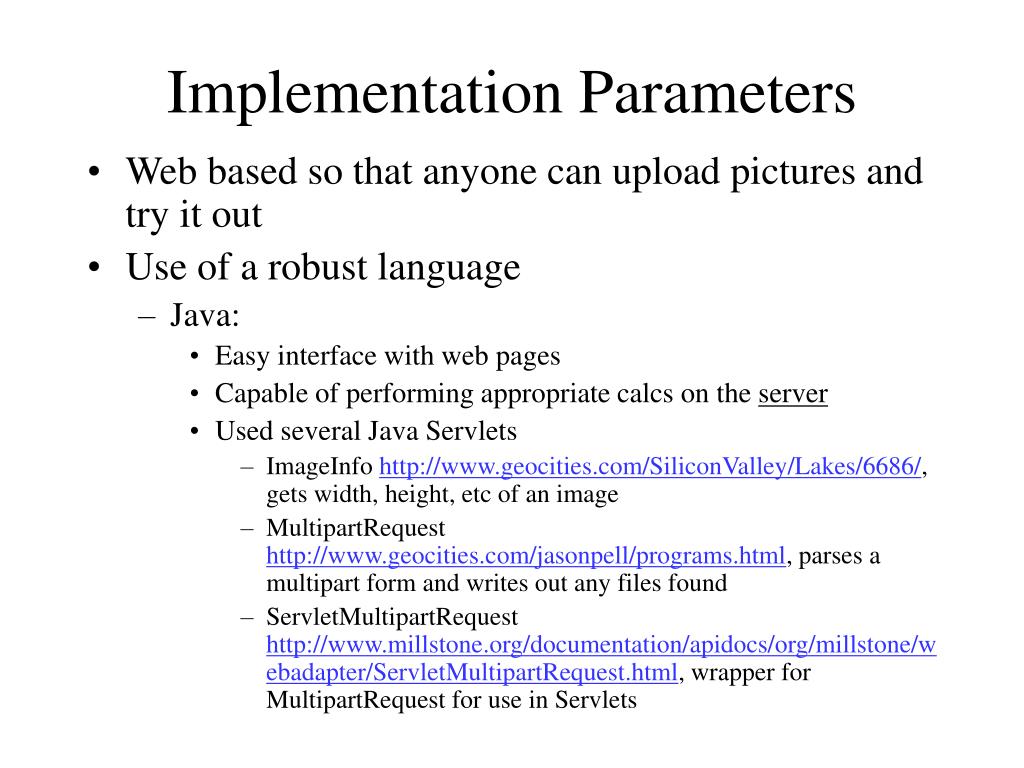

  6. Implementation Parameters • Web based so that anyone can upload pictures and try it out • Use of a robust language • Java: • Easy interface with web pages • Capable of performing appropriate calcs on the server • Used several Java Servlets • ImageInfo http://www.geocities.com/SiliconValley/Lakes/6686/, gets width, height, etc of an image • MultipartRequest http://www.geocities.com/jasonpell/programs.html, parses a multipart form and writes out any files found • ServletMultipartRequest http://www.millstone.org/documentation/apidocs/org/millstone/webadapter/ServletMultipartRequest.html, wrapper for MultipartRequest for use in Servlets

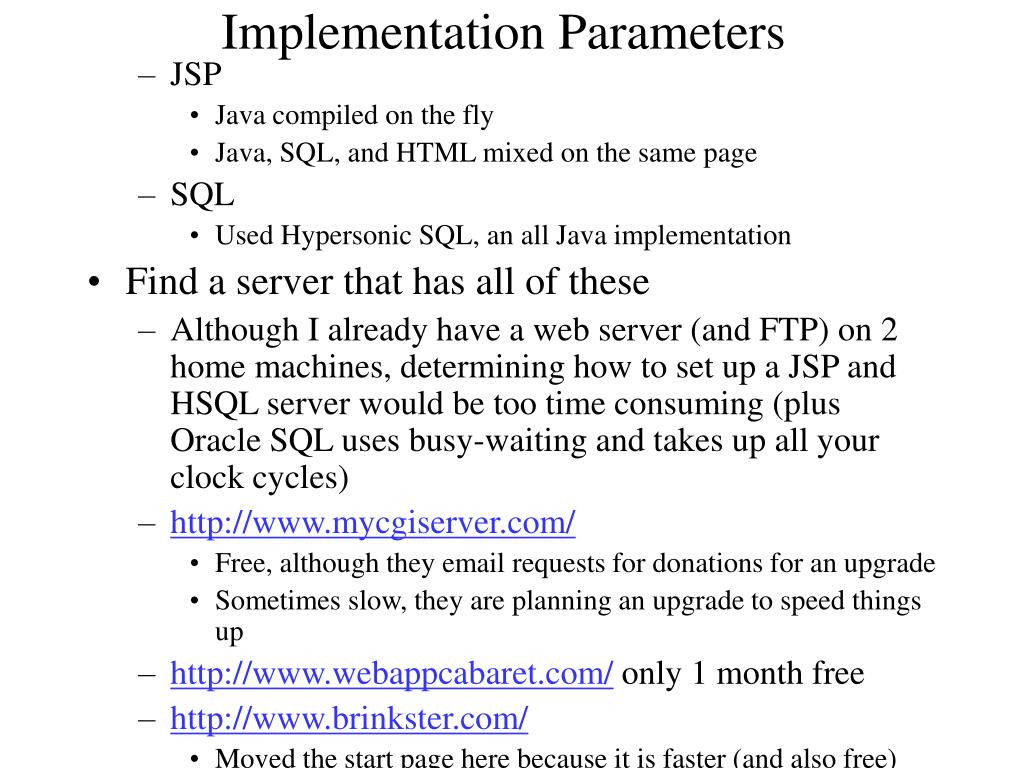

  7. Implementation Parameters • JSP • Java compiled on the fly • Java, SQL, and HTML mixed on the same page • SQL • Used Hypersonic SQL, an all Java implementation • Find a server that has all of these • Although I already have a web server (and FTP) on 2 home machines, determining how to set up a JSP and HSQL server would be too time consuming (plus Oracle SQL uses busy-waiting and takes up all your clock cycles) • http://www.mycgiserver.com/ • Free, although they email requests for donations for an upgrade • Sometimes slow, they are planning an upgrade to speed things up • http://www.webappcabaret.com/ only 1 month free • http://www.brinkster.com/ • Moved the start page here because it is faster (and also free)

  8. Implementation • I didn’t get as far as I had expected, but have images being uploaded and added to a DB • http://www25.brinkster.com/kenwschmidt/search/index.html

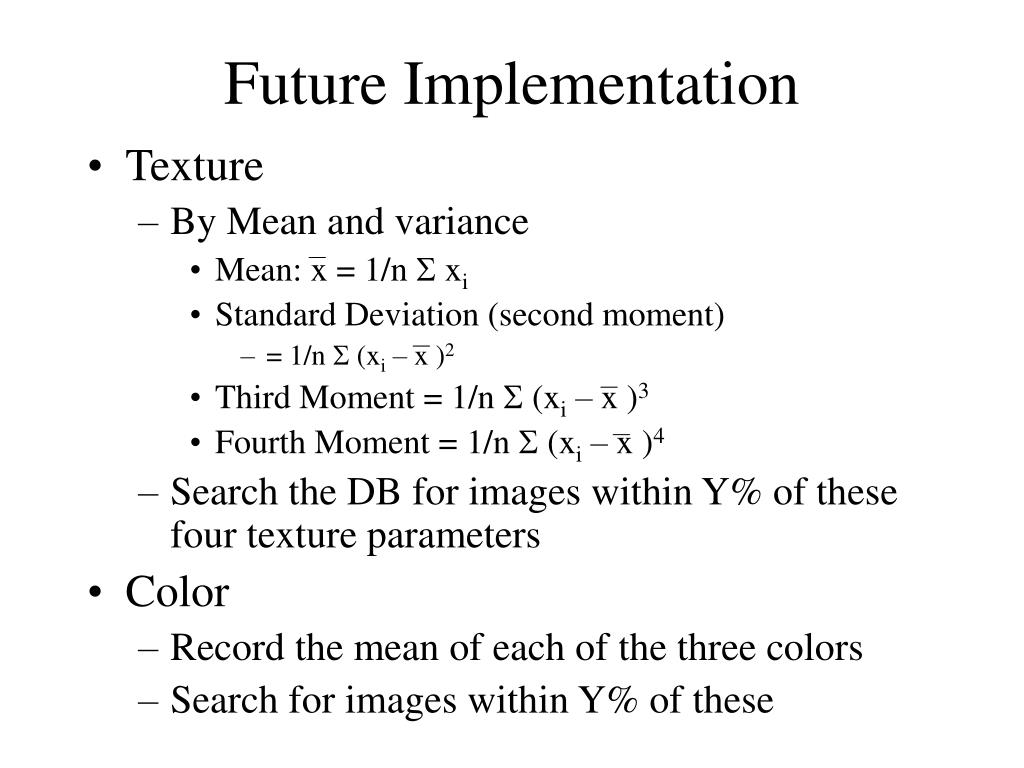

  9. Future Implementation • Texture • By Mean and variance • Mean: x = 1/n  xi • Standard Deviation (second moment) • = 1/n  (xi – x )2 • Third Moment = 1/n  (xi – x )3 • Fourth Moment = 1/n  (xi – x )4 • Search the DB for images within Y% of these four texture parameters • Color • Record the mean of each of the three colors • Search for images within Y% of these

  10. How to Implement? • Found some implementations which would be easy but they were not standard SUN Java, therefore the server that I had chosen probably doesn’t have them available • Searching SUN’s documentation, I found several ways to access pixels: • DataBuffer • SampleModel • BandedSampleModel • ColorModel

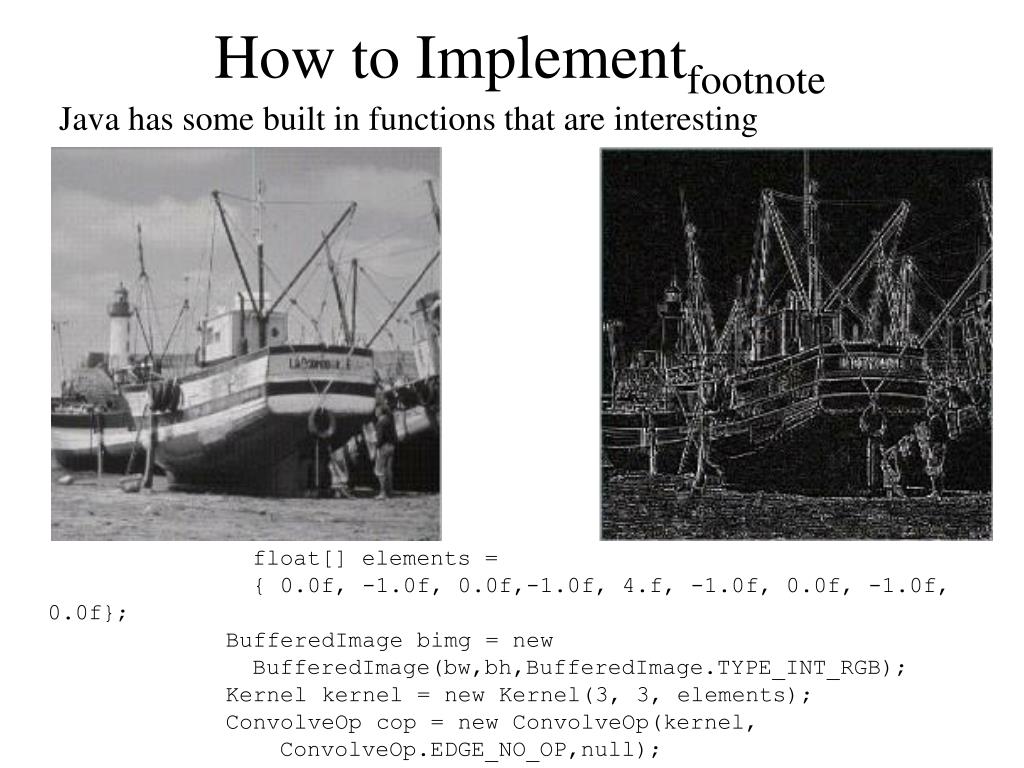

  11. How to Implementfootnote Java has some built in functions that are interesting float[] elements = { 0.0f, -1.0f, 0.0f,-1.0f, 4.f, -1.0f, 0.0f, -1.0f, 0.0f}; BufferedImage bimg = new BufferedImage(bw,bh,BufferedImage.TYPE_INT_RGB); Kernel kernel = new Kernel(3, 3, elements); ConvolveOp cop = new ConvolveOp(kernel, ConvolveOp.EDGE_NO_OP,null); cop.filter(bi,bimg);

  12. How to Implementfootnote byte reverse[] = new byte[256]; for (int j=0; j<200; j++){ reverse[j]=(byte)(256-j); } ByteLookupTable blut=new ByteLookupTable(0, reverse); LookupOp lop = new LookupOp(blut, null); lop.filter(bi,bimg);

  13. How to Implementfootnote RescaleOp rop = new RescaleOp(1.5f, 1.0f, null); rop.filter(bi,bimg);

  14. How to Implementfootnote Sharpening with Convolution: float[] elements = { 0.0f, -1.0f, 0.0f, -1.0f, 5.f, -1.0f, 0.0f, -1.0f, 0.0f};   Kernel kernel = new Kernel(3,3,elements); ConvolveOp cop = new ConvolveOp(kernel, ConvolveOp.EDGE_NO_OP, null); cop.filter(bi,bimg);

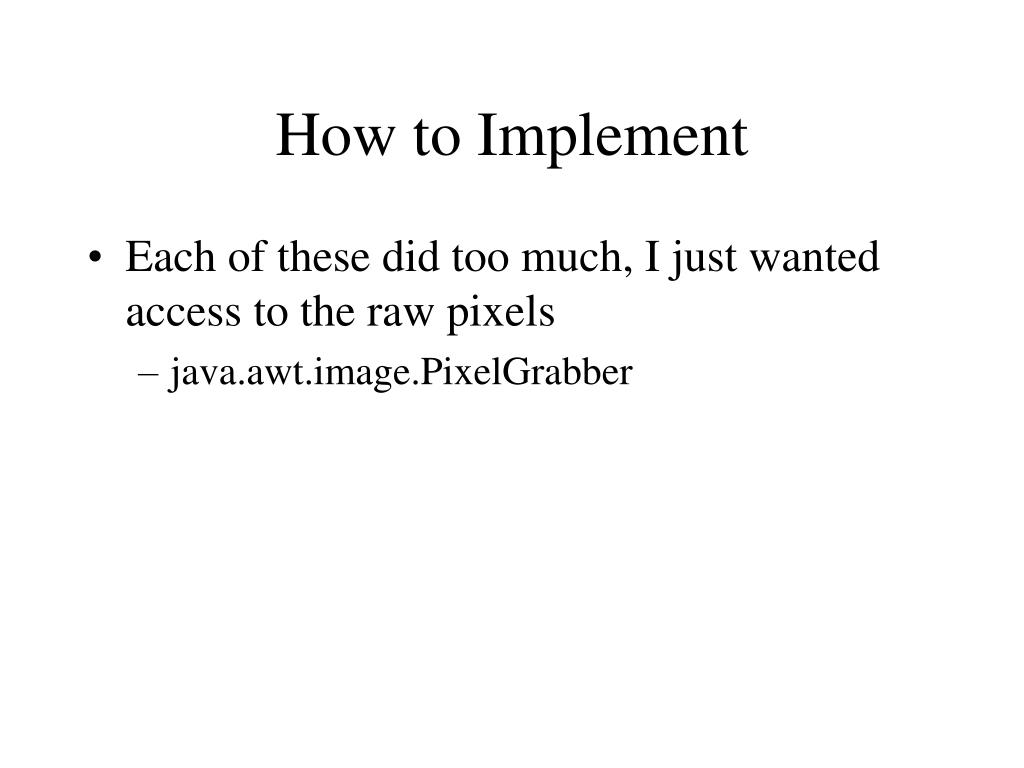

  15. How to Implement • Each of these did too much, I just wanted access to the raw pixels • java.awt.image.PixelGrabber

  16. for (int j = 0; j < h; j++) { for (int i = 0; i < w; i++) { pixel = pixels [ j * w + i ]; red = (pixel >> 16) & 0xff; green = (pixel >> 8) & 0xff; blue = (pixel ) & 0xff; redSum2 += pow ( ( red - redMean ), 2 ); greenSum2 += pow ( ( green- greenMean ), 2 ); blueSum2 += pow ( ( blue- blueMean ), 2 ); redSum3 += pow ( ( red - redMean ), 3 ); greenSum3 += pow ( ( green- greenMean ), 3 ); blueSum3 += pow ( ( blue- blueMean ), 3 ); redSum4 += pow ( ( red - redMean ), 4 ); greenSum4 += pow ( ( green- greenMean ), 4 ); blueSum4 += pow ( ( blue- blueMean ), 4 ); } } redMoment2 = redSum2 / noOfPixels; greenMoment2 = greenSum2 / noOfPixels; blueMoment2 = blueSum2 / noOfPixels; redMoment3 = redSum3 / noOfPixels; greenMoment3 = greenSum3 / noOfPixels; blueMoment3 = blueSum3 / noOfPixels; redMoment4 = redSum4 / noOfPixels; greenMoment4 = greenSum4 / noOfPixels; blueMoment4 = blueSum4 / noOfPixels; overallMoment2 = ( redMoment2 + greenMoment2 + blueMoment2 ) / 3; overallMoment3 = ( redMoment3 + greenMoment3 + blueMoment3 ) / 3; overallMoment4 = ( redMoment4 + greenMoment4 + blueMoment4 ) / 3; Pseudo Code for (int j = 0; j < h; j++) { for (int i = 0; i < w; i++) { pixel = pixels [ j * w + i ]; red = (pixel >> 16) & 0xff; green = (pixel >> 8) & 0xff; blue = (pixel ) & 0xff; redSum += red; greenSum += green; blueSum += blue; } } redMean = redSum / noOfPixels; greenMean = greenSum / noOfPixels; blueMean = blueSum / noOfPixels; overallSum = redSum + greenSum + blueSum; overallMean = overallSum / noOfPixels;

  17. References • An Efficient Color Representation for Image Retrieval, Yining Deng, B. S. Manjunath, Charles Kenney, Michael S. Moore, Hyundoo Shin, IEEE TRANSACTIONS ON IMAGE PROCESSING, VOL. 10, NO. 1, JANUARY 2001 • Texture Features for Browsing and Retrieval of Image Data, B.S Manjunath, W.Y. Ma, IEEE TRANSACTIONS ON PATTERN ANALYSIS AND MACHINE INTELLIGENCE, VOL. 18, NO. 8, JANUARY 1996 • A Texture Thesaurus for Browsing Large Aerial Photographs, Wei-Ying Ma and B. S. Manjunath, JOURNAL OF THE AMERICAN SOCIETY FOR INFORMATION SCIENCE. 49(7):633–648, 1998 • Texture Features and Learning Similarity, Wei-Ying Ma and B. S. Manjunath, 1063-6919/96IEEE
