Comprehensive Overview of Cartilage Structure and Functions

jodiee avatar
6 diapositives · 117 Views · Jan 05, 2020

Explore the properties, matrix composition, and essential components of different types of cartilage, including hyaline, fibrocartilage, and elastic cartilage. Learn about their unique characteristics, typical locations, and regenerative capacities.

Comprehensive Overview of Cartilage Structure and Functions - slide 1
01 / 6Comprehensive Overview of Cartilage Structure and Functions
1 / 17

Télécharger la présentation

Comprehensive Overview of Cartilage Structure and Functions
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

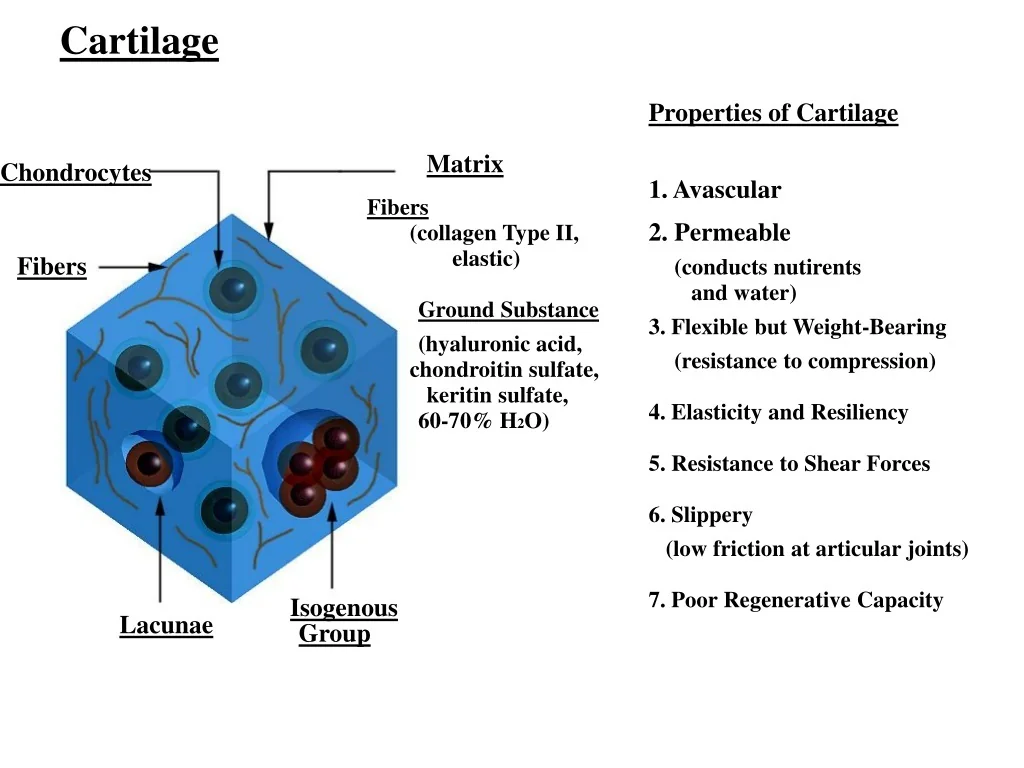

  1. Cartilage Properties of Cartilage Matrix Chondrocytes 1. Avascular Fibers 2. Permeable (collagen Type II, elastic) Fibers (conducts nutirents and water) Ground Substance 3. Flexible but Weight-Bearing (hyaluronic acid, (resistance to compression) chondroitin sulfate, keritin sulfate, 4. Elasticity and Resiliency 60-70% H2O) 5. Resistance to Shear Forces 6. Slippery (low friction at articular joints) 7. Poor Regenerative Capacity Isogenous Lacunae Group

  2. Hyaline Cartilage Hyaline Cartilage Matrix (amorphous & glassy) hyaluronic acid chondroitin sulfate chondrocyte nucleus keratin sulfate H2O (60-78%) lacuna matrix Fibers- collagenous (invisible due to same refractive index as matrix) Typical Locations Hyaline Cartilage (SEM) intercostals (connect ribs to the sternum) wall of trachea & bronchii articular cartilage of bone epiphyseal plate fetal axial skeleton

  3. Fibrocartilage Fibrocartilage- longitudinal section Matrix collagenous fiber bundles hyaluronic acid Fibrocartilage- SEM chondroitin sulfate keratin sulfate Fibers dense collagenous bundles Typical Locations Fibrocartilage- transverse section intervertebral discs pubic symphysis meniscus of knee joint attach tendons to bone Properties resistance to compression and shear forces

  4. Elastic Cartilage Elastic Cartilage- pinnae of ear Elastic Fibers Matrix (resorcin-fuchsin stain) hyaluronic acid chondroitin sulfate kertatin sulfate Fibers elastic (elastin) Typical Locations external ear walls of external auditory canal and eustachian tubes Elastic Fibers- silver stain epiglottis & larynx bridge of nose Properties resiliency and pliability

  5. Growth of Cartilage fibroblasts collagen Perichondrium perichondrium Appositional blood vessel Growth chondroblasts (peripheral mitosis and differentiation of fibroblasts) hyaline matrix Interstitial Growth isogenous (mitosis of chondro- groups cytes and deposition (nests of of new matrix) chondrocytes) Territorial Matrix
