Closed-Loop Transfer Functions

jody avatar
jody
13 diapositives · 1.2K Views · Sep 08, 2012

Introduction. Block diagramsConvenient tool to represent closed-loop systemsAlso used to represent control systems in SimulinkClosed-loop transfer functionsTransfer function between any two signals in a closed-loop systemUsually involve setpoint or disturbance as the closed-loop input and the c

#closed-loop transfer function #ring #close #open #loop gain #germ (mathematics) #closed chain #backpropagation

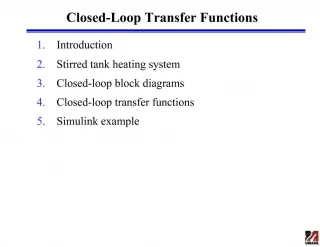

Closed-Loop Transfer Functions - slide 1
01 / 13Closed-Loop Transfer Functions
1 / 17

Télécharger la présentation

Closed-Loop Transfer Functions
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

    1. Closed-Loop Transfer Functions Introduction Stirred tank heating system Closed-loop block diagrams Closed-loop transfer functions Simulink example

    2. Introduction Block diagrams Convenient tool to represent closed-loop systems Also used to represent control systems in Simulink Closed-loop transfer functions Transfer function between any two signals in a closed-loop system Usually involve setpoint or disturbance as the closed-loop input and the controlled output as the closed-loop output Conveniently derived from block diagram Can be derived automatically in Simulink Used to analyze closed-loop stability and compute closed-loop responses

    3. Stirred Tank Blending System Control objective Drive outlet composition (x) to setpoint (xsp) by manipulating pure stream flow rate (w2) despite disturbances in flow rate (w1) and composition (x1) of other feed stream Control system Measure x with composition analyzer (AT) Perform calculation with composition controller (AC) Convert controller output to pneumatic signal with current-pressure converter (I/P) to drive valve

    4. Blending Process Model Mass balances for constant volume Linearized model Transfer function model

    5. Control System Components Composition analyzer assume first-order dynamics Controller assume PI controller I/P converter assume negligible dynamics

    6. Control System Components cont. Control valve assume first-order dynamics Entire blending system

    7. Closed-Loop Block Diagrams Gp(s) process transfer function Gd(s) disturbance transfer function Gv(s) valve transfer function Gc(s) controller transfer function Gm(s) measurement transfer function Kp measurement gain Y(s) controlled output U(s) manipulated input D(s) disturbance input P(s) controller output E(s) error signal Ysp(s) setpoint Ym(s) measurement

    8. Transfer Function for Setpoint Changes

    9. Transfer Function for Disturbance Changes

    10. Simultaneous Changes Principle of superposition Open-loop transfer function Obtained by multiplying all transfer functions in feedback loop

    11. General Method Closed-loop transfer function Z = any variable in feedback system Zi = any input variable in feedback system Z and Zi Pf = product of all transfer functions between Z and Zi Pe = product of all transfer functions in feedback loop Setpoint change Disturbance change

    12. Closed-Loop Transfer Function Example

    13. Simulink Example >> gp=tf([6.37],[5 1]); >> kv=0.0103; >> kip=0.12; >> km=50; >> gc=tf([2.5 5],[0.5 0]); >> gcl=gp/(1+gc*kv*gp*km) Transfer function: 15.93 s^2 + 3.185 s ----------------------------------- 12.5 s^3 + 46.01 s^2 + 90.72 s + 16.4
