  1. Parsing • The scanner recognizes words • The parser recognizes syntactic units • Parser operations: • Check and verify syntax based on specified syntax rules • Report errors • Build IR • Automation: • The process can be automated

  2. Parsing • Check and verify syntax based on specified syntax rules • Are regular expressions sufficient for describing syntax? • Example 1: Infix expressions • Example 2: Nested parentheses • We use Context-Free Grammars (CFGs) to specify context-free syntax. • A CFG describes how a sentence of a language may be generated. • Example: • Use this grammar to generate the sentence mwa ha ha ha! EvilLaugh mwaEvilCackle EvilCackle haEvilCackle EvilCackle ha!

  3. CFGs • A CFG is a quadruple (N, T, R, S) where • N is the set of non-terminal symbols • T is the set of terminal symbols • S N is the starting symbol • R  N(NT)* is a set of rules • Example: The grammar of nested parenthesesG = (N, T, R, S) where • N = {S} • T ={(, ) } • R ={ S (S) , SSS, S }

  4. Derivations • Thelanguage described by a CFG is the set of strings that can be derived from the start symbol using the rules of the grammar. • At each step, we choose a non-terminal to replace. S(S) (SS) ((S)S) (( )S) (( )(S)) (( )((S))) (( )(( ))) sentential form derivation This example demonstrates a leftmost derivation : one where we always expand the leftmost non-terminal in the sentential form.

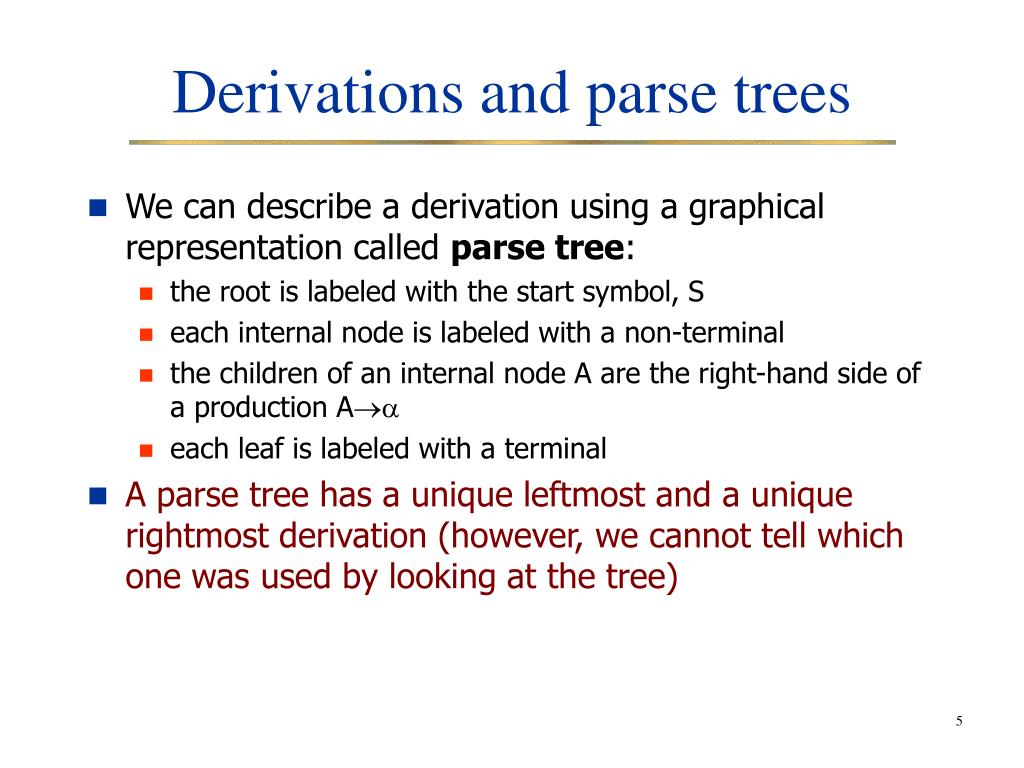

  5. Derivations and parse trees • We can describe a derivation using a graphical representation called parse tree: • the root is labeled with the start symbol, S • each internal node is labeled with a non-terminal • the children of an internal node A are the right-hand side of a production A • each leaf is labeled with a terminal • A parse tree has a unique leftmost and a unique rightmost derivation (however, we cannot tell which one was used by looking at the tree)

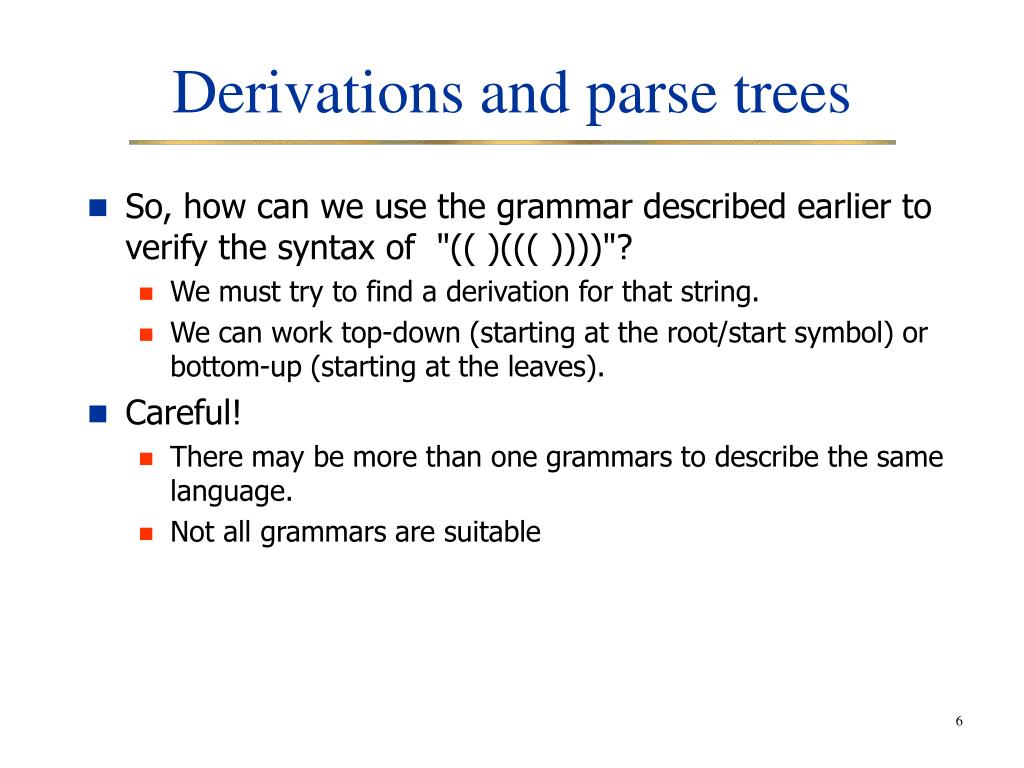

  6. Derivations and parse trees • So, how can we use the grammar described earlier to verify the syntax of "(( )((( ))))"? • We must try to find a derivation for that string. • We can work top-down (starting at the root/start symbol) or bottom-up (starting at the leaves). • Careful! • There may be more than one grammars to describe the same language. • Not all grammars are suitable

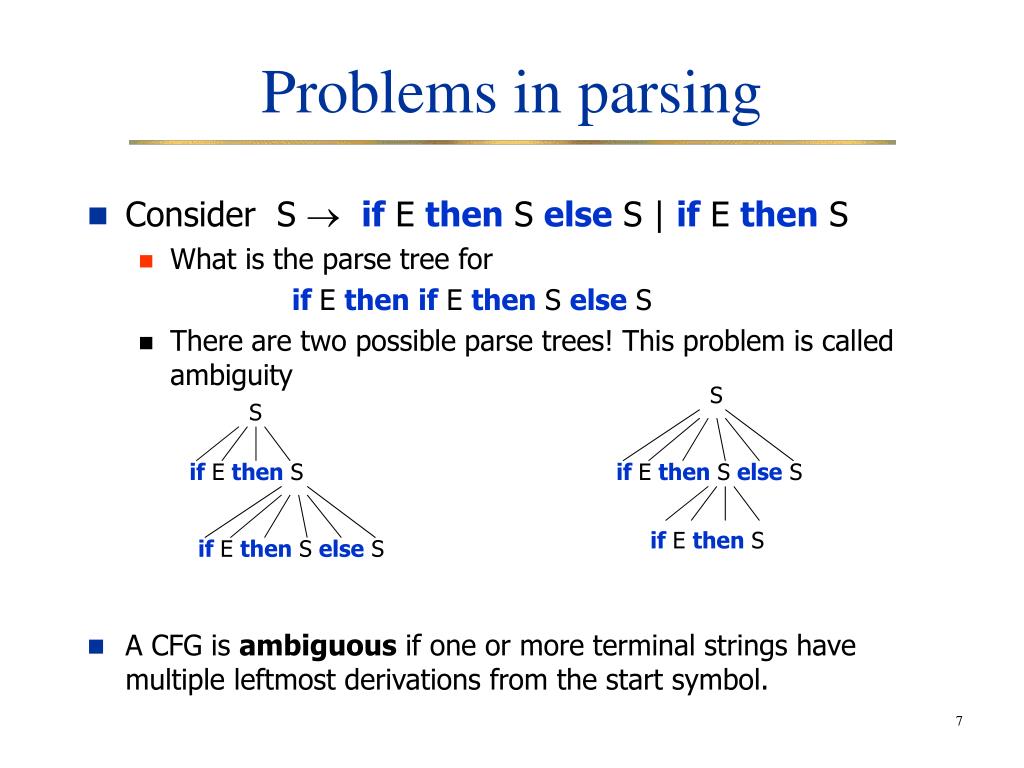

  7. Problems in parsing • Consider S  if E then S else S | if E then S • What is the parse tree for ifE thenif E then S else S • There are two possible parse trees! This problem is called ambiguity • A CFG is ambiguous if one or more terminal strings have multiple leftmost derivations from the start symbol. S S ifE then S ifE then S else S ifE then S ifE then S else S

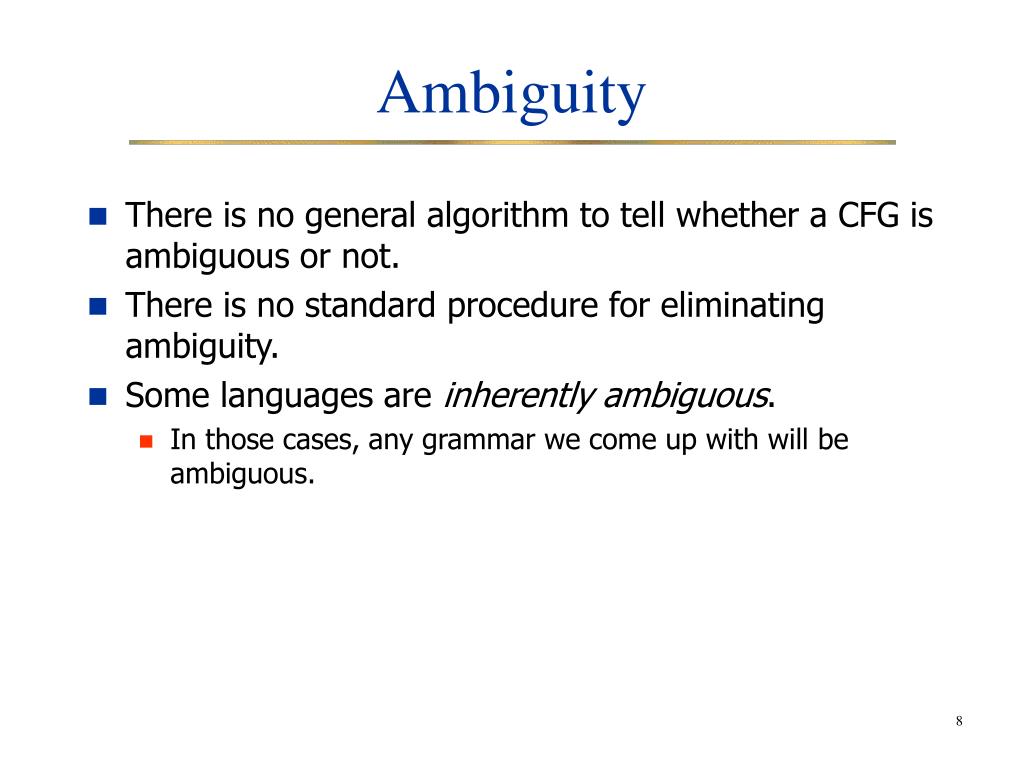

  8. Ambiguity • There is no general algorithm to tell whether a CFG is ambiguous or not. • There is no standard procedure for eliminating ambiguity. • Some languages are inherently ambiguous. • In those cases, any grammar we come up with will be ambiguous.

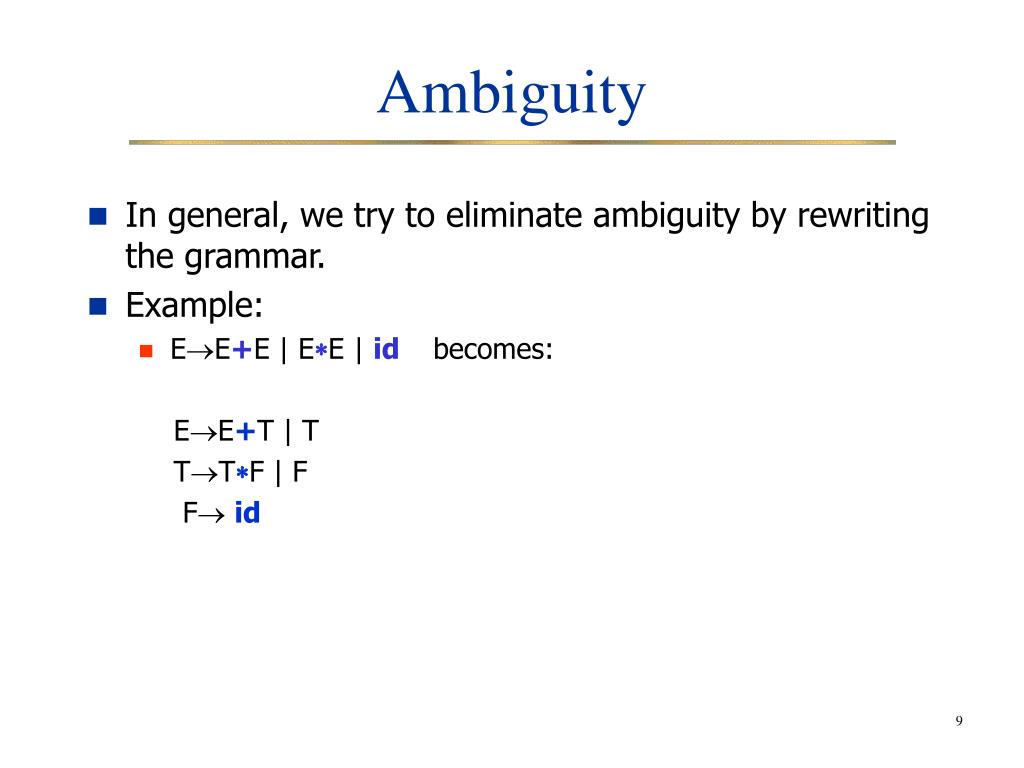

  9. Ambiguity • In general, we try to eliminate ambiguity by rewriting the grammar. • Example: • EE+E | EE | id becomes: EE+T | T TTF | F F id

  10. Ambiguity • In general, we try to eliminate ambiguity by rewriting the grammar. • Example: • SifEthenSelseS |ifEthenS |other becomes: S  EwithElse | EnoElseEwithElse  if E then EwithElse else EwithElse | otherEnoElse  if E then S | if E then EwithElse else EnoElse

  11. Top-down parsing • Main idea: • Start at the root, grow towards leaves • Pick a production and try to match input • May need to backtrack • Example: • Use the expression grammar to parse x-2*y

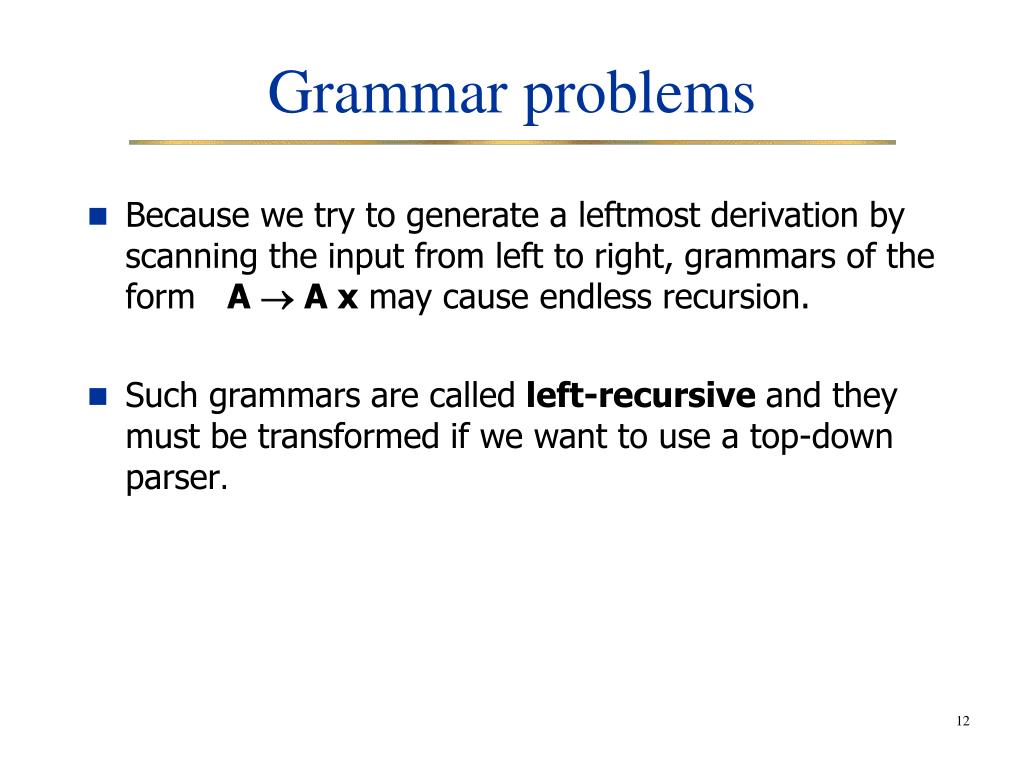

  12. Grammar problems • Because we try to generate a leftmost derivation by scanning the input from left to right, grammars of the form A  A x may cause endless recursion. • Such grammars are called left-recursive and they must be transformed if we want to use a top-down parser.

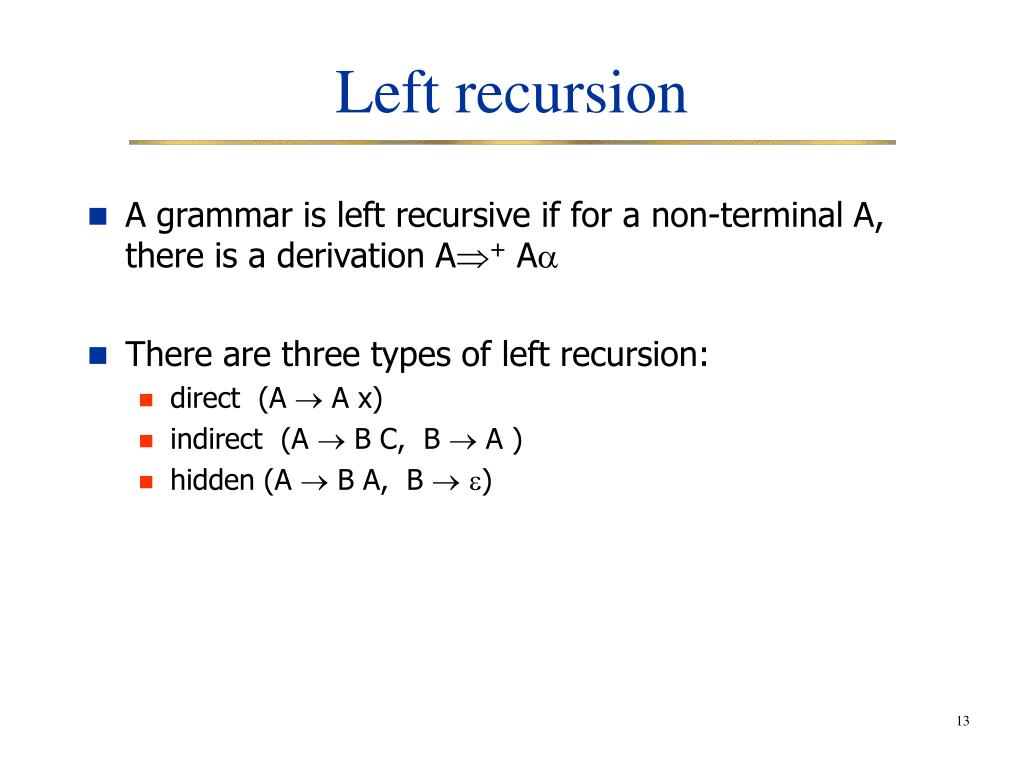

  13. Left recursion • A grammar is left recursive if for a non-terminal A, there is a derivation A+ A • There are three types of left recursion: • direct (A  A x) • indirect (A  B C, B  A ) • hidden (A  B A, B  )

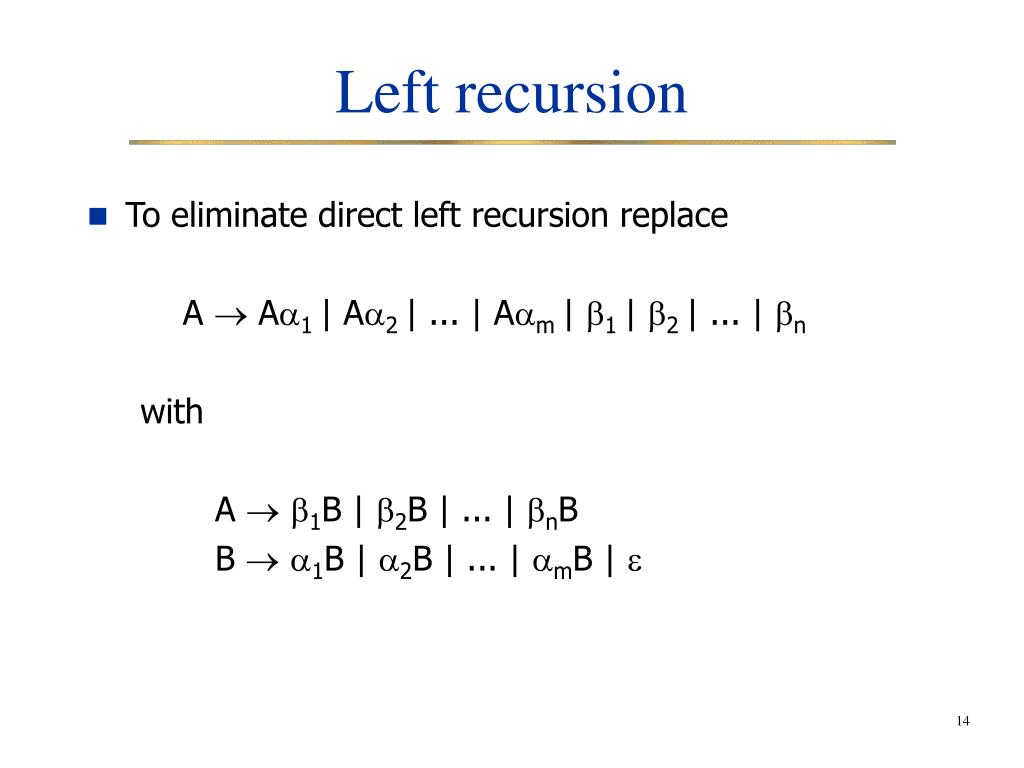

  14. Left recursion • To eliminate direct left recursion replace A  A1 | A2 | ... | Am | 1 | 2 | ... | n with A  1B | 2B | ... | nB B  1B | 2B | ... | mB | 

  15. Left recursion • How about this: S  EE  E+T E  T T  E-T T  id There is direct recursion: EE+TThere is indirect recursion: TE+T, ET Algorithm for eliminating indirect recursion List the nonterminals in some order A1, A2, ...,An for i=1 to n for j=1 to i-1 if there is a production AiAj, replace Ajwith its rhs eliminate any direct left recursion on Ai

  16. Eliminating indirect left recursion ordering: S, E, T, F i=S i=E i=T, j=E S  EE  E+T E  T T  E-T T  F F  E*F F  id S  EE  E+T E  T T  E-T T  F F  E*F F  id S  EE  TE' E'+TE'| T  E-T T  F F  E*F F  id S  EE  TE' E'+TE'| T  TE'-T T  F F  E*F F  id S  EE  TE' E'+TE'| T  FT' T'  E'-TT'| F  E*F F  id

  17. Eliminating indirect left recursion i=F, j=E i=F, j=T S  EE  TE' E'+TE'| T  FT' T'  E'-TT'| F  TE'*F F  id S  EE  TE' E'+TE'| T  FT' T'  E'-TT'| F  FT'E'*F F  id S  EE  TE' E'+TE'| T  FT' T'  E'-TT'| F  idF' F'  T'E'*FF'|

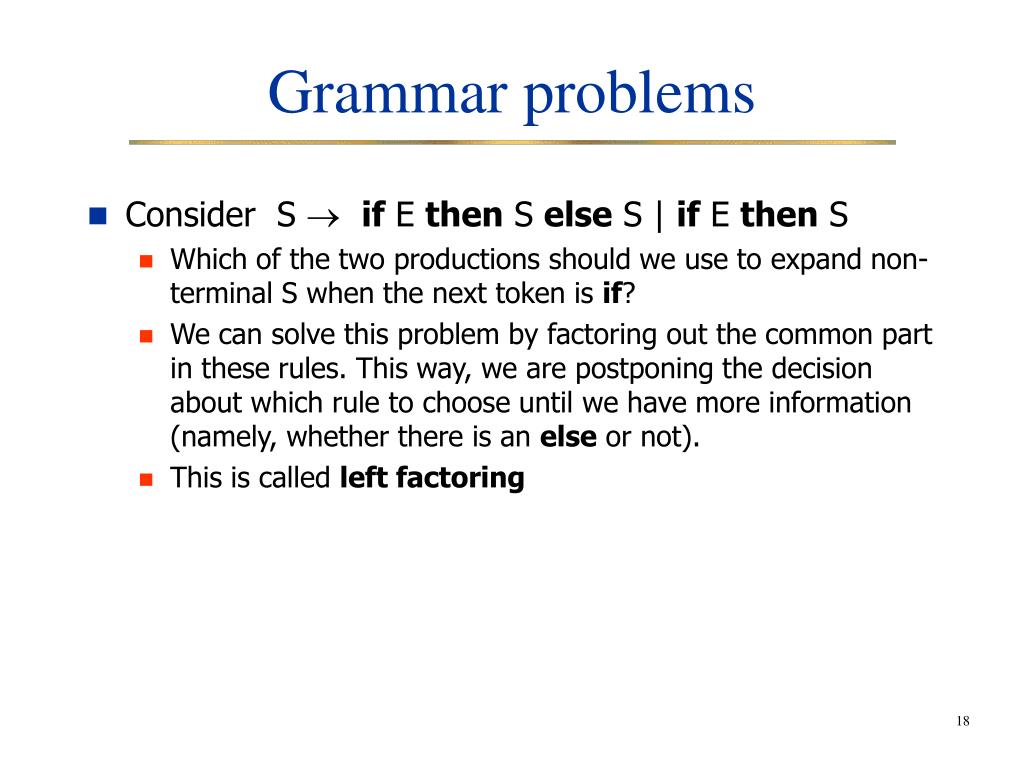

  18. Grammar problems • Consider S  if E then S else S | if E then S • Which of the two productions should we use to expand non-terminal S when the next token is if? • We can solve this problem by factoring out the common part in these rules. This way, we are postponing the decision about which rule to choose until we have more information (namely, whether there is an else or not). • This is called left factoring

  19. Left factoring A  1 | 2 |...| n |  becomes A  B| B 1 | 2 |...| n

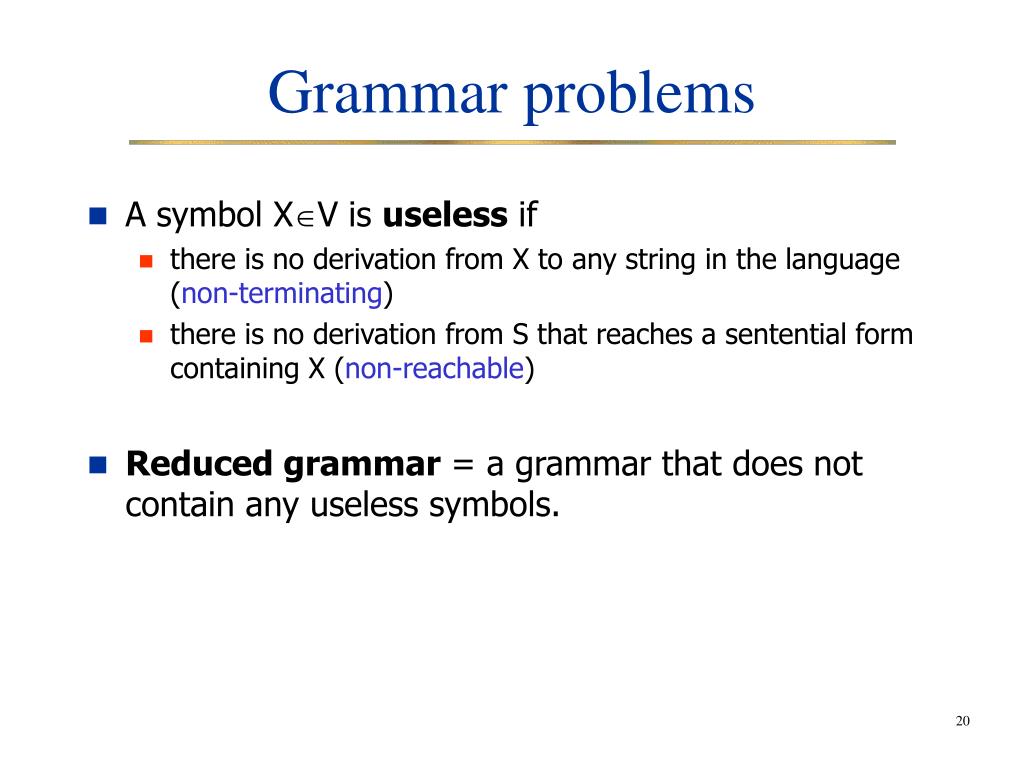

  20. Grammar problems • A symbol XV is useless if • there is no derivation from X to any string in the language (non-terminating) • there is no derivation from S that reaches a sentential form containing X (non-reachable) • Reduced grammar = a grammar that does not contain any useless symbols.

  21. Useless symbols • In order to remove useless symbols, apply two algorithms: • First, remove all non-terminating symbols • Then, remove all non-reachable symbols. • The order is important! • For example, consider S+ X where  contains a non-terminating symbol. What will happen if we apply the algorithms in the wrong order? • Concrete example: S  AB | a, A a

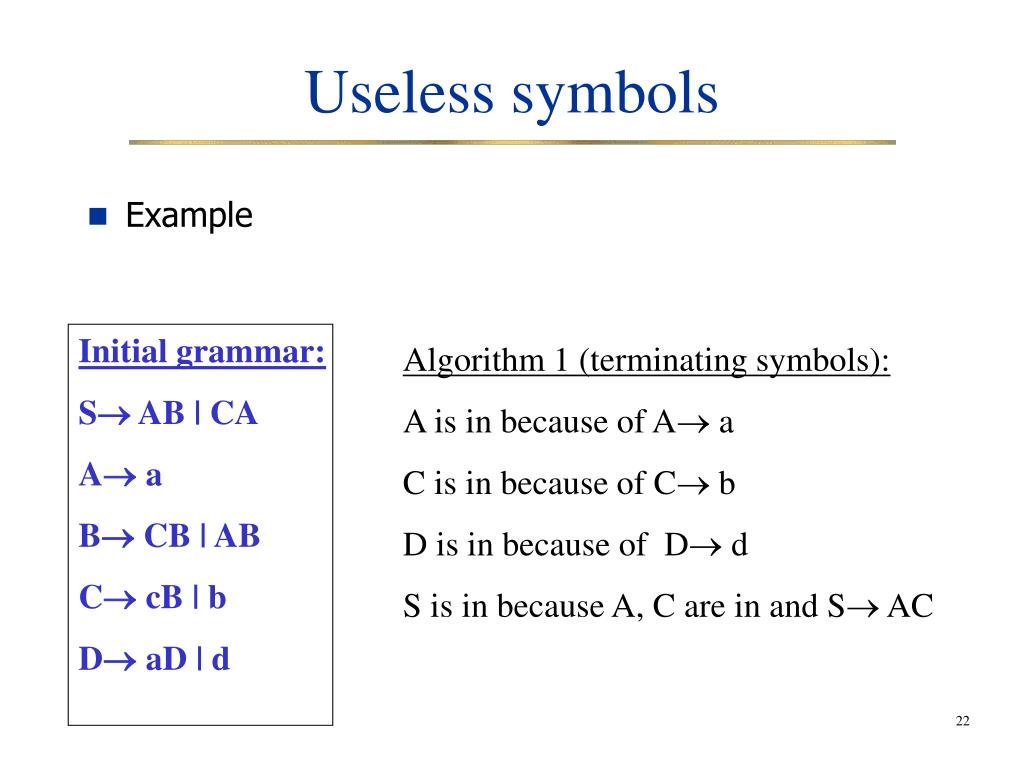

  22. Useless symbols • Example Initial grammar: S AB | CA A a B CB | AB C cB | b D aD | d Algorithm 1 (terminating symbols): A is in because of A a C is in because of C b D is in because of D d S is in because A, C are in and S AC

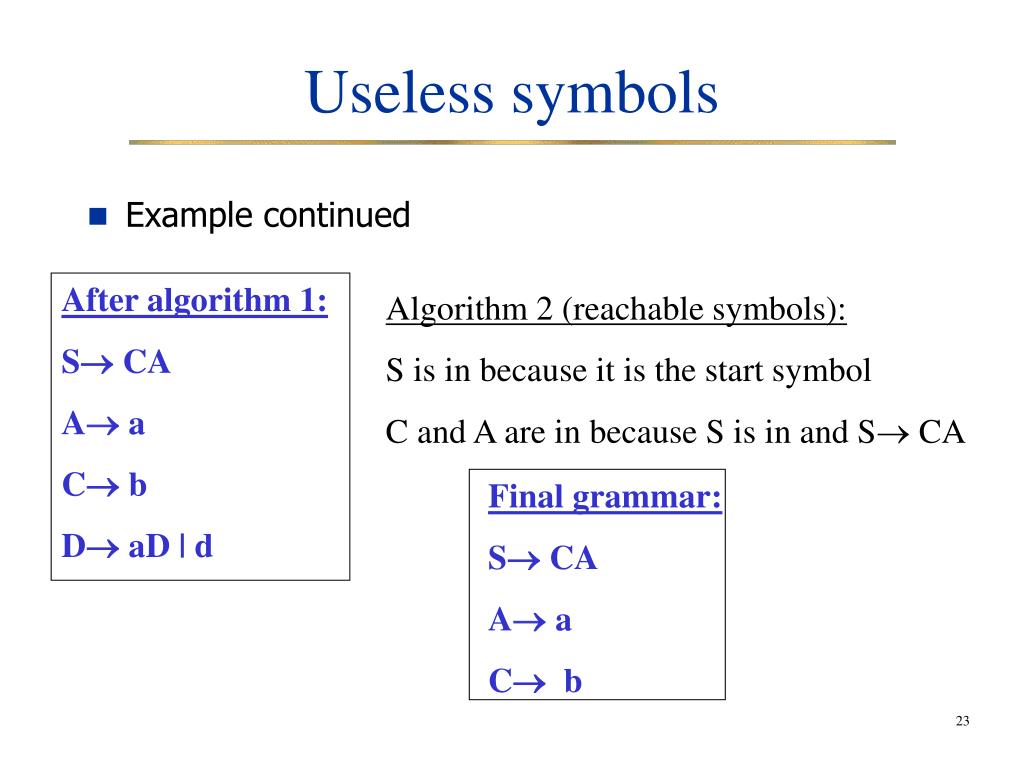

  23. Useless symbols • Example continued After algorithm 1: S CA A a C b D aD | d Algorithm 2 (reachable symbols): S is in because it is the start symbol C and A are in because S is in and S CA Final grammar: S CA A a C b
