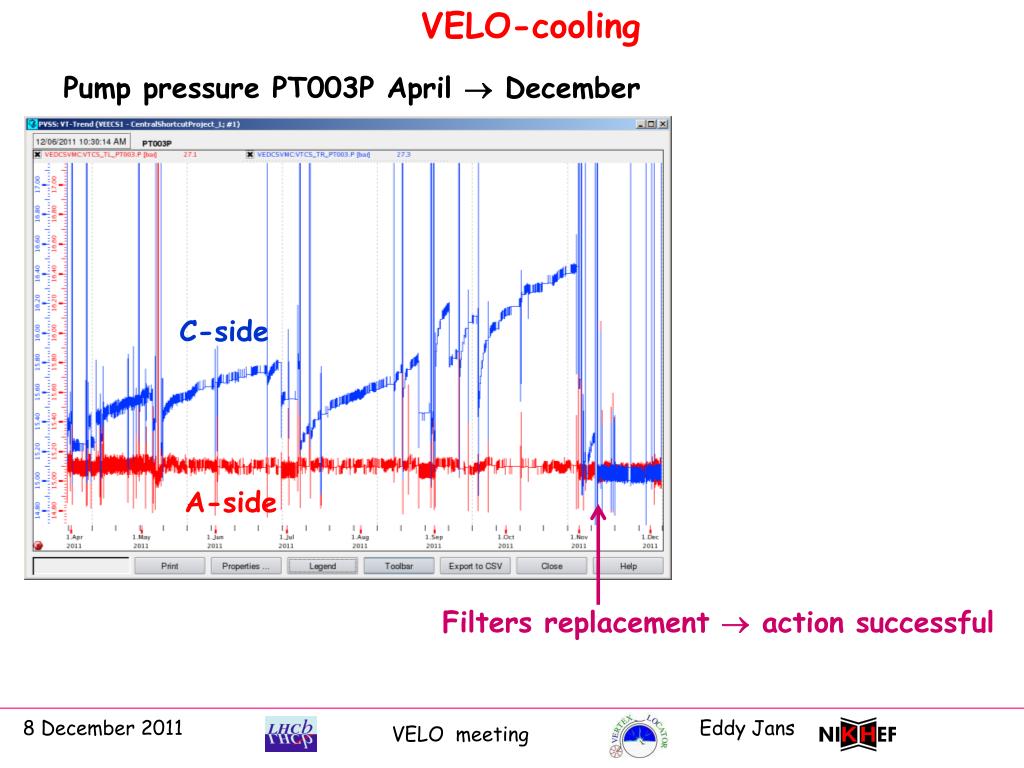

VELO-cooling. Pump pressure PT003P April  December. C-side. A-side. Filters replacement  action successful. VELO meeting. CO 2 pump maintenance. Planned procedure for a pump maintenance while keeping the detector cold.

joel-ayers
Télécharger la présentation

VELO-cooling

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. VELO-cooling Pump pressure PT003P April  December C-side A-side Filters replacement  action successful VELO meeting

  2. CO2 pump maintenance • Planned procedure for a pump maintenance while keeping the detector • cold. • cool the accumulator to -40 oC, such that all liquid gets sucked • into it. • The rest of the system will be much warmer and only contain gas • at 10 bar. • close the valve at the input of the accumulator • close the 2 valves at either side of the pump, in order to isolate • this pump section from the rest of the system • open the valve at the input of the accumulator • warm-up the contents of the accumulator, such that the system gets • filled with liquid CO2 • start the cooling system with the 2 remaining pumps • perform maintenance on the isolated pump VELO meeting

  3. TL TR TLR = hand valve = electrical valve However, ……….. VELO meeting

  4. In the startup-procedure of the cooling system the PLC opens all electrical valves at either side of a CO2 pump, making the planned procedure impossible for the TR and TLR pumps. So Krista and Martijn had to service the TL-pump. Trick for the other two pumps: either create a service mode in the PLC or make a special connector for the valve-cable to fool the PLC. VELO meeting
