Types of regulation

Types of regulation. And DRM graphs. Major regulation types. Adding/subtracting (vs. fine/coarse). Subtracting turns, reversal, then adding turns Pos 1- subtracting max, then subtracting less (less turns, higher current) Neutral=max current, reversal, adding more turns getting lower current.

Télécharger la présentation

Types of regulation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

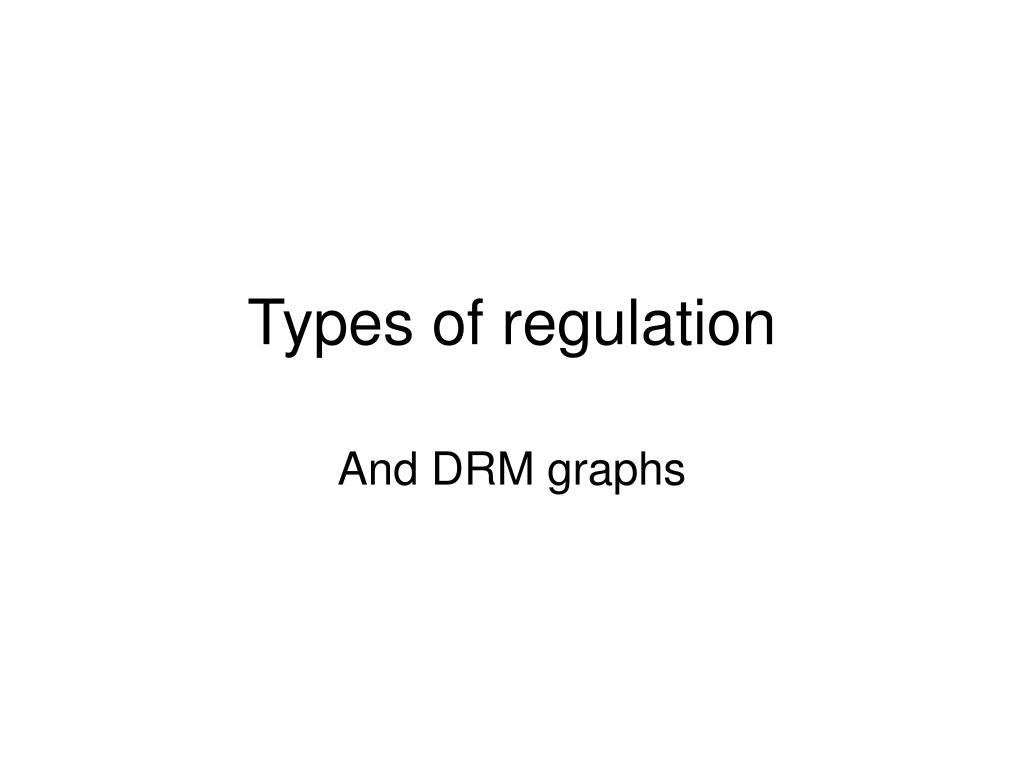

  1. Types of regulation And DRM graphs

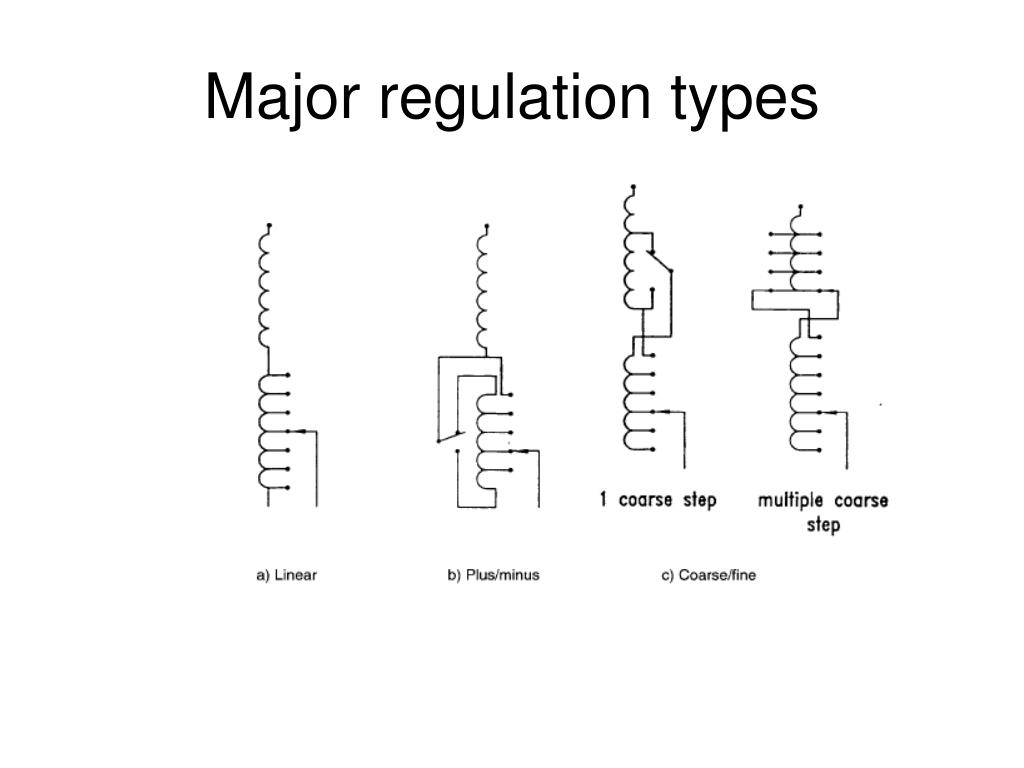

  2. Major regulation types

  3. Adding/subtracting (vs. fine/coarse) Subtracting turns, reversal, then adding turns Pos 1- subtracting max, then subtracting less (less turns, higher current) Neutral=max current, reversal, adding more turns getting lower current

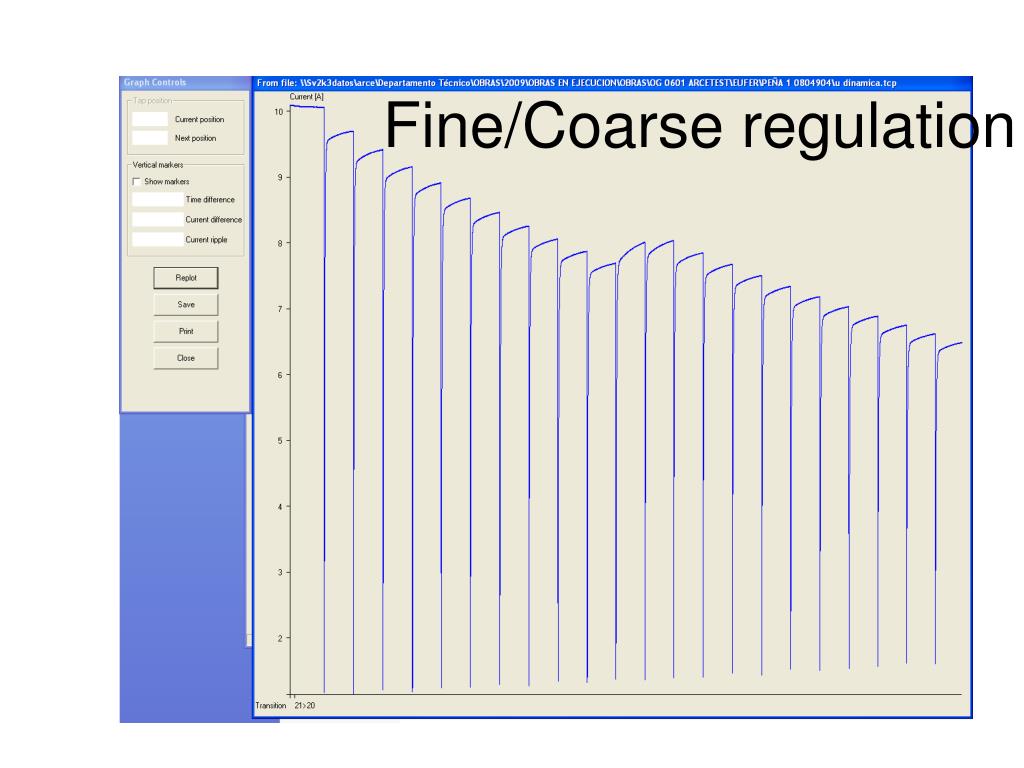

  4. Fine/Coarse regulation

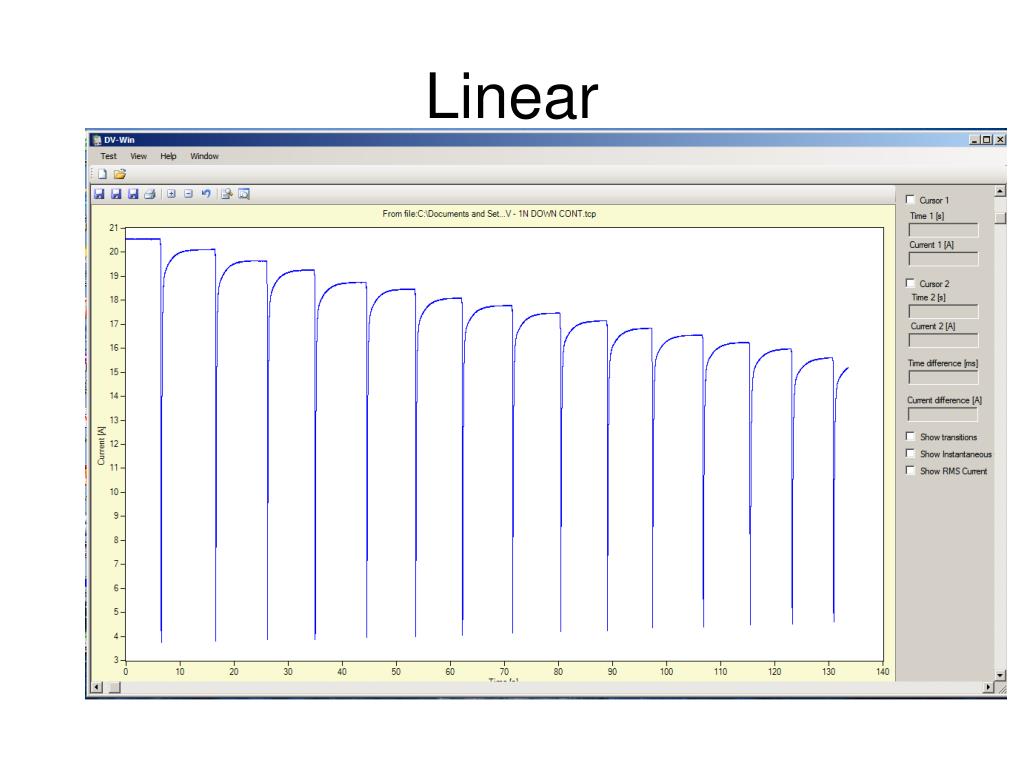

  5. Linear

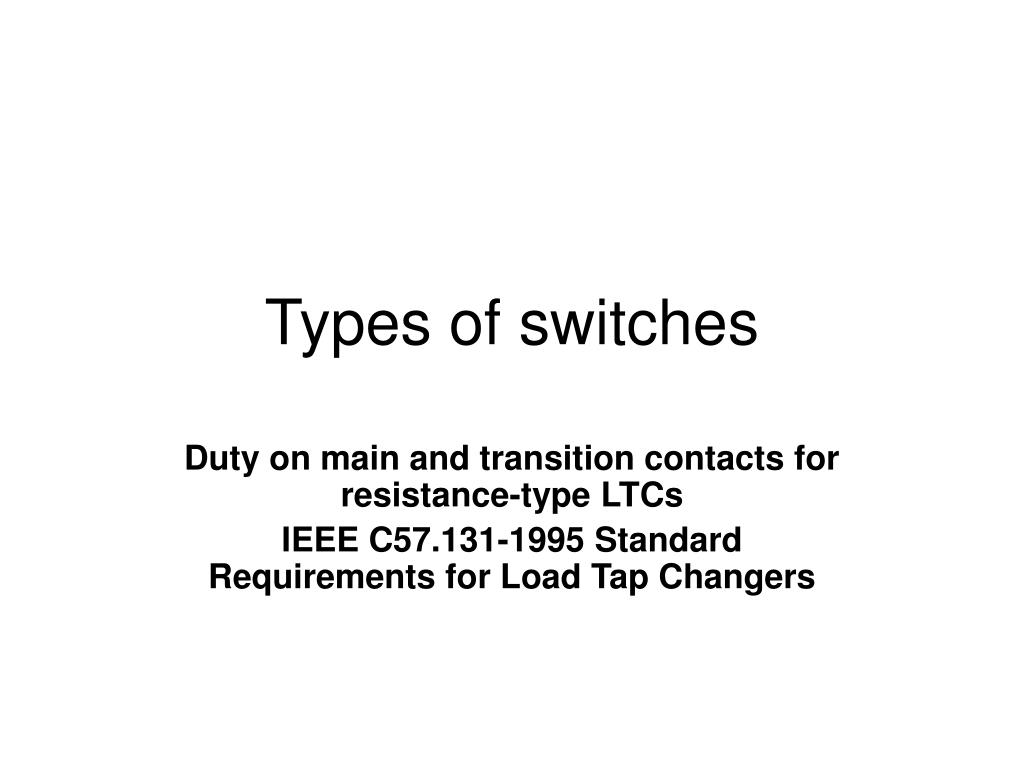

  6. Types of switches Duty on main and transition contacts for resistance-type LTCs IEEE C57.131-1995 Standard Requirements for Load Tap Changers

  7. Standard defines contacts of an OLTC • 3.1 arcing switch: A switching device used in conjunction with a tap selector to carry, make, and break current in circuits that have already been selected. • 3.2 arcing tap switch: A switching device capable of carrying current and also breaking and making current while selecting a tap position. It, thereby, combines the duties of an arcing switch and a tap selector

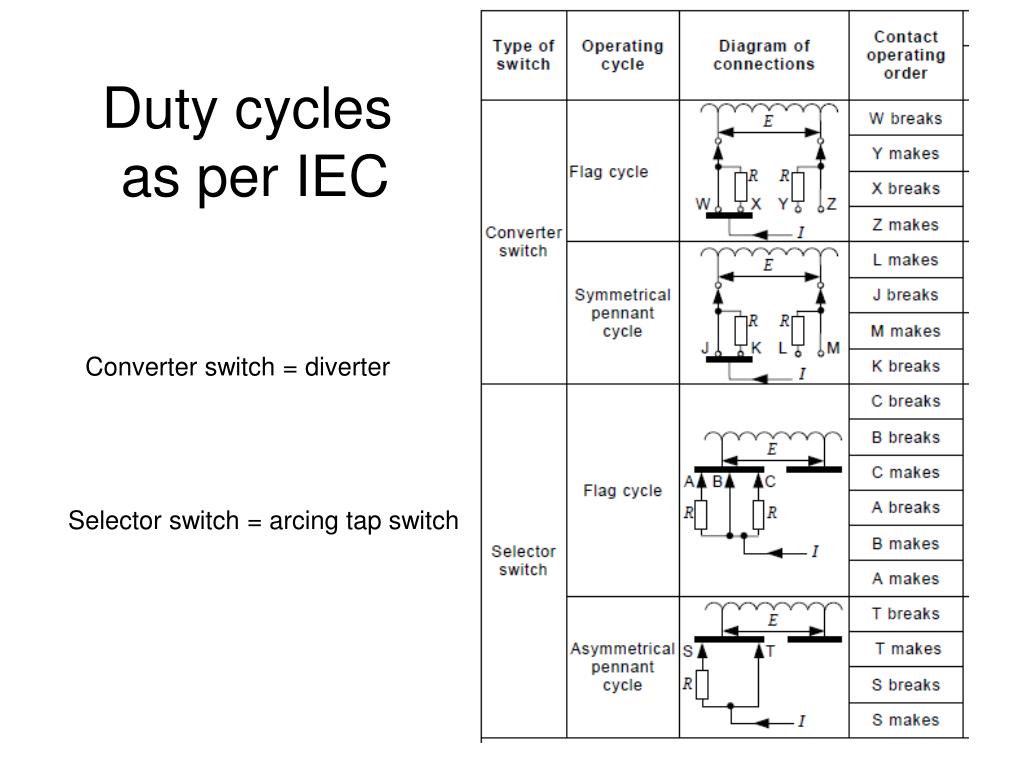

  8. Duty cycles as per IEC Converter switch = diverter Selector switch = arcing tap switch

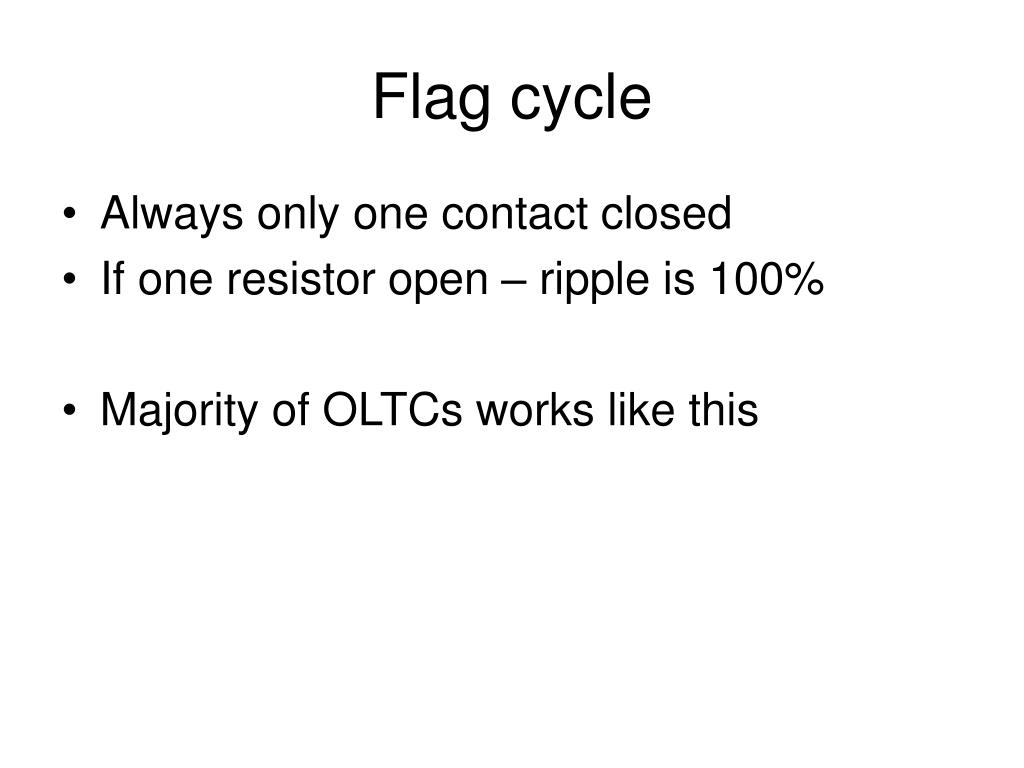

  9. Flag cycle • Always only one contact closed • If one resistor open – ripple is 100% • Majority of OLTCs works like this

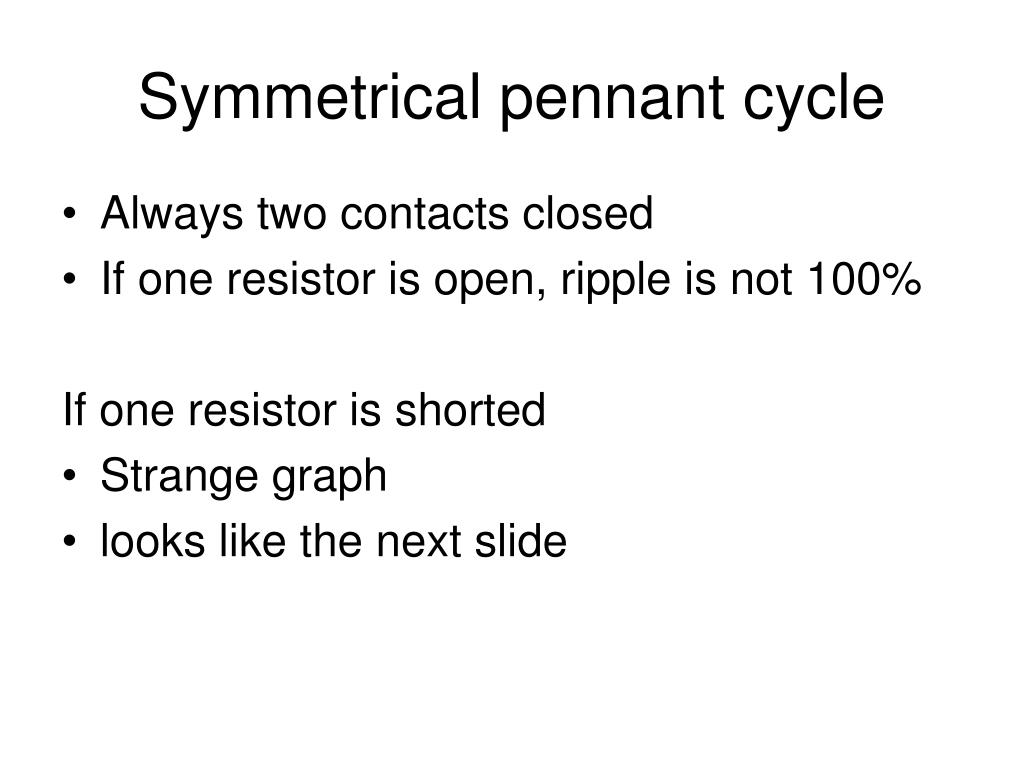

  10. Symmetrical pennant cycle • Always two contacts closed • If one resistor is open, ripple is not 100% If one resistor is shorted • Strange graph • looks like the next slide

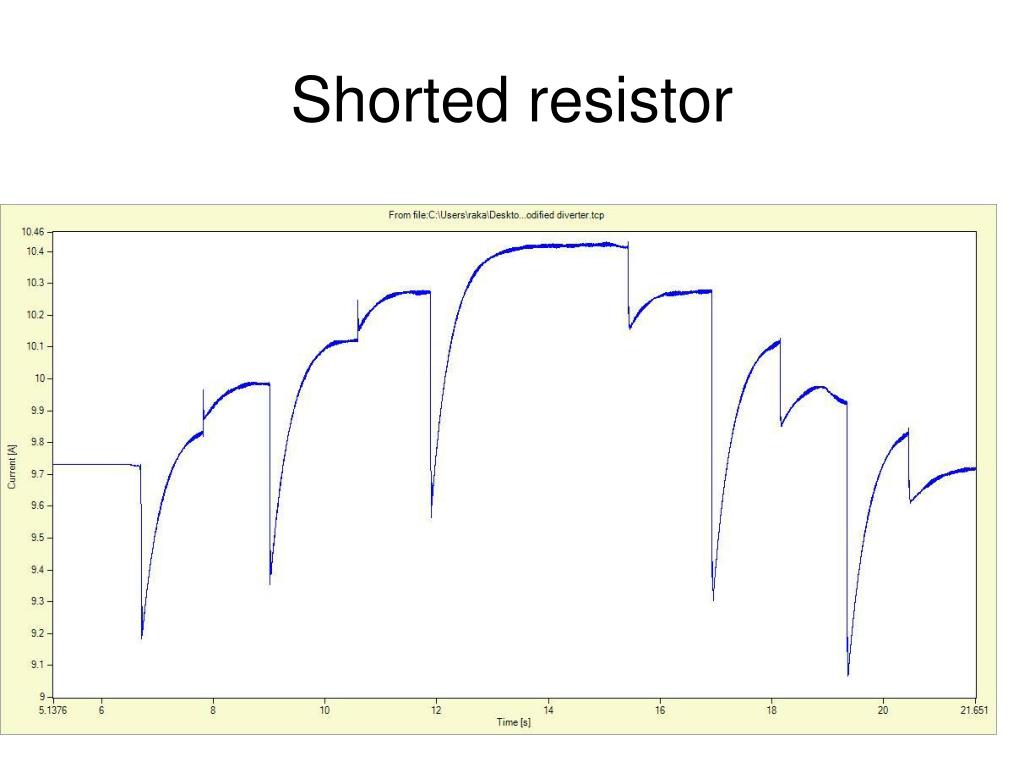

  11. Shorted resistor
