  1. Storm Drainage and Street Maintenance and ConstructionPresentation for the Flooding and Drainage CommitteeSeptember 28, 2010

  2. Overview – Stormwater Drainage System • 2,800 miles of Roadside Storm Ditches • 3,600 miles of Storm Sewer Line • 14 Stormwater Pump Stations • 1,900 Outfalls • 9 Detention Basins

  3. Overview – City Streets and Bridges • 16,000 lane-miles • 2,400 lane-miles –Major Thoroughfares • 5,600 lane-miles - Collectors • 8,000 lane-miles - Local Streets • 1,619 Bridges • 2,400 Traffic Signals

  4. Storm Drainage Maintenance • Major Off-Road Ditch Inspection & Maint. • $2,408,231 • 244 miles • Herbicide Application • $424,395 • 16,000 Acres

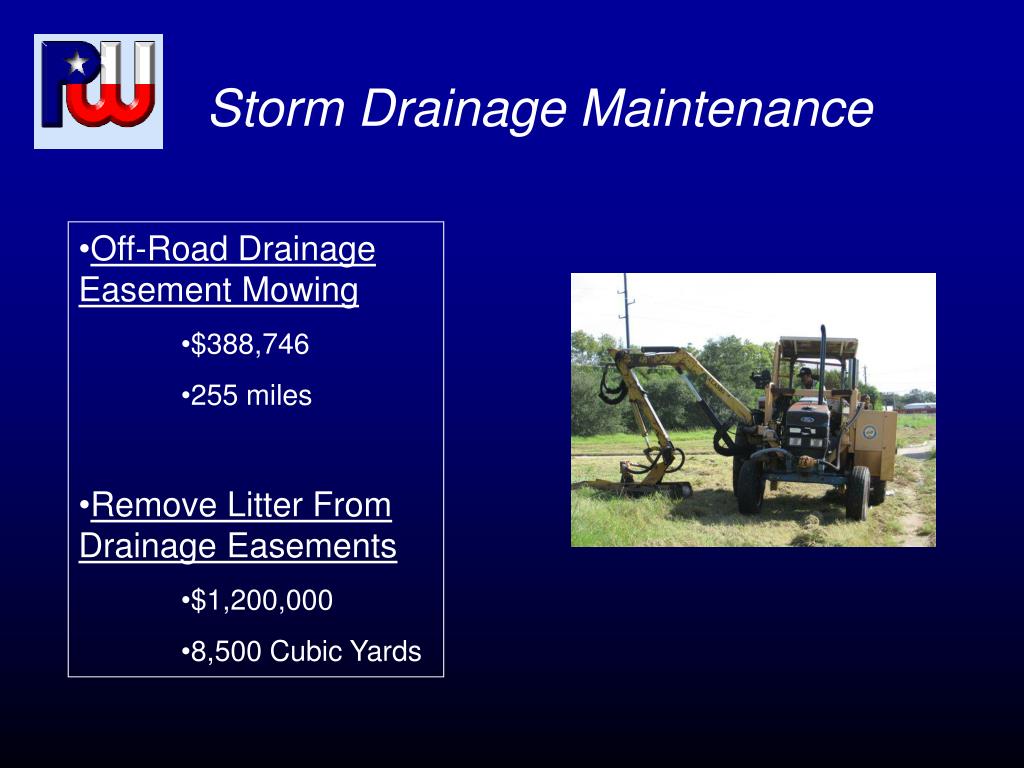

  5. Storm Drainage Maintenance • Off-Road Drainage Easement Mowing • $388,746 • 255 miles • Remove Litter From Drainage Easements • $1,200,000 • 8,500 Cubic Yards

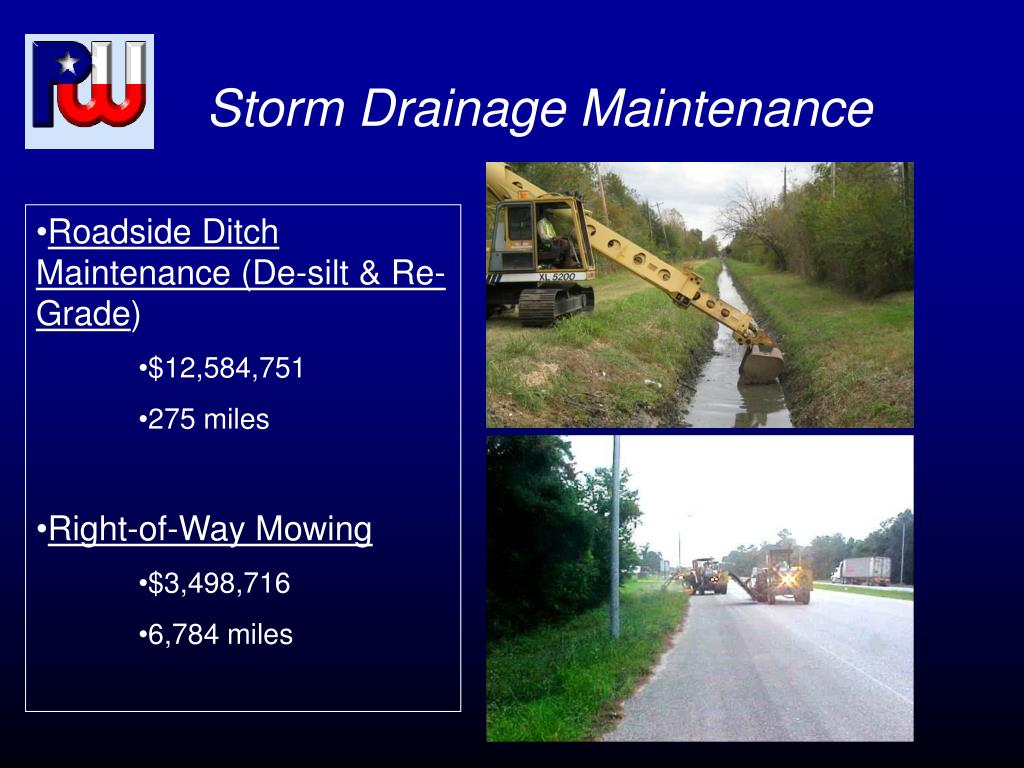

  6. Storm Drainage Maintenance • Roadside Ditch Maintenance (De-silt & Re-Grade) • $12,584,751 • 275 miles • Right-of-Way Mowing • $3,498,716 • 6,784 miles

  7. Storm Drainage Maintenance • Storm Water Inspections • $1,574,212 • 1,400 Inspections • Outfall Inspections & Representative Monitoring • $483,508 • 418 Inspections • Inlet/Manhole & Line Inspections • $3,218,296 • 60,000 Inlets / Manholes • 240 miles of Line

  8. Storm Drainage Maintenance • Inlet/Manhole & Line Cleaning and Repair • $8,728,408 • 21,788 Manholes and Inlets • 89 miles of Line • Gutter Sweeping • $1,507,459 • 21,500 lane-miles

  9. Street Maintenance • Pothole Repair • $936,026 • 2,000 Tons • Skin Patching • $6,552,185 • 14,000 Tons

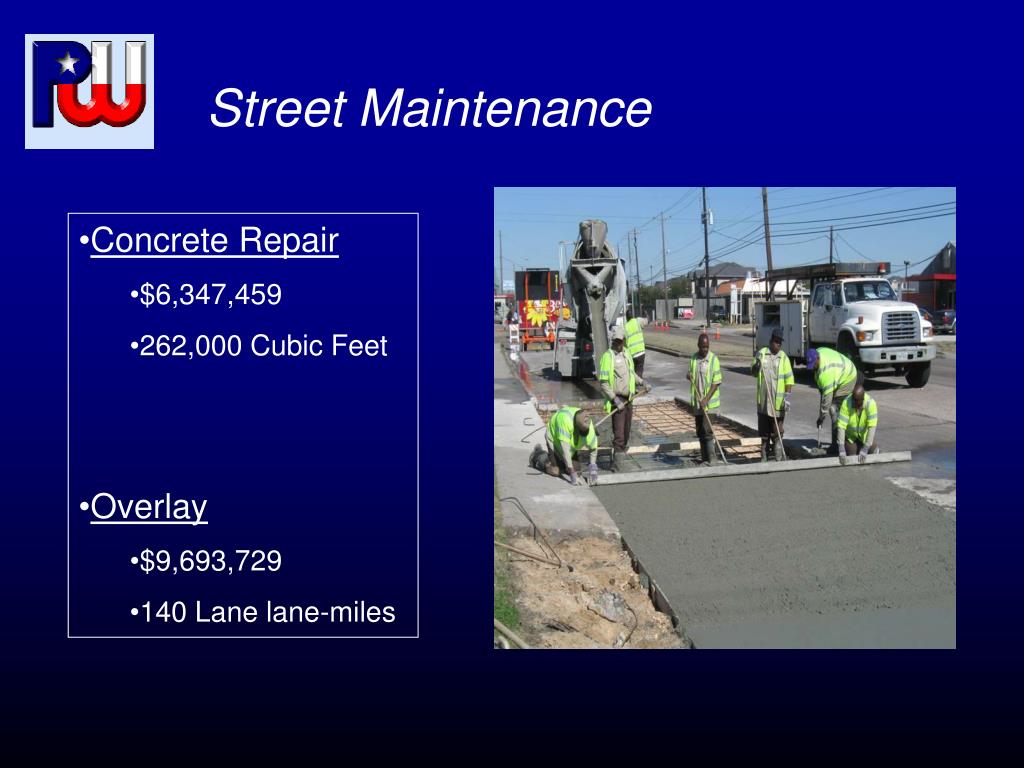

  10. Street Maintenance • Concrete Repair • $6,347,459 • 262,000 Cubic Feet • Overlay • $9,693,729 • 140 Lane lane-miles

  11. Street Maintenance: Bridges • Bridge / Barricade Maintenance • $3,044,741 • 5,350 Total

  12. Street Maintenance • Maintain Traffic Signs • $2,675,114 • 40,000 Units • Maintain Pavement Markings • $1,315,276 • 4,300,000 Linear Feet • Maintain Traffic Signals • $5,839,346 • 6,450 Units • Maintain Freeway Lighting • $1,263,543 • 15,000 Units

  13. Maintenance Total • O & M FY11 • Storm: $33.0 M • Street: $48.8 M

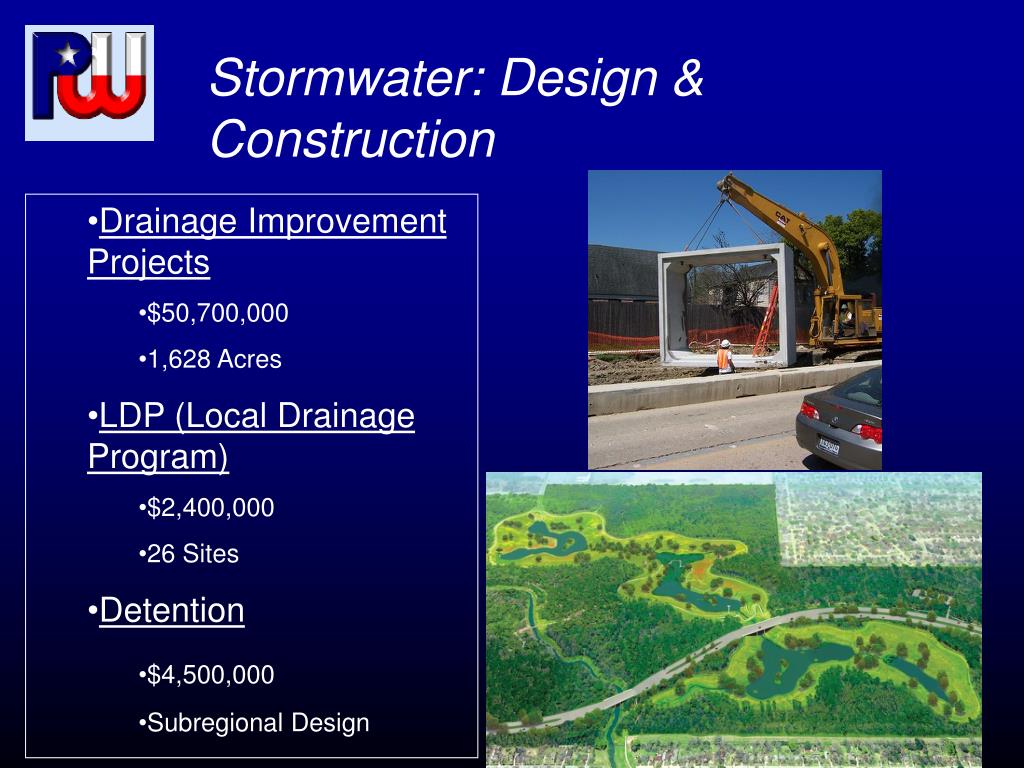

  14. Stormwater: Design & Construction • Drainage Improvement Projects • $50,700,000 • 1,628 Acres • LDP (Local Drainage Program) • $2,400,000 • 26 Sites • Detention • $4,500,000 • Subregional Design

  15. Street Construction • MT Overlay • $7,000,000 • 56 lane-miles • MT Reconstruction • $79,900,000 • 57 lane-miles • MT Construction • $14,140,000 • 10 lane-miles

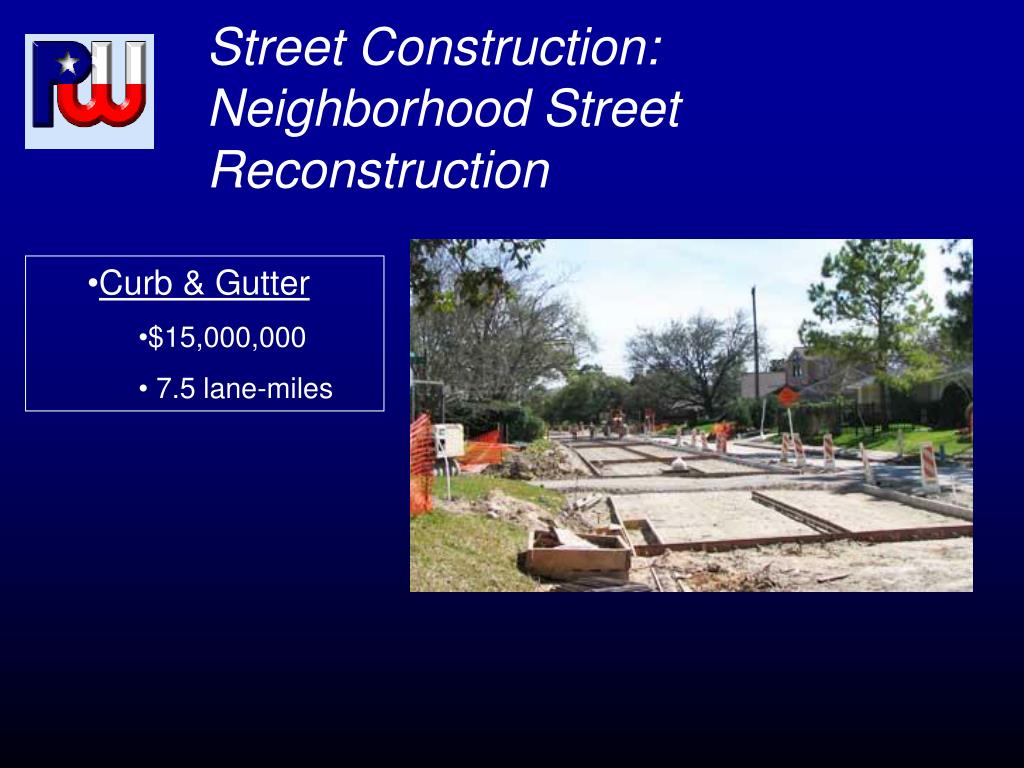

  16. Street Construction: Neighborhood Street Reconstruction • Curb & Gutter • $15,000,000 • 7.5 lane-miles

  17. Street Construction: Bridges • Wooden Bridge Structure Replaced with Wood or Concrete • $1,186,059 • 8 Structures Total – 4 wood, 4 concrete

  18. Capital Totals • CIP FY11 • Storm: $57,600,000 • Street & Bridge: $87,170,000 (PIB & Metro) • Total: $144,770,000

  19. Select FY 11 Capital Projects: Storm Drainage • Local Drainage Projects • Kirkwood Drive (Briar Forest) • Whiteheather, Phase III • Astoria Boulevard (Scarsdale) • Brays Village • Bellaire West

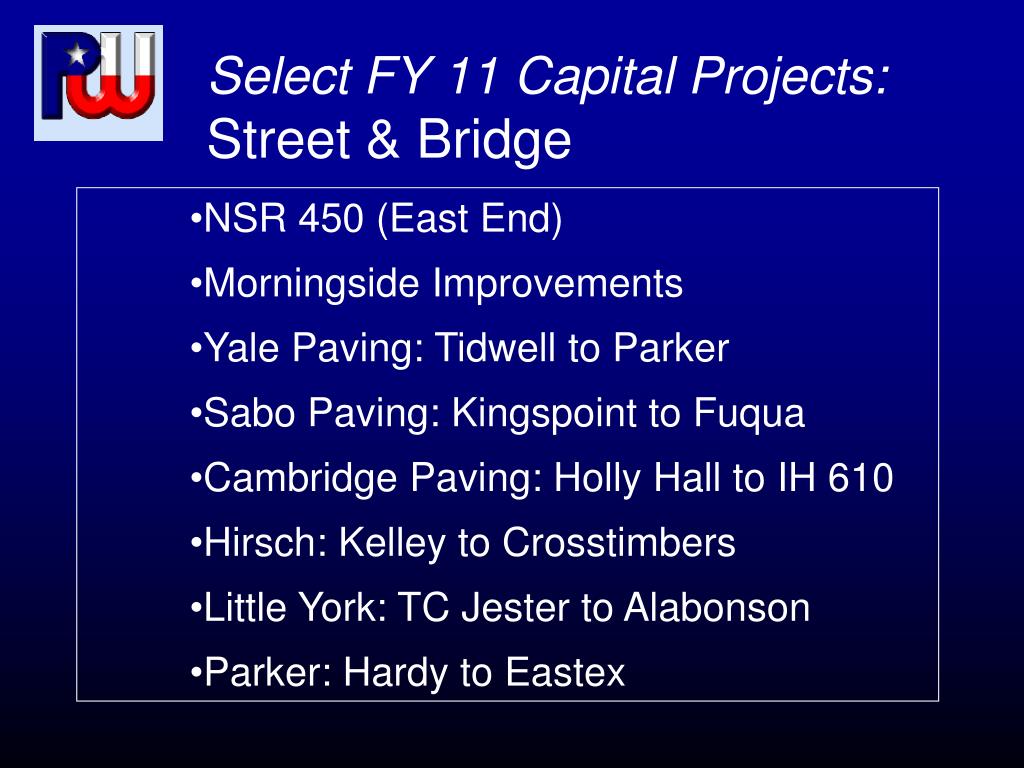

  20. Select FY 11 Capital Projects: Street & Bridge • NSR 450 (East End) • Morningside Improvements • Yale Paving: Tidwell to Parker • Sabo Paving: Kingspoint to Fuqua • Cambridge Paving: Holly Hall to IH 610 • Hirsch: Kelley to Crosstimbers • Little York: TC Jester to Alabonson • Parker: Hardy to Eastex

  21. Capital ProjectsCIP FY 11 to 15 • Storm: ~$57M per year • Street: ~$100M per year

  22. Storm Drainage and Street Maintenance and ConstructionPresentation for the Flooding and Drainage CommitteeSeptember 28, 2010
