  1. Number Systems Decimal, Binary, and Hexadecimal

  2. Base-N Number System • Base N • N Digits: 0, 1, 2, 3, 4, 5, …, N-1 • Example: 1045N • Positional Number System • Digit do is the least significant digit (LSD). • Digit dn-1 is the most significant digit (MSD).

  3. Decimal Number System • Base 10 • Ten Digits: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9 • Example: 104510 • Positional Number System • Digit d0 is the least significant digit (LSD). • Digit dn-1 is the most significant digit (MSD).

  4. Binary Number System • Base 2 • Two Digits: 0, 1 • Example: 10101102 • Positional Number System • Binary Digits are called Bits • Bit bo is the least significant bit (LSB). • Bit bn-1 is the most significant bit (MSB).

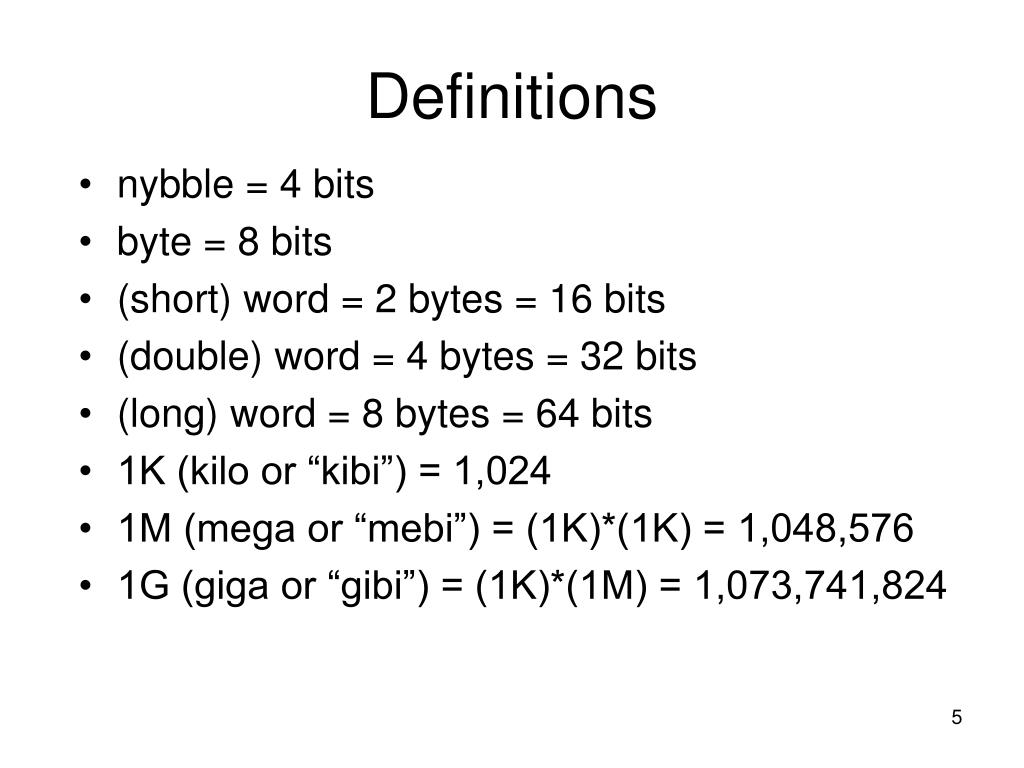

  5. Definitions • nybble = 4 bits • byte = 8 bits • (short) word = 2 bytes = 16 bits • (double) word = 4 bytes = 32 bits • (long) word = 8 bytes = 64 bits • 1K (kilo or “kibi”) = 1,024 • 1M (mega or “mebi”) = (1K)*(1K) = 1,048,576 • 1G (giga or “gibi”) = (1K)*(1M) = 1,073,741,824

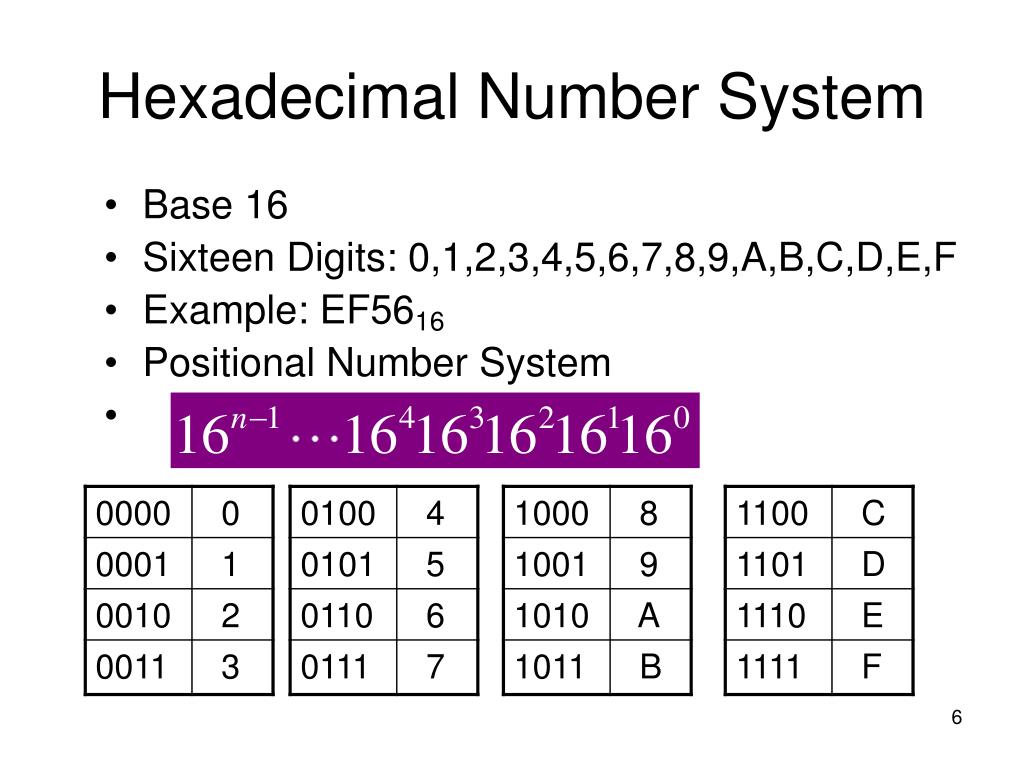

  6. Hexadecimal Number System • Base 16 • Sixteen Digits: 0,1,2,3,4,5,6,7,8,9,A,B,C,D,E,F • Example: EF5616 • Positional Number System

  7. Collaborative Learning Learning methodology in which students are not only responsible for their own learning but for the learning of other members of the group.

  8. Think - Pair - Share (TPS) Quizzes • Think – Pair – Share • Think individually for one time units • Pair with partner for two time units • Share with group for one and half time units • Report results

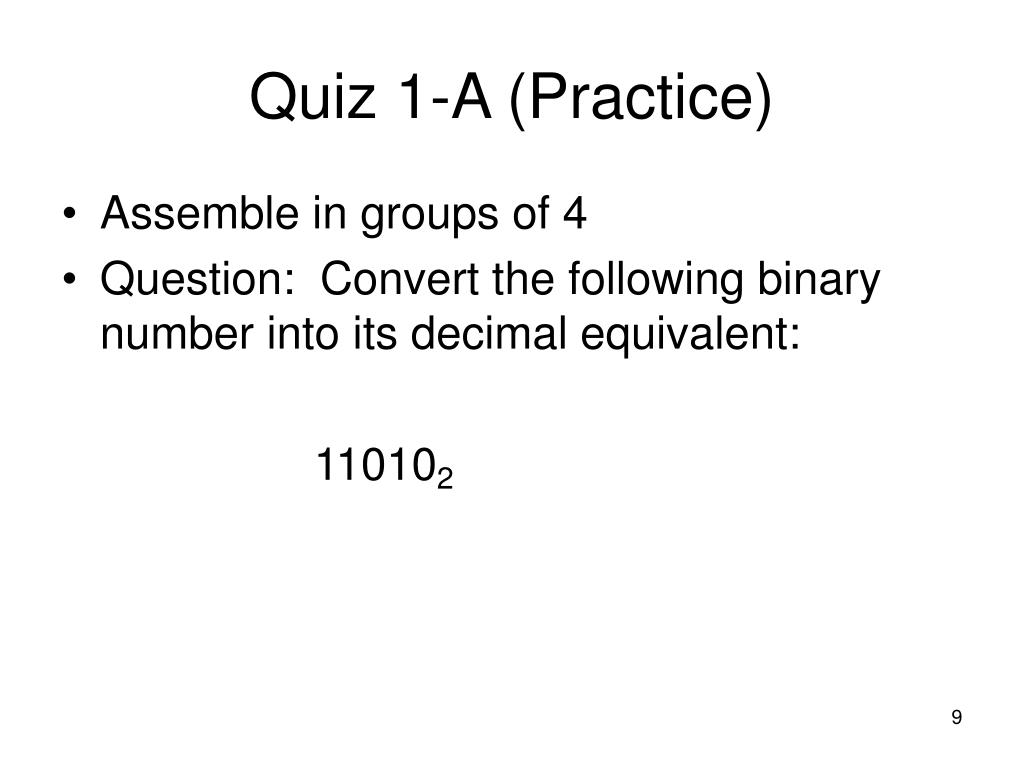

  9. Quiz 1-A (Practice) • Assemble in groups of 4 • Question: Convert the following binary number into its decimal equivalent: 110102

  10. Quiz 1-A (Practice) THINK One Unit (e.g. 30 Seconds)

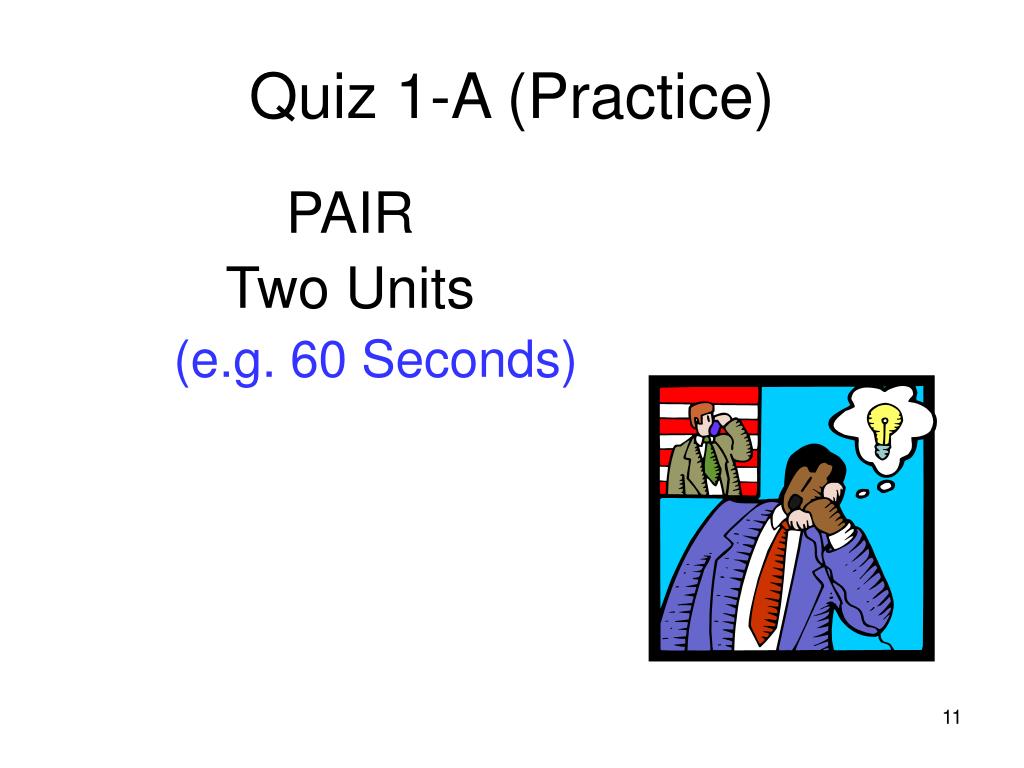

  11. Quiz 1-A (Practice) PAIR Two Units (e.g. 60 Seconds)

  12. Quiz 1-A (Practice) SHARE 1.5 units (e.g. 45 Seconds)

  13. Quiz 1-A (Practice) Report • Write names of all group members and the consensus answer on one sheet of paper. • All sheets will be collected. • One will be picked at random to read to the class. • All papers will be graded!

  14. Quiz 1-A Solution • Convert the following number into base 10 decimal:

  15. Quiz 1-B • Convert the following number into base 10 decimal: 1010116

  16. Collaborative Learning • Think for 30 seconds • Pair for 1 minute • Share for 45 seconds • Report

  17. Quiz 1-B Solution • Convert the following number into base 10 decimal: 1010116 = 1·164 + 0·163 + 1·162 + 0·161 + 1·160 = 164 + 162 + 160 = 65,536 + 256 + 1 = 65,793

  18. TPS Quiz 2

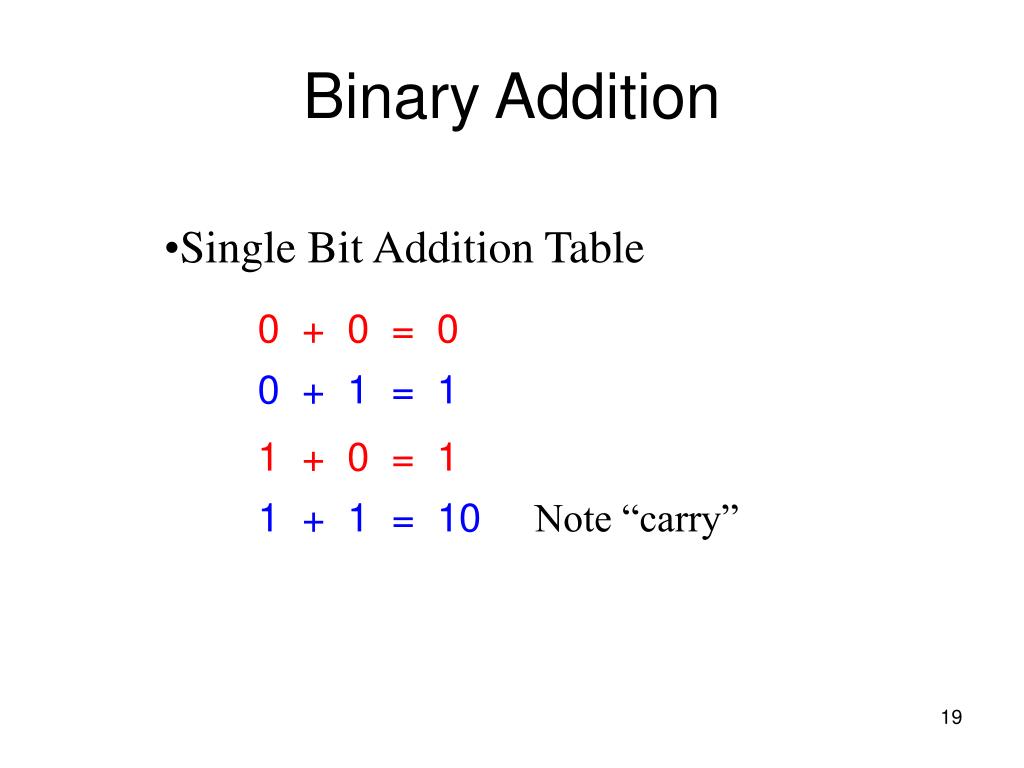

  19. Binary Addition • Single Bit Addition Table 0 + 0 = 0 0 + 1 = 1 1 + 0 = 1 1 + 1 = 10 Note “carry”

  20. Hex Addition • 4-bit Addition 4 + 4 = 8 4 + 8 = C 8 + 7 = F F + E = 1D Note “carry”

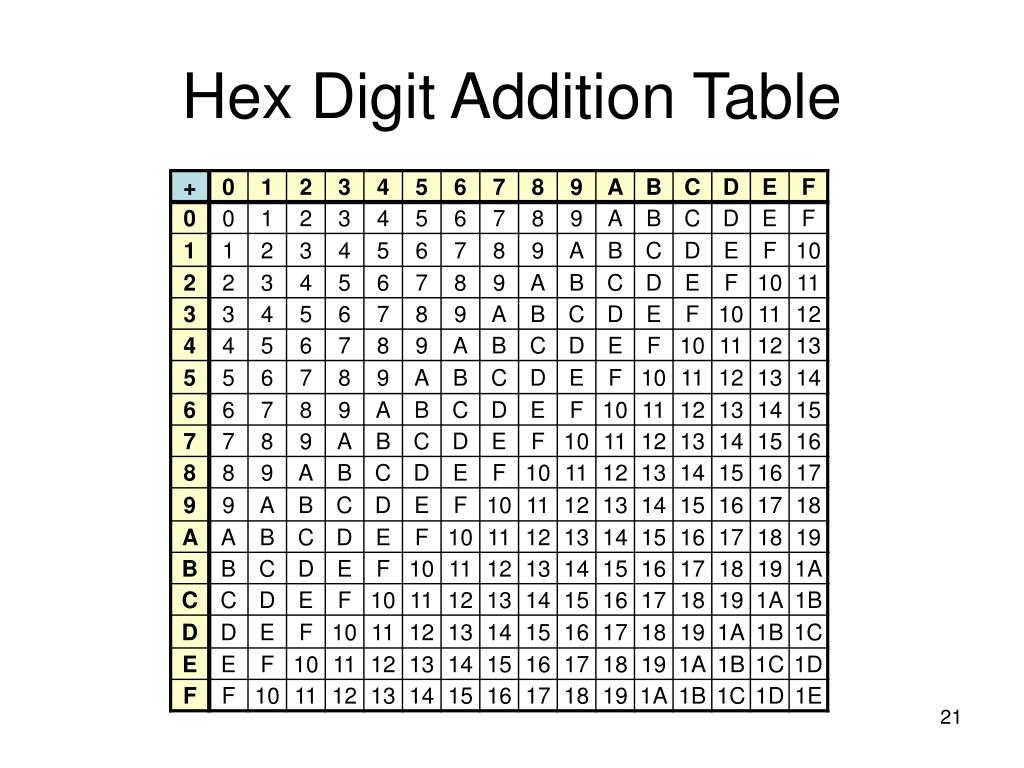

  21. Hex Digit Addition Table

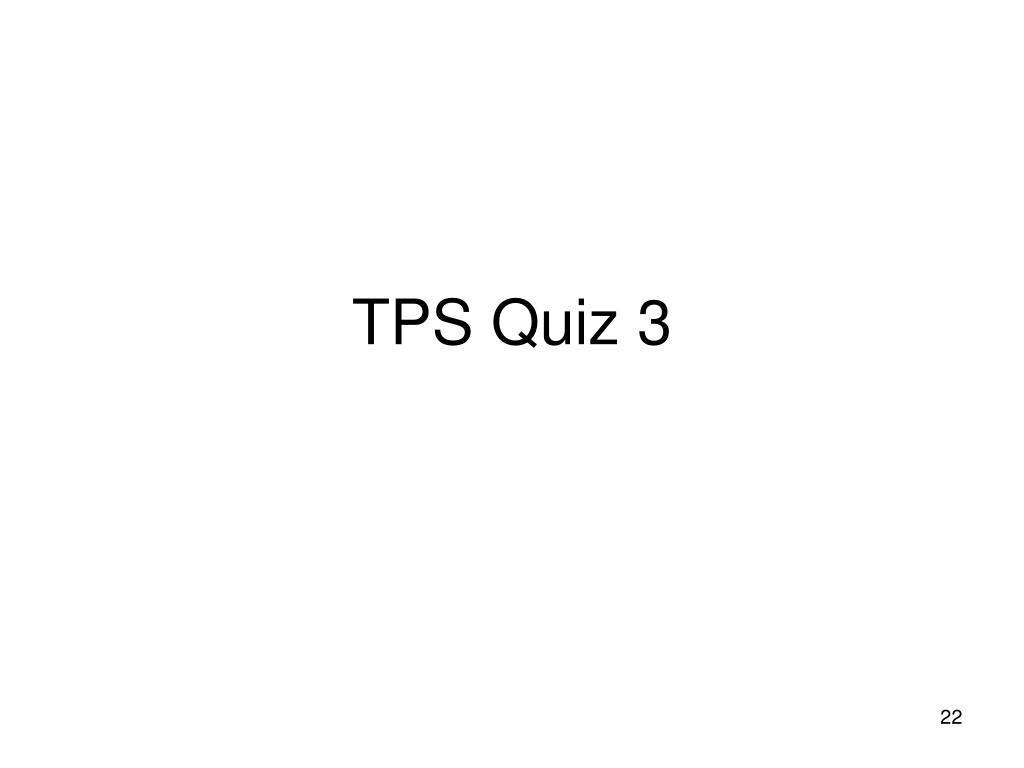

  22. TPS Quiz 3

  23. Complements • 1’s complement • To calculate the 1’s complement of a binary number just “flip” each bit of the original binary number. • E.g. 0  1 , 1  0 • 01010100100  10101011011

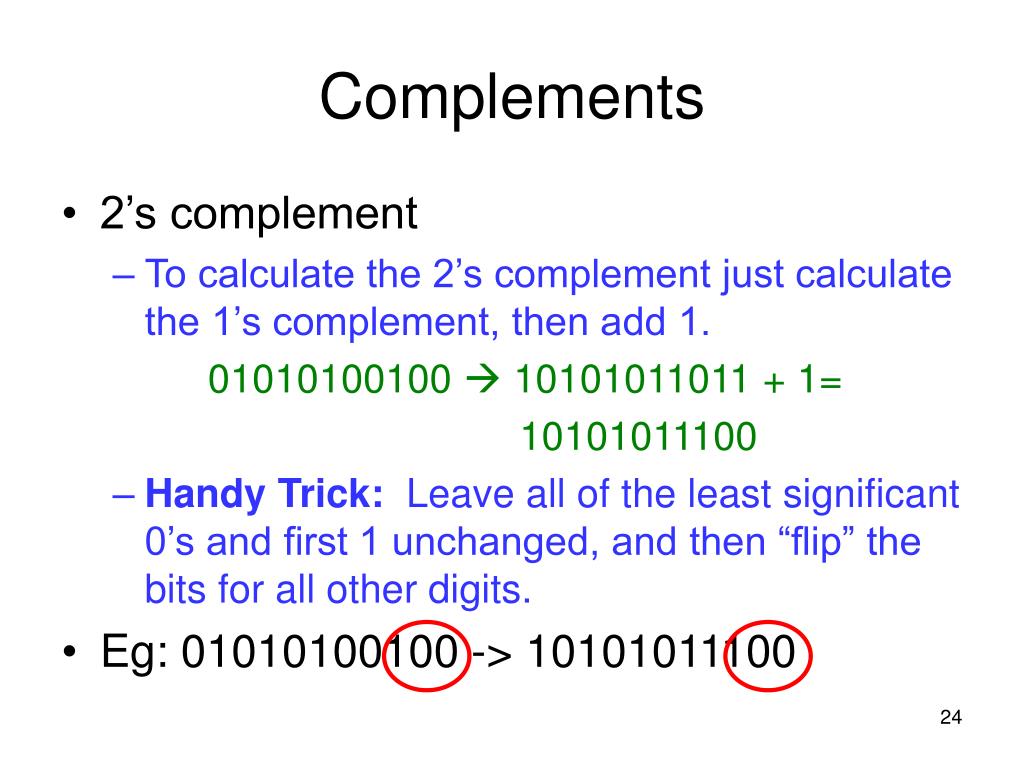

  24. Complements • 2’s complement • To calculate the 2’s complement just calculate the 1’s complement, then add 1. 01010100100  10101011011 + 1= 10101011100 • Handy Trick: Leave all of the least significant 0’s and first 1 unchanged, and then “flip” the bits for all other digits. • Eg: 01010100100 -> 10101011100

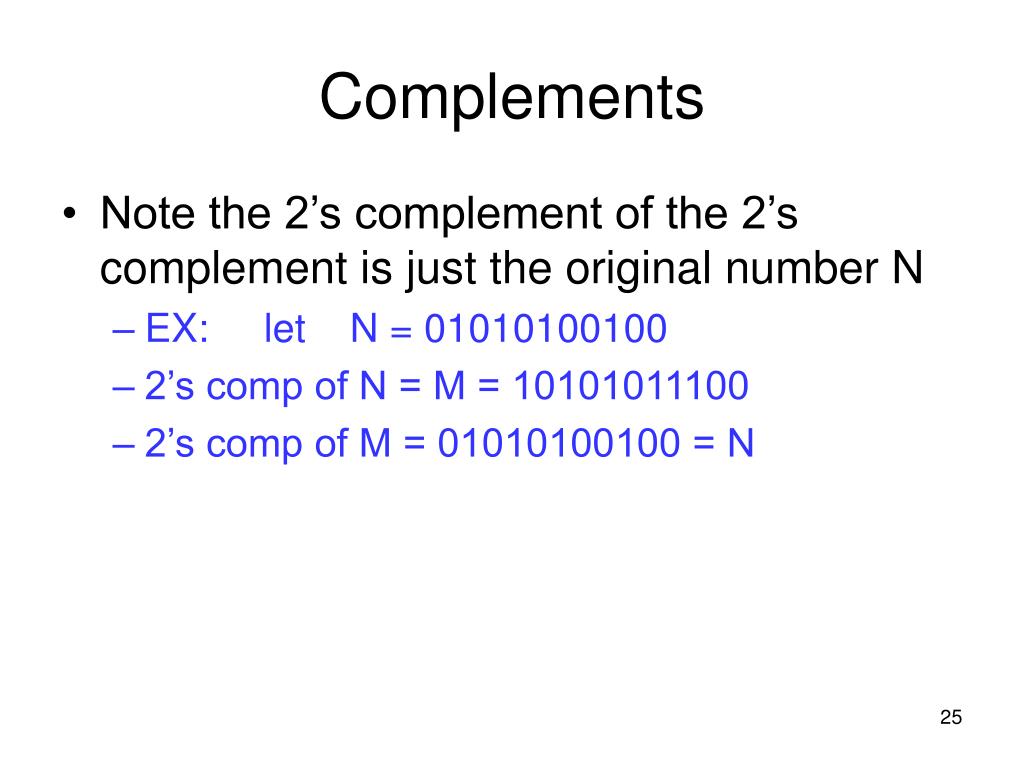

  25. Complements • Note the 2’s complement of the 2’s complement is just the original number N • EX: let N = 01010100100 • 2’s comp of N = M = 10101011100 • 2’s comp of M = 01010100100 = N

  26. Two’s Complement Representation for Signed Numbers • Let’s introduce a notation for negative digits: • For any digit d, define d = −d. • Notice that in binary, where d {0,1}, we have: • Two’s complement notation: • To encode a negative number, we implicitly negate the leftmost (most significant) bit: • E.g., 1000 = (−1)000 = −1·23 + 0·22 + 0·21 + 0·20 = −8

  27. Negating in Two’s Complement • Theorem: To negatea two’s complementnumber, just complement it and add 1. • Proof (for the case of 3-bit numbers XYZ):

  28. Signed Binary Numbers • Two methods: • First method: sign-magnitude • Use one bit to represent the sign • 0 = positive, 1 = negative • Remaining bits are used to represent the magnitude • Range - (2n-1 – 1) to 2n-1 - 1 where n=number of digits • Example: Let n=4: Range is –7 to 7 or • 1111 to 0111

  29. Signed Binary Numbers • Second method: Two’s-complement • Use the 2’s complement of N to represent -N • Note: MSB is 0 if positive and 1 if negative • Range - 2n-1 to 2n-1 -1 where n=number of digits • Example: Let n=4: Range is –8 to 7 Or 1000 to 0111

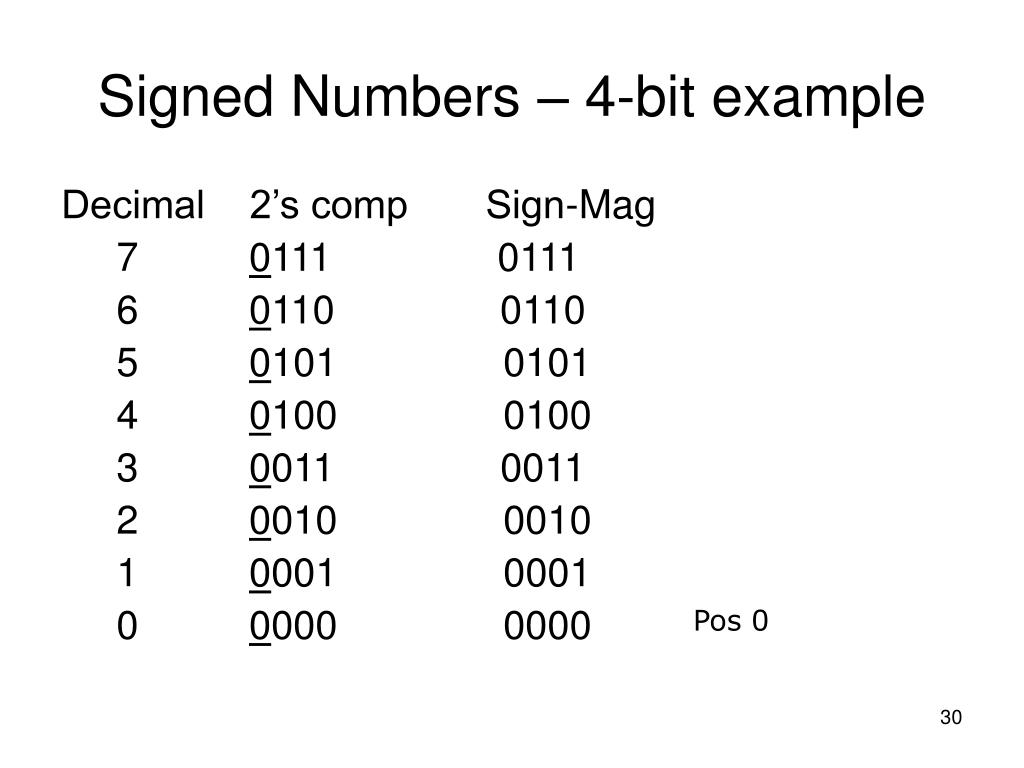

  30. Signed Numbers – 4-bit example Decimal 2’s comp Sign-Mag 7 0111 0111 6 0110 0110 5 0101 0101 4 0100 0100 3 0011 0011 2 0010 0010 1 0001 0001 0 0000 0000 Pos 0

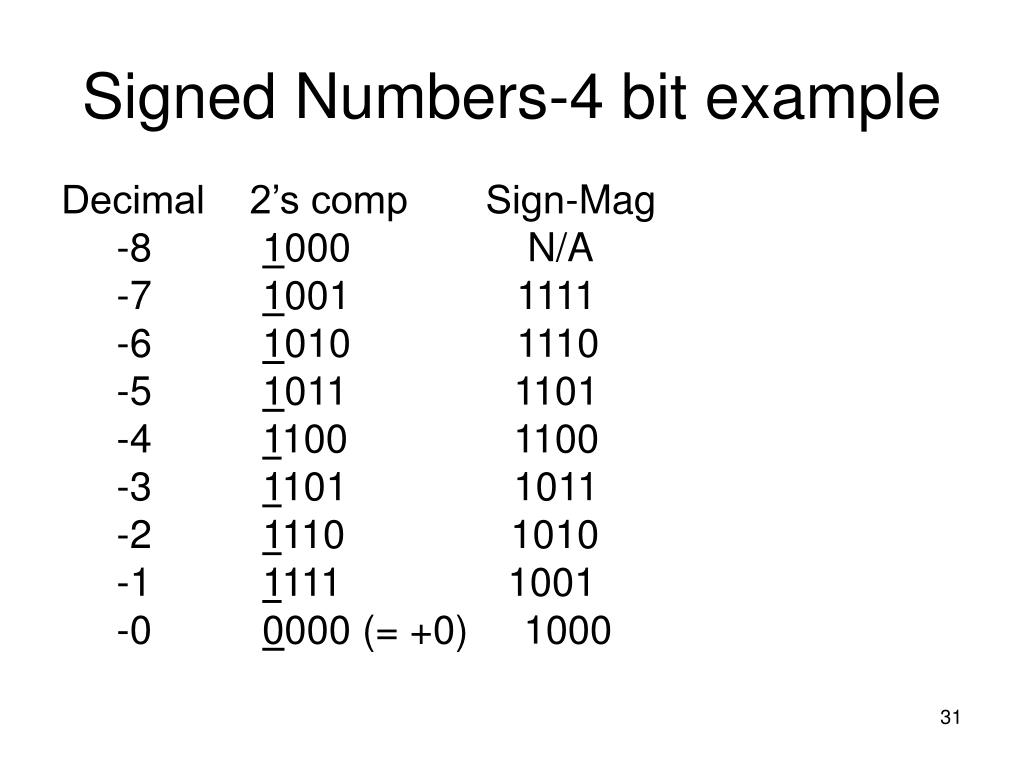

  31. Signed Numbers-4 bit example Decimal 2’s comp Sign-Mag -8 1000 N/A -7 1001 1111 -6 1010 1110 -5 1011 1101 -4 1100 1100 -3 1101 1011 -2 1110 1010 -1 1111 1001 -0 0000 (= +0) 1000

  32. Notes: • “Humans” normally use sign-magnitude representation for signed numbers • Eg: Positive numbers: +N or N • Negative numbers: -N • Computers generally use two’s-complement representation for signed numbers • First bit still indicates positive or negative. • If the number is negative, take 2’s complement to determine its magnitude • Or, just add up the values of bits at their positions, remembering that the first bit is implicitly negative.

  33. Example • Let N=4: two’s-complement • What is the decimal equivalent of 01012 Since msb is 0, number is positive 01012 = 4+1 = +510 • What is the decimal equivalent of 11012 = • Since MSB is one, number is negative • Must calculate its 2’s complement • 11012 = −(0010+1)= − 00112 or −310

  34. Very Important!!! – Unless otherwise stated, assume two’s-complement numbers for all problems, quizzes, HW’s, etc.The first digit will not necessarily be explicitly underlined.

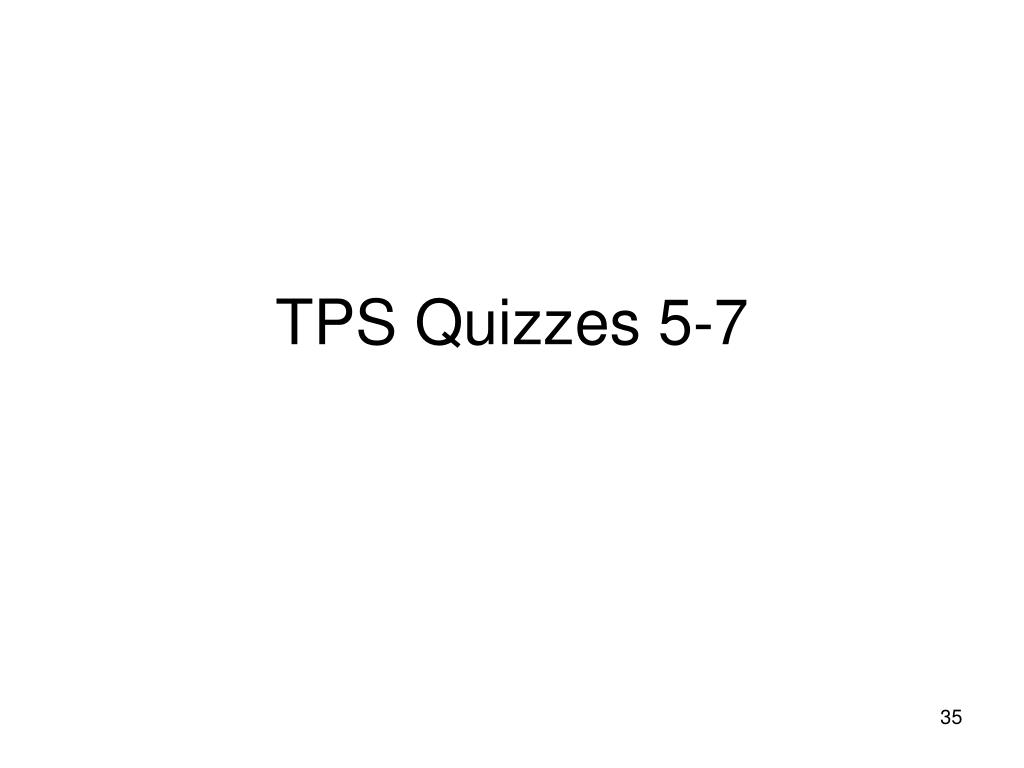

  35. TPS Quizzes 5-7

  36. Arithmetic Subtraction • Borrow Method • This is the technique you learned in grade school • For binary numbers, we have 0 - 0 = 0 1 - 0 = 1 1 - 1 = 0 1 0 - 1 = 1 with a “borrow”

  37. Binary Subtraction • Note: • A – (+B) = A + (-B) • A – (-B) = A + (-(-B))= A + (+B) • In other words, we can “subtract” B from A by “adding” –B to A. • However, -B is just the 2’s complement of B, so to perform subtraction, we • 1. Calculate the 2’s complement of B • 2. Add A + (-B)

  38. Binary Subtraction - Example • Let n=4, A=01002 (410), and B=00102 (210) • Let’s find A+B, A-B and B-A 0 1 0 0 + 0 0 1 0  (4)10 A+B  (2)10 0 11 0 6

  39. Binary Subtraction - Example 0 1 0 0 - 0 0 1 0  (4)10 A-B  (2)10 0 1 0 0 + 1 1 1 0  (4)10 A+ (-B)  (-2)10 10 0 1 0 2 “Throw this bit” away since n=4

  40. Binary Subtraction - Example 0 0 1 0 - 0 1 0 0  (2)10 B-A  (4)10 0 0 1 0 + 1 1 0 0  (2)10 B + (-A)  (-4)10 1 1 1 0 -2 1 1 1 02 = - 0 0 1 02 = -210

  41. “16’s Complement” method • The 16’s complement of a 16 bit Hexadecimal number is just: • =1000016 – N16 • Q: What is the decimal equivalent of B2CE16 ?

  42. 16’s Complement • Since sign bit is one, number is negative. Must calculate the 16’s complement to find magnitude. • =1000016 – B2CE16 = ????? • We have 10000 - B2CE

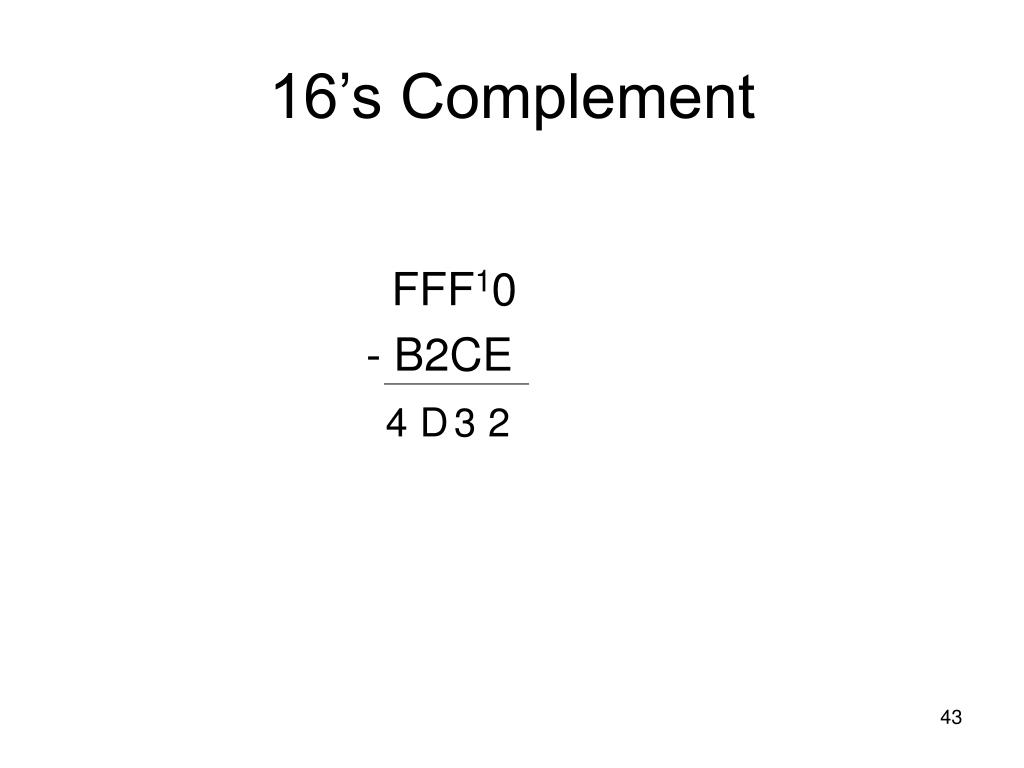

  43. 16’s Complement FFF10 - B2CE 4 D 3 2

  44. 16’s Complement • So, 1000016 – B2CE16 = 4D3216 = 4×4,096 + 13×256 + 3×16 + 2 = 19,76210 • Thus, B2CE16 (in signed-magnitude)represents -19,76210.

  45. Sign Extension

  46. Sign Extension • Assume a signed binary system • Let A = 0101 (4 bits) and B = 010 (3 bits) • What is A+B? • To add these two values we need A and B to be of the same bit width. • Do we truncate A to 3 bits or add an additional bit to B?

  47. Sign Extension • A = 0101 and B=010 • Can’t truncate A!! Why? • A: 0101 -> 101 • But 0101 <> 101 in a signed system • 0101 = +5 • 101 = -3

  48. Sign Extension • Must “sign extend” B, • so B becomes 010 -> 0010 • Note: Value of B remains the same So 0101 (5) +0010 (2) -------- 0111 (7) Sign bit is extended

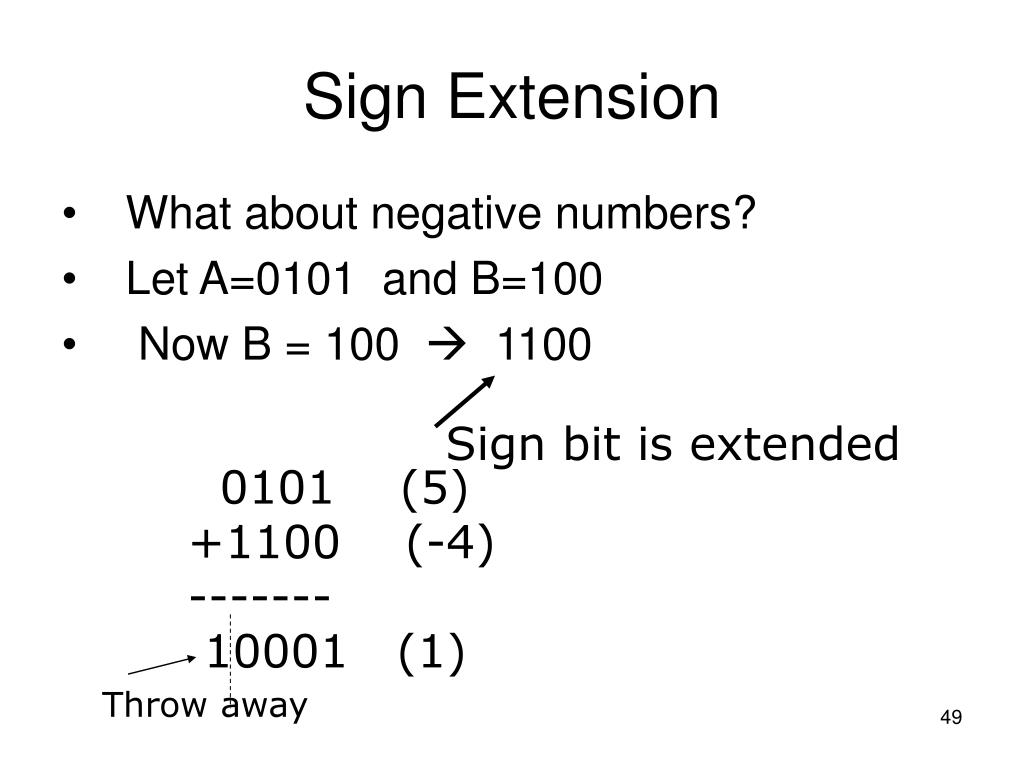

  49. Sign Extension • What about negative numbers? • Let A=0101 and B=100 • Now B = 100  1100 Sign bit is extended 0101 (5) +1100 (-4) ------- 10001 (1) Throw away

  50. Why does sign extension work? • Note that: (−1) = 1 = 11 = 111 = 1111 = 111…1 • Thus, any number of leading 1’s is equivalent, so long as the leftmost one of them is implicitly negative. • Proof:111…1 = −(111…1) = = −(100…0 − 11…1) = −(1) • So, the combined value of any sequence of leading ones is always just −1 times the position value of the rightmost 1 in the sequence. 111…100…0 = (−1)·2n n
