  1. “APPROVED PARTS” • PRESENTED • BY • DON E. GARDNER • AVIATION SAFETY INSPECTOR • CHARLOTTE FSDO #33 • (704) 319-7020

  2. IA 2004

  3. “APPROVED PARTS”

  4. OUR GOAL... • TO ELIMINATE THE POTENTIAL SAFETY RISK POSED BY “UNAPPROVED” PARTS,….

  5. and to accomplish that...

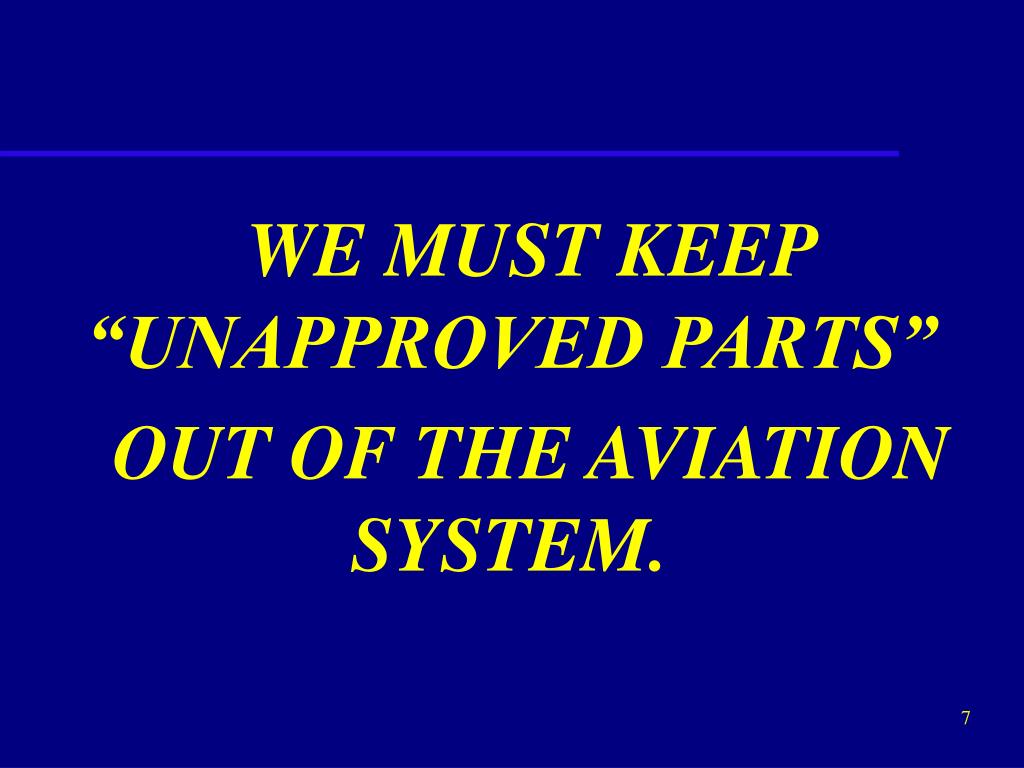

  6. WE MUST KEEP “UNAPPROVED PARTS” • OUT OF THE AVIATION SYSTEM.

  7. TODAY’S TOPICS • HISTORY • DEFINITIONS • ACTIONS • INDICATORS OF FRAUD • DEMONSTRATION

  8. AUGUST 1995 SUP TASK FORCE CONVENED. AFS, AIR, LEA, AGC AND OTHERS. CONDUCTED A THOROUGH REVIEW OF THE SUP ISSUE. BRIEF HISTORY

  9. BUILD ON PAST INITIATIVES MAKE THE SUP PROGRAM MORE EFFECTIVE CONCERNS OF CONGRESS AND THE DOT/OIG HISTORY…continued

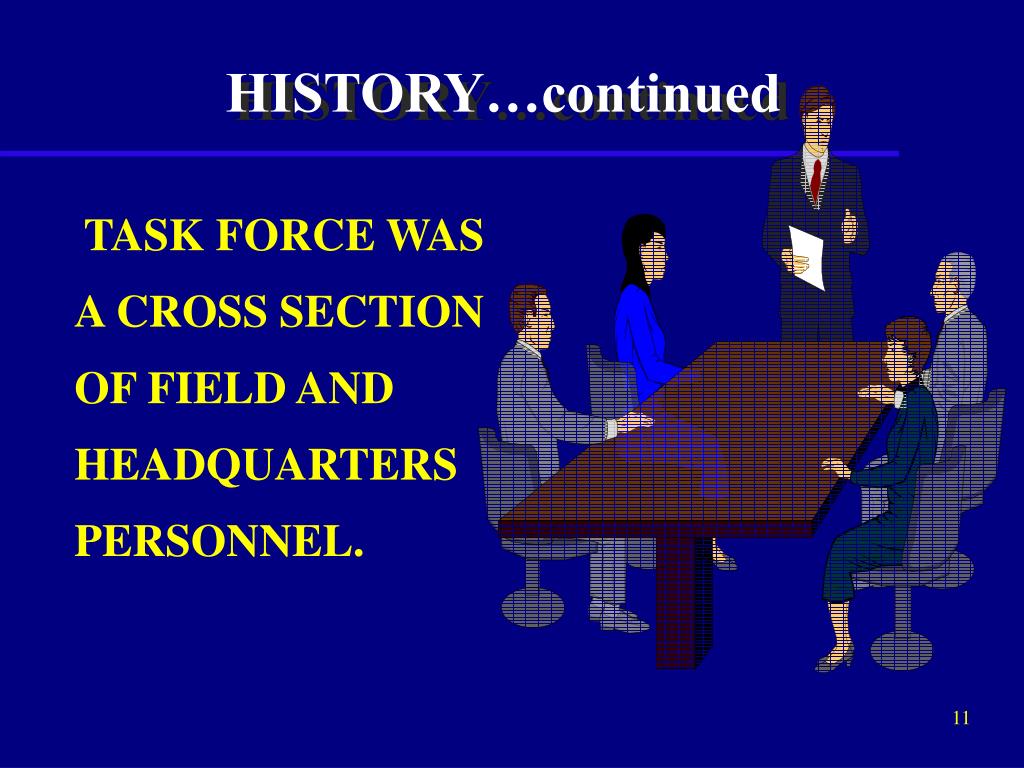

  10. HISTORY…continued • TASK FORCE WAS A CROSS SECTION OF FIELD AND HEADQUARTERS PERSONNEL.

  11. What is an • “APPROVED PART” ?

  12. FAA ORDER 8120.10A DEFINES AN “APPROVED PART“AS... • PRODUCED IAW REQUIREMENTS or EXCEPTIONS OF FAR Part 21, • MAINTAINED IAW FAR Part 43 & 91, and • MEETS APPLICABLE DESIGN STANDARDS.

  13. IS A PART THAT IS ELIGIBLE FOR INSTALLATION ON A TC’d PRODUCTIF: IT HAS AN APPROVED DESIGN IT IS PROPERLY PRODUCED IT IS PROPERLY MAINTAINED IT IS PROPERLY DOCUMENTED An Easier Way of Remembering ...

  14. All pertinent information defined Drawings and specifications show the configuration of the part. Airworthiness limitations defined. APPROVED DESIGN MEANS

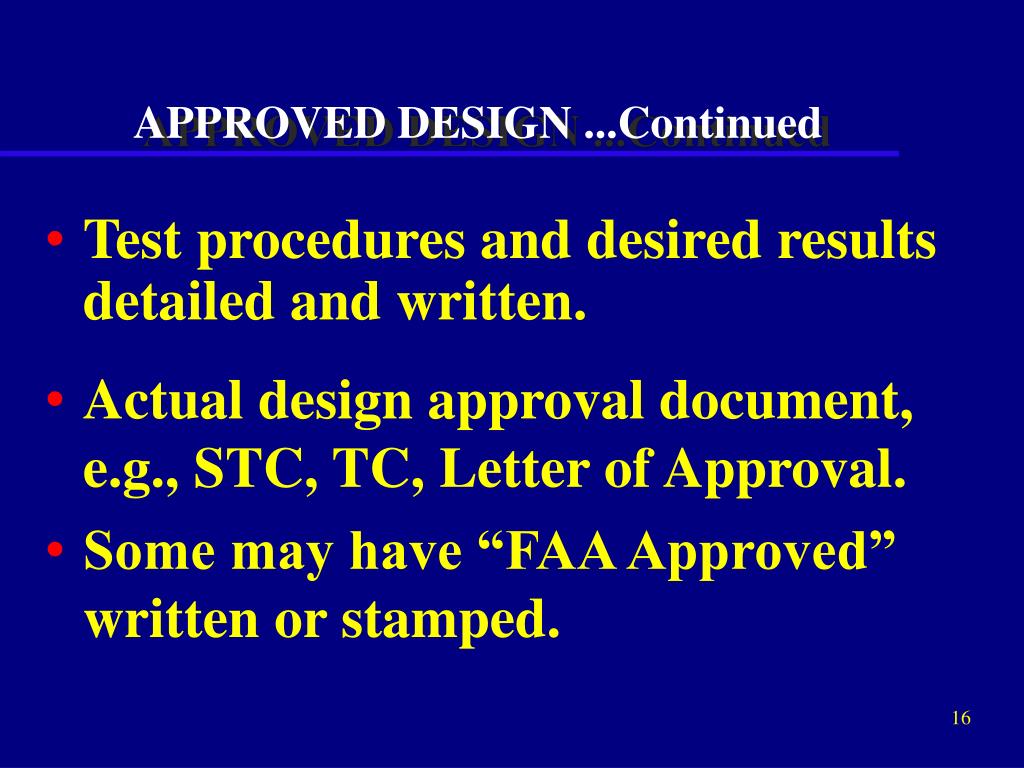

  15. Test procedures and desired results detailed and written. Actual design approval document, e.g., STC, TC, Letter of Approval. Some may have “FAA Approved” written or stamped. APPROVED DESIGN ...Continued

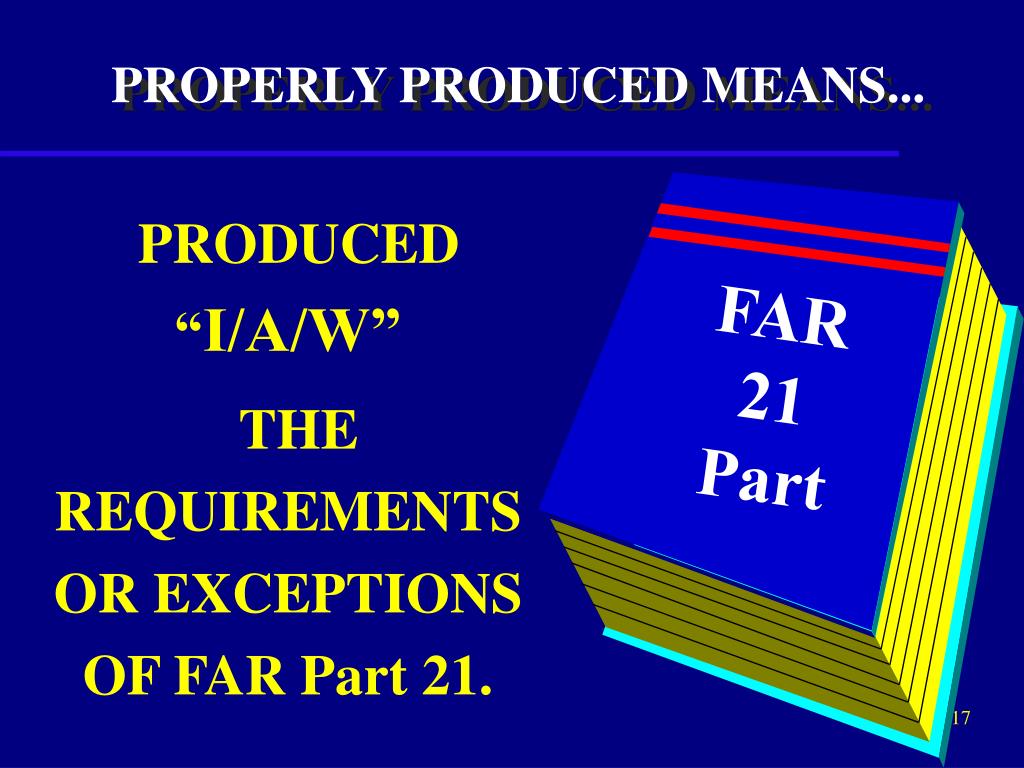

  16. PROPERLY PRODUCED MEANS... • PRODUCED “I/A/W” • THE REQUIREMENTS OR EXCEPTIONS OF FAR Part 21. FAR 21 Part

  17. 1) PMA (Subpart K) 2)TSO (Subpart 0) 3)TC (Subpart B) OR STC (Subpart E) THERE ARE ELEVEN WAYS TO PRODUCE A PART “IAW THE REQUIREMENTS OR EXCEPTIONS OF FAR PART 21”

  18. 4)BILATERAL (Subpart N) 5)OWNER / OPERATOR (Subpart K) 6)TCWITHOUT SEPARATE PRODUCTION AUTHORIZATION (Subpart F) “PROPERLY PRODUCED” …continued

  19. 7)PC INCLUDING A LICENSEE, PC 8)STANDARD PARTS (Subpart K). 9)REPAIR STATIONUNDER STC OR FIELD APPROVAL(FAA ORDER 8000.50, FAR 43) “PROPERLY PRODUCED” …continued

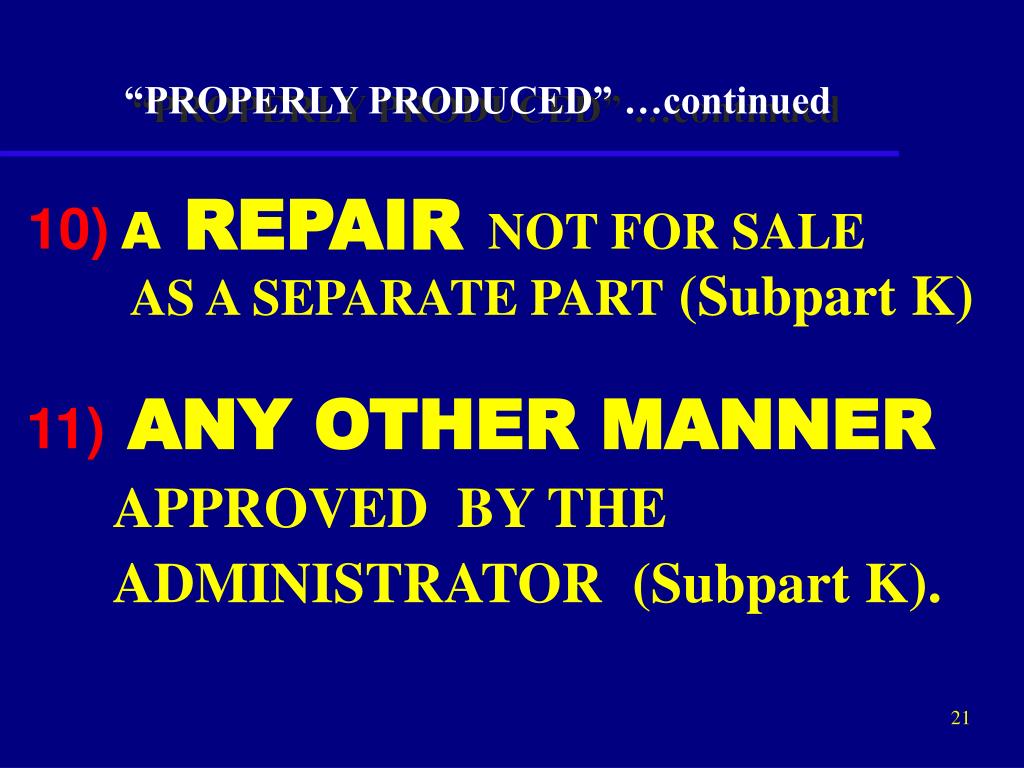

  20. 10)A REPAIRNOT FOR SALE AS A SEPARATE PART (Subpart K) 11)ANY OTHER MANNERAPPROVED BY THE ADMINISTRATOR (Subpart K). “PROPERLY PRODUCED” …continued

  21. PROPERLY MAINTAINED MEANS... • IN ACCORDANCE WITH FAR PART 43 AND 91

  22. FAR 43.13(a) SHALL USE THE METHODS TECHNIQUES AND PRACTICES PRESCRIBED IN THECURRENT MANUFACTURER’S MAINTENANCE MANUAL OR INSTRUCTIONS FOR CONTINUED AIRWORTHINESS OR OTHER METHODS TECHNIQUES AND PRACTICES ACCEPTABLE TO THE ADMINISTRATOR

  23. FAR 43.13(a) CURRENT MANUFACTURER’S MAINTENANCE MANUAL OR INSTRUCTIONS FOR CONTINUED AIRWORTHINESS

  24. FAR 43.13 (b) says... EACH PERSON MAINTAINING OR ALTERING, OR PERFORMING PREVENTIVE MAINTENANCE, SHALL DO THAT WORK IN SUCH A MANNER AND USE MATERIALS OF SUCH QUALITY, THAT THE CONDITION OF THE AIRCRAFT, AIRFRAME, AIRCRAFT ENGINE, PROPELLER, OR APPLIANCE WORKED ON WILL BE AT LEAST EQUAL TO ITS ORIGINAL OR PROPERLY ALTERED CONDITION.

  25. FAR 43.13(b) says... AT LEAST EQUAL TO ITS ORIGINAL OR PROPERLY ALTERED CONDITION

  26. FAR 91 SAYS... • 91.7 (a) NO PERSON MAY OPERATE A CIVIL AIRCRAFT UNLESS IT IS IN A AIRWORTHY CONDITION • 91.403 (b) NO PERSON MAY PERFORM MAINTENANCE …AS PERSCRIBED IN THIS SUBPART …INCLUDING FAR PART 43 ... • 91.403 (c) NO PERSON MAY OPERATE AN AIRCRAFT FOR WHICH A MANUFACTURER MAINTENANCE MANUAL OR INSTRUCTIONS...

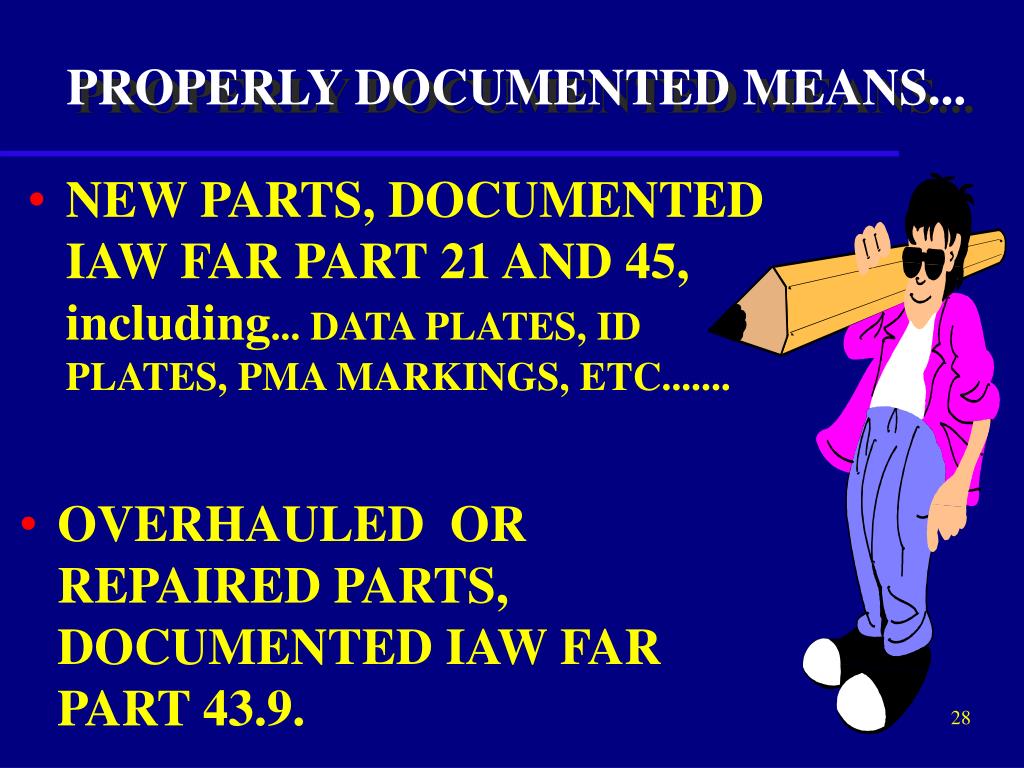

  27. PROPERLY DOCUMENTED MEANS... • NEW PARTS, DOCUMENTED IAW FAR PART 21 AND 45, including... DATA PLATES, ID PLATES, PMA MARKINGS, ETC....... • OVERHAULED OR REPAIRED PARTS, DOCUMENTED IAW FAR PART 43.9.

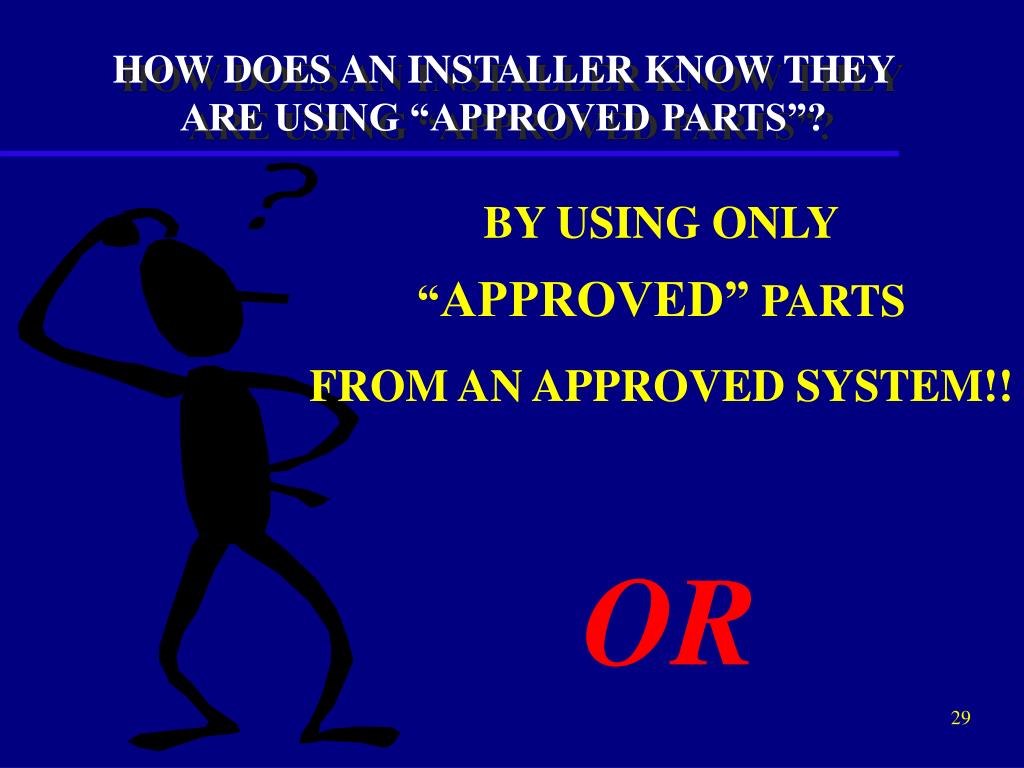

  28. BY USING ONLY “APPROVED” PARTS FROM AN APPROVED SYSTEM!! OR HOW DOES AN INSTALLER KNOW THEY ARE USING “APPROVED PARTS”?

  29. DETERMINE THAT PARTS CONFORMTO TYPE DESIGN BY USING TECHNICAL DATA, BLUE PRINTS OR OTHER SPECIFICATIONS.

  30. DID YOU KNOW ?

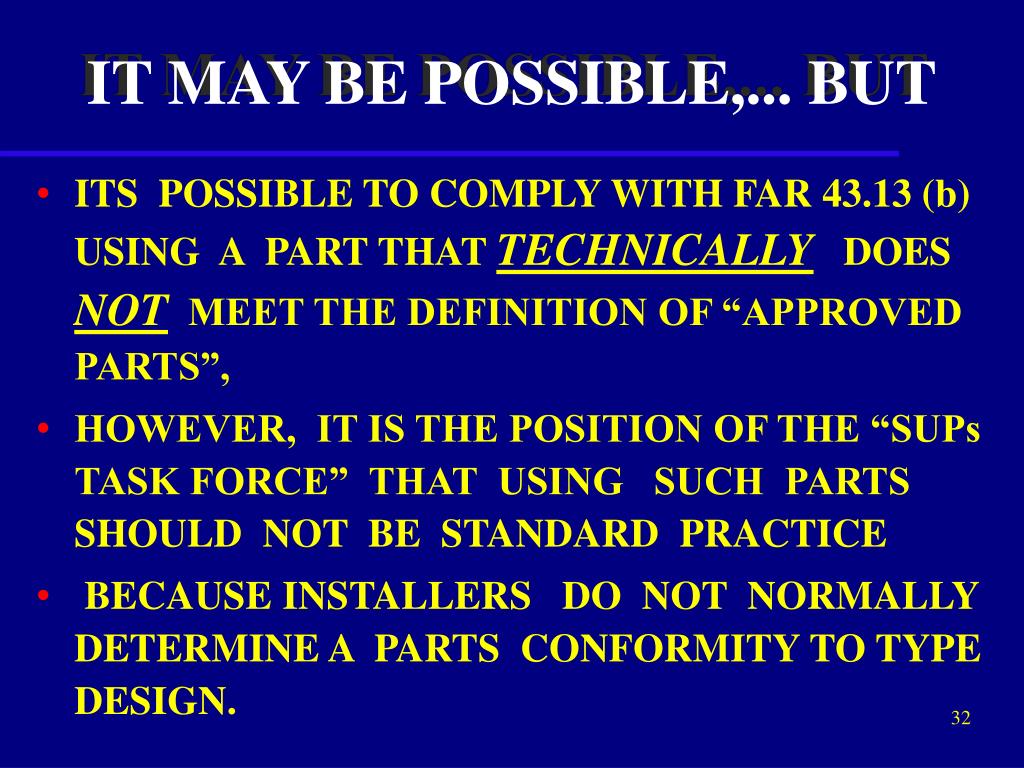

  31. IT MAY BE POSSIBLE,... BUT • ITS POSSIBLE TO COMPLY WITH FAR 43.13 (b) USING A PART THAT TECHNICALLY DOES NOT MEET THE DEFINITION OF “APPROVED PARTS”, • HOWEVER, IT IS THE POSITION OF THE “SUPs TASK FORCE” THAT USING SUCH PARTS SHOULD NOT BE STANDARD PRACTICE • BECAUSE INSTALLERS DO NOT NORMALLY DETERMINE A PARTS CONFORMITY TO TYPE DESIGN.

  32. IF A PART IS NOT AN“APPROVED PART” THEN IT IS AN“UNAPPROVED PART” OK, WHAT IS AN “UNAPPROVED PART?”

  33. …AND IF YOU DON’T KNOW, • THEN IT IS A • SUSPECTED “UNAPPROVED PART”

  34. SUP IF A DETERMINATION CANNOT BE MADE, QUARANTINED THE PART, BECAUSE IT MIGHT REQUIRE REPORTING AS A SUP

  35. SUPs REPORTING FAA Suspected Unapproved Parts (AVR-20)13873 Park Center Road, Suite 165Herndon, VA 20171Phone: 703-668-3720Fax: 703-481-3002www.faa.gov/avr/sups/

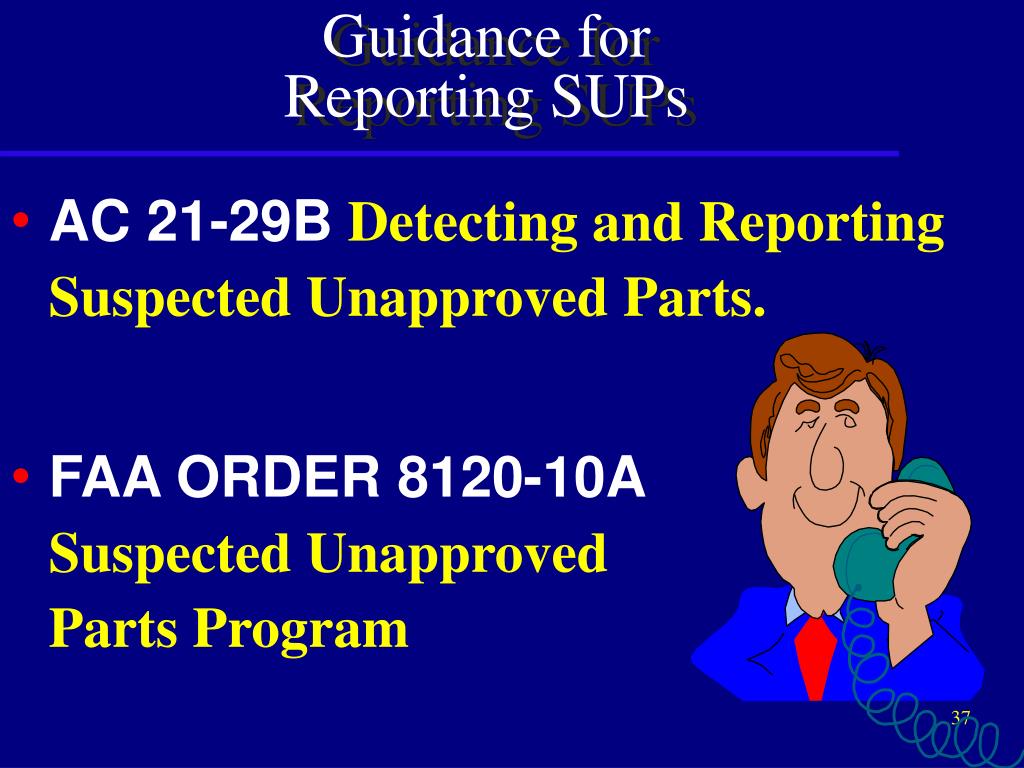

  36. Guidance forReporting SUPs • FAA ORDER 8120-10ASuspected Unapproved Parts Program • AC 21-29B Detecting and Reporting Suspected Unapproved Parts.

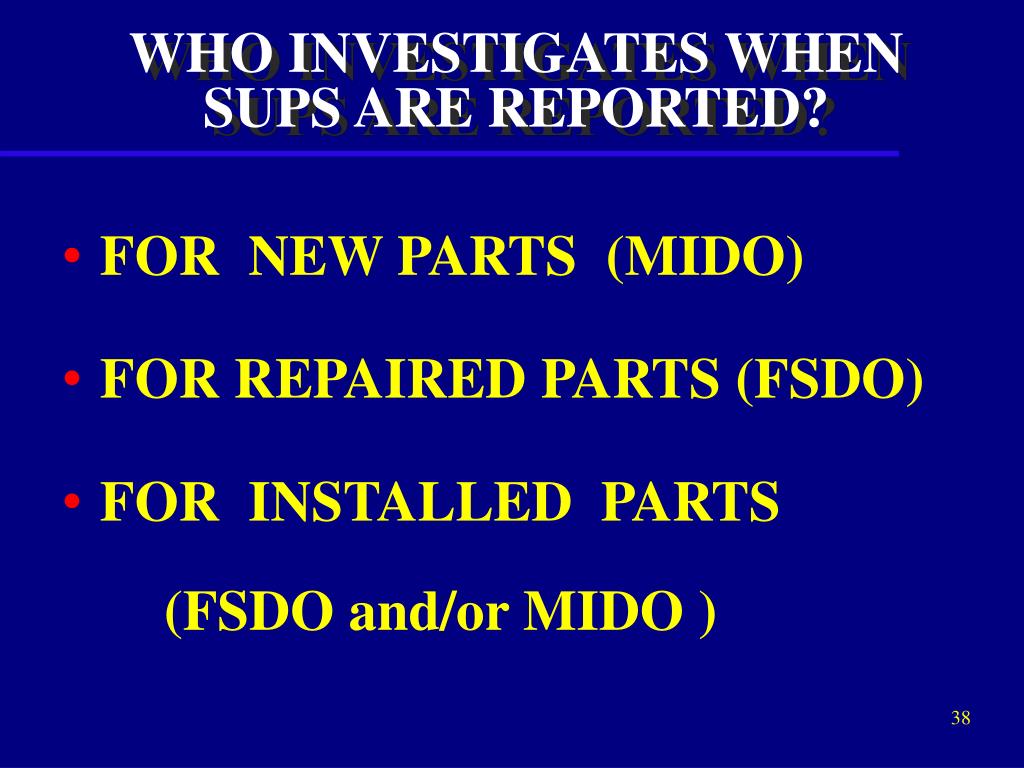

  37. WHO INVESTIGATES WHENSUPS ARE REPORTED? • FOR NEW PARTS (MIDO) • FOR REPAIRED PARTS (FSDO) • FOR INSTALLED PARTS (FSDO and/or MIDO )

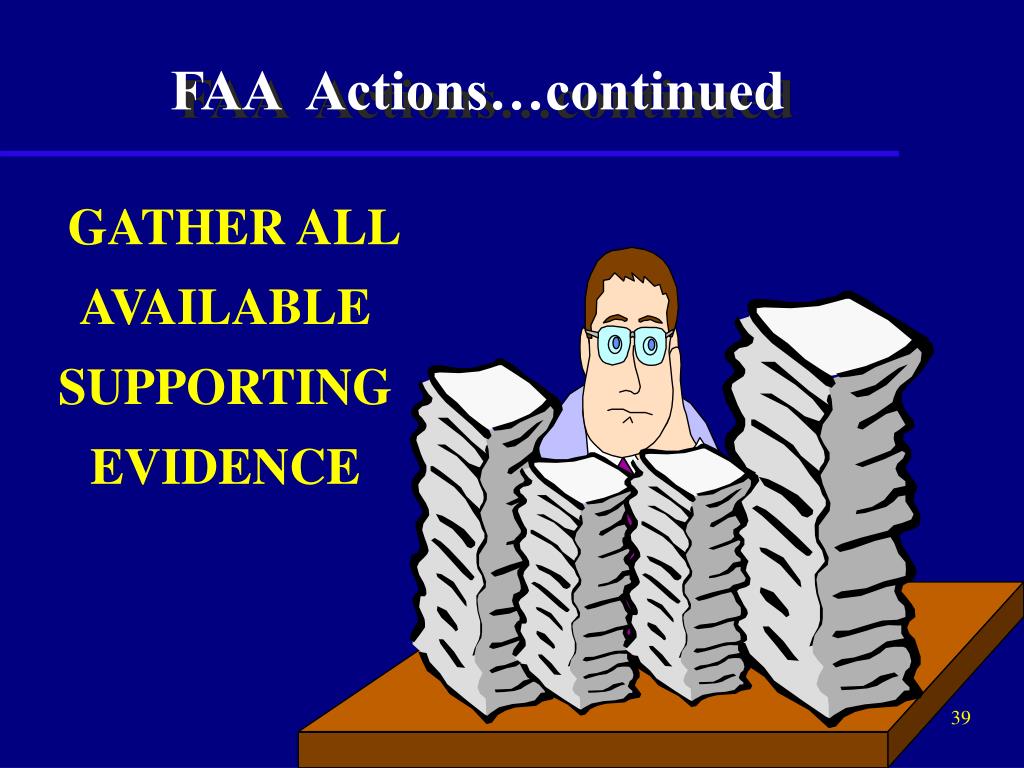

  38. FAA Actions…continued • GATHER ALL AVAILABLE SUPPORTING EVIDENCE

  39. FAA Actions…continued • ASK THAT SUSPECTED “UNAPPROVED PARTS” • BE QUARANTINED AND • HELD FOR FURTHER INVESTIGATION

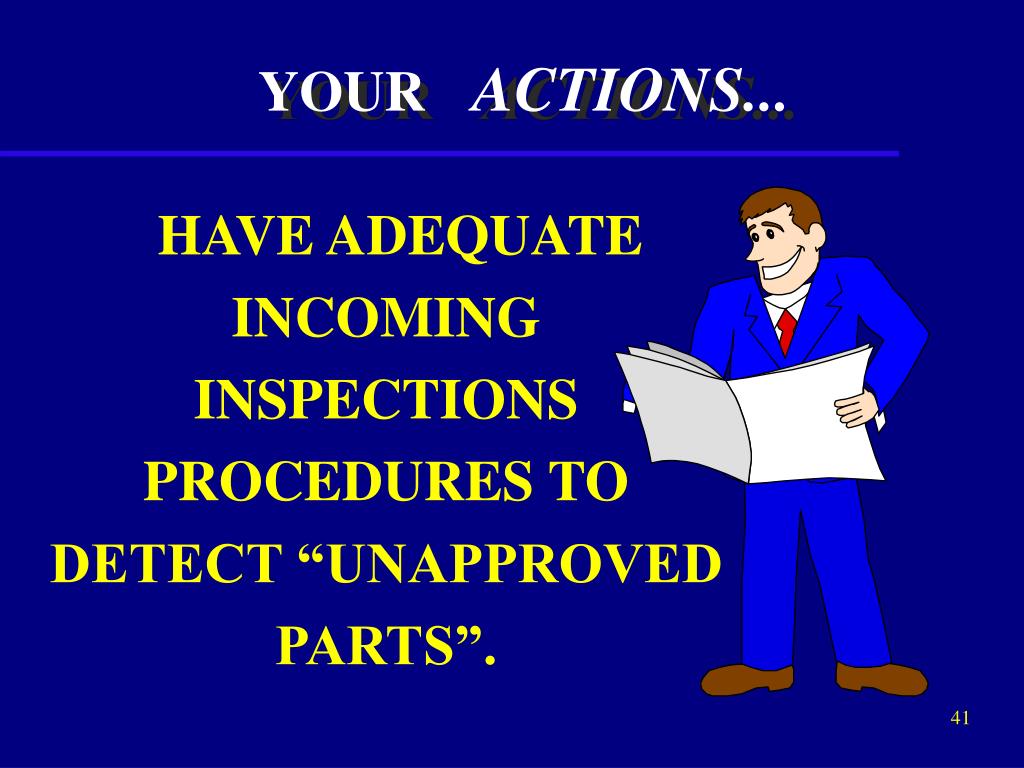

  40. YOURACTIONS... • HAVE ADEQUATE INCOMING INSPECTIONS PROCEDURES TO DETECT “UNAPPROVED PARTS”.

  41. Your Actions…continued • CONDUCT INTERNAL AUDITS AND SURVEIL FOR UNAPPROVED PARTS DURING ALL FACILITY AND STOCK ROOM INSPECTIONS.

  42. Your Actions…continued • ALWAYS REQUIRE CERTIFICATION THAT PARTS SUPPLIED ARE “APPROVED PARTS”

  43. USE APPROPRIATE TECH DATA TO COMPLY WITH 43.13(a). IF NEEDED, REQUEST FAA or DER ENGINEERING SUPPORT TO DOCUMENT COMPLIANCE. Your Actions…continued

  44. Your Actions…continued • IF REQUIRED, DEMONSTRATE COMPLIANCE WITH 43.13 (b) BY SHOWING THAT A PART IS EQUAL TO ITS ORIGINAL OR PROPERLY ALTEREDCONDITION .

  45. Your Actions…continued FORM FIT AND FUNCTION

  46. DISPOSE OF UNSALVAGEABLE AIRCRAFT PARTS AND MATERIALS IAW AC # 21-38 Your Actions…continued

  47. Your Actions…continued • LEARN TO RECOGNIZE INDICATORS OF FRAUD

  48. FRAUD IN THE... • PARTS • DOCUMENTATION • FACILITIES • PERSONNEL • SUPPLIERS • BROKERS

  49. TITLE 49 of the USC ( THE FARs ) • IMPROPER DESIGN • IMPROPER MANUFACTURING • IMPROPER MAINTENANCE • SALE OF PARTS IMPROPERLY • DESIGNED • MANUFACTURED • MAINTAINED
