COEN 252 Security Threats
Network Based Exploits Phases of an Attack • Reconnaissance • Scanning • Gaining Access • Expanding Access • Covering Tracks
Reconnaissance • Social Engineering • “I cannot access my email. What do I do?” • Dumpster Diving (especially useful when people move) • Search the Web • Sam Spade (www.samspade.org/ssw/), CyberKit, NetScanTools, ... • Search Engine • Usenet postings • Whois
Reconnaissance Databases • To research .com , .net, and .org domain names:InterNIC whois feature: www.internic.net/whois.html allwhois, network soultions, ... • ARIN: American Registry for Interent Numbers (www.arin.net/whoiis/arin-whois.html) • RIPE (Europe) www.ripe.net • APNIC (Asia Pacific) www.apnic.net
Reconnaissance: Scanning Once we have a target, we need to get to know it better. Methods: • War Dialing (to find out modem access) • Network Mapping • Vulnerability Scanning • War Driving
Scanning: War Dialing Purpose: Find a modem connection. • Many users in a company install remote PC software such as PCAnywhere without setting the software up correctly. • War Dialer finds these numbers by going through a range of phone numbers listening for a modem. • Demon Dialer tries a brute force password attack on a found connection. • Typically: war dialing will find an unsecured connection.
Scanning: Network Mapping Ping: • ping is implemented using the Internet Control Message Protocol (ICMP) Echo Request. • A receiving station answers back to the sender. • Used by system administrators to check status of machines and connections.
Scanning: Network Mapping Traceroute: • Pings a system with ICMP echo requests with varying life spans (= # of hops allowed). • A system that receives a package with expired numbers of hops sends an error message back to sender. • Traceroute uses this to find the route to a given system. • Useful for System Administration
Scanning: Network Mapping Cheops: Network Scanner (UNIX based) (Uses traceroute and other tools to map a network.) Cheops et Co. are the reason that firewalls intercept pings.
Reconnaissance: Port Scans • Applications on a system use ports to listen for network traffic or send it out. • 216 ports available, some for known services such as http (80), ftp, ... • Port scans send various type of IP packages to target on different ports. • Reaction tells them whether the port is open (an application listens).
Reconnaissance: Nmap • Uses different types of packets to check for open ports. • Can tell from the reaction what OS is running, including patch levels. • Can run in stealth mode, in which it is not detected by many firewalls.
Reconnaissance: Webserver Information Leakage • Most webservers leak information: • HTTP answers • Identify webserver • URLs • Have forms peculiar to certain webservers: • Extensions: • ASP pages: Probably IIS • “http://search.barnesandnoble.com/booksearch/results.asp?WRD=Oxford+history&z=y&cds2Pid=9481” • “htm”: Probably windows • Format of query string • Cookies
Reconnaissance: Webserver Information Leakage • Most webservers leak information: • Error Messages • Identify webserver technology by name and version number. • Sometimes send debug information to browser. • Can be provoked by changing query strings or asking for non-existing resources. • Sometimes, possible to get a message from the database engine.
Reconnaissance Prevention • Firewalls can make it very difficult to scan from the outside. • Drop scan packets. • Patched OS do not have idiosyncratic behavior that allows OS determination. • IDS can detect internal scans and warn against them.
Gaining Access • Gain access using application and OS attacks. • Gain access using network attack.
Gaining Access through Apps and OS • Buffer Overflow Attacks • Stack • Heap • Dynamic Memory Attacks • Format Vulnerabilities • Integer Overflow … • Password Attacks • Web Application Attacks
Gaining Access:Web Application Attacks • The URL not only contains the web address of a site, but also input: http://www.google.com/search?hl=en&ie=UTF-8&oe=UTF-8&q=web+application+attack • A poorly written webpage allows the viewer to input data in an uncontrolled fashion. If the webpage contains SQL, the user might execute SQL commands.
Gaining Access through Network Attacks: Sniffing • Sniffer: Gathers traffic from a LAN. • Examples: Snort www.snort.org, Sniffit reptile.rug.ac.be/~coder/sniffit/sniffit.html • To gain access to packages, use spoofed ARP (Address Resolution Protocol) to reroute traffic.
Gaining Access: Session Hijacking • IP Address Spoofing: Send out IP packages with false IP addresses. • If an attacker sits on a link through which traffic between two sites flows, the attacker can inject spoofed packages to “hijack the session”. • Attacker inserts commands into the connection. • Details omitted.

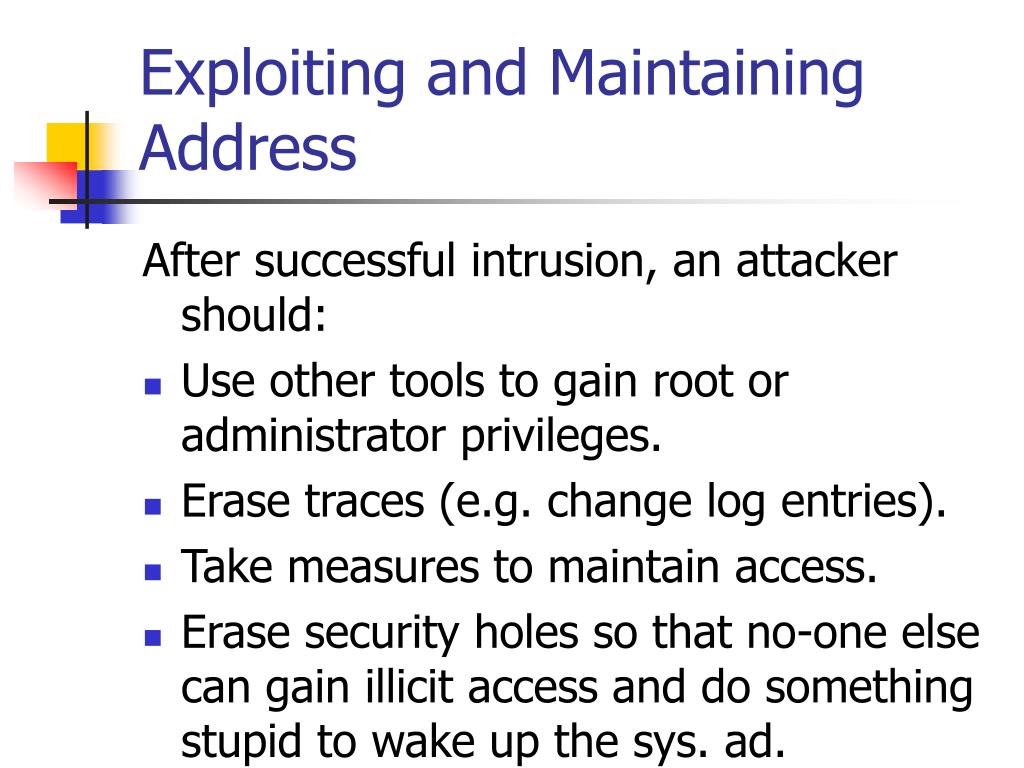

Exploiting and Maintaining Address After successful intrusion, an attacker should: • Use other tools to gain root or administrator privileges. • Erase traces (e.g. change log entries). • Take measures to maintain access. • Erase security holes so that no-one else can gain illicit access and do something stupid to wake up the sys. ad.
Maintaining Access: Trojans • A program with an additional, evil payload. • Running MS Word also reinstalls a backdoor. • ps does not display the installed sniffer.
Maintaining Access: Backdoors • Bypass normal security measures. Example: netcat • Install netcat on victim with the GAPING_SECURITY_HOLE option. C:\ nc -1 –p 12345 –e cmd.sh • In the future: connect to port 12345 and start typing commands.
Maintaining Access: Backdoors • BO2K (Back Orifice 2000) runs in stealth mode (you cannot discover it by looking at the processes tab in the TASK MANAGER. • Otherwise, it is a remote control program like pcAnyWhere, that allows accessing a computer over the net.
Maintaining Access: Backdoors • RootKit: A backdoor built as a Trojan of system executables such as ipconfig. • Kernel-Level RootKit: Changes the OS, not only system executables.
Covering Tracks: • Altering logs. • Create difficult to find files and directories. • Covert Channels through Networks: • Loki uses ICMP messages as the carrier. • Use WWW traffic. • Use unused fields in TCP/IP headers.
Hacker Profile • Internal Hacker • Disgruntled employee • Contracted employee • Targets for corporate espionage. • Are not bound by employee policies and procedures. • Indirectly contracted employee • Perform shared or subcontracted services
Hacker Profile • External Hacker • Recreational Hacker • 85% 90% male. • Between 12 and 25. • Highly intelligent low-achiever. • Typically from dysfunctional families. • Professional Hacker • Hackers for hire. • Electronic warfare, corporate espionage. • “Security Consultants” • Security Consultants
Hacker Profile • Virus writers1 • Teenagers, College Students, Professionals • Drop out of the scene as adults or have social problems. • Intelligent, educated, male. Study by Sarah Gordon, IBM, in Beiser, Vince, “Inside the Virus Writer’s Mind”
Hacker Profile • Script Kiddy • Uses scripts of programs written by others to exploit known vulnerabilities • Goal is bragging rights, defacing web sites • Sweep IP addresses for vulnerability • Typically not explicitly malicious, but can cause damage inadvertently
Hacker Profile • Dedicated Hacker • Does research. • Knows in and outs of OS, system, auditing and security tools. • Writes or modifies programs and shell scripts • Reads security bulletins (CERT, NIST) • Searches the underground.
Hacker Profile • Skilled Hacker • Thorough understanding of system at the level of Sys Ad or above. • Can read OS source code. • Understands network protocols. • Superhacker • Does not brag or post. • Can enter or bring down any system. http://www.securityfocus.com/news/203
Hacker Motives • Intellectually Motivated • Educational experimentation • 28 year old computer expert diverted 2585 US West computers to search for a new prime number. • Used 10.63 years of computer time. • Lengthened telephone number lookup to 5 minutes • Almost shut down the Phoenix Service Delivery Center • “Harmless Fun” • Web defacing • Wake-up Call • Free-lance security consultant (still illegal)
Hacker Motives • Personally motivated • Disgruntled employee. • Cyber-stalking • E.g. to show of superiority to someone they feel / are inferior to. • Danger of escalation to physical attack. • A 50-year old security guard used the internet to solicit the rape of a 28-year old woman who rejected him. • Impersonated her in chat rooms and online bulletins. • Impersonated rape fantasies. • At least six man knocked at her door at night offering to rape her. • Six years in prison.
Hacker Motives • Socially motivated • Cyber-activism • Politically motivated • Hacking KKK or NAACP websites • Cyber-Terrorism • Threatens serious disruption of the infrastructure • Power • Water • Transportation • Communication • 1988: Israeli Virus and logic bomb in Israeli government computers • Cyber-warfare
Hacker Motives • Financially Motivated • Personal profit. • Two Cisco Systems consultants issued almost $8 M Cisco stock to themselves. • Accessed a system used to manage stock option disbursals to find control numbers for forged authorization forms. • Damage to the organization. • British internet provider, Cloud Nine, went out of business after crippling series of DOS attacks. • Ego Motivated
Hacker Damage • Releasing Information • Releasing Software • By circumventing copying protection. • Through IP theft • Consuming Unused(?) Resources • Discover and Document Vulnerabilities • Compromise Systems and Increase their Vulnerabilities • Website Vandalism
