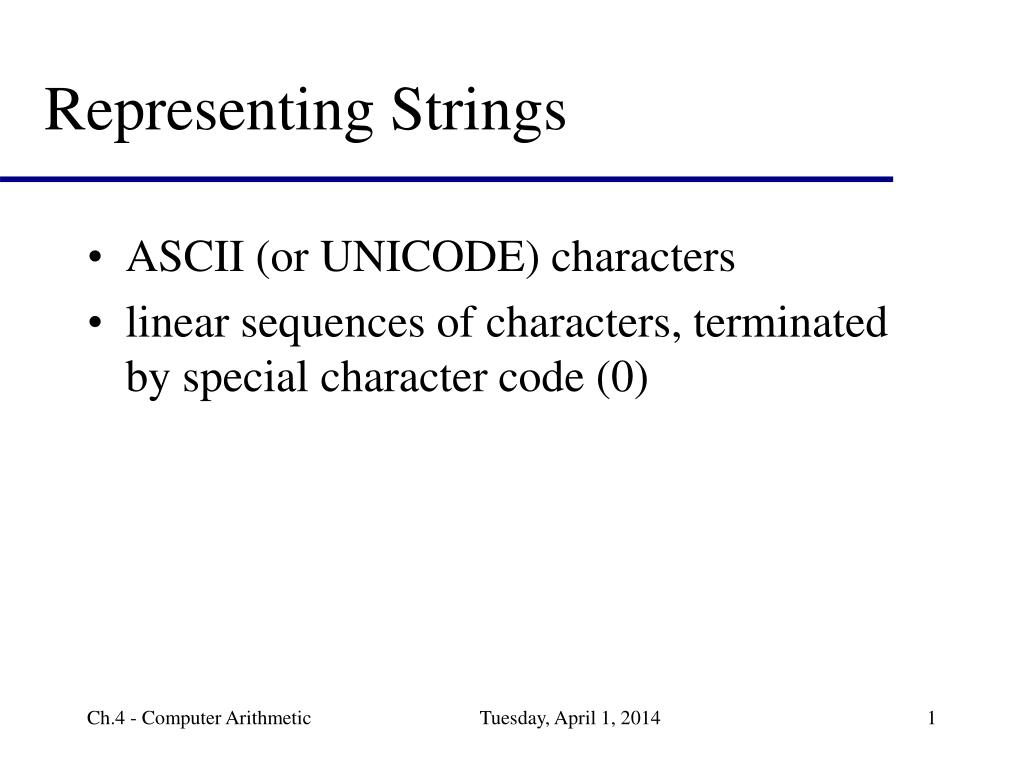

  1. Representing Strings • ASCII (or UNICODE) characters • linear sequences of characters, terminated by special character code (0) Ch.4 - Computer Arithmetic

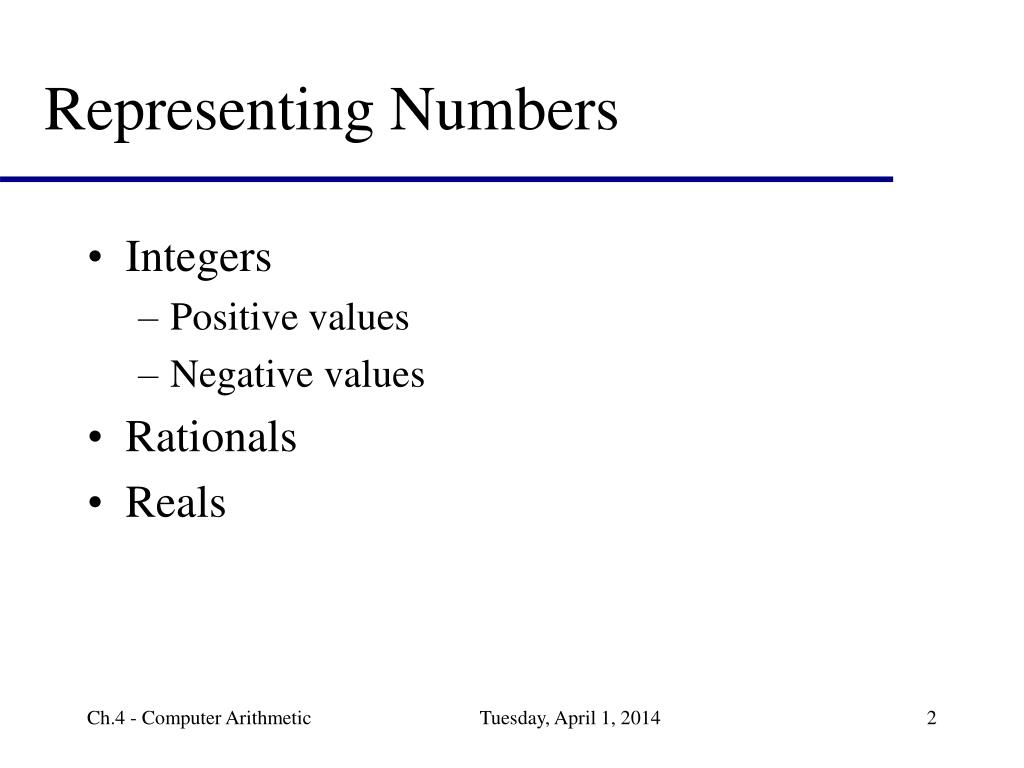

  2. Representing Numbers • Integers • Positive values • Negative values • Rationals • Reals Ch.4 - Computer Arithmetic

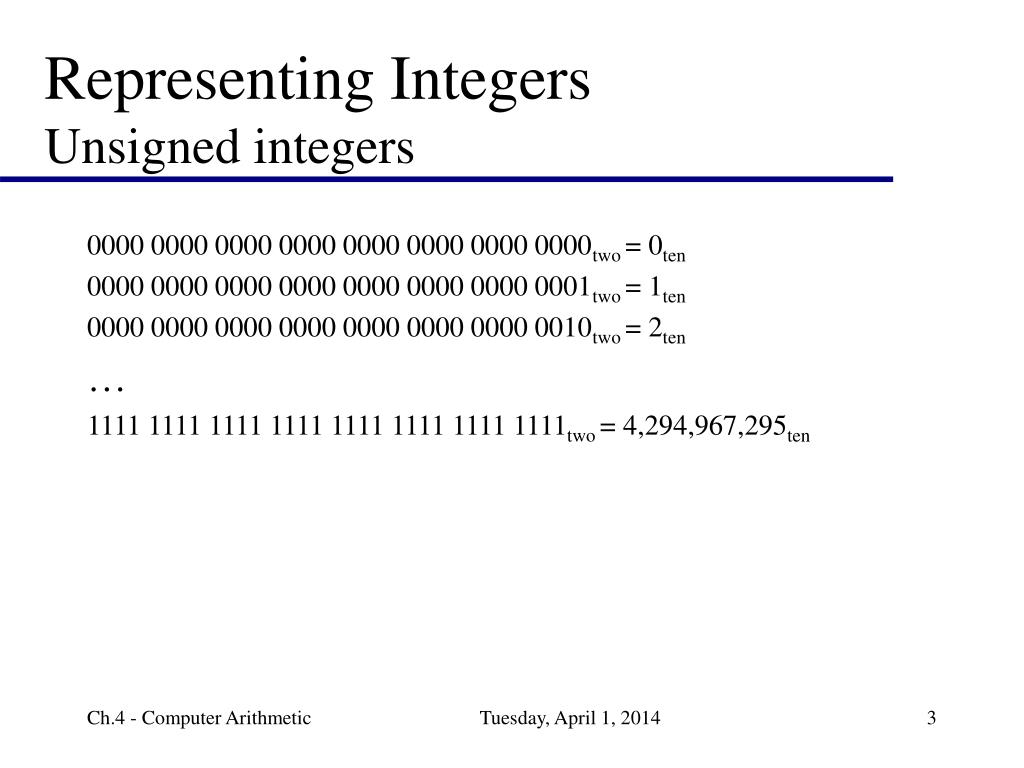

  3. Representing IntegersUnsigned integers 0000 0000 0000 0000 0000 0000 0000 0000two = 0ten 0000 0000 0000 0000 0000 0000 0000 0001two = 1ten 0000 0000 0000 0000 0000 0000 0000 0010two = 2ten … 1111 1111 1111 1111 1111 1111 1111 1111two = 4,294,967,295ten Ch.4 - Computer Arithmetic

  4. Representing IntegersAddition of positive values 0001two = 1ten 1111two = 15ten + 0110two = 6ten + 0011two = 3ten 0111two = 7ten 0010two = 2ten (overflow!) But what about subtraction? Ch.4 - Computer Arithmetic

  5. Representing IntegersSubtraction of positive values 0111two = 7ten 0111two = 7ten - 0001two = 1ten + ????two = -1ten 0110two = 6ten 0110two = 6ten Ch.4 - Computer Arithmetic

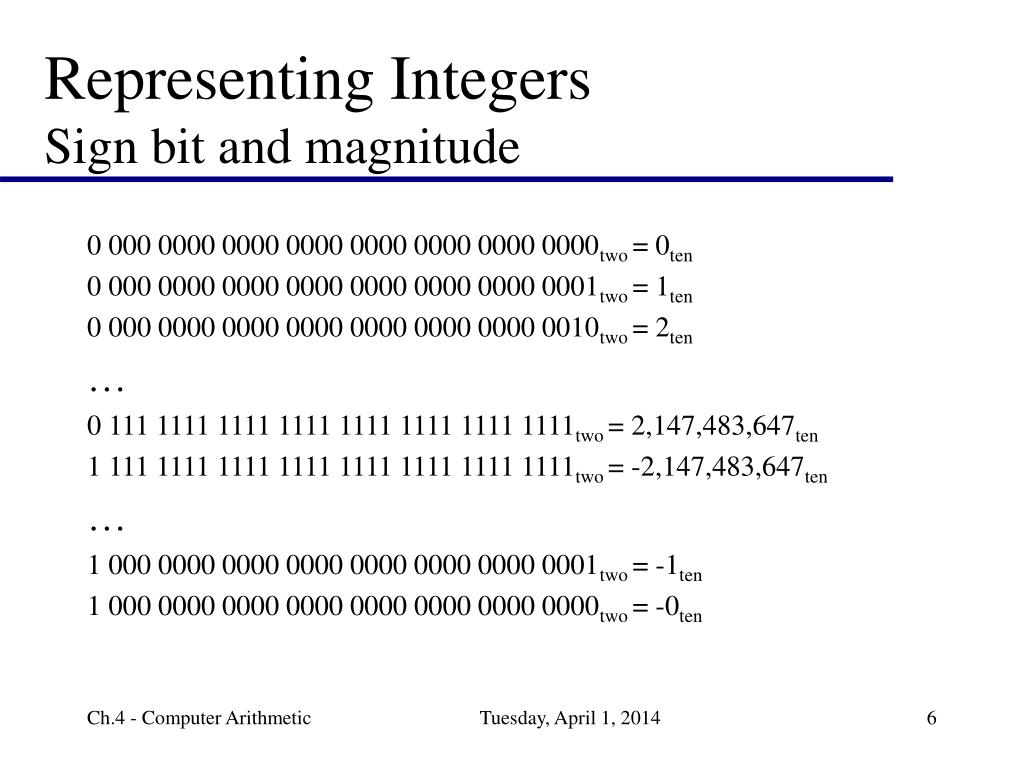

  6. Representing IntegersSign bit and magnitude 0 000 0000 0000 0000 0000 0000 0000 0000two = 0ten 0 000 0000 0000 0000 0000 0000 0000 0001two = 1ten 0 000 0000 0000 0000 0000 0000 0000 0010two = 2ten … 0 111 1111 1111 1111 1111 1111 1111 1111two = 2,147,483,647ten 1 111 1111 1111 1111 1111 1111 1111 1111two = -2,147,483,647ten … 1 000 0000 0000 0000 0000 0000 0000 0001two = -1ten 1 000 0000 0000 0000 0000 0000 0000 0000two = -0ten Ch.4 - Computer Arithmetic

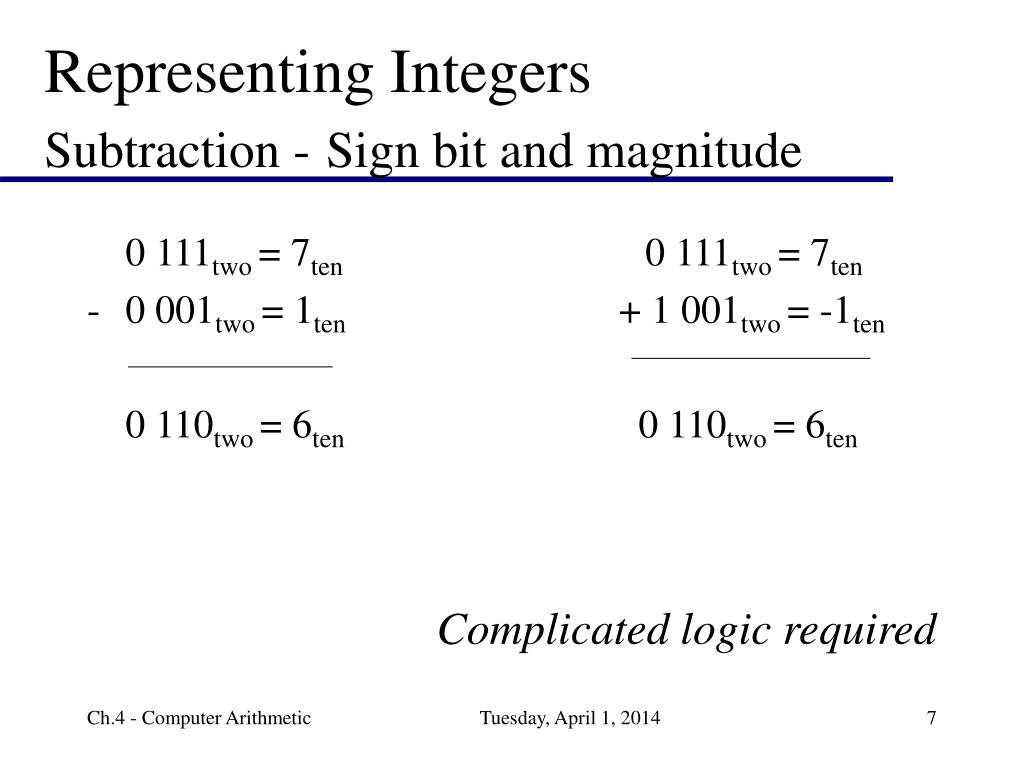

  7. Representing IntegersSubtraction -Sign bit and magnitude 0 111two = 7ten 0 111two = 7ten - 0 001two = 1ten + 1 001two = -1ten 0 110two = 6ten 0 110two = 6ten Complicated logic required Ch.4 - Computer Arithmetic

  8. Representing IntegersSigned -One’s Complement • If x is positive, convert x to binary • If x is negative • Write the positive value of x in binary • Reverse each bit Ch.4 - Computer Arithmetic

  9. Representing IntegersSigned -One’s Complement 0000 0000 0000 0000 0000 0000 0000 0000two = 0ten 0000 0000 0000 0000 0000 0000 0000 0001two = 1ten 0000 0000 0000 0000 0000 0000 0000 0010two = 2ten … 0111 1111 1111 1111 1111 1111 1111 1111two = 2,147,483,647ten 1000 0000 0000 0000 0000 0000 0000 0000two = -2,147,483,647ten … 1111 1111 1111 1111 1111 1111 1111 1110two = -1ten 1111 1111 1111 1111 1111 1111 1111 1111two = -0ten Ch.4 - Computer Arithmetic

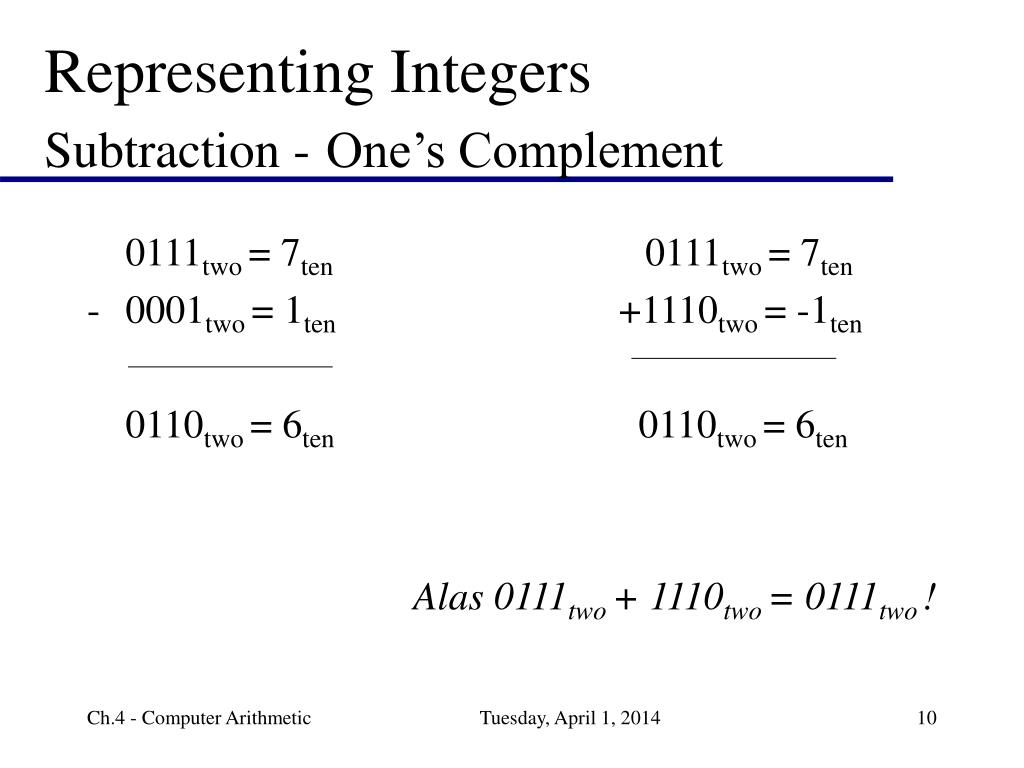

  10. Representing IntegersSubtraction -One’s Complement 0111two = 7ten 0111two = 7ten - 0001two = 1ten +1110two = -1ten 0110two = 6ten 0110two = 6ten Alas 0111two + 1110two = 0111two ! Ch.4 - Computer Arithmetic

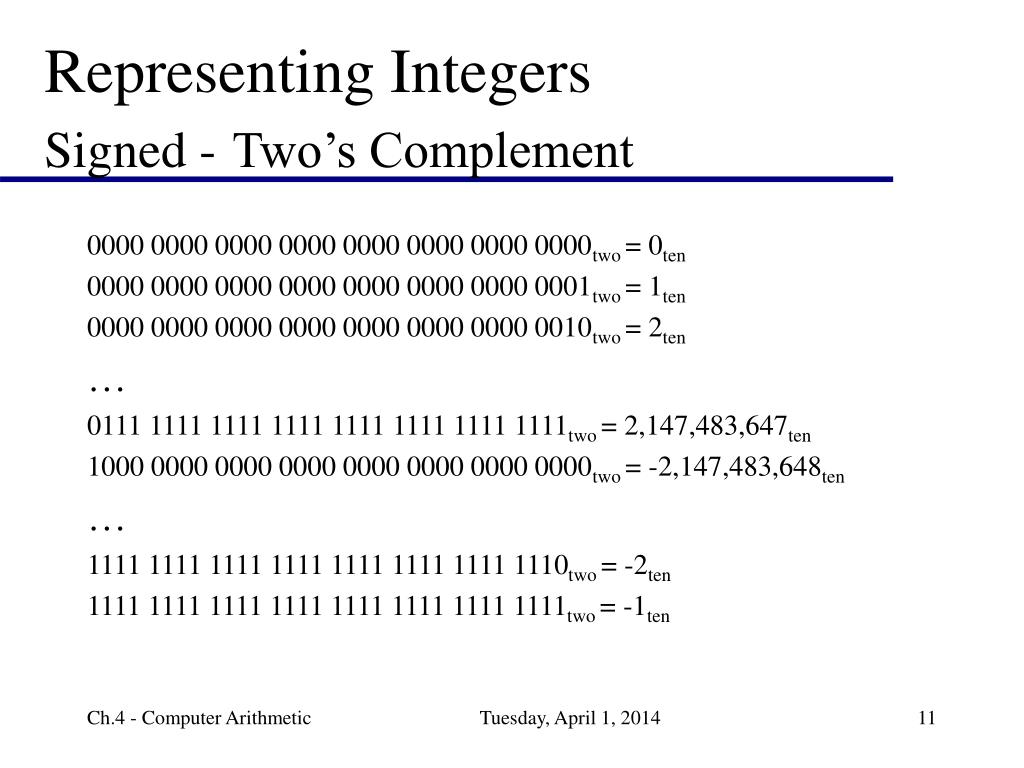

  11. Representing IntegersSigned -Two’s Complement 0000 0000 0000 0000 0000 0000 0000 0000two = 0ten 0000 0000 0000 0000 0000 0000 0000 0001two = 1ten 0000 0000 0000 0000 0000 0000 0000 0010two = 2ten … 0111 1111 1111 1111 1111 1111 1111 1111two = 2,147,483,647ten 1000 0000 0000 0000 0000 0000 0000 0000two = -2,147,483,648ten … 1111 1111 1111 1111 1111 1111 1111 1110two = -2ten 1111 1111 1111 1111 1111 1111 1111 1111two = -1ten Ch.4 - Computer Arithmetic

  12. Representing IntegersSigned -Two’s Complement • If x is positive, convert x to binary • If x is negative • Write the positive value of x in binary • Reverse each bit • Add 1 to the result Ch.4 - Computer Arithmetic

  13. Representing IntegersSubtraction -Two’s Complement 0111two = 7ten 0111two = 7ten - 0001two = 1ten +1111two = -1ten 0110two = 6ten 0110two = 6ten Ch.4 - Computer Arithmetic

  14. Representing IntegersSigned and Unsigned • Need both signed (2’s complement) and unsigned (always positive) integer values • Integers are also memory addresses • and addresses are never negative Ch.4 - Computer Arithmetic

  15. MIPS Instructions (Arithmetic)(so far…) Ch.4 - Computer Arithmetic

  16. MIPS Instructions (Cond. Branch)(so far…) Ch.4 - Computer Arithmetic

  17. Representing IntegersSigned -Two’s Complement Negating values • Reverse each bit • Add 1 to the result Ch.4 - Computer Arithmetic

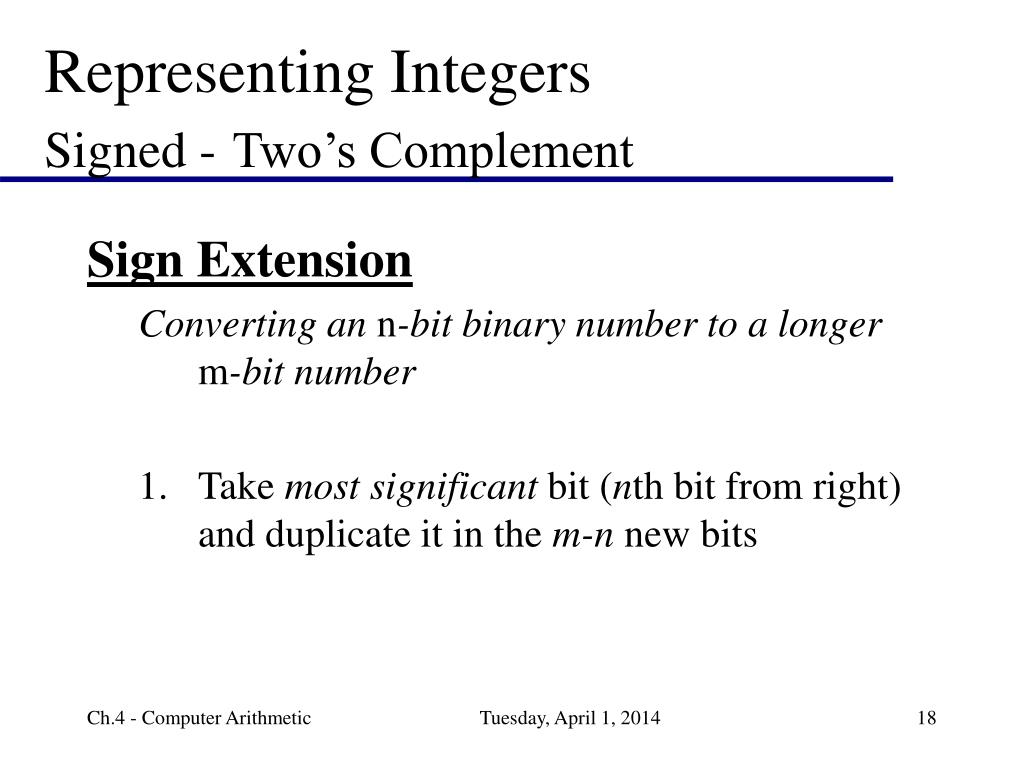

  18. Representing IntegersSigned -Two’s Complement Sign Extension Converting an n-bit binary number to a longer m-bit number • Take most significant bit (nth bit from right) and duplicate it in the m-n new bits Ch.4 - Computer Arithmetic

  19. Representing IntegersSigned -Two’s Complement Detecting Overflow When result cannot fit in representation Ch.4 - Computer Arithmetic
