  1. VISION r REMODELLING PROPOSAL

  2. Utilising Feedervision as the base model • Present relay for Venezuela job uses existing hardware from established Vision 2 hardware platform • Extended front panel and switch/led addition to achieve ‘look’ of a larger device • Software modified and re-written to create recloser functionality

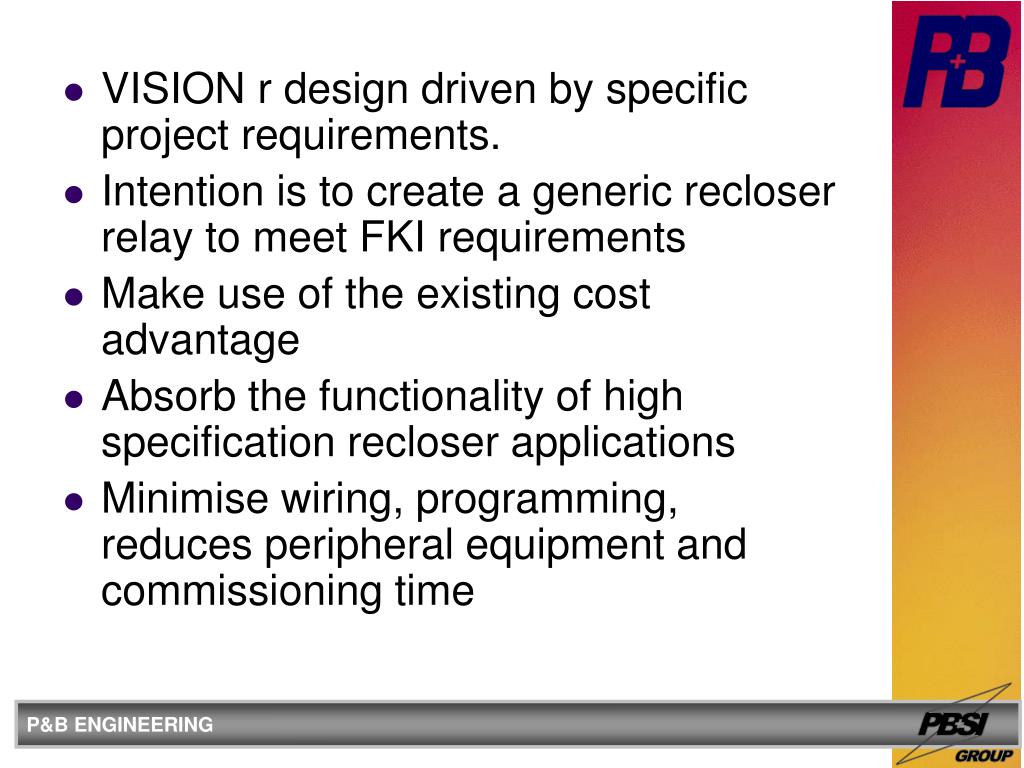

  3. VISION r design driven by specific project requirements. • Intention is to create a generic recloser relay to meet FKI requirements • Make use of the existing cost advantage • Absorb the functionality of high specification recloser applications • Minimise wiring, programming, reduces peripheral equipment and commissioning time

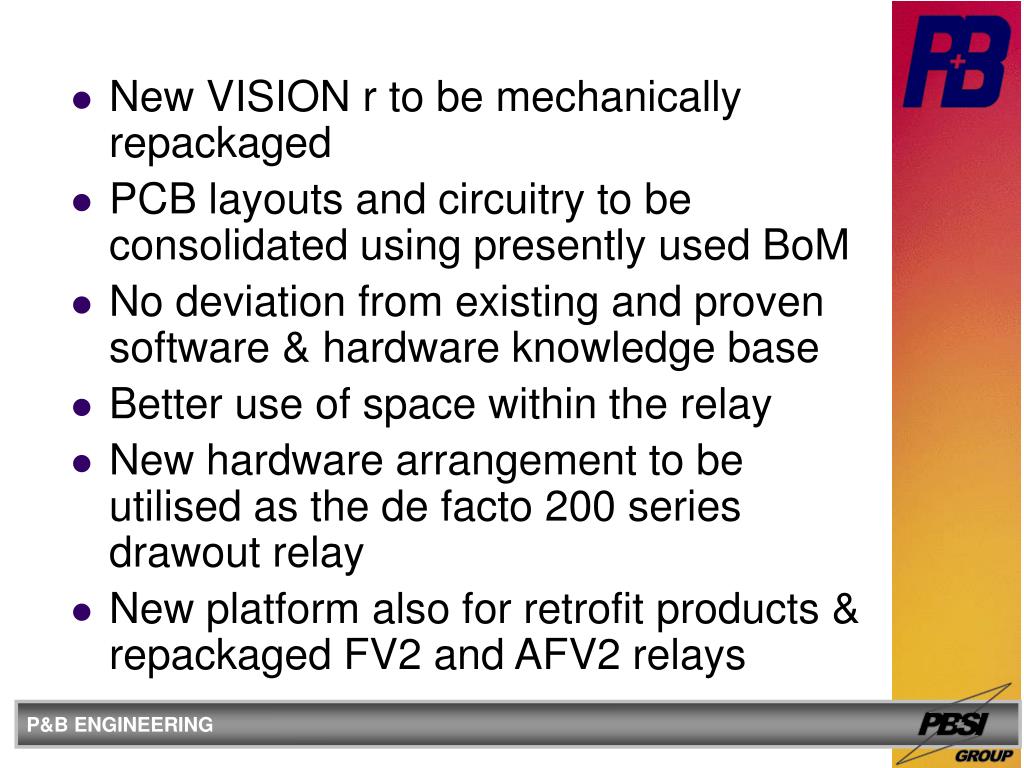

  4. New VISION r to be mechanically repackaged • PCB layouts and circuitry to be consolidated using presently used BoM • No deviation from existing and proven software & hardware knowledge base • Better use of space within the relay • New hardware arrangement to be utilised as the de facto 200 series drawout relay • New platform also for retrofit products & repackaged FV2 and AFV2 relays

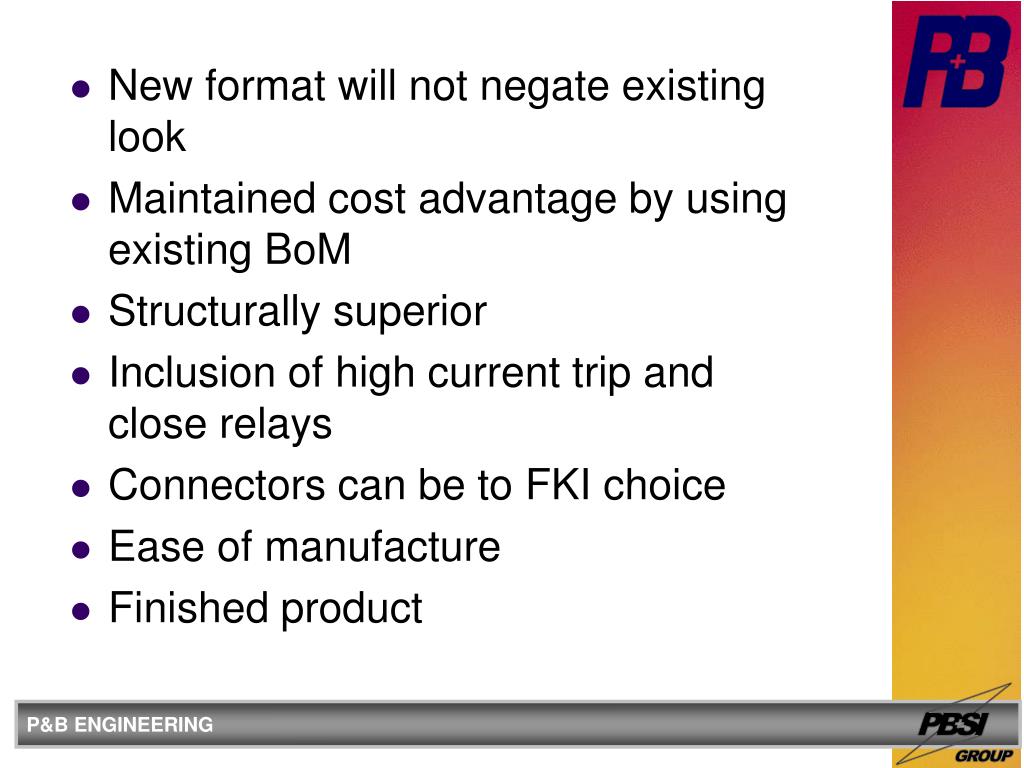

  5. New format will not negate existing look • Maintained cost advantage by using existing BoM • Structurally superior • Inclusion of high current trip and close relays • Connectors can be to FKI choice • Ease of manufacture • Finished product
