  1. Threat modeling Aalto University, autumn 2011

  2. Threats • Threat = something bad that can happen • Given an system or product • what are the threats against it? • how serious are the threats i.e. what is the risk?

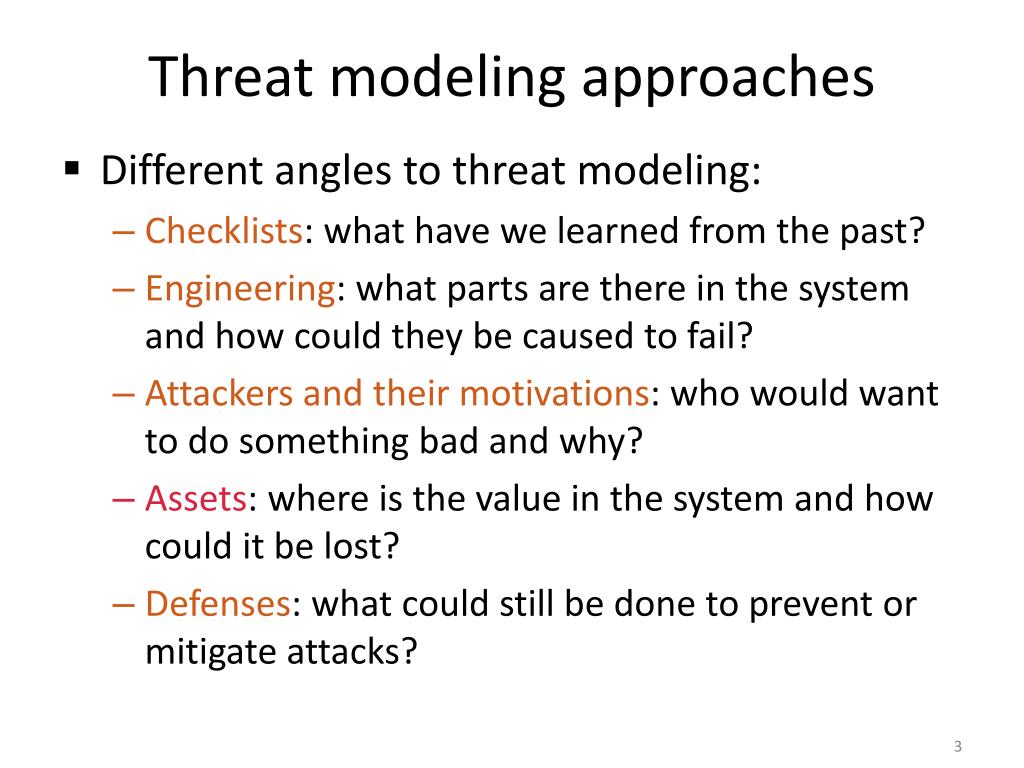

  3. Threat modeling approaches • Different angles to threat modeling: • Checklists: what have we learned from the past? • Engineering: what parts are there in the system and how could they be caused to fail? • Attackers and their motivations: who would want to do something bad and why? • Assets: where is the value in the system and how could it be lost? • Defenses: what could still be done to prevent or mitigate attacks?

  4. Basic security goals • Consider first the well-known security goals: • Confidentiality • Integrity • Availability • Authentication • Authorization • Non-repudiation • Which goals apply to the system? How could they be violated?

  5. STRIDE • STRIDE model used at Microsoft: • Spoofing vs. authentication • Tampering vs. integrity • Repudiation vs. non-repudiation • Information disclosure vs. confidentiality • Denial of service vs. availability • Elevation of privilege vs. authorization • Idea: divide the system into components and analyze each component for these threats • Note: security of components is necessary but not sufficient for the security of the system

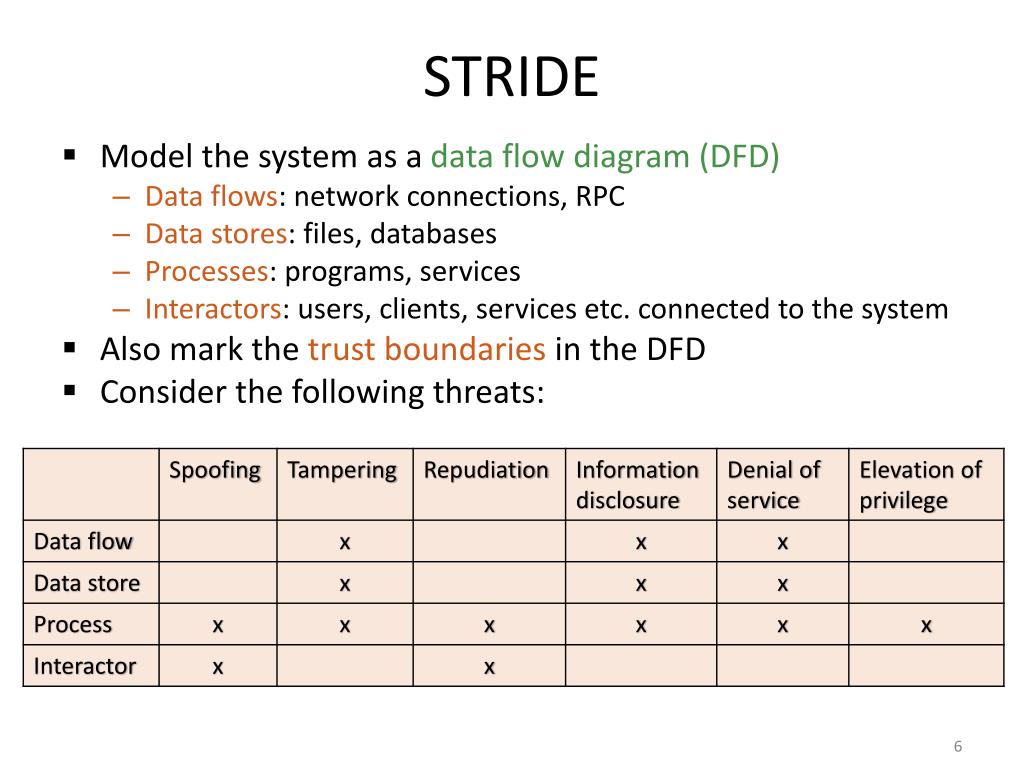

  6. STRIDE • Model the system as a data flow diagram (DFD) • Data flows: network connections, RPC • Data stores: files, databases • Processes: programs, services • Interactors: users, clients, services etc. connected to the system • Also mark the trust boundaries in the DFD • Consider the following threats:

  7. [Microsoft]

  8. Threat trees [Microsoft]

  9. Risk assessment • Risk assessment is very subjective • Risk = probability of attack × damage in euros • 0 < Risk < 1 • Risk = low / medium / high • Numerical risk values tend to be meaningless: • What does risk level 0.4 mean in practice? • Usually difficult to assess absolute risk but easier to prioritize threats • Risk assessment models, e.g. DREAD • Damage: how much does the attack cost to defender? • Reproducibility: how reliable is the attack • Exploitability: how much work to implement the attack? • Affected users: how many people impacted? • Discoverability: how likely are the attackers to discover the vulnerability?

  10. Saltzer and Schroeder • Saltzer and Schroeder design principles [CACM 1974]: • Economy of mechanism: keep the design simple • Fail-safe defaults: fail towards denying access • Complete mediation: check authorization of every access request • Open design: assume attacker knows the system internals • Separation of privilege: require two separate keys or checks whenever possible • Least privilege: give only the necessary access rights • Least common mechanisms: ensure failures stay local • Psychological acceptability: design security mechanism that are easy to use correctly • Violations of these principles usually indicate vulnerabilities

  11. Security “pixie dust” • Security mechanism are often applied without particular reason • Cryptography, especially encryption • If there is no explanation why some security mechanism is used, ask questions: • What threats does it protect against? • What if we just remove it? • Is there something simpler or more suitable for the purpose?

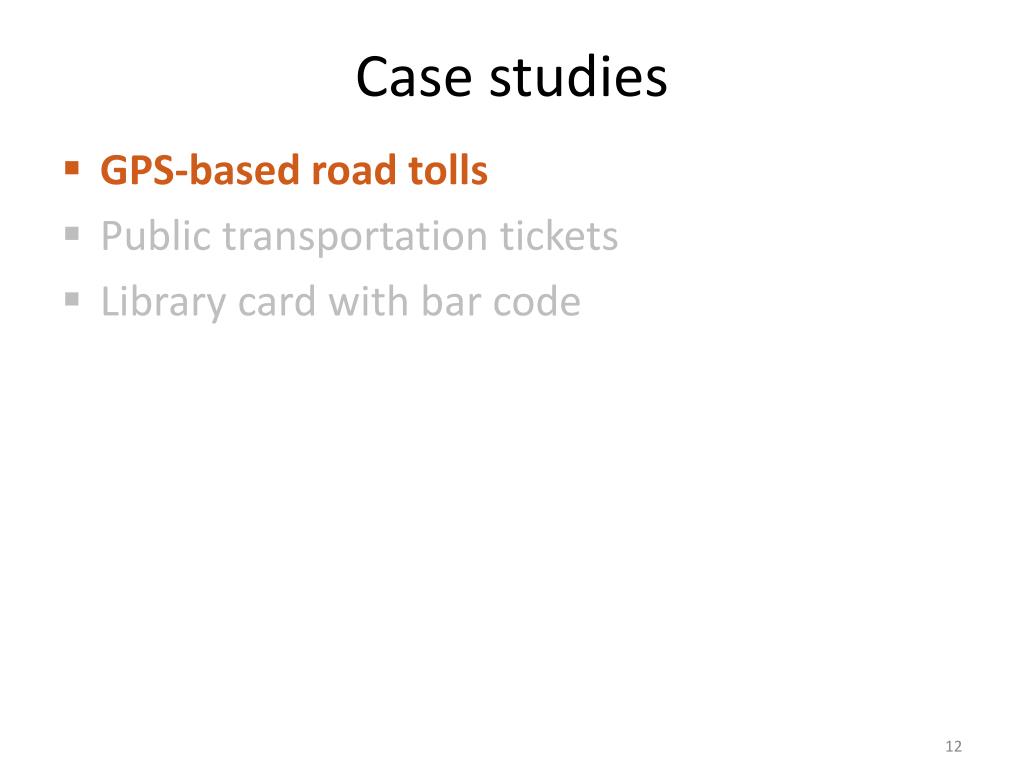

  12. Case studies • GPS-based road tolls • Public transportation tickets • Library card with bar code

  13. GPS-basedroadtoll: system

  14. Data-flowdiagram, STRIDE

  15. Threats 1

  16. Threats 2

  17. What next? • After identifying threats, we should assess the risk, prioritize the threats and choose countermeasures • The process is iterative i.e. new analysis should be done after designing the system with countermeasures • More detailed threat models can be done for each system component • Threat analysis should be done during system design but can also be done on exisiting systems

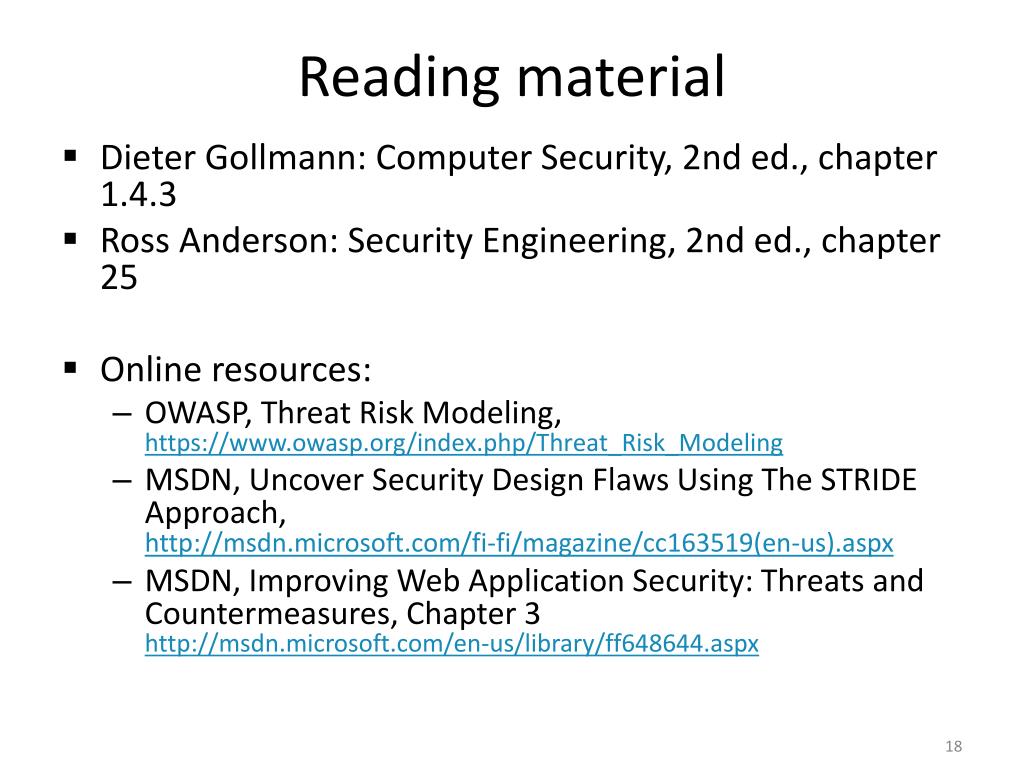

  18. Reading material • Dieter Gollmann: Computer Security, 2nd ed., chapter 1.4.3 • Ross Anderson: Security Engineering, 2nd ed., chapter 25 • Online resources: • OWASP, Threat Risk Modeling, https://www.owasp.org/index.php/Threat_Risk_Modeling • MSDN, Uncover Security Design Flaws Using The STRIDE Approach, http://msdn.microsoft.com/fi-fi/magazine/cc163519(en-us).aspx • MSDN, Improving Web Application Security: Threats and Countermeasures, Chapter 3http://msdn.microsoft.com/en-us/library/ff648644.aspx

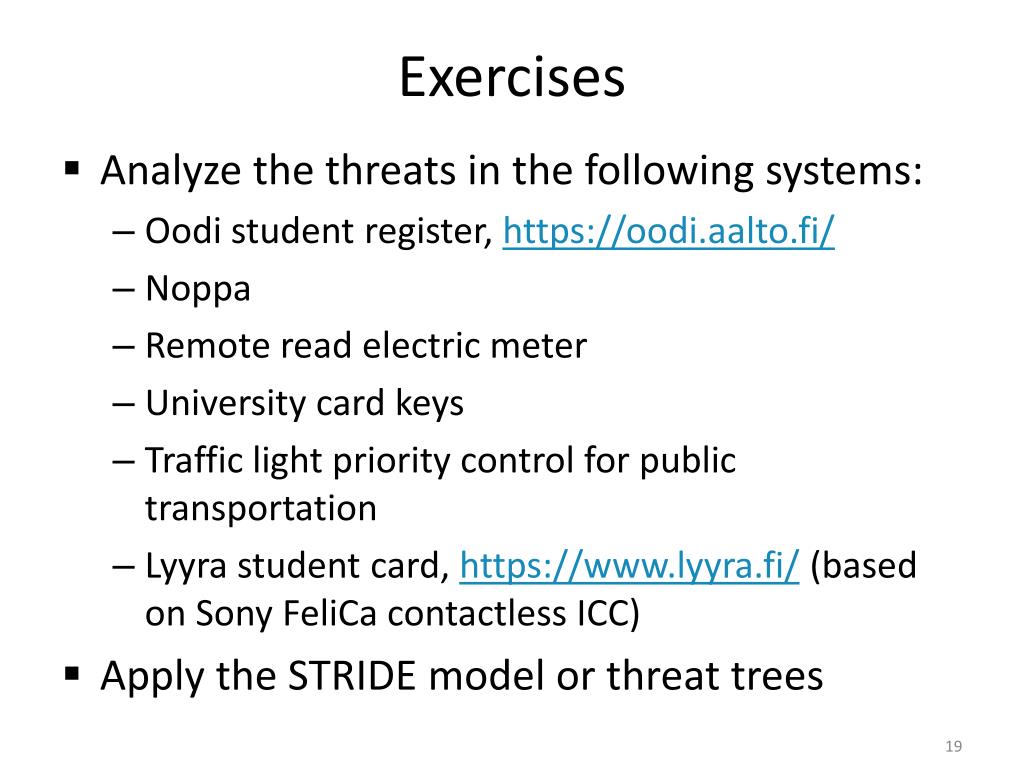

  19. Exercises • Analyze the threats in the following systems: • Oodi student register, https://oodi.aalto.fi/ • Noppa • Remote read electric meter • University card keys • Traffic light priority control for public transportation • Lyyra student card, https://www.lyyra.fi/ (based on Sony FeliCa contactless ICC) • Apply the STRIDE model or threat trees
