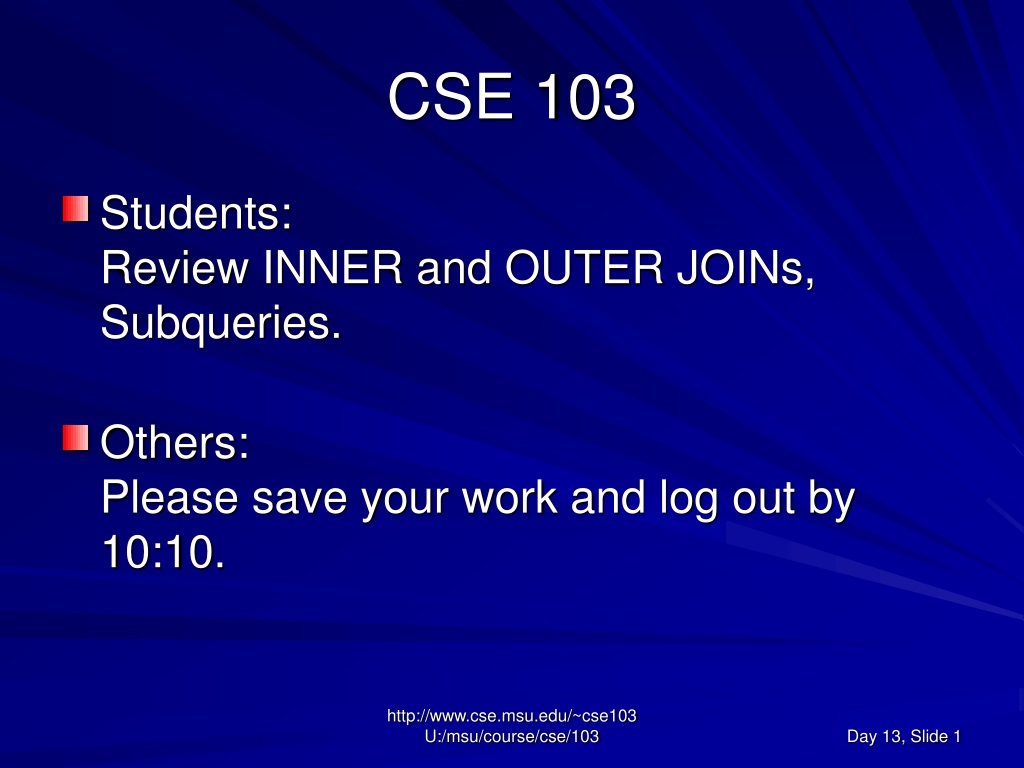

  1. CSE 103 • Students:Review INNER and OUTER JOINs, Subqueries. • Others:Please save your work and log out by 10:10. http://www.cse.msu.edu/~cse103 U:/msu/course/cse/103

  2. Day 12 Review • What kinds of questions can we solve with subqueries we couldn't otherwise? • What kinds of questions can we solve with self-JOINs? • How can we use the same table more than once in the same query? http://www.cse.msu.edu/~cse103 U:/msu/course/cse/103

  3. Nested SELECTs in MySQL • MySQL does not (currently) allow views (saved queries) • In effect, using a saved query is the same as embedding that entire SELECT statement in the parent (calling) query • All RDBMS support this idea of using nested SELECTs (sometimes called subqueries) http://www.cse.msu.edu/~cse103 U:/msu/course/cse/103

  4. Nested SELECT example • We can use nested queries as an alternate to JOINs: • SELECT BirthDate FROM tbl_BirthsWHERE PersonID = (SELECT PersonID FROM tbl_People WHERE FirstName = "Charlton" AND LastName = "Heston") • Same as: SELECT BirthDate FROM tbl_Births AS b INNER JOIN tbl_People AS p ON b.PersonID = p.PersonID WHERE FirstName = "Charlton" AND LastName = "Heston" • Subqueries must be completely enclosed in parantheses () http://www.cse.msu.edu/~cse103 U:/msu/course/cse/103

  5. More on nested queries • If the subquery returns exactly one row and one field, you can test with =, or >, or <, etc. (for example finding people of "above average height") • If the subquery returns multiple rows and/or columns, it is best to use a virtual table and a JOIN (more on this later) http://www.cse.msu.edu/~cse103 U:/msu/course/cse/103

  6. Basic nested queries exercises • Use nested queries to find these answers: • Find all people who have above average height [8946] • Find the name of the person or people who have the earliest birthday in 1970 [6] • Find all movies made in the same year as "Harold and Maude" [4106] http://www.cse.msu.edu/~cse103 U:/msu/course/cse/103

  7. Subqueries to make virtual tables: Using SELECT in the FROM clause • Recall: music DB - we found albums with total runtimes greater than average • First had to find total runtimes, then average • Used stored queries • We need a calculation based on another calculation, so we nest queries • We have to SELECT … FROM a virtual table we create with a subquery (see next) http://www.cse.msu.edu/~cse103 U:/msu/course/cse/103

  8. Nested queries in FROM example • Problem: find people who are older than the average age of all those in our db • Have to find ages, then average ages, then… • SELECT FirstName, LastNameFROM tbl_People AS p INNER JOIN tbl_Births AS b ON p.PersonID = b.PersonIDWHERE (YEAR(NOW()) - YEAR(BirthDate)) >(SELECT AVG(Age) FROM(SELECT YEAR(NOW()) - YEAR(BirthDate) AS Age FROM tbl_Births)AS vr_tbl_1 ) http://www.cse.msu.edu/~cse103 U:/msu/course/cse/103

  9. Nested queries in FROM clause Example analysis • Yellow text (outermost query): selects final fields for display and restriction: ages have to be greater than average • Don't know average yet; write subqueries to find it and compare to that • Could test with say, > 50 to verify syntax • Blue text (1st subquery): selects average age for comparison w/outer query • It returns AVG(Age) but we have no field called Age • AVG() only works on a field; not on something like an entire table (even if the table has only one field, we have to specify the field) • Its FROM line has a subquery… • Green text (second subquery): selects everyone's Ages • We create calculated field called Age for use by outer query • In a FROM line, the subquery returns a (virtual) data table to be used • All tables in a FROM line need a name… • Red text: Provides the virtual table with a name, just like any alias • The alias goes outside the () around the subquery • Alias name only matters if you would need to JOIN, etc. with it http://www.cse.msu.edu/~cse103 U:/msu/course/cse/103

  10. Nicolas Cage Example • Who has costarred with Mr. Cage? • Step 1: Find Cage's ActorID • Step 2: Use that ActorID to find the MovieIDs he's been in • Step 3: Use those MovieIDs to find the ActorIDs in those movies • Step 4: Use those ActorIDs to find the names of the other actors • Can solve using self-JOINs and/or subqueries • Mix & match as you like; Some solutions will be faster SELF-JOINs generally are very slow • Use subqueries instead of repeating a table, where possible http://www.cse.msu.edu/~cse103 U:/msu/course/cse/103

  11. Nicolas Cage, continued • One possible solution (there are many): • SELECT p1.FirstName, p1.LastName FROM ((tbl_People AS p1 INNER JOIN tbl_Roles AS r1 ON p1.PersonID = r1.ActorID)INNER JOIN(SELECT ActorID, MovieID FROM tbl_Roles AS r2 INNER JOIN tbl_People AS p2 ON r2.ActorID = p2.PersonID WHERE p2.FirstName = 'Nicolas' AND p2.LastName = 'Cage')AS vr_tbl_1 ON r1.MovieID = vr_tbl_1.MovieIDORDER BY LastName, FirstName • Blue text: subquery to find NC's Movies • See the use of INNER JOIN with the virtual table produced by the subquery (red text) • For further thought: without restricting another firstname/lastname, make Nicolas Cage not star with himself. http://www.cse.msu.edu/~cse103 U:/msu/course/cse/103

  12. Nested queries in FROM exercise • Find all the genres which had a higher-than-average number of movies made in 2003 (compared only to the average per genre for 2003 movies). Show the GenreName and that Number. • E.g., if the average Genre in '03 has 300 movies made, and Action has 500 while Comedy has 200, your query should return Action, 500 http://www.cse.msu.edu/~cse103 U:/msu/course/cse/103

  13. Upcoming Bridge Task • Everyone should come; get next BT you haven't passed • This is 5th opportunity out of 12 • If you take & pass the 1.5, you have 7 more attempts to pass 3 BTs, but if you fail the 1.5, you have only 7 attempts for 4 BTs (less than 2 tries each) • Review text, Web and homework • Get help from helprooms (best if you missed entire days), office hours (good for specific questions), email (specific questions after hours) • If taking 2.0, must have C&U database from passed 1.5 • Bring any books, notes, back-up disk, etc. & a photo ID • Last BT opportunity before Spring Break! http://www.cse.msu.edu/~cse103 U:/msu/course/cse/103

  14. Bridge Task 2.0 • Covers materials primarily from Days 10-13 • Advanced queries of all sorts • Functions (Day 10), Aggregates (Day 11), Stored queries/views (Day 12),[Nested] Subqueries (Day 13) • Also be sure you understand INNER/OUTER JOIN and Calculated fields, as many advanced problems rely on those more basic concepts • Review notes, homework, classwork • Notes are on the Web pages http://www.cse.msu.edu/~cse103 U:/msu/course/cse/103
