  1. Lecture 8 Detectors Spectrophotometer design Background correction Width of the spectral peak Ch. 20 Harris

  2. Monochromator (filter, wavelength selector) Light Source Detector Sample Spectrometer Data Processing

  3. A phototube K/Cs/Sb GaAs - + Ag/O/Cs 90 V Wavelength, nm

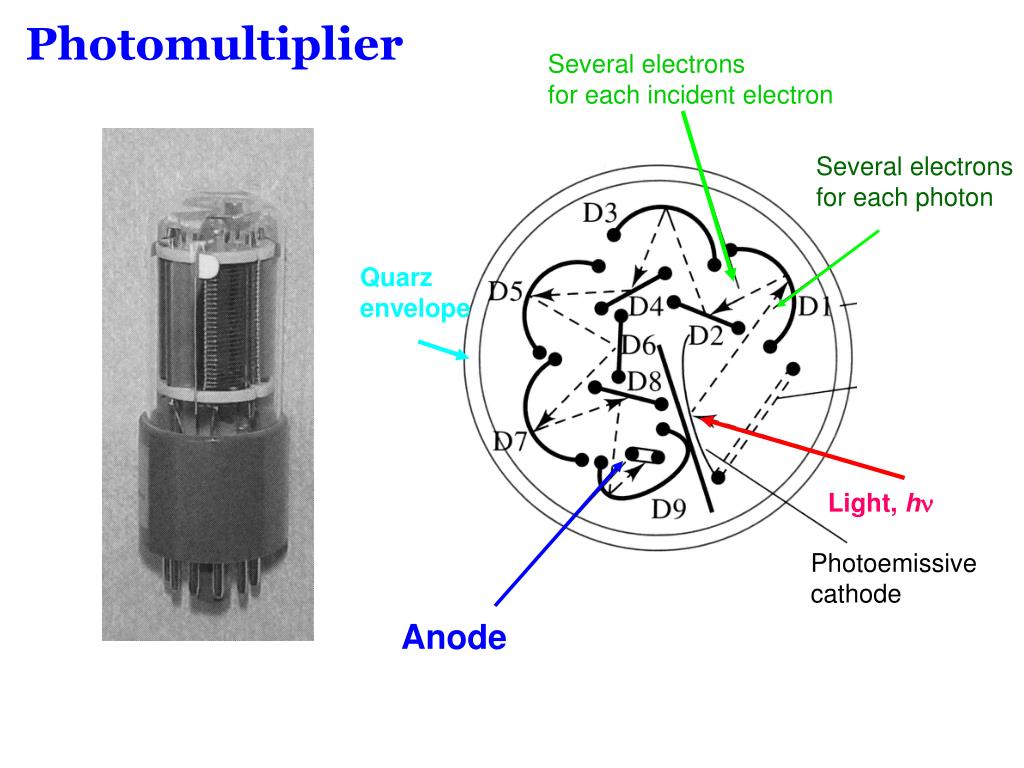

  4. Photomultiplier Several electrons for each incident electron Several electrons for each photon Quarz envelope Light, h Photoemissive cathode Anode

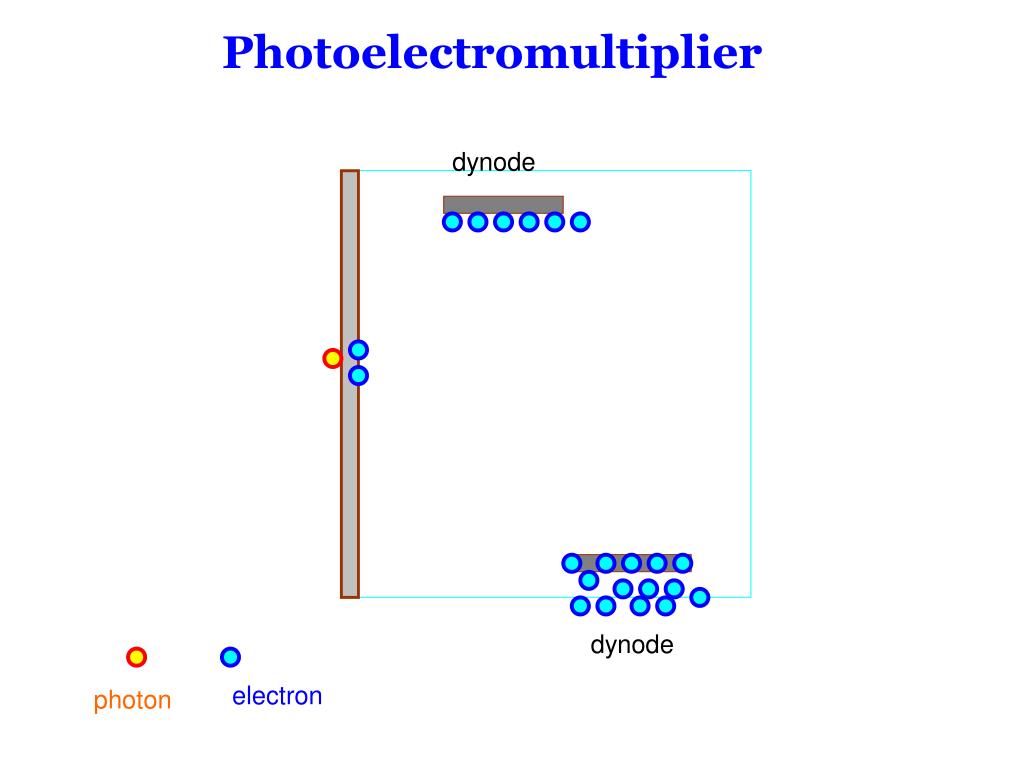

  5. Photoelectromultiplier dynode dynode electron photon

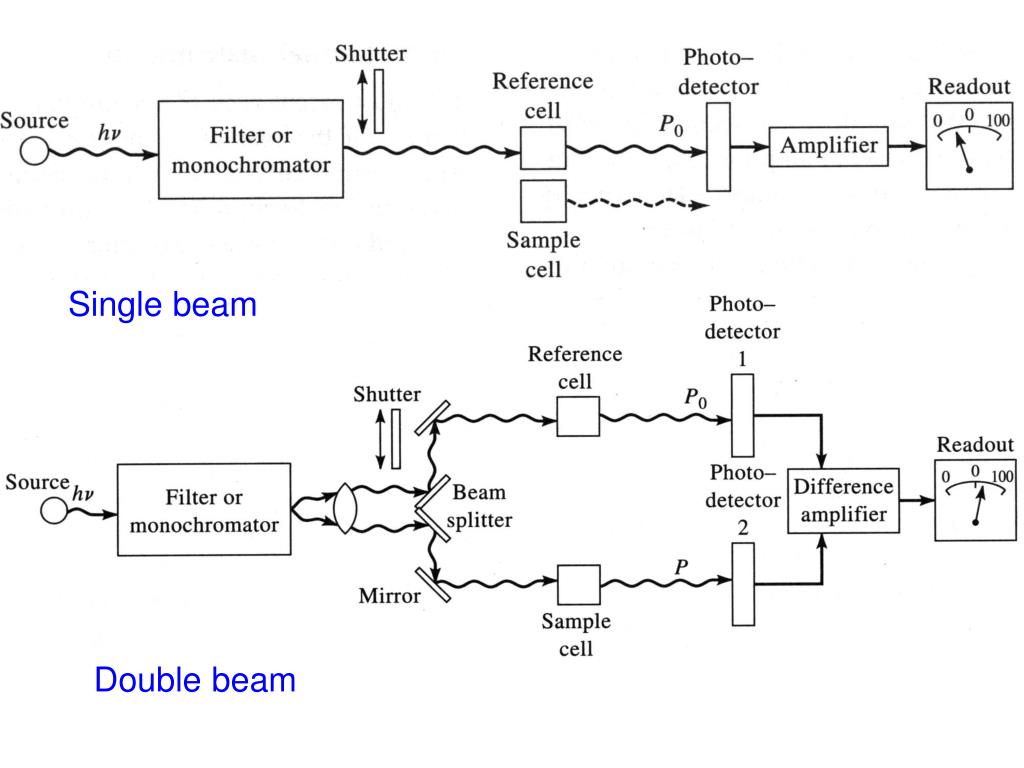

  6. Single beam Double beam

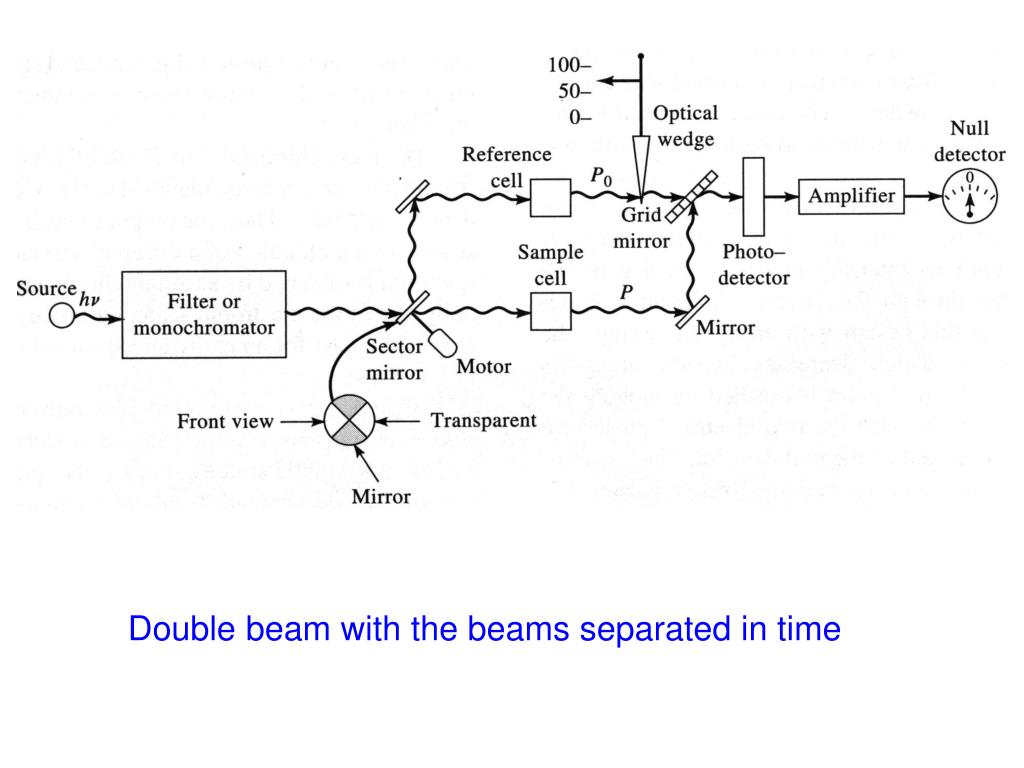

  7. Double beam with the beams separated in time

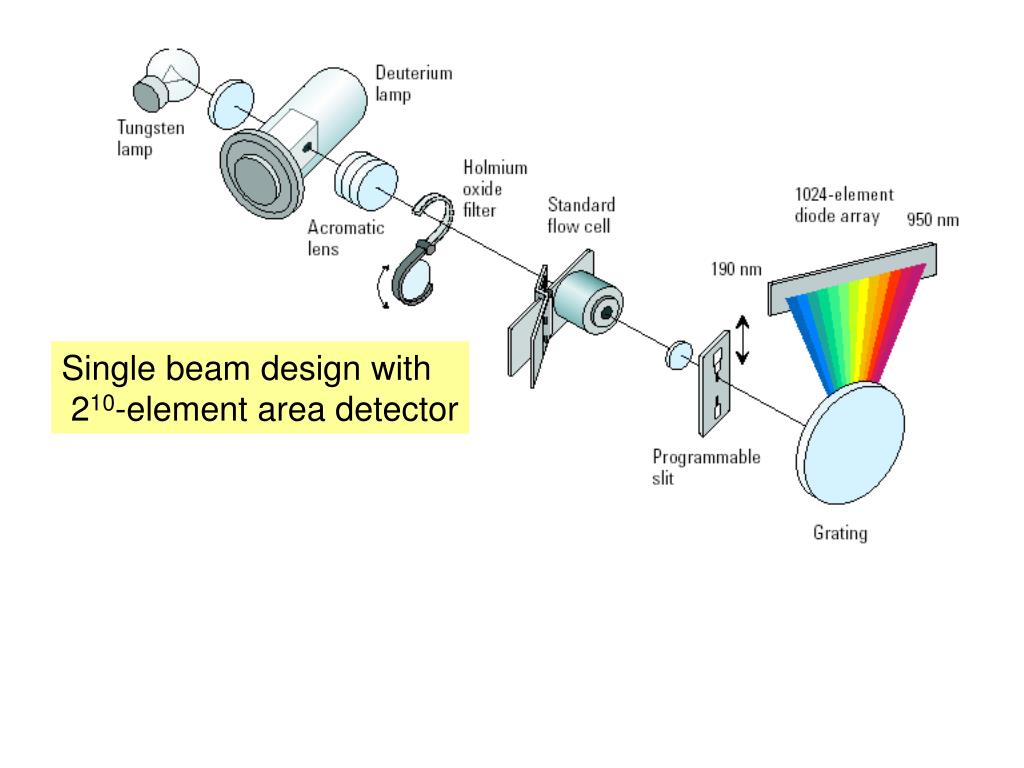

  8. Single beam design with 210-element area detector

  9. Flat background Ipeak I Ipeak – I0 Intensities at two different wavelengthes Peak I0 Baseline wavelength

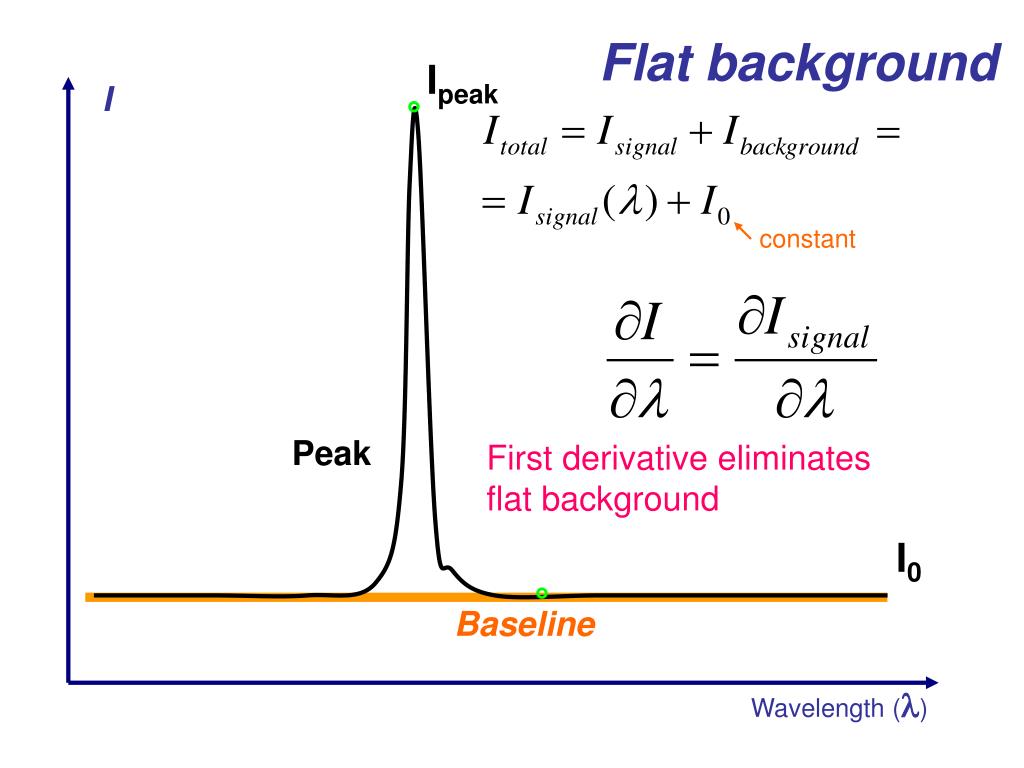

  10. Flat background Ipeak I constant Peak First derivative eliminates flat background I0 Baseline Wavelength (l)

  11. Linear Background Ipeak I Ipeak – (I1+I2) / 2 I1 Background I2   Wavelength (l)

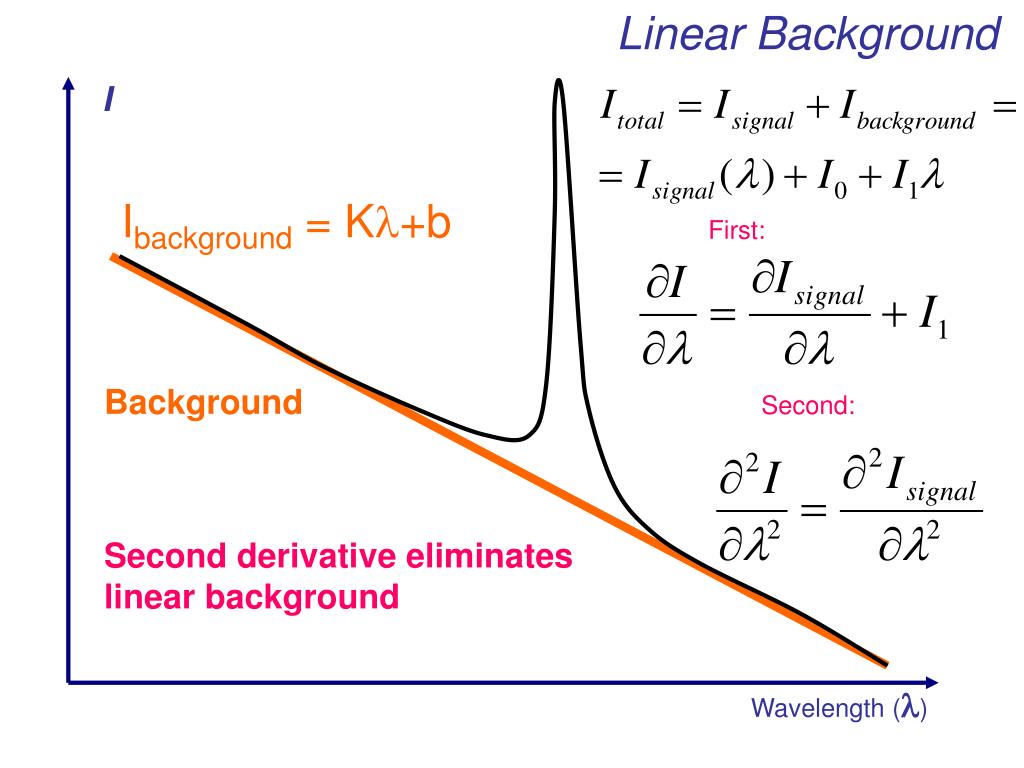

  12. Linear Background I Ibackground = Kl+b First: Background Second: Second derivative eliminates linear background Wavelength (l)

  13. Original Second 4th First

  14. Well defined peaks and valleys High noise Some peaks visible Almost featureless: little information Low noise

  15. Only photons of one specified wavelength are absorbed Excited state Ground state

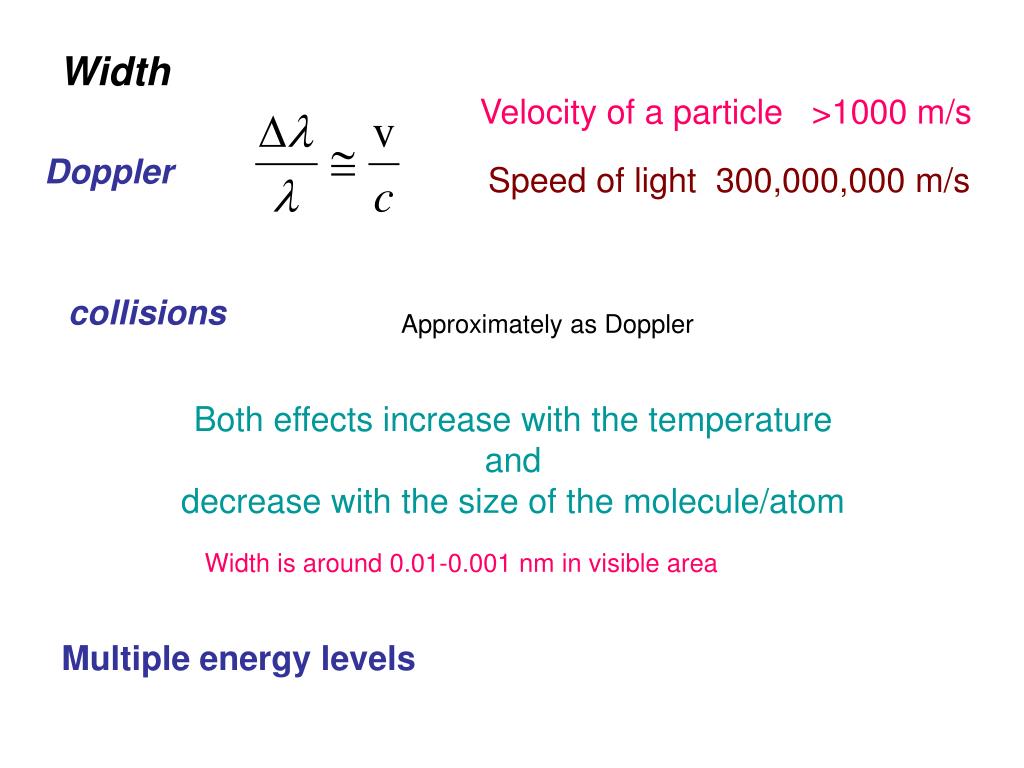

  16. Width Velocity of a particle >1000 m/s Doppler Speed of light 300,000,000 m/s collisions Approximately as Doppler Both effects increase with the temperature and decrease with the size of the molecule/atom Width is around 0.01-0.001 nm in visible area Multiple energy levels

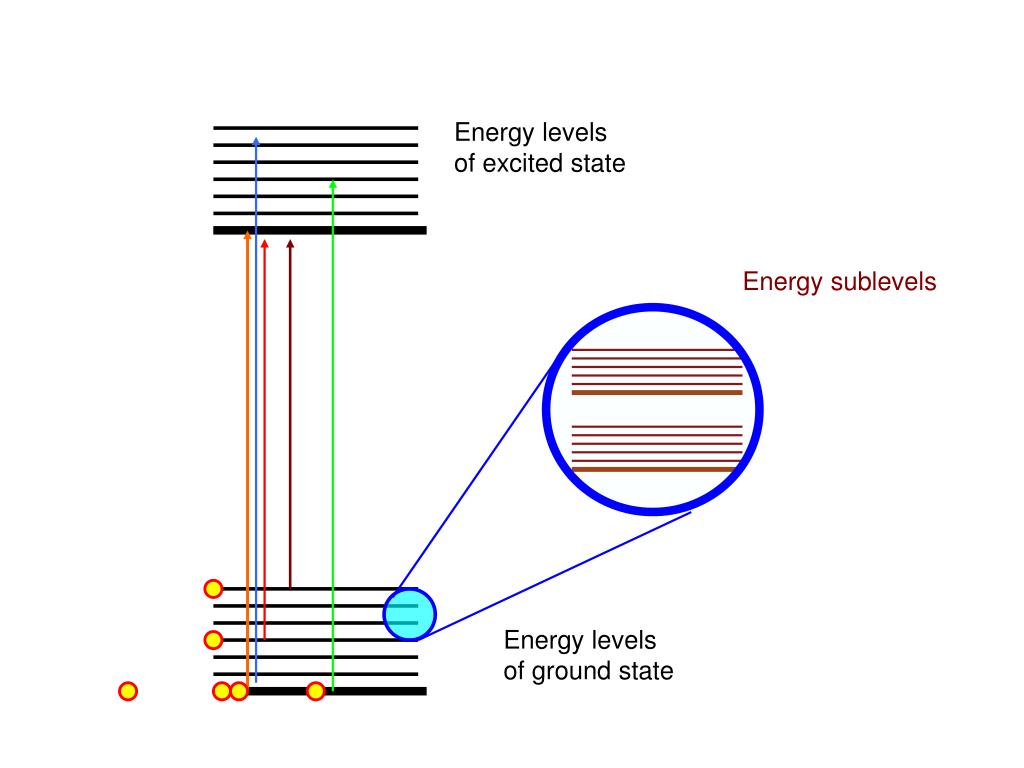

  17. Energy levels of excited state Energy sublevels Energy levels of ground state

  18. A primitive rule: Molecular spectra - widebands Atomic spectra - narrowlines
