  1. Data-Flow Analysis

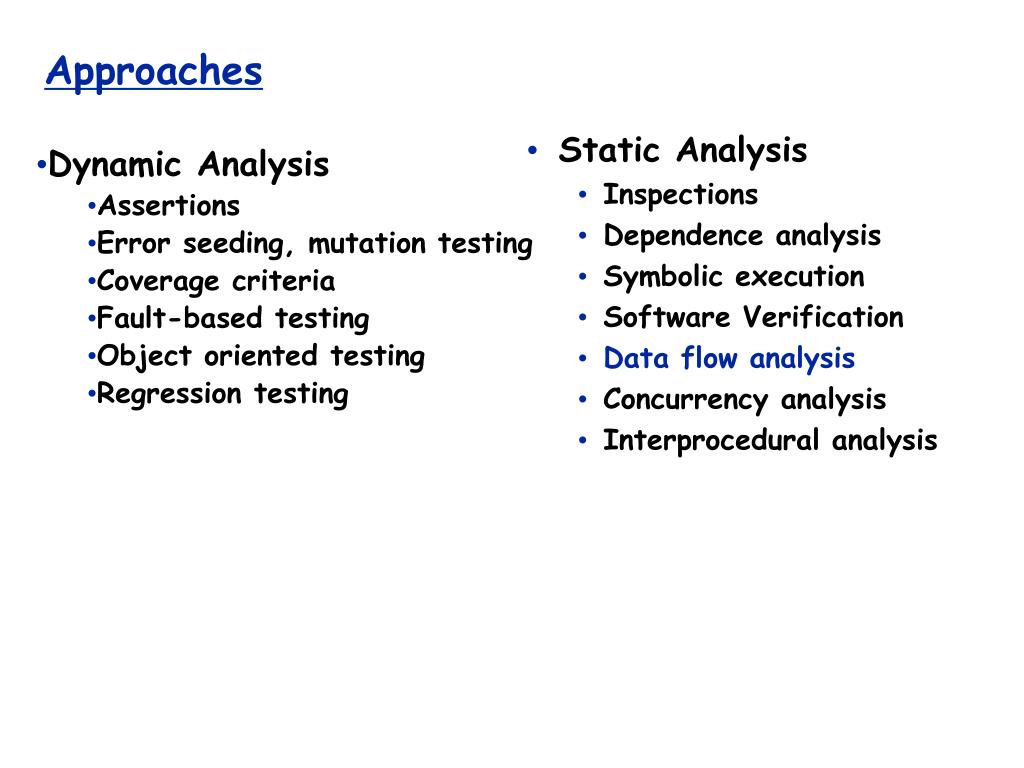

  2. Static Analysis Inspections Dependence analysis Symbolic execution Software Verification Data flow analysis Concurrency analysis Interprocedural analysis Approaches • Dynamic Analysis • Assertions • Error seeding, mutation testing • Coverage criteria • Fault-based testing • Object oriented testing • Regression testing

  3. Data Flow Analysis (DFA) • Efficient technique for proving properties about programs • Not as powerful as automated theorem provers, but requires less human expertise • Uses an annotated control flow graph model of the program • Compute facts for each node • Use the flow in the graph to compute facts about the whole program • We’ll focus on single units

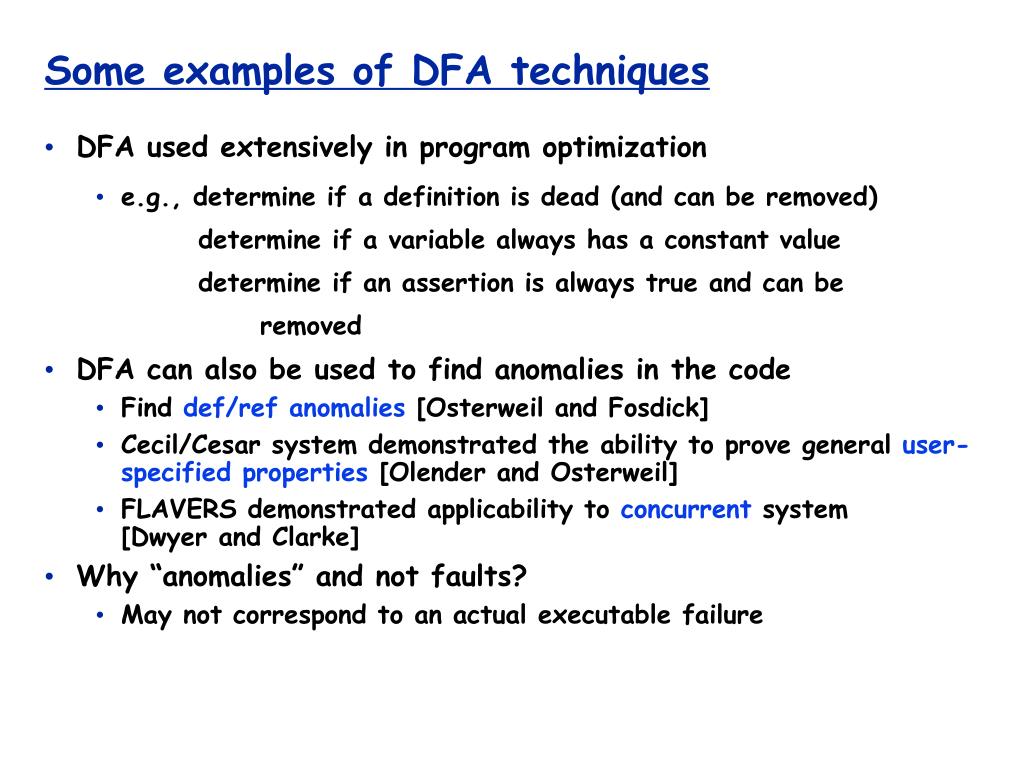

  4. Some examples of DFA techniques • DFA used extensively in program optimization • e.g., determine if a definition is dead (and can be removed) determine if a variable always has a constant value determine if an assertion is always true and can be removed • DFA can also be used to find anomalies in the code • Find def/ref anomalies [Osterweil and Fosdick] • Cecil/Cesar system demonstrated the ability to prove general user-specified properties [Olender and Osterweil] • FLAVERS demonstrated applicability to concurrent system[Dwyer and Clarke] • Why “anomalies” and not faults? • May not correspond to an actual executable failure

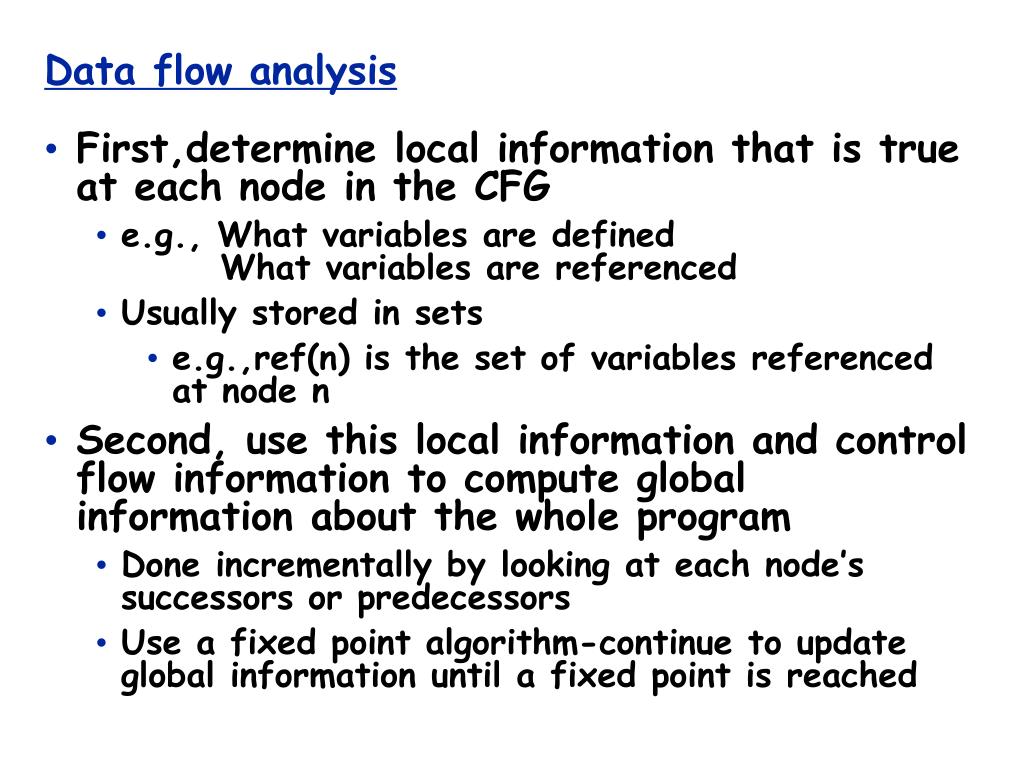

  5. Data flow analysis • First,determine local information that is true at each node in the CFG • e.g., What variables are defined What variables are referenced • Usually stored in sets • e.g.,ref(n) is the set of variables referenced at node n • Second, use this local information and control flow information to compute global information about the whole program • Done incrementally by looking at each node’s successors or predecessors • Use a fixed point algorithm-continue to update global information until a fixed point is reached

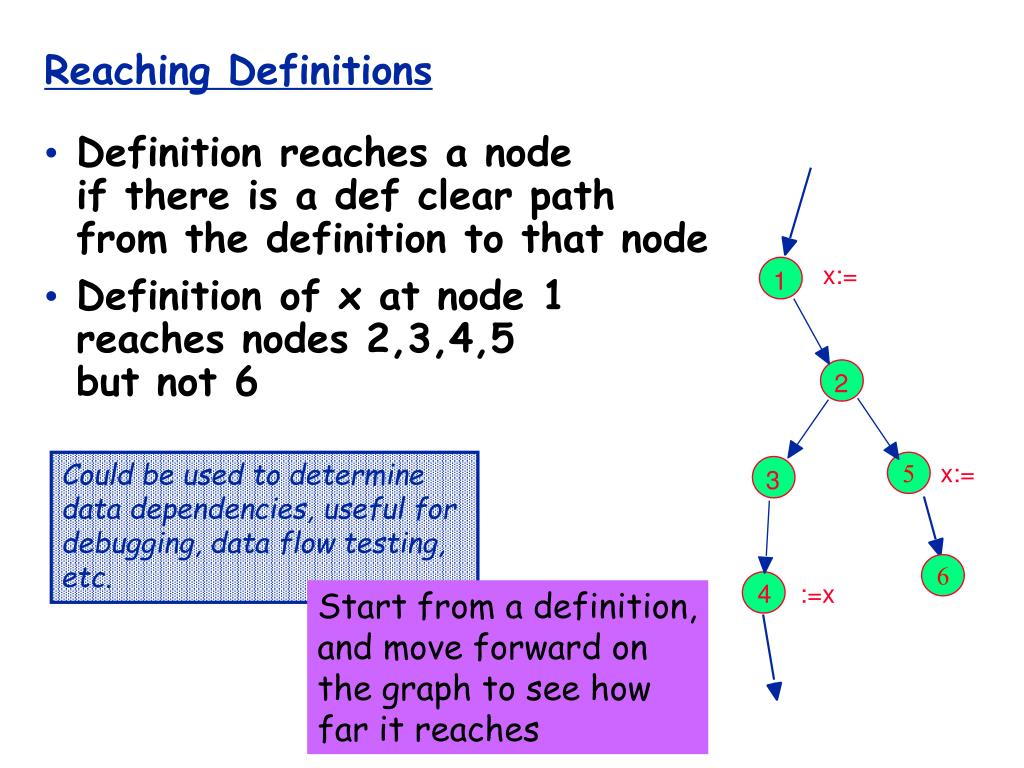

  6. Reaching Definitions • Definition reaches a nodeif there is a def clear path from the definition to that node • Definition of x at node 1 reaches nodes 2,3,4,5 but not 6 x:= 1 2 Could be used to determine data dependencies, useful for debugging, data flow testing, etc. 5 x:= 3 6 4 :=x Start from a definition, and move forward on the graph to see how far it reaches

  7. Definitions that might reach a node Definitions that must reach a node reaching_def={xi} reaching_def={xi,yj} 1 1 2 2 reaching_def={yj} reaching_def={yj} 3 3 Computing global information- reaching definitions Start from a definition, and move forward on the graph to see how far it reaches reaching_def={xi,yj} reaching_def={yj}

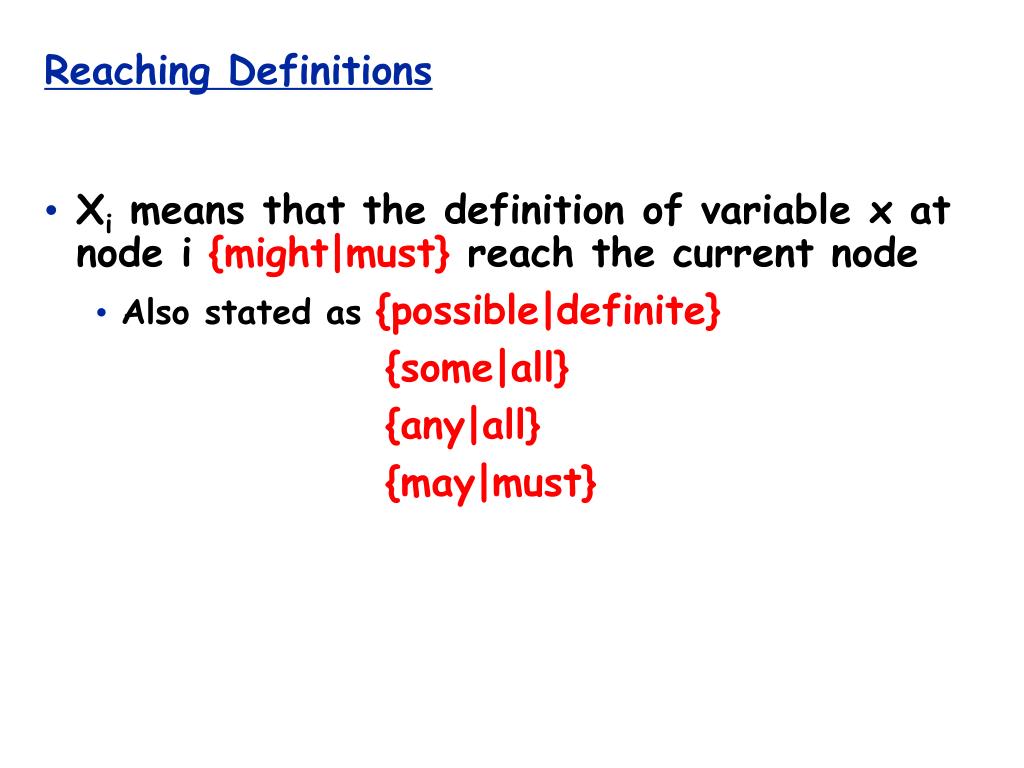

  8. Reaching Definitions • Xi means that the definition of variable x at node i {might|must} reach the current node • Also stated as {possible|definite} {some|all} {any|all} {may|must}

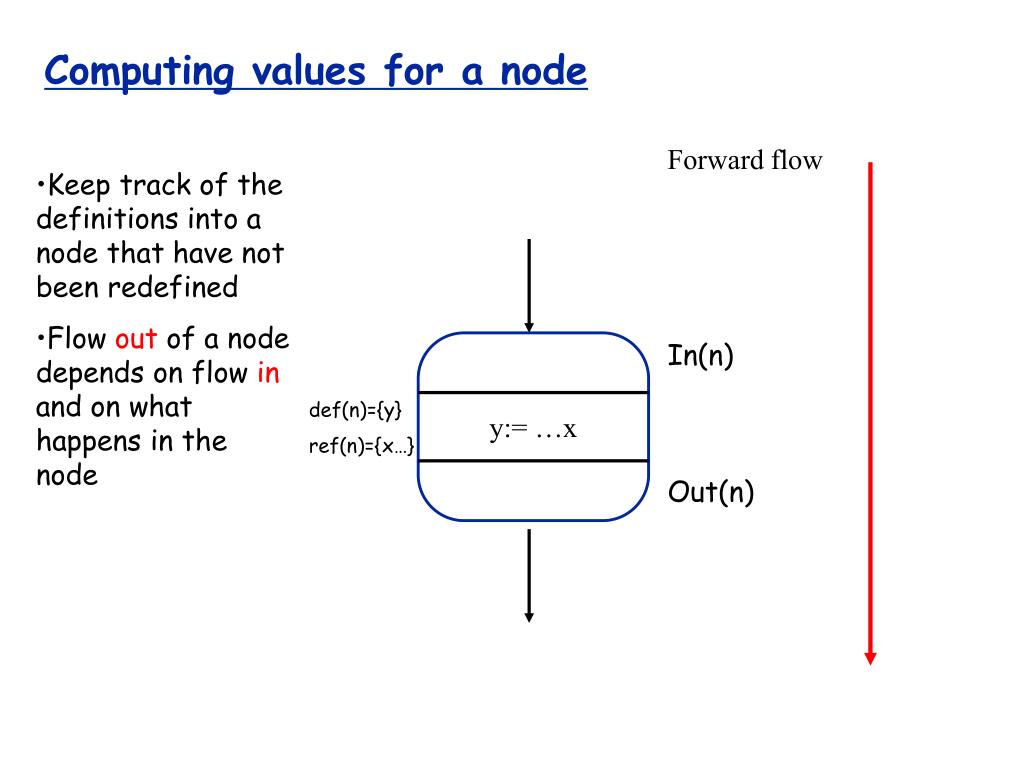

  9. Computing values for a node Forward flow • Keep track of the definitions into a node that have not been redefined • Flow out of a node depends on flow in and on what happens in the node y:= …x In(n) def(n)={y} ref(n)={x…} Out(n)

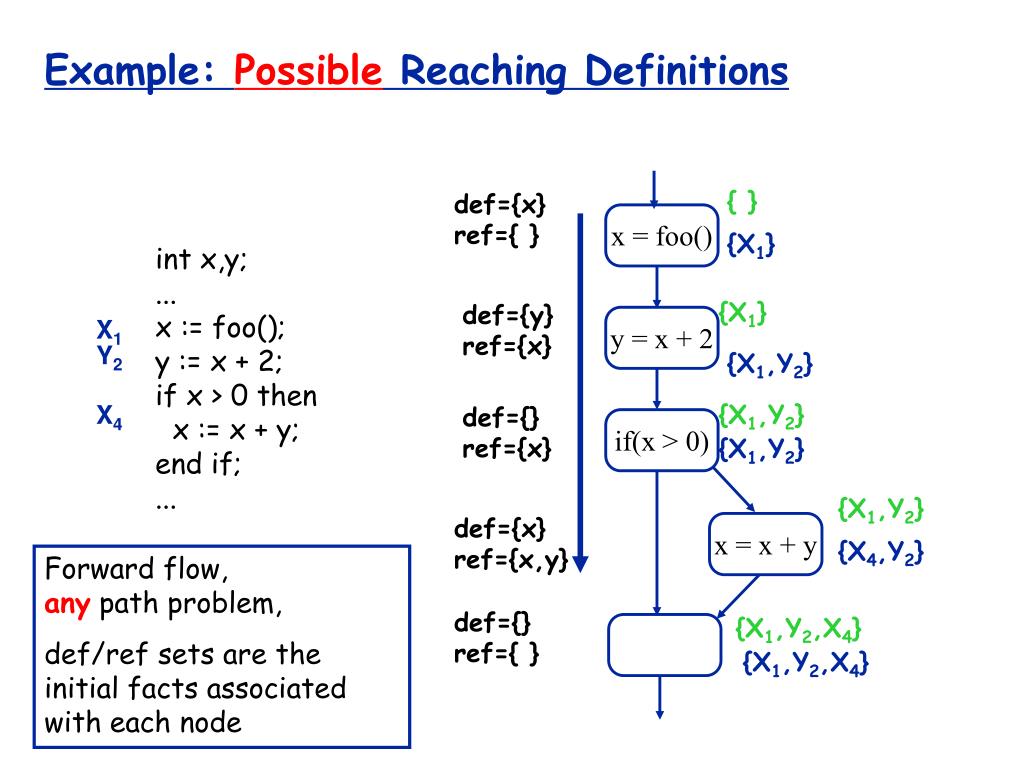

  10. def={x} ref={ } def={y} ref={x} X1 Y2 X4 def={} ref={x} def={x} ref={x,y} def={} ref={ } Example: Possible Reaching Definitions { } x = foo() {X1} int x,y; ... x := foo(); y := x + 2; if x > 0 then x := x + y; end if; ... {X1} y = x + 2 {X1,Y2} {X1,Y2} if(x > 0) {X1,Y2} {X1,Y2} x = x + y {X4,Y2} Forward flow,any path problem, def/ref sets are the initial facts associated with each node {X1,Y2,X4} {X1,Y2,X4}

  11. X1 Y2 X4 Example: Definite Reaching Definitions { } x = foo() {X1} int x,y; ... x := foo(); y := x + 2; if x > 0 then x := x + y; end if; ... {X1} y = x + 2 {X1,Y2} {X1,Y2} if(x > 0) {X1,Y2} {X1,Y2} x = x + y {X4,Y2} Forward flow,all path problem, def/ref sets are the initial facts associated with each node {Y2} {Y2}

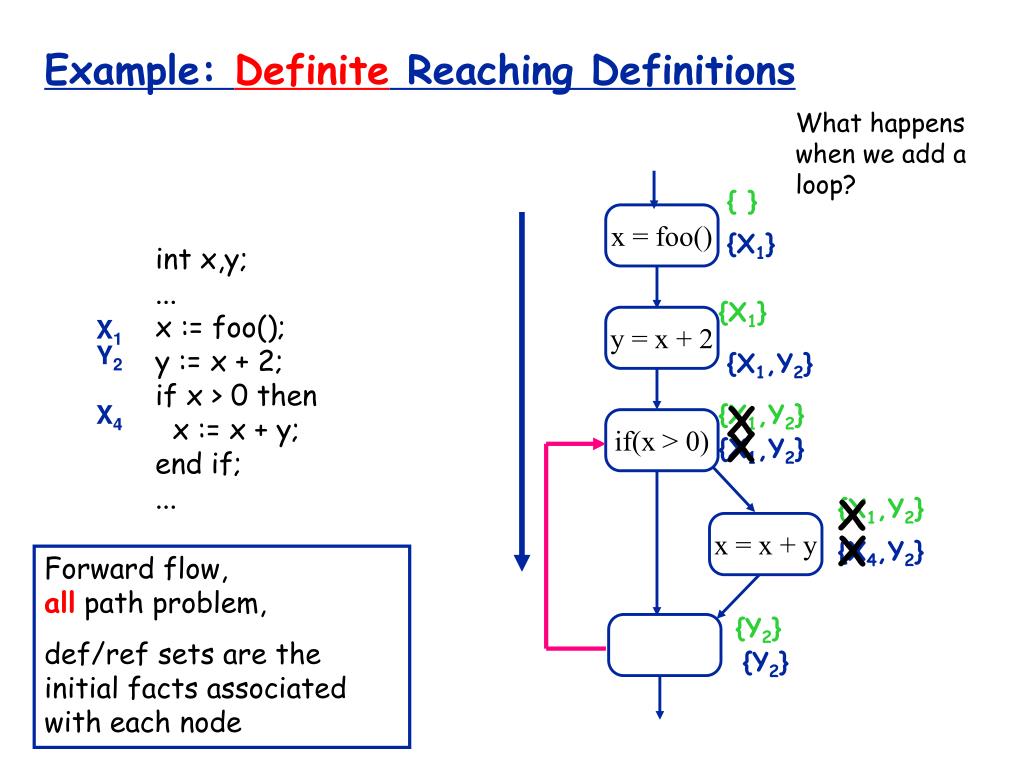

  12. X1 Y2 X4 Example: Definite Reaching Definitions What happens when we add a loop? { } x = foo() {X1} int x,y; ... x := foo(); y := x + 2; if x > 0 then x := x + y; end if; ... {X1} y = x + 2 {X1,Y2} {X1,Y2} if(x > 0) {X1,Y2} {X1,Y2} x = x + y {X4,Y2} Forward flow,all path problem, def/ref sets are the initial facts associated with each node {Y2} {Y2}

  13. X1 Y2 X4 Example: Definite Reaching Definitions What happens when we add a loop? { } x = foo() {X1} int x,y; ... x := foo(); y := x + 2; if x > 0 then x := x + y; end if; ... {X1} y = x + 2 {X1,Y2} X {X1,Y2} if(x > 0) X {X1,Y2} X {X1,Y2} x = x + y X {X4,Y2} Forward flow,all path problem, def/ref sets are the initial facts associated with each node {Y2} {Y2}

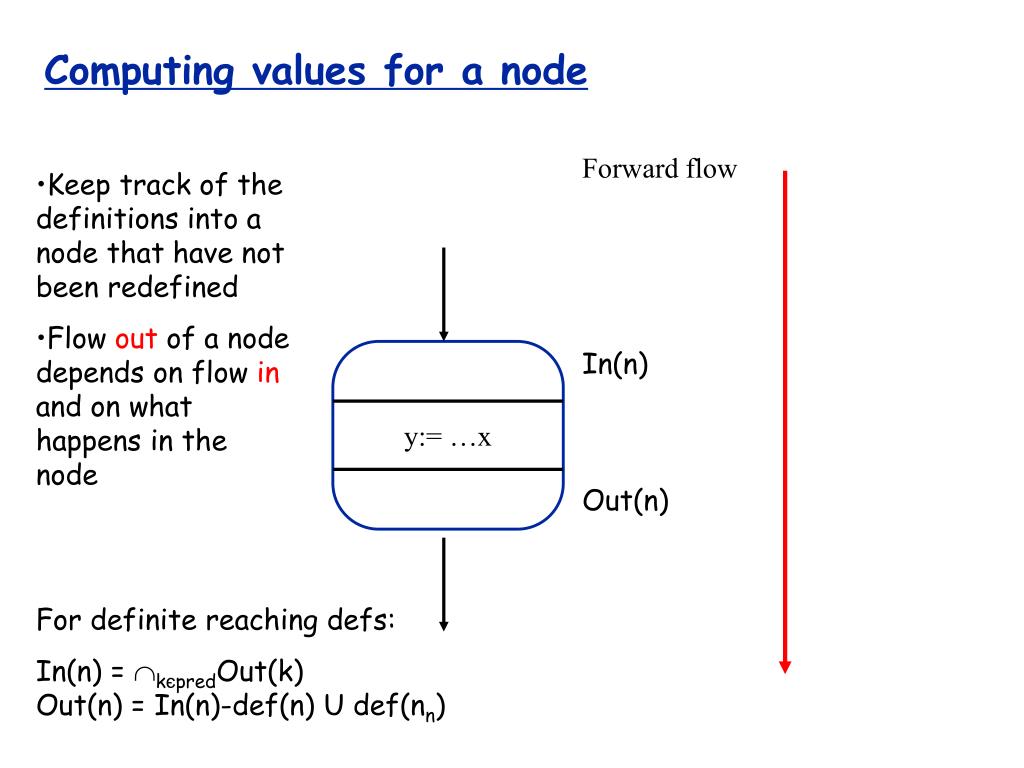

  14. Computing values for a node Forward flow • Keep track of the definitions into a node that have not been redefined • Flow out of a node depends on flow in and on what happens in the node y:= …x In(n) Out(n) For definite reaching defs: In(n) = kєpredOut(k)Out(n) = In(n)-def(n) U def(nn)

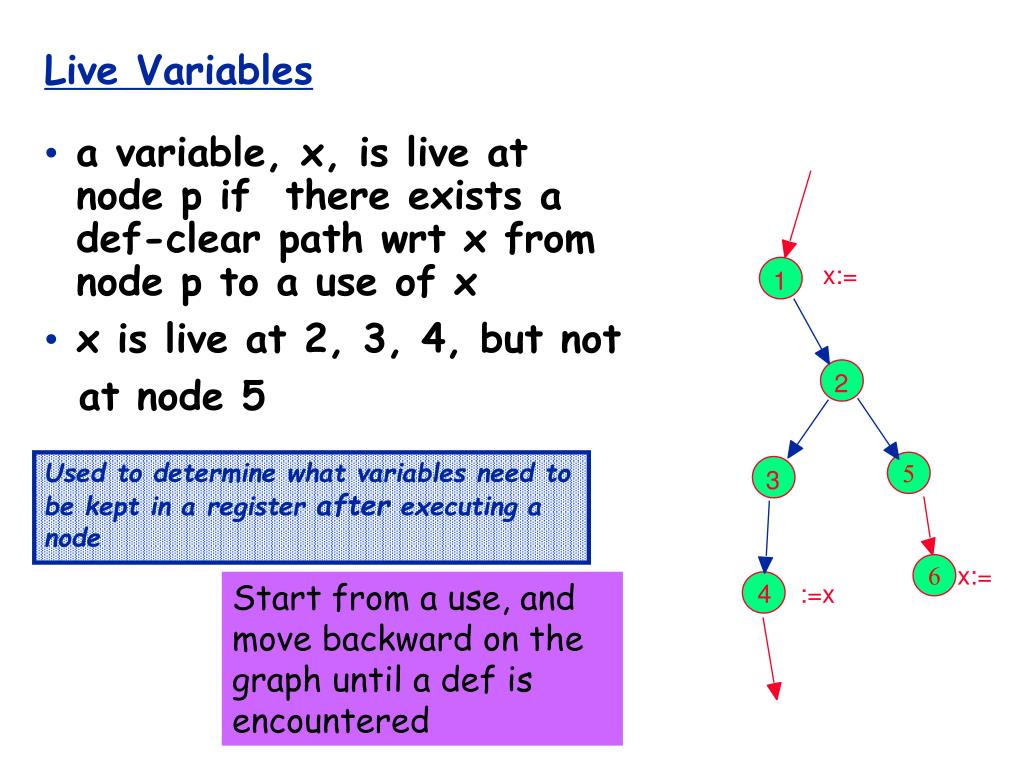

  15. Live Variables • a variable, x, is live at node p if there exists a def-clear path wrt x from node p to a use of x • x is live at 2, 3, 4, but not at node 5 x:= 1 2 Used to determine what variables need to be kept in a register after executing a node 5 3 6 x:= Start from a use, and move backward on the graph until a def is encountered 4 :=x

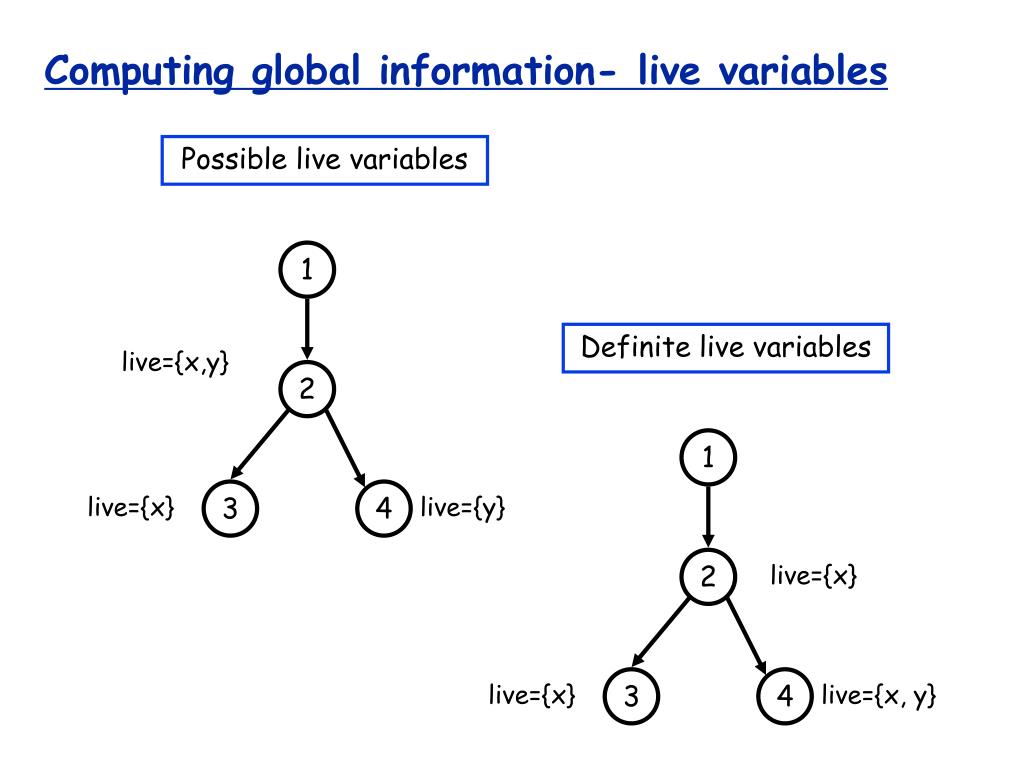

  16. Possible live variables Definite live variables 1 1 2 2 3 3 4 4 live={x} live={x} live={y} live={x, y} Computing global information- live variables live={x,y} live={x}

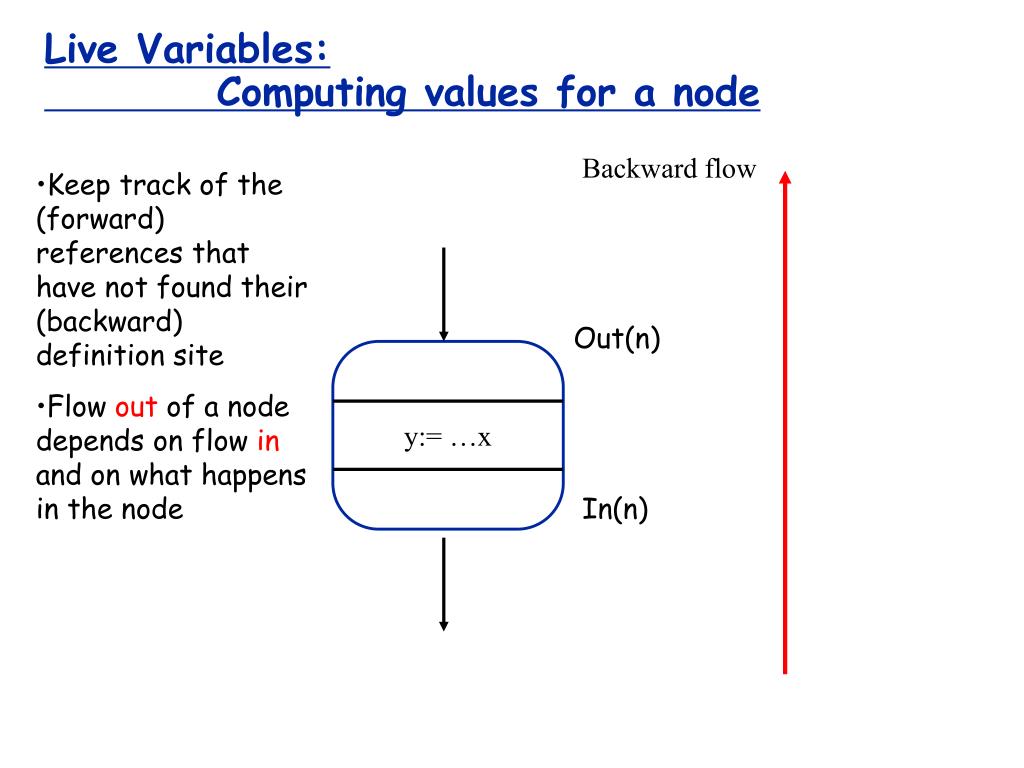

  17. Live Variables: Computing values for a node Backward flow • Keep track of the (forward) references that have not found their (backward) definition site • Flow out of a node depends on flow in and on what happens in the node Out(n) y:= …x In(n)

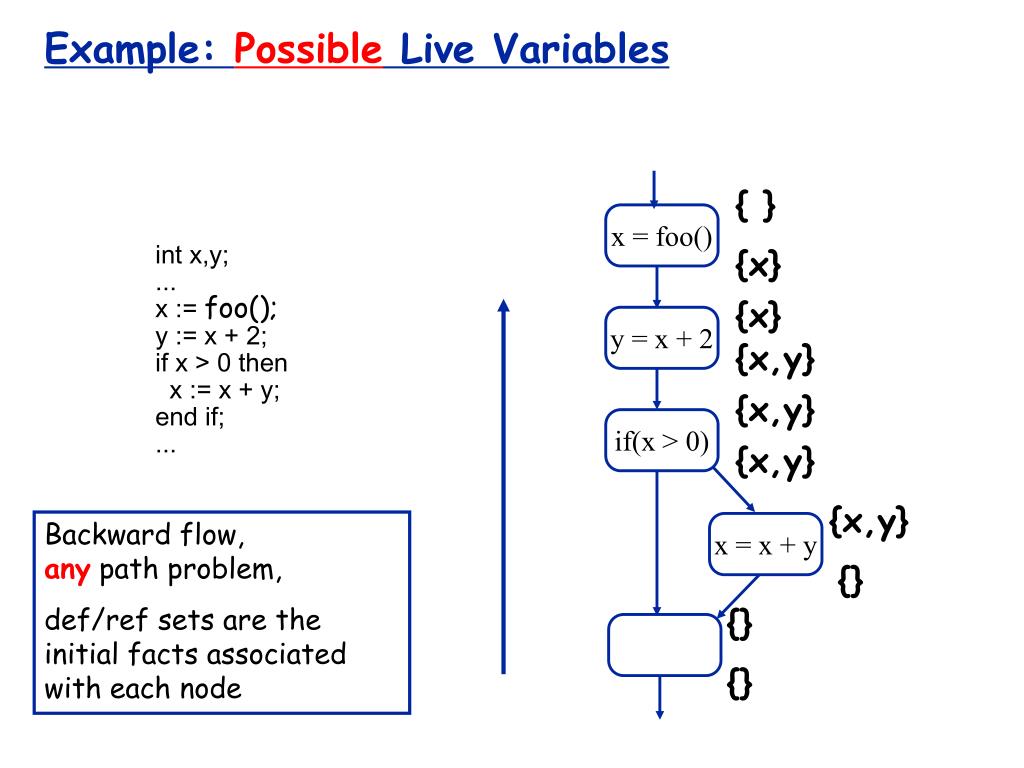

  18. Example: Possible Live Variables { } x = foo() int x,y; ... x := foo(); y := x + 2; if x > 0 then x := x + y; end if; ... {x} {x} y = x + 2 {x,y} {x,y} if(x > 0) {x,y} {x,y} Backward flow,any path problem, def/ref sets are the initial facts associated with each node x = x + y {} {} {}

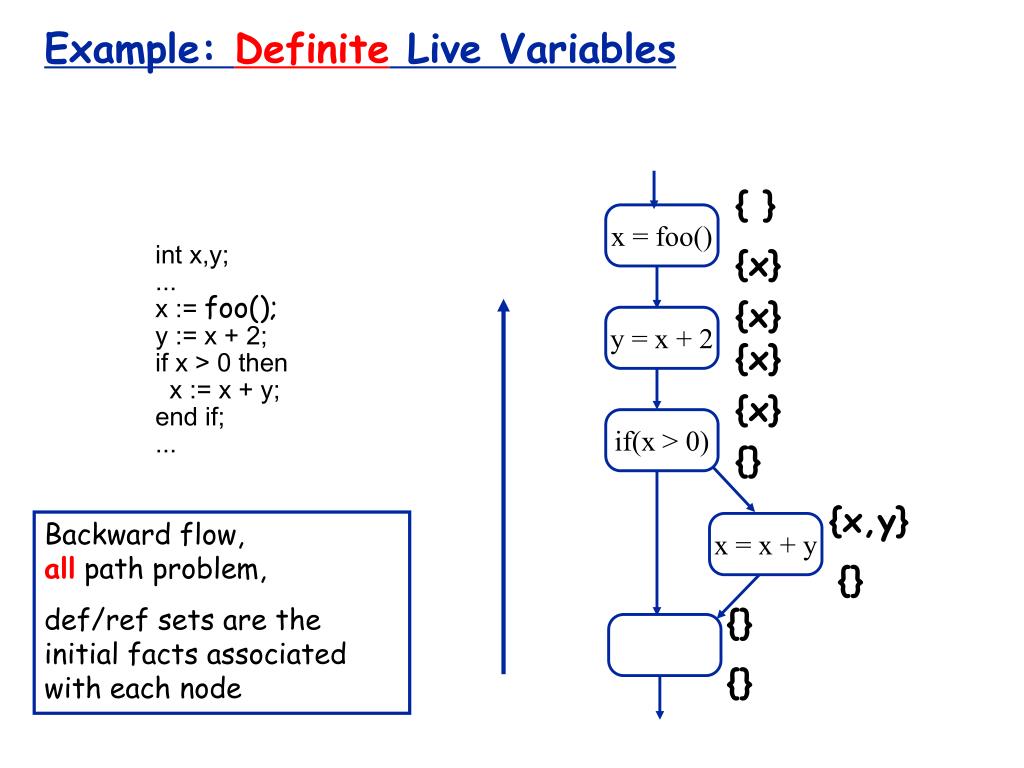

  19. Example: Definite Live Variables { } x = foo() int x,y; ... x := foo(); y := x + 2; if x > 0 then x := x + y; end if; ... {x} {x} y = x + 2 {x} {x} if(x > 0) {} {x,y} Backward flow,all path problem, def/ref sets are the initial facts associated with each node x = x + y {} {} {}

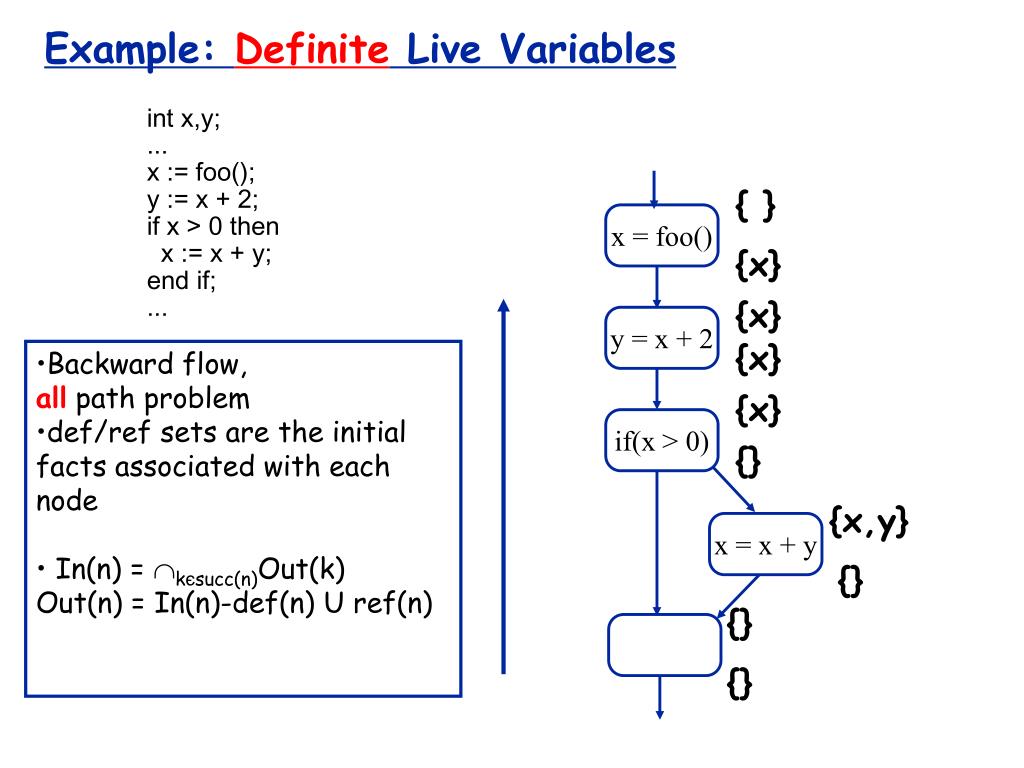

  20. Example: Definite Live Variables int x,y; ... x := foo(); y := x + 2; if x > 0 then x := x + y; end if; ... { } x = foo() {x} {x} y = x + 2 • Backward flow,all path problem • def/ref sets are the initial facts associated with each node • In(n) = kєsucc(n)Out(k)Out(n) = In(n)-def(n) U ref(n) {x} {x} if(x > 0) {} {x,y} x = x + y {} {} {}

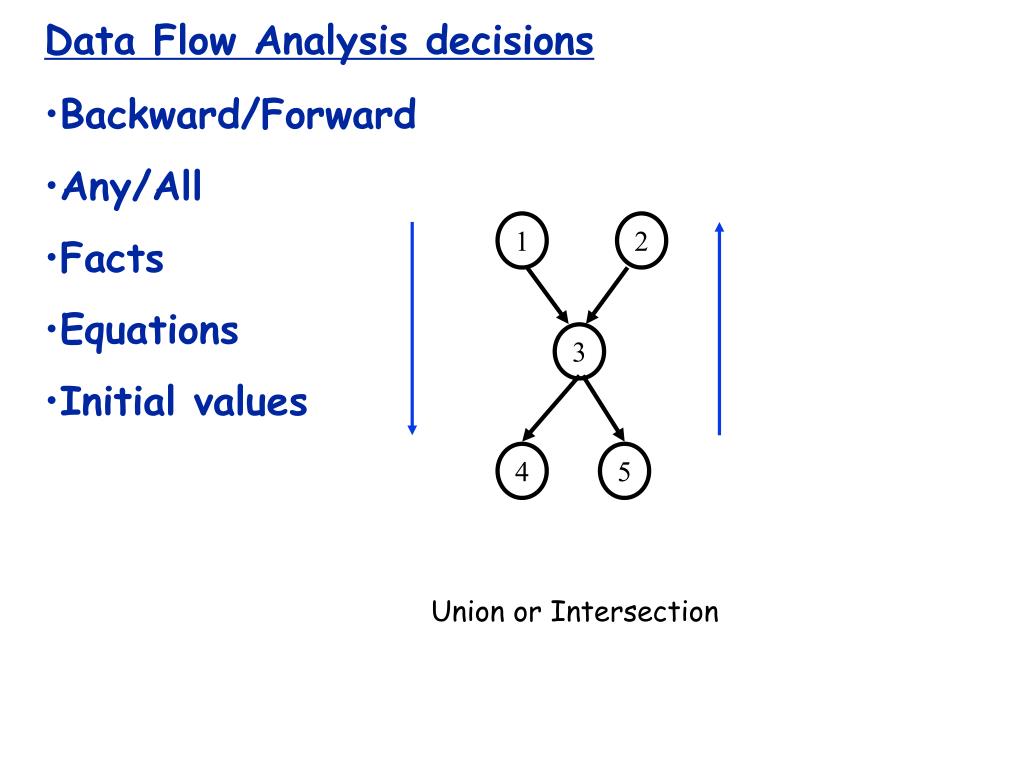

  21. Data Flow Analysis decisions • Backward/Forward • Any/All • Facts • Equations • Initial values 1 2 3 4 5 Union or Intersection

  22. Constant Propagation • Some variables at a point in a program may only take on one value • If we know this, can optimize the code when it is compiled

  23. Constant Propagation x = 3 int x,y; ... x := 3; y := x + 2; if x > z then x := x + y; end if; ... y = x + 2 if(x > z) x = x + y

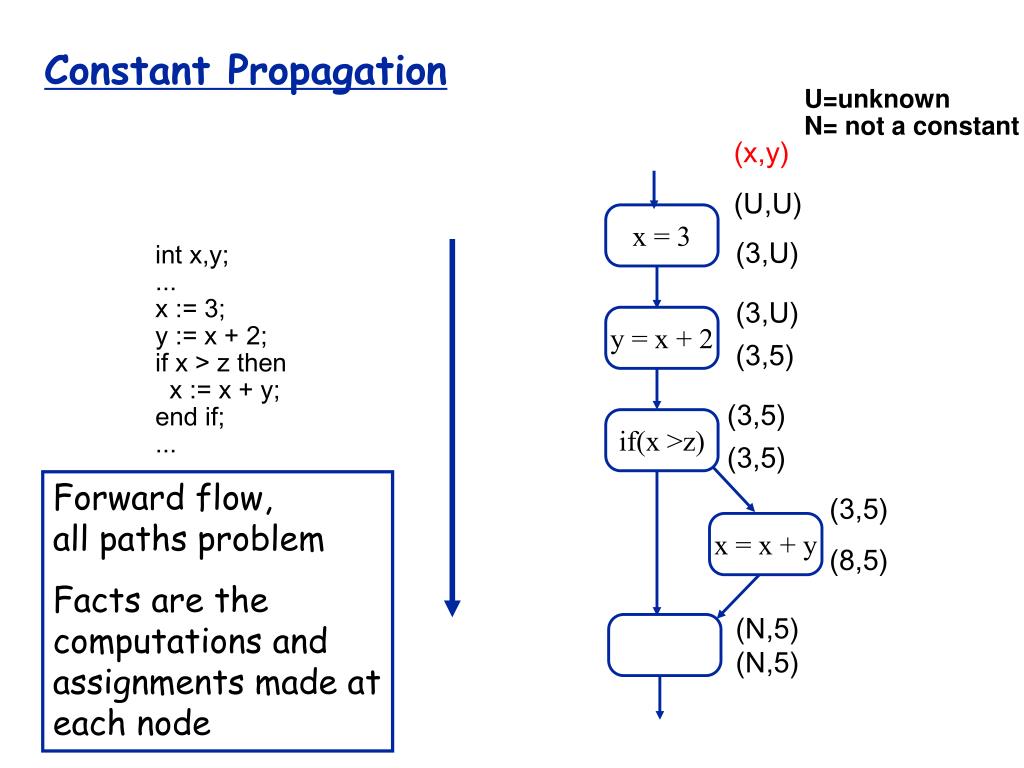

  24. Constant Propagation U=unknown N= not a constant (x,y) (U,U) x = 3 (3,U) int x,y; ... x := 3; y := x + 2; if x > z then x := x + y; end if; ... (3,U) y = x + 2 (3,5) (3,5) if(x >z) (3,5) Forward flow,all paths problem Facts are the computations and assignments made at each node (3,5) x = x + y (8,5) (N,5)(N,5)

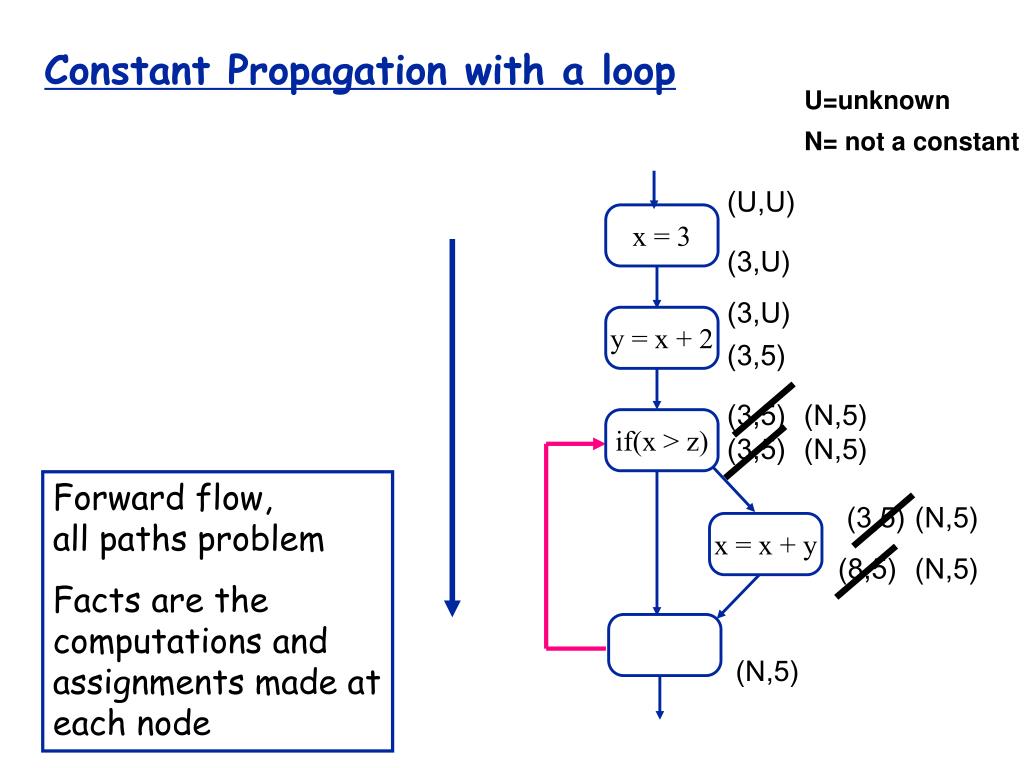

  25. Constant Propagation with a loop U=unknown N= not a constant (U,U) x = 3 (3,U) (3,U) y = x + 2 (3,5) (3,5) (N,5) if(x > z) (3,5) (N,5) Forward flow,all paths problem Facts are the computations and assignments made at each node (3,5) (N,5) x = x + y (8,5) (N,5) (N,5)

  26. Fixed point • The data flow analysis algorithm will eventually terminate • If there are only a finite number of possible sets that can be associated with a node • If the function that determines the sets that can be associated with a node is monotonic

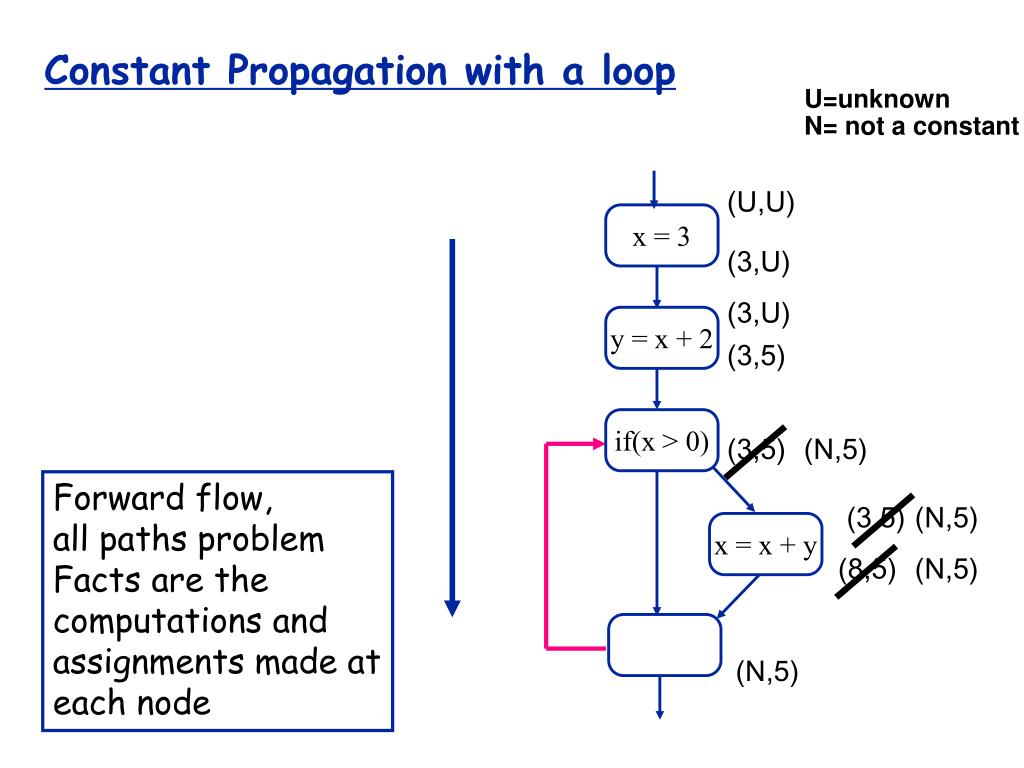

  27. Constant Propagation with a loop U=unknown N= not a constant (U,U) x = 3 (3,U) (3,U) y = x + 2 (3,5) if(x > 0) (3,5) (N,5) Forward flow,all paths problem Facts are the computations and assignments made at each node (3,5) (N,5) x = x + y (8,5) (N,5) (N,5)

  28. DAVE: detects anomalous def/ref behavior • L. D. Fosdick and Leon J. Osterweil, " Data Flow Analysis in Software Reliability", ACM Computing Surveys, September 1976, 8 (3), pp. 306-330. • Application independent specification of erroneous behavior • use of an uninitialized variable • redefinition of a variable that is not referenced

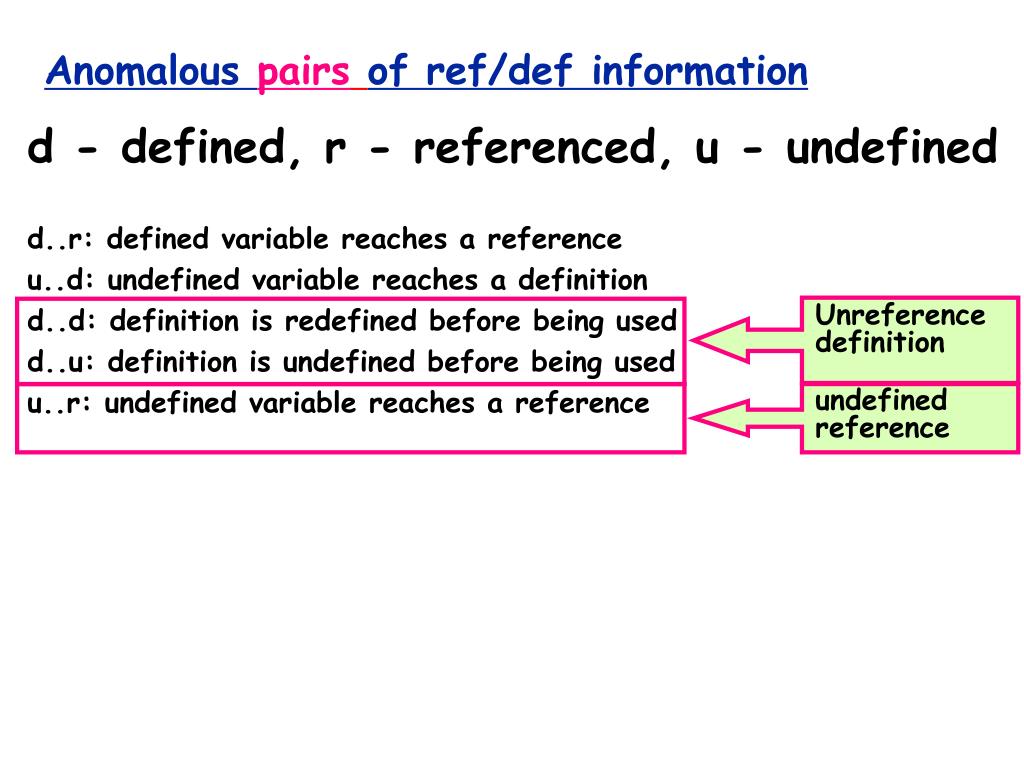

  29. Unreferencedefinition Anomalous pairsof ref/def information d - defined, r - referenced, u - undefined d..r: defined variable reaches a reference u..d: undefined variable reaches a definition d..d: definition is redefined before being used d..u: definition is undefined before being used u..r: undefined variable reaches a reference undefined reference

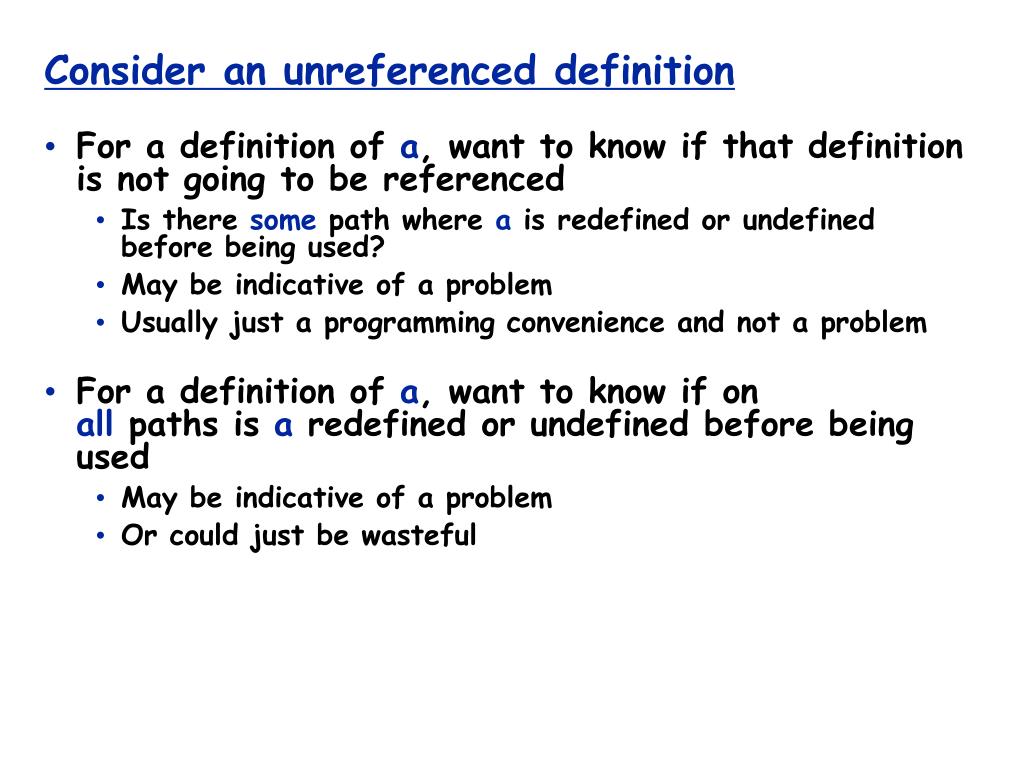

  30. Consider an unreferenced definition • For a definition of a, want to know if that definition is not going to be referenced • Is there some path where a is redefined or undefined before being used? • May be indicative of a problem • Usually just a programming convenience and not a problem • For a definition of a, want to know if on all paths is a redefined or undefined before being used • May be indicative of a problem • Or could just be wasteful

  31. def a def a ref a def a def a Some versus All For some path, a is redefined without a subsequent reference For all paths, a is redefined without a subsequent reference

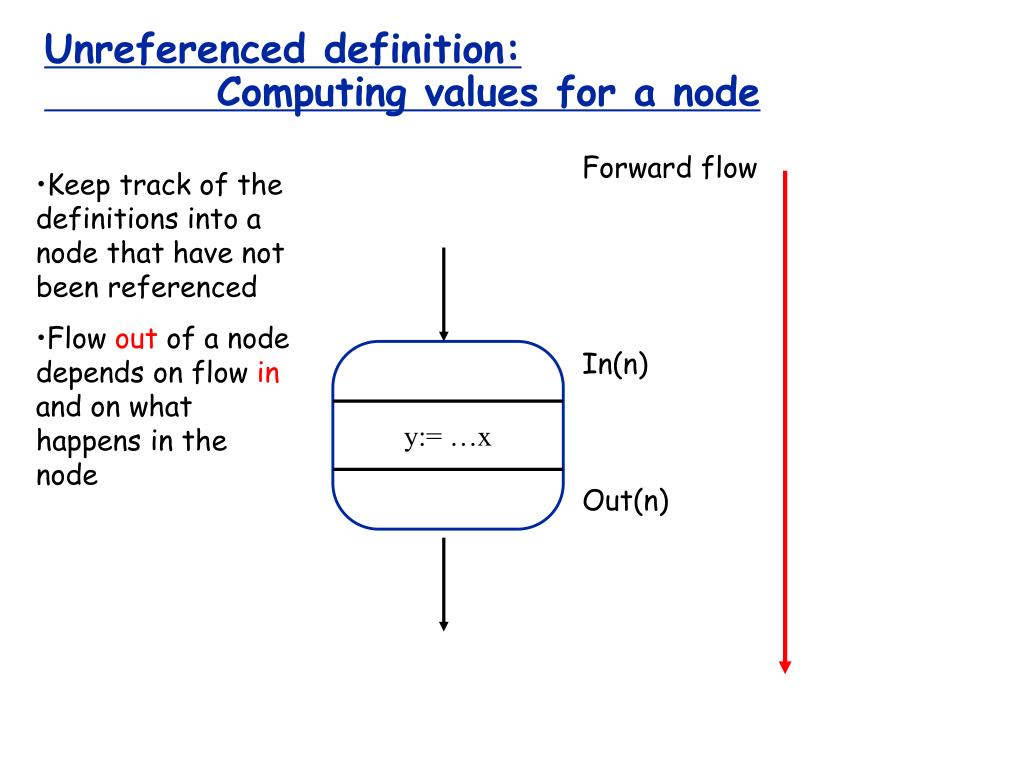

  32. Unreferenced definition: Computing values for a node Forward flow • Keep track of the definitions into a node that have not been referenced • Flow out of a node depends on flow in and on what happens in the node y:= …x In(n) Out(n)

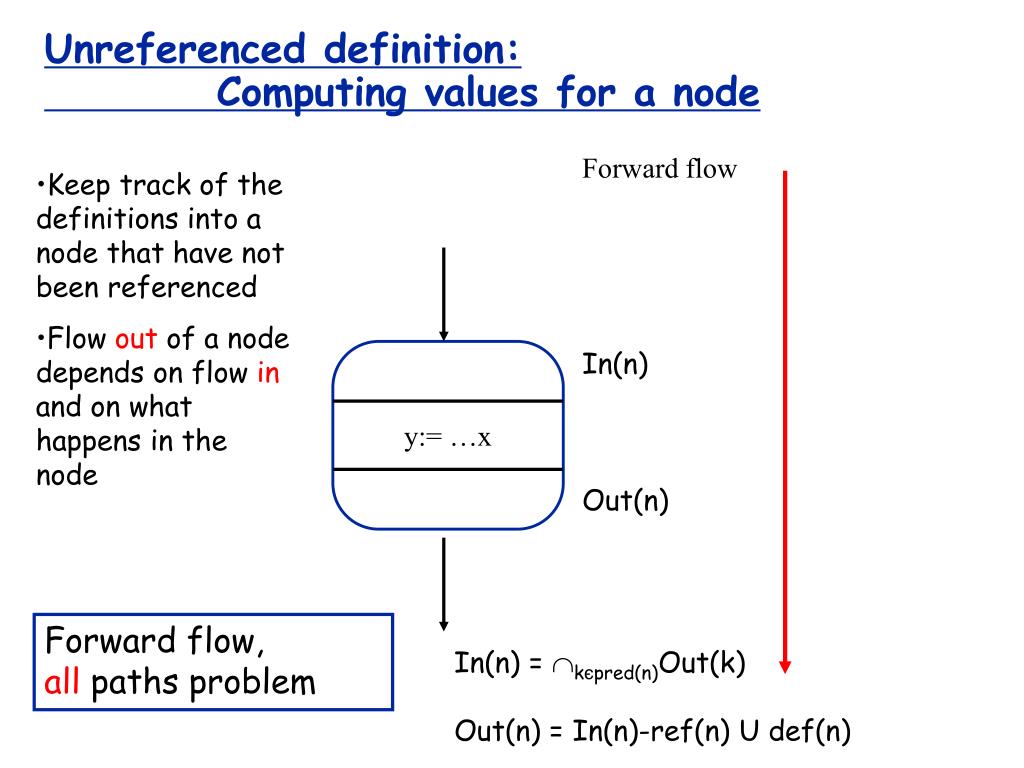

  33. Unreferenced definition: Computing values for a node Forward flow • Keep track of the definitions into a node that have not been referenced • Flow out of a node depends on flow in and on what happens in the node y:= …x In(n) Out(n) Forward flow,all paths problem In(n) = kєpred(n)Out(k)Out(n) = In(n)-ref(n) U def(n)

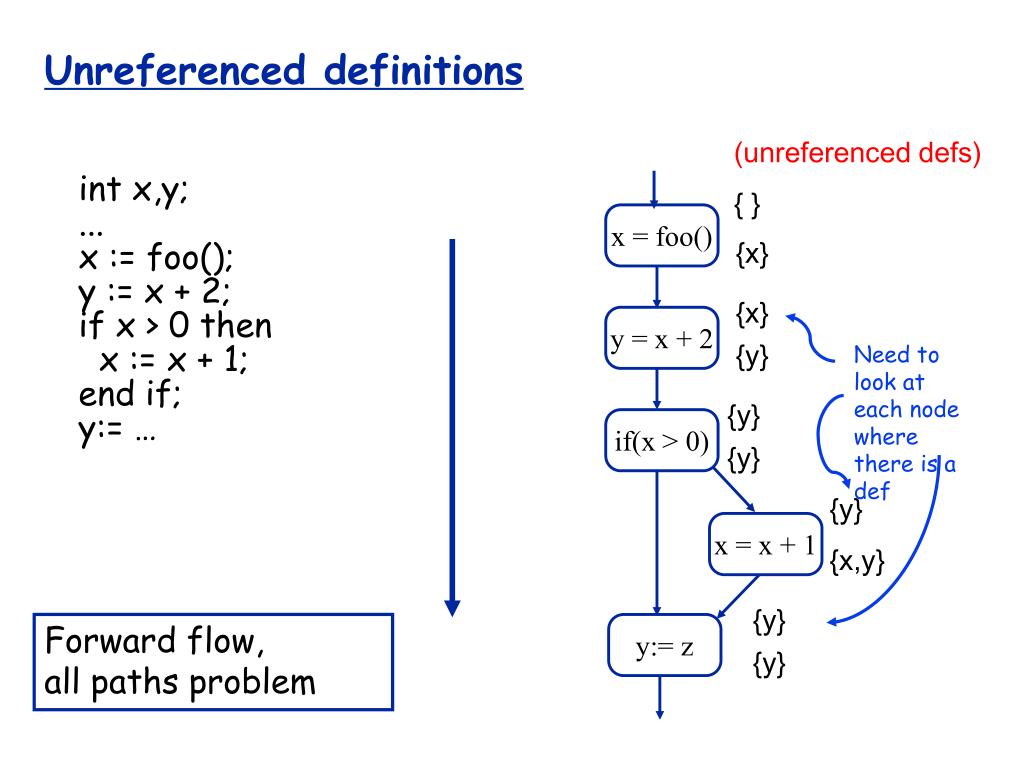

  34. Need to look at each node where there is a def Unreferenced definitions (unreferenced defs) int x,y; ... x := foo(); y := x + 2; if x > 0 then x := x + 1; end if; y:= … { } x = foo() {x} {x} y = x + 2 {y} {y} if(x > 0) {y} {y} x = x + 1 {x,y} {y} Forward flow,all paths problem y:= z {y}

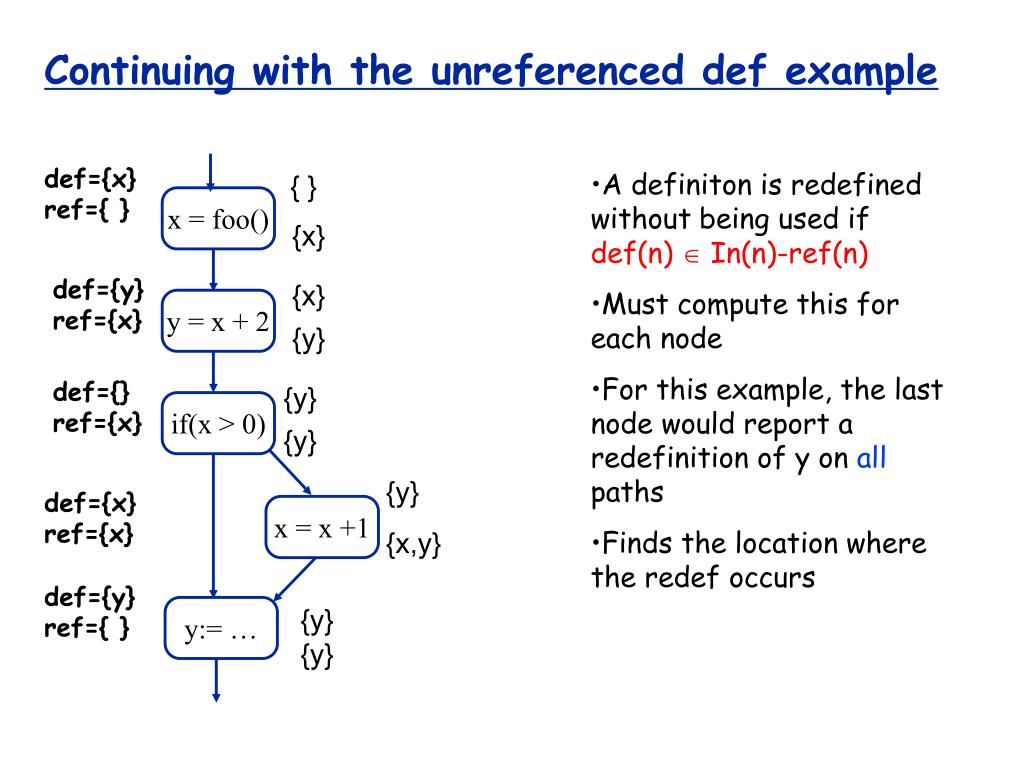

  35. def={x} ref={ } def={y} ref={x} def={} ref={x} def={x} ref={x} def={y} ref={ } Continuing with the unreferenced def example • A definiton is redefined without being used if def(n)  In(n)-ref(n) • Must compute this for each node • For this example, the last node would report a redefinition of y on all paths • Finds the location where the redef occurs { } x = foo() {x} {x} y = x + 2 {y} {y} if(x > 0) {y} {y} x = x +1 {x,y} y:= … {y} {y}

  36. Unreferenced definitions, (finds the location of the first def of the pair) (unreferenced defs) int x,y; ... x := foo(); y := x + 2; if x > 0 then x := x + 1; end if; y := ... {x,y} x = foo() {y} {y} y = x + 2 {y} double def {y} if(x > 0) {y} {y} x = x +1 {y} {y} y:= … Backward flow,all paths problem {y}

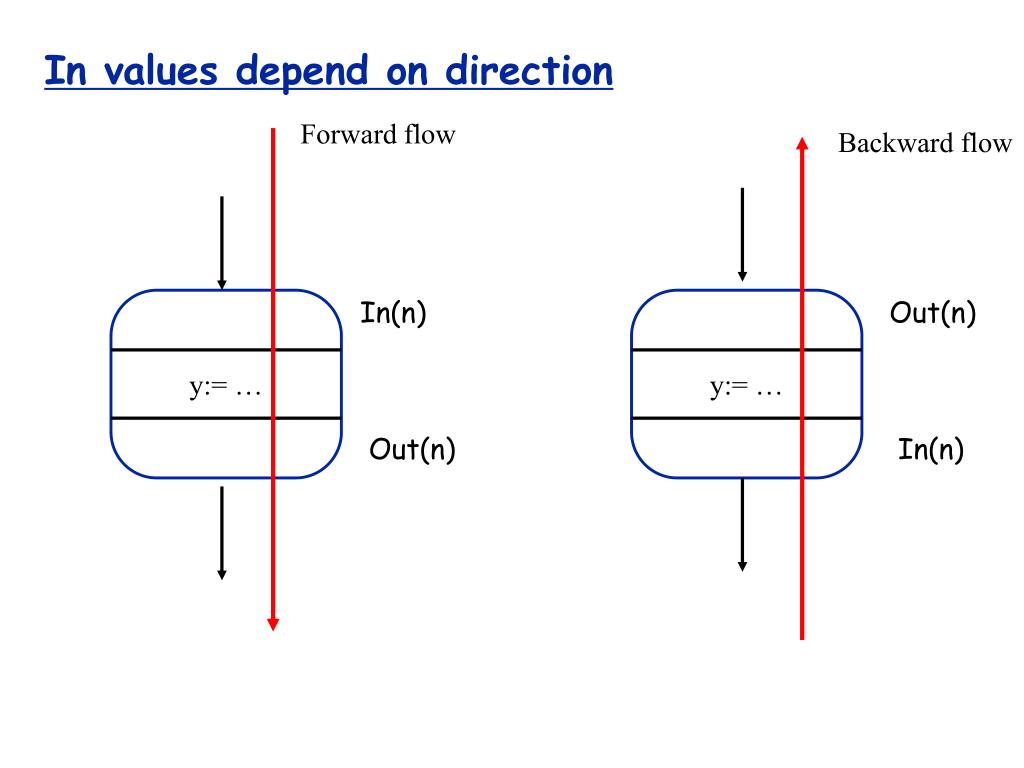

  37. In values depend on direction Forward flow Backward flow y:= … In(n) y:= … Out(n) Out(n) In(n)

  38. Data Flow Analysis Problem • Need to determine the information that should be computed at a node • Need to determine how that information should flow from node to node • Backward or Forward • Union or Intersection • Often there is more than one way to solve a problem • Can often be solved forward or backward, but usually one way is easier than the other
