Introduction to Data Flow Analysis

1. Introduction to Data Flow Analysis

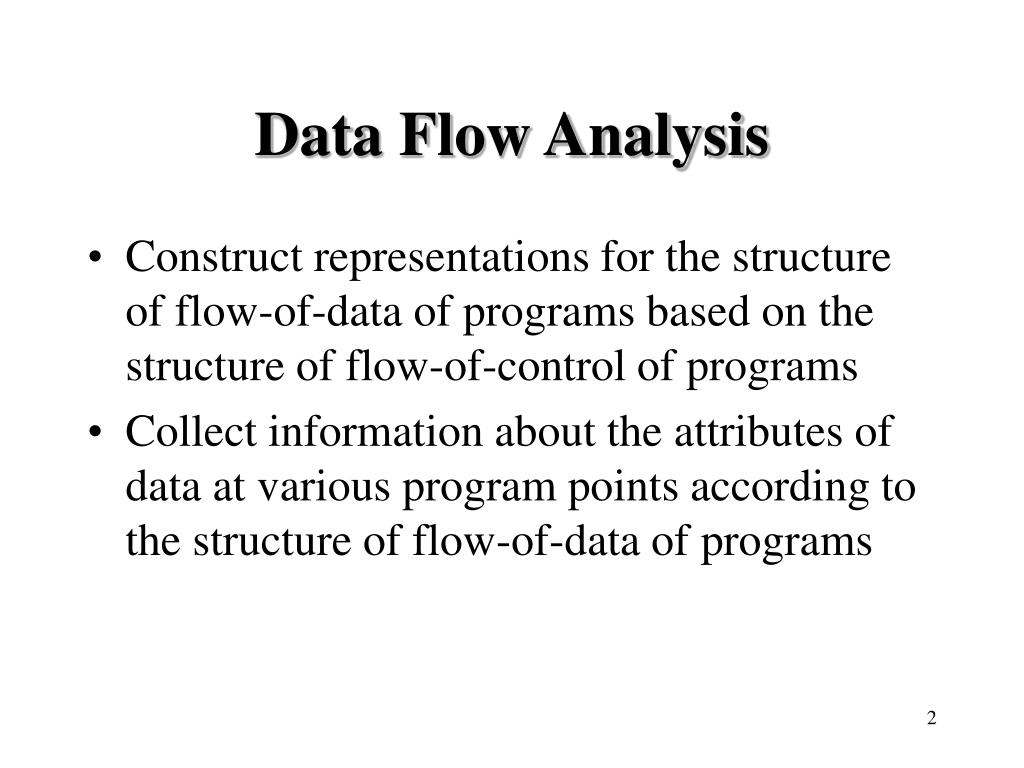

2. Data Flow Analysis • Construct representations for the structure of flow-of-data of programs based on the structure of flow-of-control of programs • Collect information about the attributes of data at various program points according to the structure of flow-of-data of programs

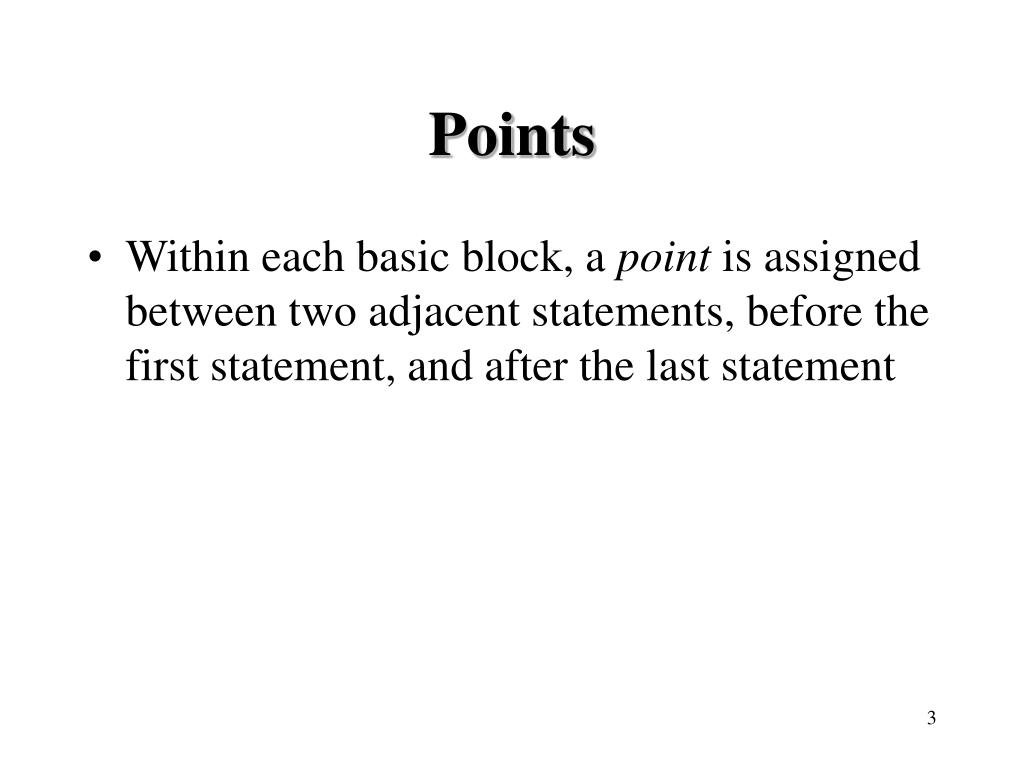

3. Points • Within each basic block, a point is assigned between two adjacent statements, before the first statement, and after the last statement

4. An Example d1: i = m - 1 d2: j = n d3: a = u1 B1 d4: i = i + 1 B2 d5: j = j - 1 B3 B4 d6: a = u2 B5 B6

5. Paths • A path from p1 to pn is a sequence of points p1, p2, …, pn such that for each i, 1  i  n-1, either • pi is the point immediately preceding a statement and pi+1 is the point immediately following that statement in the same block, or • pi is the end of some block and pi+1 is the beginning of a successor block

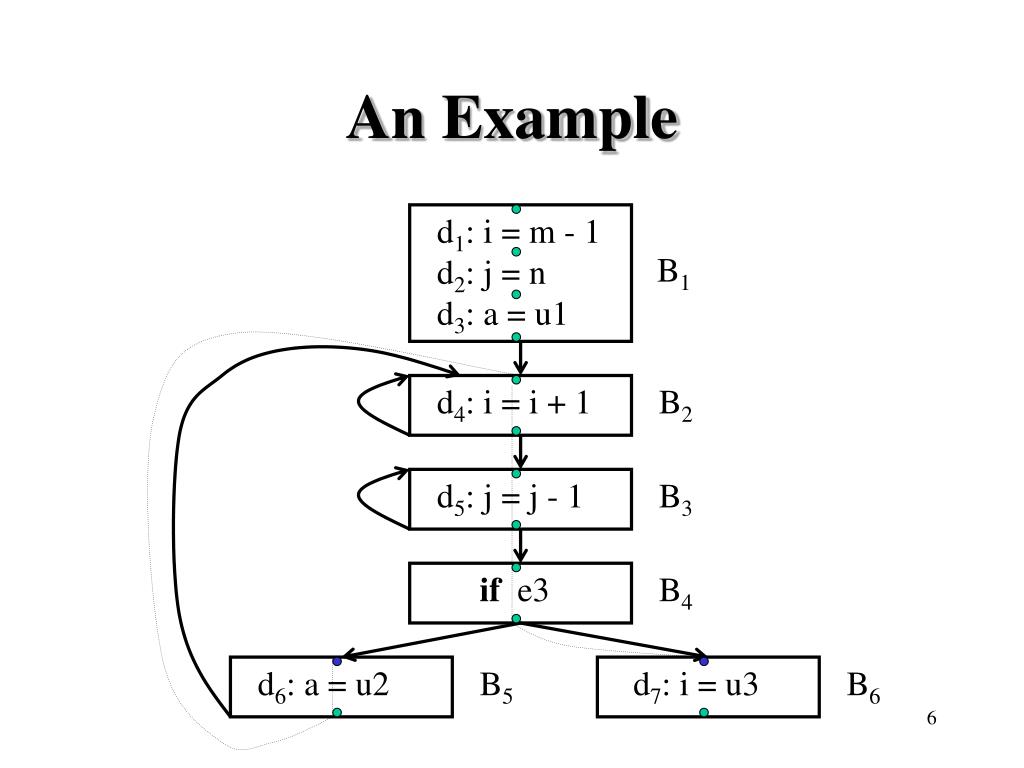

6. An Example d1: i = m - 1 d2: j = n d3: a = u1 B1 d4: i = i + 1 B2 d5: j = j - 1 B3 if e3 B4 d6: a = u2 B5 d7: i = u3 B6

7. Reaching Definitions • A definition of a variable x is a statement that assigns or may assign a value to x • A definition d of some variable xreaches a point p if there is a path from the point immediately following d to p such that no unambiguous definition of x appear on that path

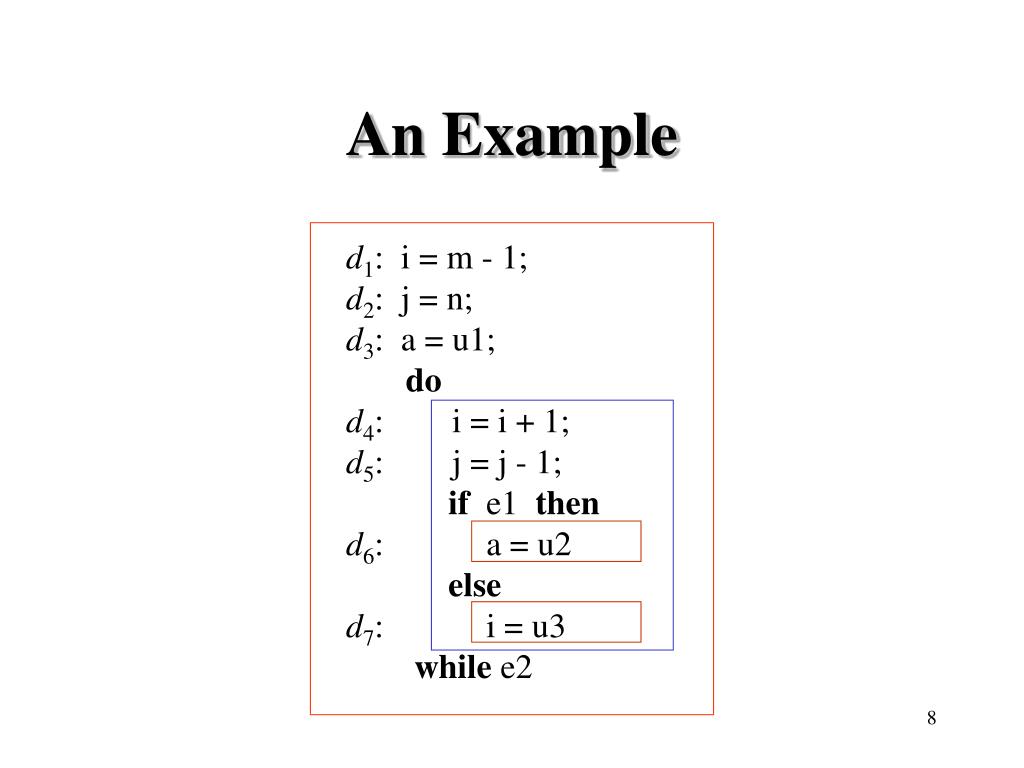

8. An Example d1: i = m - 1; d2: j = n; d3: a = u1; do d4: i = i + 1; d5: j = j - 1; if e1 then d6: a = u2 else d7: i = u3 while e2

9. Ambiguity of Definitions • Unambiguous definitions (must assign values) • assignments to a variable • statements that read a value to a variable • Ambiguous definitions (may assign values) • procedure calls that have call-by-reference parameters • procedure calls that may access nonlocal variables • assignments via pointers

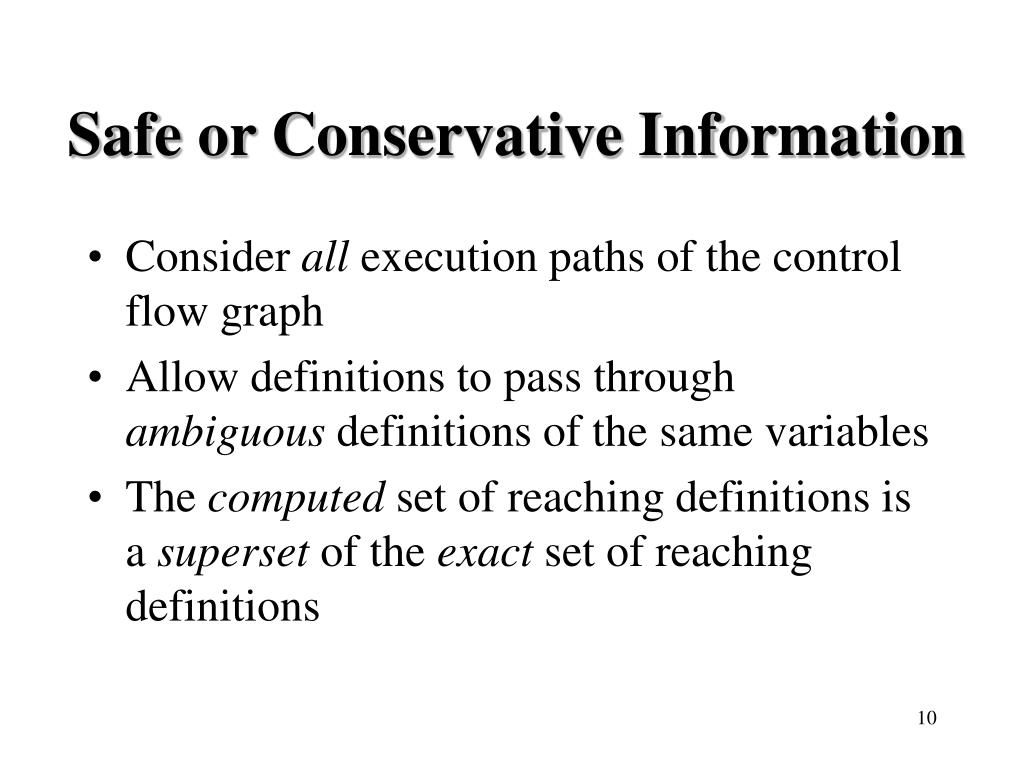

10. Safe or Conservative Information • Consider all execution paths of the control flow graph • Allow definitions to pass through ambiguous definitions of the same variables • The computed set of reaching definitions is a superset of the exact set of reaching definitions

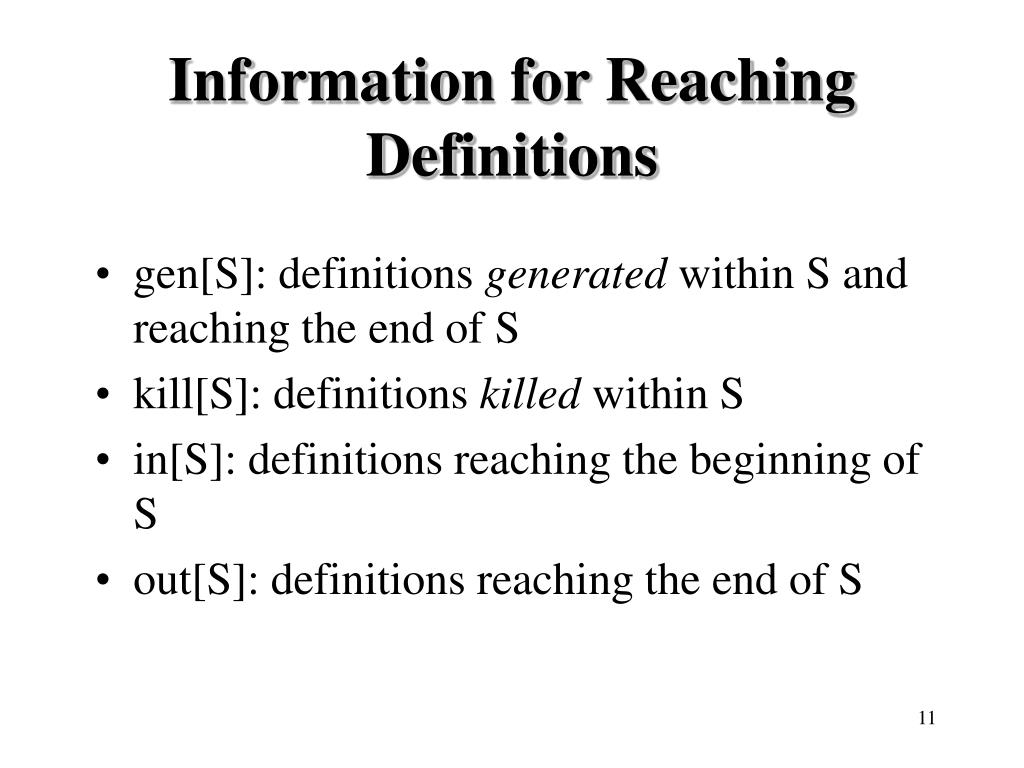

11. Information for Reaching Definitions • gen[S]: definitions generated within S and reaching the end of S • kill[S]: definitions killed within S • in[S]: definitions reaching the beginning of S • out[S]: definitions reaching the end of S

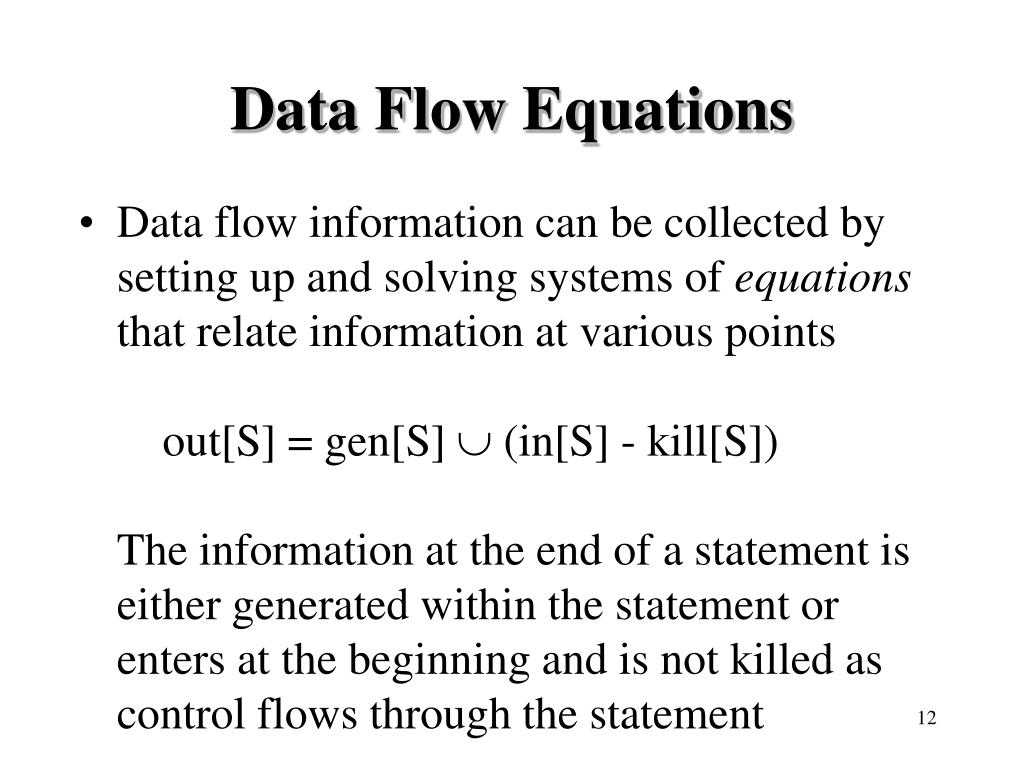

12. Data Flow Equations • Data flow information can be collected by setting up and solving systems of equations that relate information at various points out[S] = gen[S]  (in[S] - kill[S])The information at the end of a statement is either generated within the statement or enters at the beginning and is not killed as control flows through the statement

13. The Iterative Algorithm • Repeatedly compute in and out sets for each node in the control flow graph simultaneously until there is no change in[B] = p  pred(B) out[P] out[B] = gen[B]  (in[B] - kill[B])

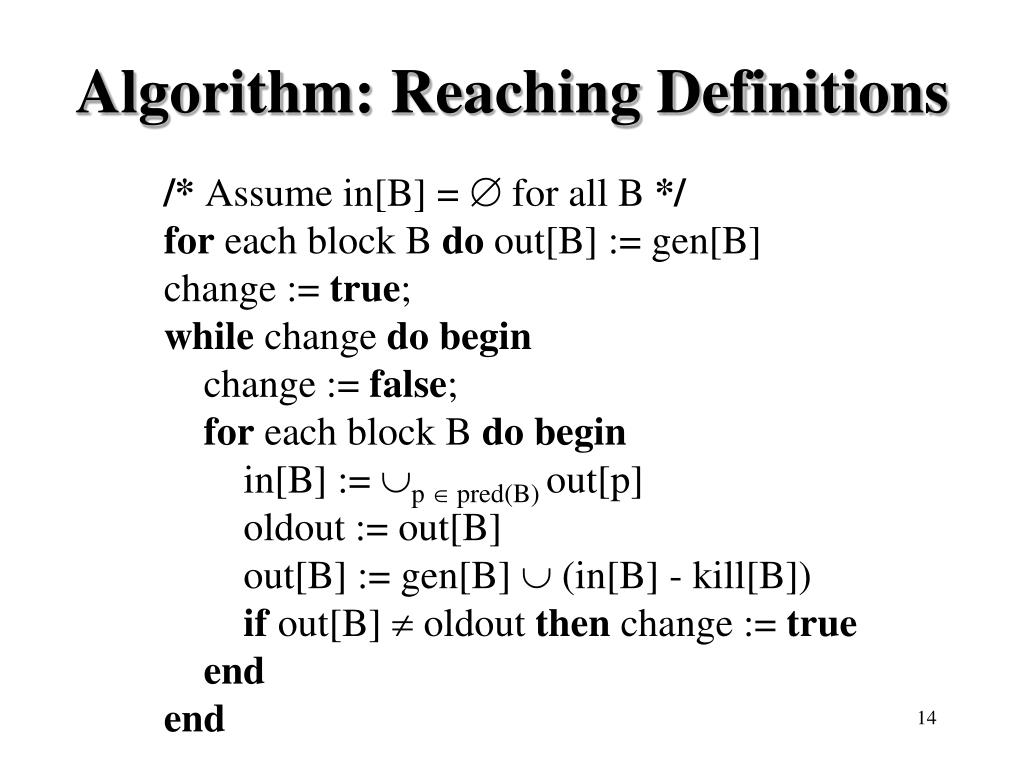

14. Algorithm: Reaching Definitions /* Assume in[B] =  for all B */ for each block B do out[B] := gen[B] change := true; while change do begin change := false; for each block B do begin in[B] := p  pred(B) out[p] oldout := out[B] out[B] := gen[B]  (in[B] - kill[B]) if out[B]  oldout then change := true end end

15. An Example d1: i = m - 1 d2: j = n d3: a = u1 111 0000 000 1111 B1 d4: i = i + 1 d5: j = j - 1 000 1100 110 0001 B2 d6: a = u2 d7: i = u3 000 0010 001 0000 000 0001 100 1000 B3 B4

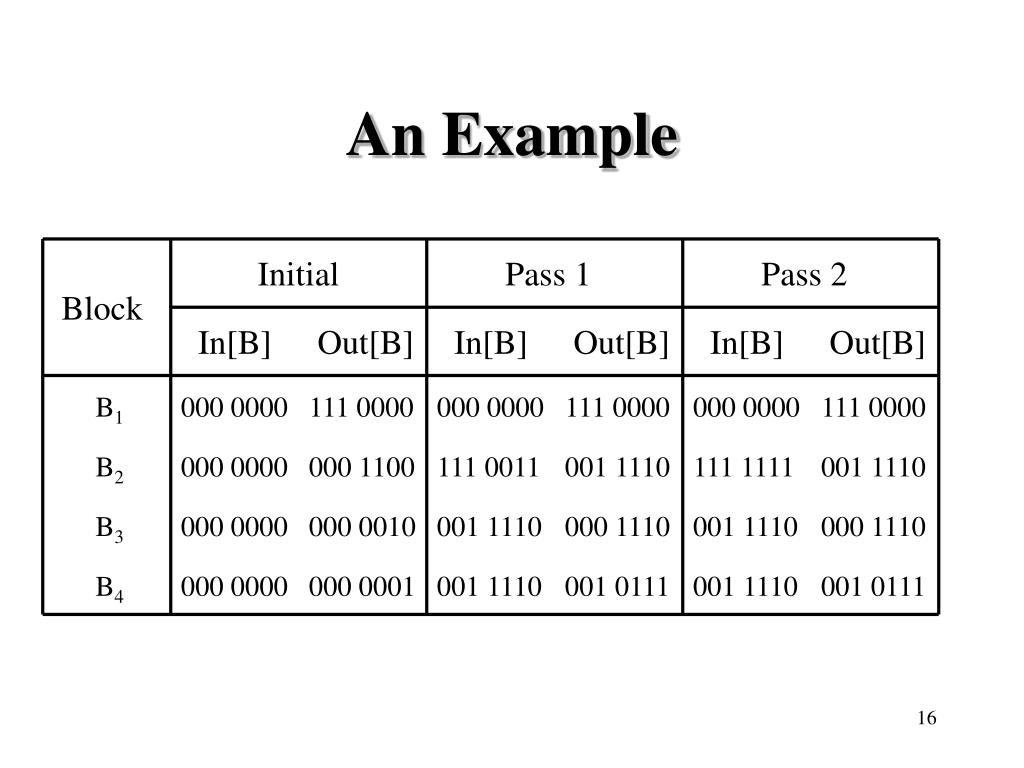

16. 000 0000 000 0000 000 0000 000 0000 000 0001 000 0010 111 0000 000 1100 000 0000 111 0011 001 1110 001 1110 001 1110 000 1110 111 0000 001 0111 111 1111 001 1110 000 0000 001 1110 111 0000 001 0111 000 1110 001 1110 An Example Initial Pass 1 Pass 2 Block In[B] Out[B] In[B] Out[B] In[B] Out[B] B1 B2 B3 B4

17. Conservative Computation • The computed gen set of reaching definitions is a superset of the exact gen set of reaching definitions • The computed kill set of reaching definitions is a subset of the exact kill set of reaching definitions • The computed in and out sets of reaching definitions is a superset of the exact in and out sets of reaching definitions

18. Local Data Flow Information • The gen and kill sets for a basic block is obtained from the gen and kill sets for the statements in the basic block • Only the in and out sets for the basic blocks are computed in the global data flow analysis • The in and out sets for the statements in a basic block can be computed locally from the in set for the basic block if necessary

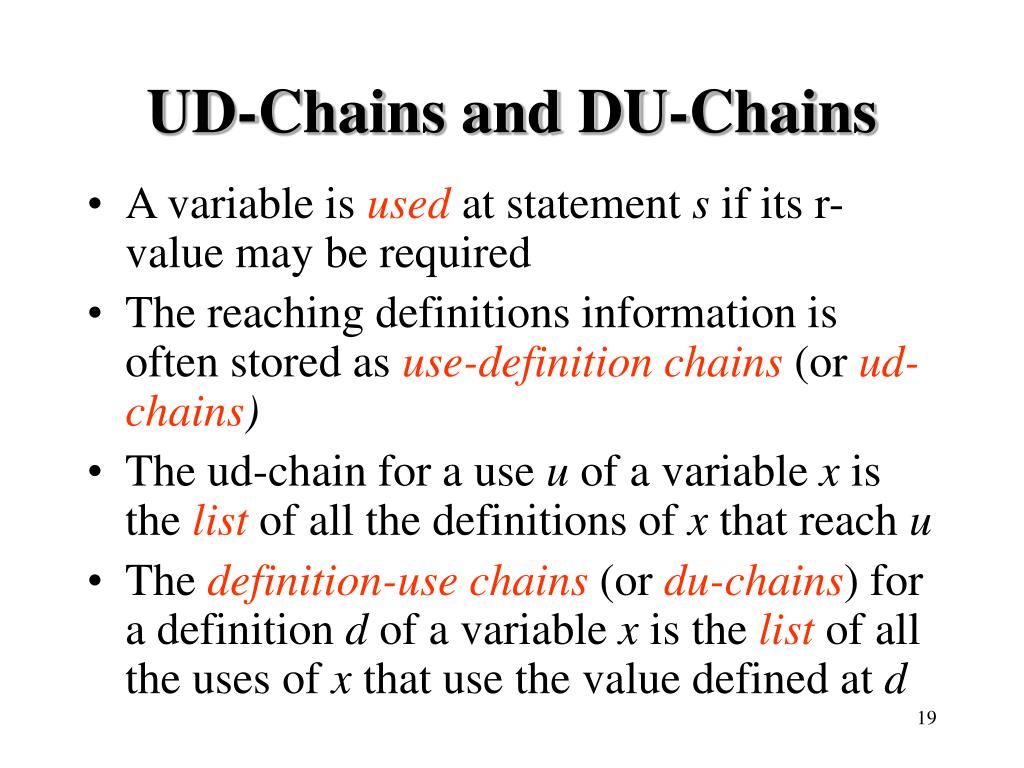

19. UD-Chains and DU-Chains • A variable is used at statement s if its r-value may be required • The reaching definitions information is often stored as use-definition chains (or ud-chains) • The ud-chain for a use u of a variable x is the listof all the definitions of x that reach u • The definition-use chains (or du-chains) for a definition d of a variable x is the list of all the uses of x that use the value defined at d

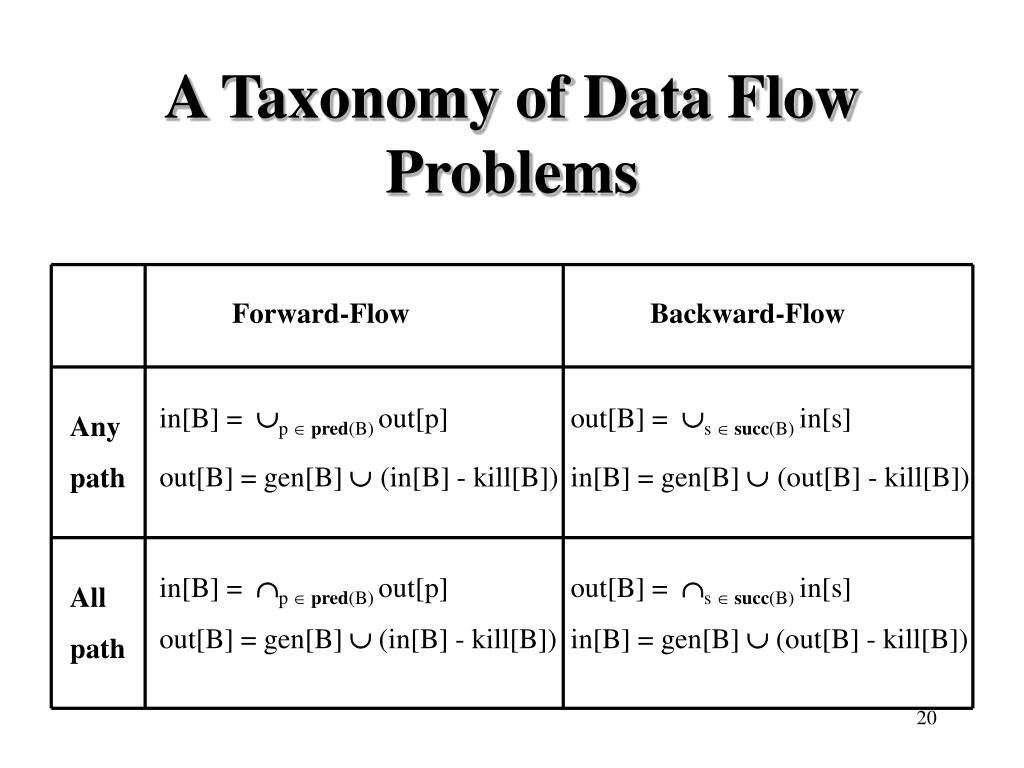

20. A Taxonomy of Data Flow Problems Forward-Flow Backward-Flow in[B] = p  pred(B) out[p] out[B] = gen[B] (in[B] - kill[B]) out[B] = s  succ(B) in[s] in[B] = gen[B] (out[B] - kill[B]) Any path in[B] = p  pred(B) out[p] out[B] = gen[B]  (in[B] - kill[B]) out[B] = s  succ(B) in[s] in[B] = gen[B]  (out[B] - kill[B]) All path

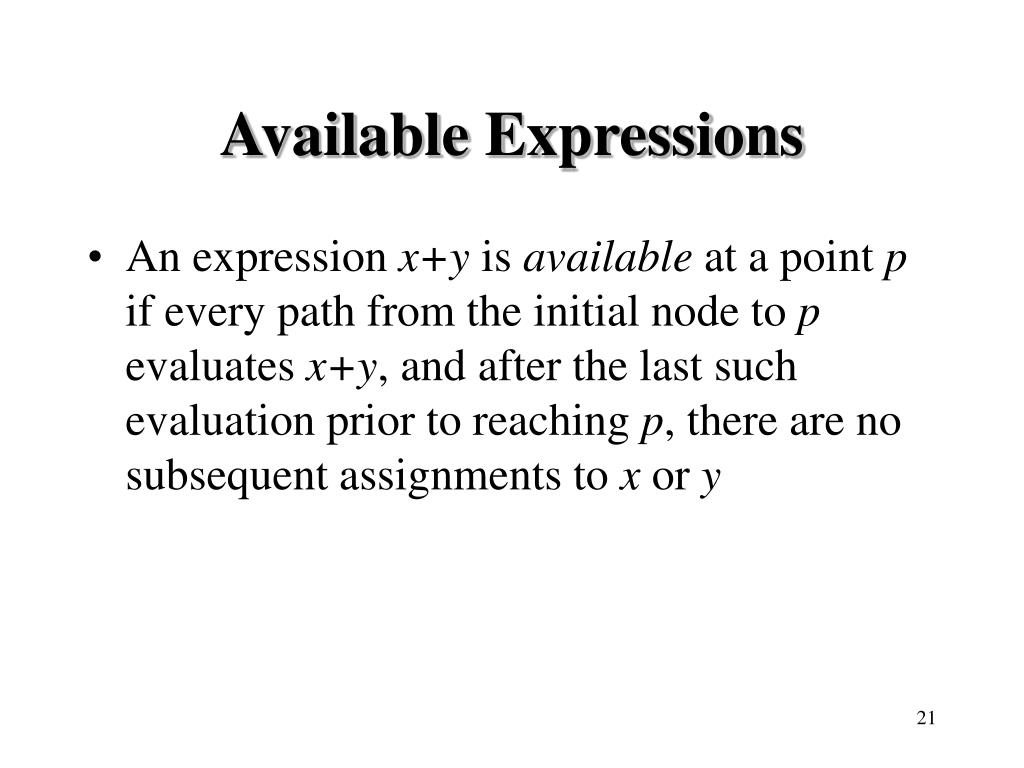

21. Available Expressions • An expression x+y is available at a point p if every path from the initial node to p evaluates x+y, and after the last such evaluation prior to reaching p, there are no subsequent assignments to x or y

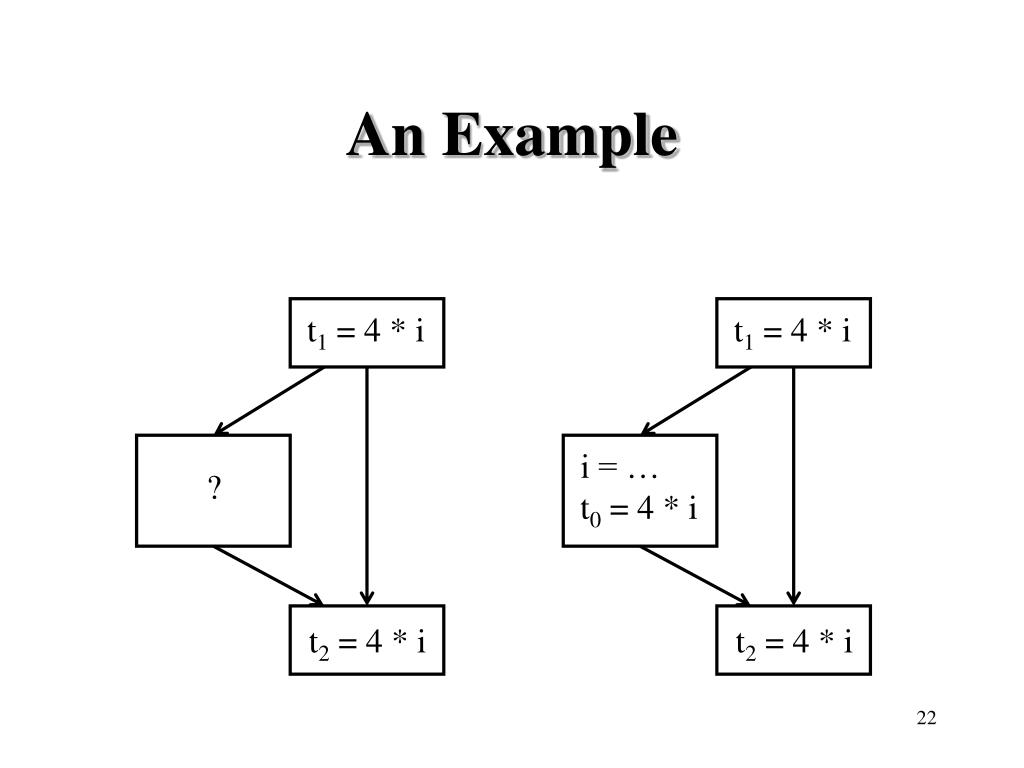

22. t1 = 4 * i t1 = 4 * i i = … t0 = 4 * i t2 = 4 * i t2 = 4 * i An Example ?

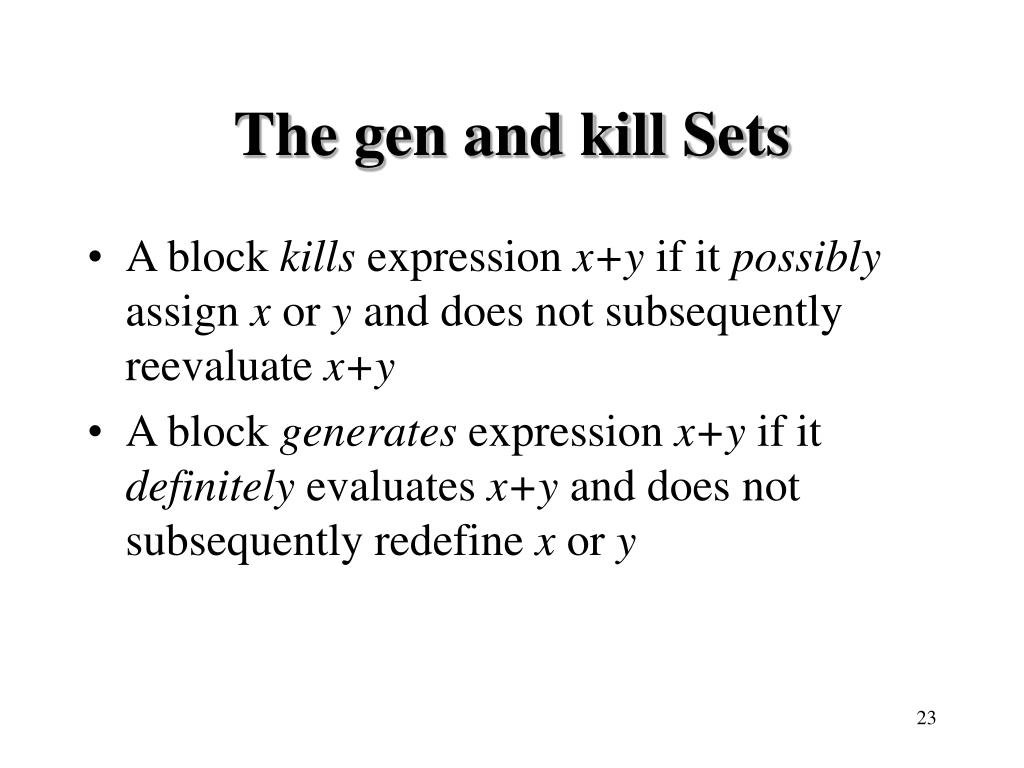

23. The gen and kill Sets • A block kills expression x+y if it possibly assign x or y and does not subsequently reevaluate x+y • A block generates expression x+y if it definitely evaluates x+y and does not subsequently redefine x or y

24. The gen Set for a Block • No expressions are available at the beginning • Assume set A of expressions is available before statement x = y+z. The set of expressions available after the statement is formed by • adding to A the expression y+z • deleting from A any expression involving x • At the end, A is the set of generated expressions

25. The kill Set for a Block • All expressions y+z such that either y or z is defined and y+z is not generated by the block

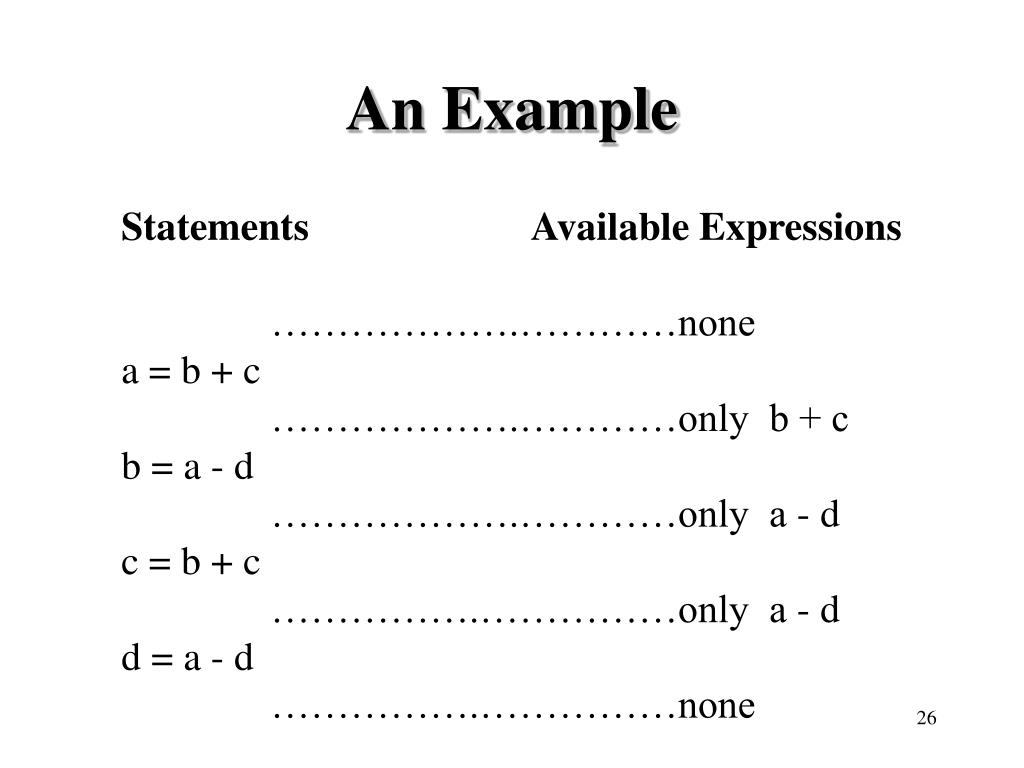

26. An Example StatementsAvailable Expressions ……………….…………none a = b + c ……………….…………only b + c b = a - d ……………….…………only a - d c = b + c …………….……………only a - d d = a - d …………….……………none

27. The in and out Sets in[B] = , for B = initial in[B] = p  pred(B) out[p], for B  initial out[B] = gen[B]  (in[B] - kill[B])

28. B1 B2 Initialization of the in Sets Oj+1 = G  (Ij - K) Ij+1 = out[B1]  Oj+1 I0 = U O1 = U - K I1 = out[B1] - K O2 = G  (out[B1] - K) I0 =  O1 = G I1 = out[B1]  G O2 = G

29. Algorithm: Available Expressions /* Assume in[B1] =  and in[B] = U for all B B1*/ in[B1] = ; out[B1] = gen[B1]; for each block B  B1do out[B] := U - kill[B]; change := true; while change do begin change := false; for each block B  B1do begin in[B] :=p  pred(B) out[p] oldout := out[B] out[B] := gen[B]  (in[B] - kill[B]) if out[B]  oldout then change := true end end

30. Conservative Computation • The computed gen set of available expressions is a subset of the exact gen set of available expressions • The computed kill set of available expressions is a superset of the exact kill set of available expressions • The computed in and out sets of available expressions is a subset of the exact in and out sets of available expressions

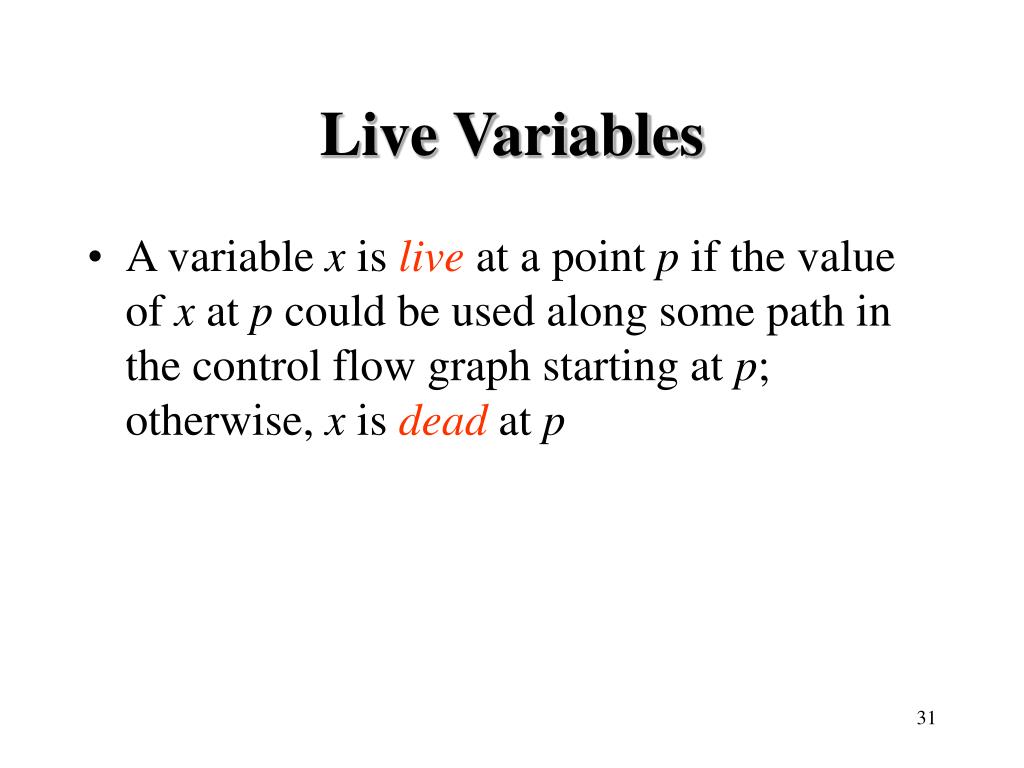

31. Live Variables • A variable x is live at a point p if the value of x at p could be used along some path in the control flow graph starting at p; otherwise, x is dead at p

32. The def and use Sets • def[B]: the set of variables definitelyassigned values in B • use[B]: the set of variables whose values are possiblyused in B prior to any definition of the variable

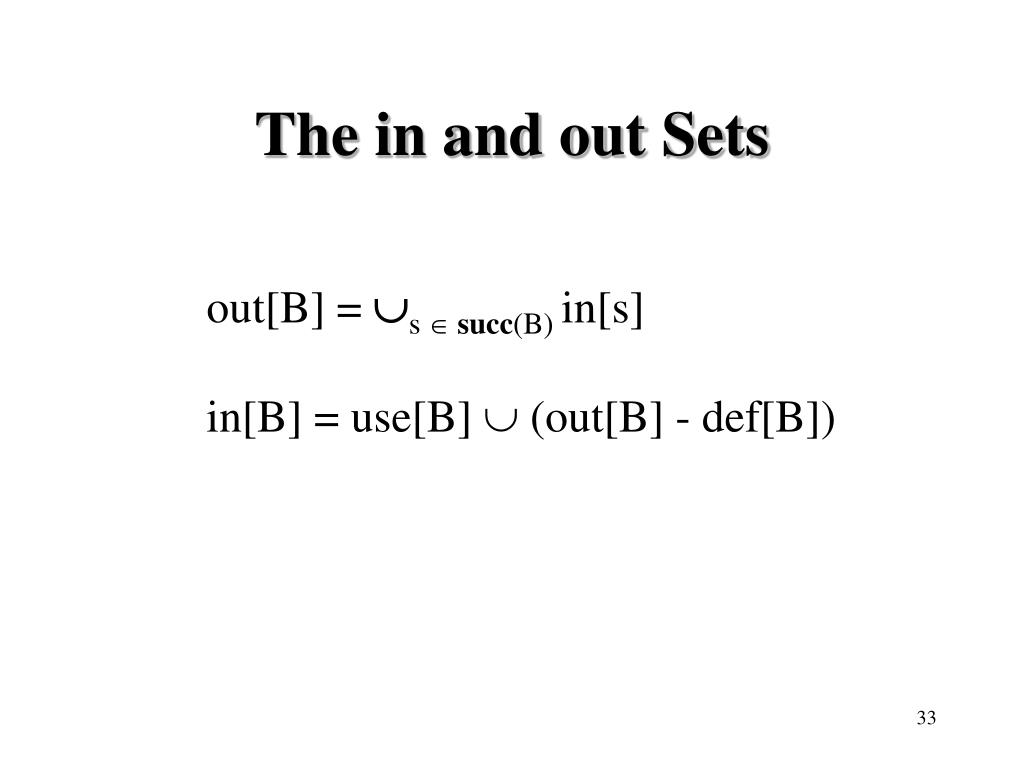

33. The in and out Sets out[B] = s  succ(B) in[s] in[B] = use[B]  (out[B] - def[B])

34. Algorithm: Live Variables /* Assume in[B] =  for all B */ for each block B do in[B] :=  change := true; while change do begin change := false; for each block B do begin out[B] := s  succ(B) in[s] oldin := in[B] in[B] := use[B]  (out[B] - def[B]) if in[B]  oldin then change := true end end

35. Conservative Computation • The computed use set of live variables is a superset of the exact use set of live variables • The computed def set of live variables is a subset of the exact def set of live variables • The computed in and out sets of live variables is a superset of the exact in and out sets of live variables

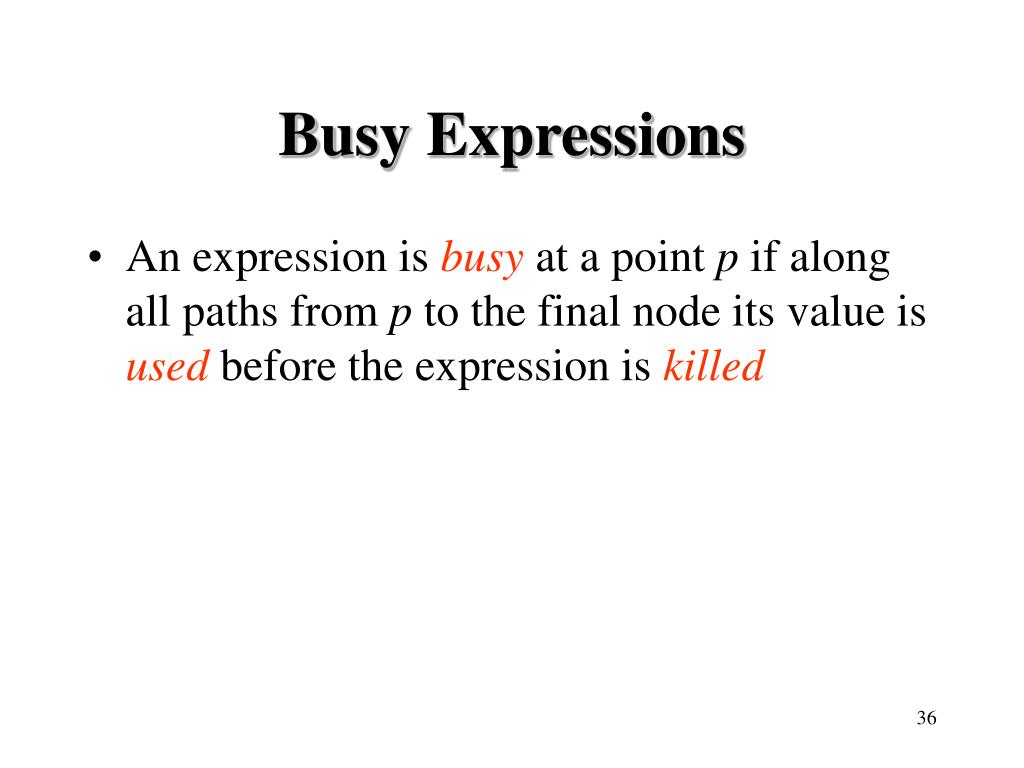

36. Busy Expressions • An expression is busy at a point p if along all paths from p to the final node its value is used before the expression is killed

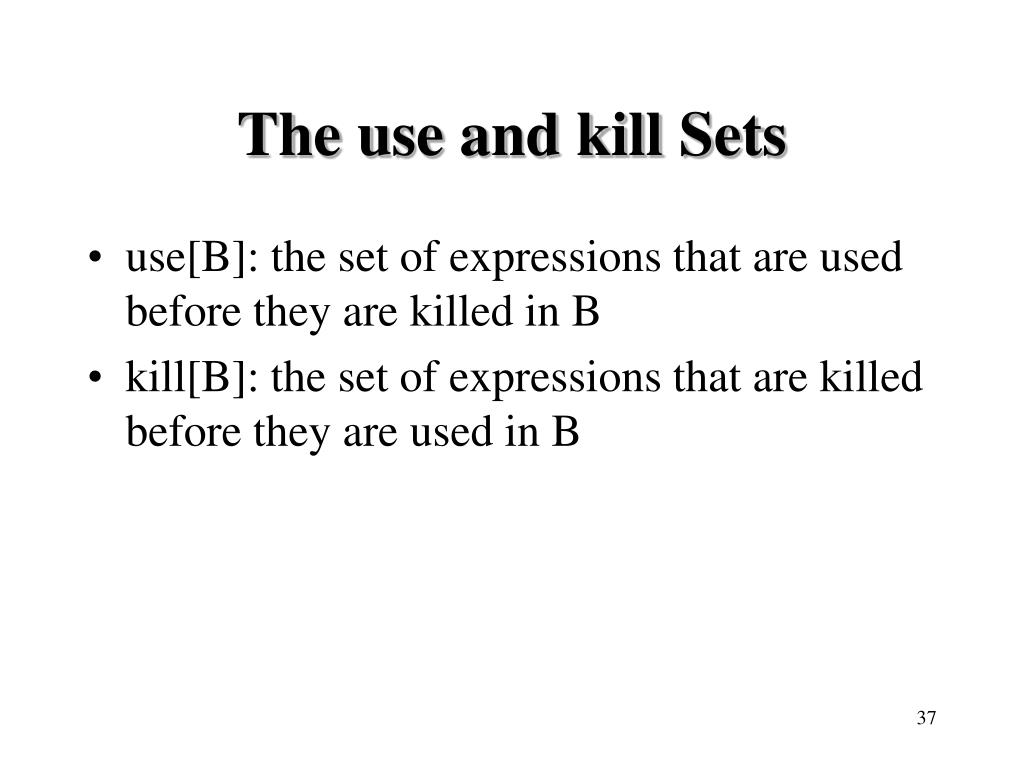

37. The use and kill Sets • use[B]: the set of expressions that are used before they are killed in B • kill[B]: the set of expressions that are killed before they are used in B

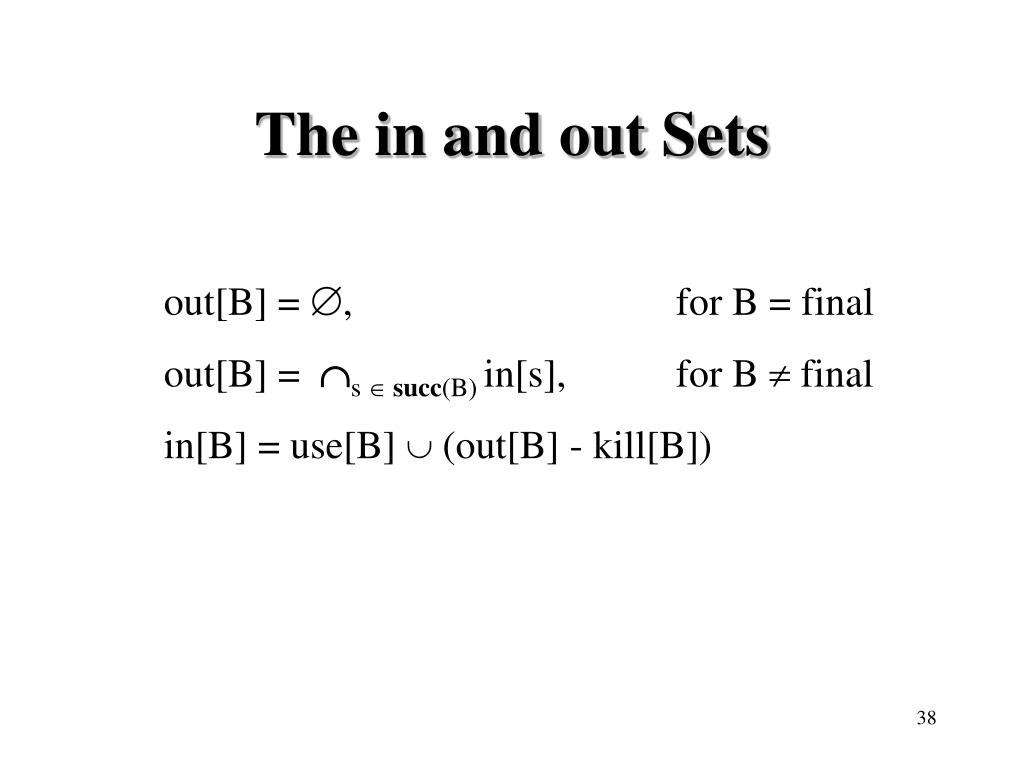

38. The in and out Sets out[B] = , for B = final out[B] = s  succ(B) in[s], for B  final in[B] = use[B] (out[B] - kill[B])

39. Algorithm: Busy Expressions /* Assume out[Bn] =  and out[B] = U for all B Bn*/ out[Bn] = ; in[Bn] = use[Bn]; for each block B  Bndo in[B] := U - kill[B]; change := true; while change do begin change := false; for each block B  Bndo begin out[B] :=s  succ(B) in[s] oldin := in[B] in[B] := use[B]  (out[B] - kill[B]) if in[B]  oldin then change := true end end

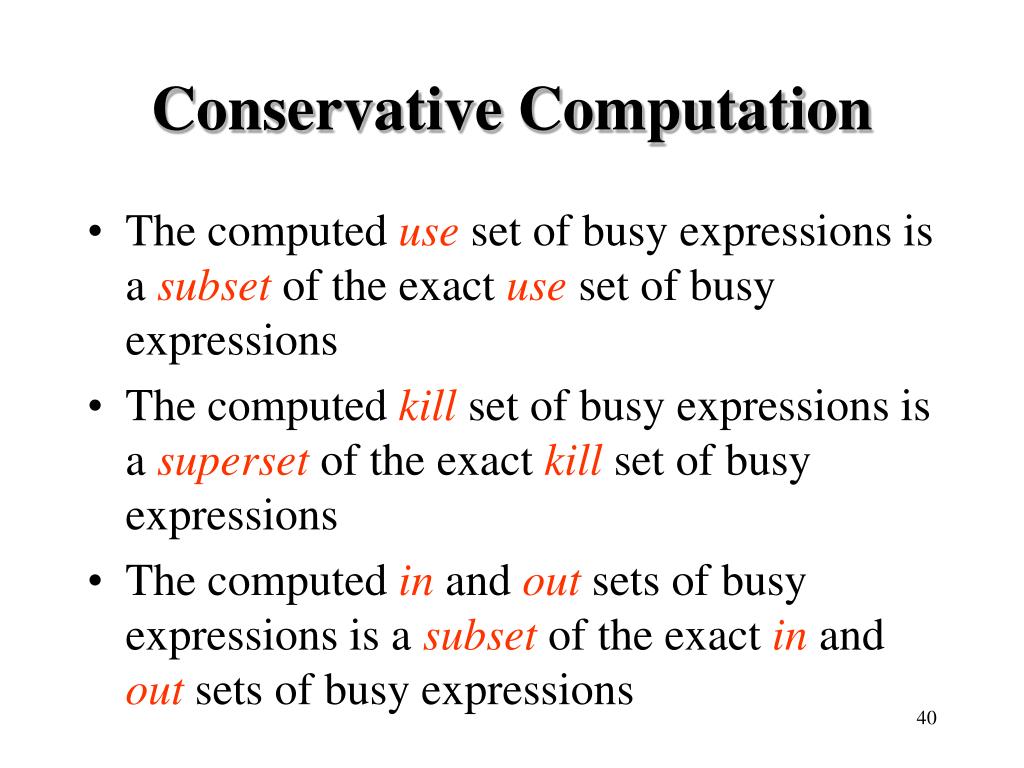

40. Conservative Computation • The computed use set of busy expressions is a subset of the exact use set of busy expressions • The computed kill set of busy expressions is a superset of the exact kill set of busy expressions • The computed in and out sets of busy expressions is a subset of the exact in and outsets of busy expressions
