  1. 5th Order Butterworth Low Pass Filter

  2. Fifth Order Butterworth LPF Design a fifth order Butterworth low pass filter with a gain (m) of 1 and a cutoff frequency 10000 Hz. The normalized Butterworth low pass filter equation is: For a gain (m) of 1

  3. The normalized denominator for a fifth order Butterworth low pass filter is: First order filter Second order filter Second order filter

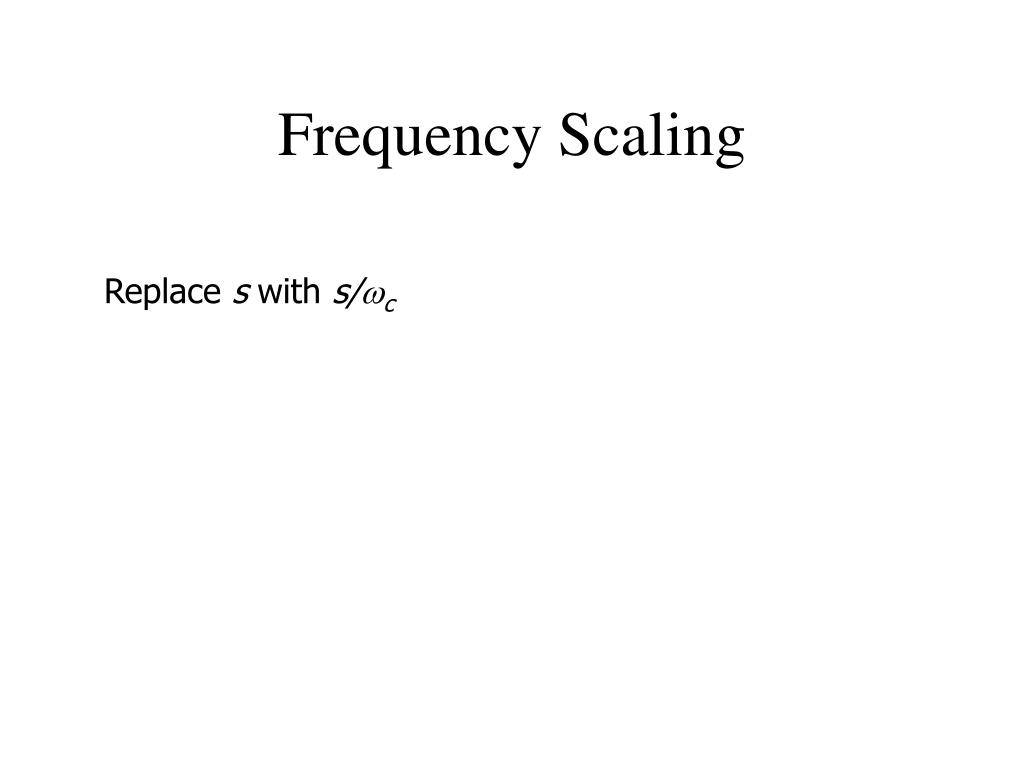

  4. Frequency Scaling Replace s with s/wc

  5. First order filter Assume all resistors in the design are 1 kW. 1 kW 0.016 mF

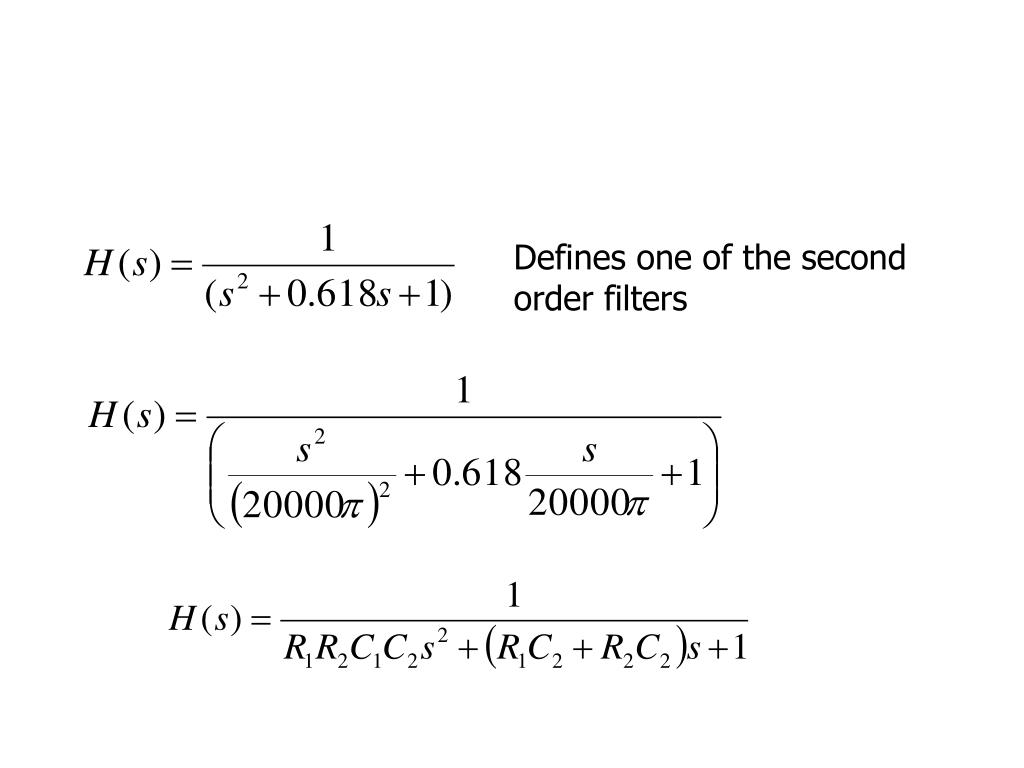

  6. Defines one of the second order filters

  7. Defines the other second order filters
