Application of G-Sensors

This project showcases the practical applications of G-Sensors in various domains such as gaming (Wii), mobile phones (photo browser), and fitness devices (music pacer). By conducting a thorough analysis of 3-axis acceleration readings (Ax, Ay, Az) at a sampling rate of 20 samples/sec, we will log and plot data from different actions, such as golfing and aerobics, using two sensors. The project aims to observe and analyze the waveforms generated, discuss potential applications, and combine findings with existing technologies like GPS. A presentation will be arranged for the final class.

joyce
Télécharger la présentation

Application of G-Sensors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

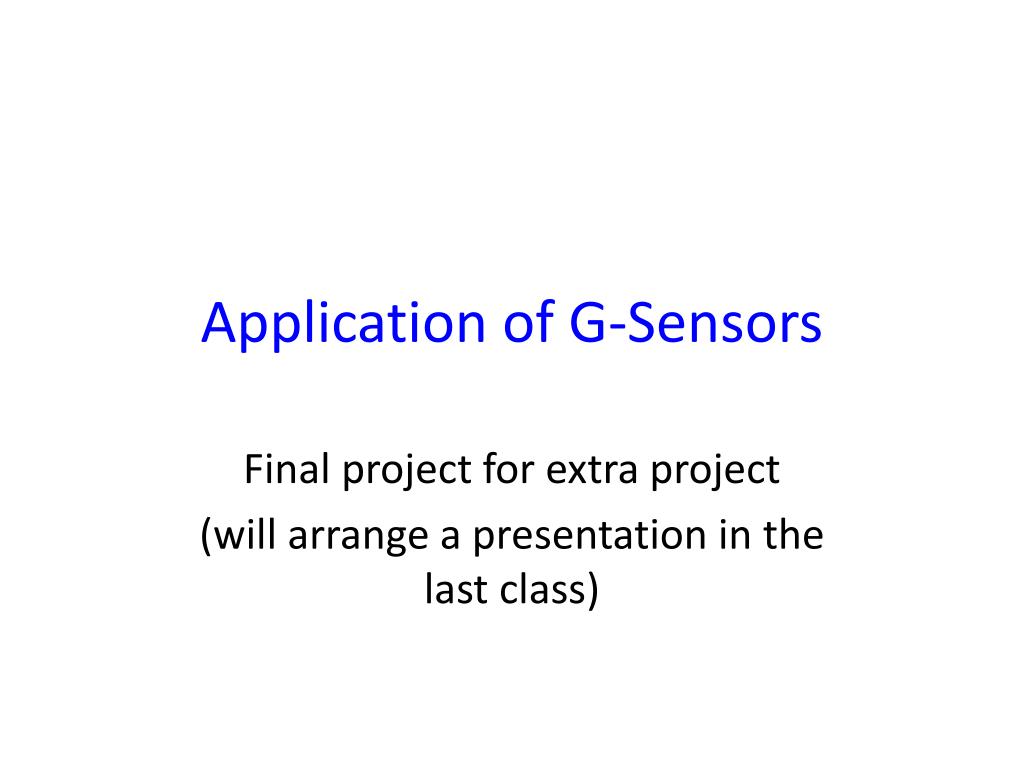

  1. Application of G-Sensors Final project for extra project (will arrange a presentation in the last class)

  2. Applications of G-Sensor Game (Wii) Mobile Phone (photo browser) Music Pacer (運動型mp3隨身聽)

  3. G-Sensor – OS5000 • Data formats: • Roll, Pitch, Yaw, Ax, Ay, Az • E.g. -78.5,7.5,300.5,-0.993,0.133,0.15 • Ax, Ay, Az: 3 axis acceleration readings, x,y,z • Sample rate: 20 sample/sec • Reference: http://hscc.cs.nctu.edu.tw/jennic/manual/OS5000_Compass_Manual.pdf

  4. Method of get samples • Scenario: • Steps: 1.Read sample via Uart1. 2.Write sample to your PC(via Uart0) or sink(using wireless). • Set serial port of Jennic: • Buad rate : 19200 • Date : 8bit • Parity : none • Stop : 1bit Uart0 Uart1 OS5000 Jennic

  5. An Example with 2 Sensors on Arm and Forearm Arm g g 0 Forearm 0 g time 0 -g (側面) x y G-Sensor (正面) (地心) z ** sampling rate = 30/sec

  6. Project Description(for bonus) • Choose a specific action and log 3-axis acceleration samples measured by some G-Sensors. • Golfing, batting, pitching, exercise, aerobics, stretching, … • Plot the corresponding waveforms. • Make observation and analyze the behavior of the waveforms. • Discuss a potential application of your results. • Give an example. • Possibly combined with existing techniques, e.g. GPS.
