  1. Data acquisition systems for future calorimetryat the International Linear Collider Introduction DAQ design at system level DAQ for ILC Calorimetry: CALICE 24-10-2008

  2. Introduction 24-10-2008

  3. Introduction Traditionally, DAQ in HEP is at the back of the queue for R&D effort, often leading to a conservative system implementation. To make optimal use of the advancements in industry, a new DAQ should be considered as a ‘generic’ system, with a ‘use case’ for a particular (sub-)detector. D A Q Detector Readout System In most cases, Detectors and associated Readout Systems are designed, tested and approved first, before substantial DAQ effort is undertaken. 24-10-2008

  4. Introduction: generic DAQ design This DAQ is designed as a generic, scalable, and self-contained system, build around commercial off-the-shelf components where possible The generic DAQ is then configured towards multiple ‘use-cases’. ILC calorimetry might not be the only customer Using the generic, core DAQ for other interesting cases is welcomed for stress-testing the system: think of linear collider experiments or SuperLHC 24-10-2008

  5. DAQ design 24-10-2008

  6. DAQ design: global architecture Detector modules called ‘slabs’ deliver data over ~Gbit speed optical fibre • Layer-1 switch routes event data to PC • Target Control re-routes data should a certain PC not be available • After processing, data is routed through a network switch towards event builder/data store 24-10-2008

  7. DAQ design: candidate Level-1 switch Candidate Level-1 switch: state-of-the art full optical switch system Currently investigating performance: switch timing characteristics etc. M. Warren V. Bartsch 24-10-2008

  8. DAQ design: PC-based receiver card PC-based receiver card is a key component in the generic DAQ design • Developed & built by PLD Applications • Large & Fast FPGA: Xilinx Virtex4-FX100 • 8x PCIexpress bus • SFP cages for multi-Gbit/s interfaces • Many high-speed I/O connections To be used for the following tasks: • Data reception • Clock source • Control data transmission • Configuration data distribution 24-10-2008

  9. A DAQ for ILC calorimetry 24-10-2008

  10. ILC Calorimeter DAQ: Architecture DAQ software Off Detector Receiver (ODR) Link Data Aggregator (LDA) Detector Interface (DIF) Detector Unit 24-10-2008

  11. ILC Calorimeter DAQ: system overview DAQ PC ODR LDA DIF DIF DIF DIF Detector Unit Detector Unit Detector Unit Detector Unit Control PC (DOOCS) CCC Storage LDA DAQ PC ODR Detector Unit: long (>1.5m) detector ‘slab’ with integrated front-end electronics DIF: Detector InterFace, servicing the Detector Unig LDA: Link-Data Aggregator. Concentrates data, fanin/fanout for clock and control data CCC: Clock&Control Card: Fanout of clock and fast controls ODR: Off-Detector Receiver: PC interface for the DAQ system PC running DOOCS for run-control and DAQ monitoring 24-10-2008

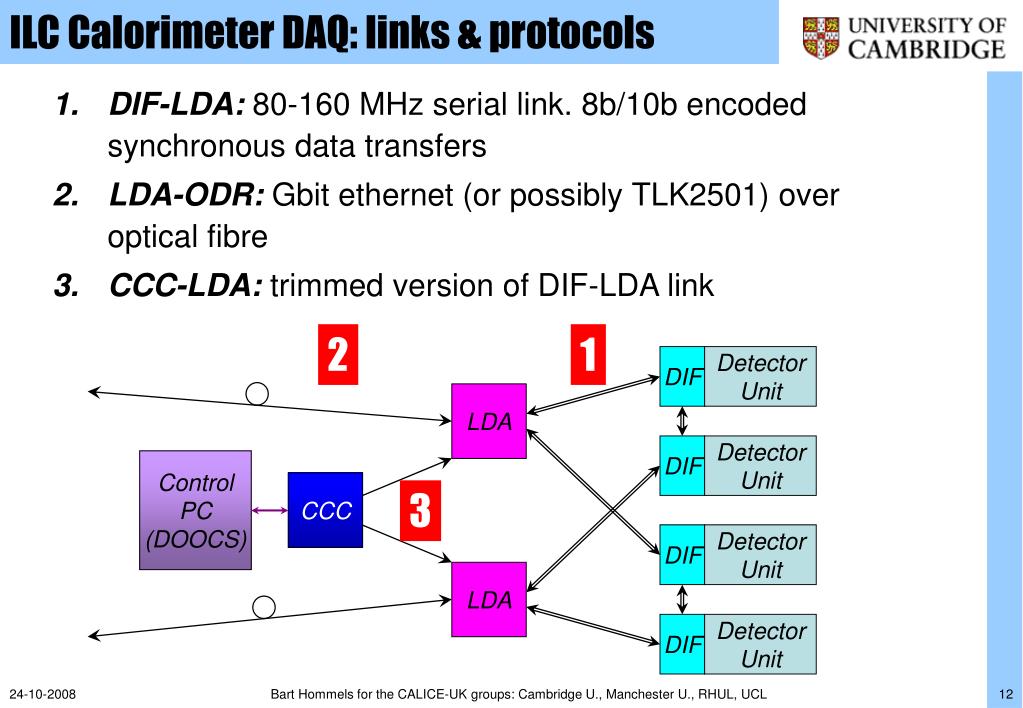

  12. ILC Calorimeter DAQ: links & protocols LDA DIF DIF DIF DIF Detector Unit Detector Unit Detector Unit Detector Unit Control PC (DOOCS) CCC LDA • DIF-LDA: 80-160 MHz serial link. 8b/10b encoded synchronous data transfers • LDA-ODR: Gbit ethernet (or possibly TLK2501) over optical fibre • CCC-LDA: trimmed version of DIF-LDA link 2 1 3 24-10-2008

  13. ILC Calorimeter DAQ: DIF M. Goodrick, B. Hommels, R. Shaw The DIF concept is generic in firmware, running on detector-specific hardware. Different DIF flavours for ECAL, HCAL ECAL DIF prototype: 65x72mm, 8 layers • JTAG programming header • LDA link HMDI connector • DIF link connector • mini-USB connector • Xilinx PROM • Cypress 2MB 10ns SRAM • Xilinx Spartan3-1000 FPGA • FDTI FT245R USB controller • 20p user header connector • reset pushbutton • 90pin SAMTEC IB connector • ECAL DIF status: • Test hardware in place • Firmware development started • 2 DIFs produced, parts available for 10 more. • DIF hardware is (at least partly) functional 24-10-2008

  14. ILC Calorimeter DAQ: DIF -LDA link DIF HDMI cable pseudo-LDA AC-coupling adapter Link shows signs of life: pseudo-LDA sends CLK & 8B/10B data @ 100MHz over AC-coupled LVDS on HDMI cables stable data loop-back in firmware HDMI connector + cabling standard adapted for excellent price/performance 24-10-2008

  15. ILC Calorimeter DAQ: LDA M Kelly • Aggregate data from many DIF links and send to ODR over Gbit Ethernet link • LDA should serve 10 DIFs • Using commercial board from Enterpoint, with semi-custom add-on boards • However, board came back with problems acknowledged by manufacturer - re-spin now • Major firmware development underway • ODR-LDA protocol progressing • LDA-DIF link being documented 24-10-2008

  16. ILC Calorimeter DAQ: CCC M Warren, M Postranecki Tasks: • Synchronise all subsystems upon pre-spill warning • Act as reliable global clock source for fast clock, and phase-aligned ILC machine clock • Distribute asynchronous fast trigger and/or busy signals • Capable to run stand-alone in tandem with DIF CPLD-based for implementation of complex logic. Routing to/fro many sources and destinations possible 24-10-2008

  17. ILC Calorimeter DAQ: ODR B. Green, A. Misejuk ODR is the use-case for the PC-based DAQ interface card: • Commercial board with custom firmware and software • Task-specific performance optimisation • System-specific extensions: decode LDA event data headers, etc. 170MB/s to disk 24-10-2008

  18. ILC Calorimeter DAQ: Software V. Bartsch, T. Wu Software to follow system architecture: • Modularity • Generic nature with specific interfaces • Scalability • DAQ software requirements in ILC calorimetry: • Support for several calorimeter types, each of significant complexity: O(104) channels, O(103) ASICs, O(102) electronics boards • Preferably use existing DAQ software (framework) • Chose DOOCS being developed at DESY for XFEL • tesla.desy.de/doocs/doocs.html 24-10-2008

  19. ILC Calorimeter DAQ: Software application • Starting from DAQ-ODR interface: first hardware layer & most advanced • Have set-up LDA emulator and passed data in this system: PC->ODR->LDA 24-10-2008

  20. ILC Calorimetry DAQ: CALICE CALICE: physics prototype of ILC calorimeter detector segment: ECAL + HCAL First demonstrator for newly developed DAQ: CALICE testbeam in 2009 DAQ components: Software, ODR, CCC, LDA, DIF prototyped and on track to be ready in time -before everyone else! 24-10-2008

  21. DAQ for future calorimetry at ILC: summary Aim is to develop a DAQ system that is generic in nature, using commercial components where possible The DAQ system should be modular and scalable ILC Calorimeter sub-detectors demonstrators serve as the first well-described ‘use-case’ for the DAQ All DAQ components prototyped in hardware, ready to merge into a full fledged DAQ system through firmware and software development. First serious test opportunity: testbeam in 2009 Exciting times ahead! 24-10-2008
