Presentation Transcript


  1. P.A.L.S Pediatric Advanced Life Support Cardiopumonary Arrest

  2. Pediatric cardiac arrest Shout for help, Activate emergency response • Start CPR • Give oxygen • Attach monitor/defibrillator rhythm Shockable? Yes No VF/VT Asystole /PEA

  3. Asystole and Pulseless Electrical Activity

  4. Asystole or Pulseless Electrical Activity

  5. Asystole / Pulseless Electrical Activity Resume CPR immediately for 2 min IV/IO available: Epinephrin :0.01 mg/kg (0.1 mL/kg of 1:10 000 solution) Repeat every 3 to 5 min No IV/IO: ETT Ephinephrin: 0. 1 mg/kg (0.1 mL/kg of 1:1000 solution) of 1:1000 solution) Consider advanced airway

  6. Reversible Causes

  7. Pediatric cardiac arrest Shout for help, Activate emergency response • Start CPR • Give oxygen • Attach monitor/defibrillator rhythm Shockable? Yes No VF/VT Asystole /PEA

  8. Ventricular Fibrillation/Pulseless Ventricular Tachycardia

  9. Ventricular Tachycardia

  10. Ventricular Fibrillation

  11. Ventricular Fibrillation

  12. Defibrillators Defibrillators are either manual o automated (AED). AED can be used for infants and children up to approximately 25 kg (8 years of age). In infants 1 year of age a manual defibrillator ispreferred.

  13. Defibrillators Defibrillators are either manual o automated (AED). AED can be used for infants and children up to approximately 25 kg (8 years of age). In infants 1 year of age a manual defibrillator ispreferred.

  14. Defibrillators Defibrillators are either manual o automated (AED). AED can be used for infants and children up to approximately 25 kg (8 years of age). In infants 1 year of age a manual defibrillator ispreferred.

  15. Defibrillators Paddle Size Two sizes of hand-held paddle “Adult” size : 8 to 10 cm for children > 10 kg ( approximately 1 year) “Infant” size :4-5 cm for infants < 10 kg

  16. Defibrillators Paddle Position: Place over the right side of the upper chest and the apex of the heart (to the left of the nipple over the left lower ribs) so the heart is between the two paddles. Apply firm pressure

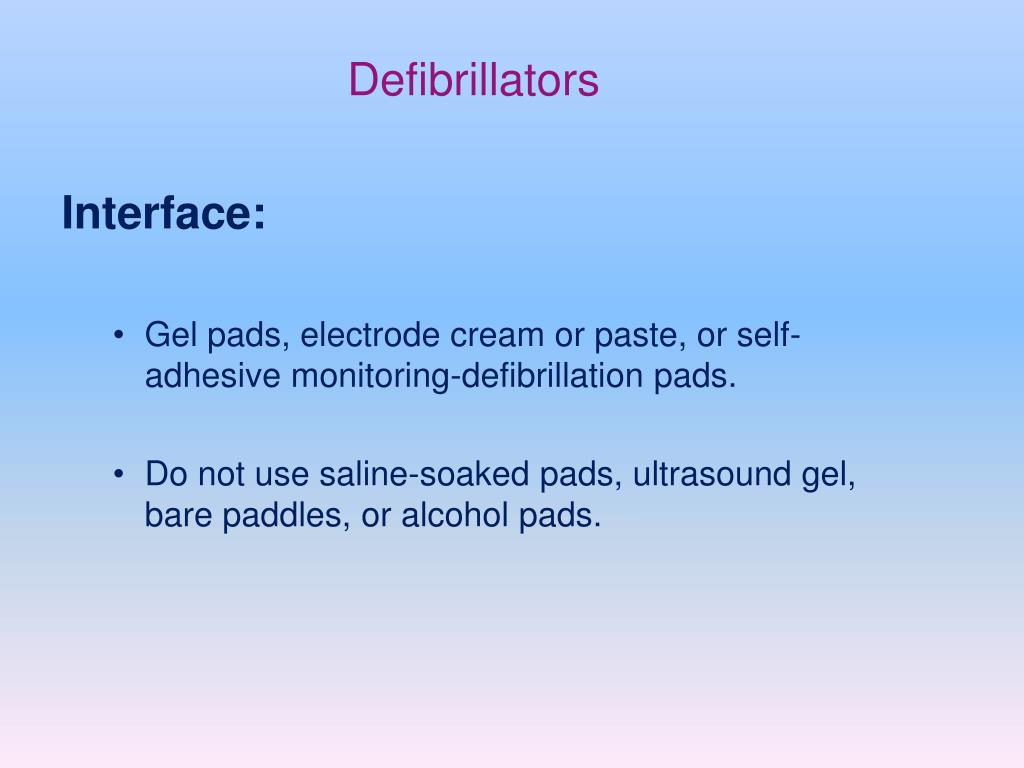

  17. Defibrillators Interface: • Gel pads, electrode cream or paste, or self-adhesive monitoring-defibrillation pads. • Do not use saline-soaked pads, ultrasound gel, bare paddles, or alcohol pads.

  18. Defibrillators Energy Dose: • Initial dose of 2 J/kg • Increase the dose to 4 J/kg • Higher energy levels may be considered, not to exceed 10 J/kg or the adult maximum dose.

  19. Pediatric Arrhythmias Bradycardia Tachycardia

  20. Heart Rate

  21. Bradycardia • Emergency treatment of bradycardia is indicated when the rhythm results in hemodynamic compromise: • Hypotension • Acutely altered mental status • Signs of shock

  22. Atropine • 0.02 mg/kg IV/IO (Repeat once if needed) • Minimum dose: 0.1 mg • Max single dose: 0.5 mg

  23. Bradycardia Pacing is not useful for asystole or bradycardia due to postarrest hypoxic/ ischemic myocardial insult or respiratory failure.

  24. Narrow-Complex (<0.09 Second) Tachycardia

  25. Supraventricular Tachycardia

  26. Supraventricular Tachycardia Monitor rhythm during therapy Vagal stimulation: • Infants and young children: apply ice to the face without occluding the airway • older children: carotid sinus massage or Valsalva maneuvers Do not apply pressure to the eye because this can damage the retina.

  27. Supraventricular Tachycardia Pharmacologic Cardioversion: Adenosine : The drug of choice. First dose: 0.1 mg/kg (maximum 6 mg) Second dose: 0.2 mg/kg (maximum 12 mg) Verapamil: Effective in older children Dose: 0.1 to 0.3 mg/kg

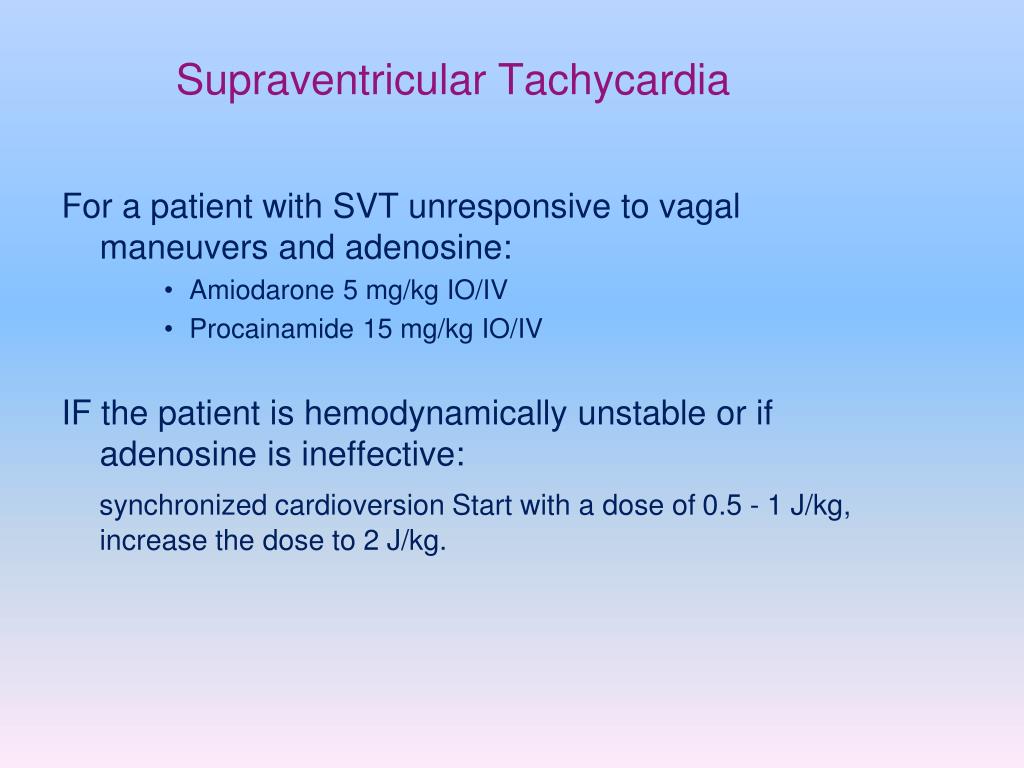

  28. Supraventricular Tachycardia For a patient with SVT unresponsive to vagal maneuvers and adenosine: • Amiodarone 5 mg/kg IO/IV • Procainamide 15 mg/kg IO/IV IF the patient is hemodynamically unstable or if adenosine is ineffective: synchronized cardioversion Start with a dose of 0.5 - 1 J/kg, increase the dose to 2 J/kg.

  29. Sinus Tachycardia

  30. Sinus Tachycardia If the rhythm is sinus tachycardia, search for and treat reversible causes.(6 H,5T)

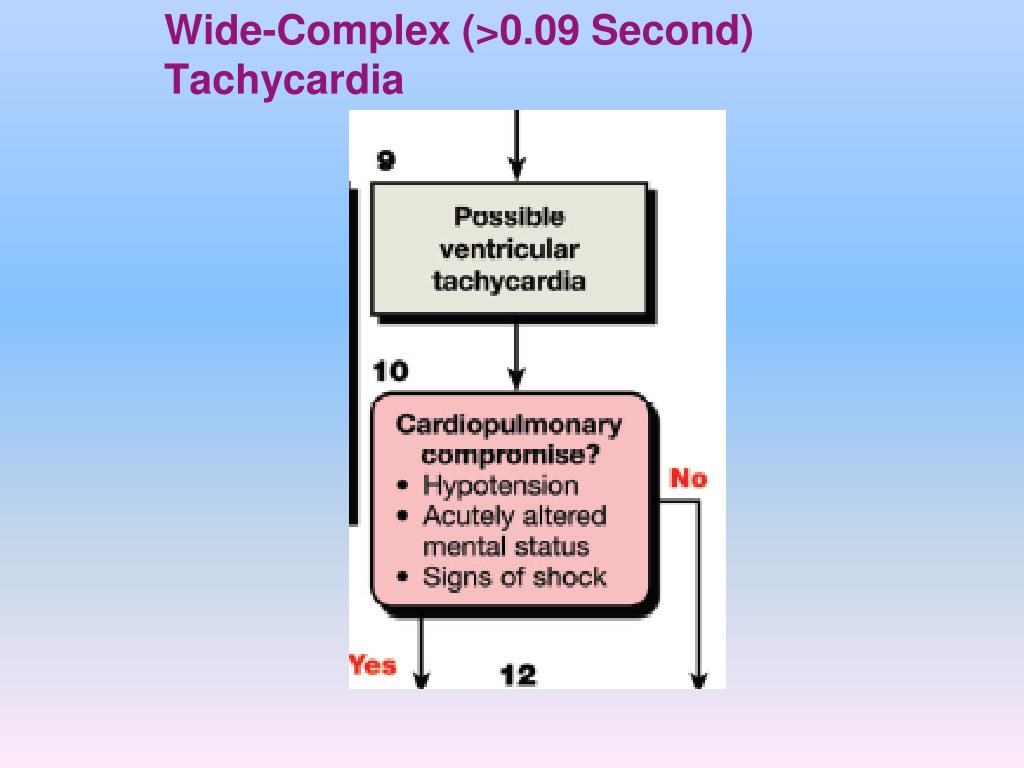

  31. Wide-Complex (>0.09 Second) Tachycardia

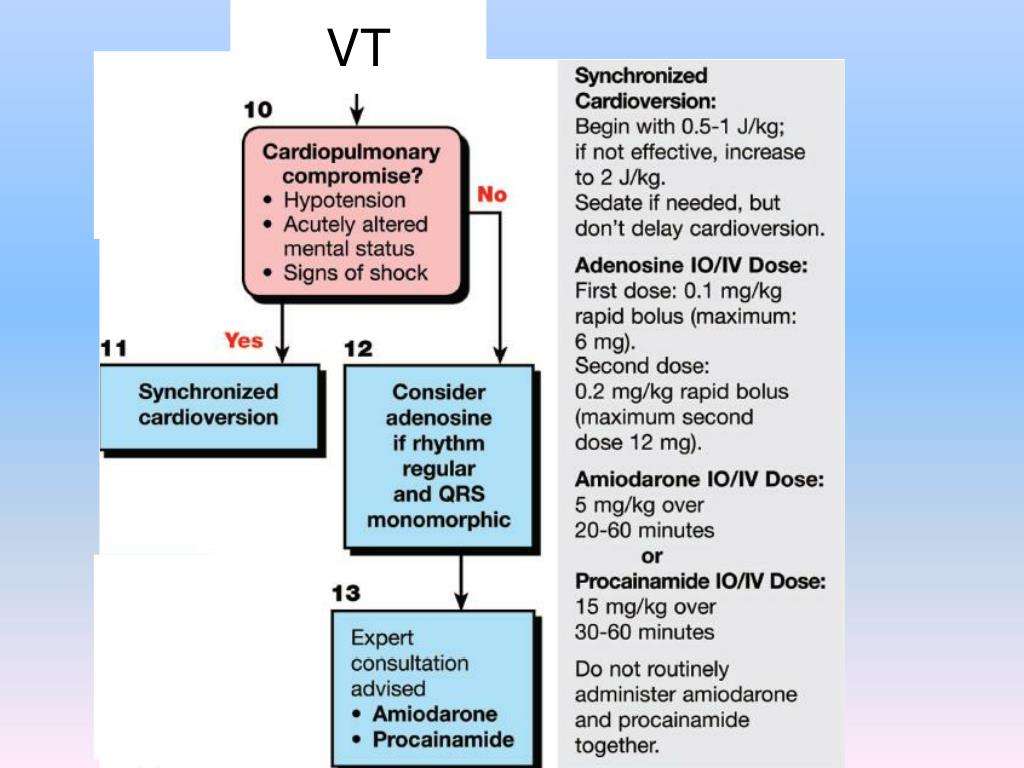

  32. VT

  33. Hypotention Hypotension is defined as asystolic blood pressure:  60 mm Hg in term neonates (0 to 28 days)  70 mm Hg in infants (1 month to 12 months)  70 mm Hg  (2  age in years) in children 1 to 10 years  90 mm Hg in children 10 years of age

  34. Wide-Complex Tachycardia Hemodynamically unstable patients: Synchronized cardioversion 2–4 J/kg up to 10 J/kg Hemodynamically stable patients: • Adenosine :useful in differentiating SVT from VT • Amiodarone :5 mg/kg over 20 to 60 minutes • Procainamide:15 mg/kg given over 30 to 60 minutes

  35. QUESTION???

  36. 3 year old child with new-onset seizures, who developed sudden cardiac arrest in the ED

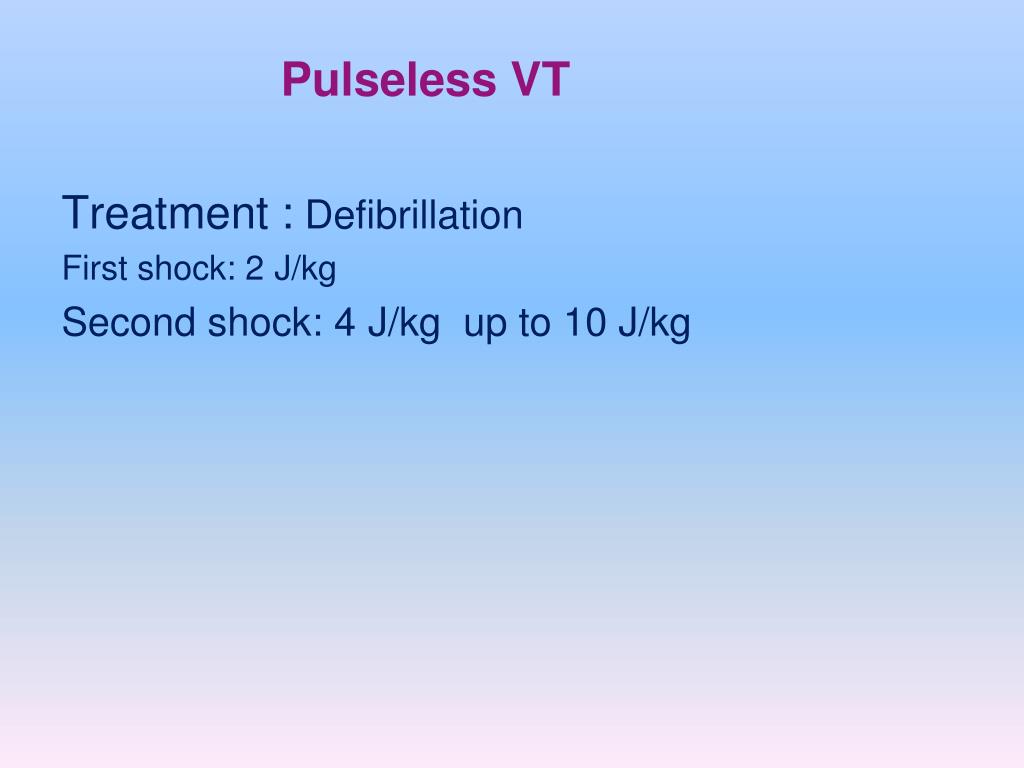

  37. Pulseless VT Treatment : Defibrillation First shock: 2J/kg Second shock: 4J/kg up to 10 J/kg

  38. After one shock:

  39. Treatment: • Check monitor lead • Chest compression & CPR immediately • Epinephrine.

  40. 5 year old child with cyanosis & agitation
