  1. Physics on synchrotrons and computers Alojz Kodre Faculty of Math & Physics, University of Ljubljana Ljubljana, July 2011

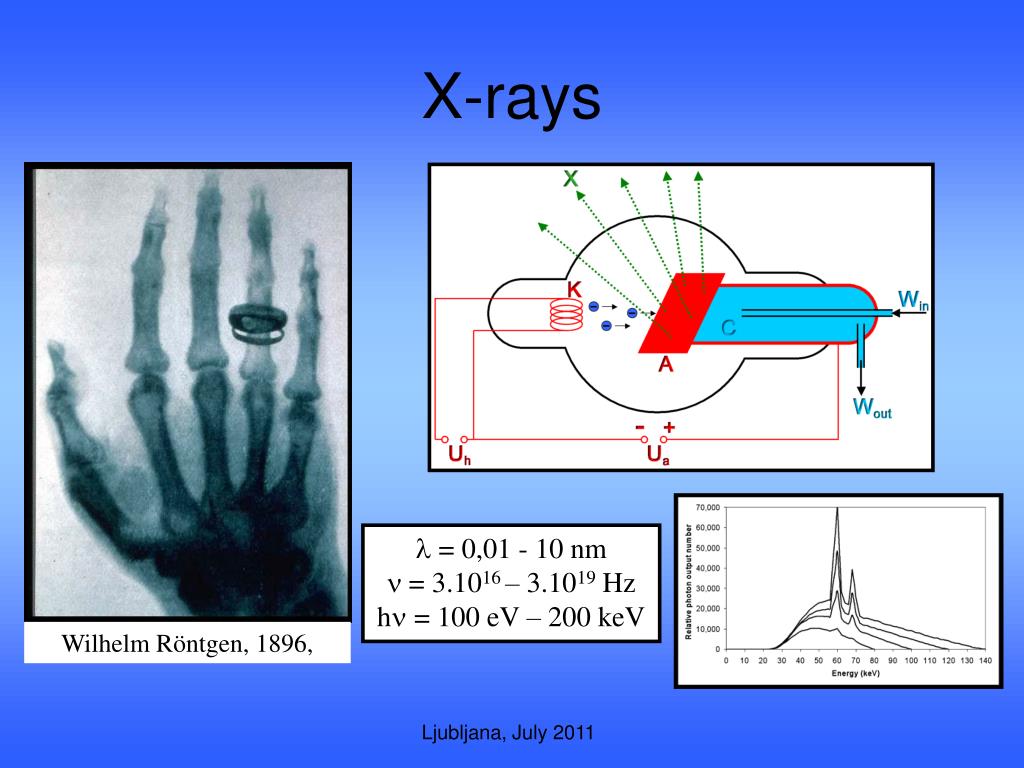

  2. X-rays l = 0,01 - 10 nm n = 3.1016 – 3.1019 Hz hn= 100 eV – 200 keV Wilhelm Röntgen, 1896, Ljubljana, July 2011

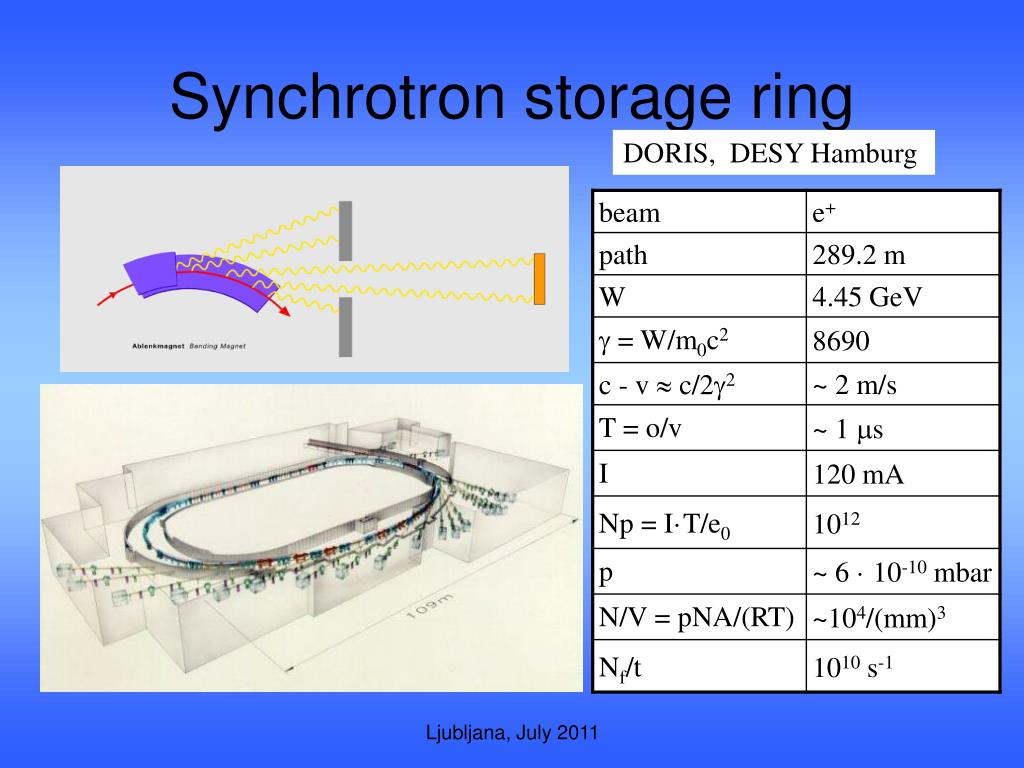

  3. Synchrotron storage ring DORIS, DESY Hamburg Ljubljana, July 2011

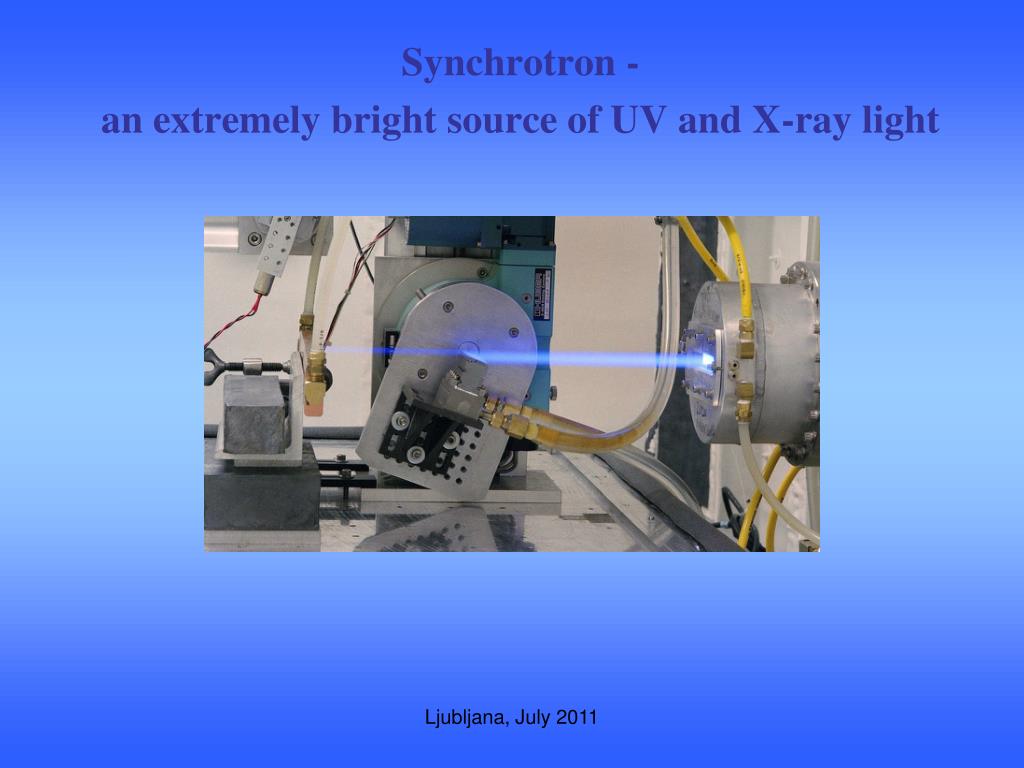

  4. Synchrotron -an extremely bright source of UV and X-ray light Ljubljana, July 2011

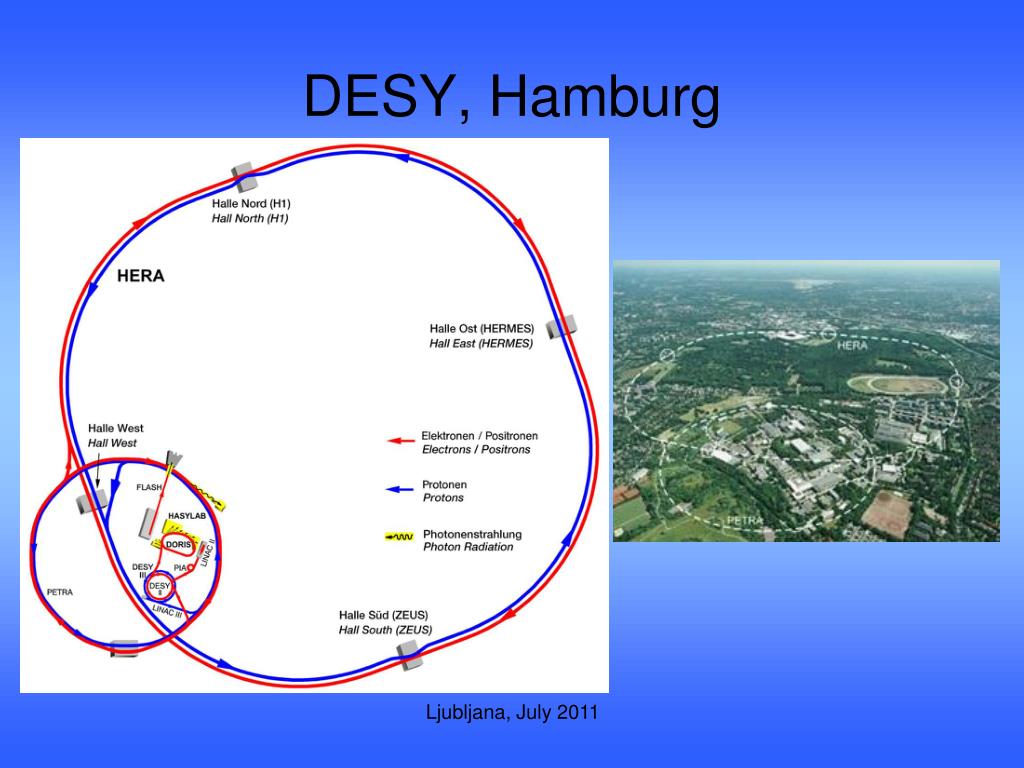

  5. DESY, Hamburg Ljubljana, July 2011

  6. Elettra, Trieste Ljubljana, July 2011

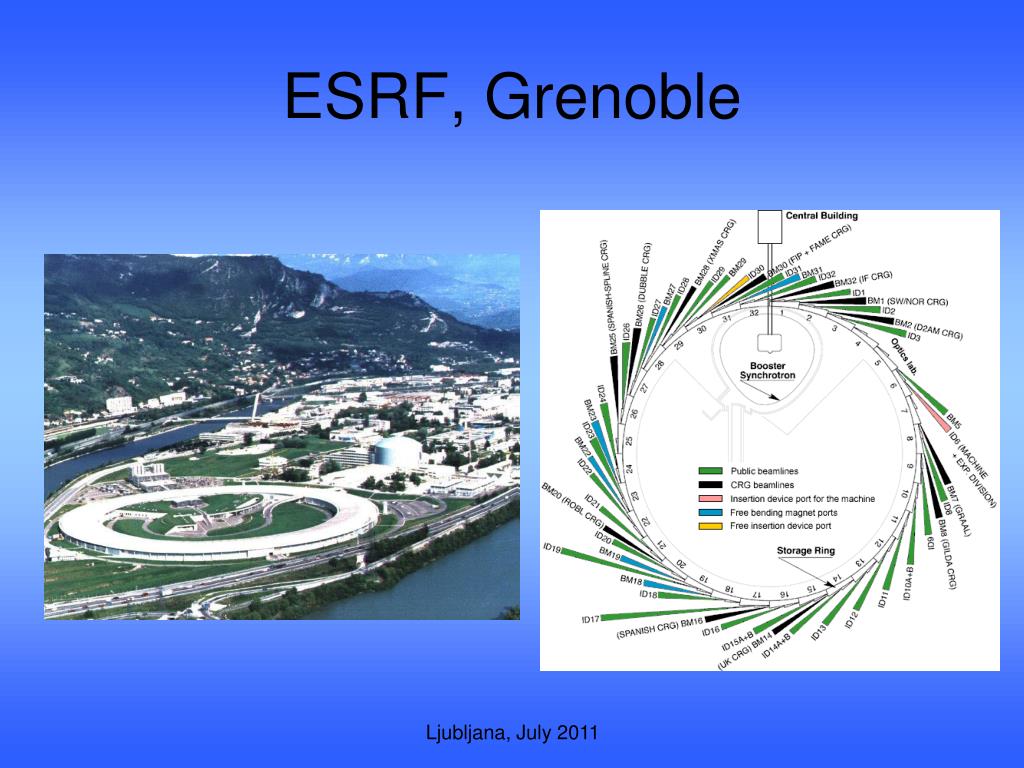

  7. ESRF, Grenoble Ljubljana, July 2011

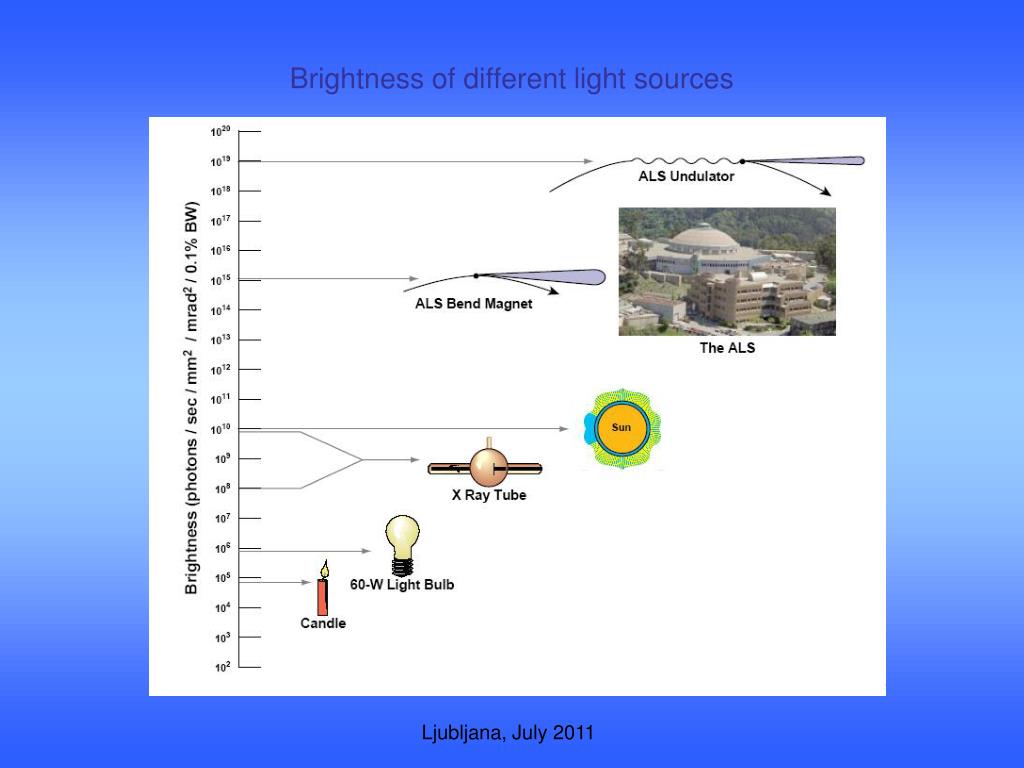

  8. Brightness of different light sources Ljubljana, July 2011

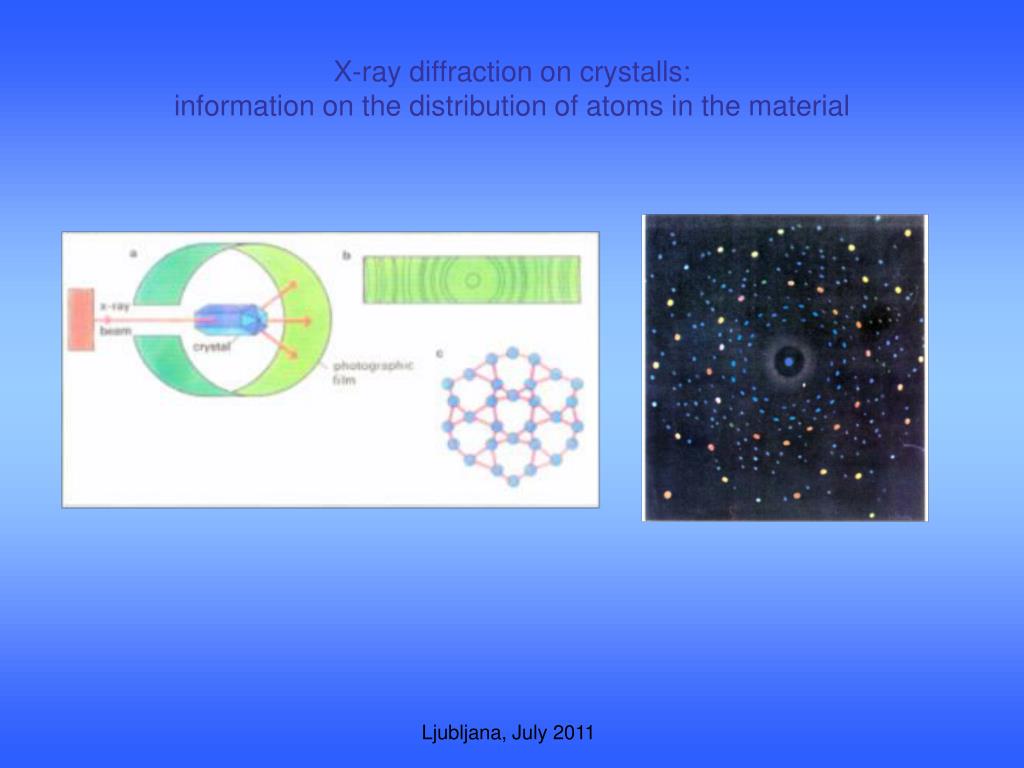

  9. X-ray diffraction on crystalls:information on the distribution of atoms in the material Ljubljana, July 2011

  10. Protein Structure by X-Ray Diffraction Protein –a molecule of ~ 10.000 atoms Diffraction pattern of the protein . Ljubljana, July 2011

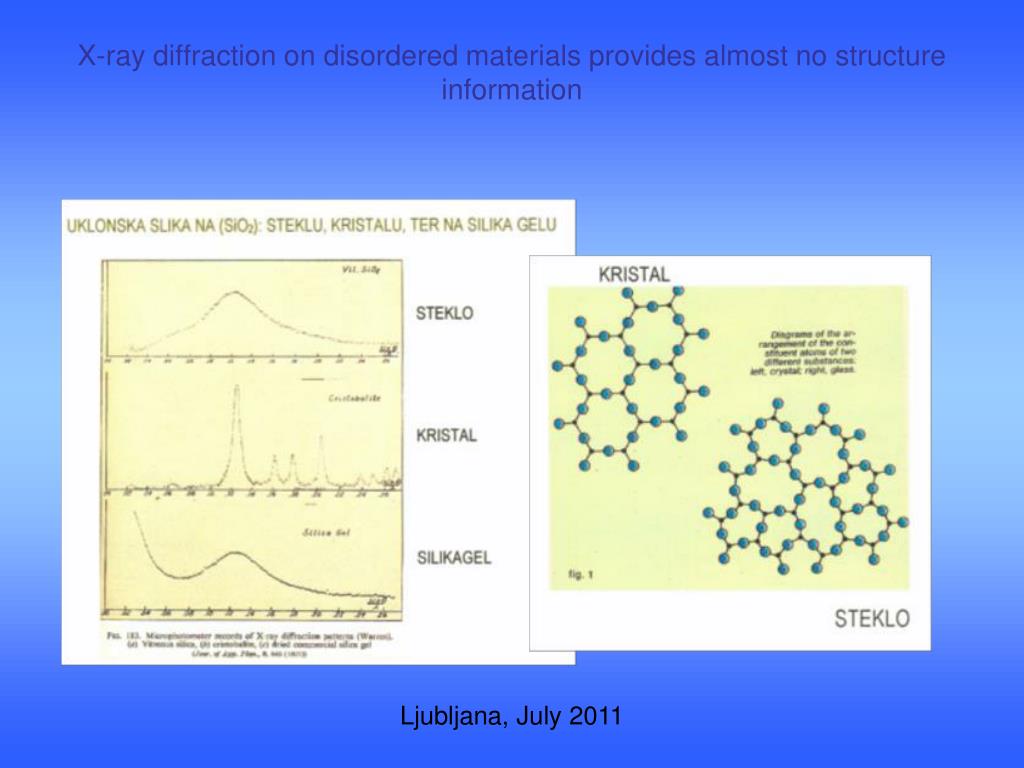

  11. X-ray diffraction on disordered materials provides almost no structure information Ljubljana, July 2011

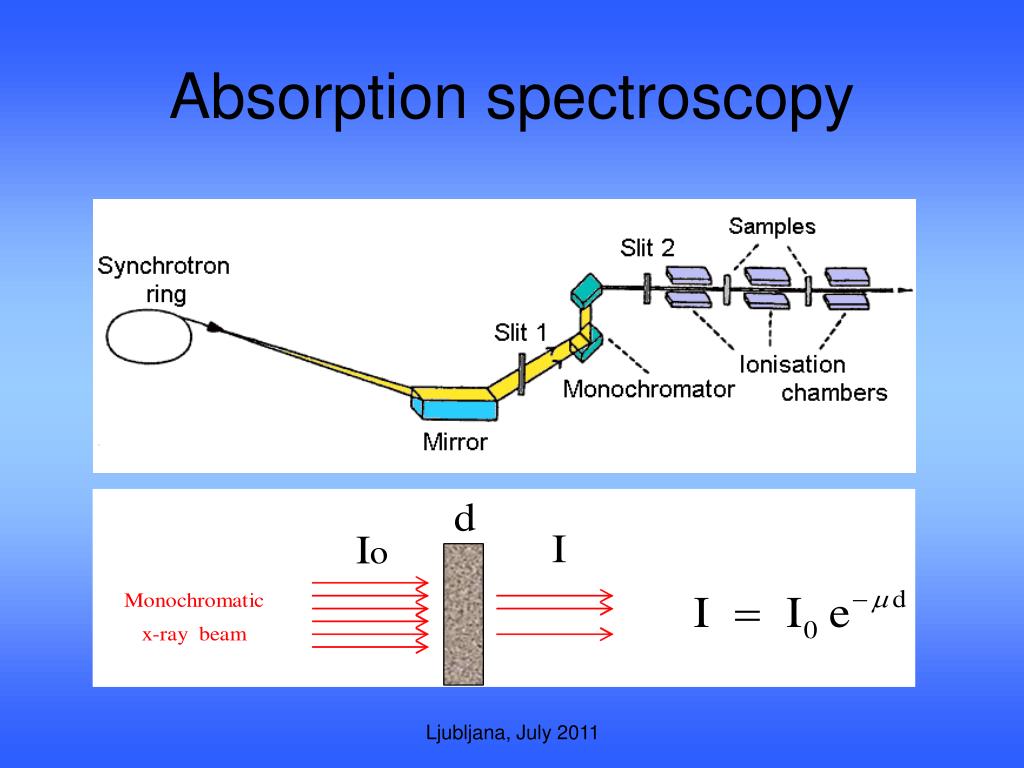

  12. Absorption spectroscopy Ljubljana, July 2011

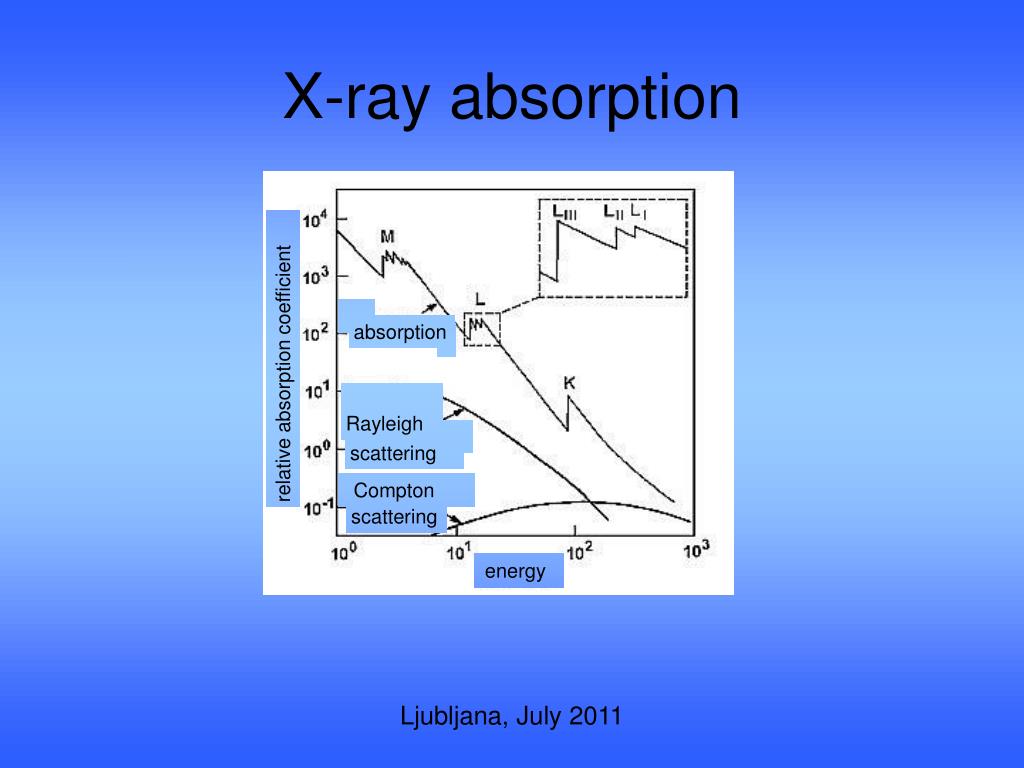

  13. X-ray absorption absorption relative absorption coefficient Rayleigh scattering Compton scattering energy Ljubljana, July 2011

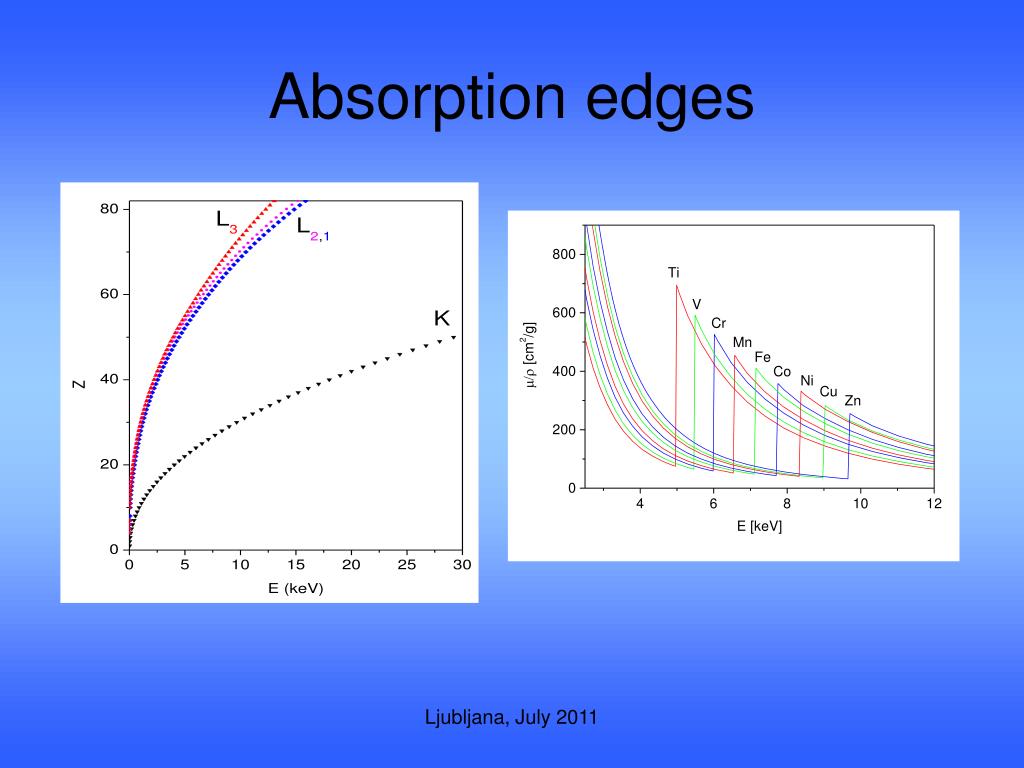

  14. Absorption edges Ljubljana, July 2011

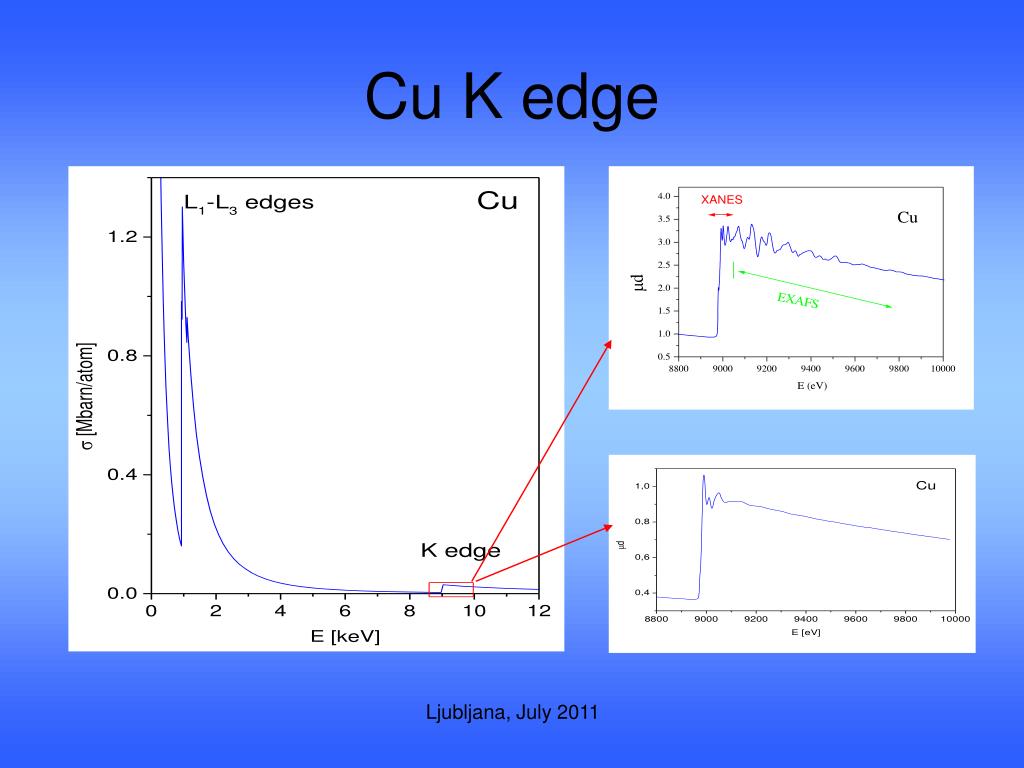

  15. Cu K edge Ljubljana, July 2011

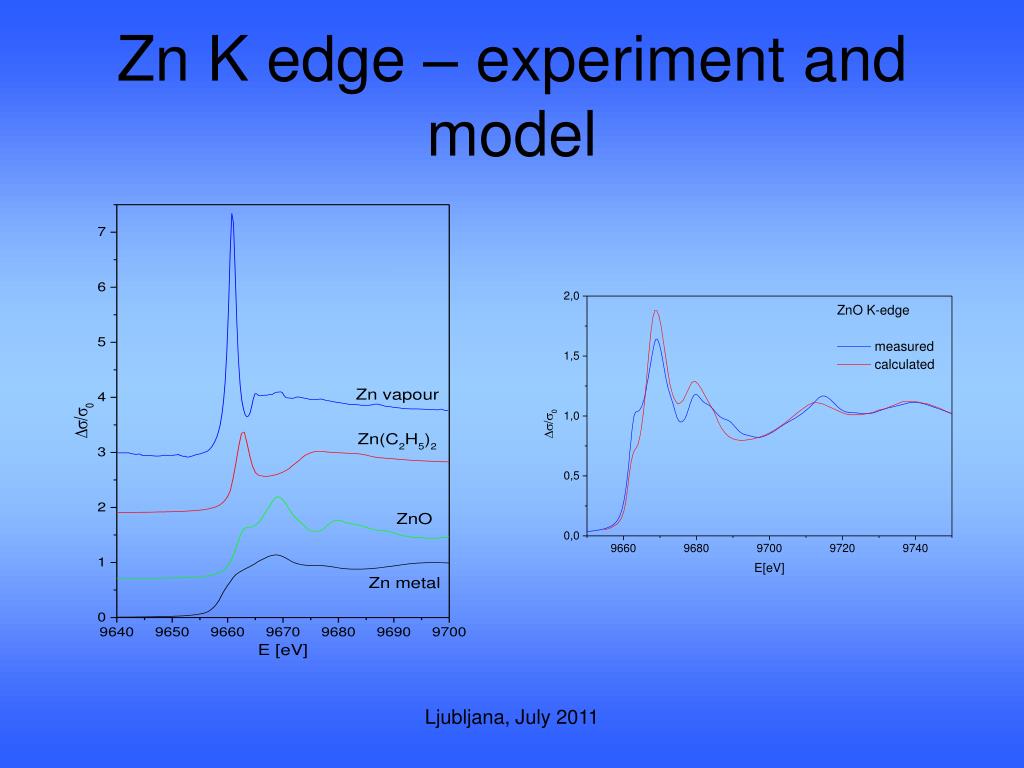

  16. Zn K edge – experiment and model Ljubljana, July 2011

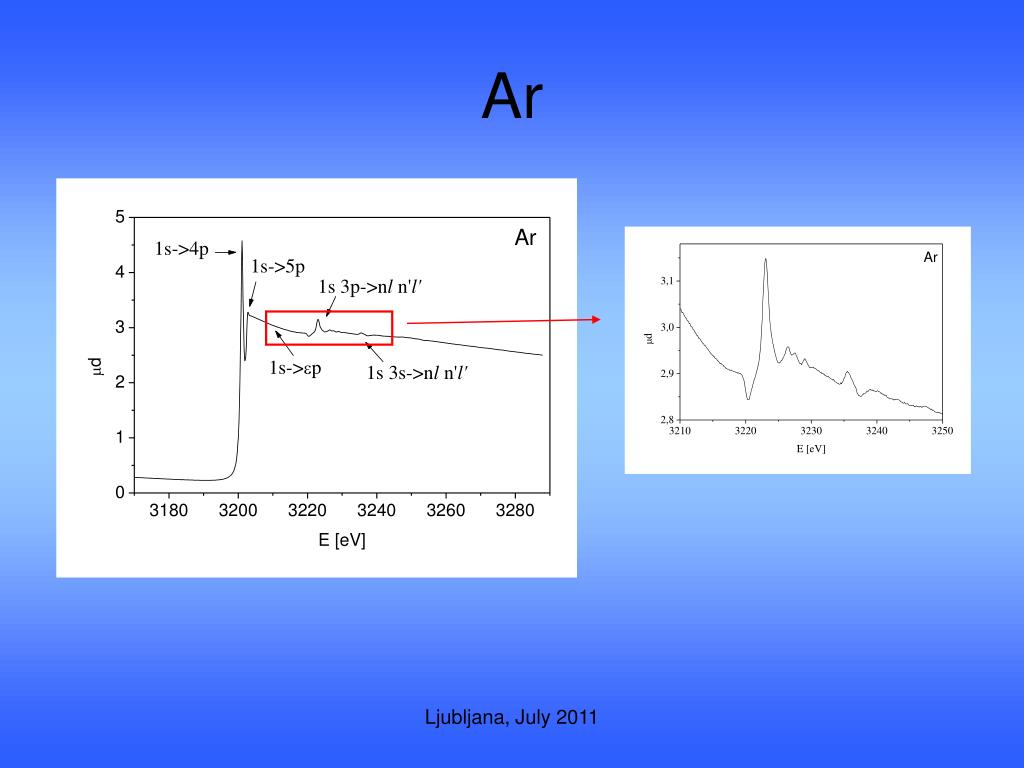

  17. Ar Ljubljana, July 2011

  18. Metal-vapor cells Ljubljana, July 2011

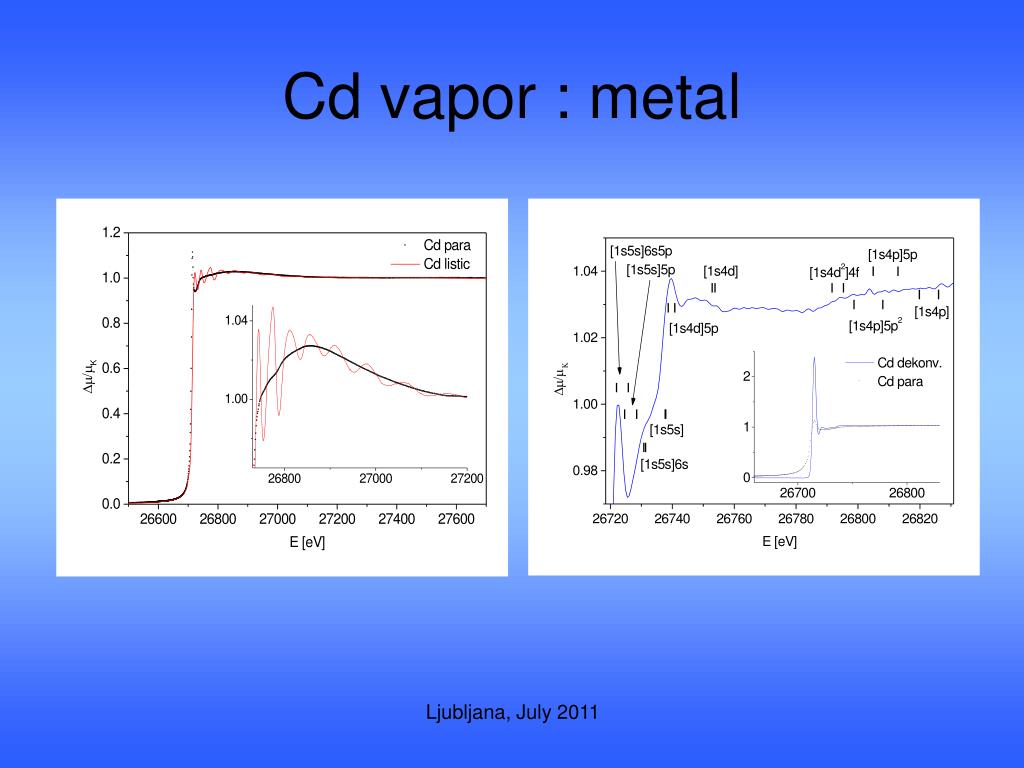

  19. Cd vapor : metal Ljubljana, July 2011

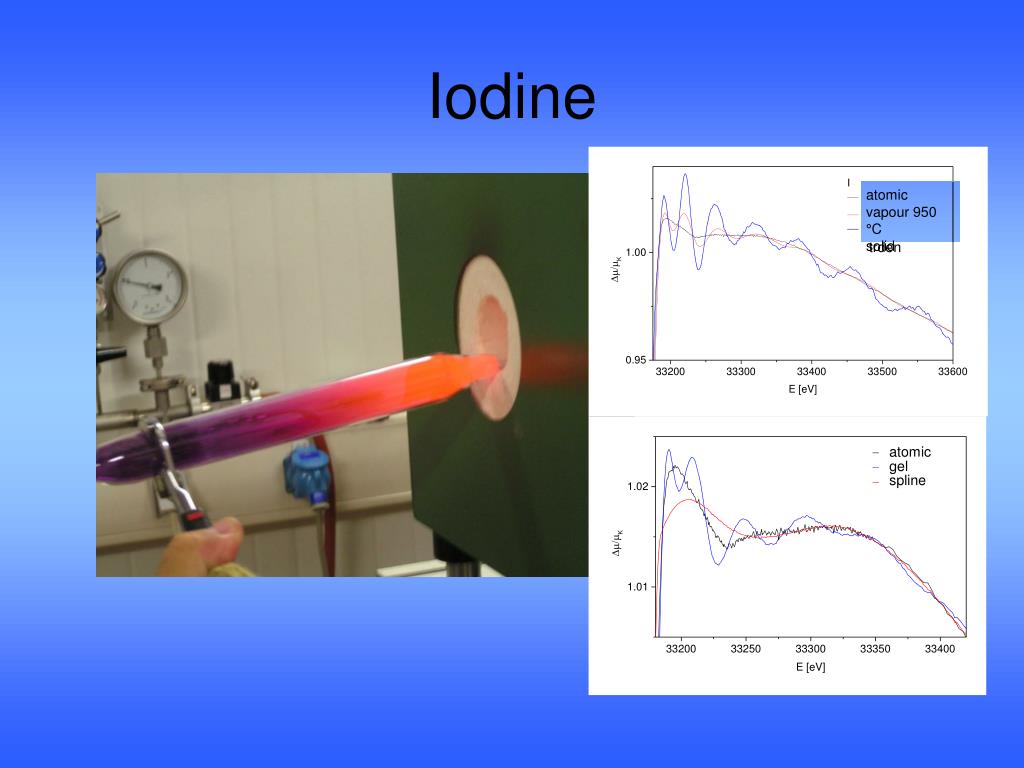

  20. atomski pare 950 ºC trden atomic gel spline Iodine atomic vapour 950 °C solid

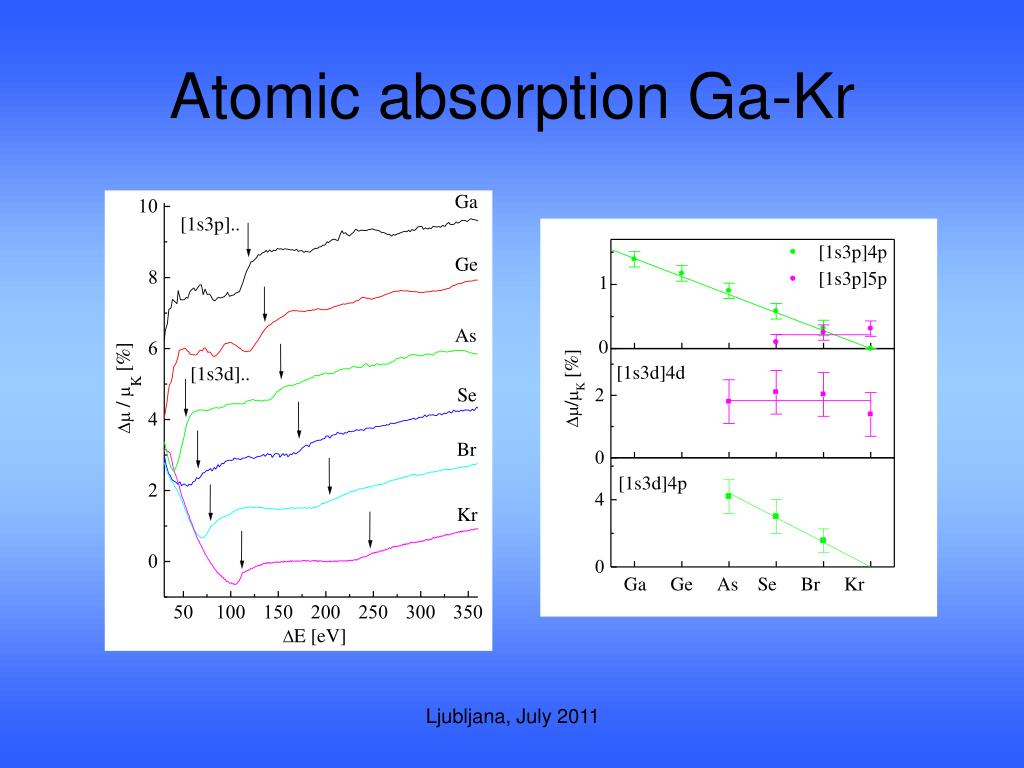

  21. Atomic absorption Ga-Kr Ljubljana, July 2011

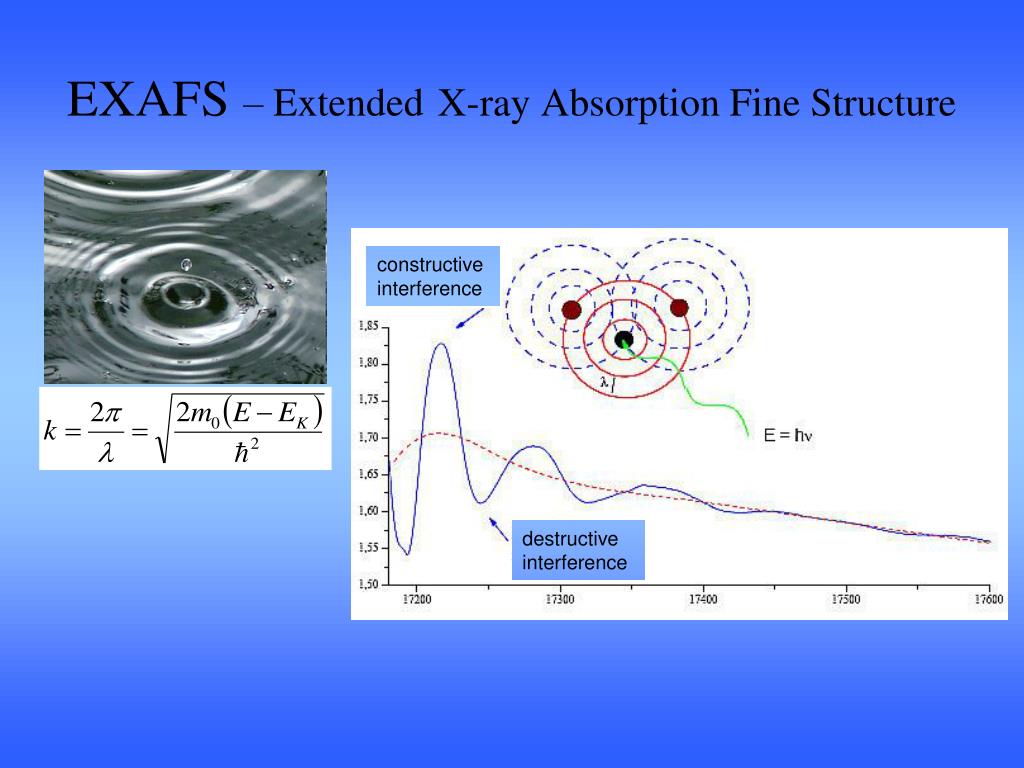

  22. EXAFS– ExtendedX-ray Absorption Fine Structure constructive interference destructive interference

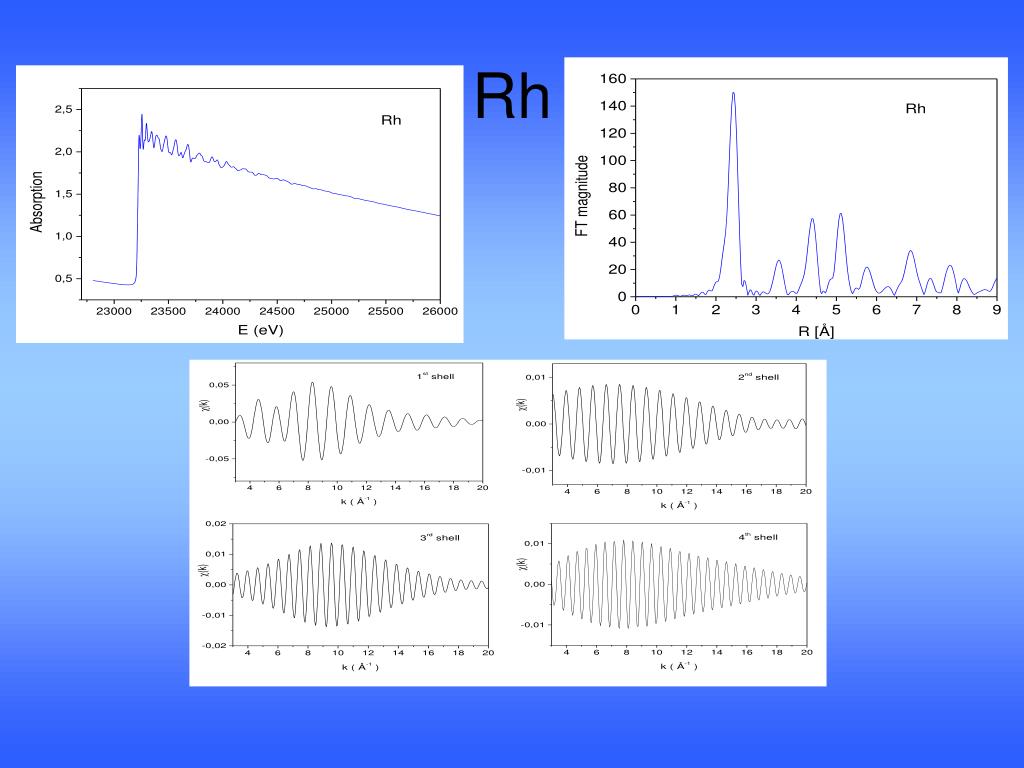

  23. Rh

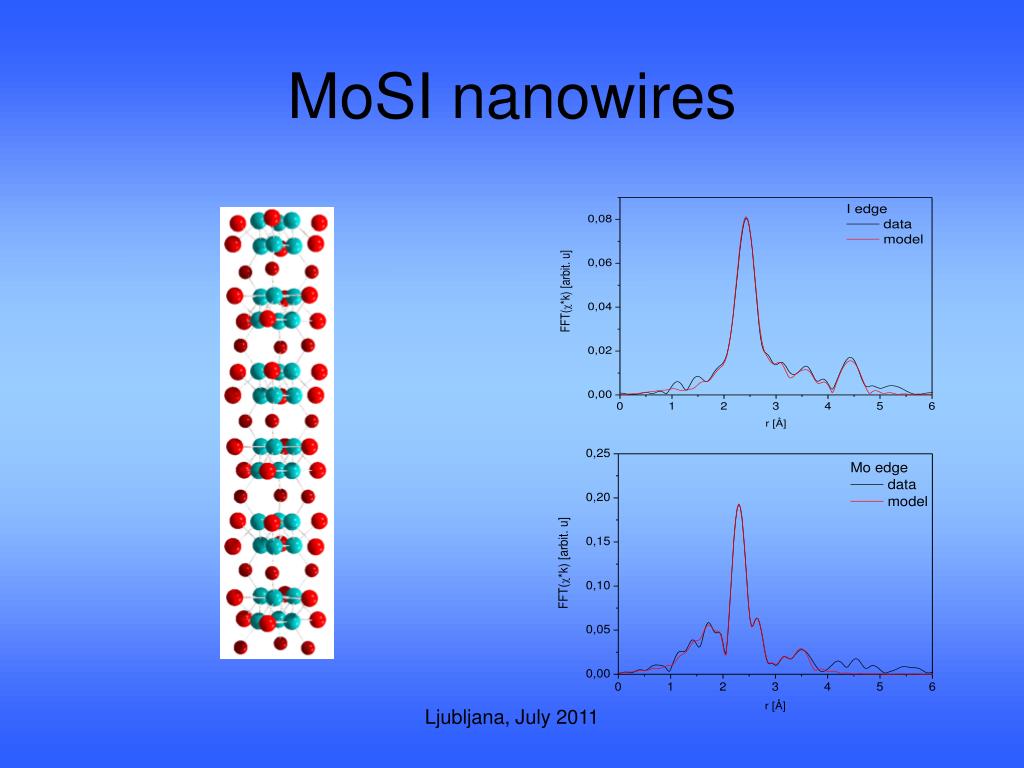

  24. MoSI nanowires Ljubljana, July 2011

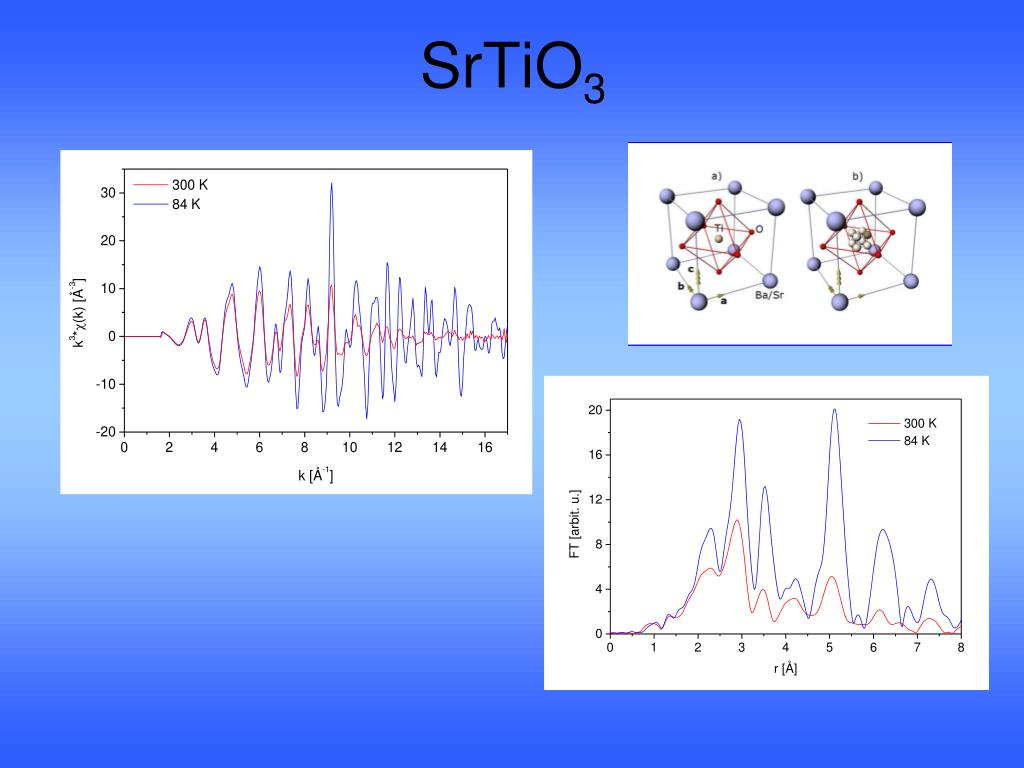

  25. SrTiO3

  26. Ljubljana, July 2011

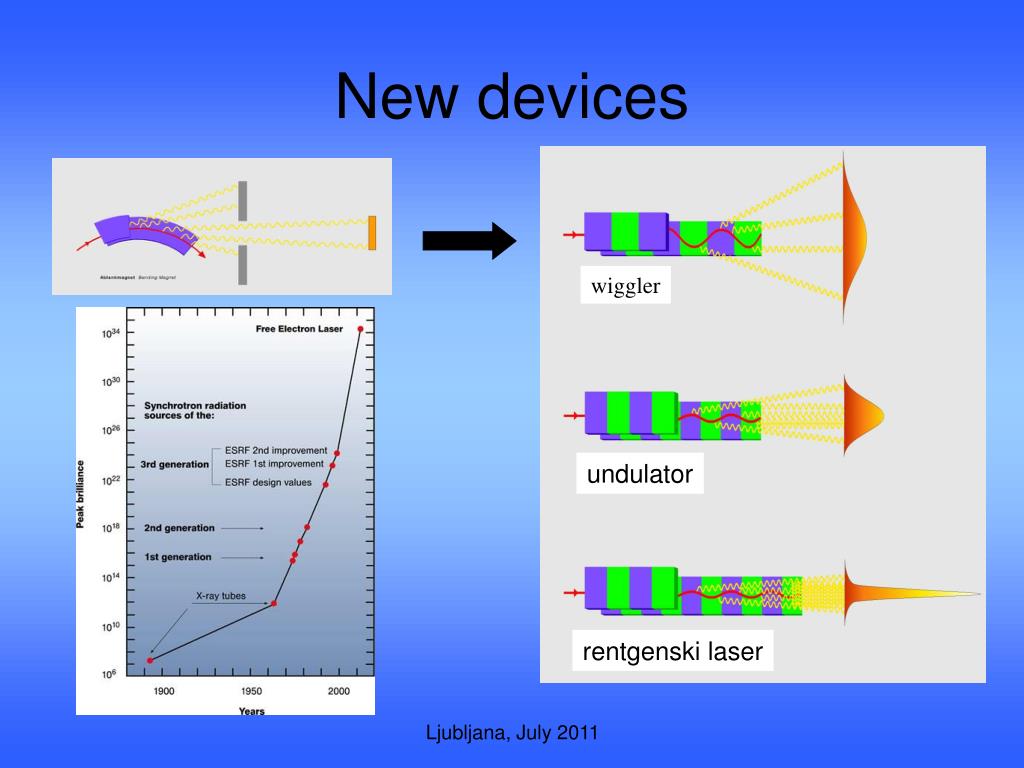

  27. New devices wiggler undulator rentgenski laser Ljubljana, July 2011

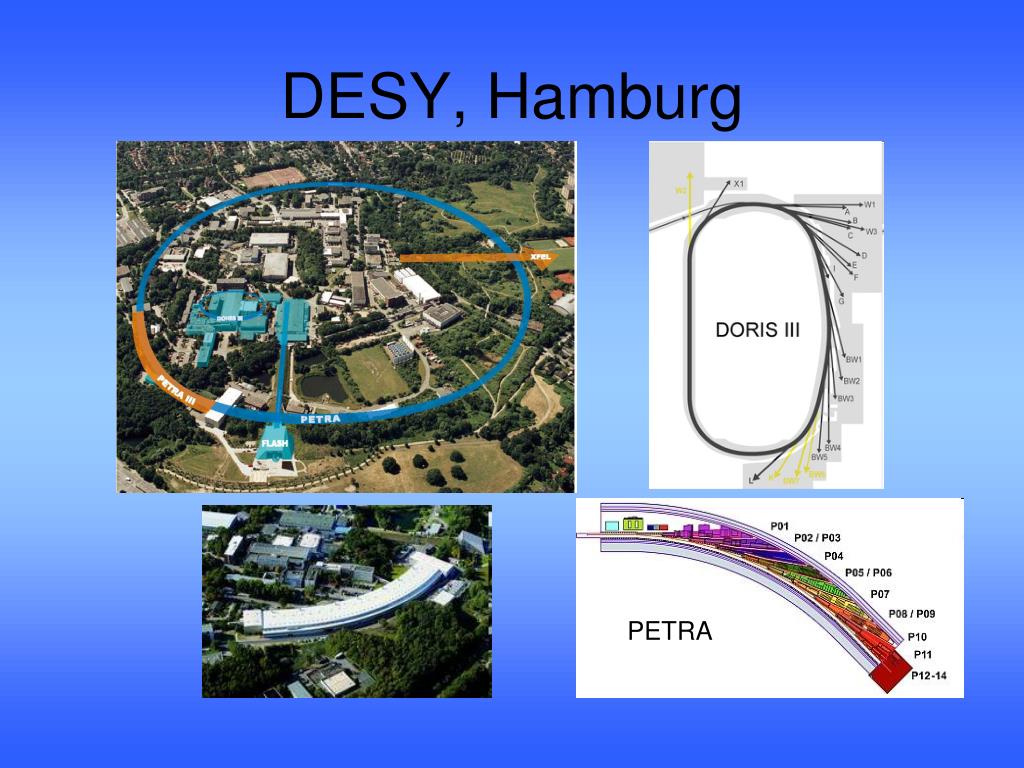

  28. DESY, Hamburg PETRA

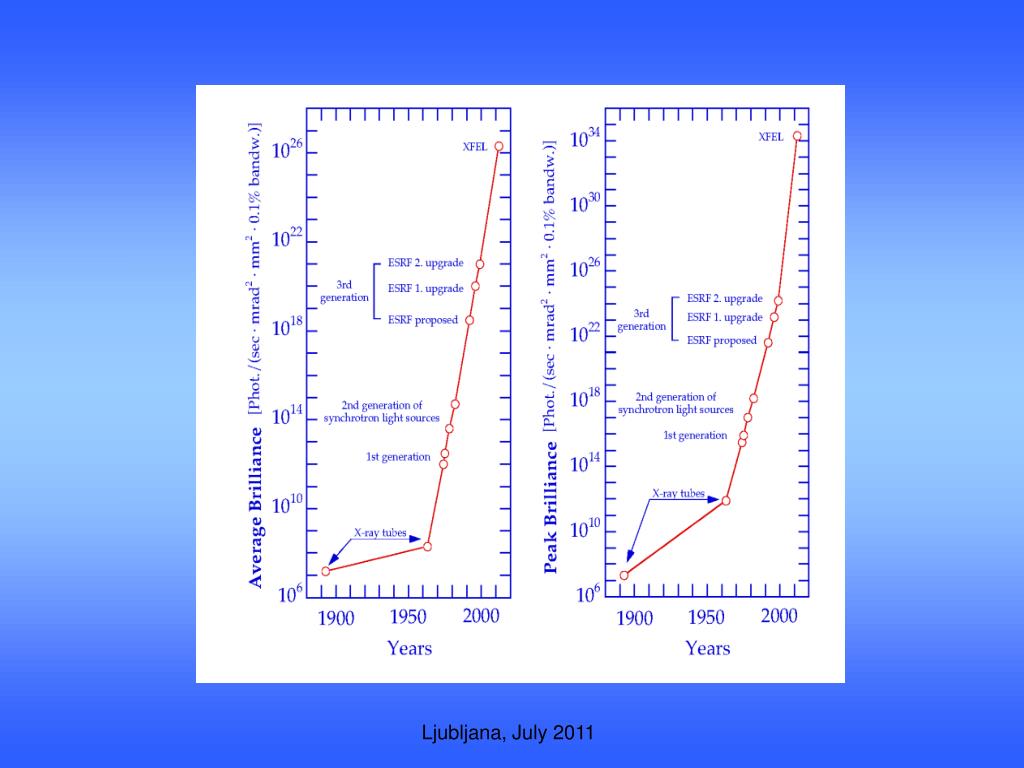

  29. XFEL – X-ray Free Electron Laser

  30. The group at Hasylab Ljubljana, July 2011
