Segment Relationships in Circles

Segment Relationships in Circles . Geometry CP2 (Holt 12-6) K.Santos. Chord-Chord Product Theorem 12-6-1. Product of 1 chord = product of other chord a c d b Then: a(b) = c(d). Example—two chords. Find x. x 8 3 6

judah
Télécharger la présentation

Segment Relationships in Circles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Segment Relationships in Circles Geometry CP2 (Holt 12-6) K.Santos

  2. Chord-Chord Product Theorem 12-6-1 Product of 1 chord = product of other chord ac db Then: a(b) = c(d)

  3. Example—two chords Find x. x8 3 6 6x = 3(8) 6x =24 x = 4

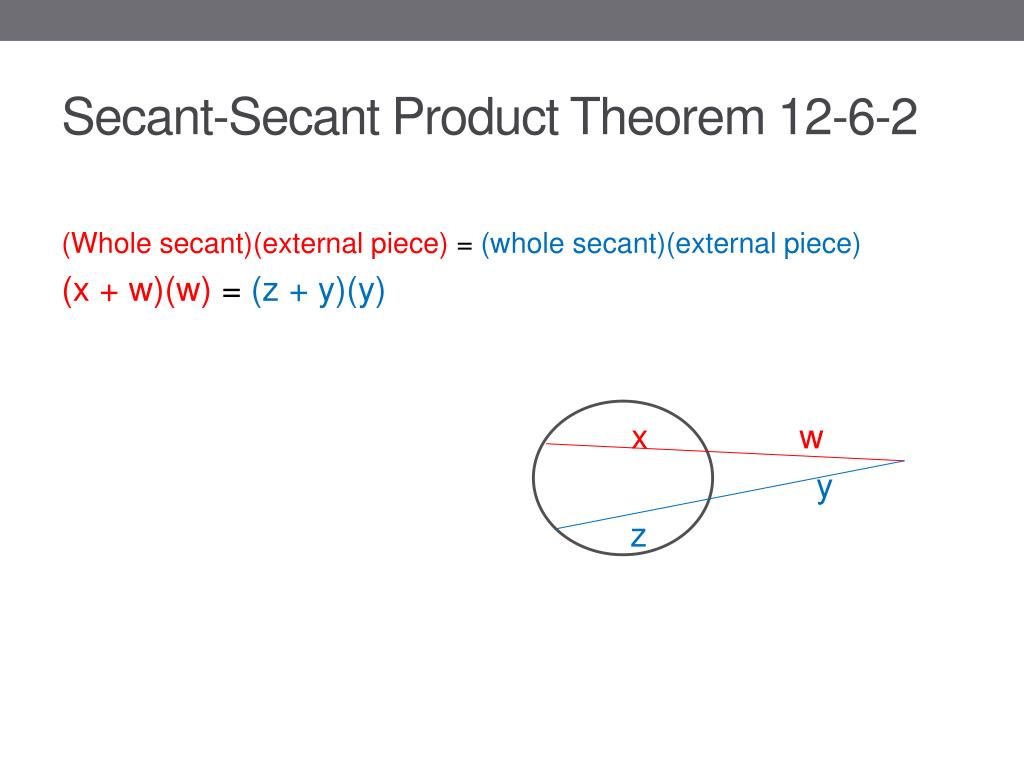

  4. Secant-Secant Product Theorem 12-6-2 (Whole secant)(external piece) = (whole secant)(external piece) (x + w)(w) = (z + y)(y) x w y z

  5. Example—two secants Find y. 8 6 7y (Whole secant)(external piece) = (whole secant)(external piece) (6 + 8)6 = (7 + y )7 (14)6 = 49 + 7y 84 = 49 + 7y 35 = 7y y = 5

  6. Secant-Tangent Product Theorem 12-6-3 (Whole secant)(external piece) = (y + z)y= t z y

  7. Example—tangent and secant Find y. 12 8 y (whole secant) (external piece) = (8 + y)8 = 64 + 8y = 144 8y = 80 y = 10

  8. Remember an old Theorem (2 tangents) The two segments tangent to a circle from a point outside a circle are congruent. a b a = b
