Course-Grained Reconfigurable Devices

1. Course-Grained Reconfigurable Devices

2. Dataflow Machines • General Structure: • ALU-computing elements, • Programmable interconnections, • I/O components. • Most dominating coarse-grained systems: • PACT XPP • NEC-DRP • PicoChip • Morphosys • [RaPiD] • Chameleon

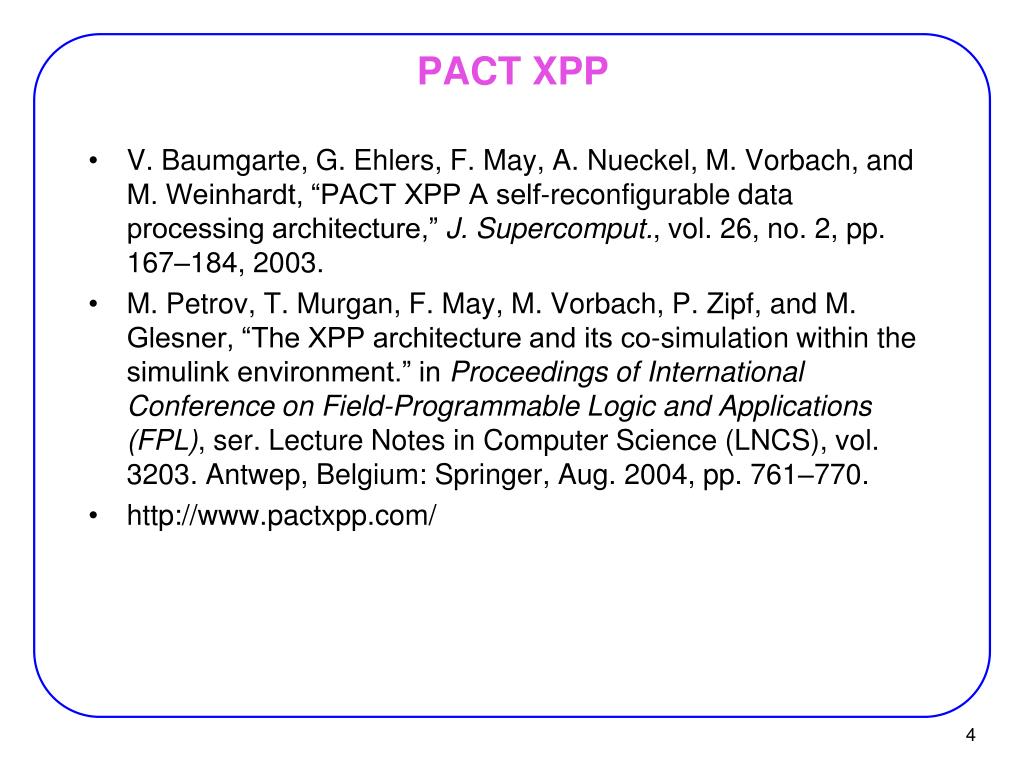

4. PACT XPP • V. Baumgarte, G. Ehlers, F. May, A. Nueckel, M. Vorbach, and M. Weinhardt, “PACT XPP A self-reconfigurable data processing architecture,” J. Supercomput., vol. 26, no. 2, pp. 167–184, 2003. • M. Petrov, T. Murgan, F. May, M. Vorbach, P. Zipf, and M. Glesner, “The XPP architecture and its co-simulation within the simulink environment.” in Proceedings of International Conference on Field-Programmable Logic and Applications (FPL), ser. Lecture Notes in Computer Science (LNCS), vol. 3203. Antwep, Belgium: Springer, Aug. 2004, pp. 761–770. • http://www.pactxpp.com/

5. PACT XPP • Aim: • Efficiently compute streams of data provided from different sources (e.g. A/D converters) rather than single instructions (as in Von-Neumann computers). • Characteristic: • Computation should be done while data are streaming through the processing elements •  it is suitable to configure the PEs to adapt to the natural computation paradigm of a given application.

6. Course Grain Architectures

7. PACT XPP: Architecture • XPP (Extreme Processing Platform) • A hierarchical structure consisting of PAEs • PAEs • Course grain PEs • Adaptive • Clustered in PACs • PA = PAC + CM • A hierarchical configuration tree • Memory elements (aside PAs) • I/O elements (on each side of the chip) PA PA PA PA

8. PACT XPP Architecture: CM • CM (Configuration Manager): • Powerful run-time reconfiguration: • Configuration control is distributed over several CMs • PAEs can be configured rapidly in parallel while neighboring PAEs are processing data. • Entire applications can be configured and run independently on different parts of the array. • Reconfiguration can be triggered: • externally or • internally (by special event signals originating within the array •  self-reconfiguring • Local CM: • One configuration manager (CM) attached to a local memory is responsible for writing configuration onto a PA. • The CMs at a lower level are controlled by a CM at the next higher level. • Root CM: • Attached to an external configuration memory. • Supervises the whole device configuration.

9. XPP Architecture • Scalability: • Can cascade multiple devices in a multi-chip module •  Root CMs act like ordinary, subordinate CMs • CM: • consists of a state machine + • internal RAM for configuration caching

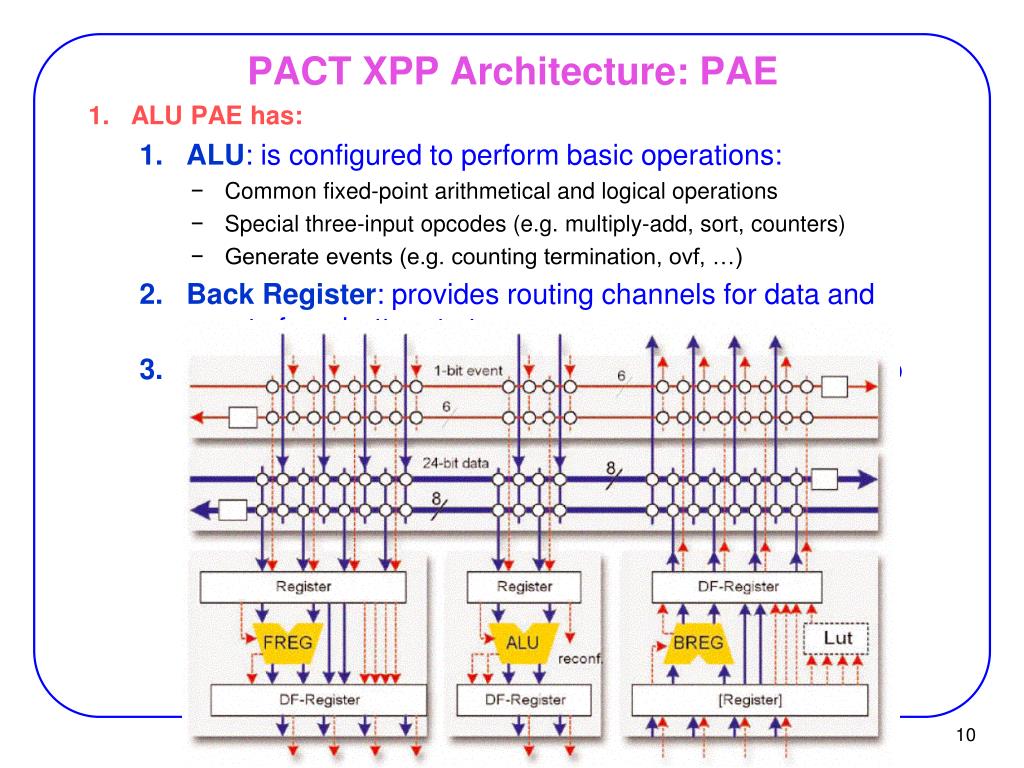

10. PACT XPP Architecture: PAE • ALU PAE has: • ALU: is configured to perform basic operations: • Common fixed-point arithmetical and logical operations • Special three-input opcodes (e.g. multiply-add, sort, counters) • Generate events (e.g. counting termination, ovf, …) • Back Register: provides routing channels for data and events from bottom to top • Forward Register: provides routing channels from top to bottom

11. PACT XPP Architecture: PAE • Dataflow-Registers: used at the object output for data buffering in case of a pipeline stall. • Input Registers : can be pre-loaded by configuration data and always provide single cycle stall.

12. PACT XPP Architecture: PAE • RAM PAE: • As ALU PAE but instead of ALU, it has a dual port RAM • Useful for data storage (intermediate results) • Can be used in FIFO or RAM mode • Useful for LUT-based functions • The RAM generates a data packet after an address was received at the input. • Writing to the RAM requires two data packets: • for the address • for the data to be written. RAM

13. PACT XPP Architecture: Communication • PAE Objects communicate via a packet-oriented network: • Two types of packets: • Data packets: uniform bit width for a device (specific to the device type, e.g 32) • Event packets: one or a few bits wide • Self-synchronizing: • An operation is performed as soon as all necessary data input packets are available. • The results are forwarded as soon as they are available, provided the previous results have been consumed. •  Thus possible to map a DFG directly to ALU objects, and to pipeline input data streams through it. • Event signals: • can trigger a self-reconfiguration • Can control the merging of data-streams

14. PACT XPP: Routing • Routing and Communication: • Two independent networks: • for data transmission • for event transmission

15. PACT XPP: Routing Vertical routing channels • Horizontal Channel • to connect a PAE within a row. • Vertical Channel • to connect objects to a given horizontal bus. • Configuration Bus Horizontal routing channels

16. PACT XPP: Interface • Number and type of interfaces vary from device to device • XPP42-A1: 6 internal interfaces consisting of: • 4 identical general purpose I/O on-chip interfaces (bottom left, upper left, upper right, and bottom right) • One configuration manager (not shown on the picture) • One JTAG (Join Test Action Group, "IEEE Standard 1149.1") Boundary scan interface or for testing purpose Interfaces

17. 2.1 The PACT XPP - Interface The I/O interfaces can operateindependent from each other. Two operation modes The RAM mode The streaming mode RAM mode: Each port can access external Static RAM (SRAM). Control signals for the SRAM transaction are available. No additional logic required

18. 2.1 The PACT XPP - Interface • Streaming mode: • For high speed streaming of data to and from the device • Each I/O element provides two bidirectional ports for data streaming • Handshake signals are used for synchronization of data packets to external port
