1.1 Patterns and Inductive Reasoning

jui avatar
jui
83 diapositives · 1.6K Views · Sep 03, 2014

1.1 Patterns and Inductive Reasoning. Day 1 part 1 CA Standards 1.0, 3.0. Subtract the integers. 17 – 9 9 – 17 5 – ( -3) -5 – (-6). Evaluate the sum 2 2 + 4 2 5 2 + (-2) 2 (-1) 2 + 1 2 (-5) 2 + 0 2. Warmup. Geometry Recognizing and describing patterns Example

1.1 Patterns and Inductive Reasoning - slide 1
01 / 831.1 Patterns and Inductive Reasoning
1 / 17

Télécharger la présentation

1.1 Patterns and Inductive Reasoning
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. 1.1 Patterns and Inductive Reasoning Day 1 part 1 CA Standards 1.0, 3.0

  2. Subtract the integers. 17 – 9 9 – 17 5 – ( -3) -5 – (-6) Evaluate the sum 22 + 42 52 + (-2)2 (-1)2 + 12 (-5)2 + 02 Warmup

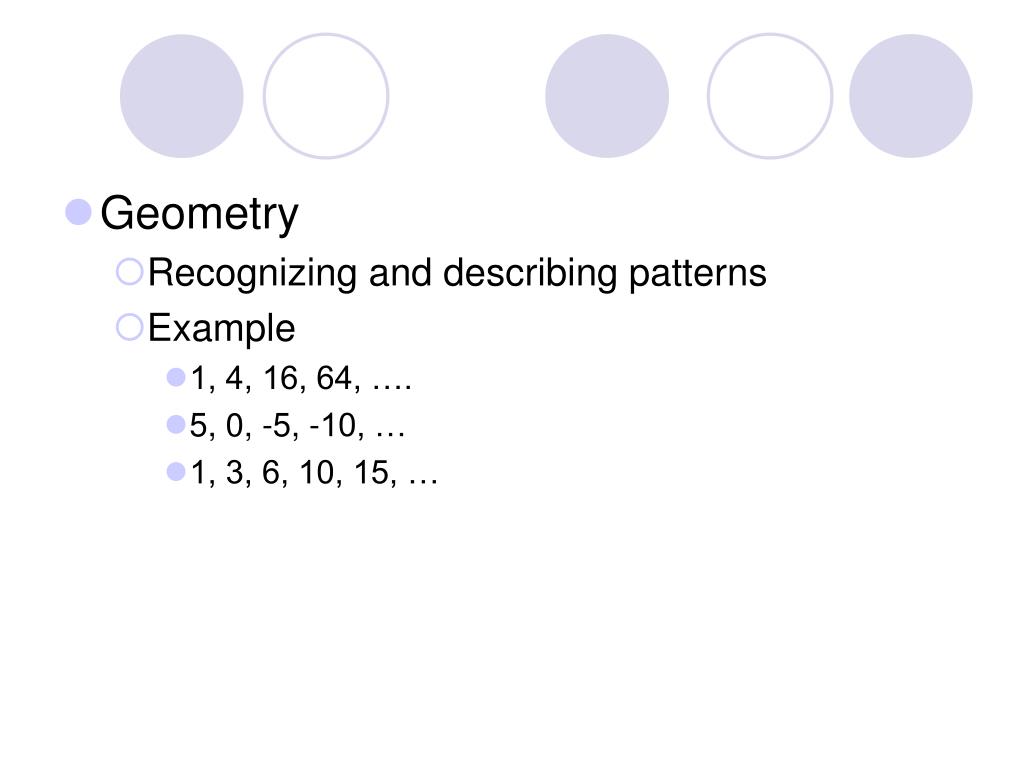

  3. Geometry • Recognizing and describing patterns • Example • 1, 4, 16, 64, …. • 5, 0, -5, -10, … • 1, 3, 6, 10, 15, …

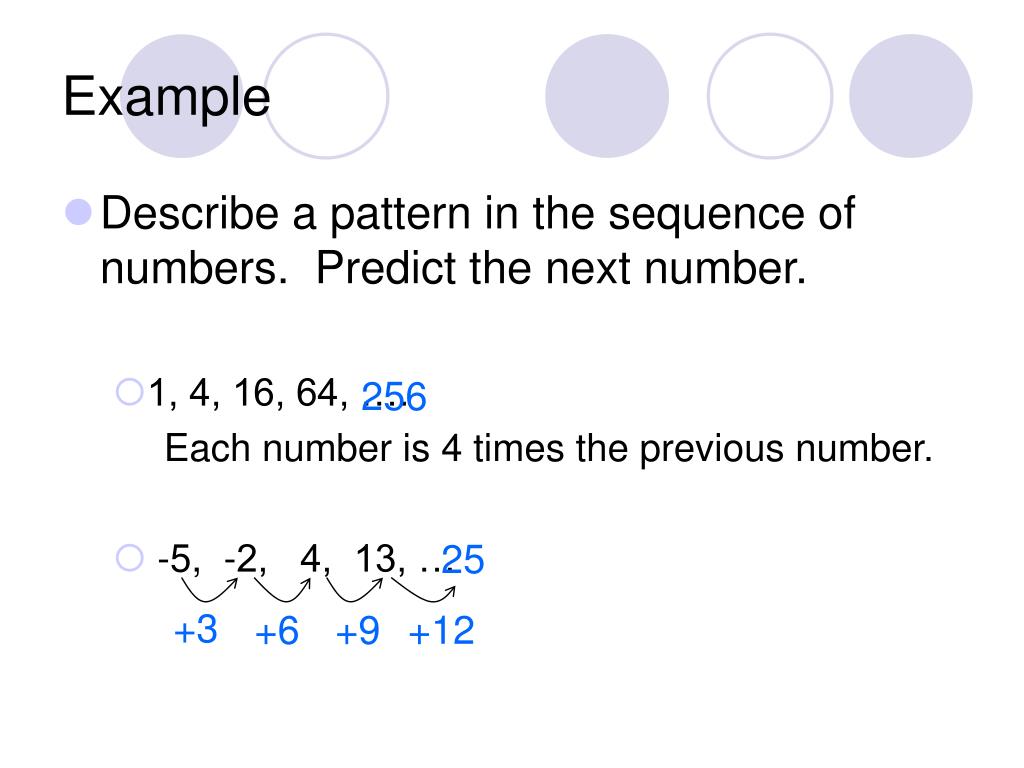

  4. Example • Describe a pattern in the sequence of numbers. Predict the next number. • 1, 4, 16, 64, …. Each number is 4 times the previous number. • -5, -2, 4, 13, … 256 25 +3 +6 +9 +12

  5. Definition • Conjecture • An unproven statement that is based on observations. • Inductive reasoning • Looking for patterns and making conjectures

  6. Complete the conjecture. • Conjecture: The sum of the first n odd positive integer is ______ 1 1 + 3 1 + 3 + 5 1 + 3 + 5 + 7 n2 = 1 = 12 = 4 = 22 = 9 = 32 = 16 = 42

  7. Complete the conjecture . • Conjecture: The sum of the first 5 odd positive integer is _____.

  8. On your own • Conjecture : The sum of any two odd numbers is ____

  9. Finding and Describing Patterns • Sketch the next figure in the pattern. . . . . . .

  10. Finding and Describing Patterns • Describe a pattern in the sequence of numbers. Predict the next number. • 4, 16, 36, 64, … • 4.4, 40.4, 400.4, 4000.4, …

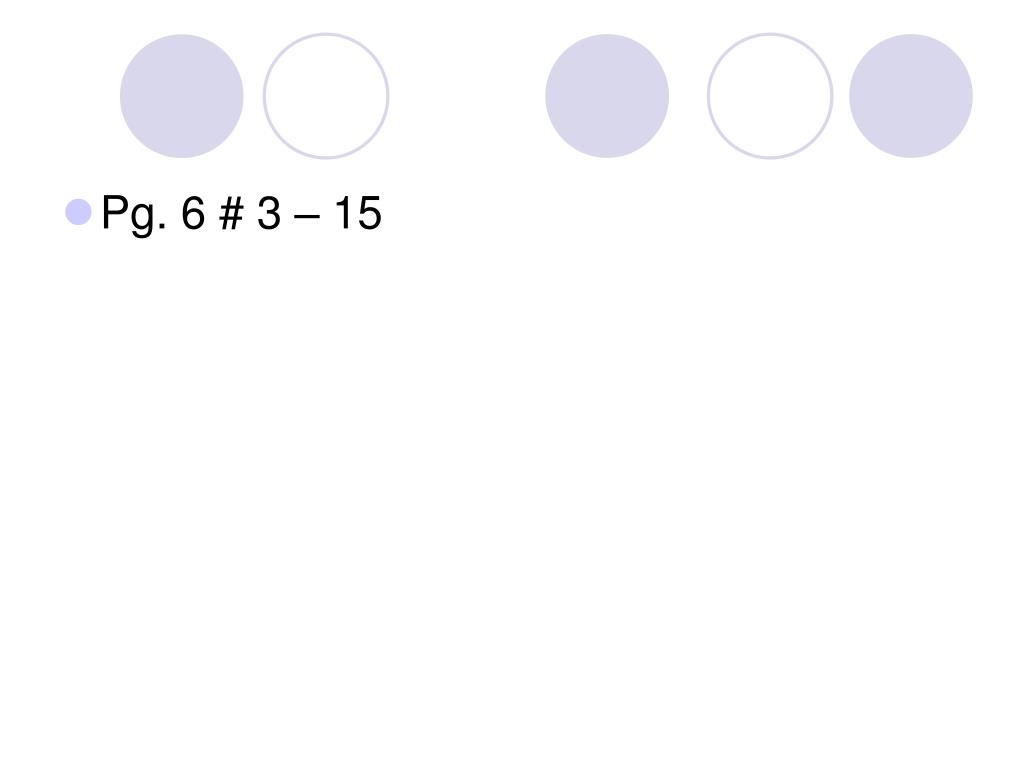

  11. Pg. 6 # 3 – 15

  12. 1.2 Points, Lines, and Planes Day 1 Part 2 CA Standard 1.0

  13. Definitions • Point has no dimension. It is usually represented by a small dot. • Line extends in one dimension. It is usually represented by a straight line with two arrowheads. • Plane extends in two dimensions. It is usually represented by a shape that looks like a tabletop or wall.

  14. Line AB (line consists of the endpoints) • Segment AB • Ray AB A B A B B A

  15. more definitions… • Collinear points are points that lie on the same line. • Coplanar points are points that lie on the same plane. • Ray consists of the initial point. • Intersect means to have one or more points in common.

  16. Decide whether the statement is true or false * True • Point A lines on line l. • Point C lies on line m. • A,B, and C are collinear. • D,E, and B are coplanar. • A,B, and C are coplanar. m . l . False D A False True . E True . C . B .

  17. Draw three noncollinear points J, K and L. • Then draw JK, KL and LJ.

  18. Name a point that is coplanar with the given points. • D, C & F • E, F, & G • B, C, & F G B C D A H E F H G E

  19. Fill in each blank with the appropriate response. Point B • AB and BC intersect at _____ • AD and AH intersect at _____ • Plane ABHE and ABCD intersect at _____ B C D A E F H G Point A Side AB

  20. Sketch the figure described • Three points that are coplanar but not collinear. • Three lines that intersect in a point and all lie in the same plane. • Two planes that do not intersect. • Three planes that intersect in a line. • Two lines that lie in a plane but do not intersect.

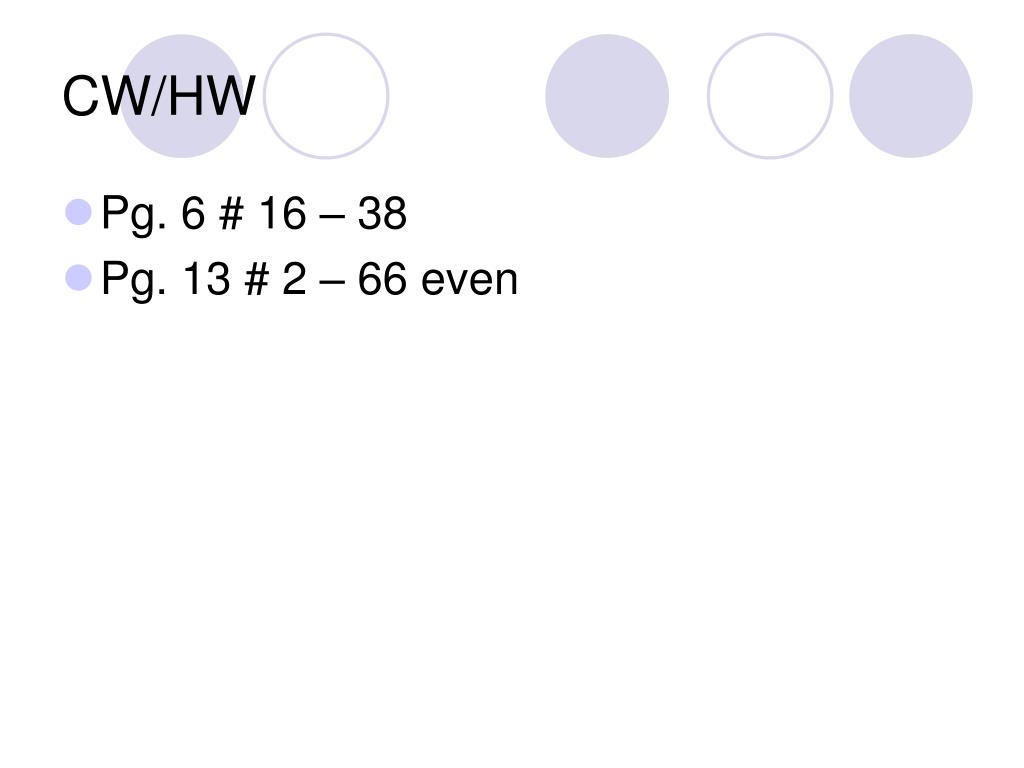

  21. CW/HW • Pg. 6 # 16 – 38 • Pg. 13 # 2 – 66 even

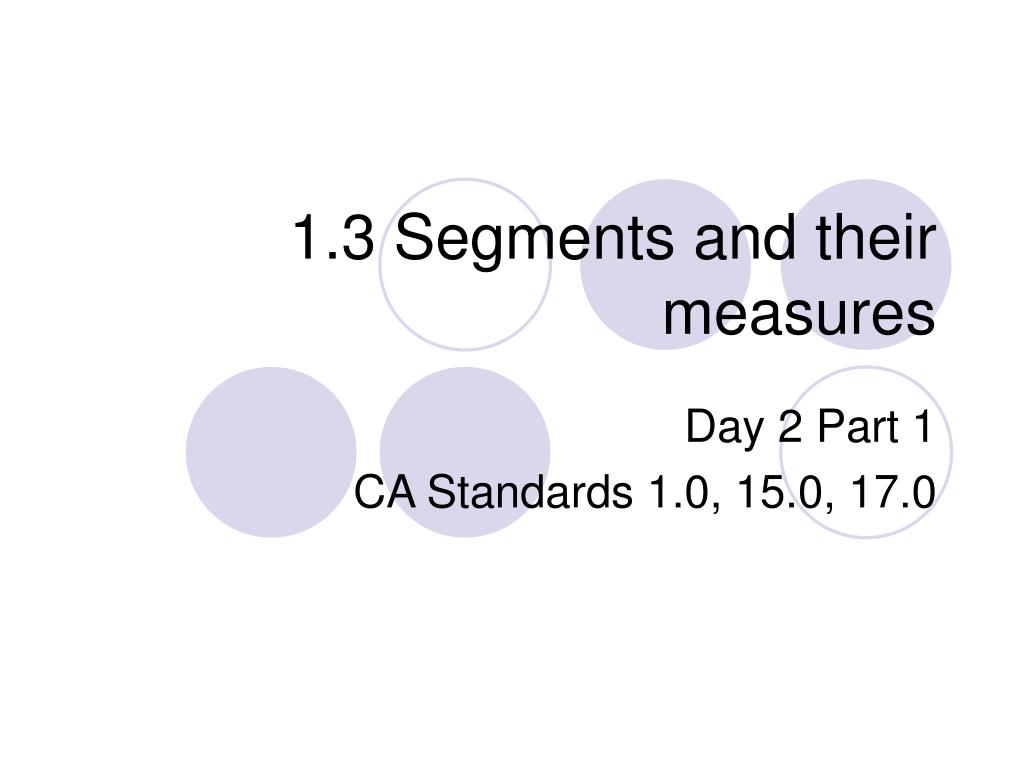

  22. 1.3 Segments and their measures Day 2 Part 1 CA Standards 1.0, 15.0, 17.0

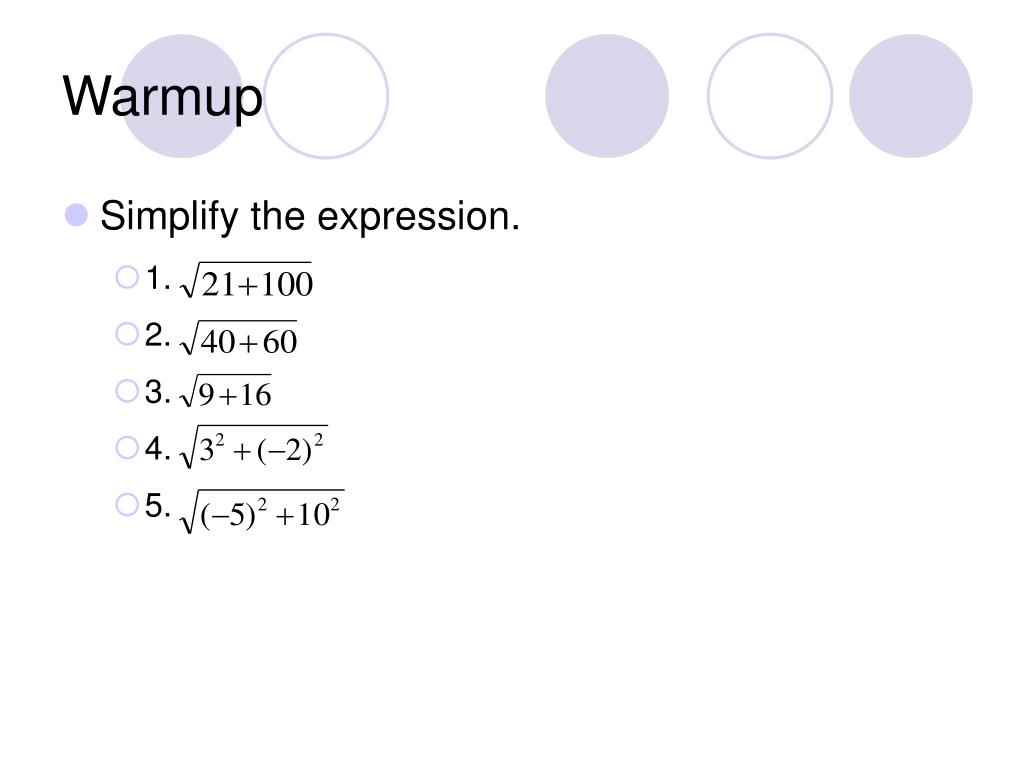

  23. Warmup • Simplify the expression. • 1. • 2. • 3. • 4. • 5.

  24. Definitions • Postulates: rules that are accepted without proof. • Theorems: rules that are proved. • Axioms: rules that are accepted without proof.

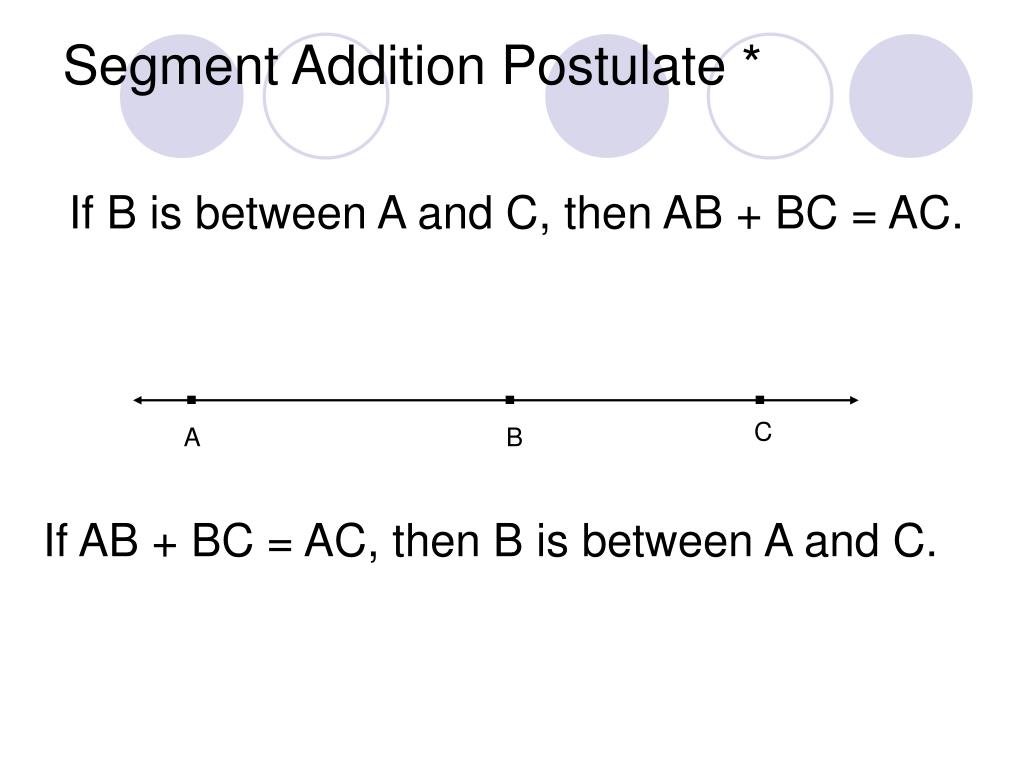

  25. Segment Addition Postulate * If B is between A and C, then AB + BC = AC. If AB + BC = AC, then B is between A and C. . . . C A B

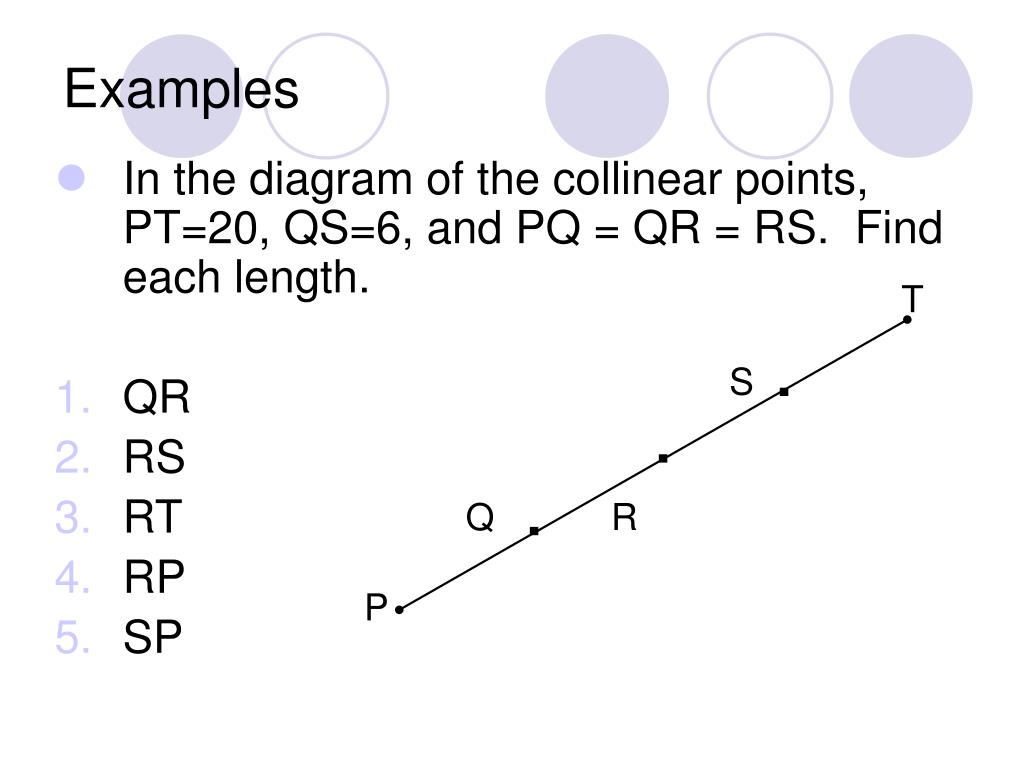

  26. Examples • In the diagram of the collinear points, PT=20, QS=6, and PQ = QR = RS. Find each length. • QR • RS • RT • RP • SP T . S . . Q R P

  27. 1. AB = 6x + 16 BC = 2x – 5 AC = 46 2. AB = ½ k + 4 BC = 3k – 4 AC = 6k – 18 Suppose B is between A and C. Use the segment addition postulate to solve for the variable.

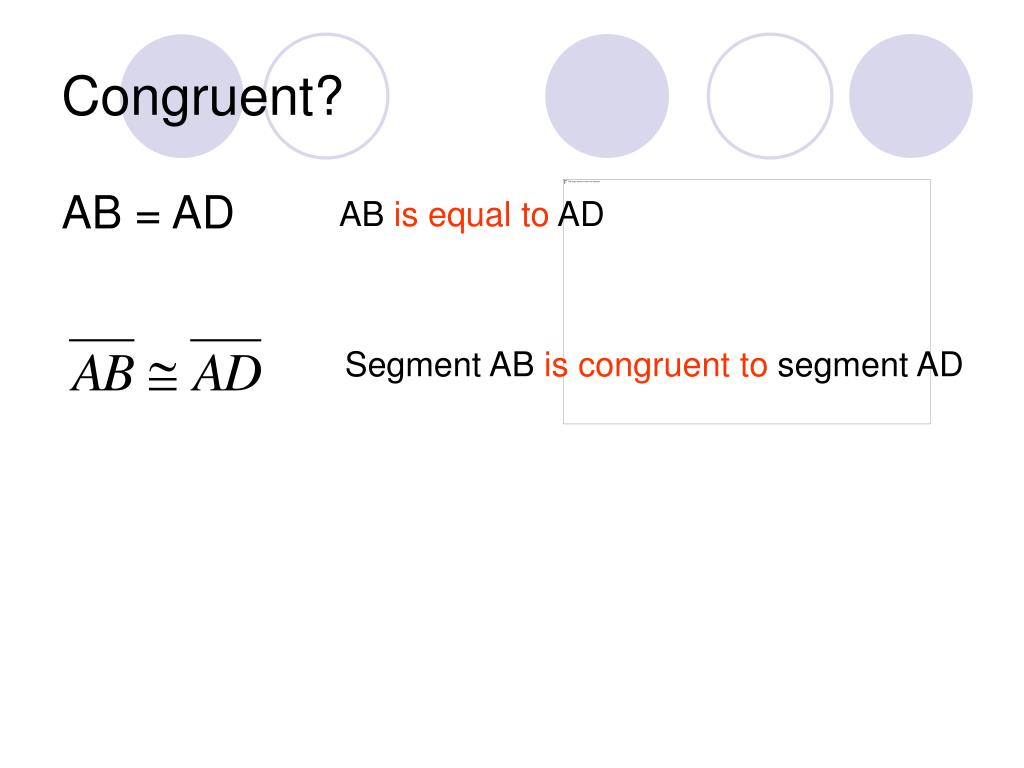

  28. Congruent? AB = AD AB is equal to AD Segment AB is congruent to segment AD

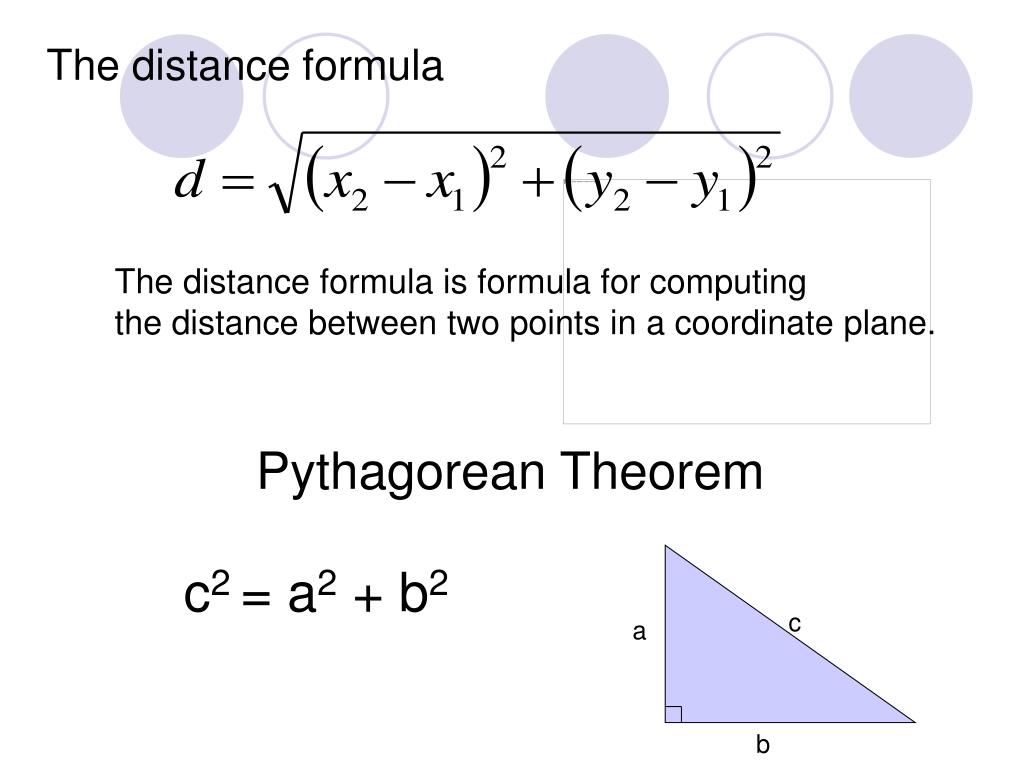

  29. The distance formula The distance formula is formula for computing the distance between two points in a coordinate plane. Pythagorean Theorem c2 = a2 + b2 c a b

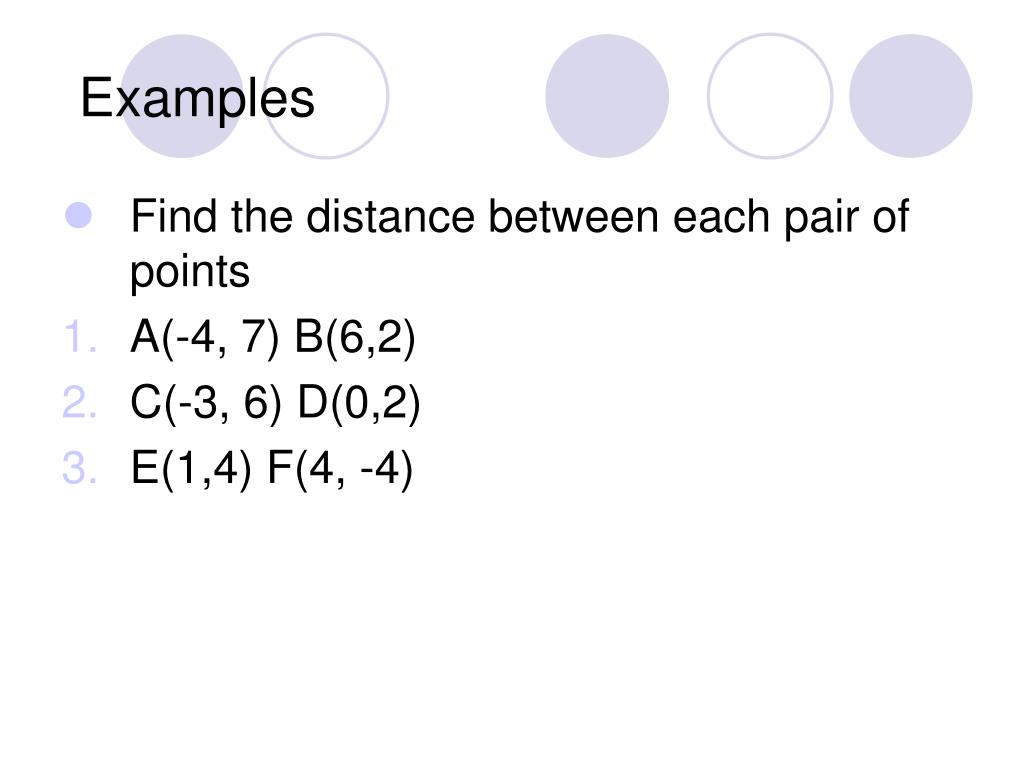

  30. Examples • Find the distance between each pair of points • A(-4, 7) B(6,2) • C(-3, 6) D(0,2) • E(1,4) F(4, -4)

  31. Find the distance between each pair of points. • 1. X(0,0), Y(2,8), Z( -1, 2) • 2. L(-2,0), M(5,1), N(4, -4)

  32. 1.4 Angles and their measures Day 2 Part 2 CA Standard 4.0,12.0, 13.0

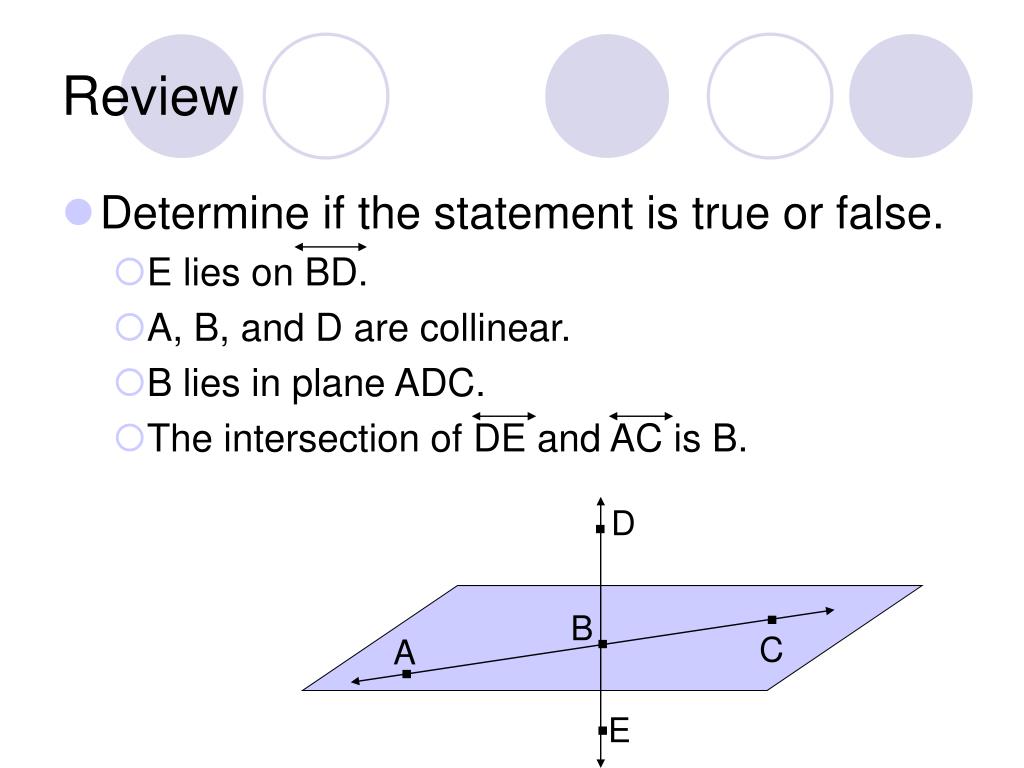

  33. Review • Determine if the statement is true or false. • E lies on BD. • A, B, and D are collinear. • B lies in plane ADC. • The intersection of DE and AC is B. . D . . B . C A . E

  34. Definition of an Angle • Angle consists of two different rays that have the same initial point . C Sides Vertex . . A B

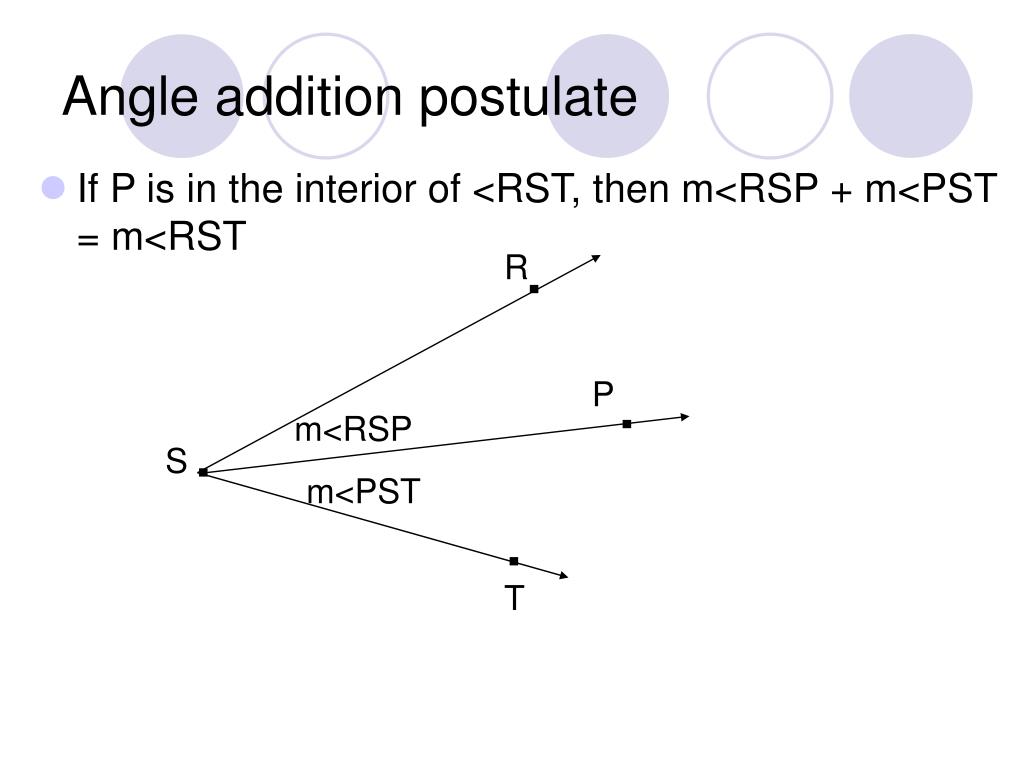

  35. Angle addition postulate • If P is in the interior of <RST, then m<RSP + m<PST = m<RST . R P . m<RSP . S m<PST . T

  36. Example • Use the Angle Addition Postulate to find the measure of the unknown angle. m<ABC= . D C . . A 45° 60° . B

  37. Different types of angles * Supplementary angles Straight angle Acute angle Obtuse angle Right angle Complementary angles

  38. State whether the angle appears to be acute, right, obtuse, or straight. . . . E . A C F . D . B . G . H

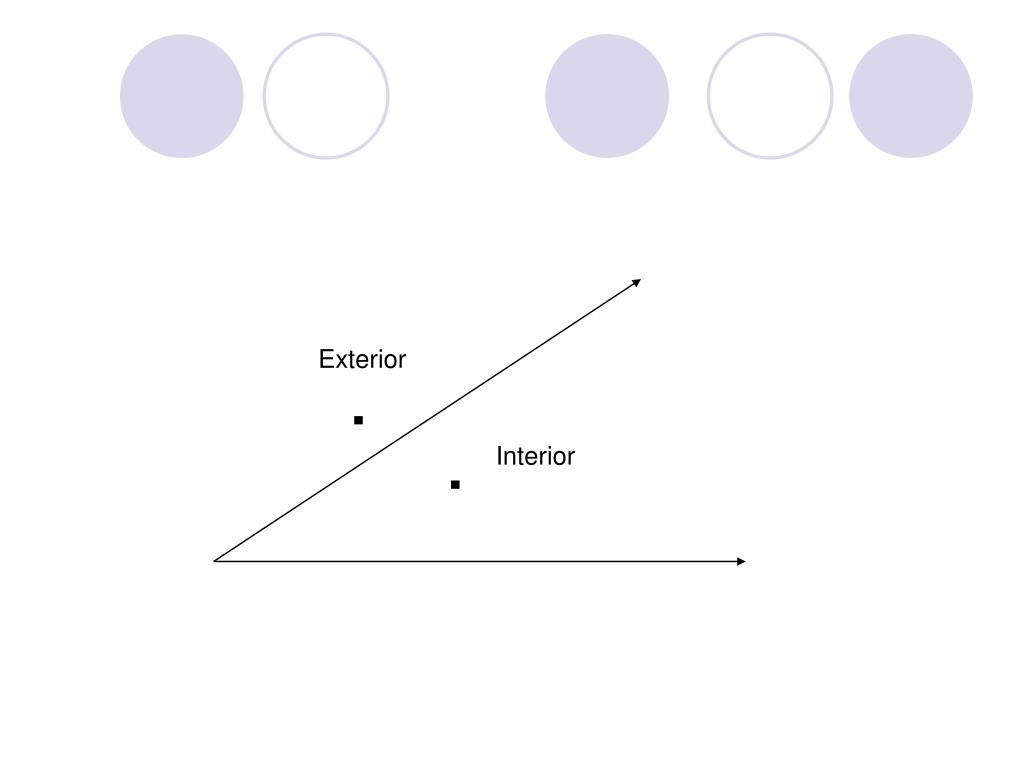

  39. Exterior . . Interior

  40. Review • Plot the given points and classify the given angles as acute, right, obtuse, or straight. A(-2,4), B(-5,1), C(0,0), and D(3,0) • <ACB • <BCD • <ACD

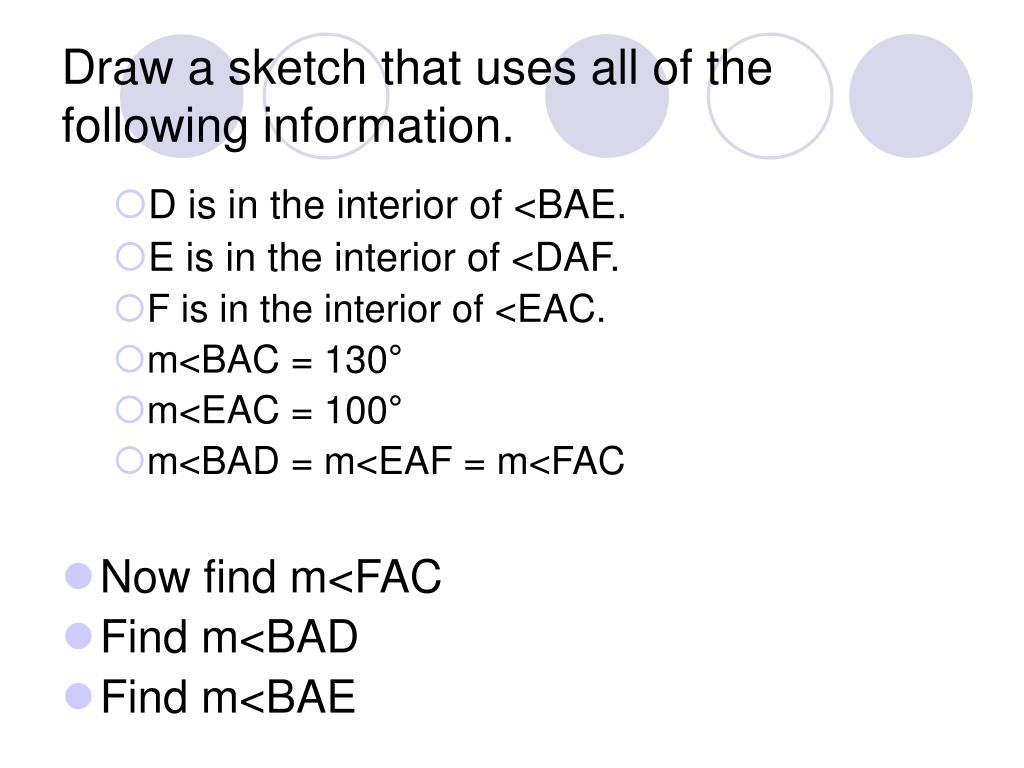

  41. Draw a sketch that uses all of the following information. • D is in the interior of <BAE. • E is in the interior of <DAF. • F is in the interior of <EAC. • m<BAC = 130° • m<EAC = 100° • m<BAD = m<EAF = m<FAC • Now find m<FAC • Find m<BAD • Find m<BAE

  42. Pg. 21 # 4 – 12 even, 19 – 22, 40 – 43 • Pg. 29 # 1 – 16, 26 – 39

  43. 1.5 Segment and Angle Bisectors Day 3 Part 1 CA Standards 16.0, 17.0

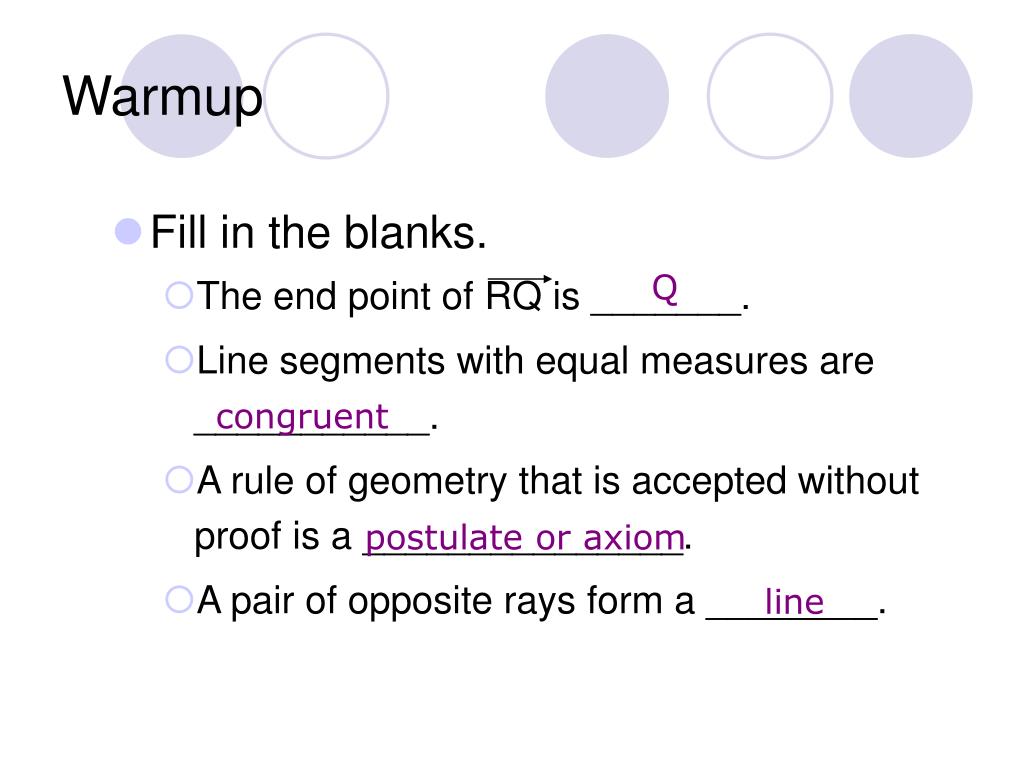

  44. Warmup • Fill in the blanks. • The end point of RQ is _______. • Line segments with equal measures are ___________. • A rule of geometry that is accepted without proof is a _______________. • A pair of opposite rays form a ________. Q congruent postulate or axiom line

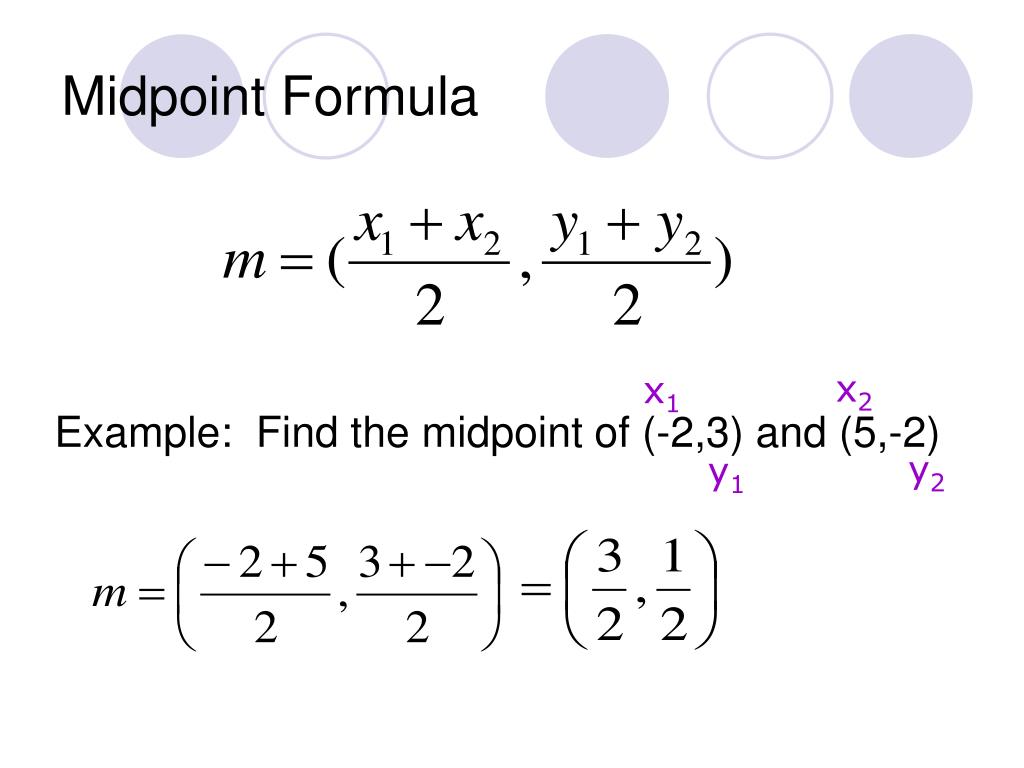

  45. Midpoint Formula x2 x1 Example: Find the midpoint of (-2,3) and (5,-2) y2 y1

  46. More examples… • Find the coordinates of the midpoint. 1. A(-7, 2), B(3,0) 2. K(7,3), L(2,1)

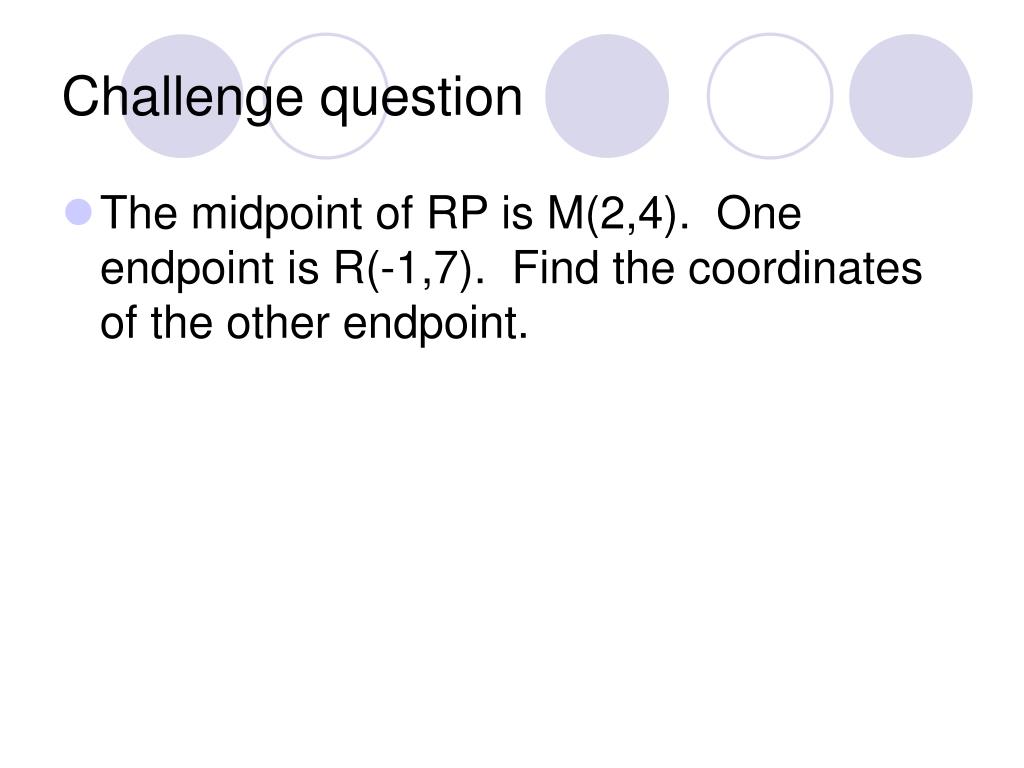

  47. Challenge question • The midpoint of RP is M(2,4). One endpoint is R(-1,7). Find the coordinates of the other endpoint.

  48. PT is the angle bisector of <RPS. Find the two angle measures not given in the diagram. . R T . 37° . . P S

  49. PT is the angle bisector of <RPS. Find the value of x. . . R T (3x + 13) (5x – 7) . . P S

  50. Segment Bisector and Midpoint • Draw a segment AB. • Place the compass point at A. Use a compass setting greater than half the length of AB. Draw an arc. • Keep the same compass setting. Place the compass point at B. Draw an arc. It should intersect the other arc in two places. • Use a straightedge to draw a segment through the points of intersection. This segment bisects AB at M, the midpoint of AB.
