  1. Dense Subgraphs on Dynamic Networks Atish Das Sarma Ashwin Lall Danupon Nanongkai AmitabhTrehan (Presented by AnisurMolla)

  2. Density Network density is probably the most fundamental network metric for understanding how networks tick.... Third Degree Centrality (blog), June 16, 2011

  3. Sparse but Dense • While a graph may be global sparse, it often still has dense substructures • These provide topological characteristics that are often important to understand • Important to study finding dense subgraphs in large graphs • The world wide web • Search query-document click logs • Social Networks • Telephone call logs • Peer-to-peer backbone networks

  4. What do dense structures reveal? • Web social network communities (potentially hidden) • Friend groups / shared interest groups • Good structures to study for “cohesive” webpages • Helpful for identifying similar webpages • Potentially helps spam detection • Network backbones in peer to peer networks • Understand connectivity structure • User behavior/interest analysis from click logs

  5. Properties of Density • Largely “robust” to graph alterations • Small changes in the graph (so edge addition/deletion) only marginally affect the density – so “smooth” in this regard • Relatively stable for dynamic graphs • Measures “local” structural property that often reveals local and global topological insights • Some variants of the problem are poly-time solvable

  6. Density • Density of Graph G(V,E): • Density of Subgraph S (= induced density on G):

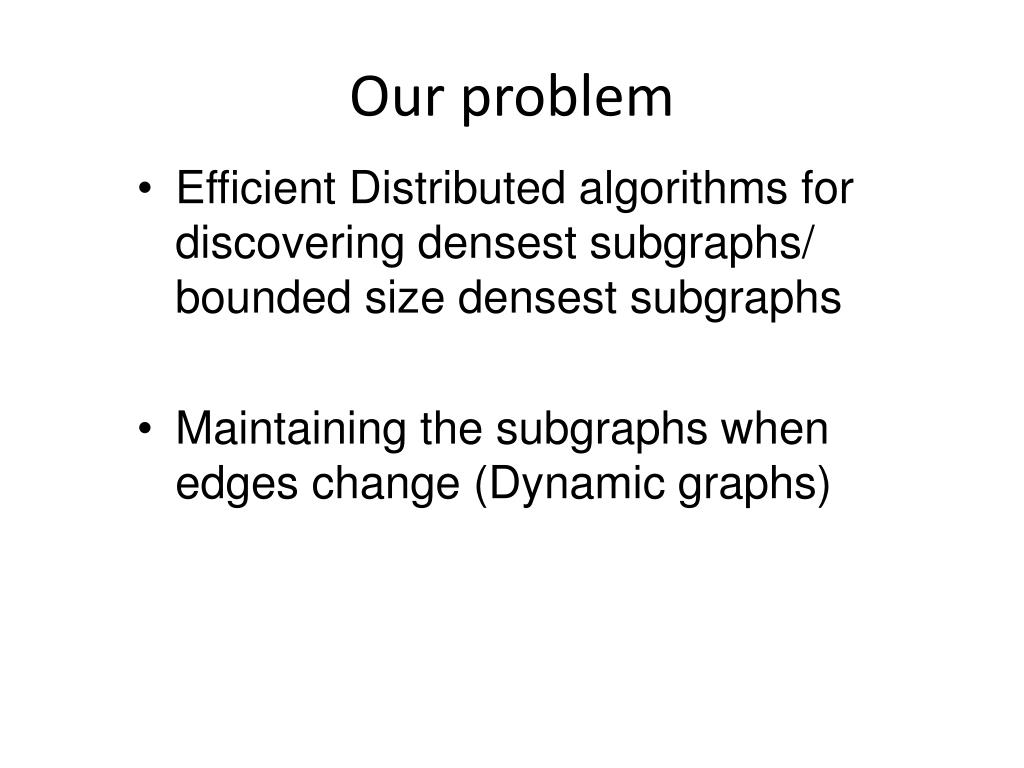

  7. Our problem • Efficient Distributed algorithms for discovering densest subgraphs/ bounded size densest subgraphs • Maintaining the subgraphs when edges change (Dynamic graphs)

  8. Our Dynamic Model • Initial Graph over n nodes • Edge Dynamic Model • At each time step, adversary may add or removeup to redges • Constraint: Bound on “dynamic diameter” is D • After adversarial action, nodes communicate with direct neighbors under the Congest model

  9. Distributed Congest Model • Synchronous communication “rounds” • A node can exchange messages with each of its neighbors in each round • Each message should be O(logn) size (bandwidth restriction) • Objective: Minimize number of “rounds”/time complexity • Model is well studied theoretical abstraction for peer-to-peer network motivation

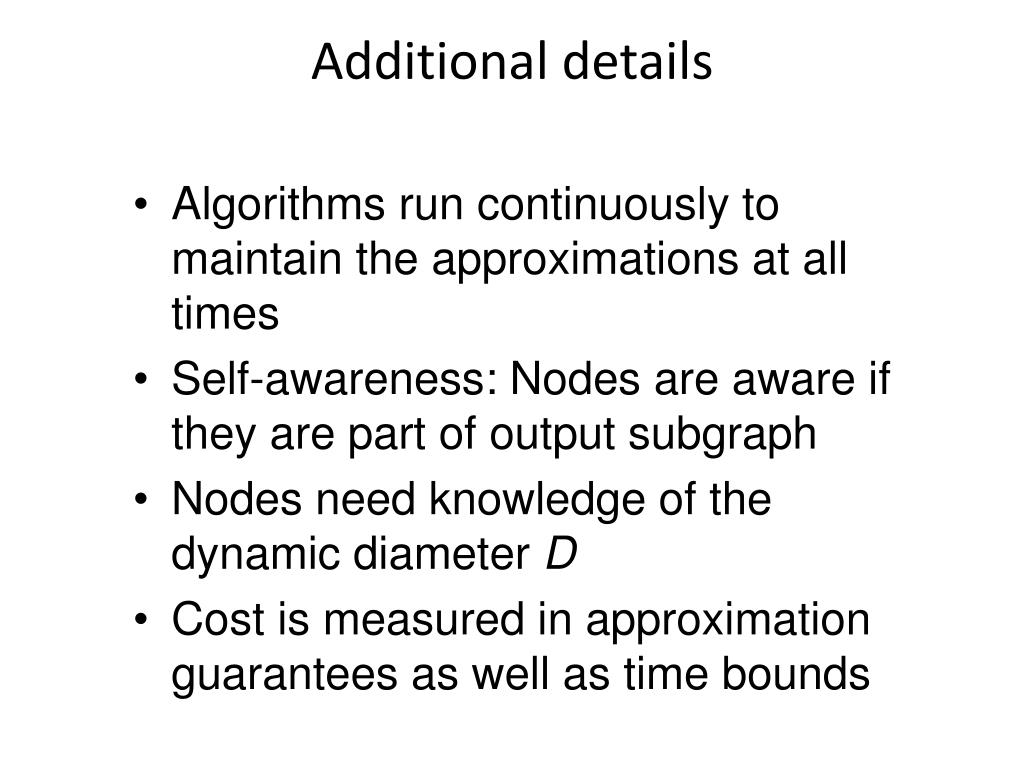

  10. Additional details • Algorithms run continuously to maintain the approximations at all times • Self-awareness: Nodes are aware if they are part of output subgraph • Nodes need knowledge of the dynamic diameter D • Cost is measured in approximation guarantees as well as time bounds

  11. Related Work • Lots of work on finding size-bound dense subgraphs in classical setting • NP-hard with size restriction (poly time solvable otherwise) • No approximation scheme for size-exactly-k or size-at-most-k (and no constant factor known) • Khuller-Saha and Andersen-Chellapilla gave constant factor algorithms for size at-least-k • Some of our algorithms are based on Khuller-Saha • Surprisingly no work in the distributed (CONGEST model) and dynamic settings

  12. Related Work - 2 • Lots of work on dynamic networks • Notable recent model for edge-alteration by Kuhn-Lynch-Oshman (stability property with T-interval connectivity) • Our model slightly different (though similar graphs generated) • Lot of graph problems studied in the CONGEST model (Peleg) • Very fast distributed approximation algorithms studied • Densest subgraph falls under category of “global problem” so rounds • For several global problems recent lower bound (Das Sarma et al.) • Densest subgraph problem is one for which this lower bound does not hold

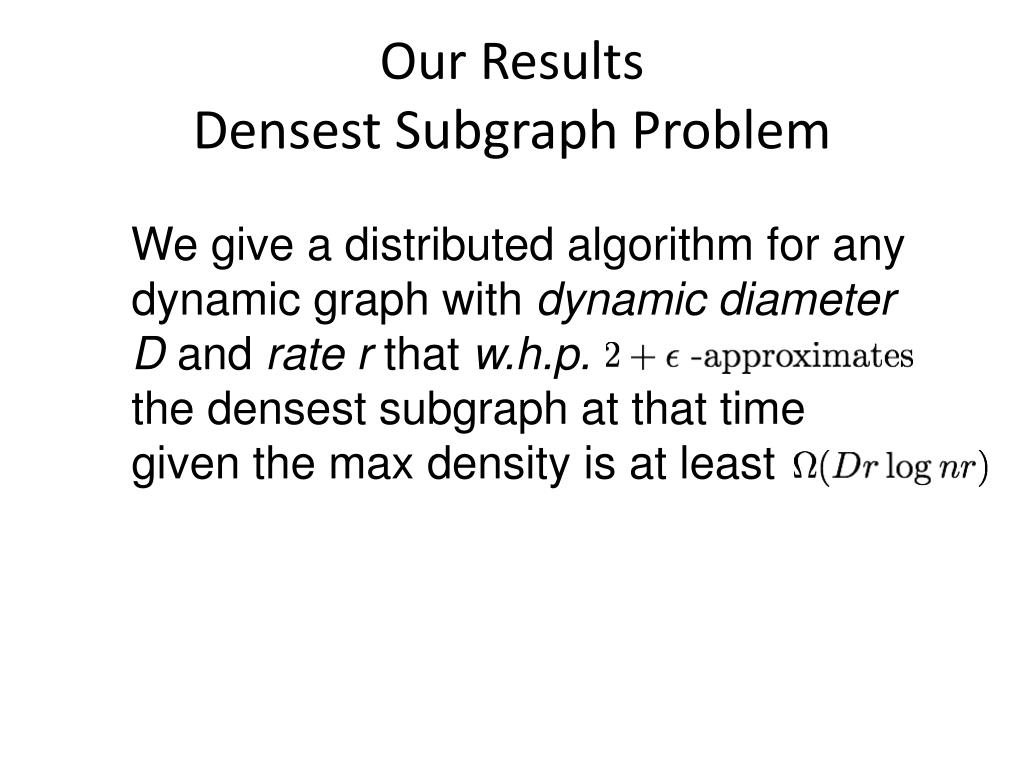

  13. Our ResultsDensest Subgraph Problem We give a distributed algorithm for any dynamic graph with dynamic diameter D and rate r that w.h.p. the densest subgraph at that time given the max density is at least

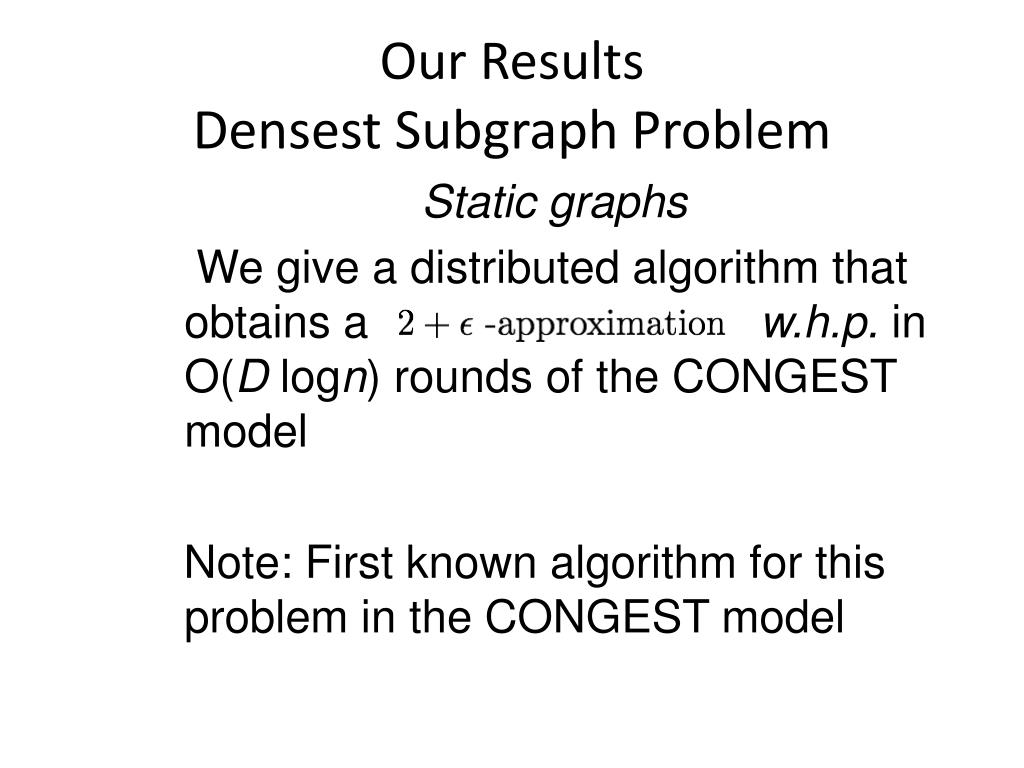

  14. Our ResultsDensest Subgraph Problem Static graphs We give a distributed algorithm that obtains a w.h.p. in O(Dlogn) rounds of the CONGEST model Note: First known algorithm for this problem in the CONGEST model

  15. Our ResultsAt-least-k Densest Subgraph (Subgraph should have at least k vertices) We give an algorithm that w.h.p. the at-least-k densest subgraph at that time given that the max at-least-k density is at least Centralized version is known to be NP-hard

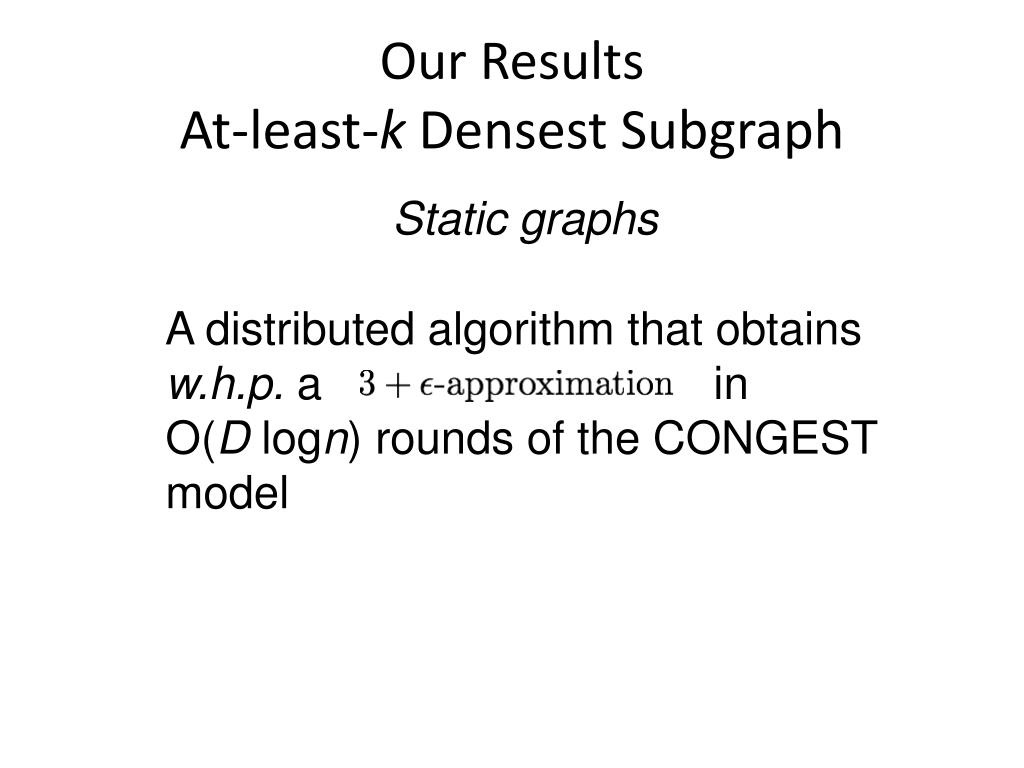

  16. Our ResultsAt-least-k Densest Subgraph Static graphs A distributed algorithm that obtains w.h.p. a in O(Dlogn) rounds of the CONGEST model

  17. Algorithm for Densest Subgraph

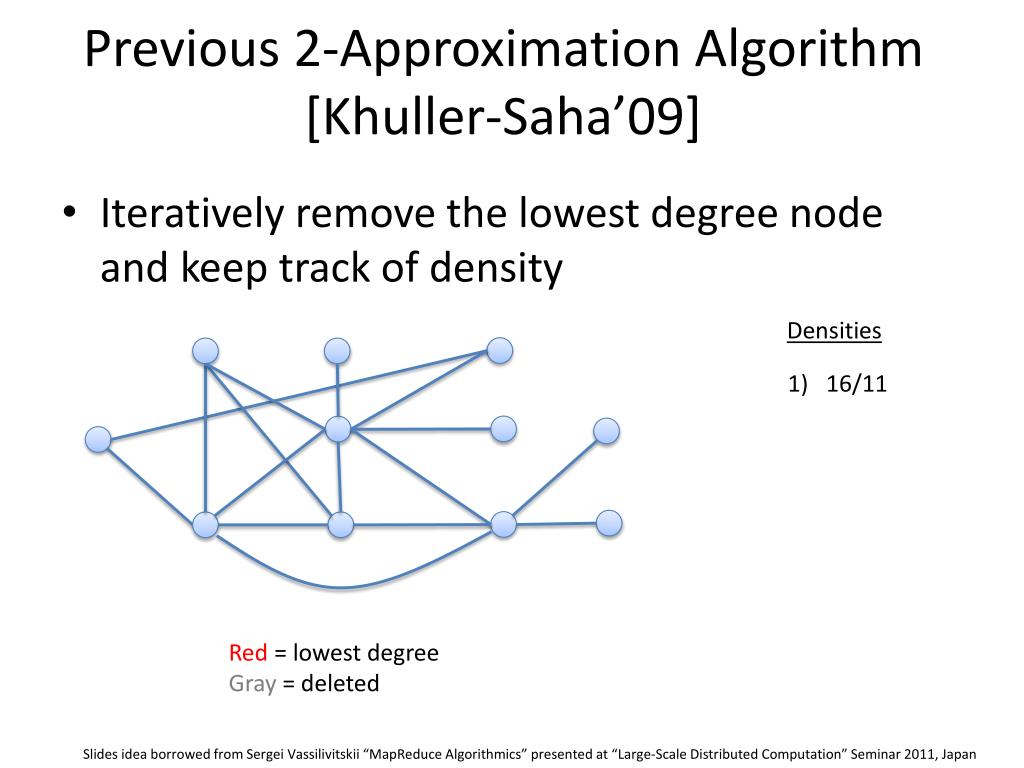

  18. Previous 2-Approximation Algorithm[Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

  19. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

  20. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 15/10 Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

  21. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 15/10 Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

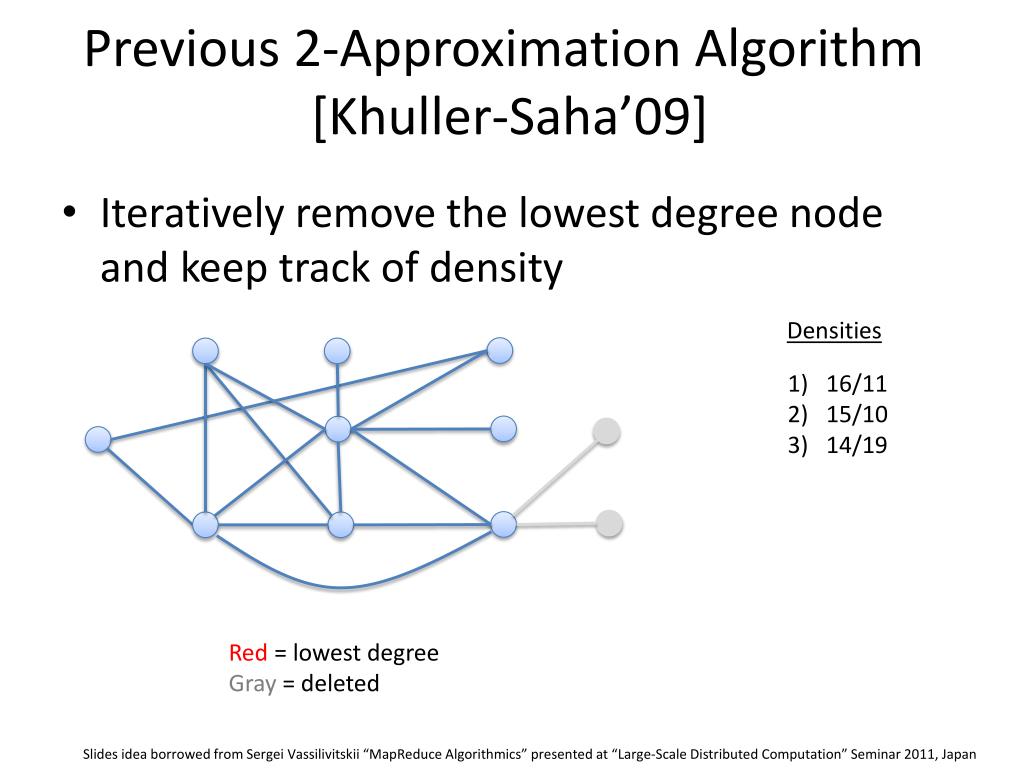

  22. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 15/10 14/19 Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

  23. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 15/10 14/19 Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

  24. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 15/10 14/19 13/8 Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

  25. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 15/10 14/19 13/8 Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

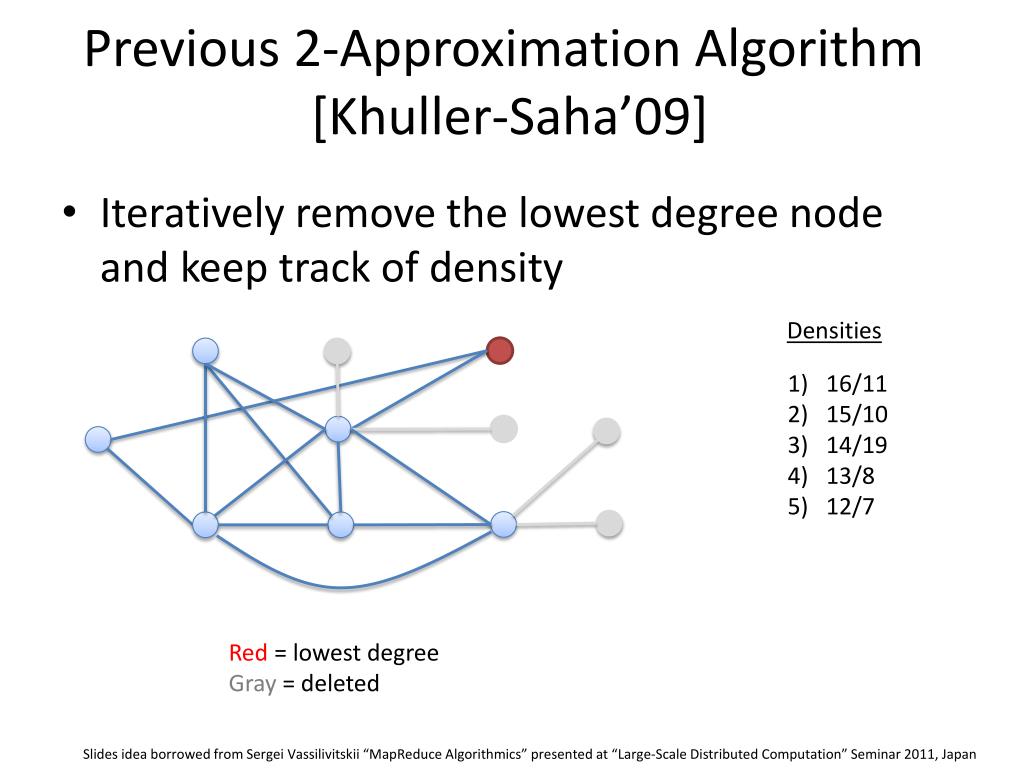

  26. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 15/10 14/19 13/8 12/7 Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

  27. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 15/10 14/19 13/8 12/7 Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

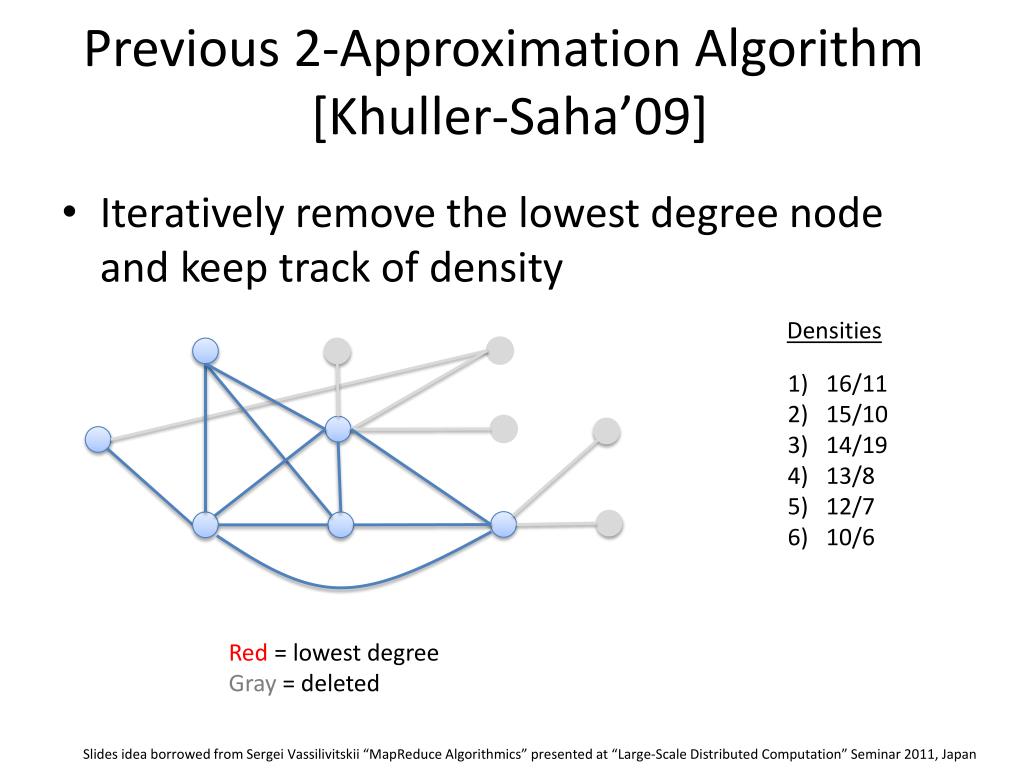

  28. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 15/10 14/19 13/8 12/7 10/6 Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

  29. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 15/10 14/19 13/8 12/7 10/6 Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

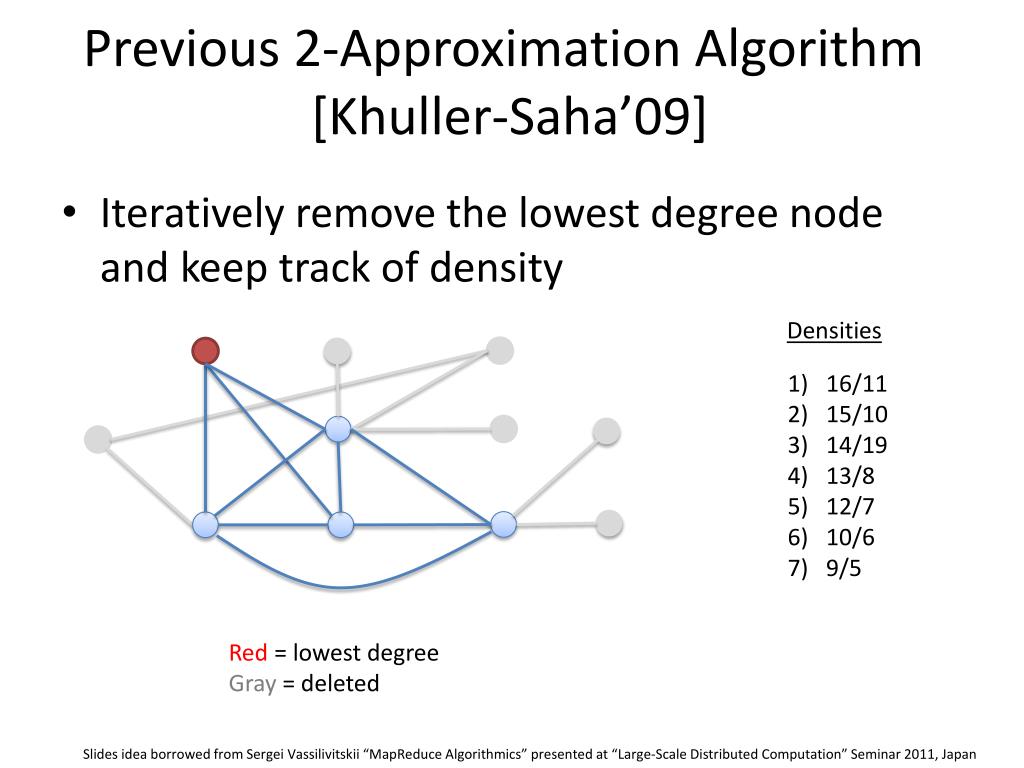

  30. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 15/10 14/19 13/8 12/7 10/6 9/5 Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

  31. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 15/10 14/19 13/8 12/7 10/6 9/5 Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

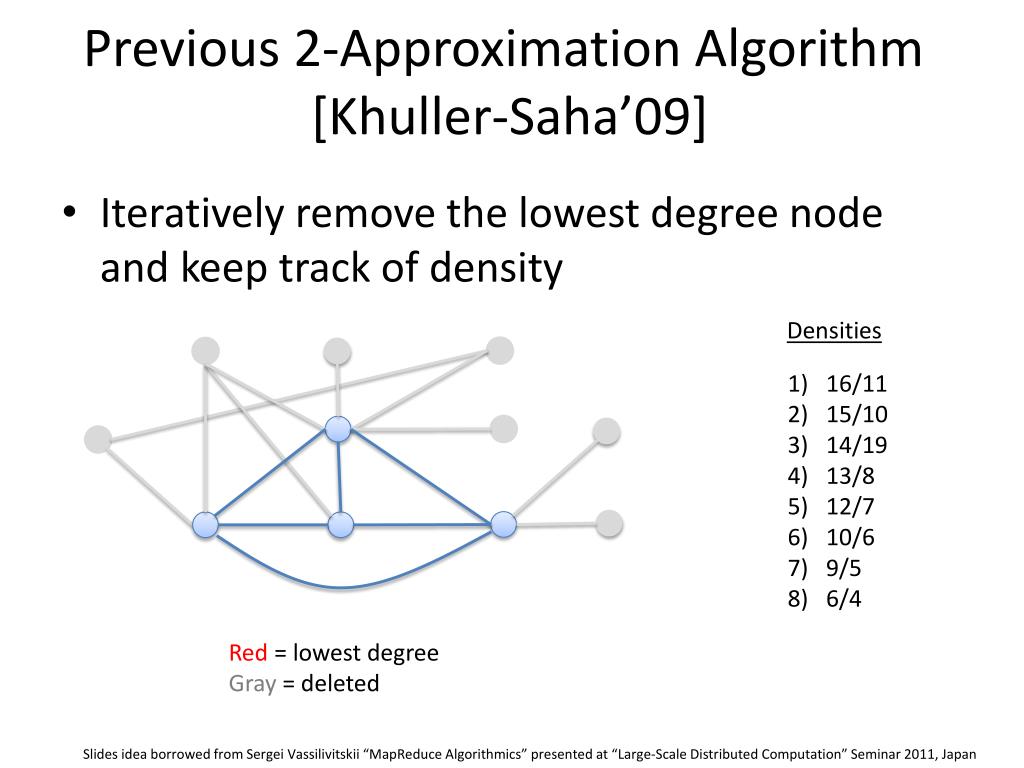

  32. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 15/10 14/19 13/8 12/7 10/6 9/5 6/4 Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

  33. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 15/10 14/19 13/8 12/7 10/6 9/5 6/4 Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

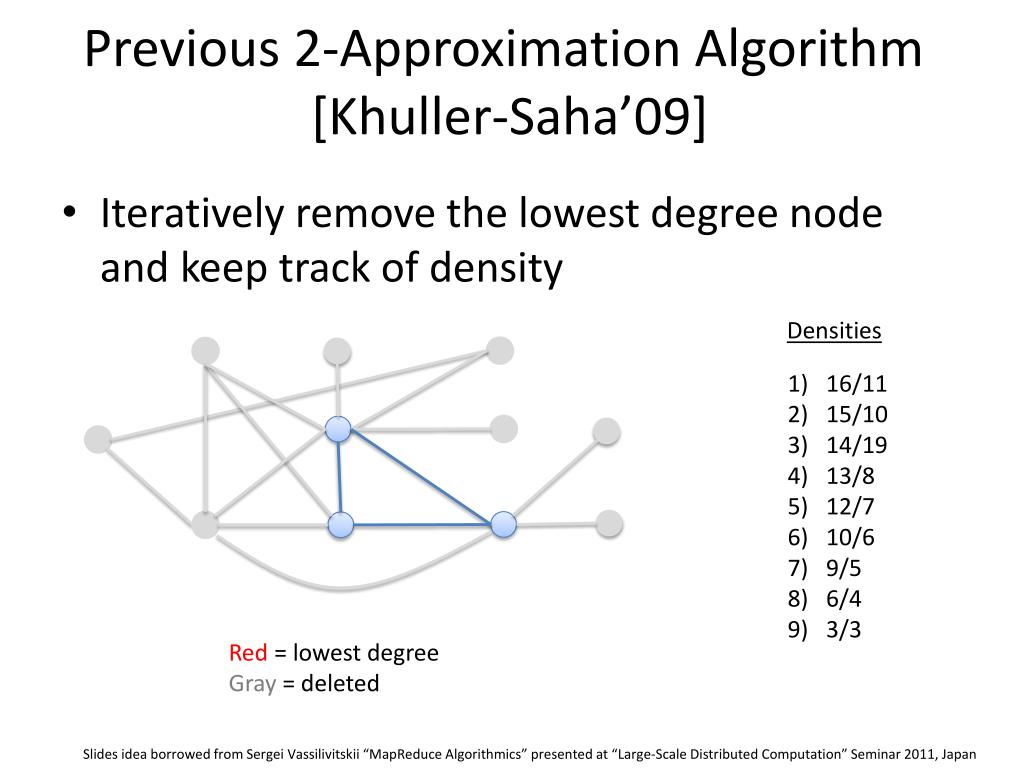

  34. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 15/10 14/19 13/8 12/7 10/6 9/5 6/4 3/3 Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

  35. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 15/10 14/19 13/8 12/7 10/6 9/5 6/4 3/3 Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

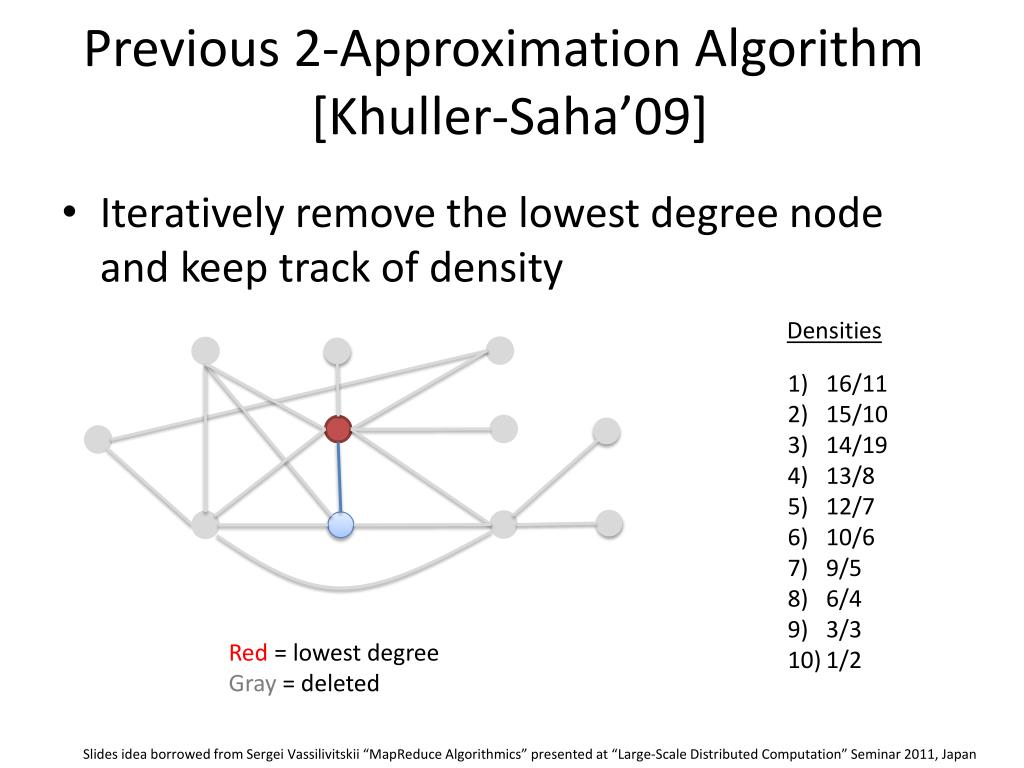

  36. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 15/10 14/19 13/8 12/7 10/6 9/5 6/4 3/3 1/2 Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

  37. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 15/10 14/19 13/8 12/7 10/6 9/5 6/4 3/3 1/2 Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

  38. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 15/10 14/19 13/8 12/7 10/6 9/5 6/4 3/3 1/2 0 Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

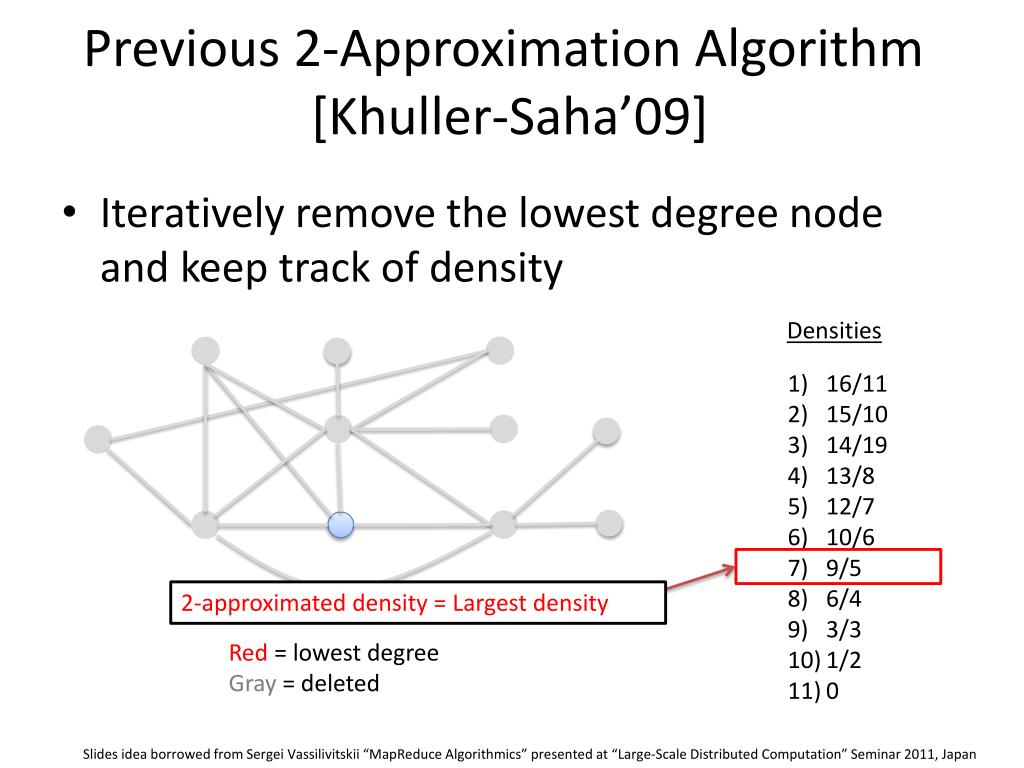

  39. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density Densities 16/11 15/10 14/19 13/8 12/7 10/6 9/5 6/4 3/3 1/2 0 2-approximated density = Largest density Red = lowest degree Gray = deleted Slides idea borrowed from Sergei Vassilivitskii “MapReduceAlgorithmics” presented at “Large-Scale Distributed Computation” Seminar 2011, Japan

  40. Previous 2-Approximation Algorithm [Khuller-Saha’09] • Iteratively remove the lowest degree node and keep track of density • Inefficient to implement even on static distributed networks (needs W(n) rounds)

  41. Our (2+)-approximation algorithm

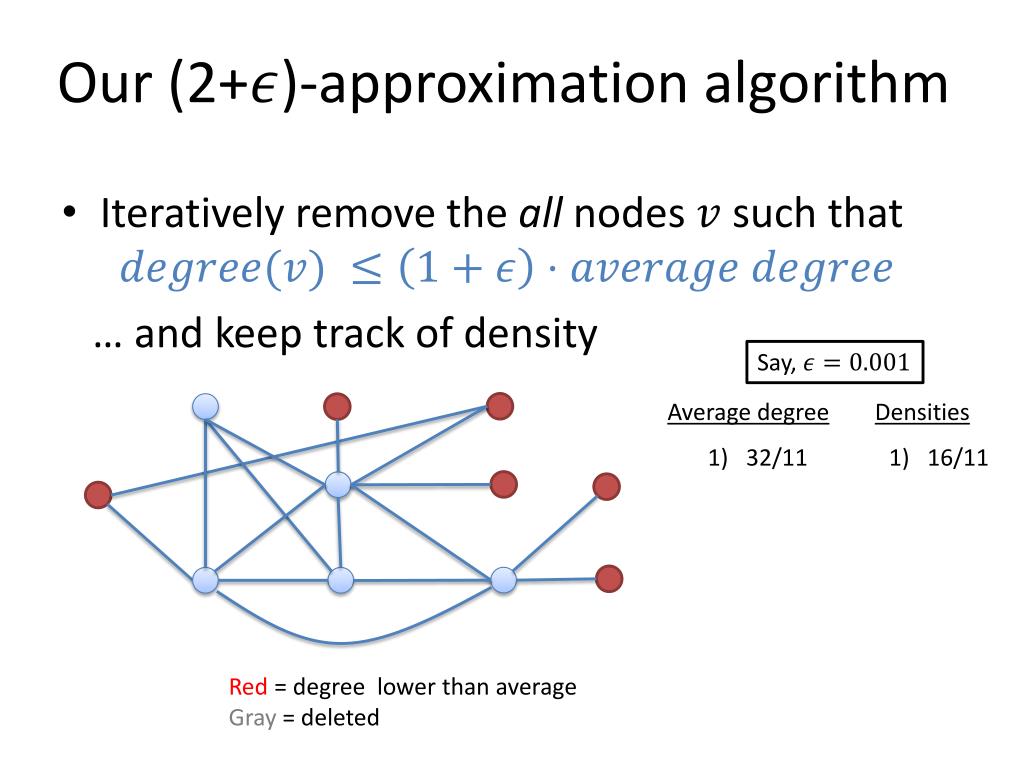

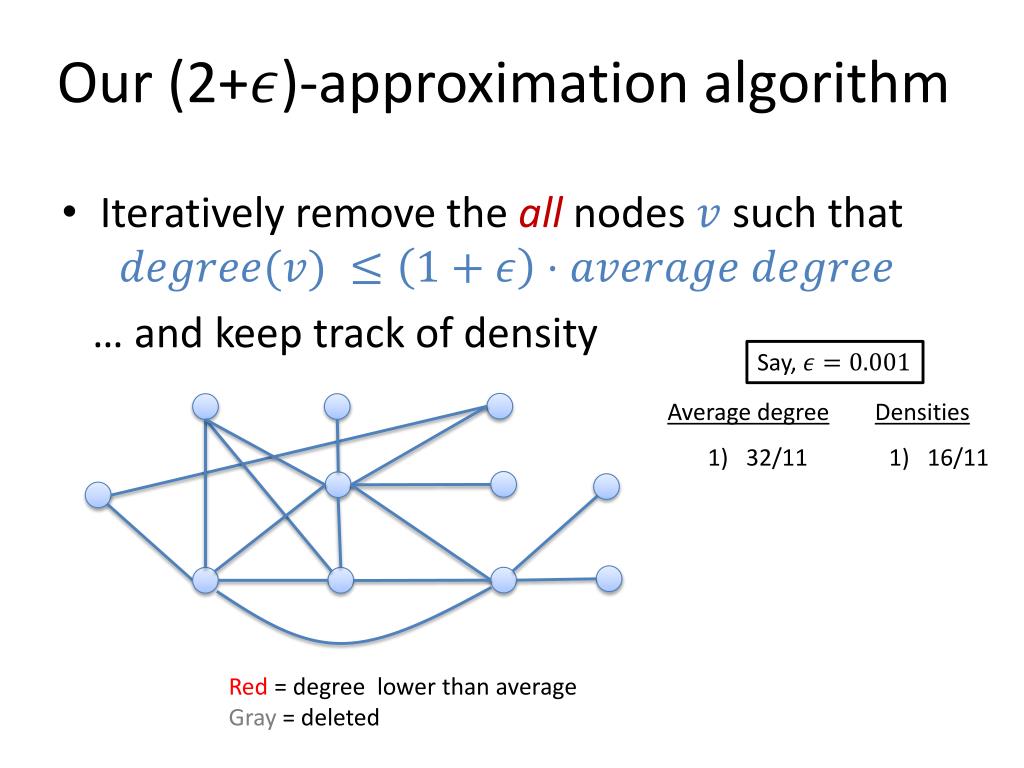

  42. Our (2+)-approximation algorithm • Iteratively remove the allnodes such that … and keep track of density Say, Average degree Densities 32/11 16/11 Red = degree lower than average Gray = deleted

  43. Our (2+)-approximation algorithm • Iteratively remove the all nodes such that … and keep track of density Say, Average degree Densities 32/11 16/11 Red = degree lower than average Gray = deleted

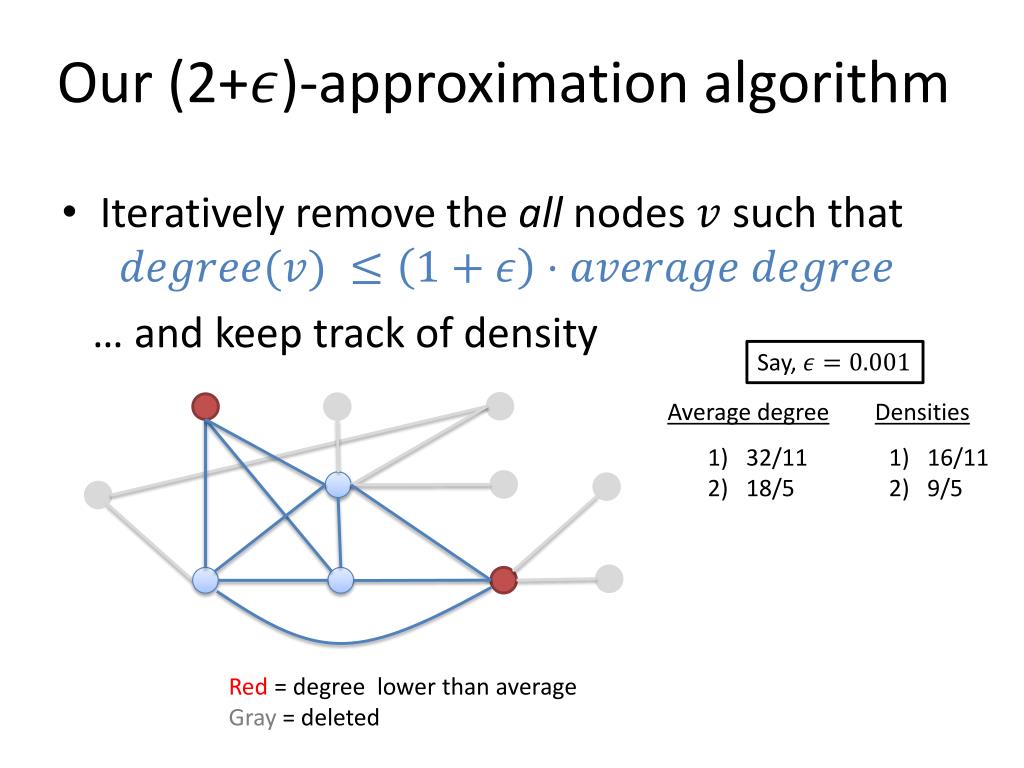

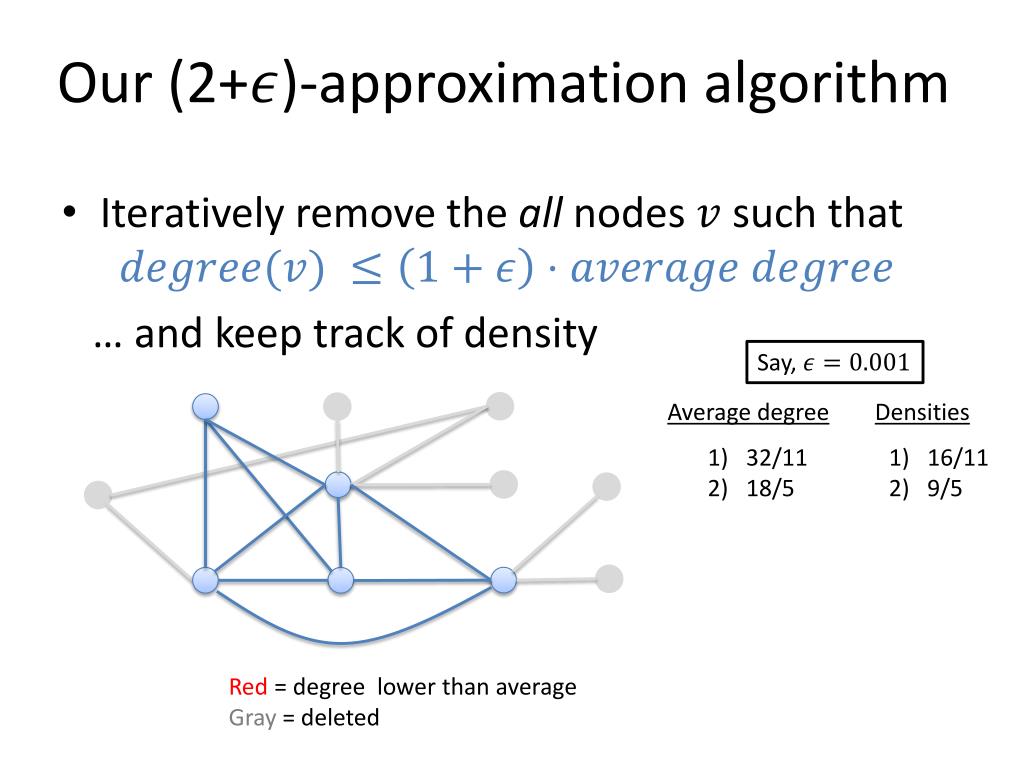

  44. Our (2+)-approximation algorithm • Iteratively remove the all nodes such that … and keep track of density Say, Average degree Densities 32/11 18/5 16/11 9/5 Red = degree lower than average Gray = deleted

  45. Our (2+)-approximation algorithm • Iteratively remove the all nodes such that … and keep track of density Say, Average degree Densities 32/11 18/5 16/11 9/5 Red = degree lower than average Gray = deleted

  46. Our (2+)-approximation algorithm • Iteratively remove the all nodes such that … and keep track of density Say, Average degree Densities 32/11 18/5 6/3 16/11 9/5 3/3 Red = degree lower than average Gray = deleted

  47. Our (2+)-approximation algorithm • Iteratively remove the all nodes such that … and keep track of density Say, Average degree Densities 32/11 18/5 6/3 16/11 9/5 3/3 Red = degree lower than average Gray = deleted

  48. Our (2+)-approximation algorithm • Iteratively remove the all nodes such that … and keep track of density Say, Average degree Densities 32/11 18/5 6/3 0 16/11 9/5 3/3 0 Red = degree lower than average Gray = deleted

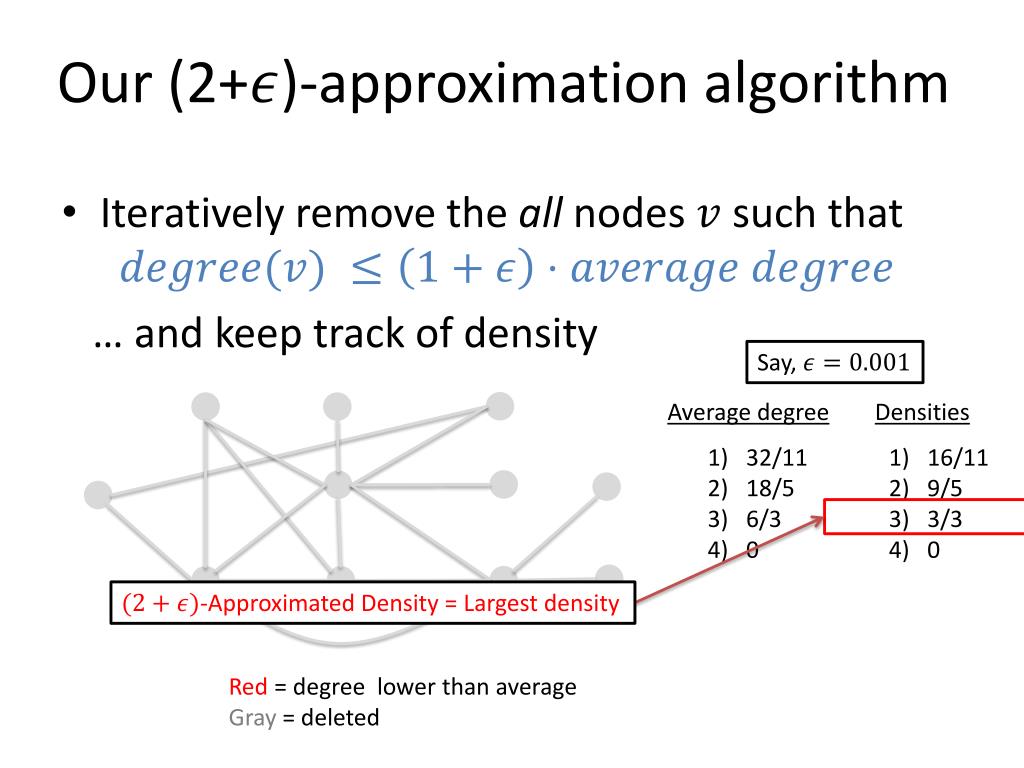

  49. Our (2+)-approximation algorithm • Iteratively remove the all nodes such that … and keep track of density Say, Average degree Densities 32/11 18/5 6/3 0 16/11 9/5 3/3 0 -Approximated Density = Largest density Red = degree lower than average Gray = deleted

  50. Our (2+)-approximation algorithm • Iteratively remove the all nodes such that … and keep track of density • Can be implemented on staticdistributed networks in rounds • A similar idea is independently discoveredby Bahmani, Kumar, and Vassilvitskii [VLDB’12] for solving this problem on Streamingand MapReducemodels.
