  1. GXP in nutshell • You can send jobs (Unix shell command line) to many machines, very fast • Very small prerequisites • Each node has python (ver 2.3.4 or later) • You have ssh access to it without being asked to enter passphrases (e.g., use ssh-agent for ssh) • Install GXP (only) to your home node. GXP multiplies itself to nodes you want to use

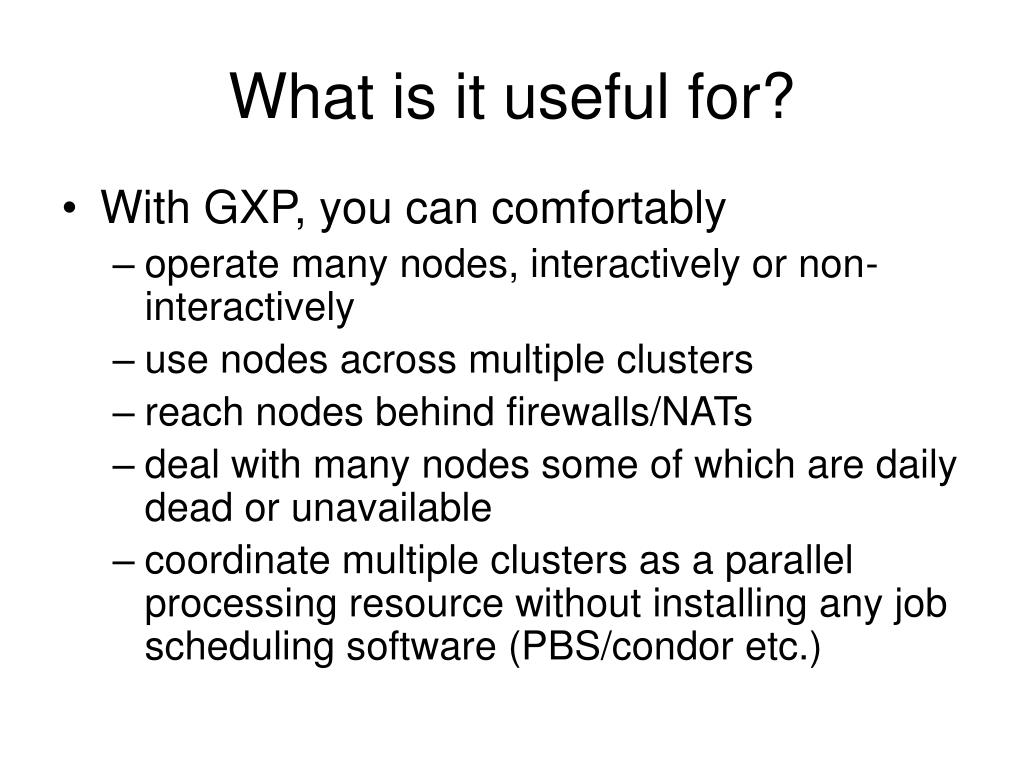

  2. What is it useful for? • With GXP, you can comfortably • operate many nodes, interactively or non-interactively • use nodes across multiple clusters • reach nodes behind firewalls/NATs • deal with many nodes some of which are daily dead or unavailable • coordinate multiple clusters as a parallel processing resource without installing any job scheduling software (PBS/condor etc.)

  3. Things made simple by GXP (1) • Launch a parallel program on many nodes across multiple clusters • Kill them with a single stroke of Ctrl-C • Simple PBS/Condor-like job scheduling • Monitor specific programs (ps … on all nodes) • Kill specific programs (killall … on all nodes) • Clean up all processes as a last resort (bomb)

  4. Things made simple by GXP (2) • Copy a file to many nodes, some behind firewalls/NATs • Elect a single node from each file system • Get load-average of all nodes and drop highly-loaded nodes • Check installation of a command and drop nodes that don’t have it • List processes consuming significant amount of CPU time

  5. Our Experience • A fairly large natural language processing task • parse > 100M web documents collected and archived by our web crawler • resource : 350 CPUs across two clusters • GXP integrates them without specific efforts • Environments • No globus/PBS installed (globus/rsh ports are blocked across clusters) • Documents must be staged on demand due to disk capacity • Nodes in one of the two clusters cannot connect to outside the cluster. We used GXP to stage a file through multiple relaying hosts

  6. Basic Usage • `explore’ command: login & authenticate yourself to many nodes • `e’ command: send and execute a command line (very fast)

  7. Features (1) multihop logins • You can reach nodes through other nodes • Two typical scenarios where this is important • Home  a cluster gateway  cluster nodes • Very large clusters for which trees are mandatory • Subsequent command submissions transparently reach all nodes home cluster gateways

  8. Feature (2) node selection • You don’t always want to send commands to all nodes • After logging in many nodes, you can interactively select some of them • `smask’ command selects the nodes on which the last command succeeded

  9. Feature (3) coordination syntax • `e’ command takes an extended shell syntax • e {{ S }} M • Run S on all selected nodes • Run M on home node • Merge all S’s standard out and feed it to M • e B {{ S }} • Feed B’s standard out to all S’s • e S is a abbreviation of e {{ S }}
