  1. Clamp Dry Air Cover Installation

  2. Octant-7 Clamp Install Octant 7 3710 3710 3710 3711 3711 3711 1-pin type 1A 3712 1B 3712 The dry air cover was successfully installed here 1B 3713 3713

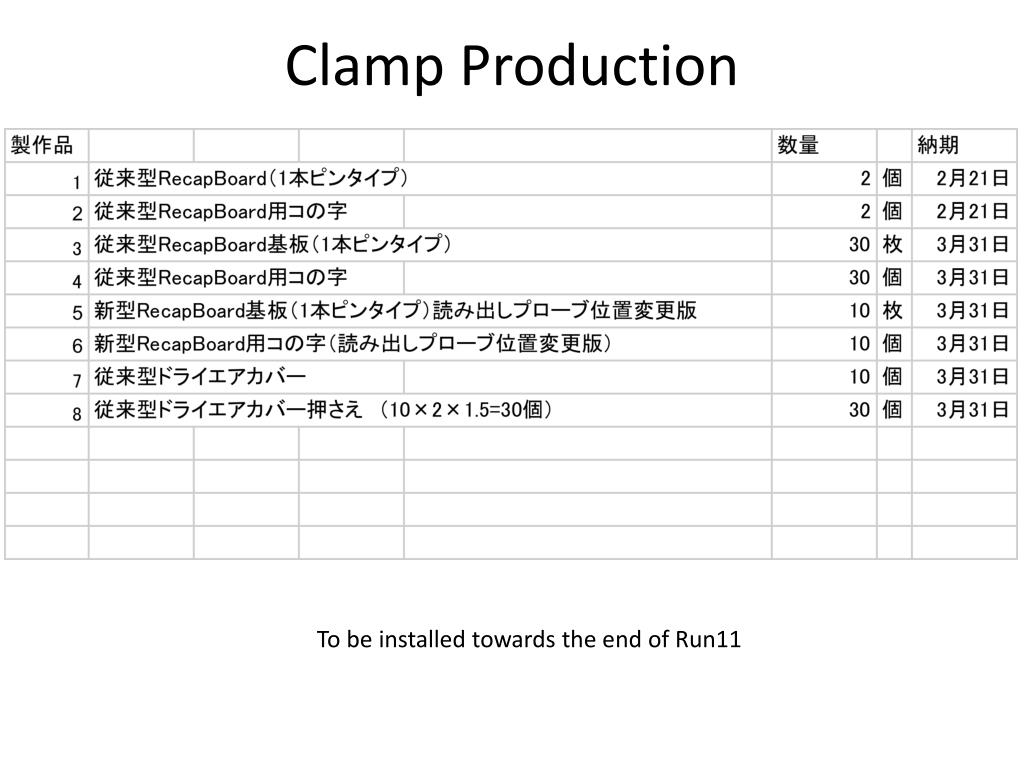

  3. Clamp Production To be installed towards the end of Run11

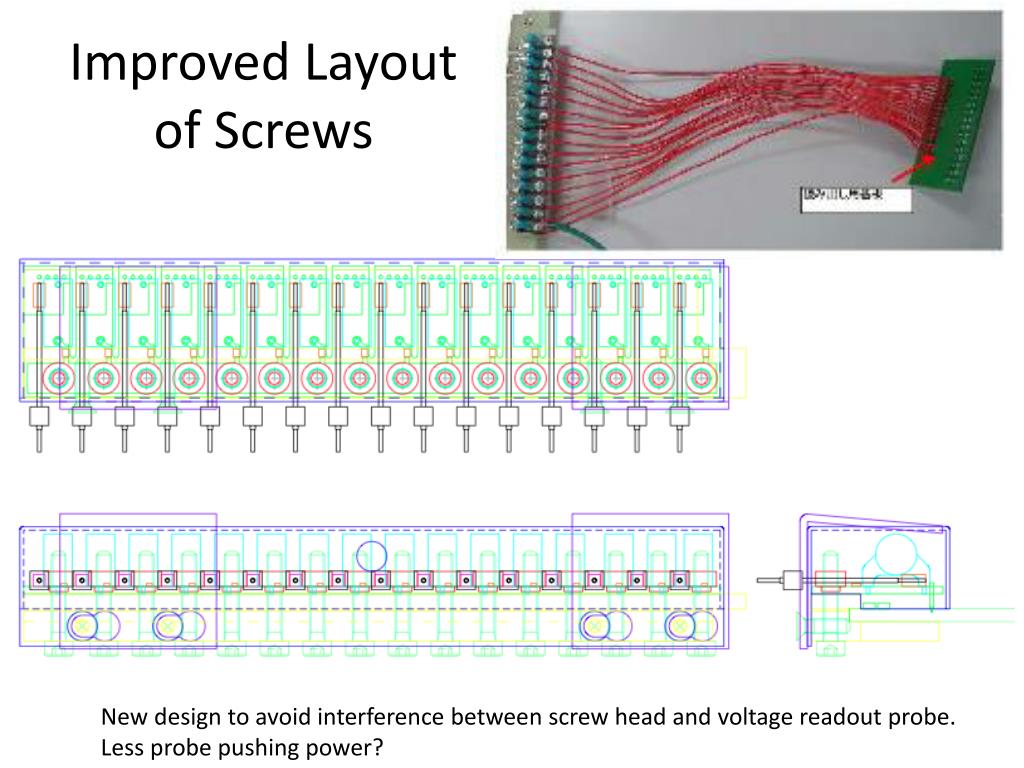

  4. Improved Layout of Screws New design to avoid interference between screw head and voltage readout probe. Less probe pushing power?

  5. Station-1 Recap Work 2011 Shutdown
