  1. Monitoring and Management of Ventilatory Support

  2. Educational Objectives • List the reasons for monitoring the patient receiving ventilatory support • List and describe the methods of evaluating patient oxygenation • List and describe the methods of evaluating patient ventilation • List and describe the ventilator parameters monitored • List the normal hemodynamic values • Describe the effects that mechanical ventilation may have upon the hemodynamic parameters

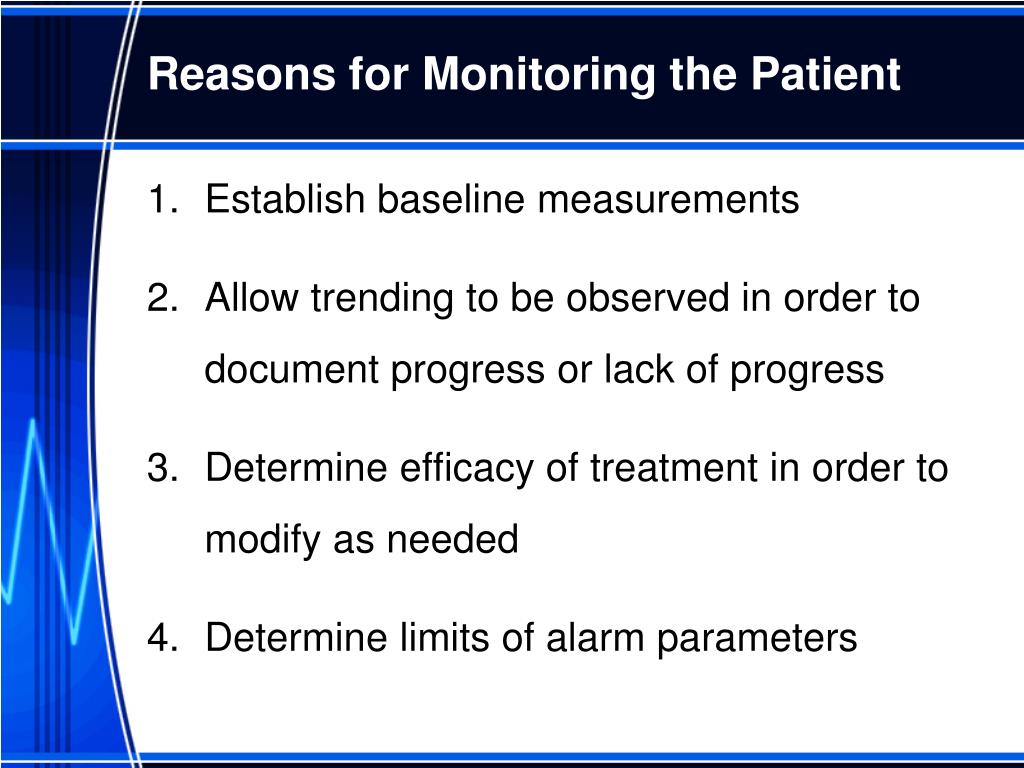

  3. Reasons for Monitoring the Patient • Establish baseline measurements • Allow trending to be observed in order to document progress or lack of progress • Determine efficacy of treatment in order to modify as needed • Determine limits of alarm parameters

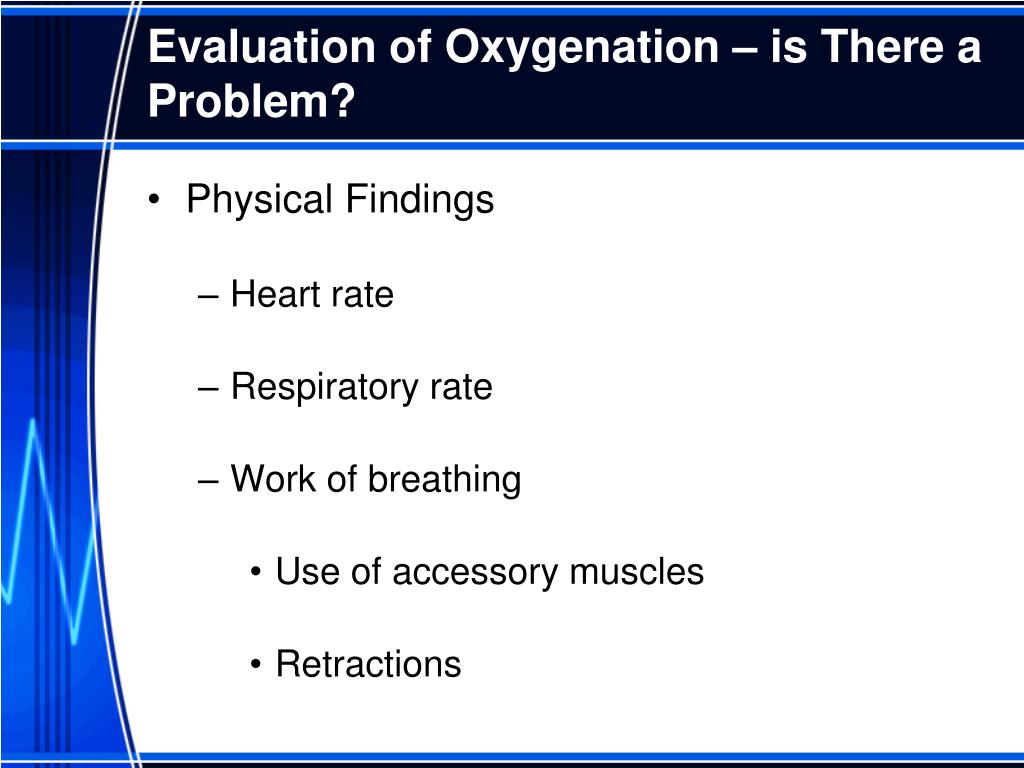

  4. Evaluation of Oxygenation – is There a Problem? • Physical Findings • Heart rate • Respiratory rate • Work of breathing • Use of accessory muscles • Retractions

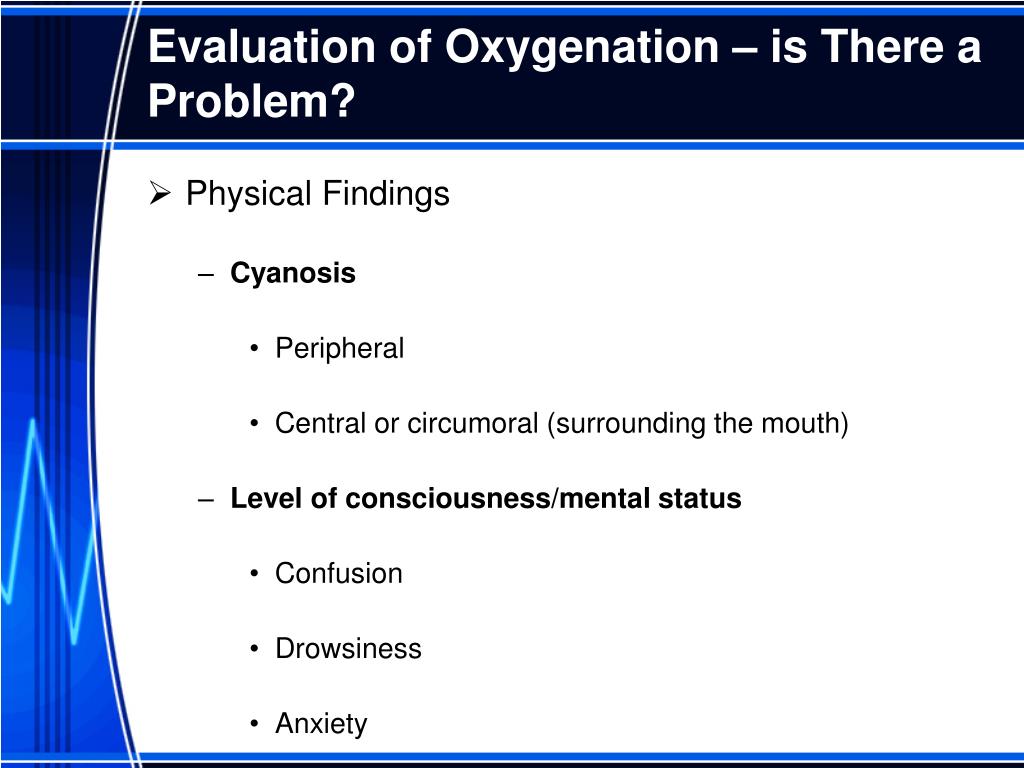

  5. Evaluation of Oxygenation – is There a Problem? • Physical Findings • Cyanosis • Peripheral • Central or circumoral (surrounding the mouth) • Level of consciousness/mental status • Confusion • Drowsiness • Anxiety

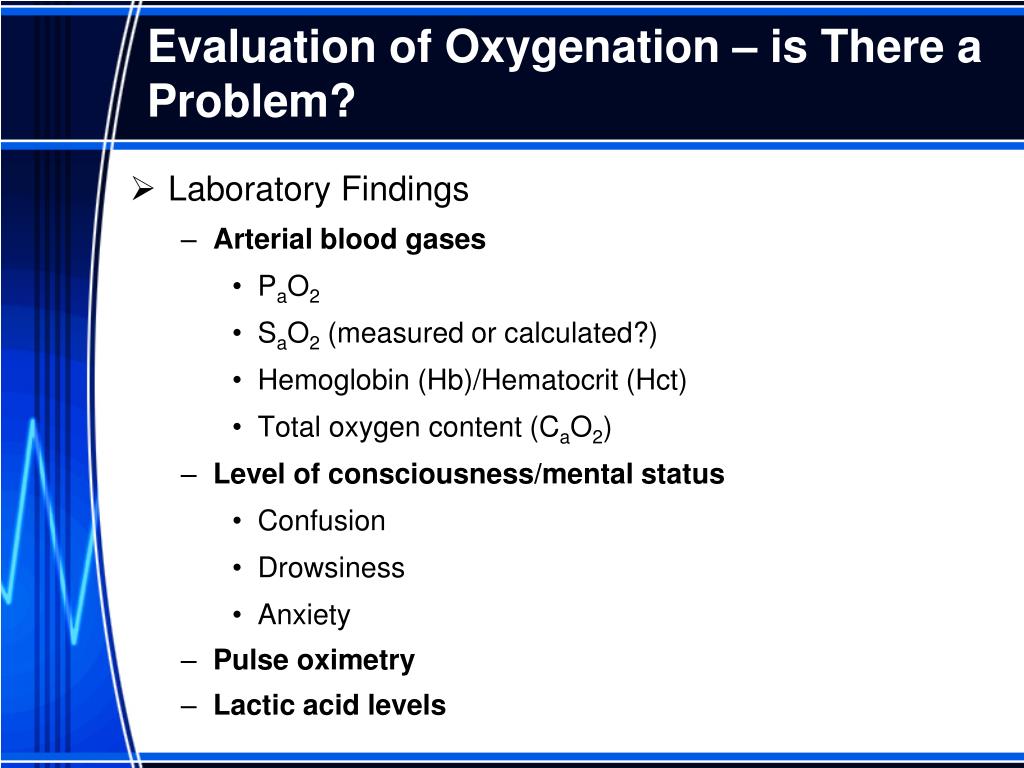

  6. Evaluation of Oxygenation – is There a Problem? • Laboratory Findings • Arterial blood gases • PaO2 • SaO2(measured or calculated?) • Hemoglobin (Hb)/Hematocrit (Hct) • Total oxygen content (CaO2) • Level of consciousness/mental status • Confusion • Drowsiness • Anxiety • Pulse oximetry • Lactic acid levels

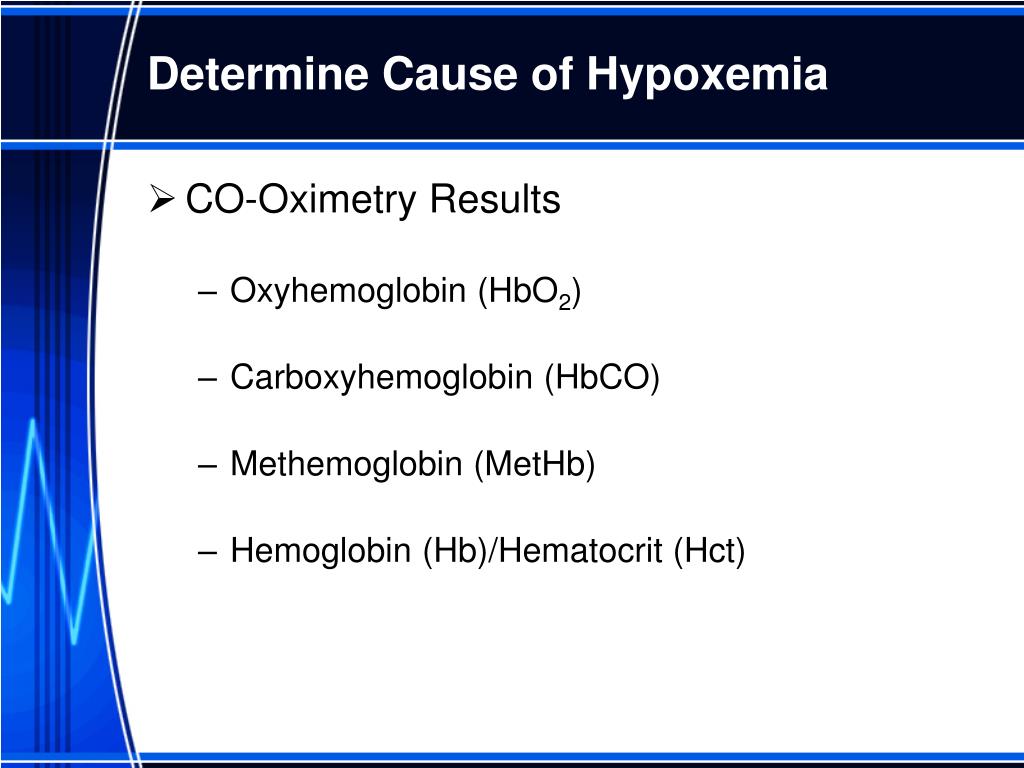

  7. Determine Cause of Hypoxemia • CO-Oximetry Results • Oxyhemoglobin (HbO2) • Carboxyhemoglobin (HbCO) • Methemoglobin (MetHb) • Hemoglobin (Hb)/Hematocrit (Hct)

  8. Determine Cause of Hypoxemia • Laboratory Findings • Oxygen consumption (O2) • Normal value – 250 mL/min • Determined by Fick Equation Where is cardiac output, CaO2 and are arterial and mixed venous O2content • Increase in oxygen consumption necessitates increase in oxygen delivered

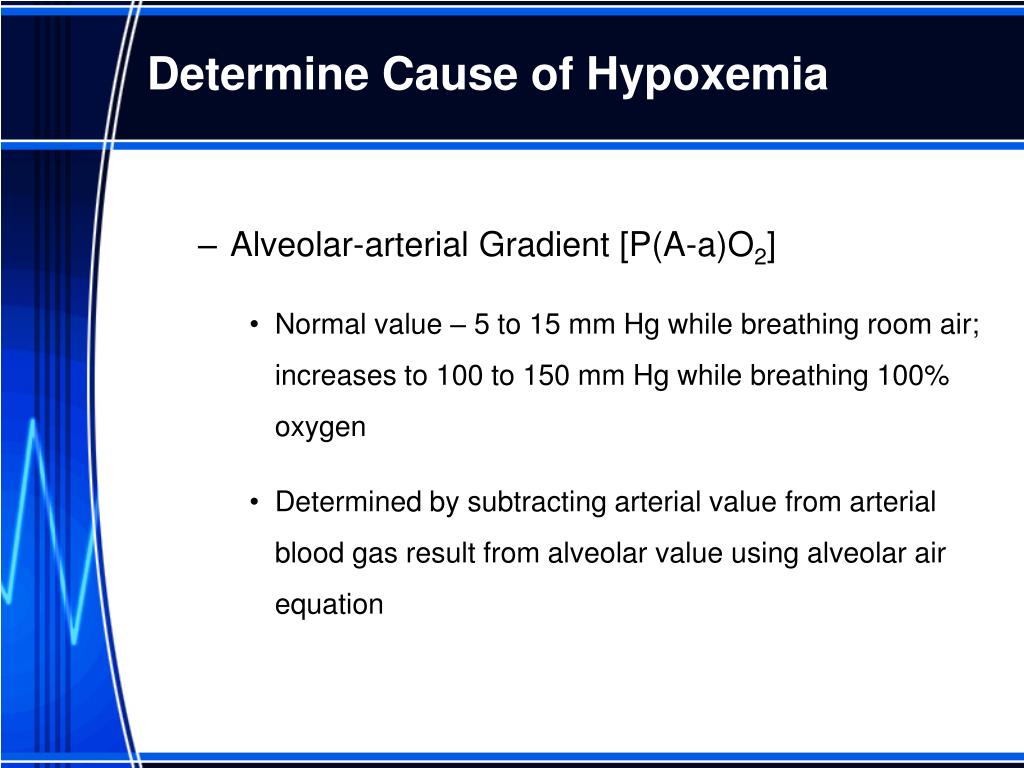

  9. Determine Cause of Hypoxemia • Alveolar-arterial Gradient [P(A-a)O2] • Normal value – 5 to 15 mm Hg while breathing room air; increases to 100 to 150 mm Hg while breathing 100% oxygen • Determined by subtracting arterial value from arterial blood gas result from alveolar value using alveolar air equation

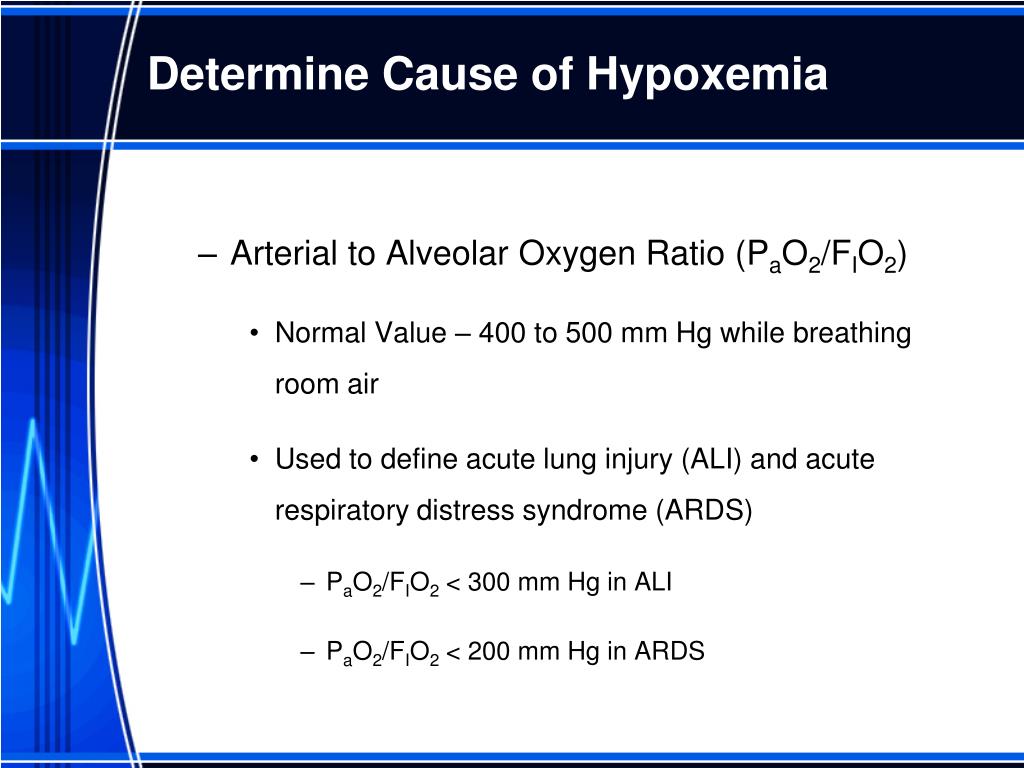

  10. Determine Cause of Hypoxemia • Arterial to Alveolar Oxygen Ratio (PaO2/FIO2) • Normal Value – 400 to 500 mm Hg while breathing room air • Used to define acute lung injury (ALI) and acute respiratory distress syndrome (ARDS) • PaO2/FIO2 < 300 mm Hg in ALI • PaO2/FIO2 < 200 mm Hg in ARDS

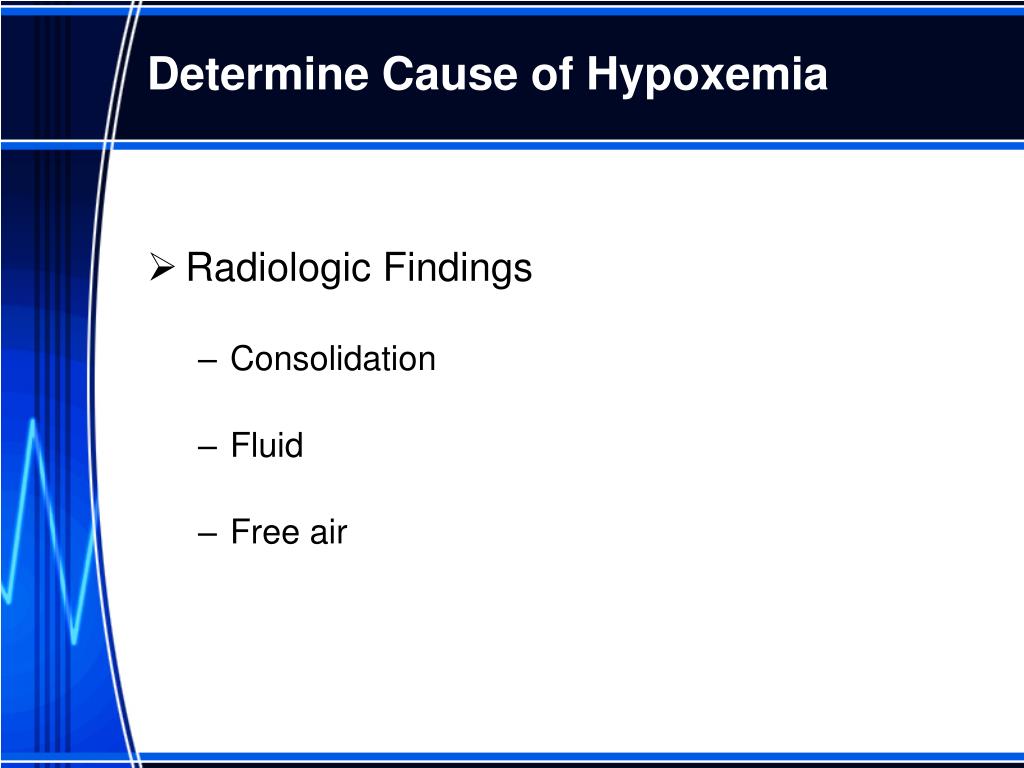

  11. Determine Cause of Hypoxemia • Radiologic Findings • Consolidation • Fluid • Free air

  12. Management Options – FIO2 • If FIO2 < 0.6, increase oxygen concentration; if no PEEP is employed, may add 5 cmH2O of PEEP first • If FIO2 > 0.6, consider reducing as soon as patient’s condition permits to avoid complications

  13. Management Options – FIO2 • Titration of Oxygen Level • If the patient’s oxygenation status is unknown or critical, always start ventilatory support with an FIO2of 1.0 • General goal – maintain PaO2between 60 and 80 mmHg or SpO2greater than 90% • Determination of desired PaO2 Desired PaO2= Desired FIO2 x Actual PaO2 FIO2 (Actual)

  14. Management Options – FIO2 • General guideline for reduction of FIO2 • Decrease in increments of 5 to 10% • Follow each reduction by drawing arterial blood gases or oximetry; allow at least fifteen minutes after the change for equilibration of blood

  15. Management Options – PEEP Positive End Expiratory Pressure (PEEP) Maintenance of baseline pressure above atmospheric level • Minimum PEEP • Least amount of PEEP necessary to achieve and maintain a PaO2 of at least 60 mmHg

  16. Management Options – PEEP • Optimal PEEP • The level of PEEP at which oxygen delivery is maximized while minimizing hemodynamic side effects • Generally only employed on patients requiring > 10 cm H2O

  17. Management Options – PEEP • Method for Determination of Optimal PEEP • Determine baseline values of blood pressure, mixed venous oxygen level, arteriovenous oxygen content difference, PaO2, static compliance, and cardiac output • Increase level of PEEP in increments of 2 cmH2O, measuring values at each increment • When a decline in oxygen delivery is observed, the optimal PEEP has been exceeded • Return PEEP level to previous increment

  18. Management Options – PEEP • General Guidelines for Reduction of PEEP • Decrease in increments of 2 cm H2O • Follow each reduction by drawing blood gases or oximetry; allow at least fifteen minutes after the change for equilibration of blood • Reduction of PEEP to zero prior to extubation may be neither necessary nor advantageous

  19. Management Options – Tidal Volume • Increasing Tidal Volume (VT) may be used for recruitment of alveoli if hypoventilation contributes to hypoxemia Normal Value – 6 to 12 mL/kg IBW

  20. Management Options – Inspiratory Time • Prolongation of inspiratory time to a point where inspiratory time exceeds expiratory time Normal I:E ratio – 1:1.5 to 1:2

  21. Management Options – Inspiratory Time • Principle of Use • Increase in inspiratory time (TI) causes increase in • Increase in aids in maintaining integrity of alveoli and recruiting atelectatic alveoli • Associated with improvement in • Associated with improvement of PaO2 in patients with ARDS

  22. Management Options – Bronchial Hygiene • Postural drainage • Percussion • Adequate humidification • Ambulation, sitting up, turning patient

  23. Management Options – Patient Positioning • Ambulation, sitting up helpful in improving oxygenation • Turning patient from side to side aids in bronchial hygiene

  24. Management Options – Patient Positioning • Prone Positioning • May result in dramatic improvement in oxygenation in patients with ARDS and ALI • Care must be taken to ensure tubes and lines are not displaced during turning • May improve and reduce shunting by removing pressure of the heart on the dorsal regions

  25. Evaluation of Ventilation – Physical Findings • Breathing Patterns • Apnea • Tachypnea • Bradypnea • Abnormal breathing patterns • Work of Breathing • Use of accessory muscles • Retractions

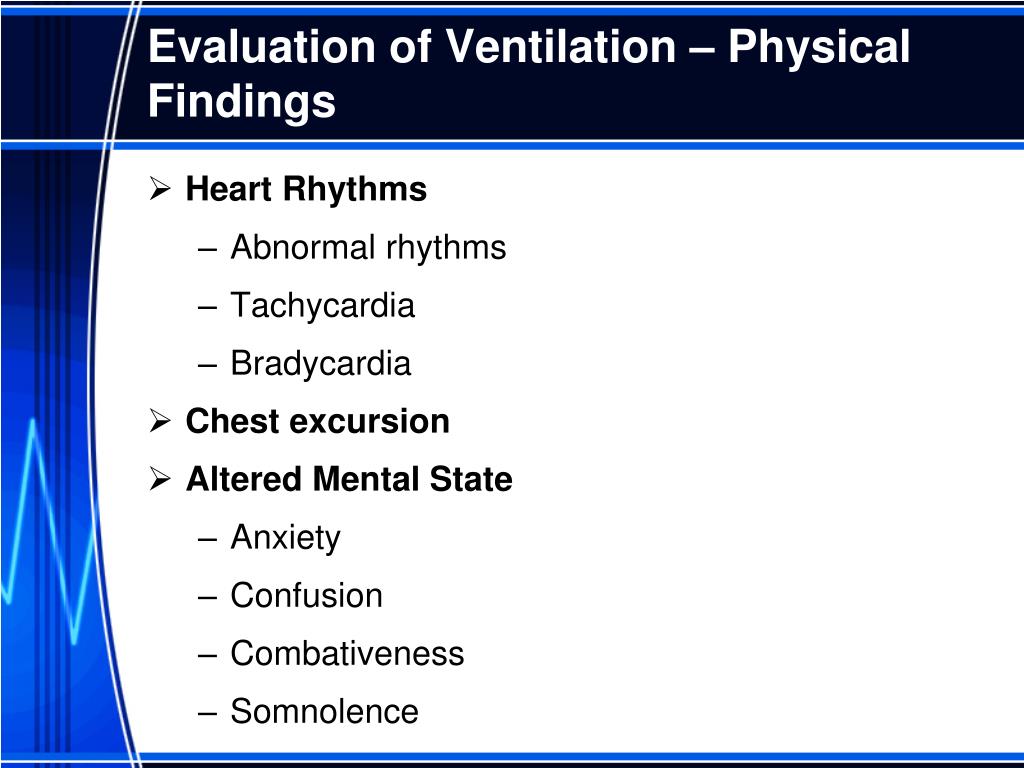

  26. Evaluation of Ventilation – Physical Findings • Heart Rhythms • Abnormal rhythms • Tachycardia • Bradycardia • Chest excursion • Altered Mental State • Anxiety • Confusion • Combativeness • Somnolence

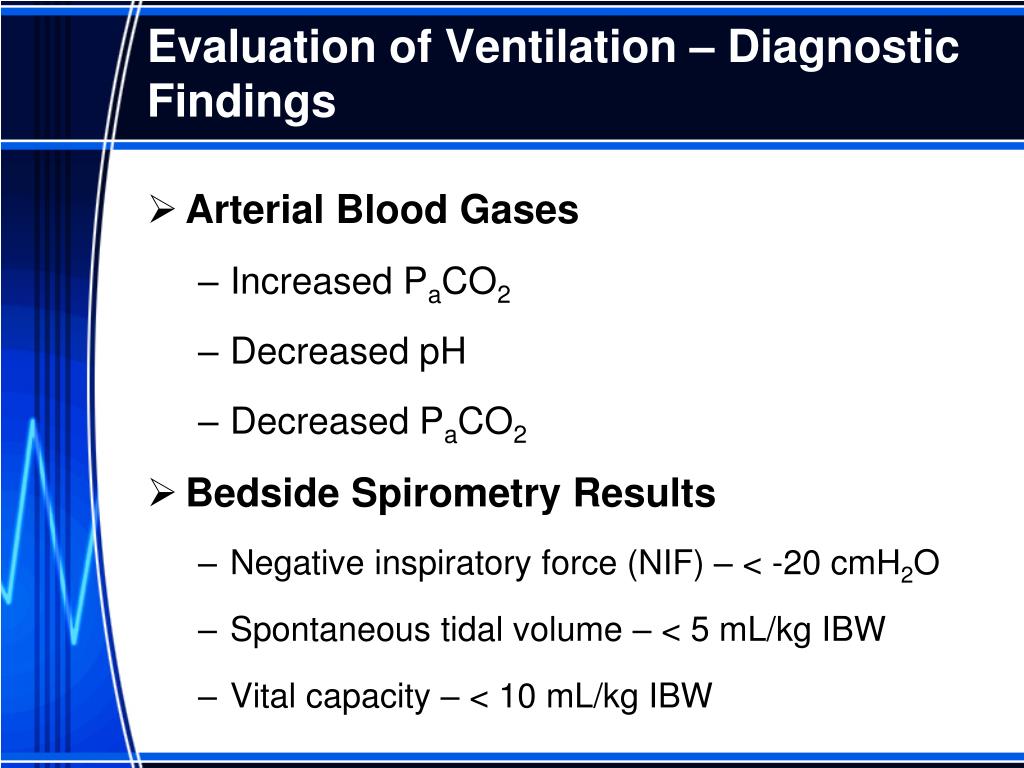

  27. Evaluation of Ventilation – Diagnostic Findings • Arterial Blood Gases • Increased PaCO2 • Decreased pH • Decreased PaCO2 • Bedside Spirometry Results • Negative inspiratory force (NIF) – < -20 cmH2O • Spontaneous tidal volume – < 5 mL/kg IBW • Vital capacity – < 10 mL/kg IBW

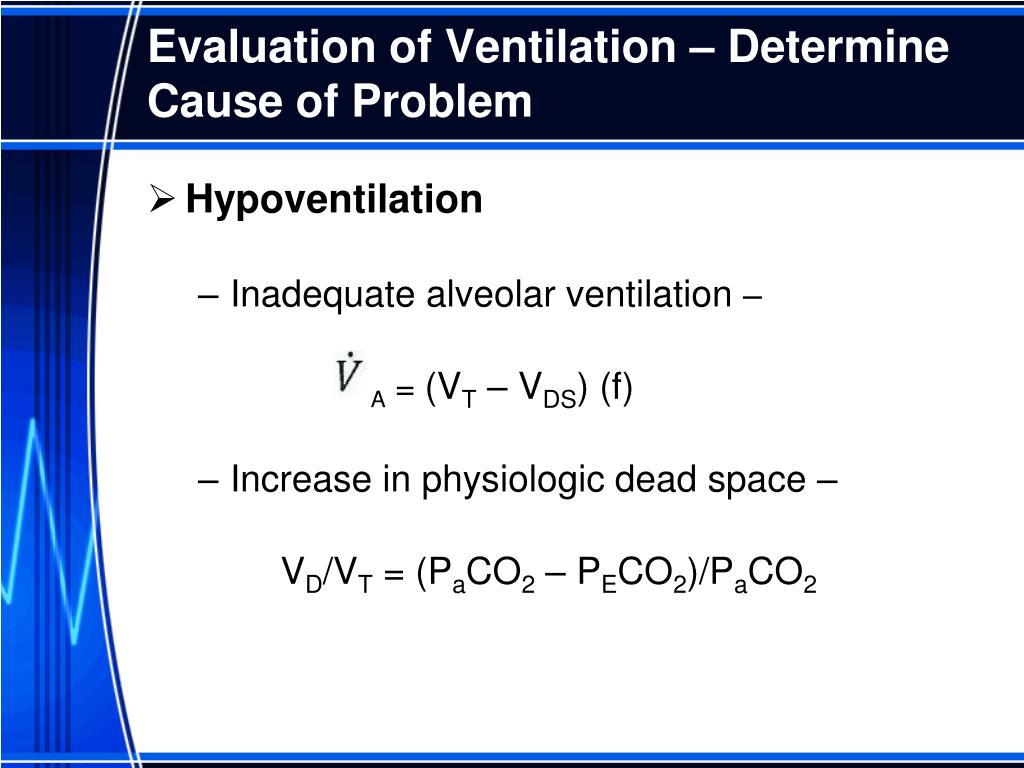

  28. Evaluation of Ventilation – Determine Cause of Problem • Hypoventilation • Inadequate alveolar ventilation – A = (VT – VDS) (f) • Increase in physiologic dead space – VD/VT= (PaCO2 – PECO2)/PaCO2

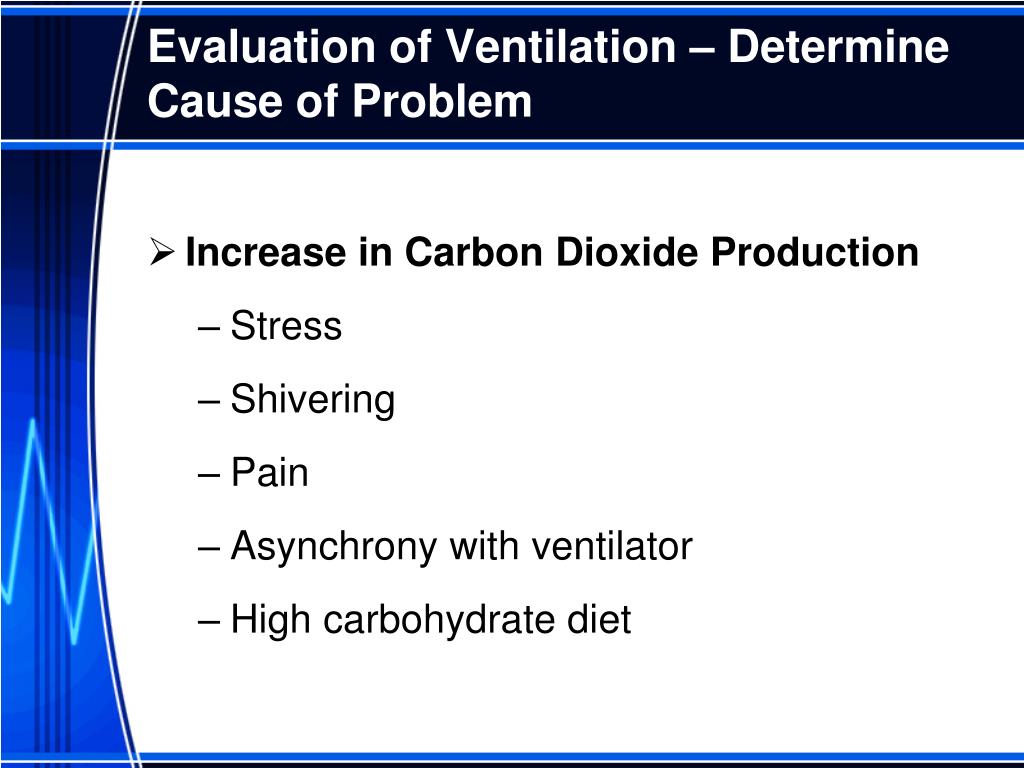

  29. Evaluation of Ventilation – Determine Cause of Problem • Increase in Carbon Dioxide Production • Stress • Shivering • Pain • Asynchrony with ventilator • High carbohydrate diet

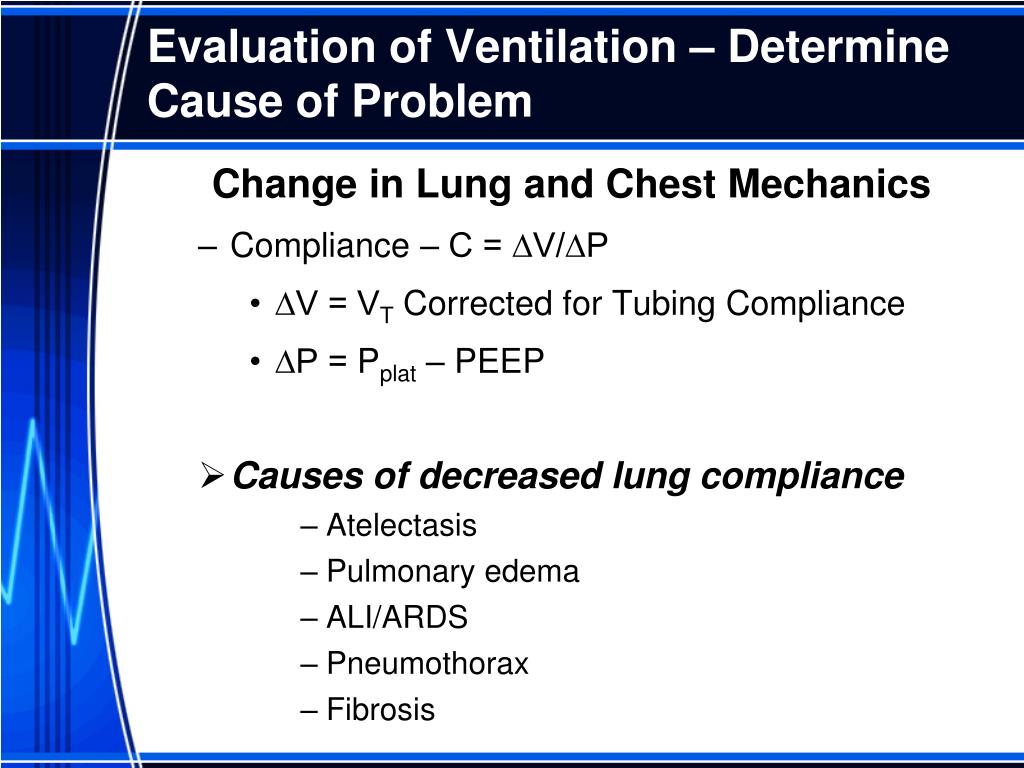

  30. Evaluation of Ventilation – Determine Cause of Problem Change in Lung and Chest Mechanics • Compliance – C = ∆V/∆P • ∆V = VT Corrected for Tubing Compliance • ∆P = Pplat – PEEP • Causes of decreased lung compliance • Atelectasis • Pulmonary edema • ALI/ARDS • Pneumothorax • Fibrosis

  31. Evaluation of Ventilation – Determine Cause of Problem • Causes of decreased thoracic compliance • Obesity • Pleural effusion • Ascites • Chest wall deformity • Pregnancy

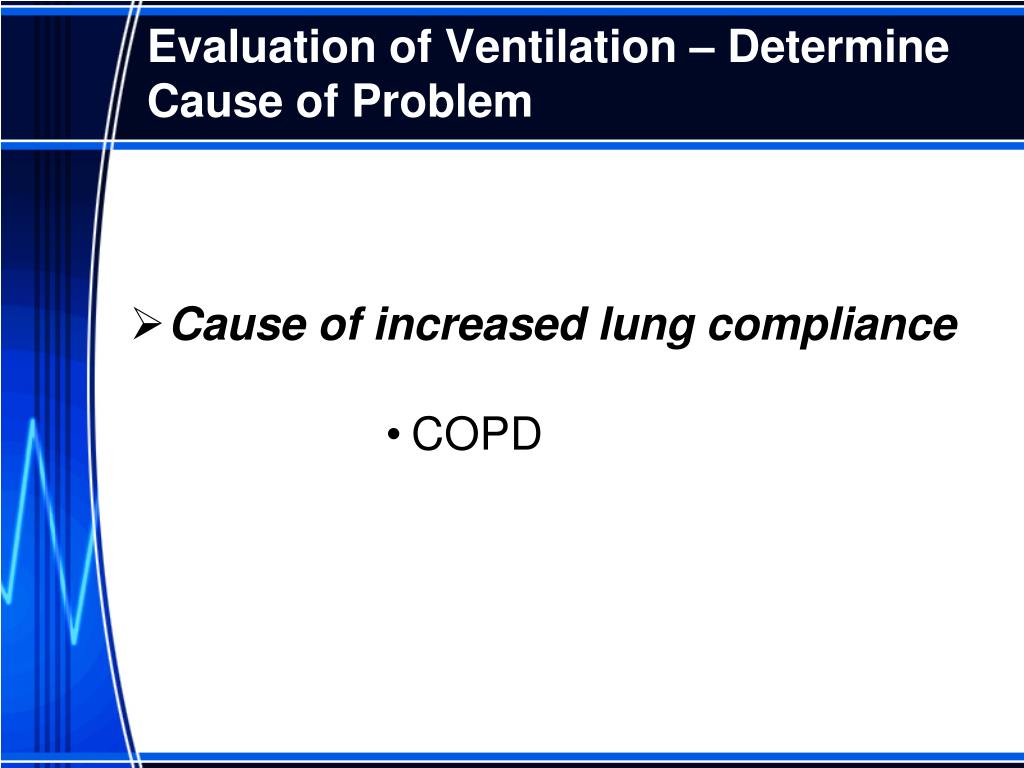

  32. Evaluation of Ventilation – Determine Cause of Problem • Cause of increased lung compliance • COPD

  33. Evaluation of Ventilation – Determine Cause of Problem • Causes of increased thoracic compliance • Flail chest • Loss of chest wall integrity • Change in patient position

  34. Evaluation of Ventilation – Determine Cause of Problem • Change in Lung and Chest Mechanics • Airway Resistance – RAW = ∆P/∆ • ∆P = (Ppeak – Pplat) • ∆ = flow

  35. Evaluation of Ventilation – Determine Cause of Problem • Causes of increased resistance • Bronchospasm • Mucosal edema • Secretions • Excessively high rate of gas flow • Small endotracheal tube • Obstruction of endotracheal tube • Obstruction of the airway

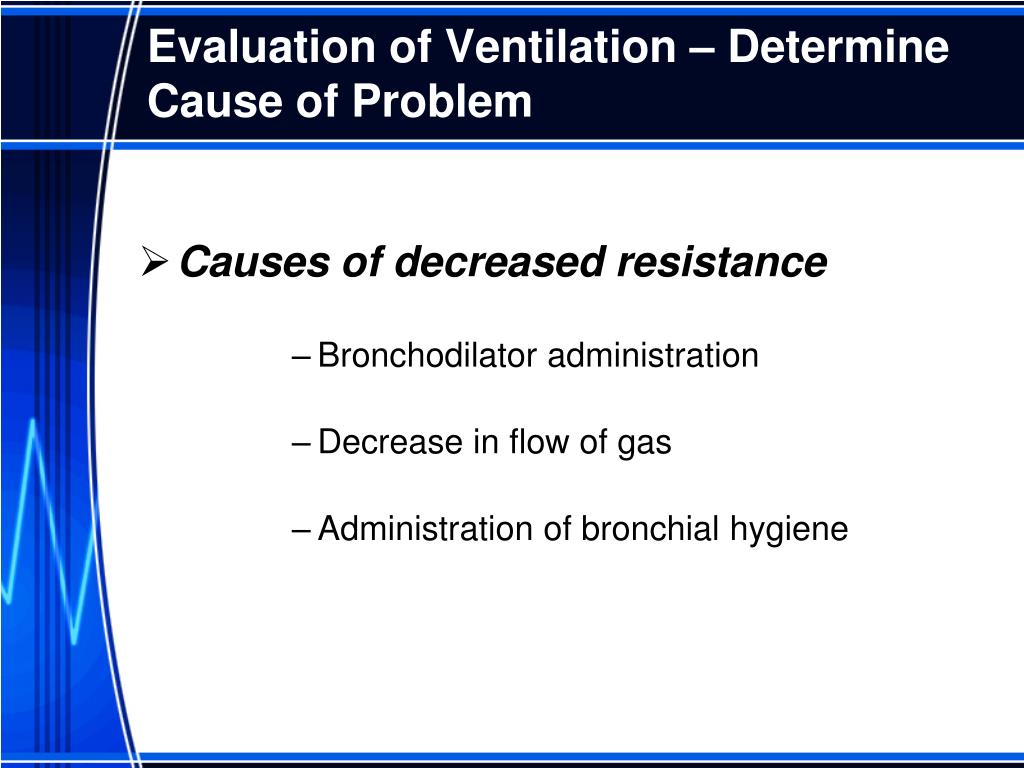

  36. Evaluation of Ventilation – Determine Cause of Problem • Causes of decreased resistance • Bronchodilator administration • Decrease in flow of gas • Administration of bronchial hygiene

  37. Evaluation of Ventilation – Determine Cause of Problem • Loss of Muscle Strength/Neurological Input • Rapid Shallow Breathing Index (RSBI) • Indication of whether patients have the ability to breathe without ventilatory support

  38. Evaluation of Ventilation – Determine Cause of Problem • Loss of Muscle Strength/Neurological Input • Rapid Shallow Breathing Index (RSBI) • f/VT • If < 100 breaths/min/L, patient has ability to breathe without ventilator • If > 100 breaths/min/L, patient will likely not be able to sustain spontaneous breathing • Maximal inspiratory pressure • Maximum voluntary ventilation

  39. Evaluation of Ventilation – Management Options • Increase Alveolar Ventilation • Increase in Mechanical Tidal Volume • Normal Volume – 6 to 12 mL/kg IBW • Most direct way to change alveolar ventilation • Should normally not exceed 12 to 15 mL/kg IBW • Associated with increase in peak inspiratory pressure which has increased risk of trauma to lung

  40. Evaluation of Ventilation – Management Options • Increase in spontaneous ventilation • More advantageous to patient than increasing mechanical tidal volume • Augmentation by pressure support mode helps overcome resistance of ventilator circuit and artificial airway

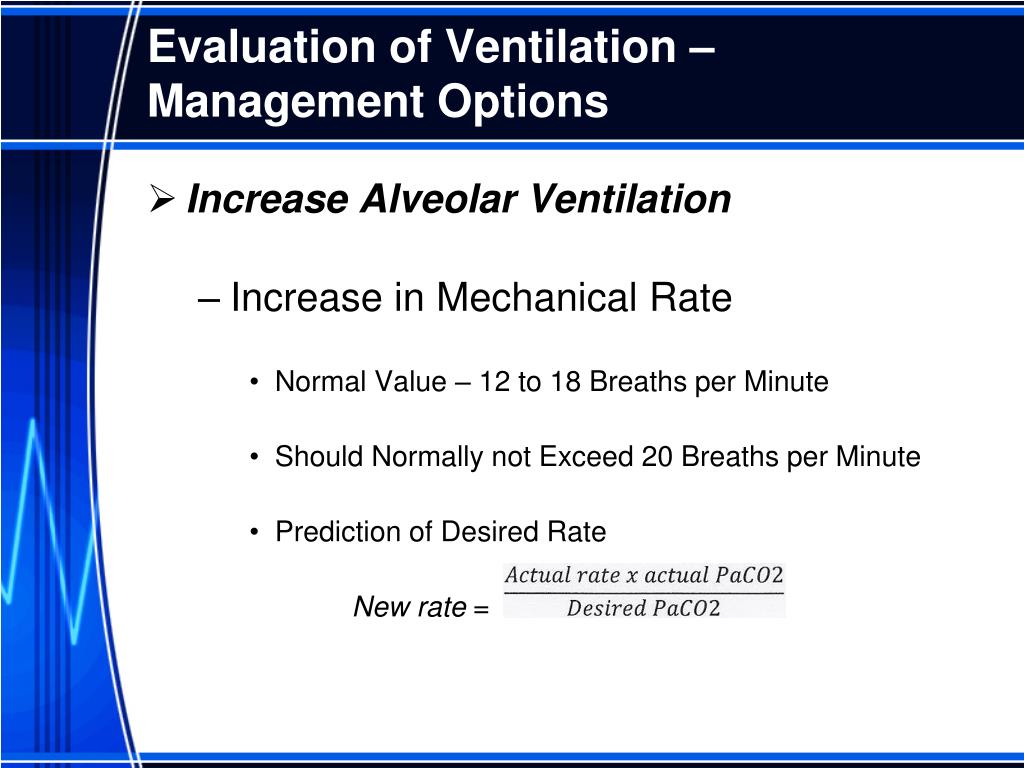

  41. Evaluation of Ventilation – Management Options • Increase Alveolar Ventilation • Increase in Mechanical Rate • Normal Value – 12 to 18 Breaths per Minute • Should Normally not Exceed 20 Breaths per Minute • Prediction of Desired Rate New rate =

  42. Evaluation of Ventilation – Management Options • Decrease Carbon Dioxide Output (Production) • Medicate patient to relieve pain, stress, and prevent asynchrony, decreasing work of breathing • Maintain patient’s temperature within normal range • Provide appropriate nutrition

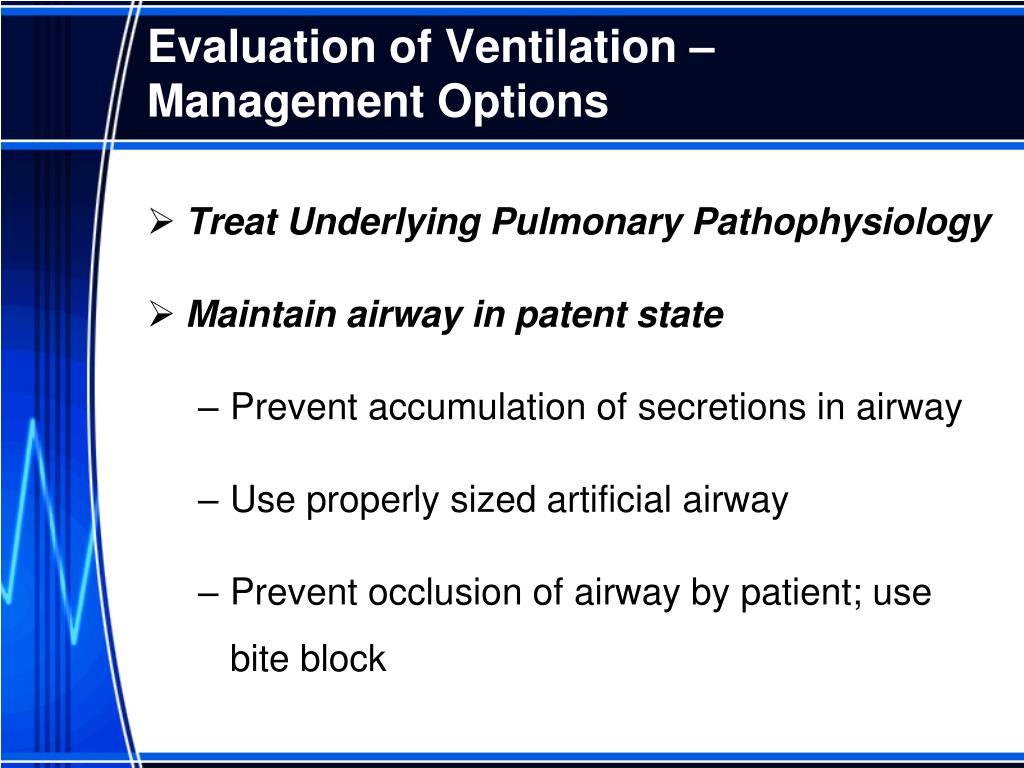

  43. Evaluation of Ventilation – Management Options • Treat Underlying Pulmonary Pathophysiology • Maintain airway in patent state • Prevent accumulation of secretions in airway • Use properly sized artificial airway • Prevent occlusion of airway by patient; use bite block

  44. Considerations in Management – Permissive Hypercapnea • Allowing PaCO2level to remain elevated above 45 mmHg • Purpose • Maintain plateau pressure at an acceptable level (< 30 cm H2O) by decreasing tidal volume to less than 6 mL/kg and increasing respiratory rate, thereby minimizing trauma and cardiovascular side effects

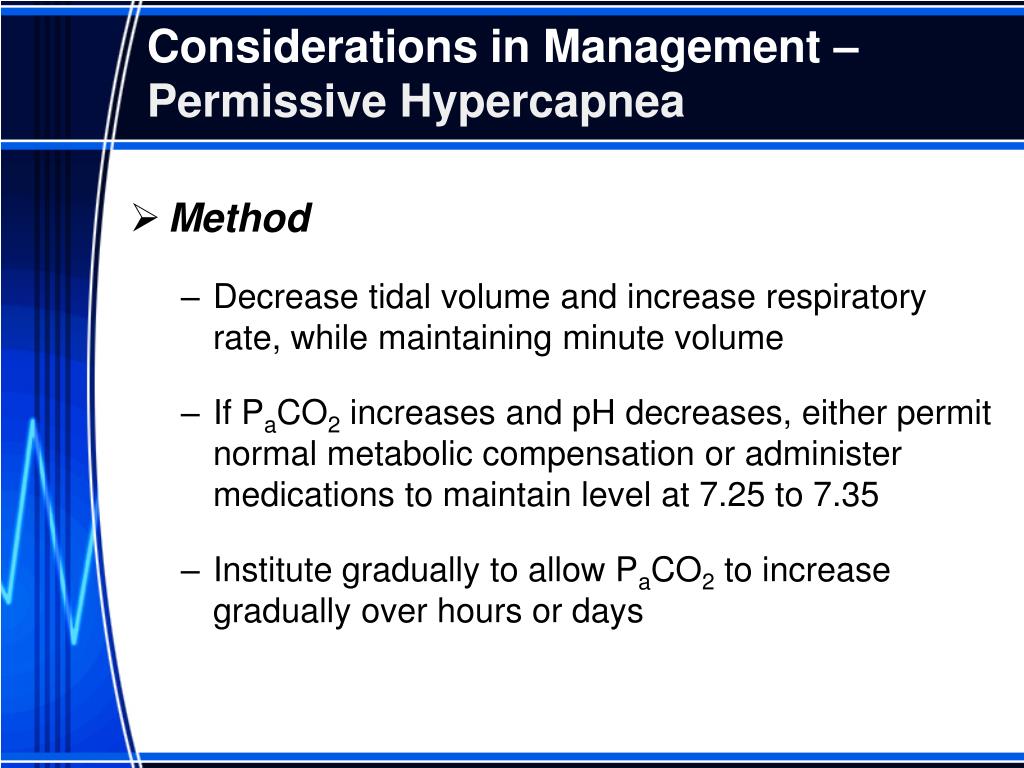

  45. Considerations in Management – Permissive Hypercapnea • Method • Decrease tidal volume and increase respiratory rate, while maintaining minute volume • If PaCO2increases and pH decreases, either permit normal metabolic compensation or administer medications to maintain level at 7.25 to 7.35 • Institute gradually to allow PaCO2 to increase gradually over hours or days

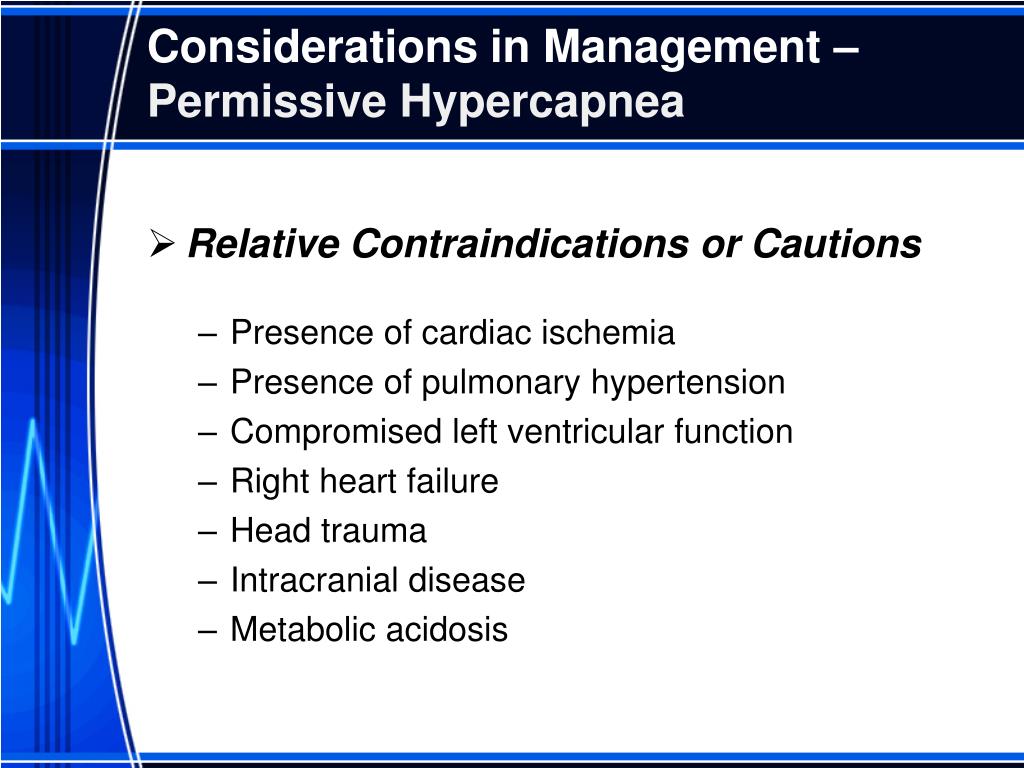

  46. Considerations in Management – Permissive Hypercapnea • Relative Contraindications or Cautions • Presence of cardiac ischemia • Presence of pulmonary hypertension • Compromised left ventricular function • Right heart failure • Head trauma • Intracranial disease • Metabolic acidosis

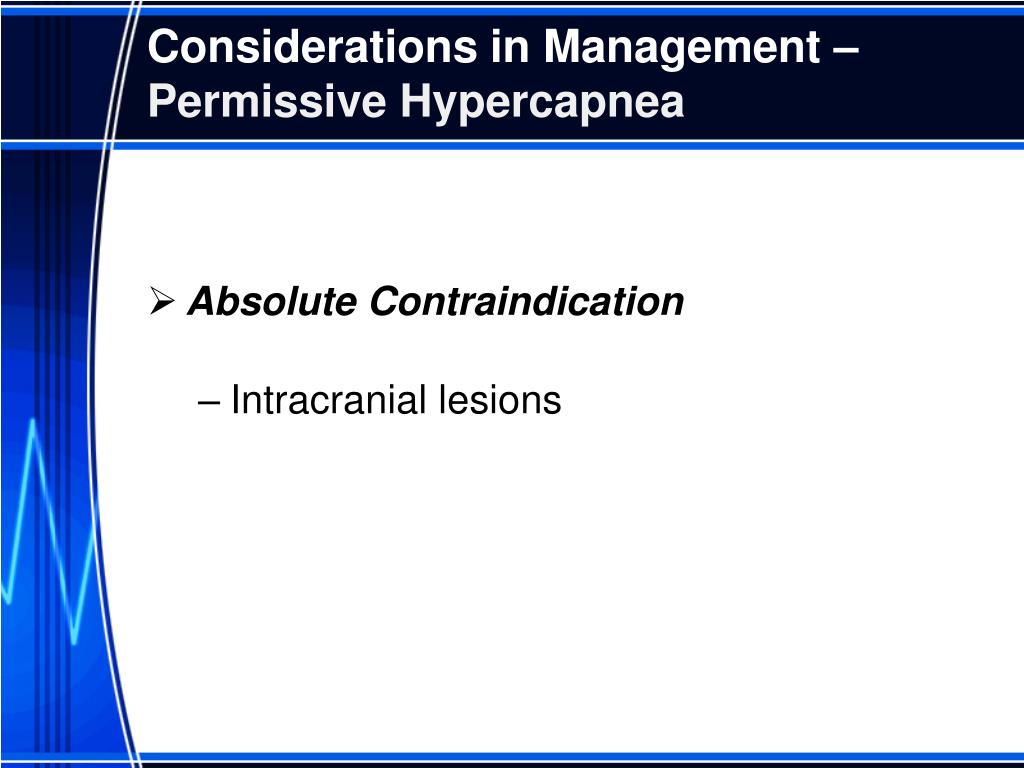

  47. Considerations in Management – Permissive Hypercapnea • Absolute Contraindication • Intracranial lesions

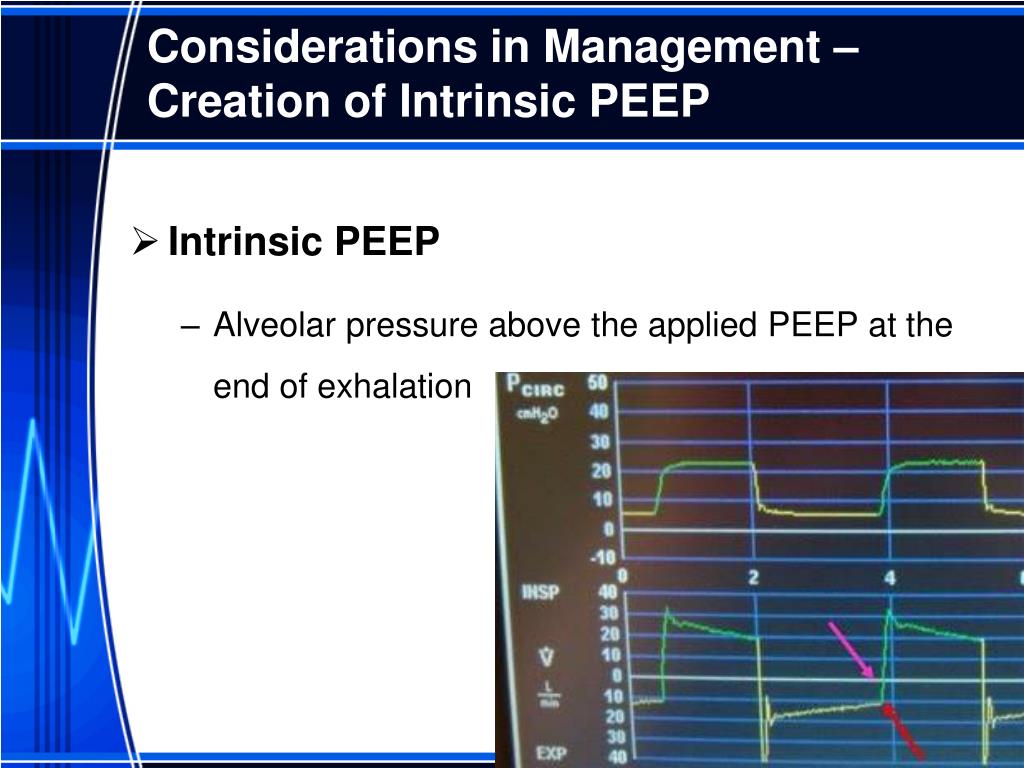

  48. Considerations in Management – Creation of Intrinsic PEEP • Intrinsic PEEP • Alveolar pressure above the applied PEEP at the end of exhalation

  49. Considerations in Management – Creation of Intrinsic PEEP • Contributing factors • Pressure support ventilation • Airway obstruction • Rapid respiratory rate • Insufficient flow rate • Relatively equal I:E ratio • High minute volume • History of air trapping

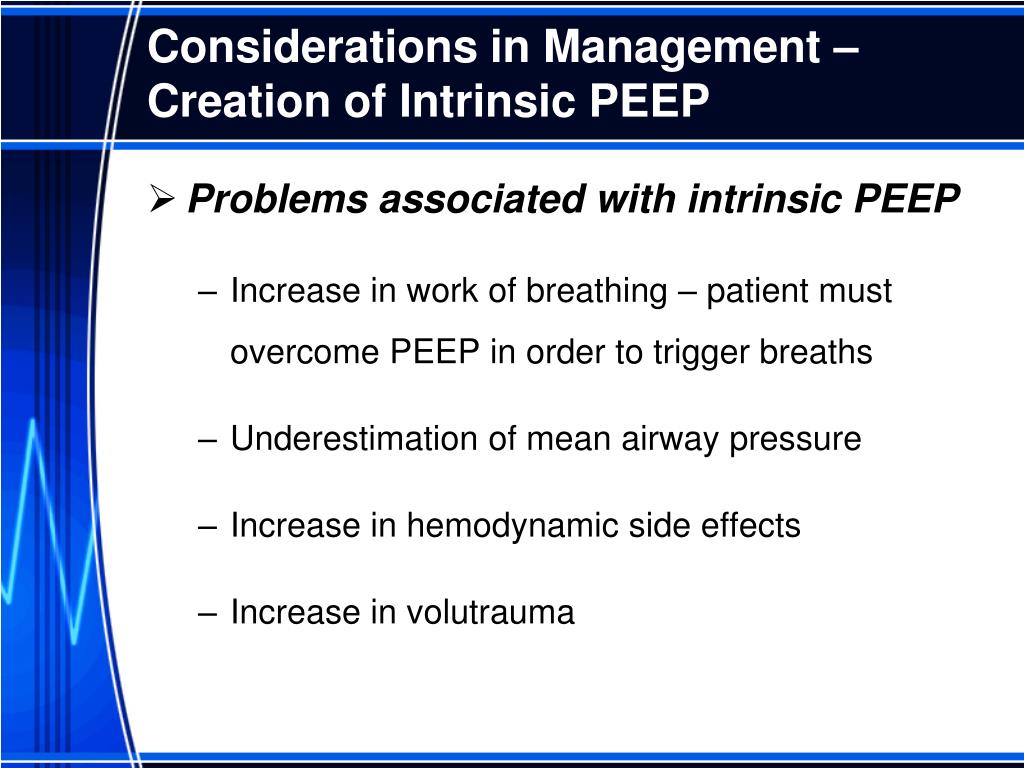

  50. Considerations in Management – Creation of Intrinsic PEEP • Problems associated with intrinsic PEEP • Increase in work of breathing – patient must overcome PEEP in order to trigger breaths • Underestimation of mean airway pressure • Increase in hemodynamic side effects • Increase in volutrauma
